Sheet 05.565

PR Lighting · Spot and profileOn request

AQUA LED 1500 Spot

ModelPR-8178A

Net weight: 54Kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 22 groups · 40 values

What this product is, in numbers.

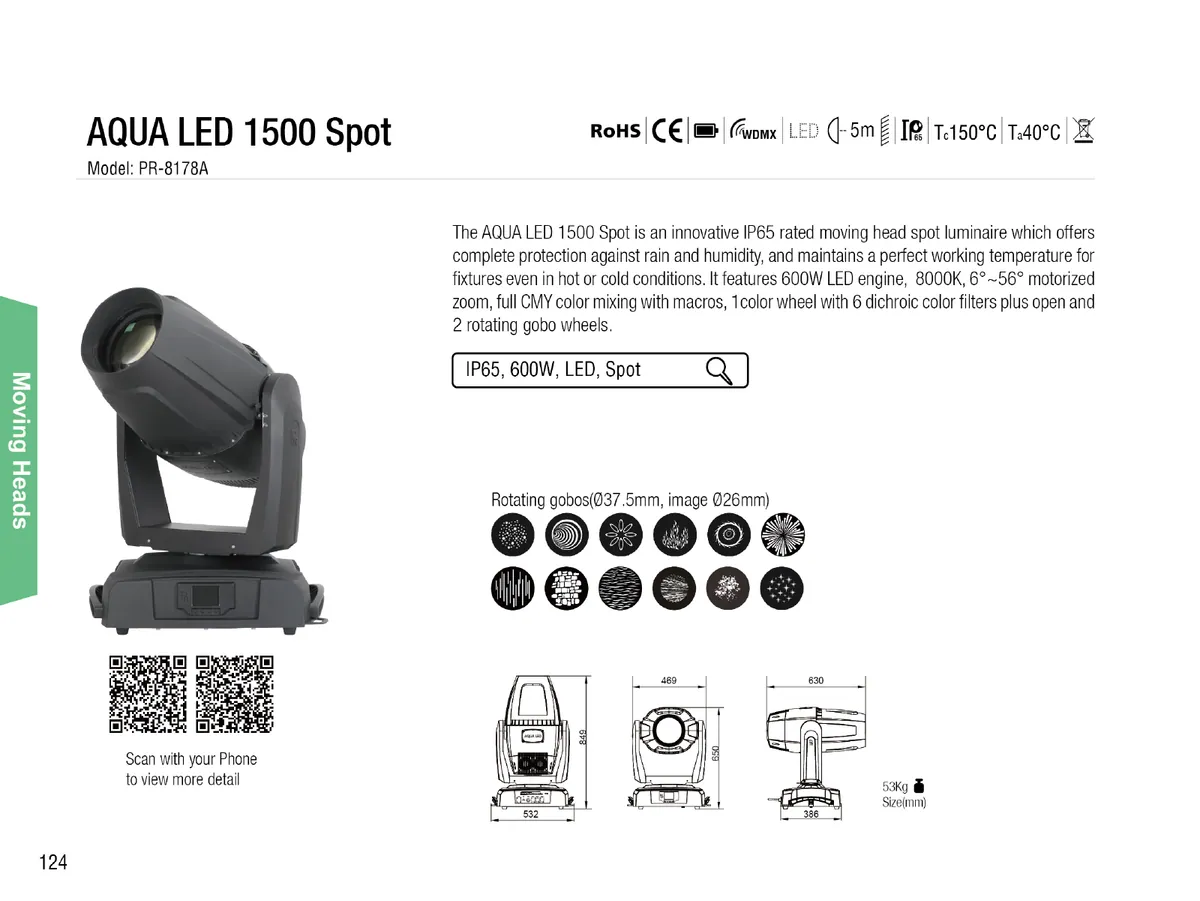

PDFDatasheetEN · 2 pages · 2.2 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Input Voltages1

90-240V AC, 50/60Hz

02Power Consumption1

870W@230V, 900W@100V

03Light Source1

600W (8,000K, 20,000 hrs), Ra≥70

04Strobe1

Electronic strobe 0.3-25 F.P.S with macros

05Dimmer1

Electronic dimmer 0-100% linearly adjustable

06CTO1

0-100% linear CTO

Show the full specificationHide the rest of the specification16 more groups · 34 values

07Prism1

One 4-facet prism, bi-directionally rotatable at variable speed

08Frost1

One frost filter, linear frost effect

09Effect1

1 Exchangeable graphic effect wheel, bi-directional rotation with variable speeds

10Iris1

5-100% linearly adjusted with macros

11Focus1

Motorized linear focus

12Head Movement1

Pan 540°, tilt 270° with auto position correction

13Light Angle1

6°~56°

14Control5

International DMX512, 5 pins(optional 3 pins) interface

Short mode 27 channels, standard mode 31 channels and 38 channels in extended mode

RDM protocol

Art-Net protocol

Master/slave mode, stand-alone mode, self-test mode

15Other Functions6

Adjustable pan & tilt speed

LCD display screen

Fixture and lamp usage time display

Modular structure for easy maintenance

DMX512 wireless receiver

DMX512 wireless transmitter(optional)

16Physical2

Housing: cast aluminum and high temperature UV resistant ABS, IP65
Ambient temperature: maximum 40°C

17Weight1

Net weight: 54Kg

18Packaging2

Standard: carton 855x655x815(mm)
Optional: flight case 695x535x870(mm)

19Accessories5

G clamp, 2 pcs; 5 Pins XLR connector, 1 set; Safety cord, 1 pc; Power cord, 1 pc
Optional: Ω clamp, 2 pcs

20CMY1

CMY linear color mixing with macros

21Color Wheel3

1 Color wheel: 6 color filters plus open; Half color effect and variable speed rainbow effect; Stepping/linear color changing

22Rotating Gobo2

2 Rotating gobo wheels: each with 6 replaceable gobos plus open, glass or metal gobos can be fixed; Bi-directionally rotatable and wheel scrolling at variable speed, shakable at variable speeds

02DescriptionManufacturer's description

What it is.

The AQUA LED 1500 Spot is an innovative IP65 rated moving head spot luminaire which offers complete protection against rain and humidity, and maintains a perfect working temperature for fixtures even in hot or cold conditions. It features 600W LED engine, 8000K, 6°~56° motorized zoom, full CMY color mixing with macros, 1color wheel with 6 dichroic color filters plus open and 2 rotating gobo wheels.
