Sheet 05.810

Color Imagination · Effects and lasers

STROBE 400IP

ModelS400

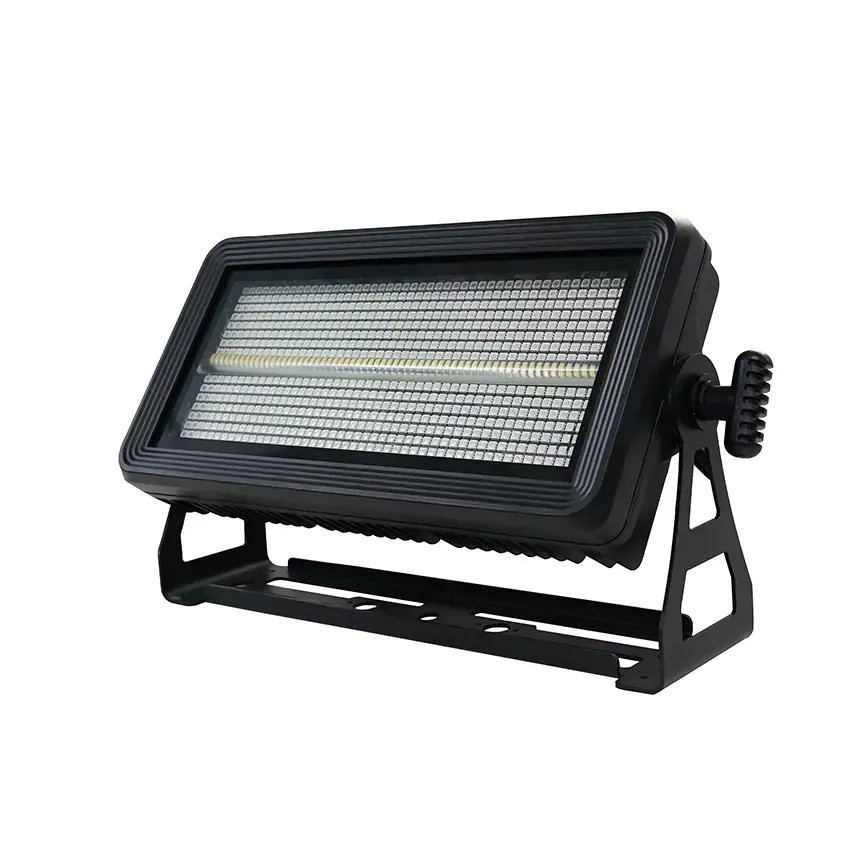

The STROBE 400IP is an ultra high power IP65 rated strobe light basing on LED technology. It features 126*3W Cool-White 6500K LEDs in 36 segments, plus 504*0.6W RGB 3in1 LEDs.

Light source: 126*3W Cool-White 6500K LEDs, 36 segments
Power consumption: 400W Power consumption(full)/1300W (when doing strobe)
Power supply: AC100-240V 50/60Hz
Ingress protection: IP65 protection rating
Net weight: 13.8kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 17 groups · 52 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light Source4

126*3W Cool-White 6500K LEDs, 36 segments; 504*0.6W 3-in-1 RGB LEDs
Life Span: 50000H
The life span may vary depending on several following factors but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)

02Optics1

120°Projection angle

03Colors3

6500K cold white

Sophisticated 3 colors RGB mixed

Even and soft light coverage with pure mixing

04Effect3

Built-in pre-programmed effects (59 kinds)

Built-in pre-programmed shapes (60 kinds)

Built-in pre-programmed dynamic color macros with variable speed (15 kinds)

05Dimming2

0-100% Smooth linear LED dimming

Background colors with 0-100% dimming

06Strobe Effect1

0-25Hz shutter/strobe effects at variable speed

Show the full specificationHide the rest of the specification11 more groups · 38 values

07Control System6

12/45/117 DMX channels USITT DMX-512

RDM available (Remote Device Management)

DMX512, master-slave, sound or auto operation

DMX recorder and edit function integrated

Shielded input signal protection for stable signal without interference

IP65 3-Pin XLR DMX cables IN/OUT

08Display System4

4-Digit LED display

4 Control buttons

180°Reversible for LCD display

Display auto OFF

09Cooling System3

Advanced cooling system integrated aluminum and copper with liquid

Temperature controlled, overheating protection

(output decreased when over heat)

10Power Supply4

Electronic power supply with PFC

AC100-240V 50/60Hz

IP65 Power cables In/Out

400W Power consumption(full)/1300W (when doing strobe)

11Housing3

Skeleton made of die-cast aluminum and steel metal plates; 1 Hanging bracket
Exterior finish: Black

12Mounting Options1

Safety wire attachment: foldout eyelets

13Operating Condition3

Operating positions: all (device on floor or fixed to a support); -25°C to 45°C ambient temperature; IP65 protection rating

14Compliance4

2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)

2014/30/EU – Electromagnetic Compatibility (EMC)

2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)

15Weight2

N.W.: 13.8kg
G.W.: 15.5kg

16Dimensions2

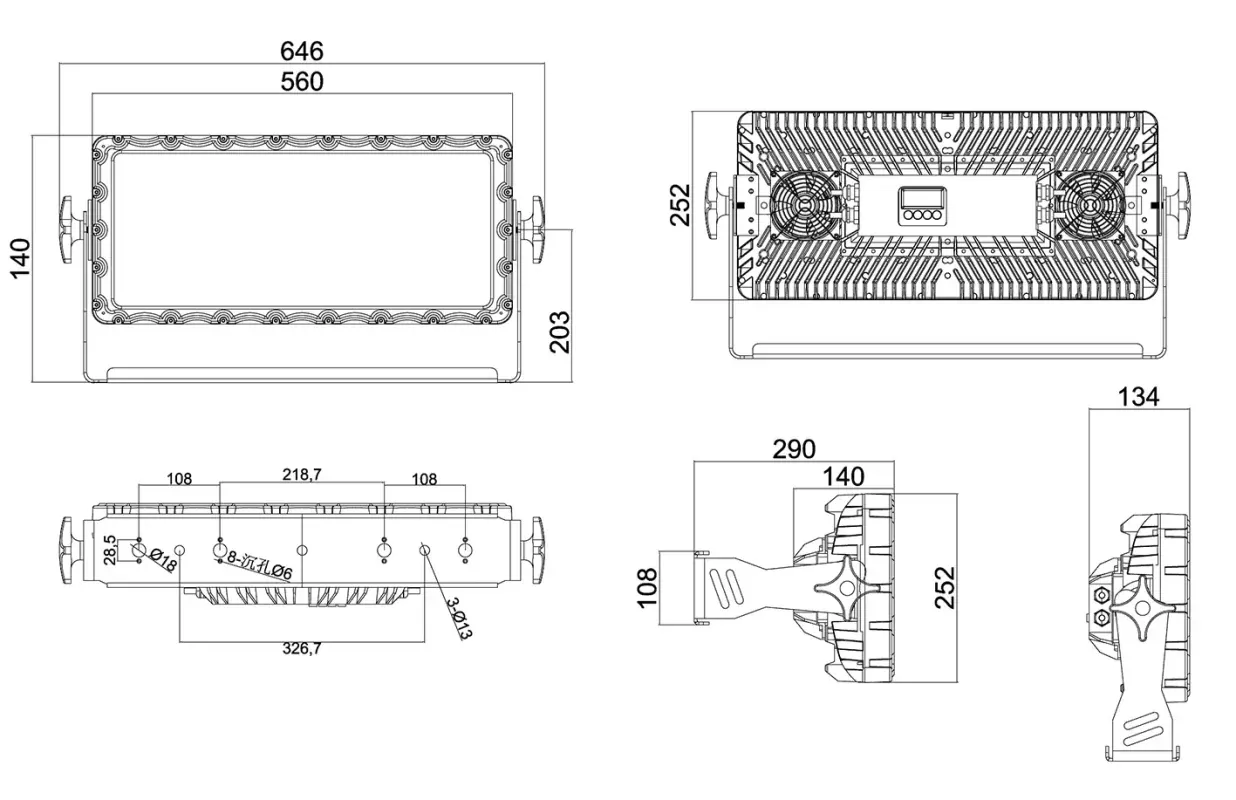

Product Dimensions: 127(D)*640(W)*252(H)mm
Packing Dimensions: 400(D)*790(W)*250(H)mm

17Accessories6

Power Cable STANDARD code: QTY: 1PCS

Signal Cable STANDARD code: QTY: 1PCS

Omega STANDARD code: QTY: 2PCS

Safety Cable STANDARD code: QTY: 1PCS

Road Case OPTIONAL code: Available for 2-in-1,4-in-1, 6-in-1 versions

Clamps OPTIONAL code: QTY: 2PCS

02DescriptionManufacturer's description

What it is.

STROBE 400IP

The STROBE 400IP is an ultra high power IP65 rated strobe light basing on LED technology. It features 126*3W Cool-White 6500K LEDs in 36 segments, plus 504*0.6W RGB 3in1 LEDs. All these segments can be individually controllable for various color changing effects, strobe effects, and macro effects, to meet with diversified entertainment functions.

The fixture brings high brightness, wide-angle light strobe, and perfect light distribution. Esp. high speed and strong shutter/strobe effects, it offers the users more dynamic effects than conventional discharge strobe systems.

The molded housing is designed compact and stylish. Rated IP65, it’s applicable for most outdoor applications, music festivals, live concerts, road shows, etc.
