Sheet 05.811

Color Imagination · Effects and lasers

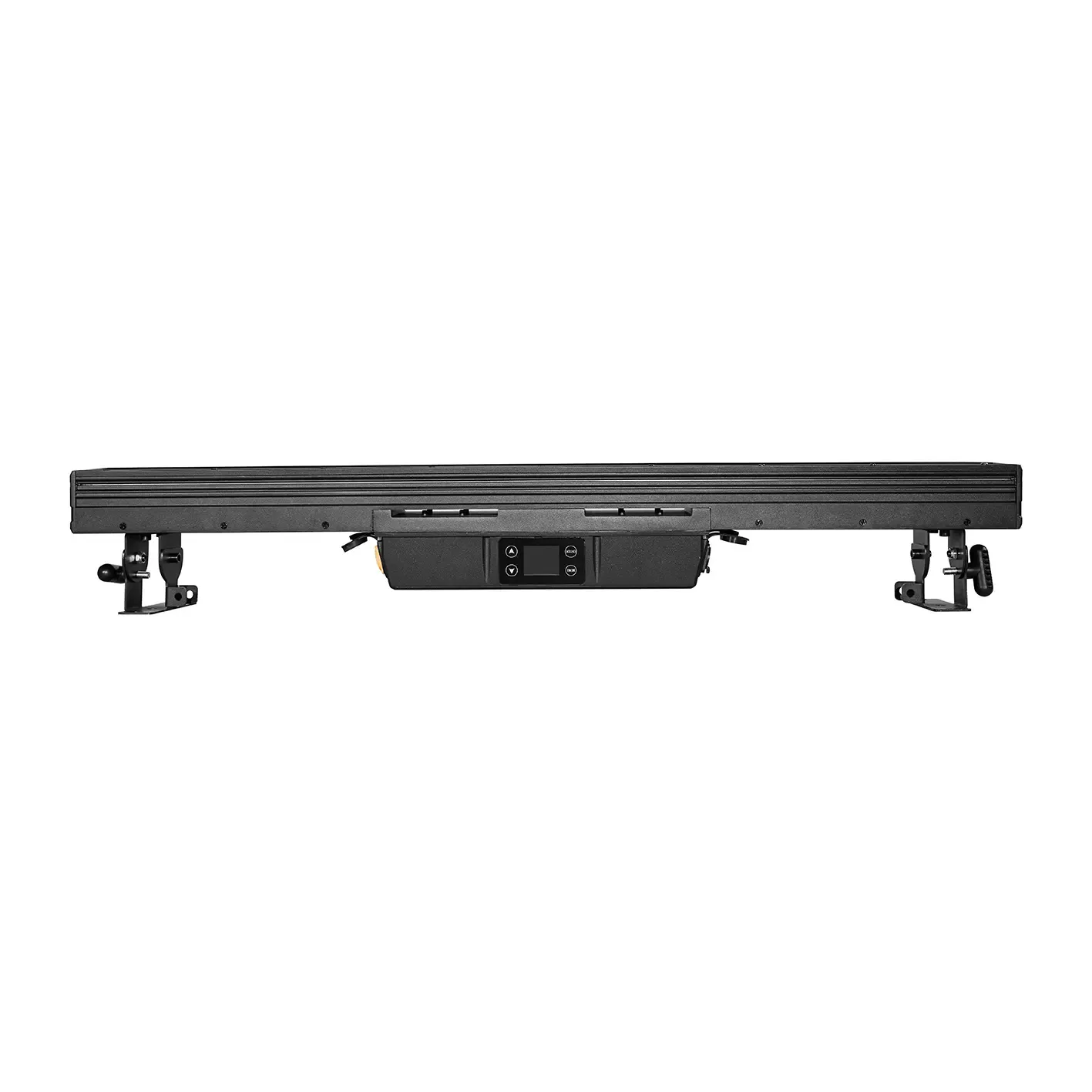

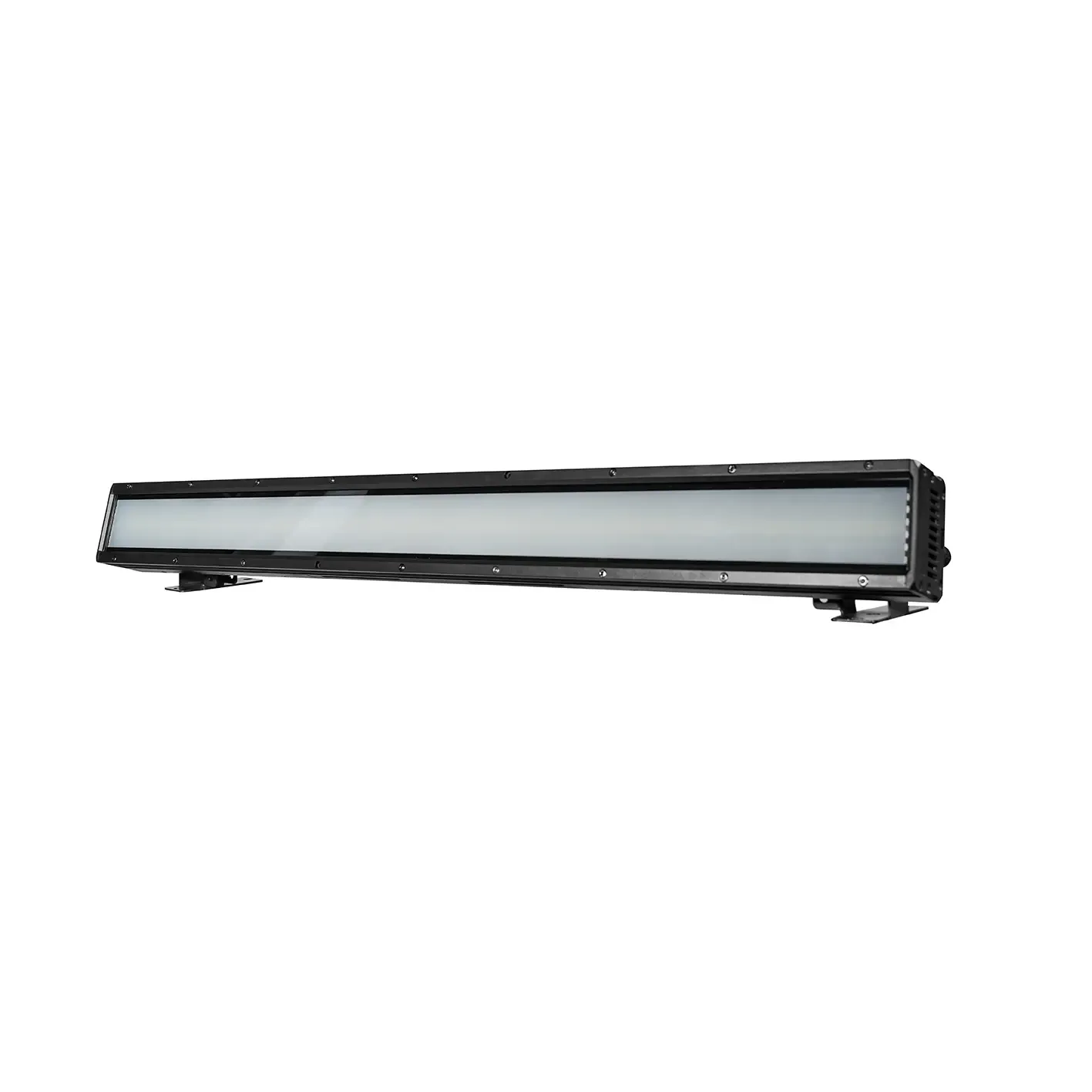

STROBE 784P

ModelS784P

Power consumption: 425W Power consumption (Full ON)
Power supply: AC100-240V 50/60Hz
Ingress protection: IP65 protection rating
Net weight: 8.2kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 18 groups · 54 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light Source4

112*2W Cool-White 6500K, 16 segments; 672*0.3W 5050 RGB 3in1, 32 segments
Life Span: 50000H
The life span may vary depending on several following factors but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)

02Optics4

Beam Angle
RGB: 101°
CW: 108°
Field Angle
RGB: 149°
CW: 152°

03Colors3

Sophisticated 3 colors RGB mixed

Cool white 6500K

Preset 33 colors

04Dynamic Effect1

29 Built-in pre-programmed effects with variable speed

05Frost1

Electronic frost function

06Dimming2

0-100% Smooth linear LED dimming with fine tune function

4 Dimming curves

Show the full specificationHide the rest of the specification12 more groups · 39 values

07Strobe Effect3

0-25Hz shutter/strobe effects at variable speed

Random strobe effect

Pulse strobe effect

08Control System4

7/15/17/21/33/39/65/112/117 DMX channels USITT DMX-512

RDM available (Remote Device Management)

DMX512, master-slave, sound or auto operation

IP65 3-Pin XLR connectors IN/OUT

09Display System4

1.8” High resolution TFT LCD display

4 Light control buttons

180°Reversible for LCD display

Display auto OFF

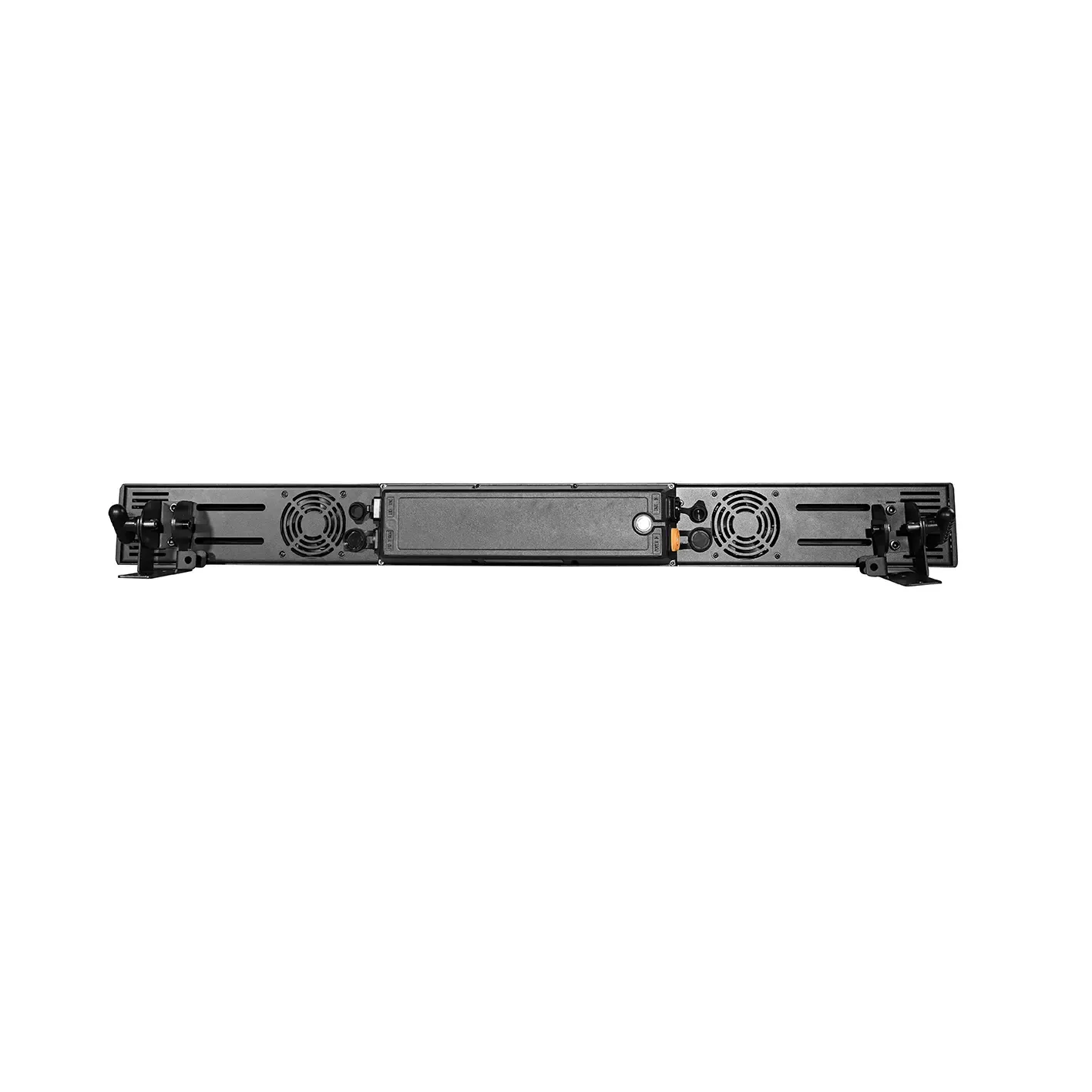

10Cooling System2

Advanced cooling system integrated aluminum

Temperature controlled, overheating protection

11Power Supply4

Electronic supply with active PFC

IP65 powercon connectors IN/OUT

AC100-240V 50/60Hz

425W Power consumption (Full ON)

12Housing3

Die-cast aluminum housing; Skeleton made of aluminum and steel metal plates
Exterior finish: Black

13Mounting Options2

Two hanging points on the brackets

1*Safety attachment point

14Operating Condition3

Operating positions: all (device on floor or fixed to a support); -25°C to 45°C ambient temperature; IP65 protection rating

15Compliance4

2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)

2014/30/EU – Electromagnetic Compatibility (EMC)

2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)

16Weight2

N.W.: 8.2kg
G.W.: 10.5kg

17Dimensions2

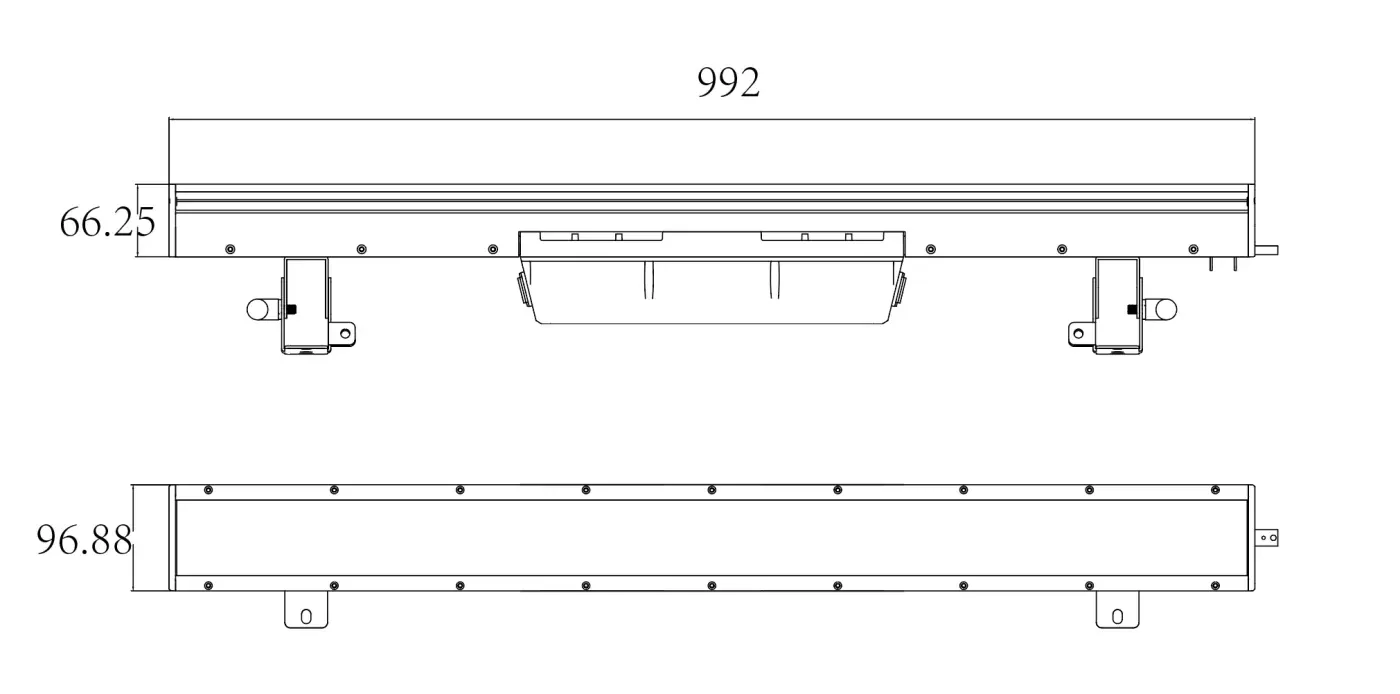

Product Dimensions: 96.9(D)*992(W)*239(H)mm
Packing Dimensions: 180(D)*1160(W)*260(H)mm

18Accessories6

Power Cable STANDARD code: QTY: 1PCS

Signal Cable STANDARD code: QTY: 1PCS

Omega STANDARD code: QTY: 2PCS

Safety Cable STANDARD code: QTY: 1PCS

Road Case OPTIONAL code: Available for 2-in-1,4-in-1, 6-in-1 versions

Clamps OPTIONAL code: QTY: 2PCS

02DescriptionManufacturer's description

What it is.

STROBE 784P

The STROBE 784P is an ultra high power IP65 rated strobe lighting bar basing on LED technology, with electronic frost filter. It features with 112*2W 6500K Cool-White LEDs with 16 segments control, plus 672*0.3W 5050 RGB 3in1 with 32 segments control. All these segments, either the main strobe or the auxiliary light, can be individually controllable for various color changing effects, strobe effects, and macro effects, to meet with diversified entertainment functions.

The fixture brings high brightness, wide-angle light strobe, and perfect light distribution. Esp. high speed and strong shutter/strobe effects, it offers the users more dynamic effects than conventional discharge strobe systems.

The molded housing is designed compact and stylish. Rated IP65, it’s applicable for most outdoor applications, music festivals, live concerts, road shows, etc.
