Sheet 05.812

Color Imagination · Effects and lasers

STROBE 1120P

ModelS1120P

Light source: 144*5W Cool-White 6500K LEDs, 8 segments
Power consumption: 1000W Power consumption
Power supply: AC100-240V 50/60Hz

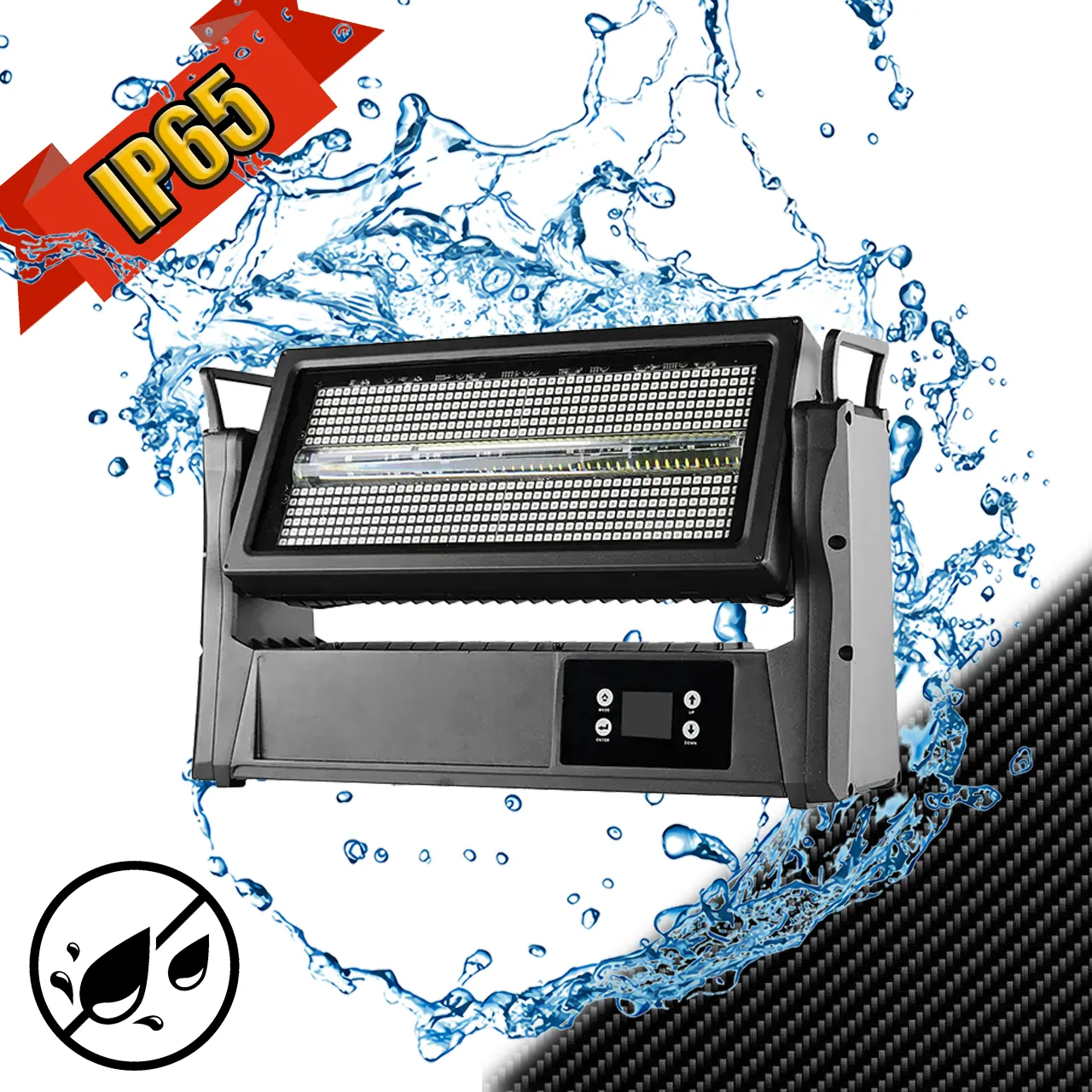

Ingress protection: IP65 protection rating
Net weight: 12.5kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 19 groups · 62 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light Source6

Main Strobe Tube; 144*5W Cool-White 6500K LEDs, 8 segments; Auxiliary Strobe Panel; 576*0.6W 3-in-1 RGB LEDs, 16 segments
Life Span: 50000H
The life span may vary depending on several following factors but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)

02Optics2

High resolution and precise optic system

120°Projection angle

03Movement4

Tilt movement: Motorized 255° (8/16-bit); Fast, quiet, smooth and precise 3-phase motors; Smooth, fast and precise resolution for TILT movement with low noise operation; Scan position memory, auto reposition after unexpected movement

04Colors3

6500K cold white

Sophisticated 3 colors RGB mixed

Even and soft light coverage with pure mixing

05Dynamic Effect3

Built-in pre-programmed effects with variable speed and direction
Main strobe tube: 12 kinds
Auxiliary Strobe Panel: 50 kinds

06Dimming2

0-100% Smooth linear LED dimming

Background colors with 0-100% dimming

Show the full specificationHide the rest of the specification13 more groups · 42 values

07Strobe Effect1

0-25Hz shutter/strobe effects at variable speed

08Control System6

8/18/61 DMX channels USITT DMX-512

RDM available (Remote Device Management)

DMX512, master-slave, sound or auto operation

DMX recorder and edit function integrated

Shielded input signal protection for stable signal without interference

IP65 3-Pin XLR DMX connectors IN/OUT

09Display System4

Illuminated graphic LCD display

4 Control buttons

180°Reversible for LCD display

Display auto OFF

10Cooling System1

Advanced cooling system integrated aluminum and copper with liquid

11General3

Efficient low noise self adjusting fan cooling system

Temperature controlled, overheating protection

(output decreased when over heat)

12Power Supply4

Electronic power supply with PFC

AC100-240V 50/60Hz

IP65 TRUE1 Power connectors In/Out

1000W Power consumption

13Housing3

Skeleton made of die-cast aluminum and steel metal plates; Two side handles on the arms
Exterior finish: Black

14Mounting Options3

Standing: Rubber feet
Hanging: Omega-Bracket
Safety wire attachment: foldout eyelets

15Operating Condition3

Operating positions: all (device on floor or fixed to a support); -25°C to 45°C ambient temperature; IP65 protection rating

16Compliance4

2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)

2014/30/EU – Electromagnetic Compatibility (EMC)

2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)

17Weight2

N.W.: 12.5kg
G.W.: 14kg

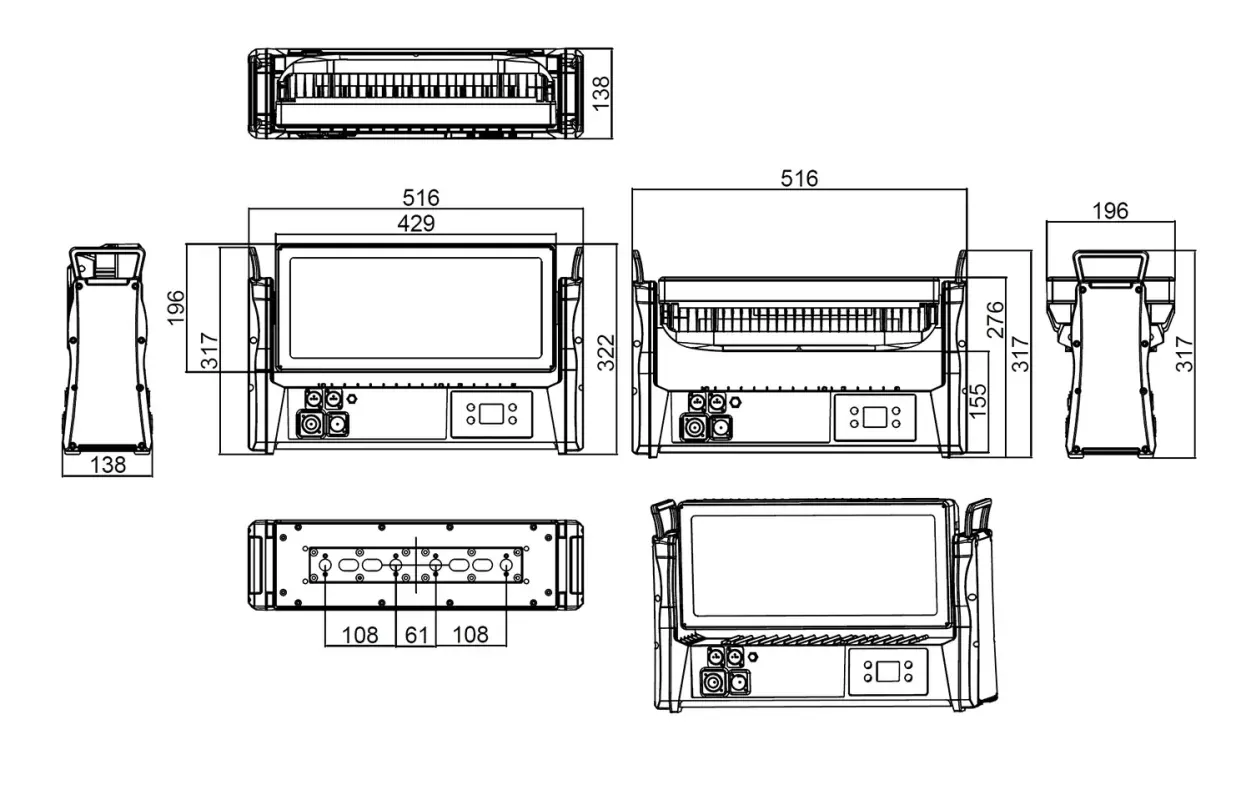

18Dimensions2

Product Dimensions: 138(D)*516(W)*317(H)mm
Packing Dimensions: 230(D)*640(W)*360(H)mm

19Accessories6

Power Cable STANDARD code: QTY: 1PCS

Signal Cable STANDARD code: QTY: 1PCS

Safety Cable STANDARD code: QTY: 1PCS

Road Case OPTIONAL code: Available for 2-in-1, 4-in-1, 6-in-1 versions

Clamps OPTIONAL code: QTY: 2PCS

Omega STANDARD code: QTY: 2PCS

02DescriptionManufacturer's description

What it is.

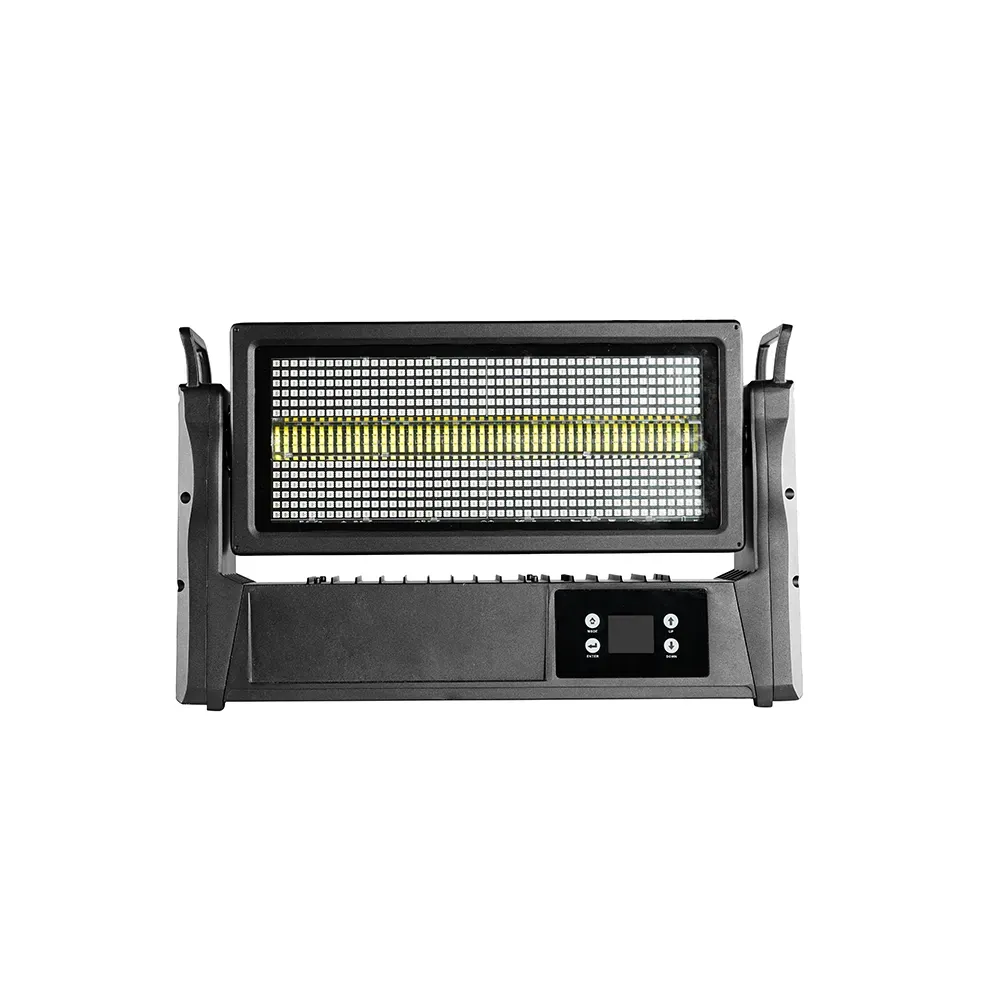

STROBE 1120P

The STROBE 1120P is an ultra high power IP65 rated strobe light basing on LED technology. It features an LED tube (main strobe) with 144*5W Cool-White 6500K LEDs in 8 segments, plus 576*0.6W RGB 3in1 LEDs (auxiliary panel light) in 16 segments. All these segments, either the main strobe or the auxiliary panel light, can be individually controllable for various color changing effects, strobe effects, and macro effects, to meet with diversified entertainment functions.

The fixture brings high brightness, wide-angle light strobe, and perfect light distribution. Esp. with 255° tilt movement and high speed and strong shutter/strobe effects, it offers the users more dynamic effects than conventional discharge strobe systems.

The molded housing is designed compact and stylish. Rated IP65, it’s applicable for most outdoor applications, music festivals, live concerts, road shows, etc.
