Sheet 05.814

Color Imagination · Effects and lasers

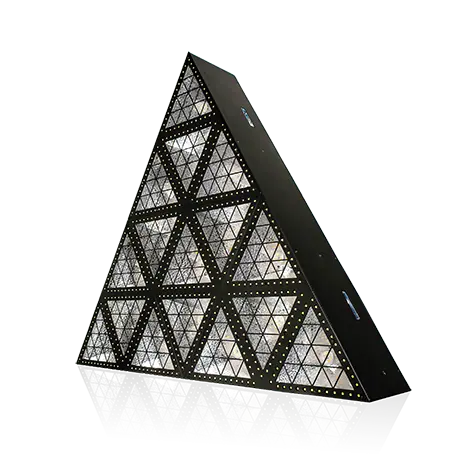

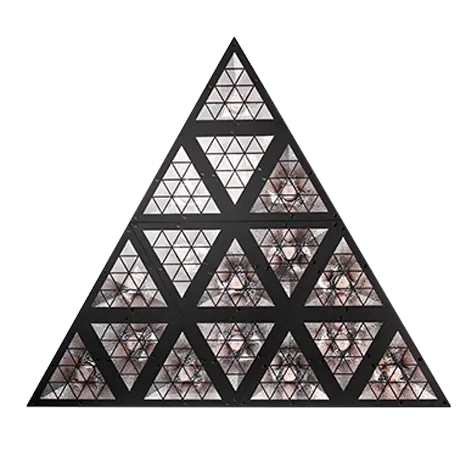

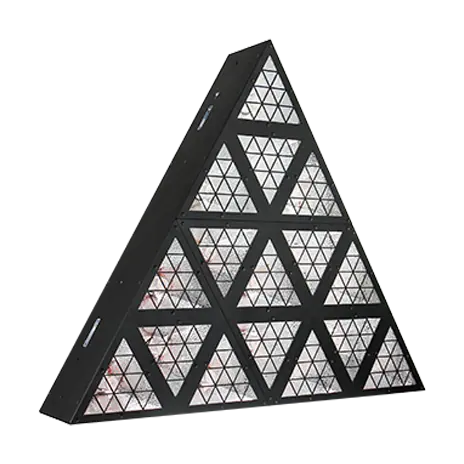

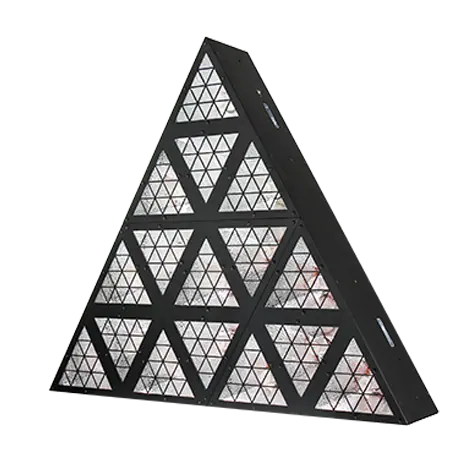

TRIANGLE PLUS-C

ModelSI-277A

The TRIANGLE PLUS-C is an imperial lighting fixture that integrated with nice triangle housing design and tremendous visual effect. The lighting designers could combine each fixture together.

Light source: 16*30W LED modules, 1500K
Power consumption: 850W Power consumption
Power supply: AC100-240V 50/60Hz
Ingress protection: IP20 protection rating
Net weight: 8.3kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video on YouTube

Color Imagination TRIANGLE PLUS-COpen on YouTube

02SpecificationManufacturer's data · 16 groups · 76 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light Source12

Source: 16*30W LED modules, 1500K; 576*0.3W 3-IN-1 SMD LEDs; 16 LED modules controllable individually; Flicker free operation; for broadcast TV and FILM; LED driving frequency adjustable; White balance adjustable
Life Span: 50000H; The life span may vary depending on
several following factors but not limited to: Environmental Conditions,; Power/Voltage, Usage Patterns; (On-Off Cycling), Control, etc.

02Optics3

A set of high temperature resistant

squamous reflector optic system

60°Beam angle for each module

03Color System4

1500K golden coverage

RGB mixing capability

Different color

temperature tunable by mixing

04Strobe Effect2

0-25Hz high speed shutter/strobe effect

with variable speed

05Dimming System3

0-100% Smooth linear LED dimming

5 Dimming cure modes, linear/square

law/Inv square law/S-curve/ soft curve

06Control System12

7//64/67/112 DMX channels USITT

DMX-512

DMX512, master-slave,

sound control or auto operation

DMX recorder and edit function integrated

RDM available

(Remote Device Management)

Art-NET available

Shielded input signal protection for stable

signal without interference

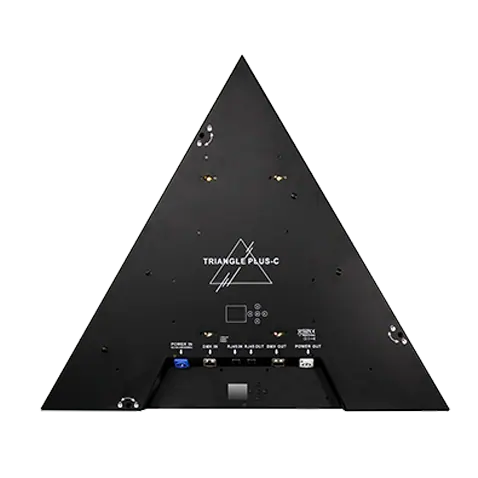

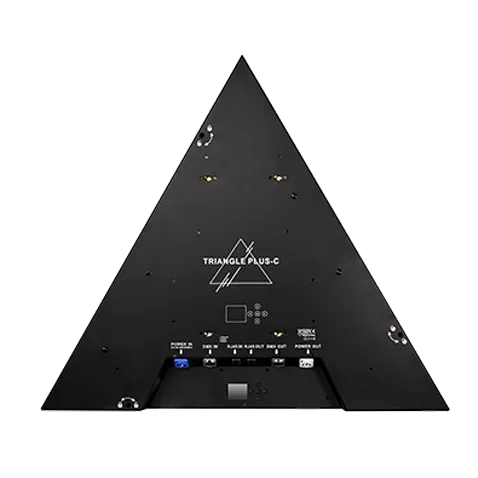

RJ45 etherCON IN/OUT

3-Pin XLR connectors IN/OUT

Show the full specificationHide the rest of the specification10 more groups · 40 values

07Software Update3

Software up-datable

through DMX connectors

Muilt units up-datable in daisy chain

08Display System4

1.8" TFT LCD display

5 Control buttons

180°Reversible for LCD display

Display auto OFF

09Cooling System5

Advanced noise free cooling system

integrated aluminum

Constant temperature readout and

management function

Over temperature protection management

10Power Supply4

Electronic supply with active PFC

AC100-240V 50/60Hz

PowerCON connectors IN/OUT

850W Power consumption

11Housing4

Skeleton made of; high tension steel metal plates; Dual back handles
Exterior finish: Black

12Installation6

2*1/4 Turn fastening Omega Clamps

3 Sets seamless combined system

(Female and Male)

Truss-hanging kits, 2 options (Optional)

Wall-mounting kit (Optional)

Floor-stacking kit (Optional

13Operating Condition3

Operating positions: all; -25?? to 45?? ambient temperature; IP20 protection rating

14Compliance7

2014/35/EU - Safety of electrical

equipment supplied at low voltage (LVD)

2014/30/EU -

Electromagnetic Compatibility (EMC)

2011/65/EU - Restriction of the use of

certain hazardous substances (RoHS)

15Weight2

N.W.: 8.3kg
G.W.: 10.5kg

16Dimensions2

Product Dimensions: 148(D)*800(W)*690(H)mm
Packing Dimensions: 238(D)*896(W)*896(H)mm

03DescriptionManufacturer's description

What it is.

TRIANGLE PLUS-C

The TRIANGLE PLUS-C is an imperial lighting fixture that integrated with nice triangle housing design and tremendous visual effect. The lighting designers could combine each fixture together. The more fixtures combined, the more vivid lighting effects will be created for the stages. It features 16*30W 1500K LED modules and 576*0.3W 3-IN-1 LEDs (RGB) surrounding the main module that delivers different color options by color mixing. All the LEDs are controllable individually by 16 sections.

The TRIANGLE PLUS-C supports DMX, RDM (Remote Device Management), Art-Net protocol. There are 3 installation capabilities with corresponding kits: truss-hanging, wall-mounting and floor-stacking.The fixture is tuned with proper LED refresh rate for flicker free operation for TV and FILM. It’s a perfect option for large scale live concerts, TV productions, road shows, theatre, clubs, etc.
