Sheet 05.1344
Esdlumen · Rental displays

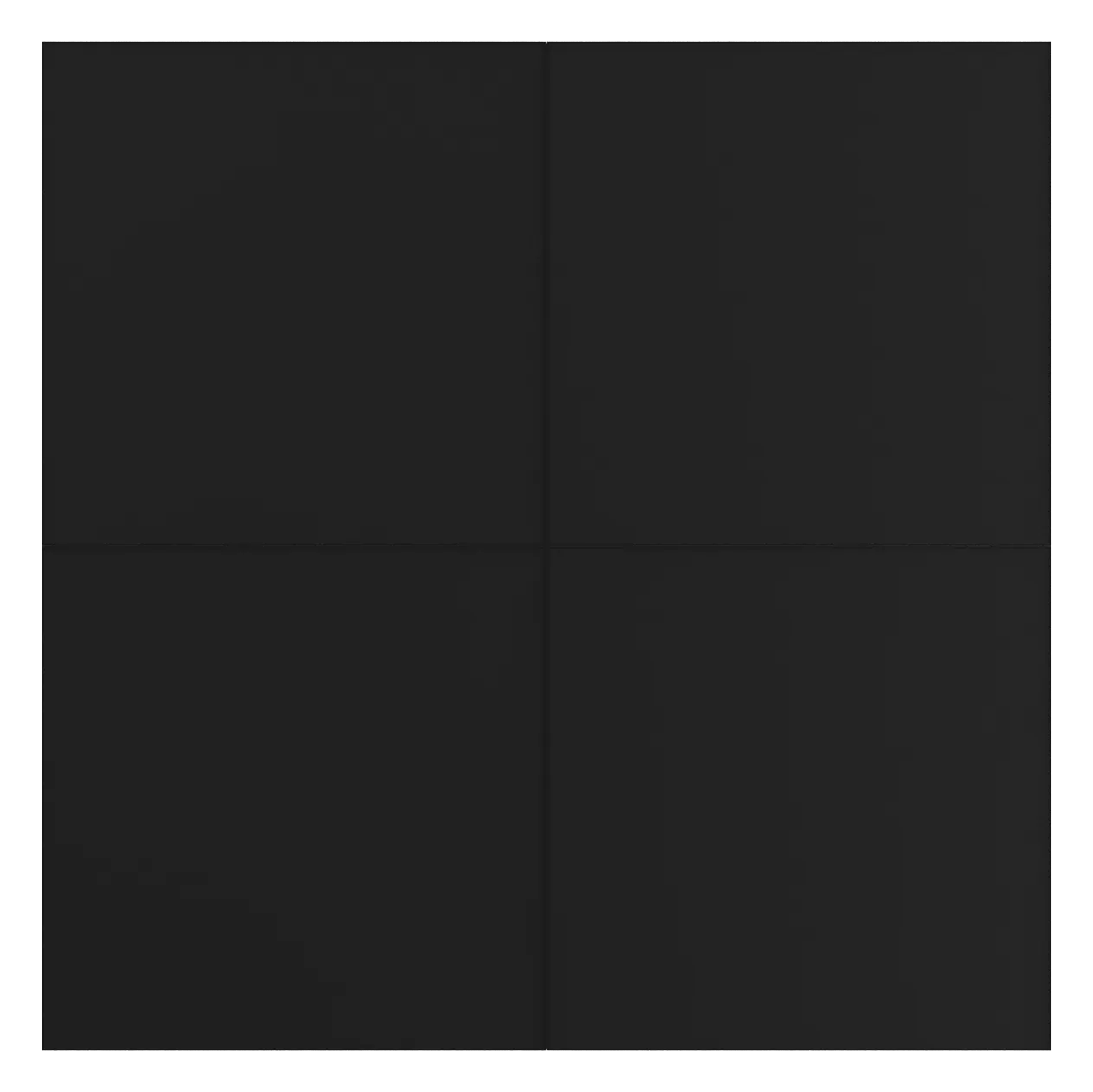

E-Sapphire ESP3.9
All-in-one rental LED display solution for outdoor live events: lightweight design, all-inclusive solution, streamlined installation, effortless maintenance, superb display effect, heat dissipation.
- Series
- E-Sapphire Series
- Pixel pitch
- 3.9 mm
- Brightness
- 6000 / 4500 (Black LEDs)
- Panel size

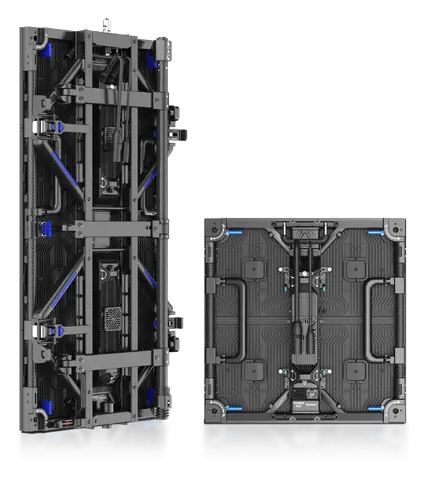

- 500 × 500 × 82 / 500 × 1000 × 82 mm
- Panel resolution
- 128 × 128 / 128 × 256
- Refresh rate
- 3840 / 7680 Hz
- LED type
- SMD
- IP rating
- IP65
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
E-Sapphire ESP3.9Price on requestRequest a quotation
01VideoManufacturer's video · 2:19
Esdlumen E-Sapphire ESP3.9: the manufacturer's video
02SpecificationManufacturer's data · 1 group · 14 values
What this product is, in numbers.

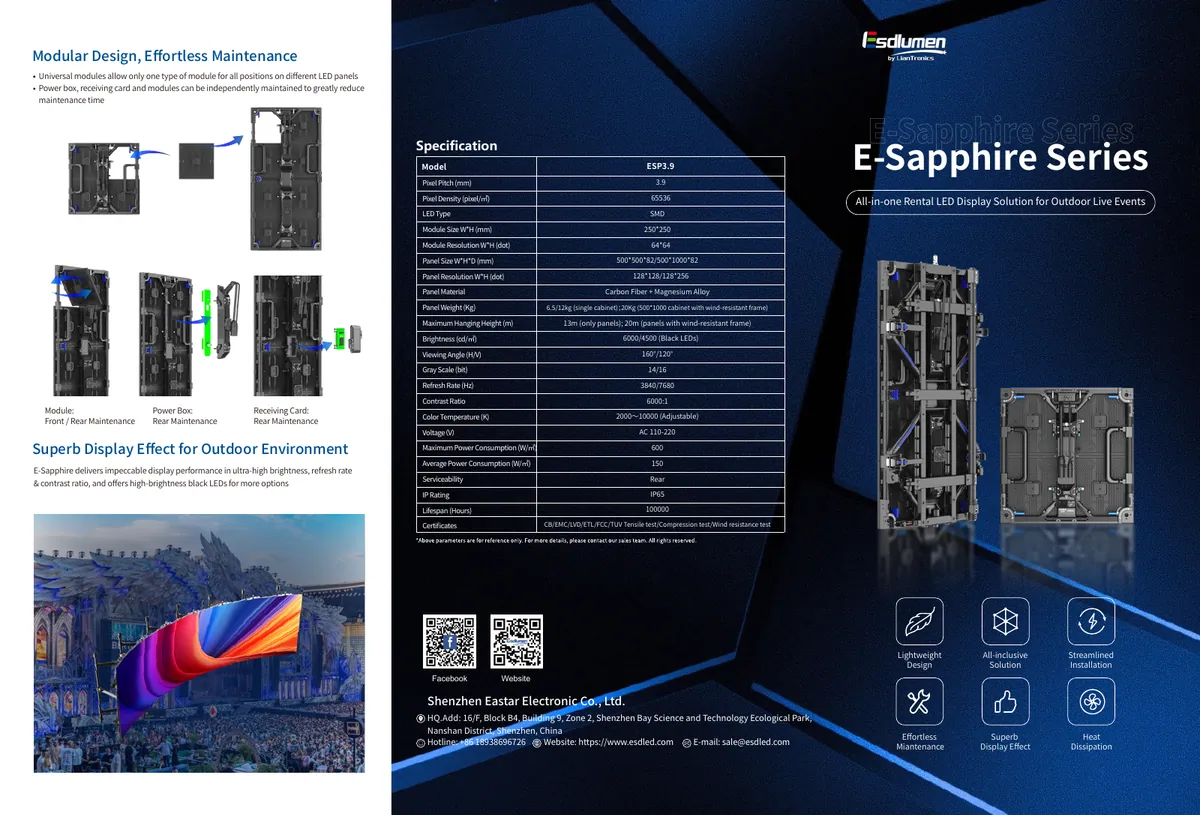

PDFDatasheetEN · 2 pages · 3.0 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications14
- Pixel Pitch
- 3.9 mm
- Panel Size
- 500 × 500 × 82 / 500 × 1000 × 82 mm
- Panel Resolution
- 128 × 128 / 128 × 256
- Weight
- 6.5 / 12kg (single cabinet); 20Kg (500 × 1000 cabinet with wind-resistant frame)
- Brightness
- 6000 / 4500 (Black LEDs)
- Panel Material
- Carbon Fiber + Magnesium Alloy
- Serviceability
- Rear
- Pixel Density
- 65536 px/m²
- LED Type
- SMD
- Viewing Angle (H/V)
- 160° / 120°
- Refresh Rate
- 3840 / 7680 Hz
- Contrast Ratio
- 6000:1
- Color Temperature
- 2000–10000 (Adjustable)
- IP Rating
- IP65
Show the full specificationHide the rest of the specification0 more groups · 0 values
03DescriptionManufacturer's description
What it is.
All-in-one Outdoor Display Solution

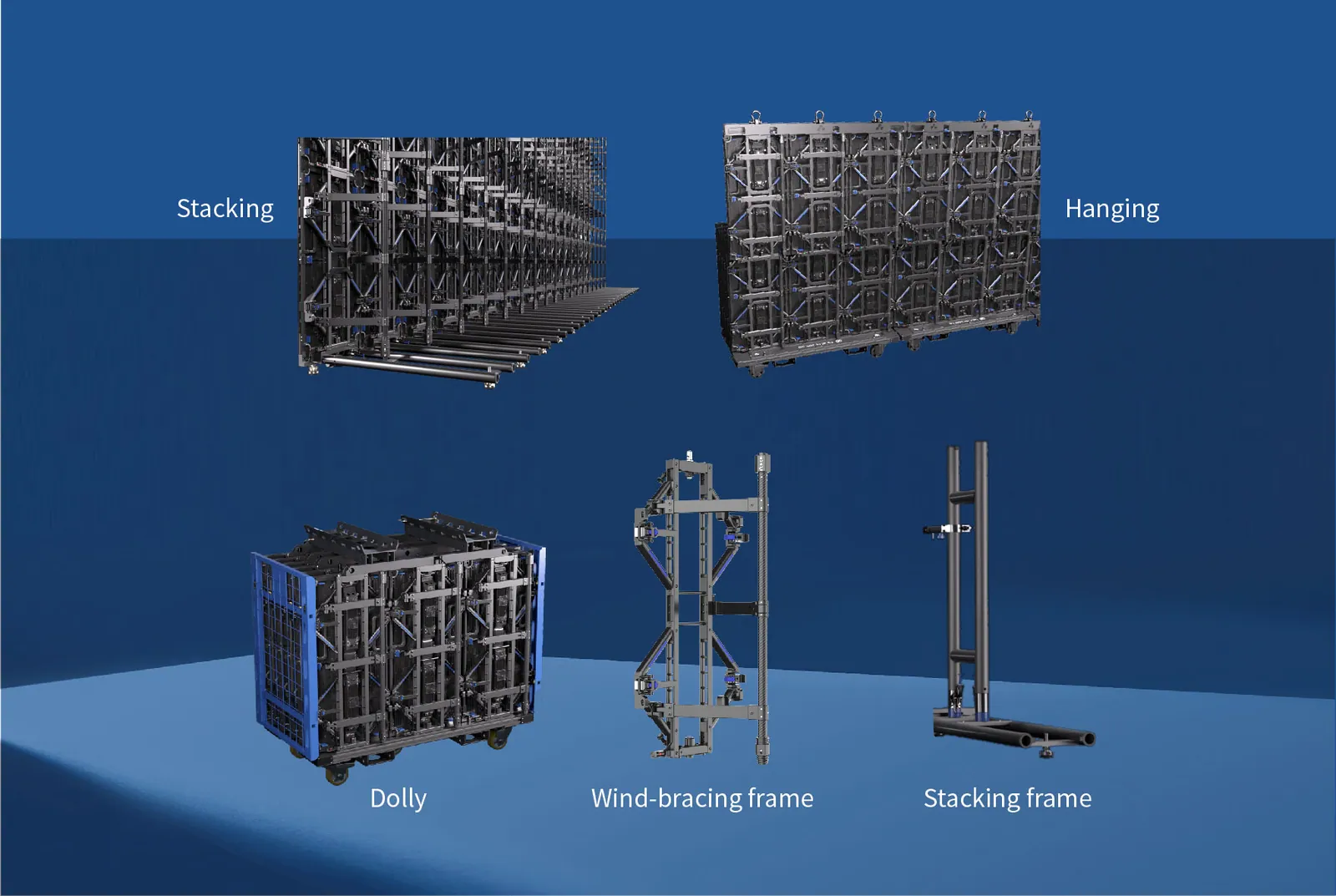

Support to hang in-row panels with dollies for quick installation

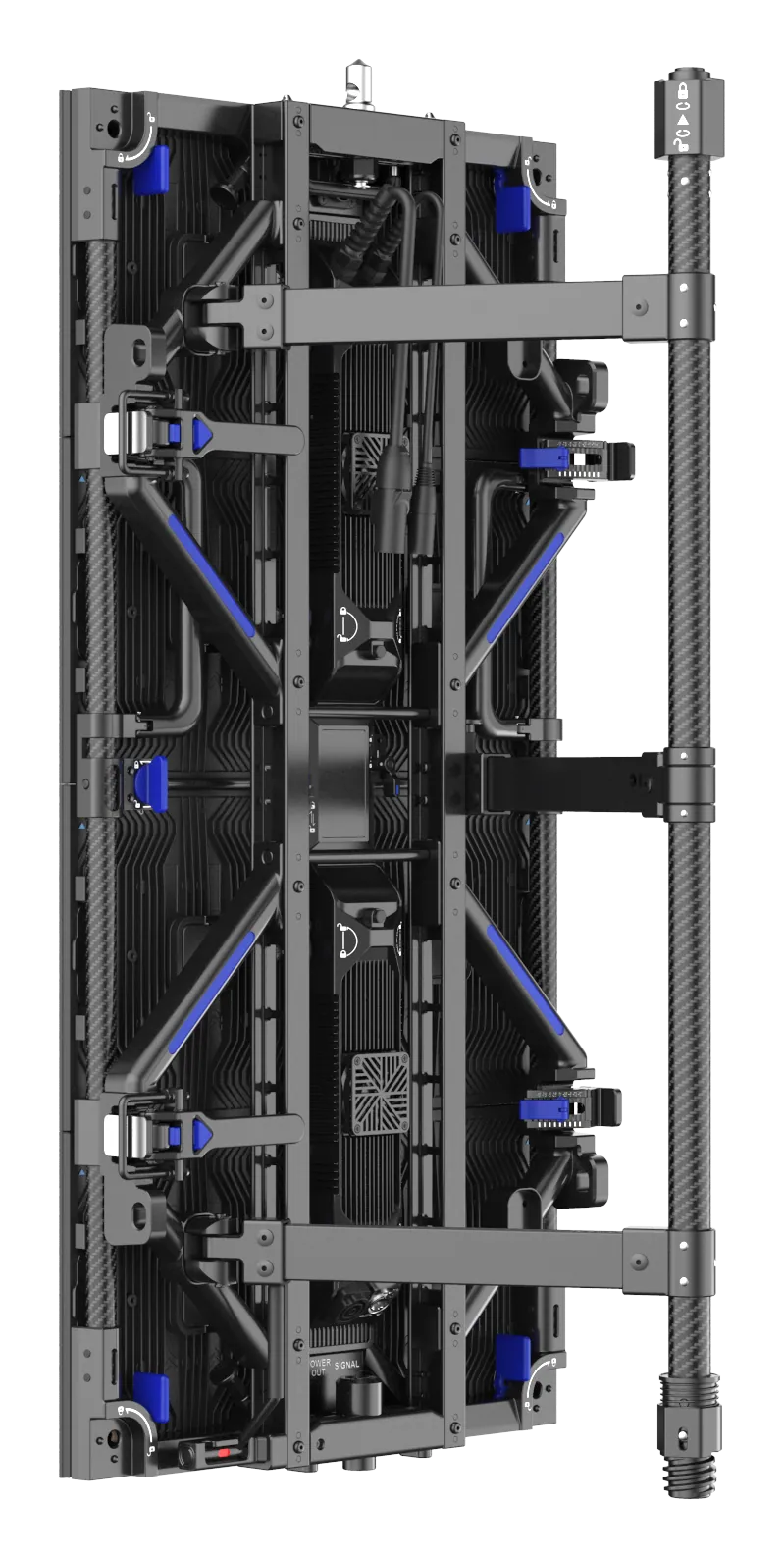

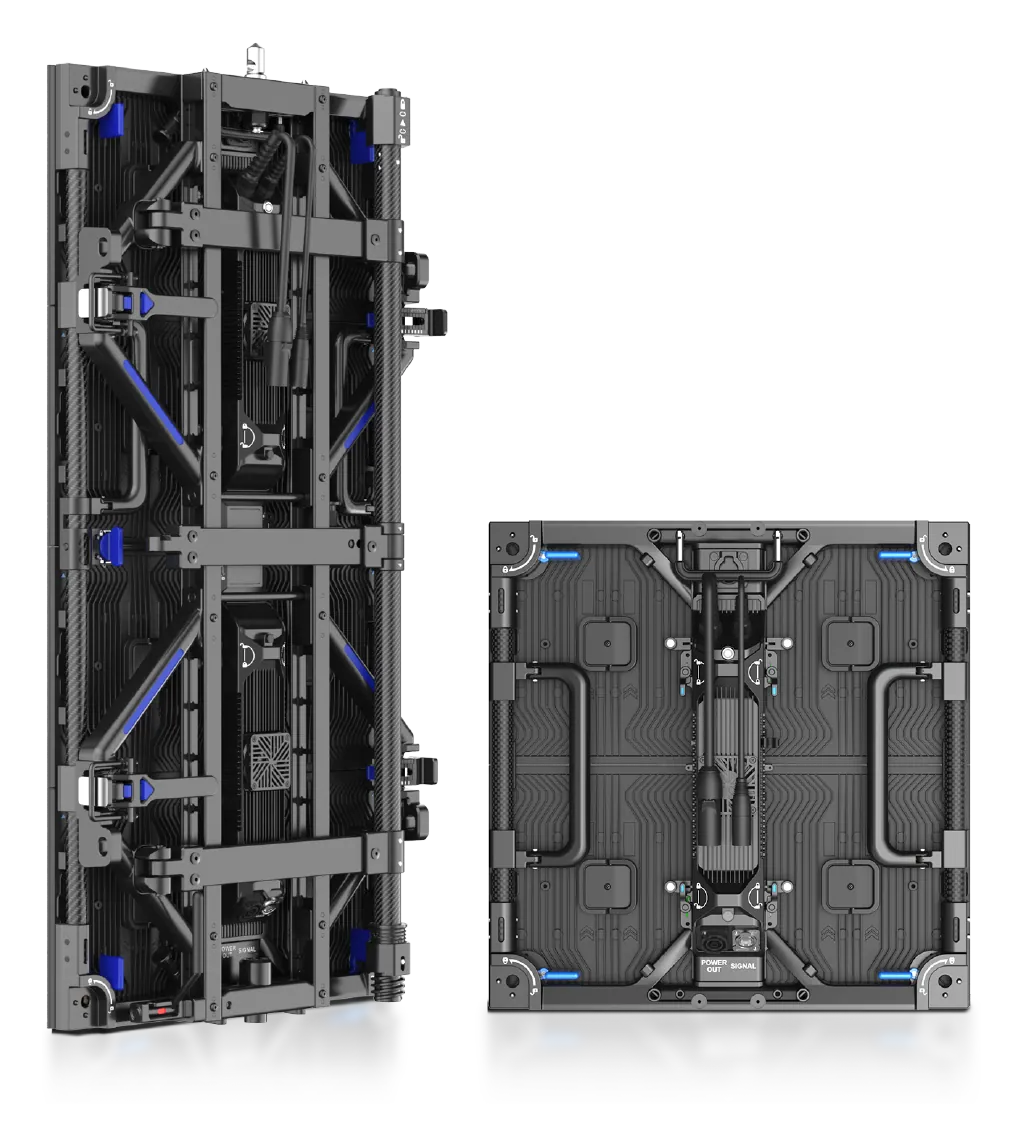

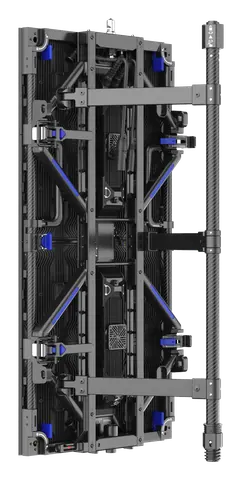

Dual stacking system of wind-resistance frame and regular stacking frame is up to fit choice

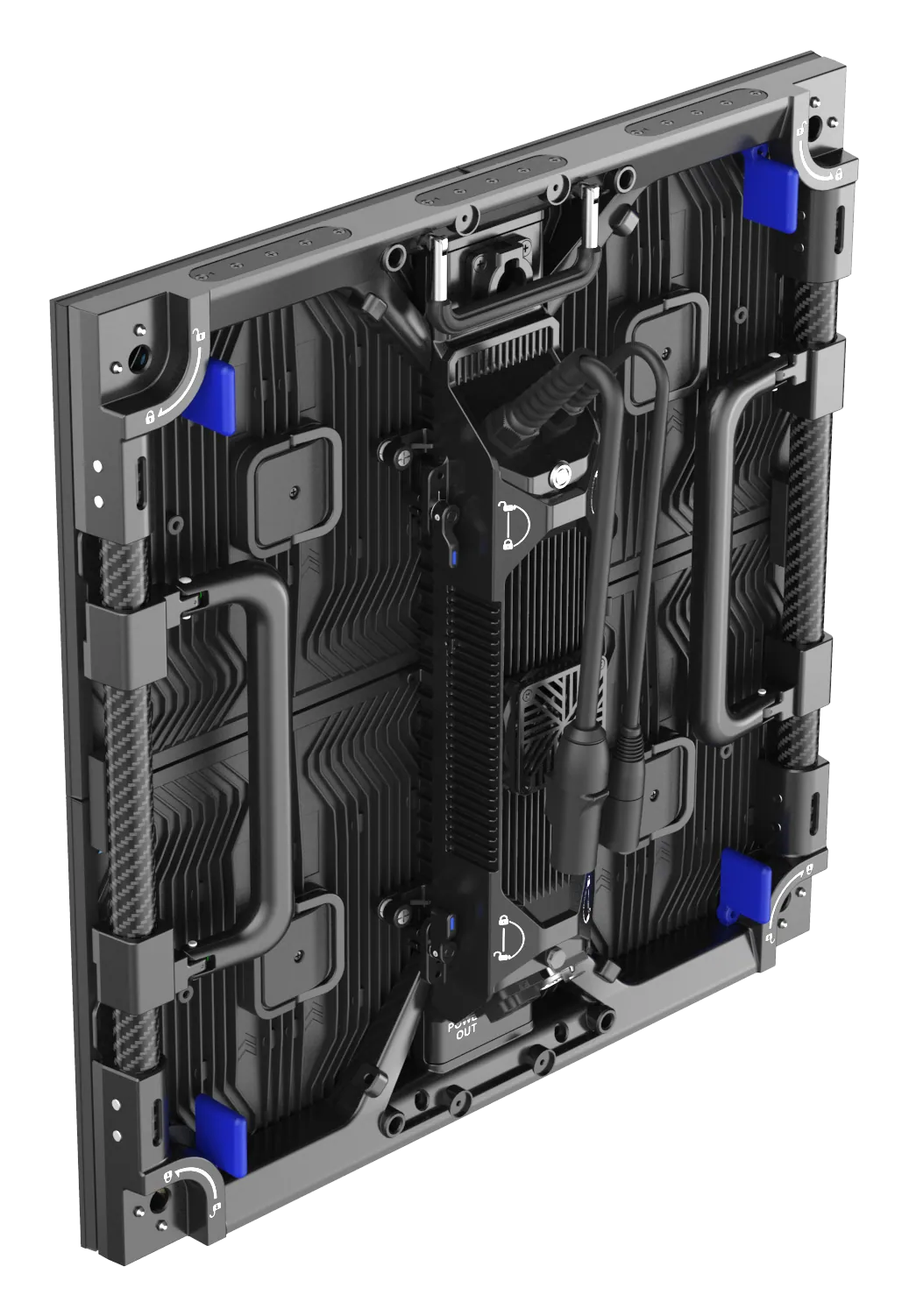

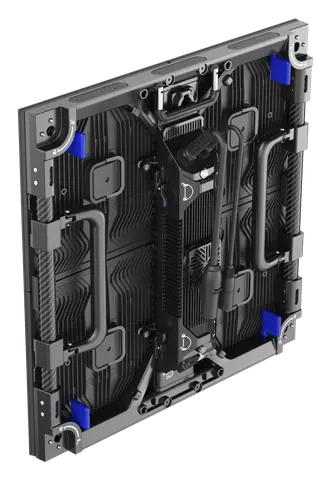

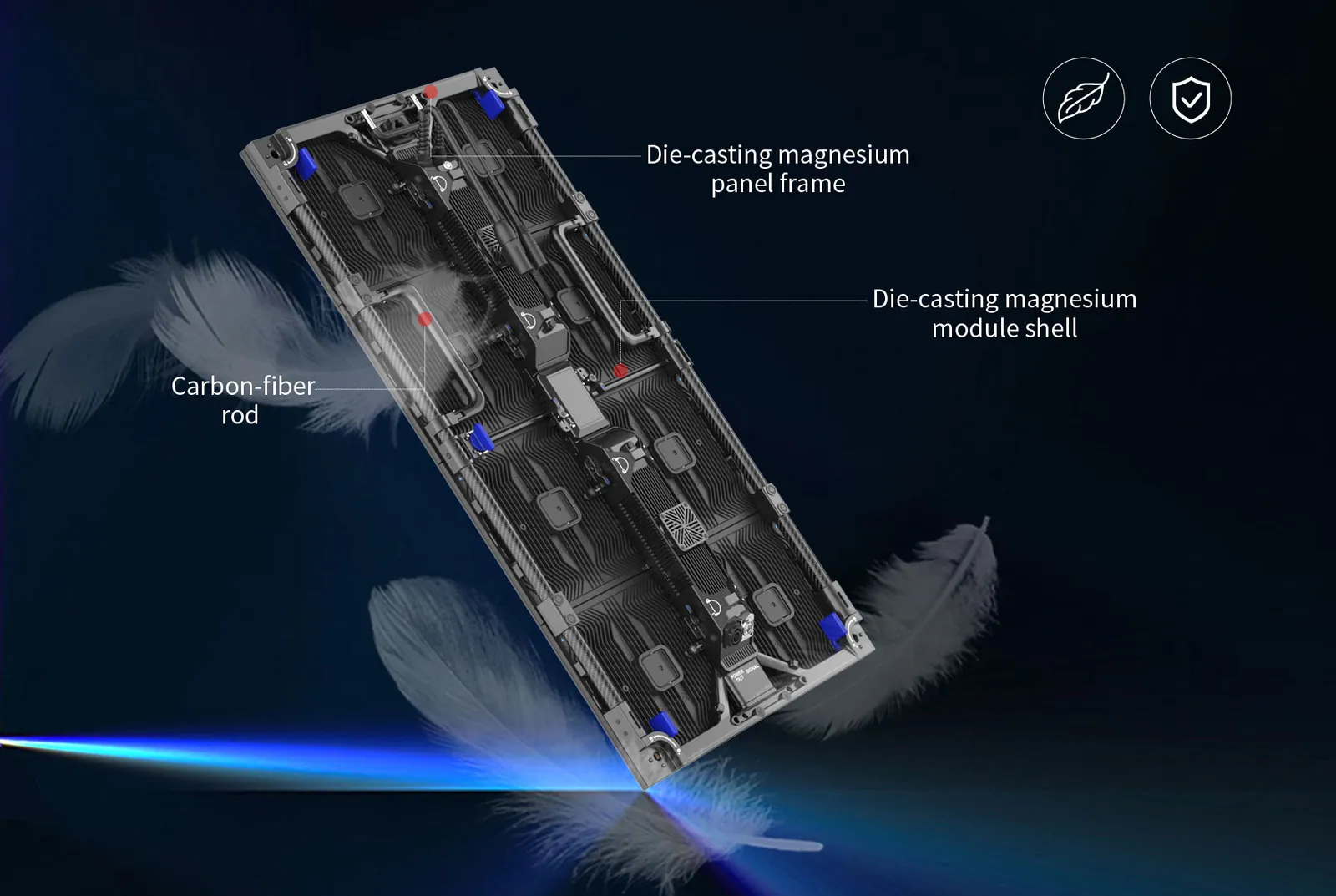

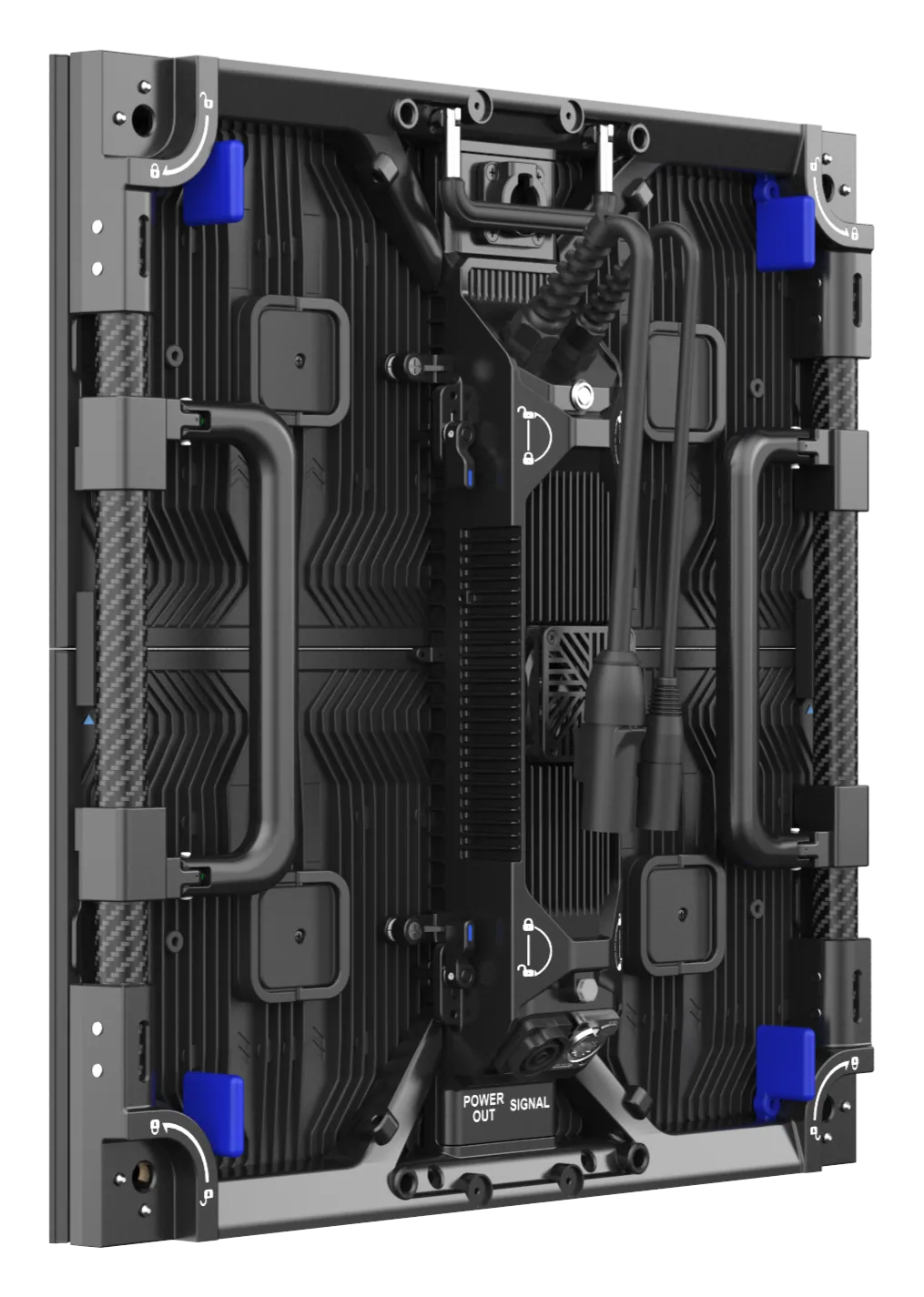

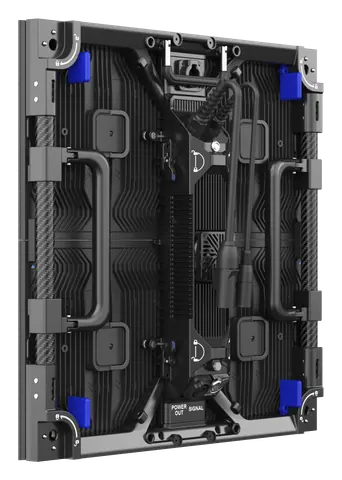

Lighter But Stronger Panels
Carbon-fiber & die-casting magnesium panels can better adapt to outdoor environment
The lightweight but solid panel design assures safety

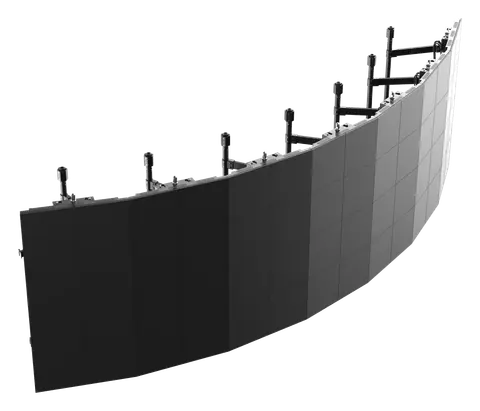

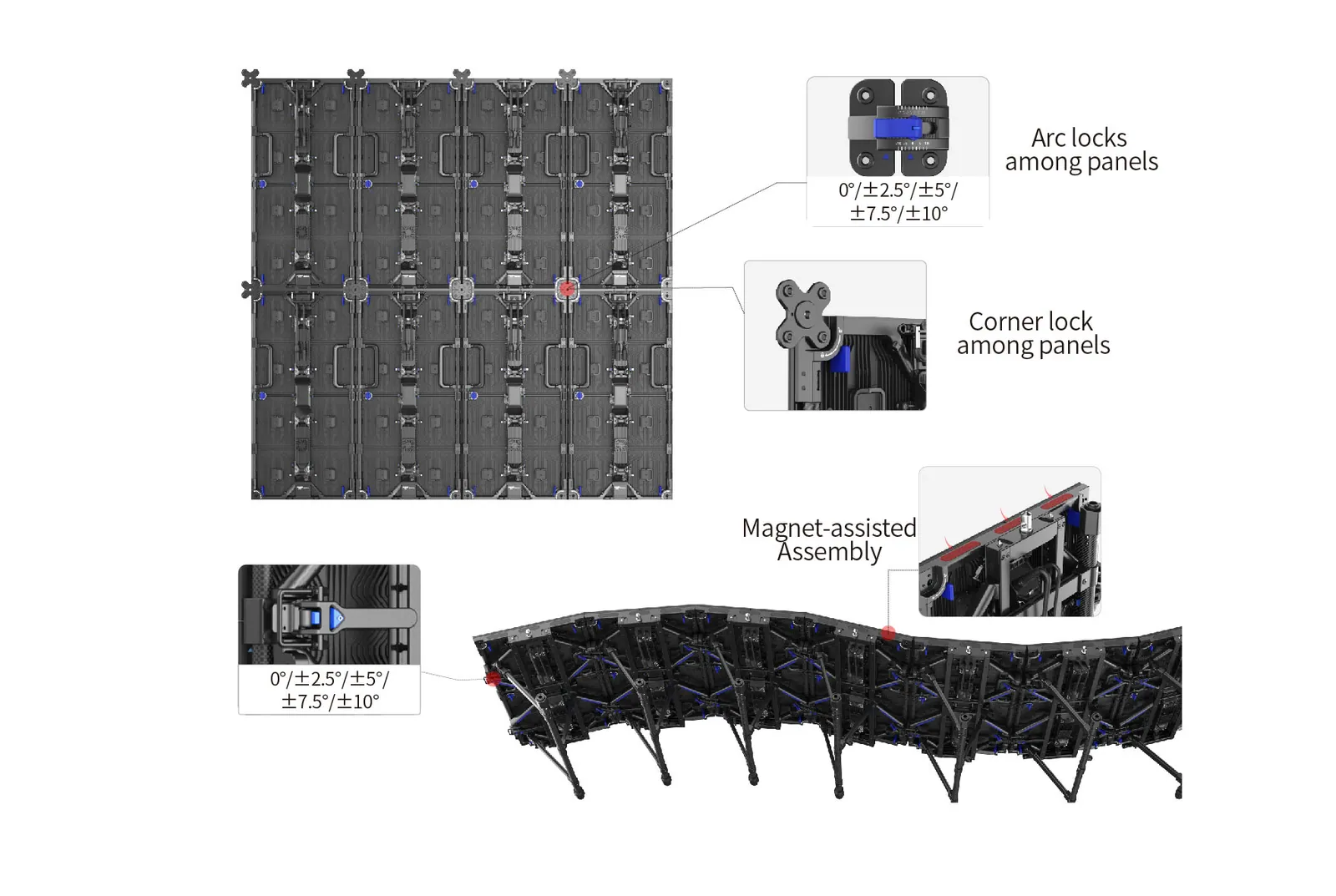

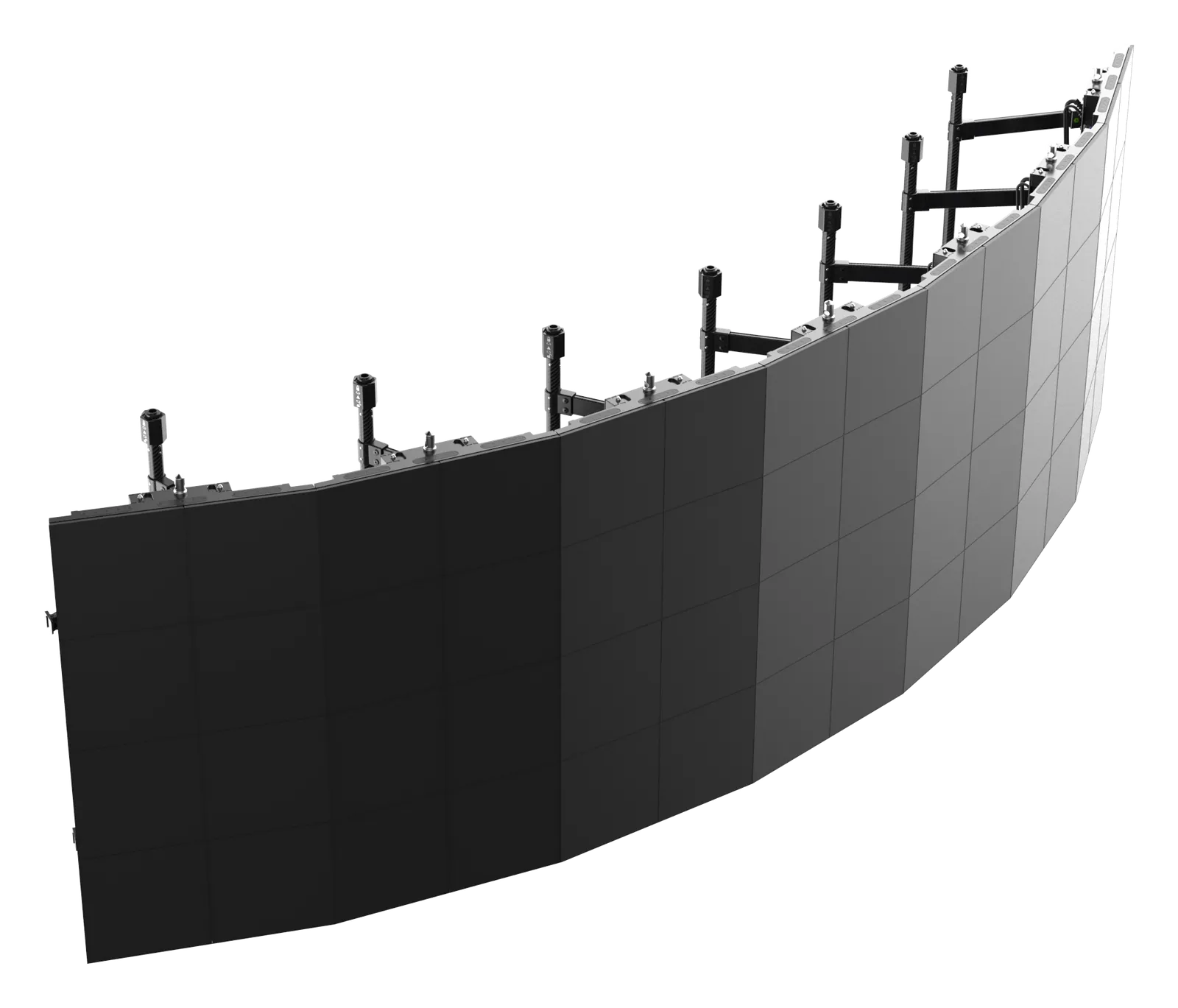

Streamlined Installation, Flexible Splicing
Auxiliary alignment magnet helps with easy and precise installation

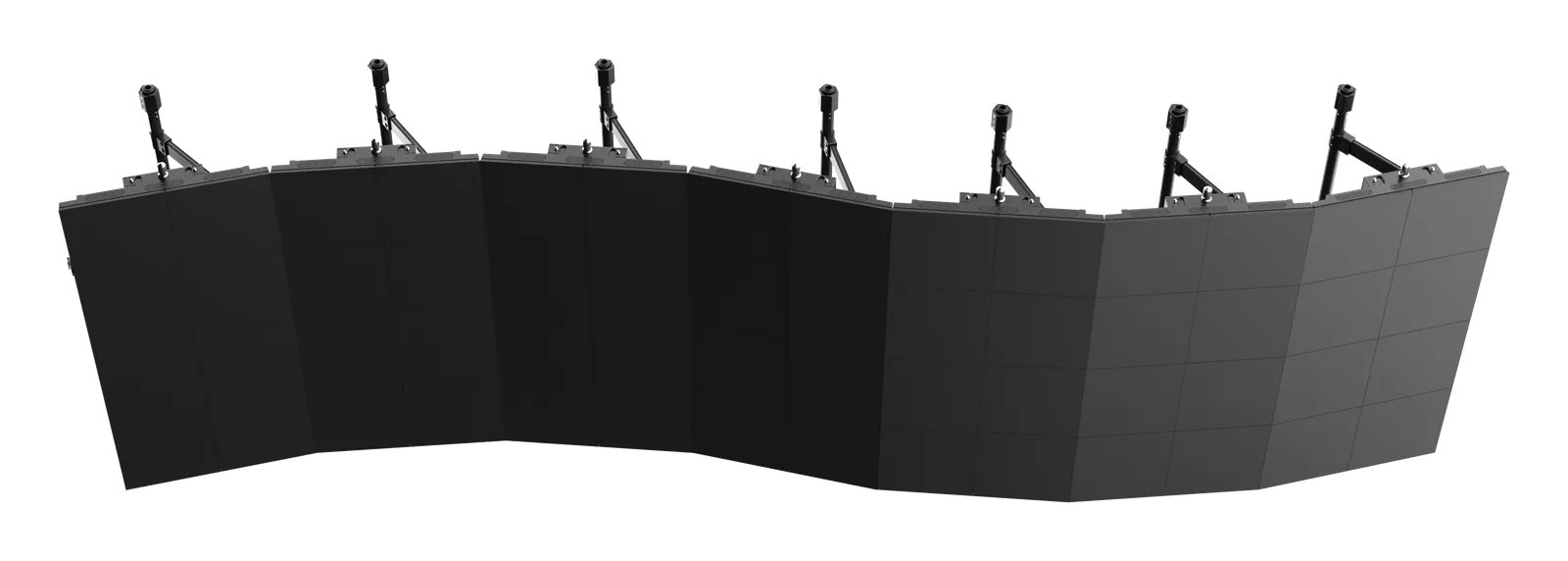

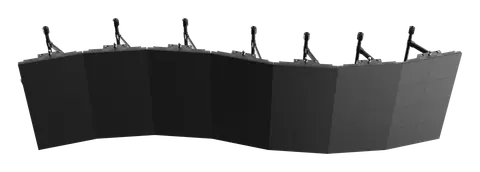

Offering 3 sets of easy-to-operate locks to achieve different installations in creative shapes

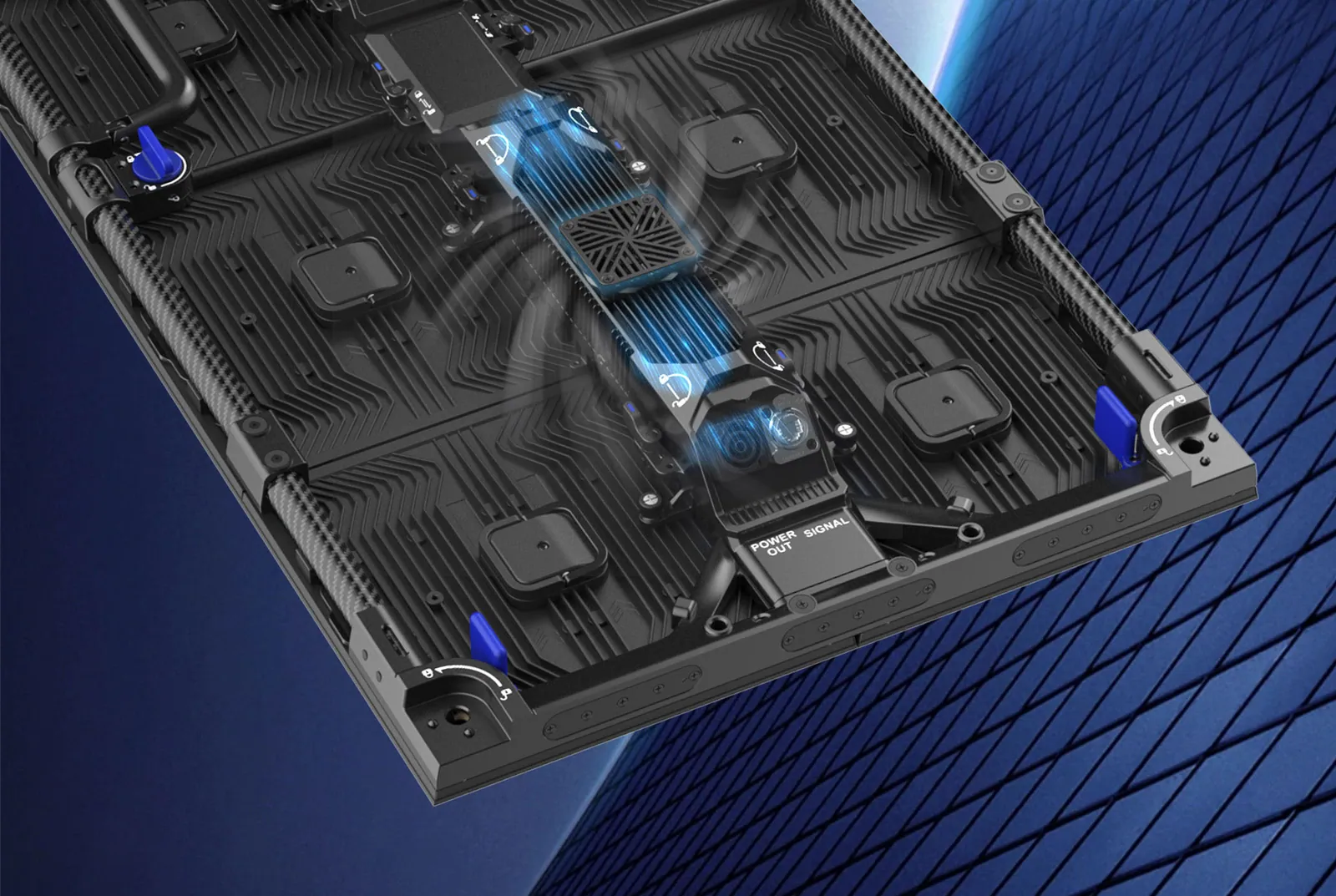

Excellent Heat Dissipation
Cooling fan reduces heat accumulation automatically
Cooling rib patterns on modules & power box enlarge the heat dissipation area

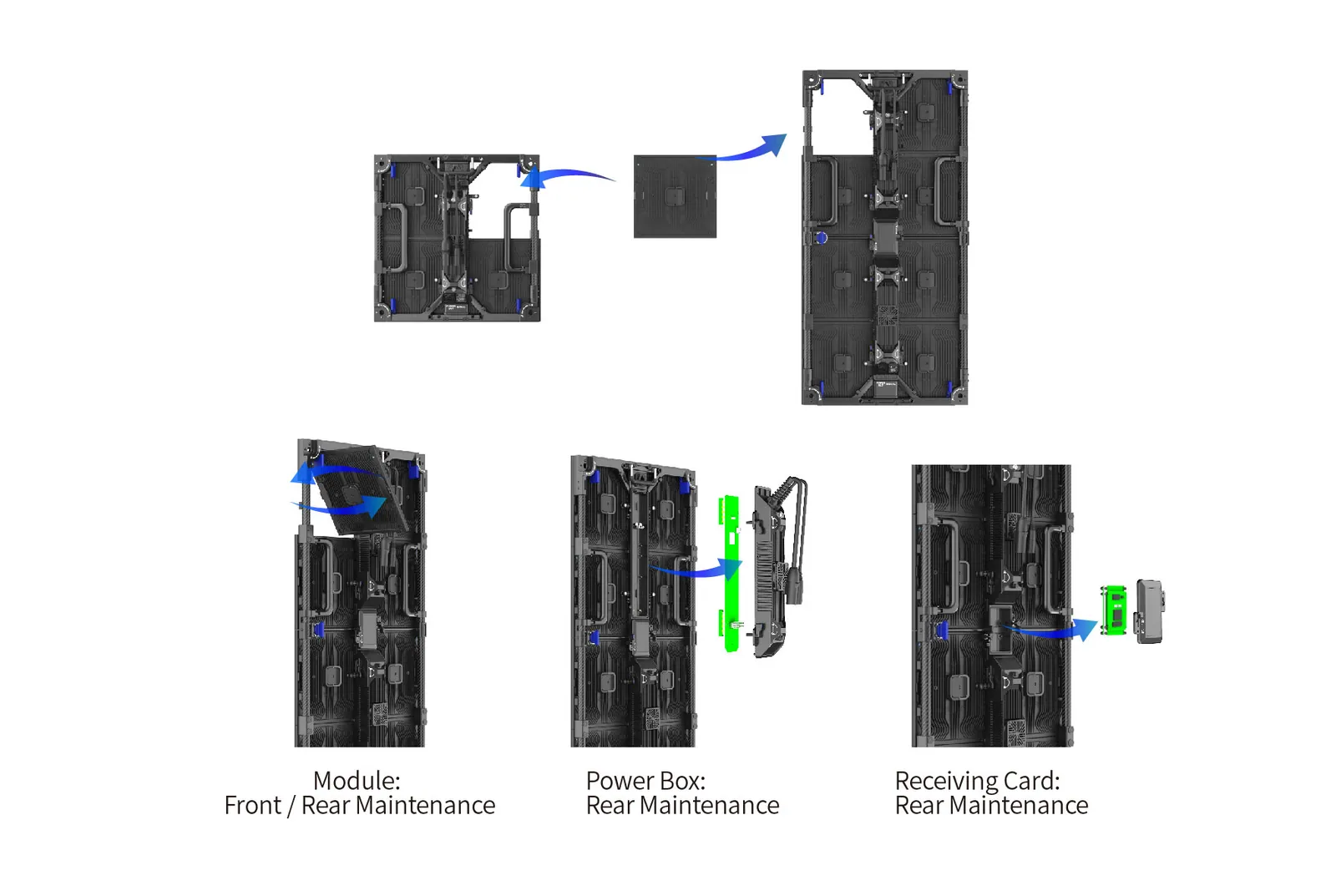

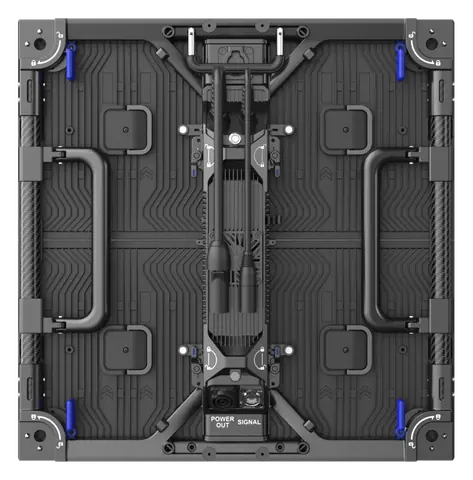

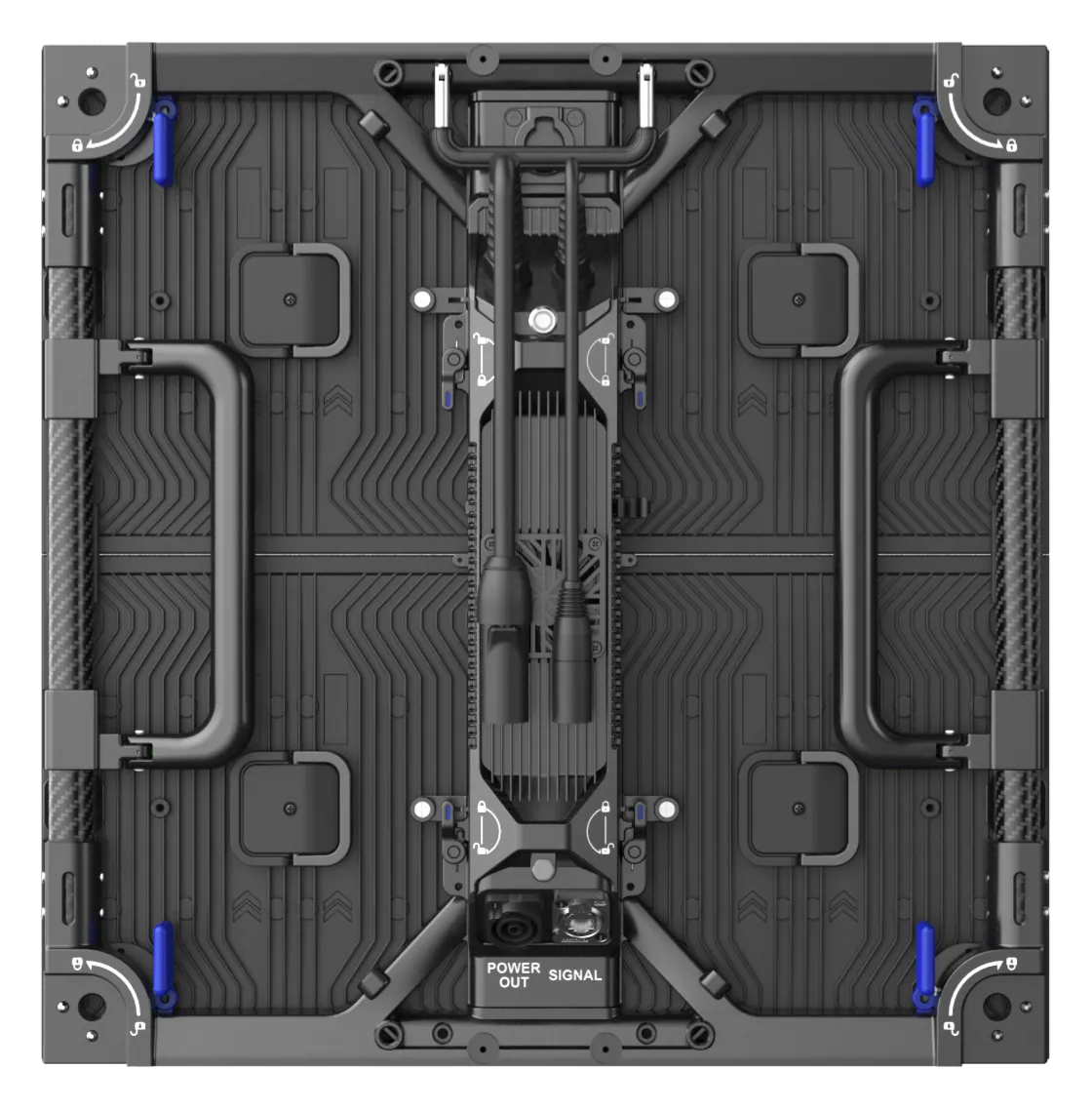

Modular Design, Effortless Maintenance
Universal modules allow only one type of module for all positions on different LED panels
Power box, receiving card and modules can be independently maintained to greatly reduce maintenance time
Superb Display Effect for Outdoor Environment
E-Sapphire delivers impeccable display performance in ultra-high brightness, refresh rate & contrast ratio, and offers high-brightness black LEDs for more options

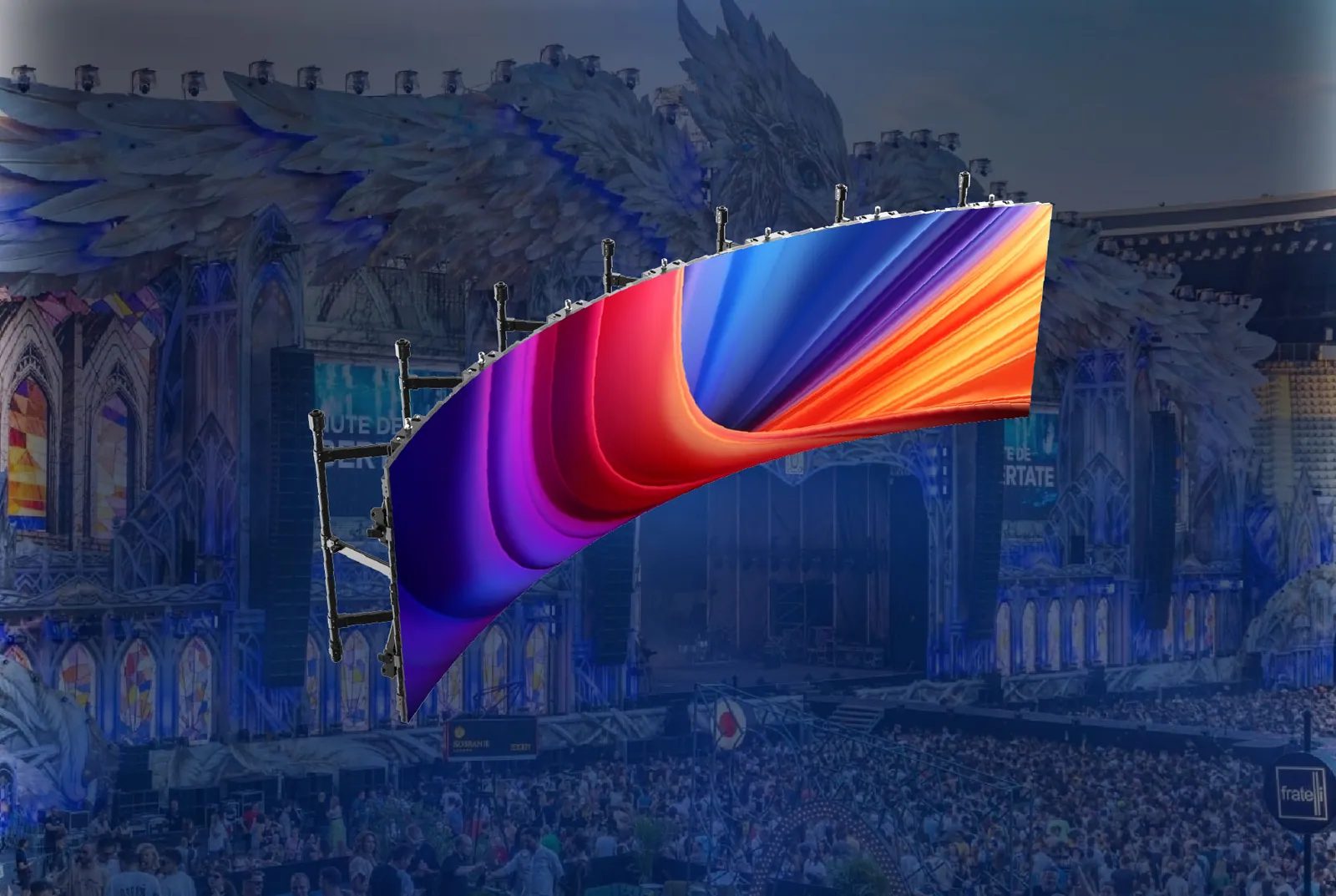

- Rental, concerts and stages
- Virtual production and xR
* All specification values given are per panel. The specifications are for reference only, actual values may vary.
