Sheet 05.1200

LianTronics · Fine-pitch and COB displays

VMQ COB 1.2

Upgraded proven fine-pitch LED display: full flip COB, ultra-thin & light, high refresh rate.

Series: VMQ (COB) Series
Pixel pitch: 1.25 mm
Brightness: 500–600 nits
Panel size: 640 × 480 × 61 mm
Panel resolution: 512 × 384
Refresh rate: 3840 Hz
LED type: Full Flip COB
IP rating: Front IP30 / Rear IP30

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 13 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications13

Pixel Pitch: 1.25 mm
Pixel Density: 640000 px/m²
LED Type: Full Flip COB
Panel Size W × H × D: 640 × 480 × 61 mm
Panel Resolution W × H: 512 × 384
Panel Material: Die-Casting Aluminum
Weight: 8 kg
Brightness: 500–600 nits
Brightness Adjustment: Programmable / Automatic / Manual
Refresh Rate: 3840 Hz
Contrast Ratio: 10000:1
Color Temperature: 2000–10000 (Adjustable)
IP Rating: Front IP30 / Rear IP30

02Models3 models in the family

Models compared.

Model	VMQ COB 1.2	VMQ COB 1.5	VMQ COB 1.8
Pixel Pitch (mm)	1.25	1.538	1.86
Pixel Density (pixels/m²)	640000	422500	288906
LED Type	Full Flip COB	Full Flip COB	Full Flip COB
Panel Size W × H × D (mm)	640 × 480 × 61	640 × 480 × 61	640 × 480 × 61
Panel Resolution W × H	512 × 384	416 × 312	344 × 258
Panel Material	Die-Casting Aluminum	Die-Casting Aluminum	Die-Casting Aluminum
Weight (Kg/pc)	8	8	8
Brightness (nits)	500–600	500–600	500–600
Brightness Adjustment	Programmable / Automatic / Manual	Programmable / Automatic / Manual	Programmable / Automatic / Manual
Refresh Rate (Hz)	3840	3840	3840
Contrast Ratio	10000:1	10000:1	10000:1
Color Temperature (K)	2000–10000 (Adjustable)	2000–10000 (Adjustable)	2000–10000 (Adjustable)
IP Rating	Front IP30 / Rear IP30	Front IP30 / Rear IP30	Front IP30 / Rear IP30

03DescriptionManufacturer's description

What it is.

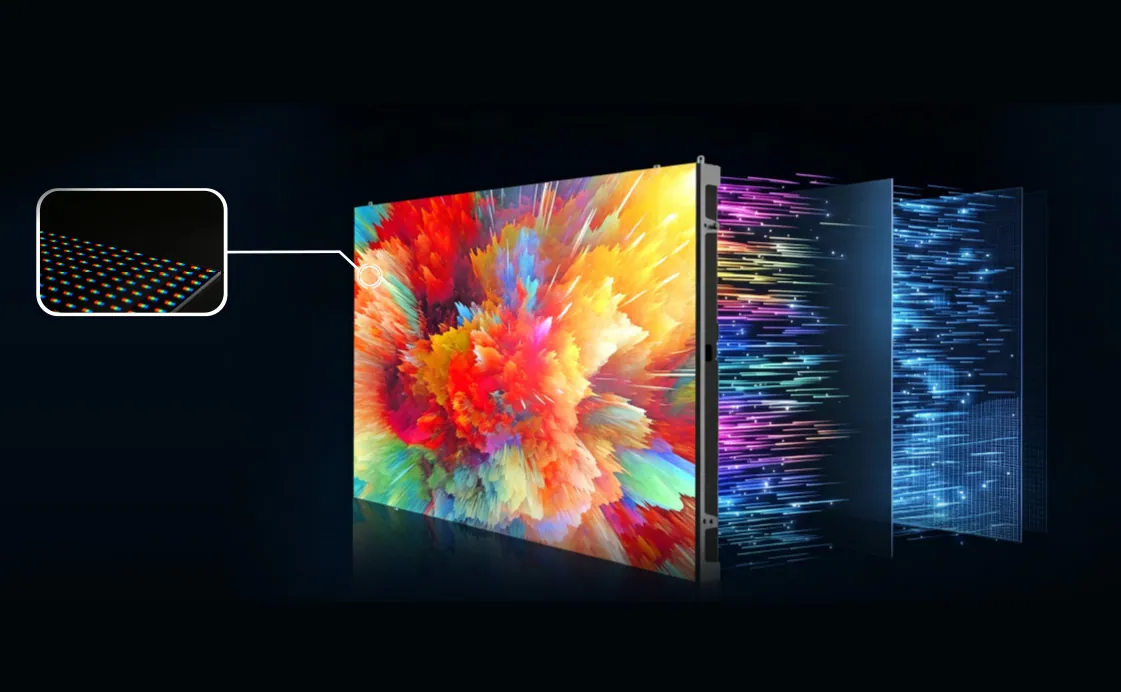

COB Technology for Ultra-HD Visual Excellence

Featuring full flip-chip COB technology with MiniLED chips, it delivers higher contrast, lifelike image quality, and enhanced overall reliability

HOB technology

All-round protection

High light extraction efficiency

Eye-friendly

Aesthetics & Practicability into One

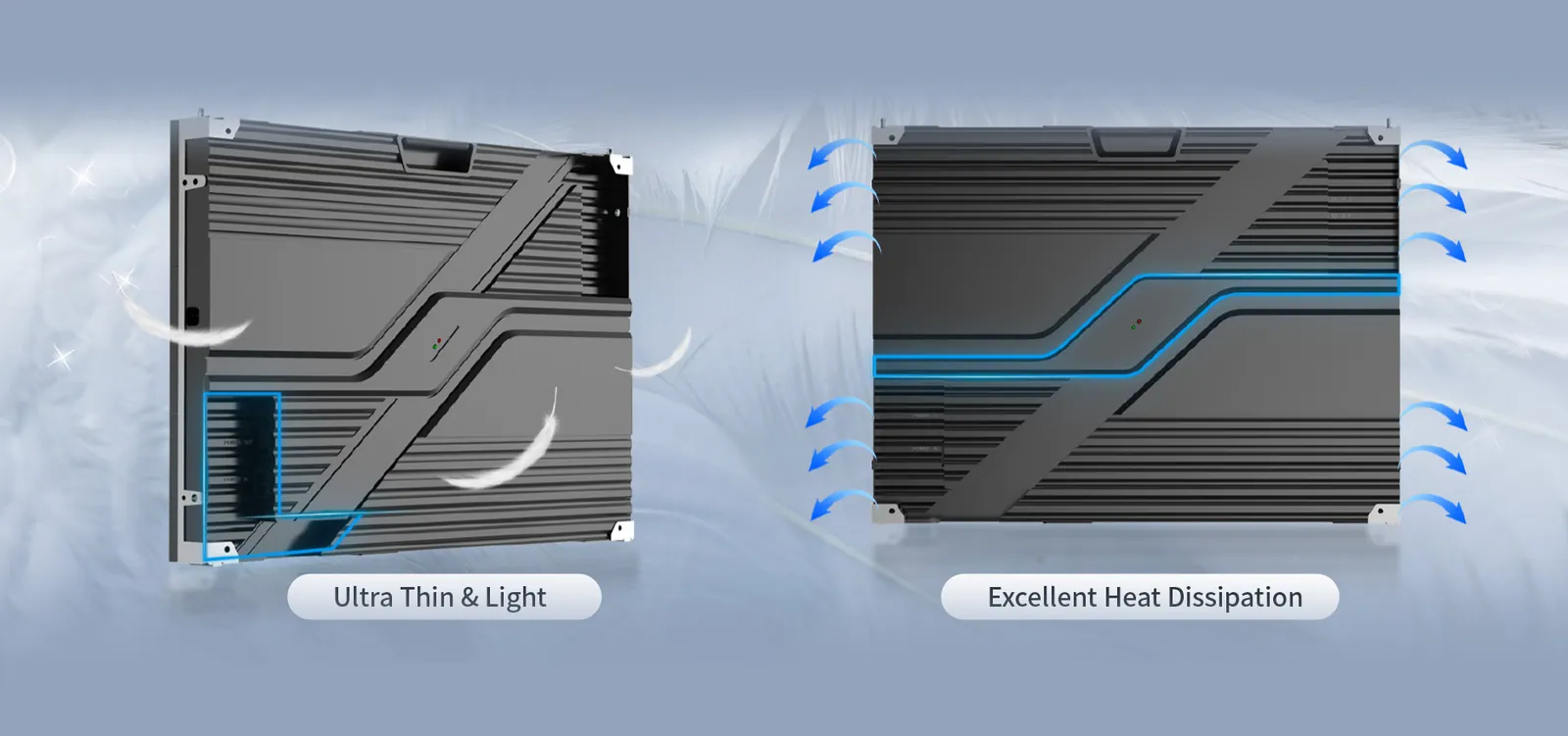

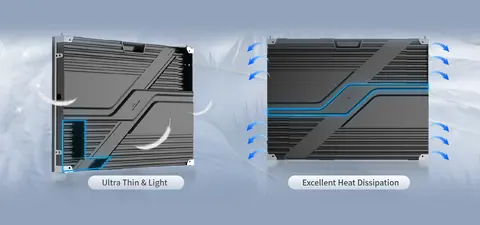

Upgraded thin & light die-cast cabinet saves your space to harmonize with the surroundings

Product features

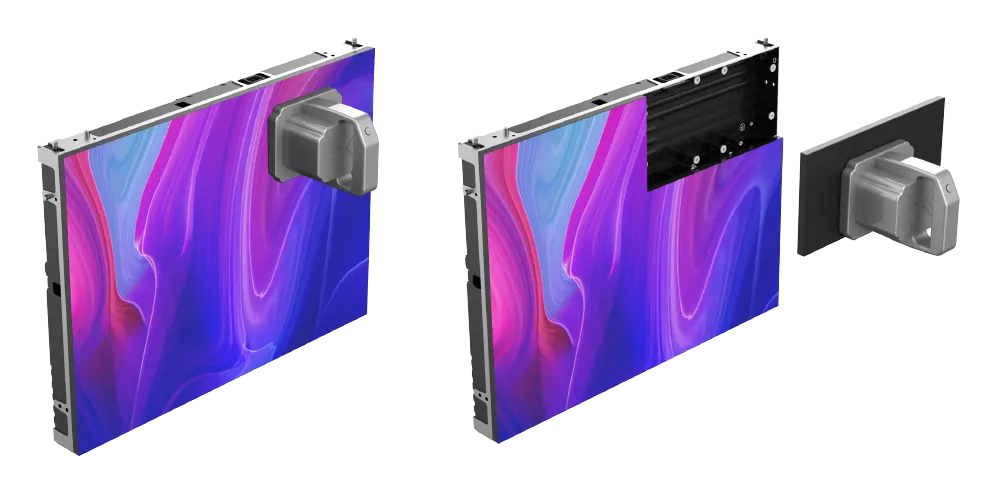

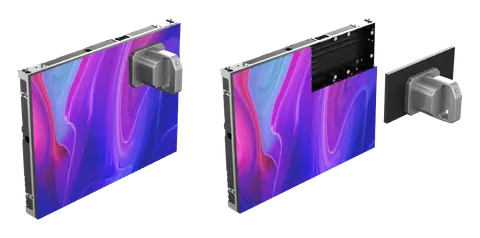

Optional integrated plugin connection between cabinets speeds up splicing efficiency and stabilizestransmission as well

Modules, receiving card & power supply support full front maintenance for higher spatial utilization

Backups of power supply and receiving card are optional to stabilize long-time transmission

* All specification values given are per panel. The specifications are for reference only, actual values may vary.

04Documents1 file · 6.1 MB

Documents and files.

Datasheets and manuals01

PDFSolution guide — Fine Pitch LED Video Wall SolutionEN · 22 pages · 6.1 MB
