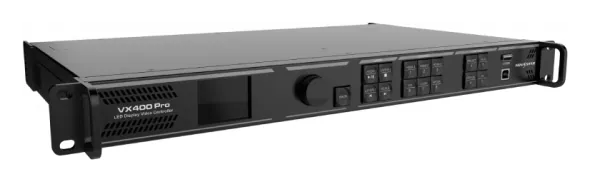

VX400 Pro

Video Controller.

Loading Capacity: 2.6 million pixels
Max Width (pixels): 10240
Max Height (pixels): 8192
Layers: 6 *2K×1K

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 8 values

What this product is, in numbers.

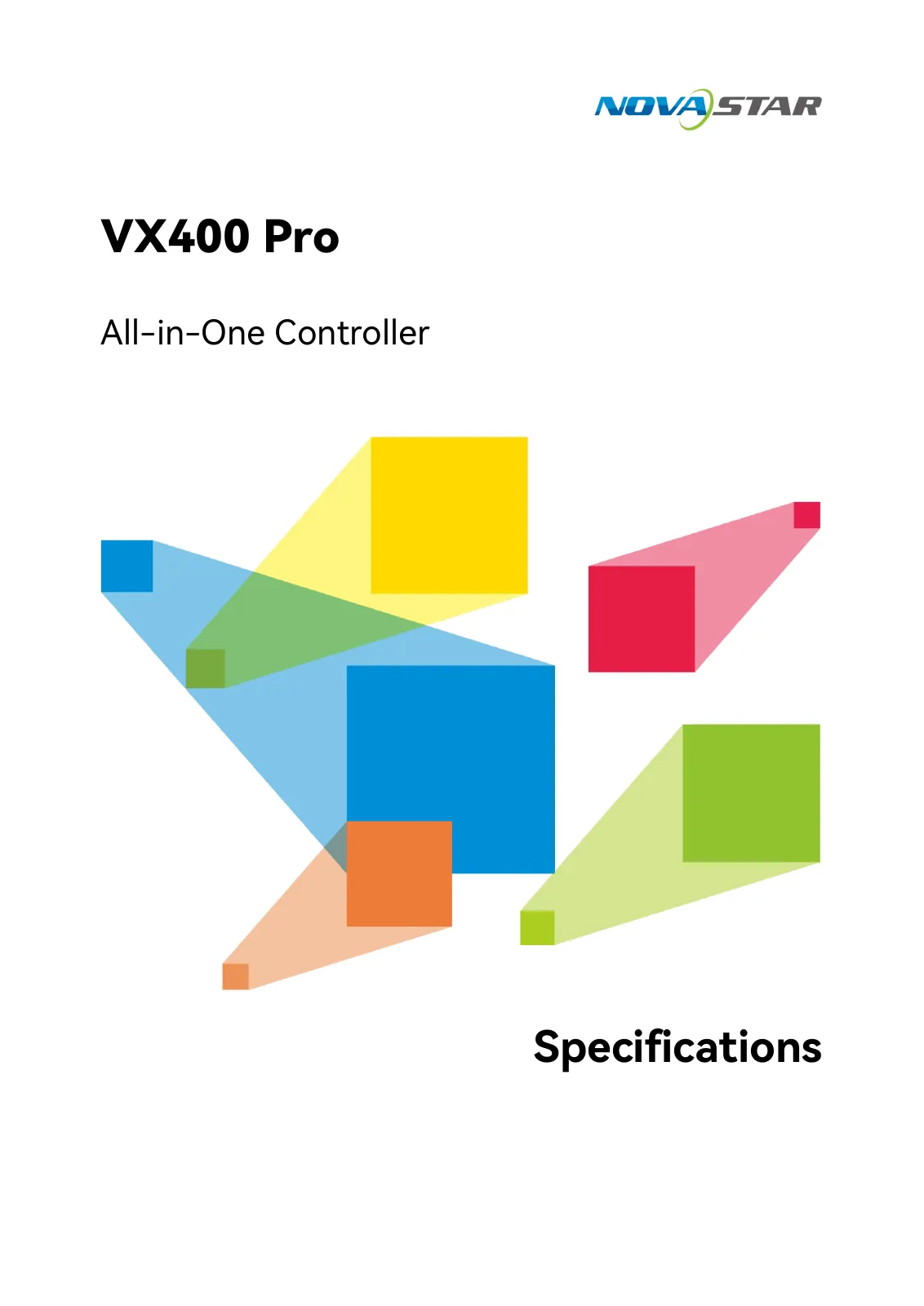

PDFSpecificationsEN · 21 pages · 1.1 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications8

Loading Capacity: 2.6 million pixels
Max Width (pixels): 10240
Max Height (pixels): 8192
Layers: 6 *2K×1K
Input Connectors: 1× HDMI 2.0(IN&LOOP) / 2× HDMI 1.3 / 1× 3G-SDI(IN&LOOP) / 1× 10G OPT Port(OPT1) / 1× USB3.0
Output Connectors: 4× Ethernet Ports / 1× HDMI1.3 / 1× HDMI 2.0 LOOP / 1× 3G-SDI LOOP / 2× OPT
Presets: 256
Control Connectors: 2× Ethernet Port / 1× USB
