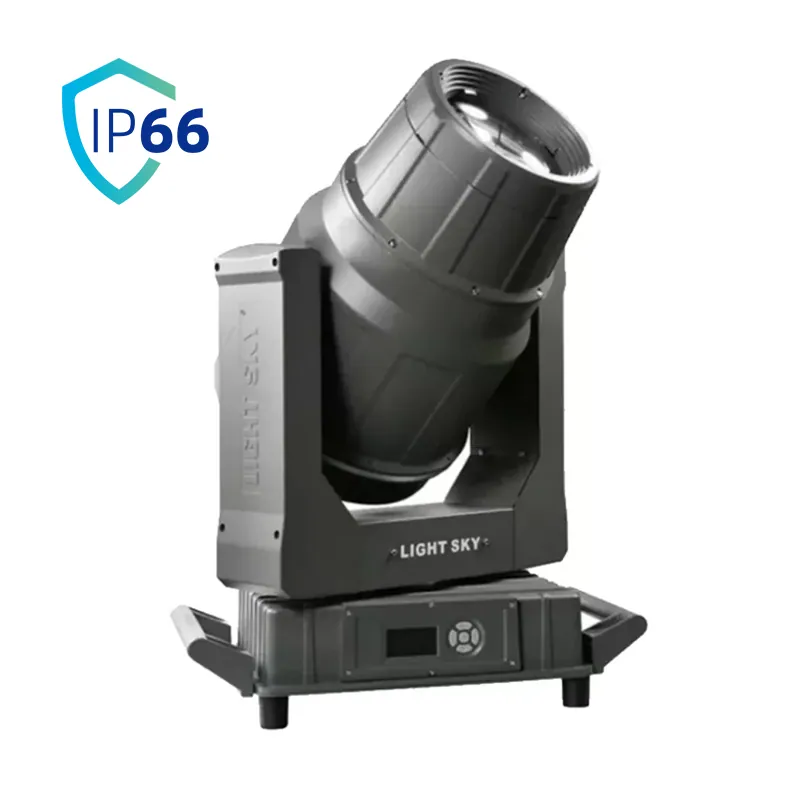

SHARK400

Light source: NSL400S USHIO
Power supply: AC 100-240V 50/60Hz
Colour temperature: 6900K
Net weight: 34.5kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 0:28

LIGHT SKY SHARK4000:28

02SpecificationManufacturer's data · 10 groups · 44 values

What this product is, in numbers.

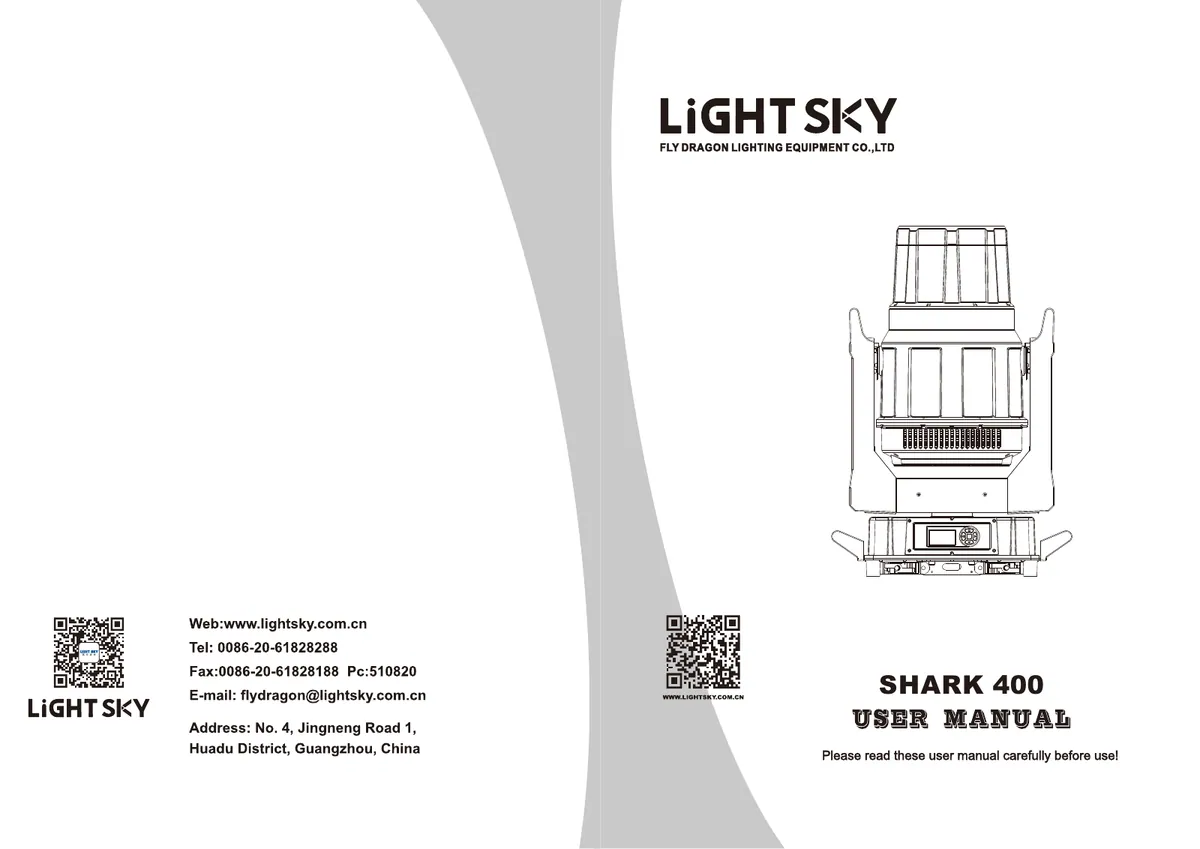

PDFUser manualEN · 25 pages · 2.8 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01OPTICS7

Light source: NSL400S USHIO
Optical angle: 2.0 °
Optical lens: coated with high anti reflective film, φ160mm
Color temperature: 6900K
Color rendering index: Ra≥72

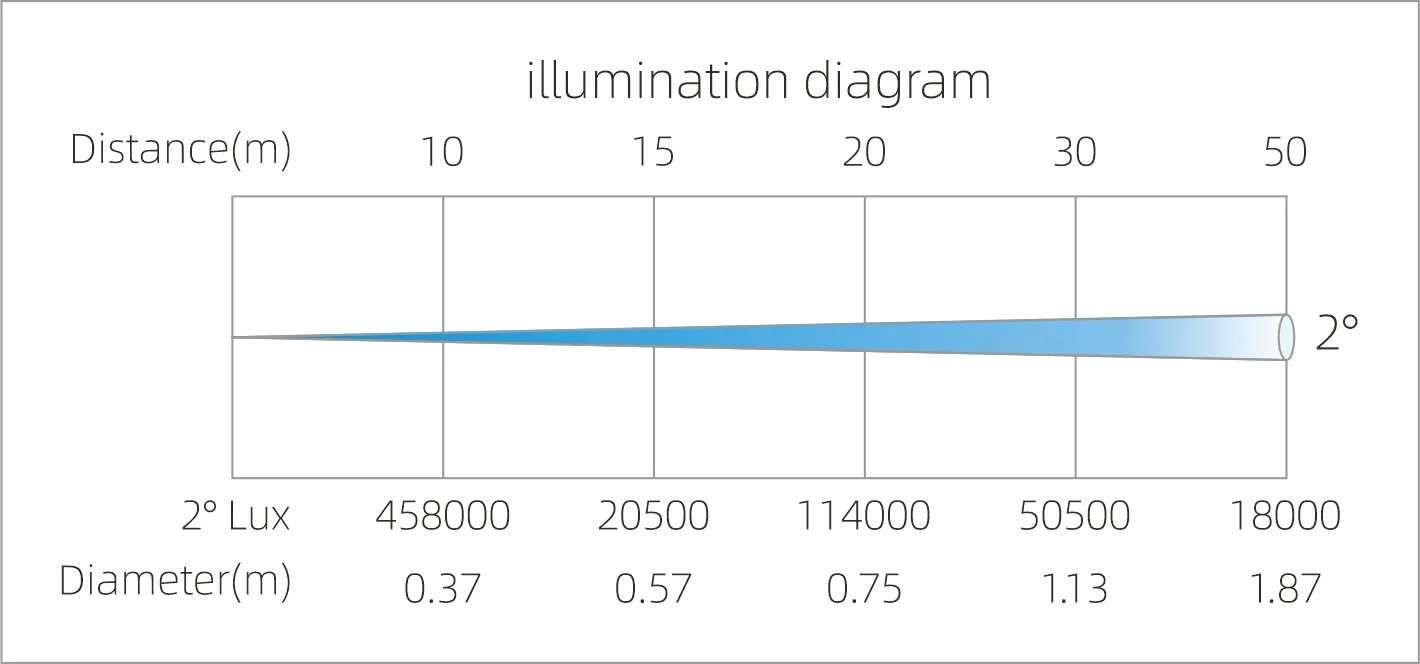

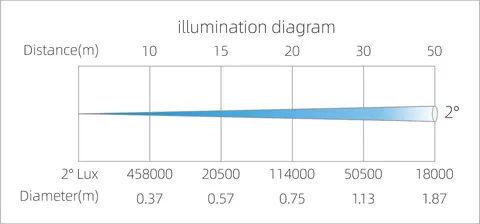

Illuminance: 458000 lux@10 m
Light source life expectancy: 1,500 hours

02COLOR3

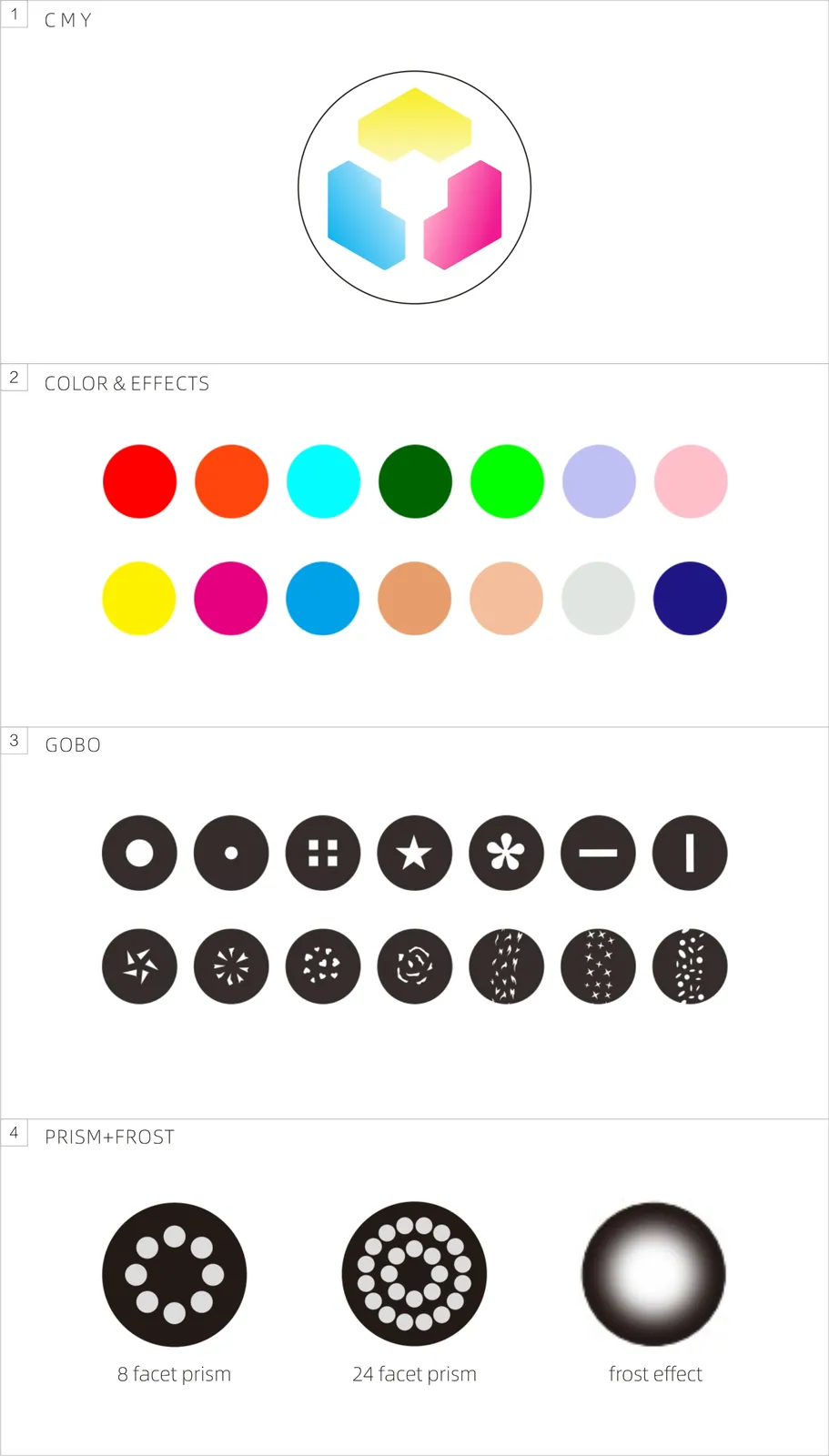

Color: 14 color chips+white light, capable of achieving bidirectional color rainbow, dual; color step gradient (linear movement), bidirectional rotation of color wheel, random color mode.
CMY: CMY Infinite Color Mixing

03GOBO2

Pattern: 11 patterns+white light+3 animations (animation effect patterns) with; bi-directional shaking, animation, and flowing effects.

04EFFECTS5

Prism: Prism 8+Prism 24: capable of bidirectional independent rotation, independent switching,and stacking
Soft light effect: adjustable independent soft light effect
Strobe: 0.5-9 timescond adjustable pulse flicker and random flicker
Dimming: 0-100% linear adjustment
Focusing: High precision electric focusing

05CONTROL AND PROGRAMMING6

Control channel: 17CH, please refer to the channel table for details
Protocol: Standard DMX512,protocol and RDM,protocol ArtNet protocol (optional)
Data connection: Three core or five core signal input/output; RJ45 interface (optional)
Display: LCD screen; Upgrade software through DMX signal

06PAN/TILT MOVEMENT4

X-axis: 540 ° 8-bit/16bit precision scanning
Y-axis: 240 ° 8-bit/16bit precision scanning; Reset function with automatic error correction
Fixed lock: Vertical lock

Show the full specificationHide the rest of the specification4 more groups · 17 values

07POWER SUPPLY AND POWER4

Input voltage: AC 100-240V 50/60Hz
Maximum power: 580W
Power factor: 0.985
Maximum current of the lamp: 3.0A/220V, 5.8A/100V

08SIZE & WEIGHT6

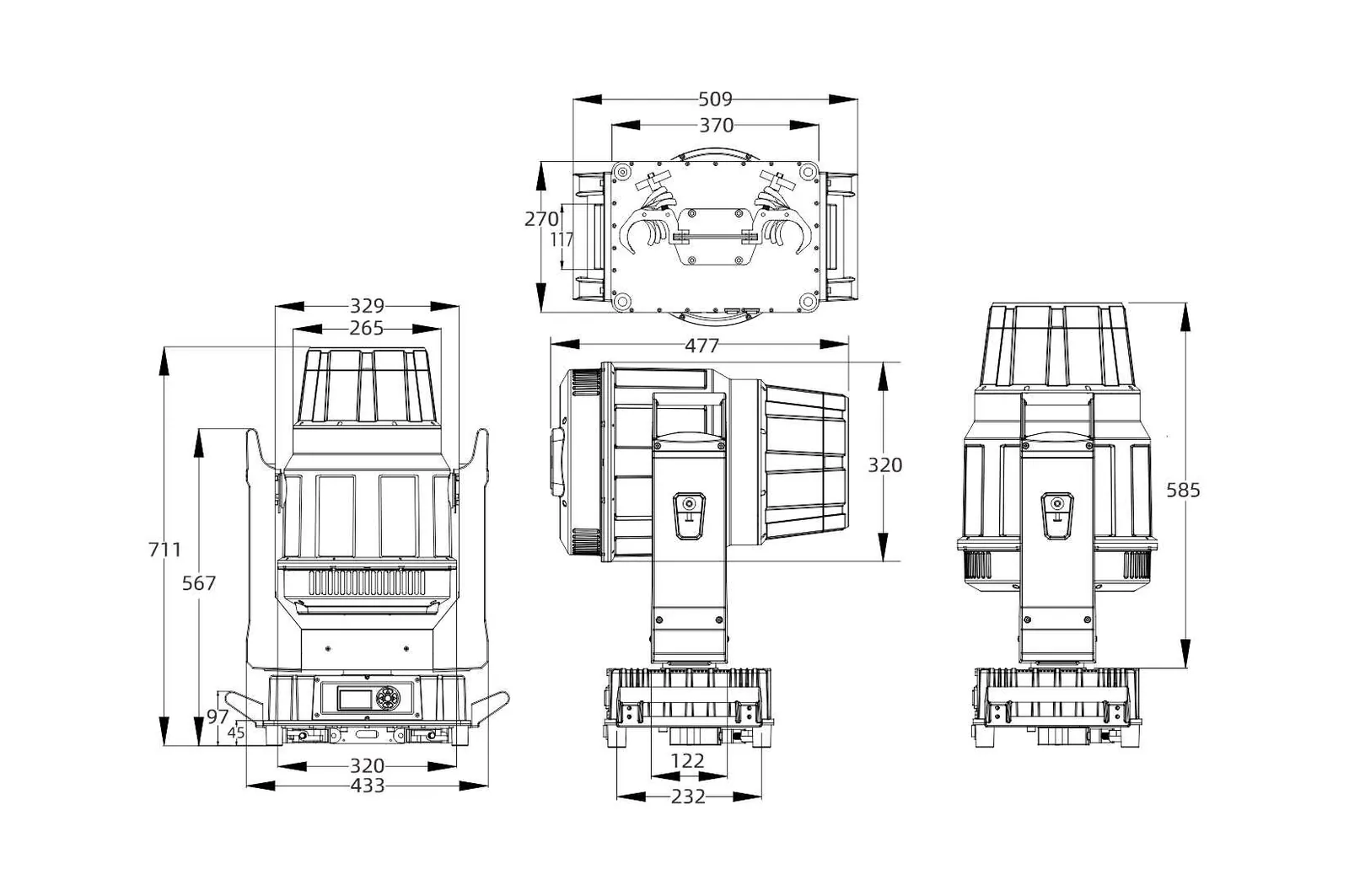

Product size: 509 × 320 × 711mm
N.W.: 34.5kg
Carton packaging (default): 810 × 580 × 395mm
G.W.: 39kg

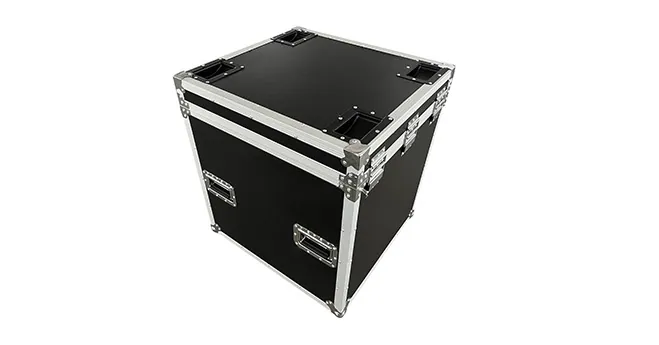

Flycase Size (1 sets): 620 × 640 × 825 mm
G.W.: 69.0kg

09OTHERS4

Protection level: IP66
Work environment: - 20°C ~ 40°C
(Note: When the lamp is working in an environment below zero degrees Celsius and powered on, the bulb needs to be preheated for 30 minutes before resetting all functions of the lamp before it can be used normally.)
Maximum surface temperature of lamp body: ≤ 80°C

10APPROVALS3

The product implementation standard: GB/T 7000.1-2023 、 GB/T 7000.217-2023
Approved certifications: CE、RoHs
The product complies with the following EU directives: Low Voltage Directive 2014/35/EU . EMC Directive 2014/30/EU

03DescriptionManufacturer's description

What it is.

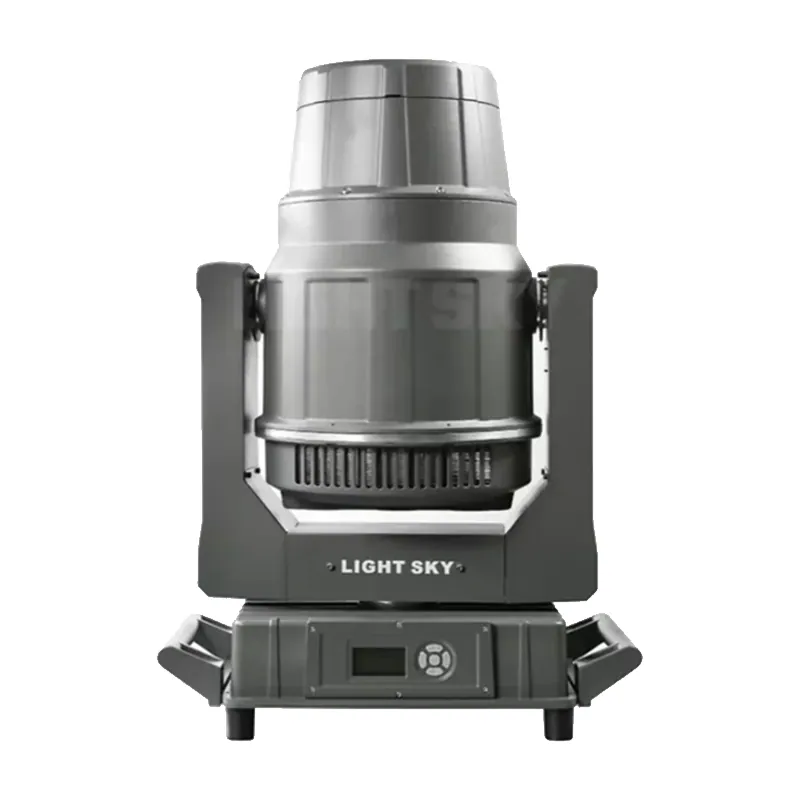

The SHARK400 is a high-power waterproof beam light featuring high-definition, high-precision optical lenses. With a light output diameter of φ160, it produces a robust and full beam with sharp edges. The beam angle is 2.0°, delivering high illumination intensity—reaching up to 458,000 lux at 10 meters. The beam is sharp, uniform, and full.This powerful beam light is IP66 protection rating, ideal for large-scale indoor and outdoor commercial performances, such as music festivals, cultural tourism shows, and urban landscape lighting, providing stunning and precise illumination.For more information about this advanced waterproof moving head beam light, please contact us!

FEATURES

Light source: NSL400S USHIO
Optical angle: 2.0 °
Optical lens: coated with high anti reflective film, φ160mm
Illuminance: 458000 lux@10m
Expected service life of light source: 1500H (data provided by the light source supplier)
