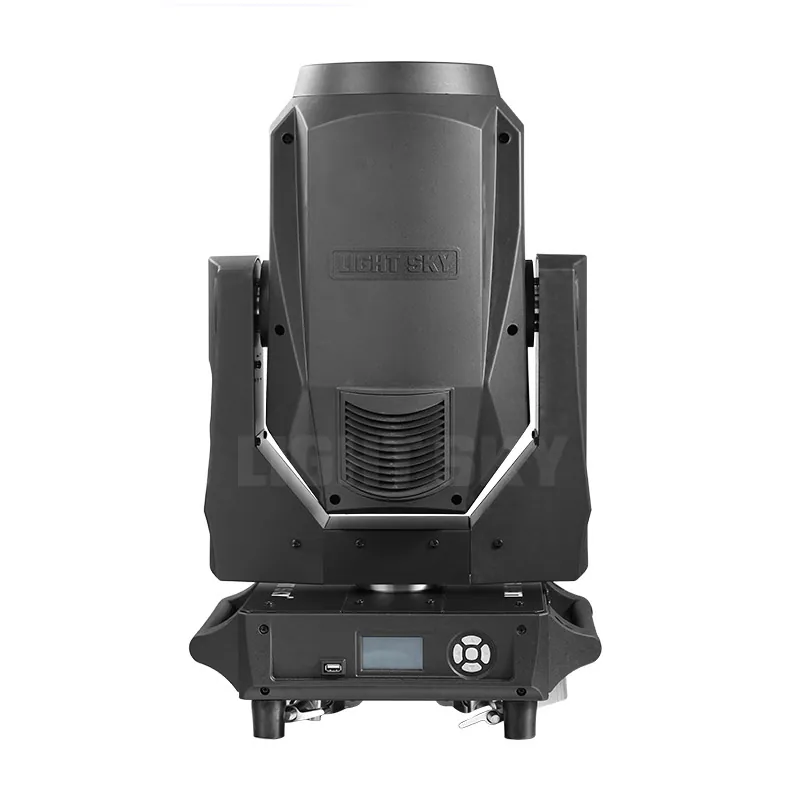

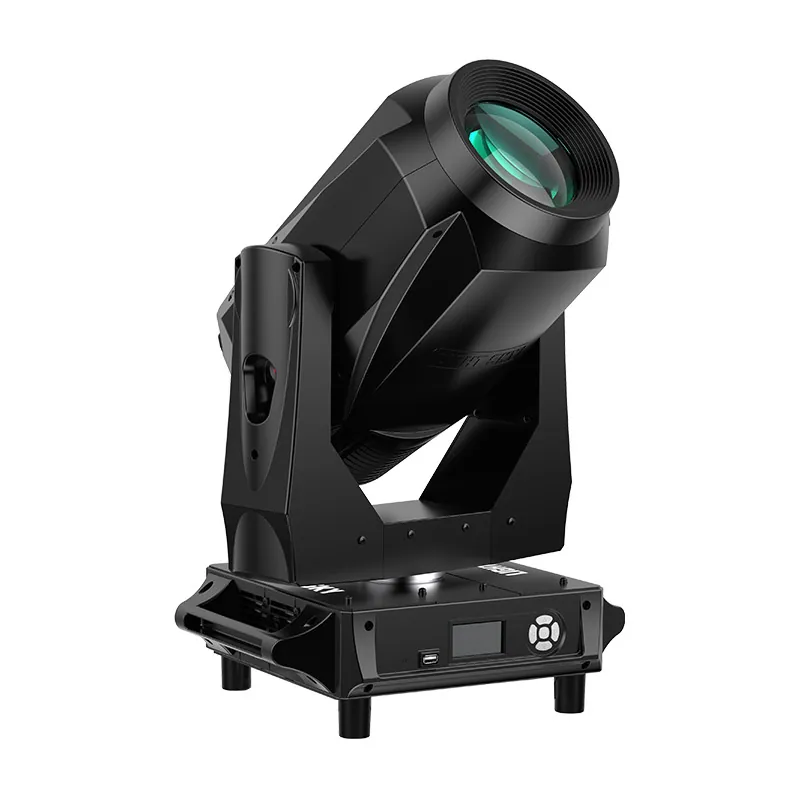

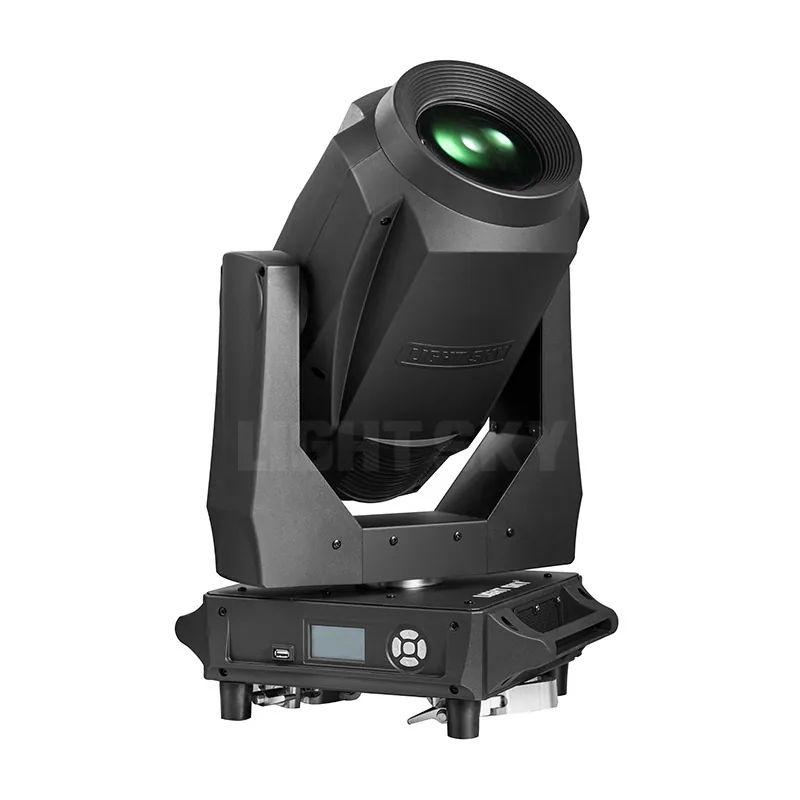

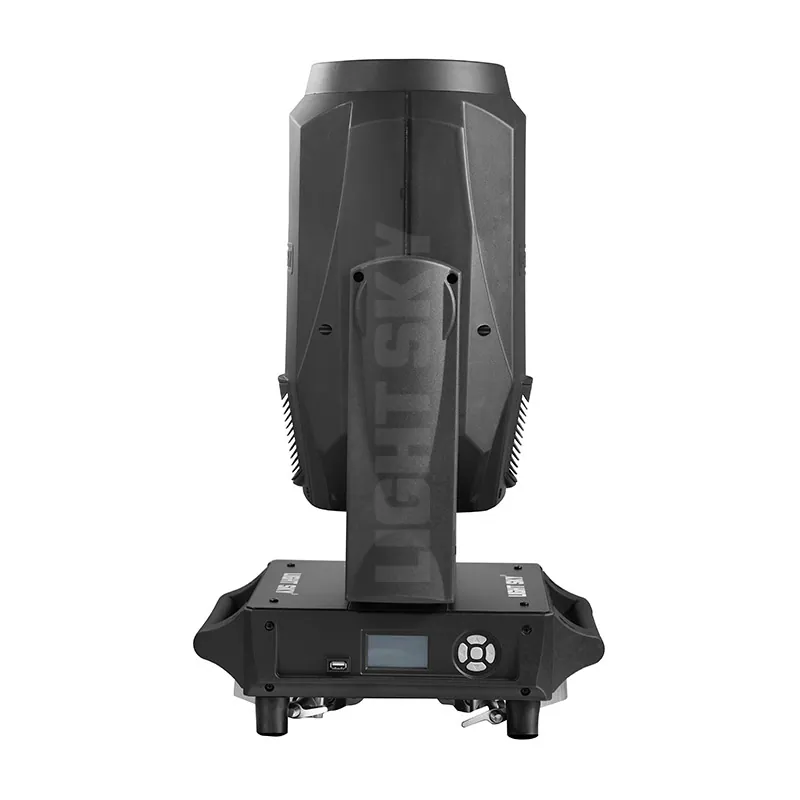

F400BSW

F400BSW is a multi-functional Professional beam, spot, wash as one of the 3 in 1 moving head light, LiGHT SKY products are known for its stability and durability.

Light source: LiGHT SKY NSL-360 USHIO
Power supply: AC100V~240V 50/60HZ
Beam angle / zoom: Beam Projection 0-1.5°,Spot Projection 1.5-20°
Protocols: DMX512
Net weight: 22.5kg/pcs

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 1:26

LIGHT SKY F400BSW1:26

02SpecificationManufacturer's data · 5 groups · 42 values

What this product is, in numbers.

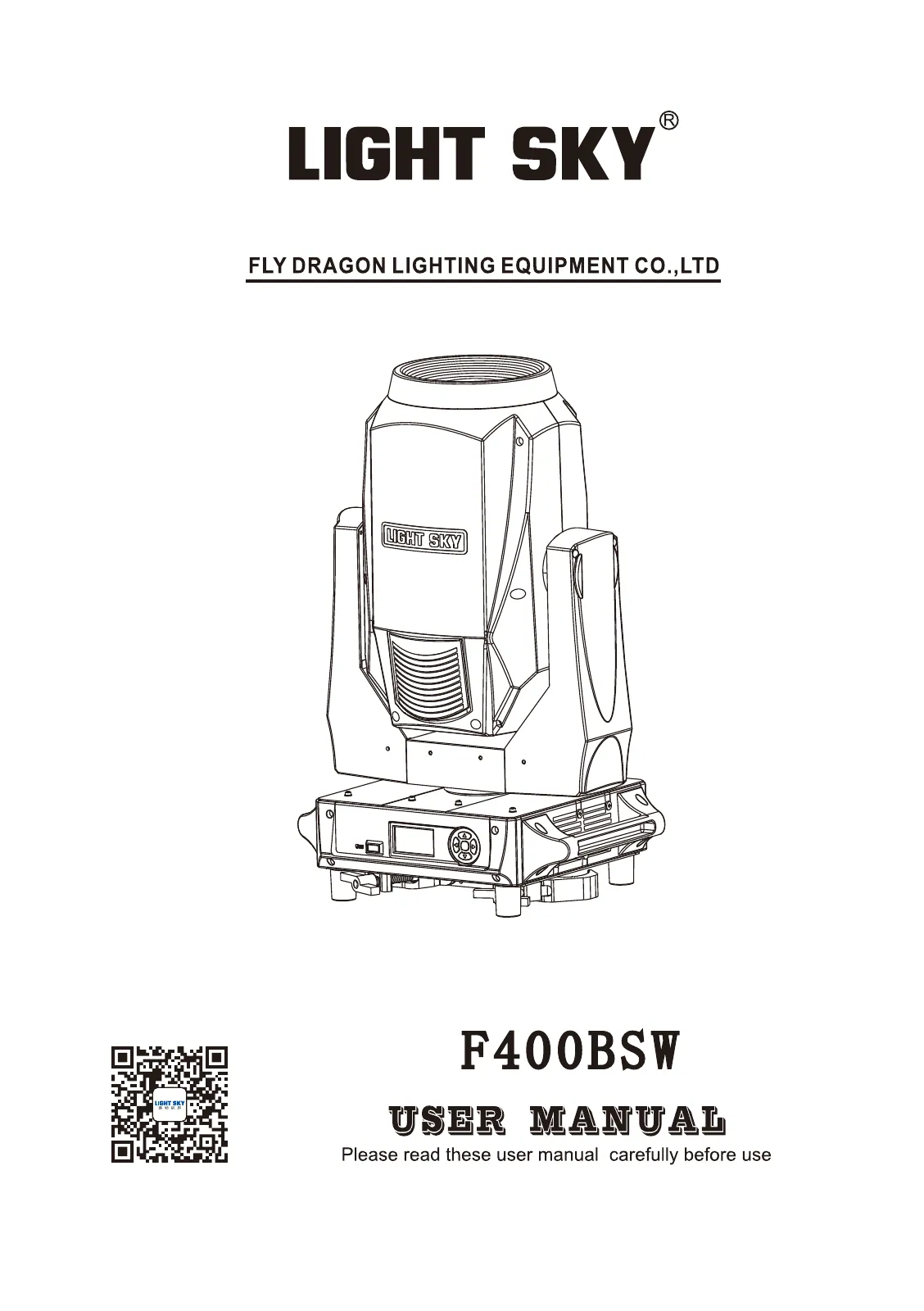

PDFUser manualEN · 27 pages · 2.9 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light Source / Power System7

Voltage: AC100V~240V 50/60HZ
Power: 495W
Light source: LiGHT SKY NSL-360 USHIO
Light source power: 360W
Light source average life span: 1500h
Output color temperature: 6900K

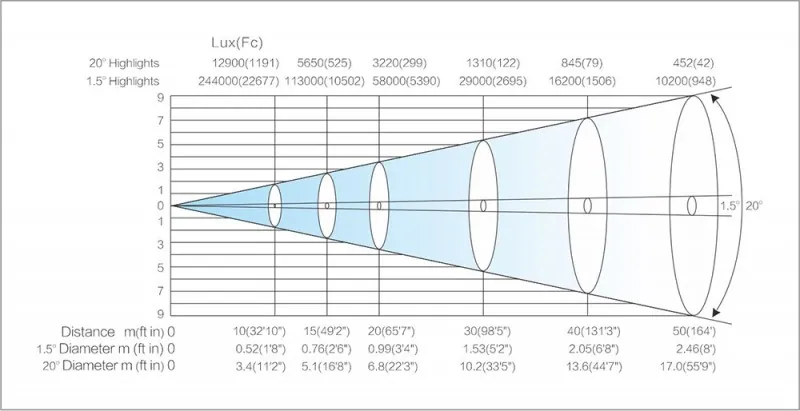

Illuminance: 244000lux@10m at beam mode

02Color / GOBO / Effects10

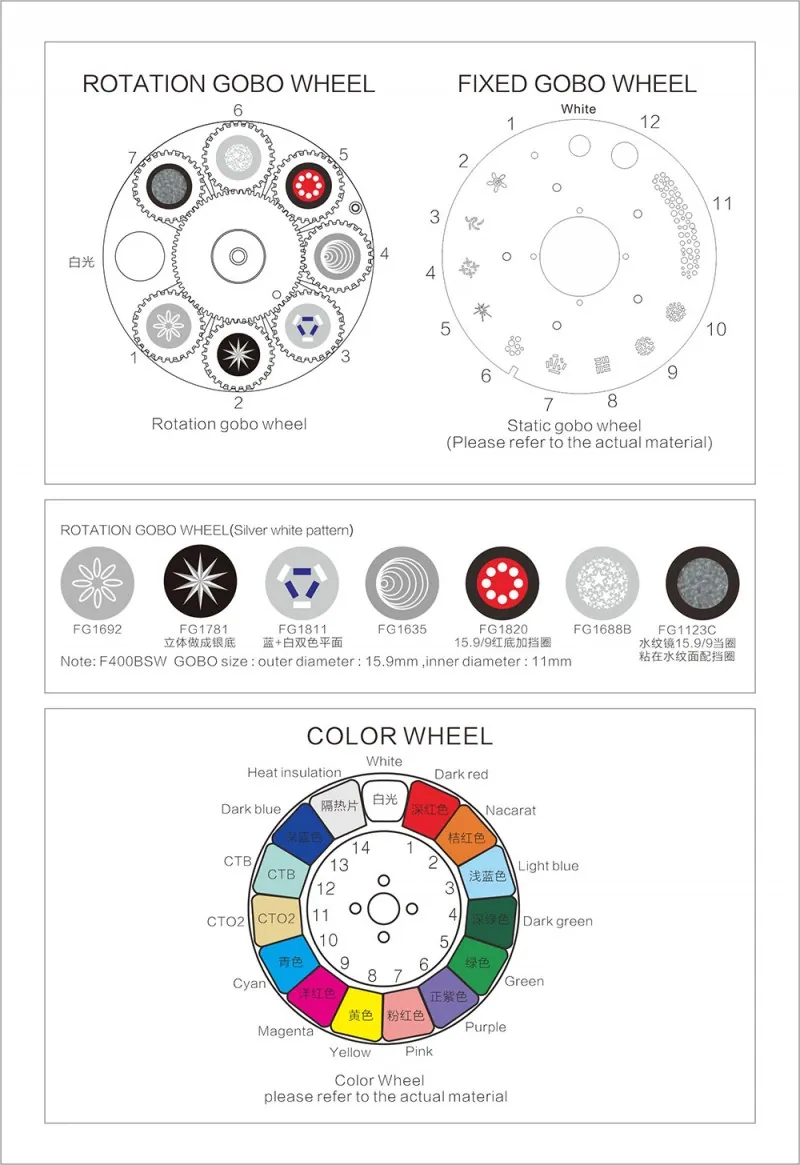

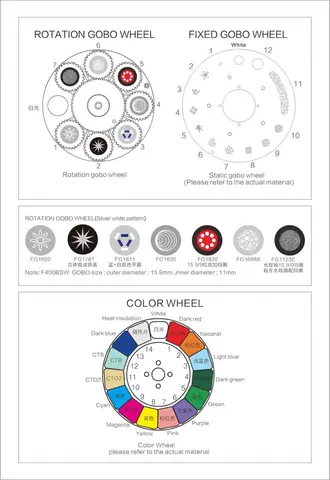

Color: 14 colors + white,Bi-direction rainbow effect
Static Gobo Wheel: 11 fixed gobos+blank +animation range, Bi-direction flow water animation effect.
Rotation Gobo Wheel: 7 rotating Gobos+blank ,Bi-direction flow water animation effect.
Prism: 12 facet round Prism(zoom from 10 to 20 degree)
Beam angle: Beam Projection 0-1.5°,Spot Projection 1.5-20°
Wash angle: 8-60°independent Wash effect.
Focus: linear adjustment
Lens: High precision optical lens,
Strobe: Double lens strobe(0.5-9 times/second)
Dimmer: 0 to 100% linear dimmer

03Control System11

Control protocol: DMX512
Channel mode: 20CH、18CH
DMX and RDM connectors: Locking 3 pin or 5 pin XLR IN/OUT
Power connector: Seetronic one in one out
Motors: 15 super quiet motors
Pan / Tilt: 540°/250° Pan/Tilt Fine : 2.11°/0.98°;Pan/Tilt Speed : 2.7 S/1.6 S
IP set: Built-in battery,IP could be set without electricity.
Software upgrade: Via USB
Features: Remote control the lamp’s ON/OFF , Intelligent adjust the cooling fan’s speed and the lamp Enter into Energy-saving model when in Shutter
Safety of Devices: Intelligent protection of overcurrent and overheating,Automatic break in power supply in case of, overheating or failed operation of cooling system.
Cooling: Forced ventilation with axial fans.

04Other functions6

Other functions: 1、The lamp’s switch can be controlled remotely; the cooling fan can be adjustable automatically; the lamp power will decrease when the fixture turns off.; 2、DMX address can be reset remotely via control panel; 3、The lamp’s heat dissipation can be adjustable with G-sensor system
Lamp safety: overcurrent and overheat protection; automatically interrupts lamp power when the lamp overheats or the cooling system fails.
Cooling System: Forced ventilation with an axial-flow fan
vertical direction: The locking device of vertical arm is used for convenient transportation and maintenance.

05Appearance Parameters8

Hanging system: foldable light hook
Housing: Heat-proof plastic+module pressing alloy materials.

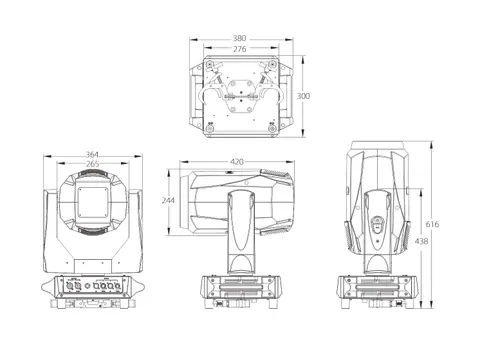

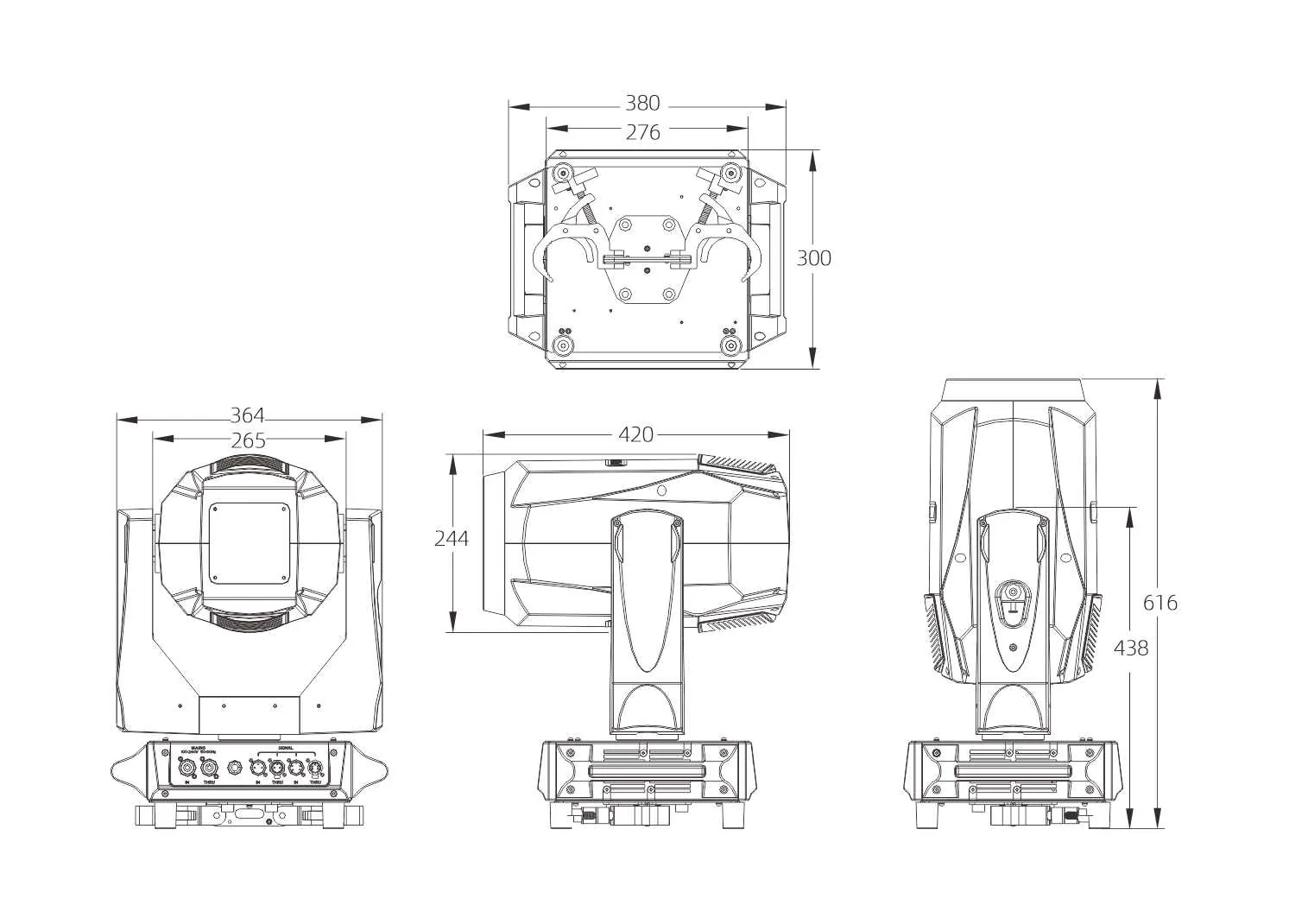

Light Dimension: 380X300X616mm
N.W: 22.5kg/pcs
Carton dimension: 450X370X700mm
G.W with carton: 25.5kg
Flycase dimension: 820 X 535 X 810(mm)
G.W with fly case: 80.3Kg(2 in 1)

03DescriptionManufacturer's description

What it is.

F400BSW is a multi-functional Professional beam, spot, wash as one of the 3 in 1 moving head light, LiGHT SKY products are known for its stability and durability. Suitable for all kinds of large-scale performance activities, entertainment venues, etc., is also one of the professional stage lighting suppliers. LiGHT SKY is one of the professional stage lighting suppliers, which is recognised by the public and protects the professional stage lighting business.

FEATURES

F400BSW is a more professional updated Beam Spot Wash 3 in 1 moving head light;
Lamp Brand:LiGHT SKY NSL-360 USHIO;
Prism: 12 facet round Prism(zoom from 10 to 20 degree);
Beam angle: Beam Projection 0-1.5°,Spot Projection 1.5-20°;
LCD backlit screen design, can clearly display under the sunshine;
Unique USB software upgrading system;
The vertical direction of the use of hidden locking device,convenient to transportation and maintenance;
Tiny fixture, clamp system equipped & easy installment;
Heat-proof plastic,Anti-UV, Anti-Radiation,Anti- high pressure,Anti-aging.
