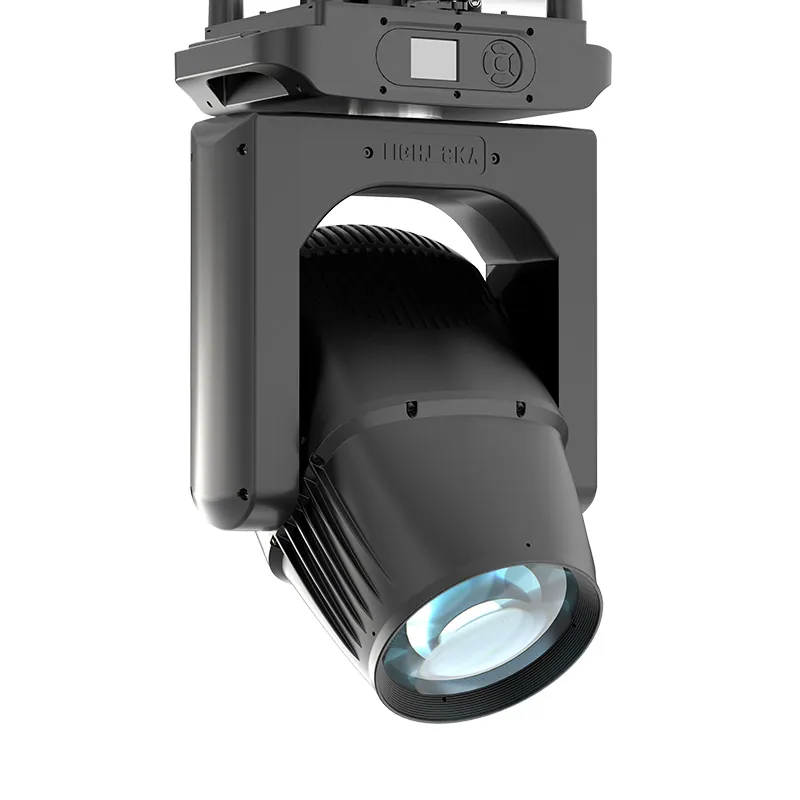

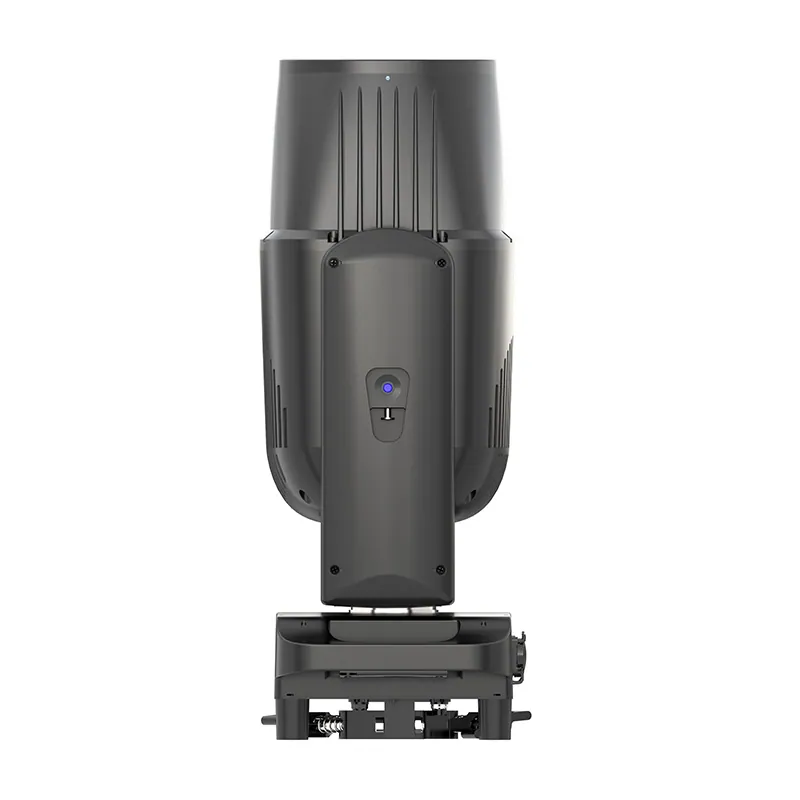

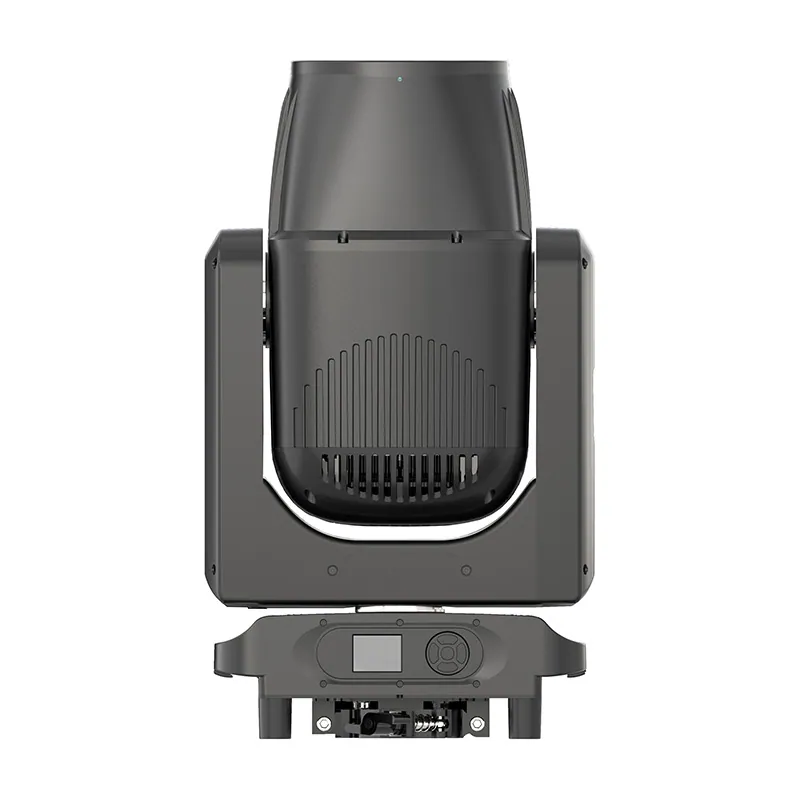

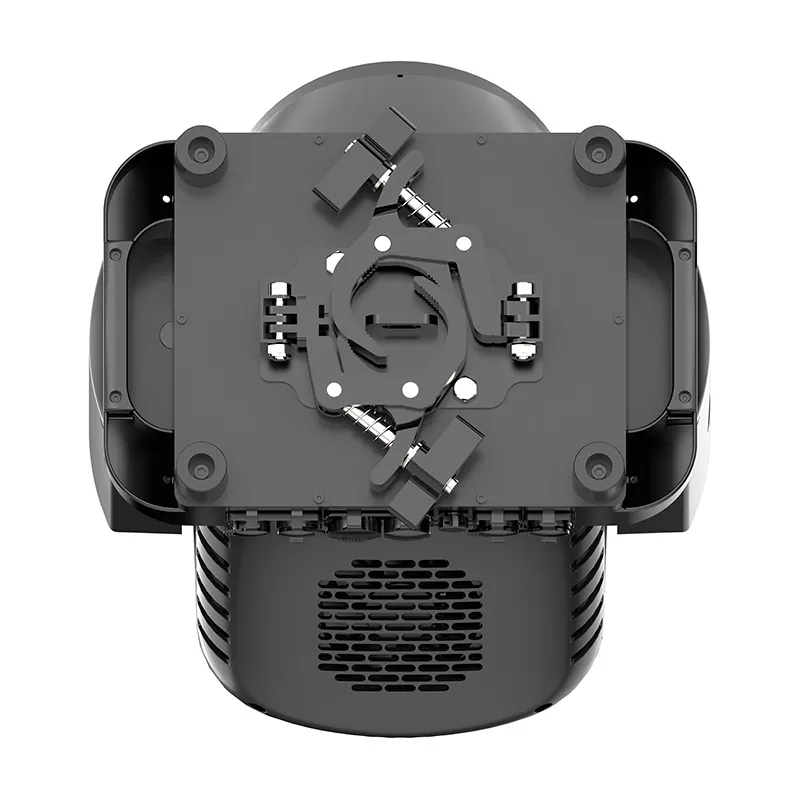

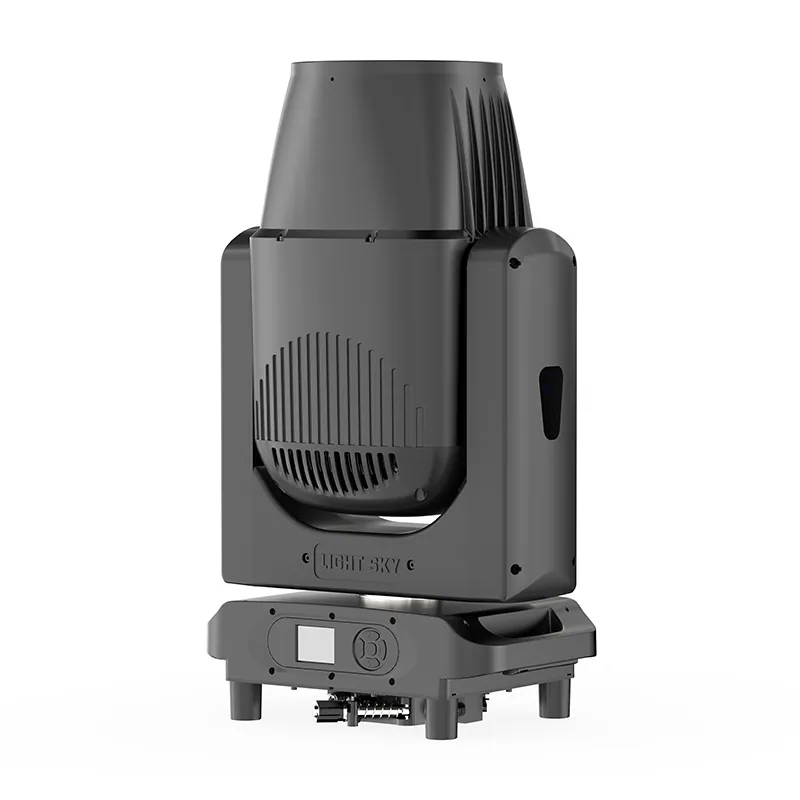

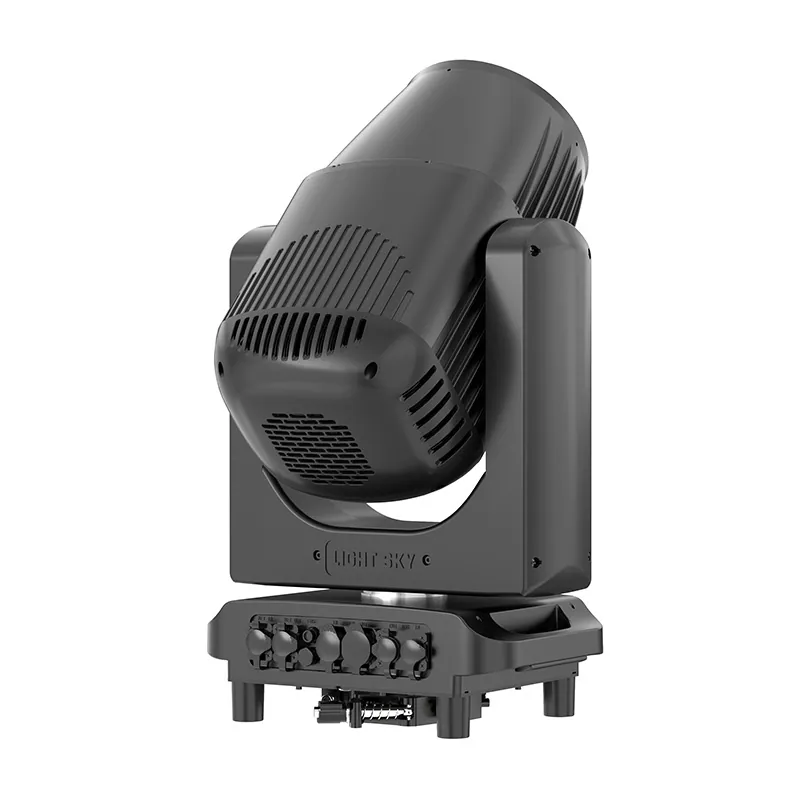

MINI WHALE

The MINI WHALE is a compact pure-beam waterproof moving head light designed for weddings, nightclubs, car shows, and other dynamic events that need professional moving head lights.

Light source: OSRAM NED40
Power supply: AC 100-240V 50/60Hz
Beam angle / zoom: 1.3°(φ5mm blank circle)/ 0.8°(φ3mm blank circle)/ 0.5°(φ1.5mm blank circle)
DMX channels: 15CH
Protocols: DMX512, RDM, ArtNet(optional)
Colour temperature: 7000 K
Net weight: 22.1 kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 9 groups · 31 values

What this product is, in numbers.

PDFUser manualEN · 27 pages · 7.5 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01OPTICAL6

Light Source: OSRAM NED40
Beam Angle: 1.3°(φ5mm blank circle)/ 0.8°(φ3mm blank circle)/ 0.5°(φ1.5mm blank circle)
Optical Lens: φ174mm
Color Temperature: 7000 K
Color Rendering Index (CRI): Ra≥80

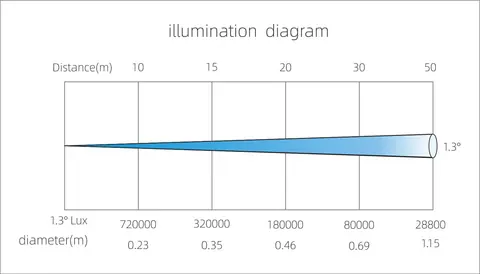

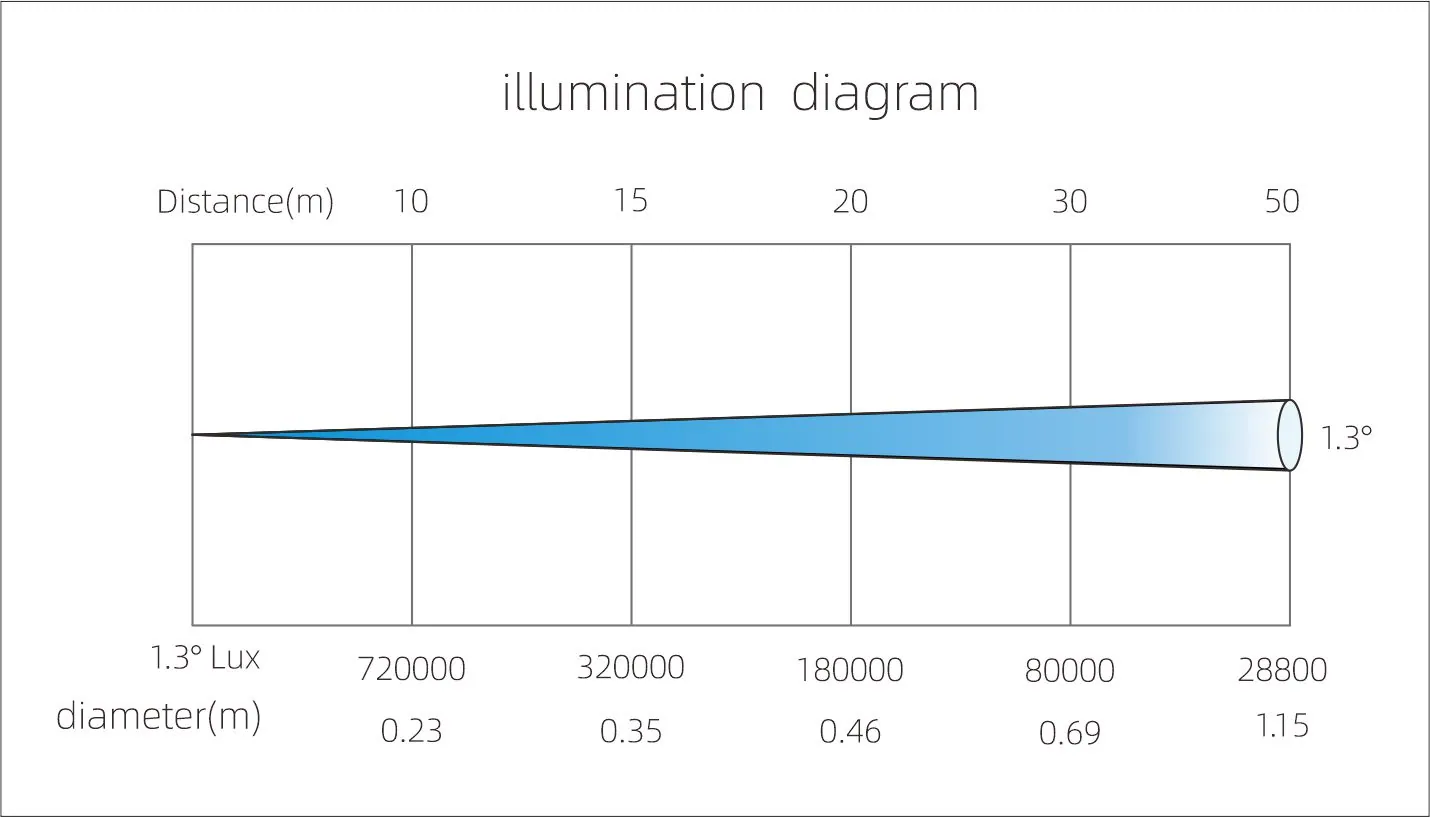

Illuminance: 720000 Lux@10m

02COLOR1

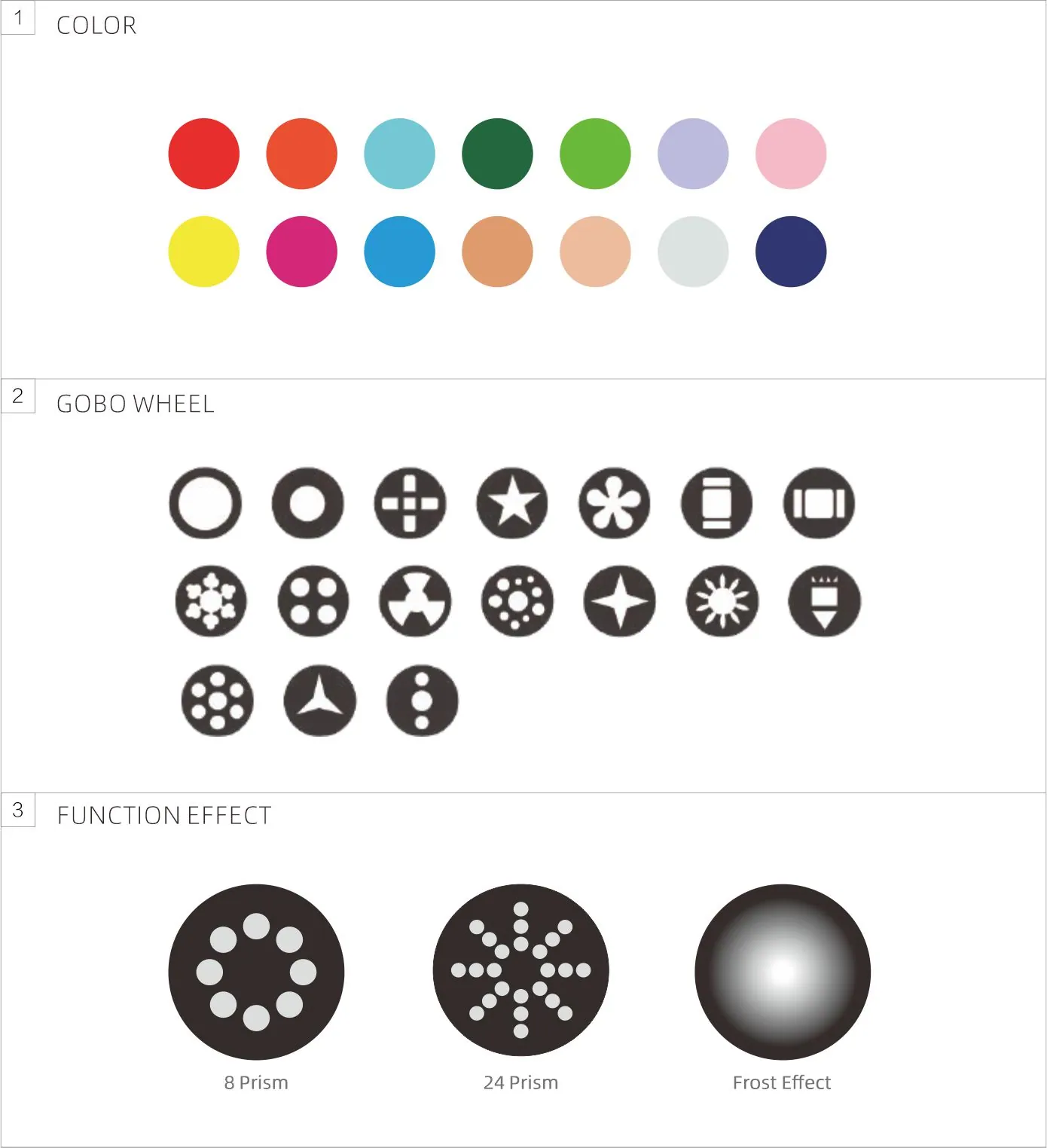

Color Wheel: 14 Colors + Blank, Bi-directional rainbow effect, dual-color stepping gradient (linear movement), and bidirectional color wheel rotation.

03GOBO1

Static Gobo Wheel: 17 fixed gobo +1 Blank ,supporting flowing water effect and jitter effect.

04EFFECTS5

Prism: 8-facet prism + 24-facet prism: Bidirectional independent rotation, individual switching, and multiple combination.
Frost: Independent Frost Effect
Focus: Motorized focus
Strobe: Adjustable pulse strobe (0.5-12Hz) and random strobe
Dimmer: 0 to 100% linear dimmer

05CONTROL5

Control Channels: 15CH
Protocols: DMX512, RDM, ArtNet(optional)
DMX and RDM connectors: 3 pin or 5 pin XLR IN/OUT
Display: LCD screen; Upgrade software via DMX 512 protocol

06PAN/TILT MOVEMENT2

Pan Axis: 540°, 8-bit/16-bit precision movement
Tilt Axis: 270°, 8-bit/16-bit precision movement

07POWER2

Voltage: AC 100-240V 50/60Hz
Max Power: 460W, PF0.98

08SIZE & WEIGHT4

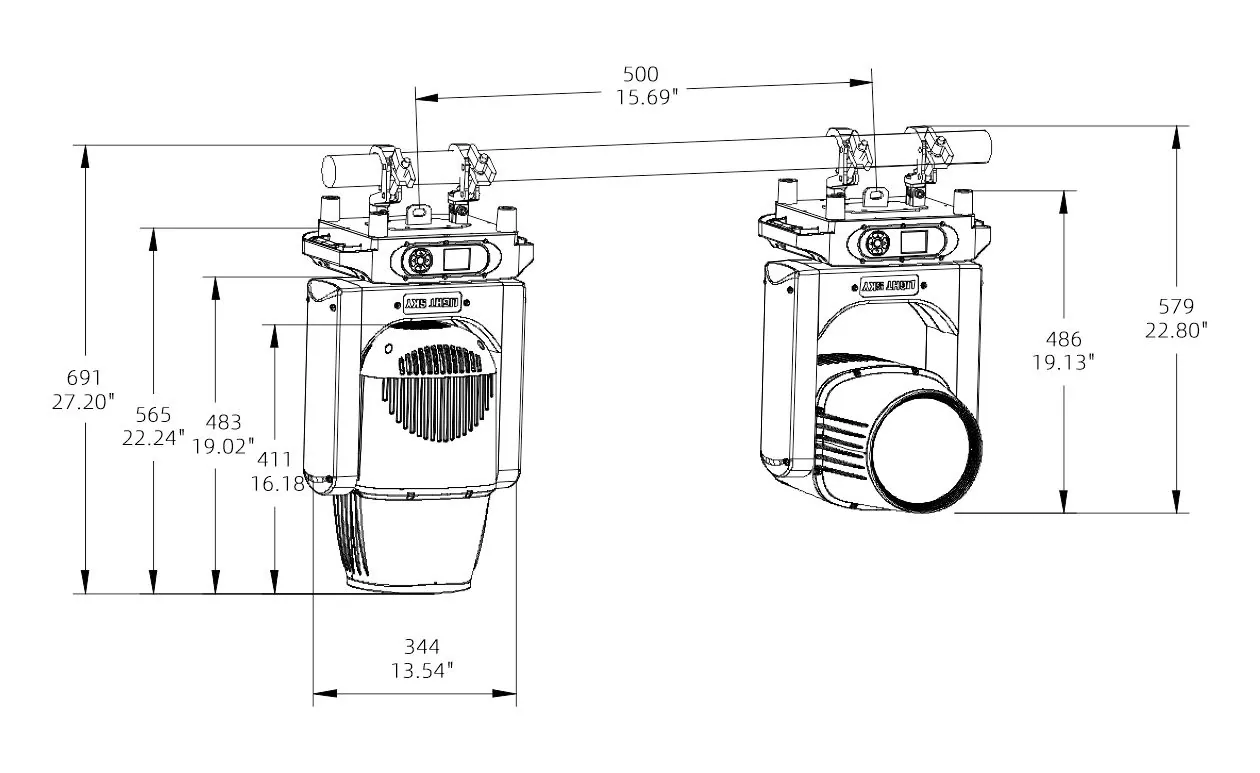

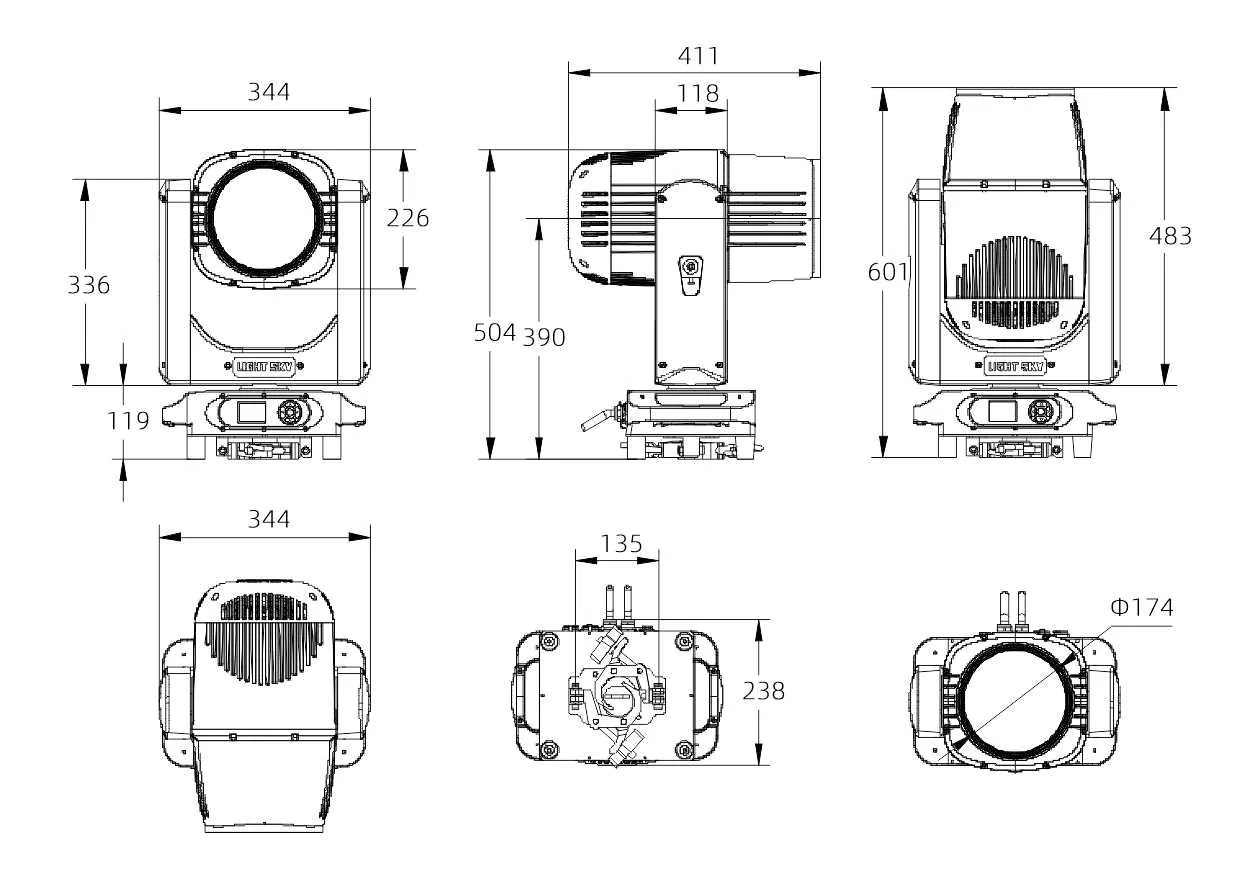

Product Size: 344×238×601mm
Net Weight: 22.1 kg
Carton Packaging (default): 425×305×750mm
Gross weight: 25.7kg

09OTHERS5

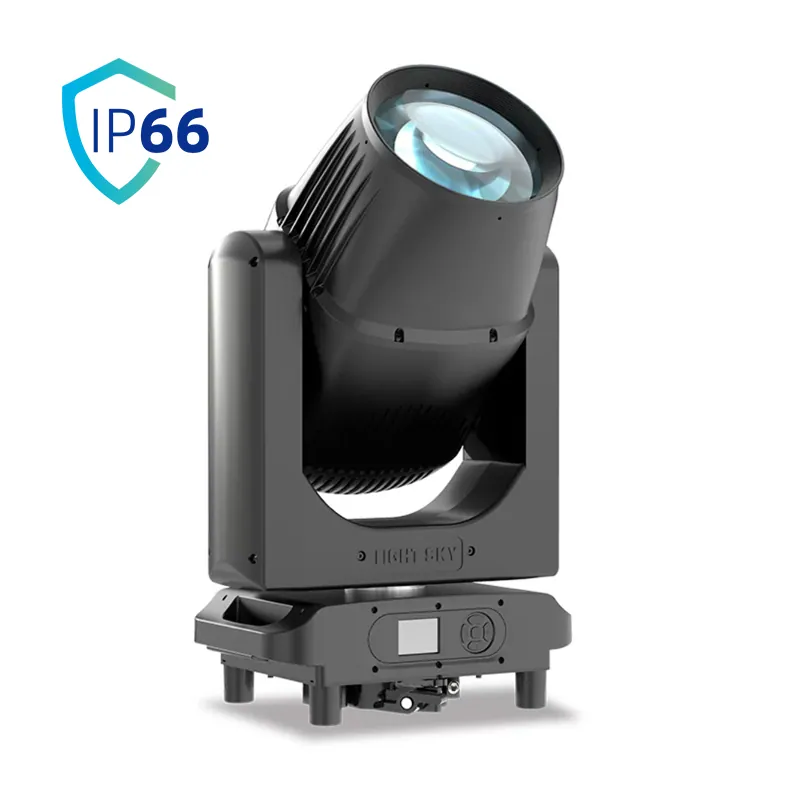

IP Rate: IP66
Operating Environment: -10°C~40°C
Max Surface Temperature: ≤80°C
Max. Current: 2.08A/220V, 4.56A/100V; All in all, LiGHT SKY is a leading professional lighting company with 30+ years of experience, offering high-performance DJ moving head lights and reliable moving beam light solutions for events, clubs, touring shows, and others.

02DescriptionManufacturer's description

What it is.

As LiGHT SKY moving head fixtures, our moving head fixtures combine clean beam projection, fast movement, vivid color performance, sharp gobo and stable IP66 outdoor reliability in a lightweight body. This mini beam moving solution offers lighting designers a flexible moving beam light option for projects that require strong visual impact, precise positioning, and a professional stage atmosphere.

FEATURES

High Illuminance: OSRAM NED40 light source provides 720,000 Lux@10m brightness.

Precision Beam Output: 1.3° beam angle delivers sharp, long-throw projection.

Advanced Optical System: φ174mm lens, 7000 K color temperature, and CRI Ra≥80 for bright and clear beam effects.

Dual Prism Effects: 8-facet and 24-facet prisms create rich beam combinations.
IP66 Waterproof Design: Reliable for waterproof moving head light
Compact Moving Beam Light: Lightweight structure with fast response and precise positioning.
