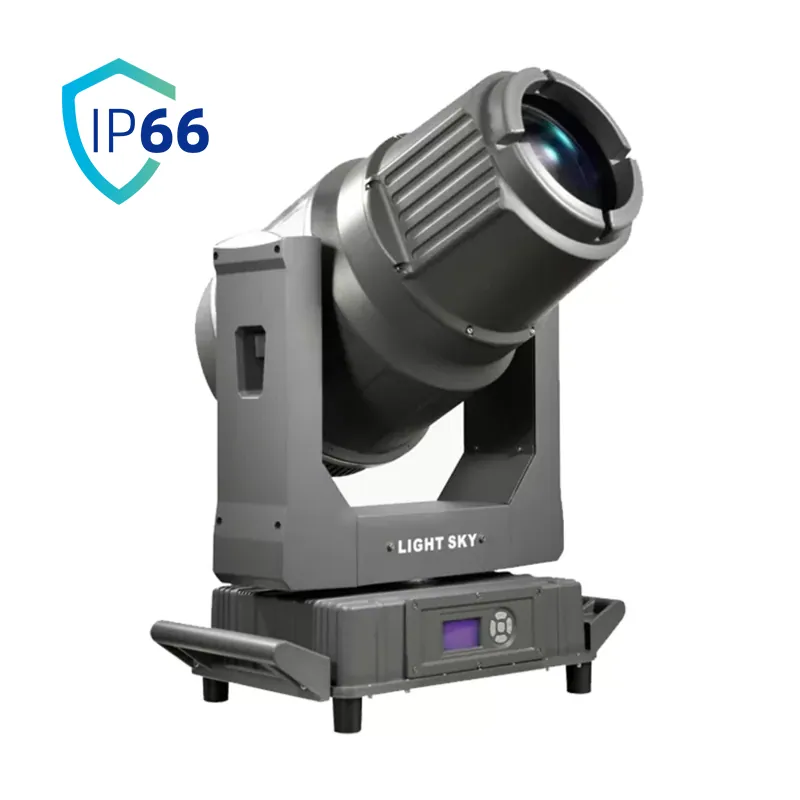

SHARK450BSW

SHARK450BSW is an IP66 waterproof moving head 3 in 1, beam, pattern, colouring as one multi-functional high-tech lamps, outdoor large-scale performances and outdoor lighting must be a godsend, because it can be multi-purpose lamps, wind and rain are not afraid of, for the supplier to save time and effort, but also for outdoor large-scale performances and outdoor lighting to make a contribution.

Light source: NSL- 450 USHIO LIGHT SKY
Power supply: AC100-240V 50/60HZ
Beam angle / zoom: 2°to 21° (Beam mode)
Protocols: DMX 512, RDM ,Wireless(option)
Net weight: 38.5kg/pcs

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 2:26

LIGHT SKY SHARK450BSW2:26

02SpecificationManufacturer's data · 5 groups · 50 values

What this product is, in numbers.

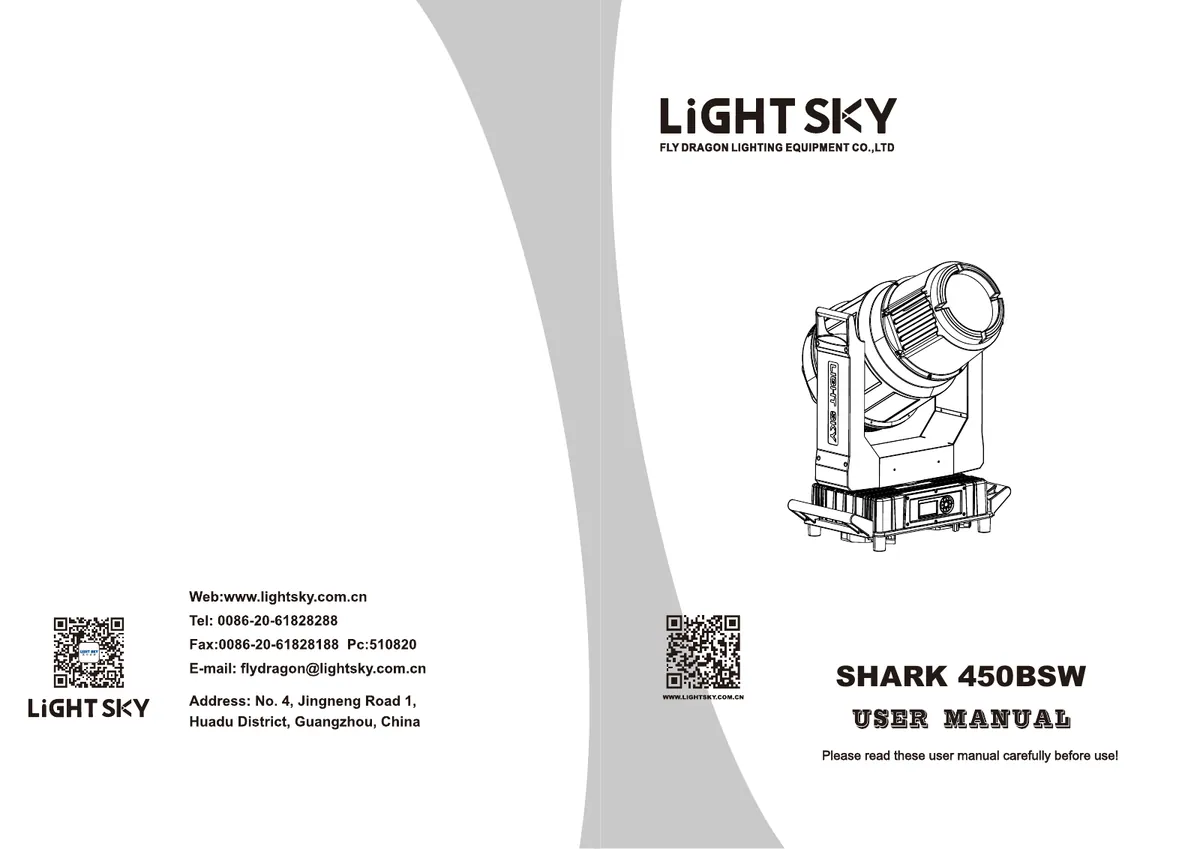

PDFUser manualEN · 28 pages · 2.9 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light Source / Power System10

Voltage: AC100-240V 50/60HZ
Rated: 700W PF : 0.985
Light source: NSL- 450 USHIO LIGHT SKY
Lamp power: 450W
Light source life expectancy: 1,500 hours
Output color temperature: 7000K
Ballast: Electronic ballast

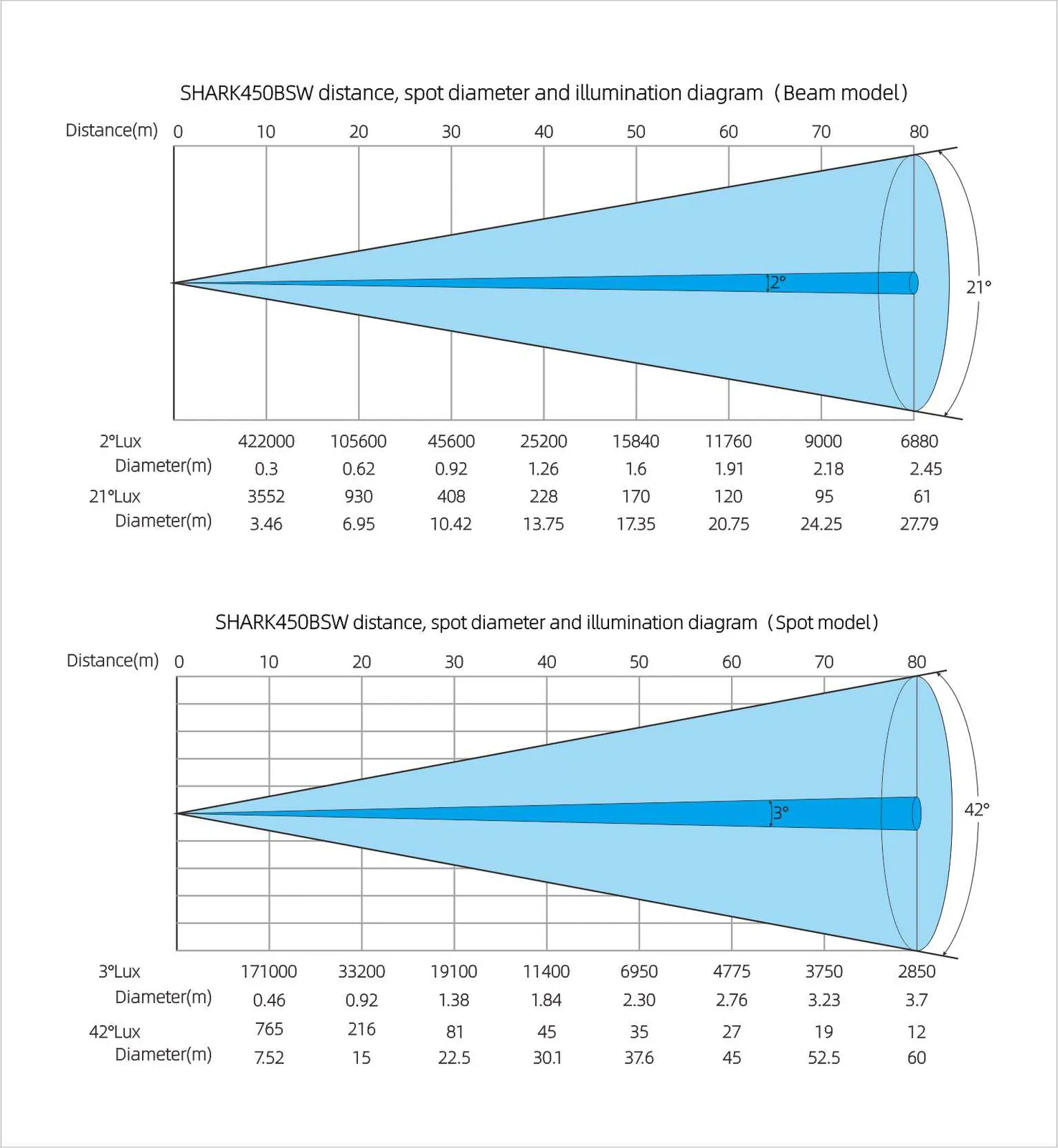

Illuminance: 422000lux@10M at beam mode
CRI: Ra≥74
Front lens diameter: 160mm

02Color / GOBO / Effects12

Beam angle: 2°to 21° (Beam mode)
Zoom angle: 3° to 42 ° (Spot mode)
Color wheel: 12 color + 2 CTO + blank
C M Y: Linear CMY colour mixing
Iris: Motorized with variable pulse and random effects
Strobe: Electronic pulse strobe and random strobe
Focus: Motorized focus
Dimmer: 0 to 100% linear dimmer
Static Gobo Wheel: 10 Gobo + 1 white + animation range Bi-direction flow water animation effect
Rotation Gobo Wheel: 8rotating Gobos + white, Bi-direction flow water animation effect
Prism: 4pcs prism (3+1 double prism wheel)& Multiple prism combinations
Frost: Heavy frost 5°

03Control System12

DMX and RDM connectors: Locking 3 pin or 5 pin XLR IN/OUT
Power connector: Seetronic one in one out
Control protocol: DMX 512, RDM ,Wireless(option)
Channel mode: 28CH
Pan/Tilt: 540°/250°
X/Y Speed: 2.7 S/1.6 S
Software upgrade: 1、Insert USB to upgrade software; 2、Integrated and foldable clamp is easily installed and transported
Other Features: 1、Remote control of the lamp on and off.; 2、Cooling fan speed adjust automatically .; 3、Lamp power lower automatically when turning the light off .; 4、Remote reset DMX address

04Other functions7

IP set: Equipped with in-built long-life battery, IP could be set without power.
Display Menu: 1、The display panel adopts a 2.0-inch LCD12864 LCD screen with message in Chinese and English; 2、The using time, fixture’s temperature and channel data as well as software’s version
are showed in the display panel Other Features: The lamp’s switch can be remotely control and the cooling system; can be adjustable automatically. The power will be decreased when the fixture is on standby.
Safety Devices: OPC & Over-temperature Protection
Vertical direction: convenient locking device for transportation and maintenance.
