Sheet 05.751

LIGHT SKY · Hybrid fixtures

SUPER SCOPE HYBRID

LiGHT SKY is a famous beam moving head light factory in China and SUPER SCOPE HYBRID is an LED stage lighting item. The SUPER SCOPE HYBRID is a multi-effect LED moving head wash light that combines beam, wash, and pattern projection in a compact design.

Light source: 450W White LED Module
Power supply: AC 100-240V 50/60Hz
Beam angle / zoom: 4°- 53°
DMX channels: 22CH, 25CH
Colour temperature: 6500K
Net weight: 23.8kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 10 groups · 42 values

What this product is, in numbers.

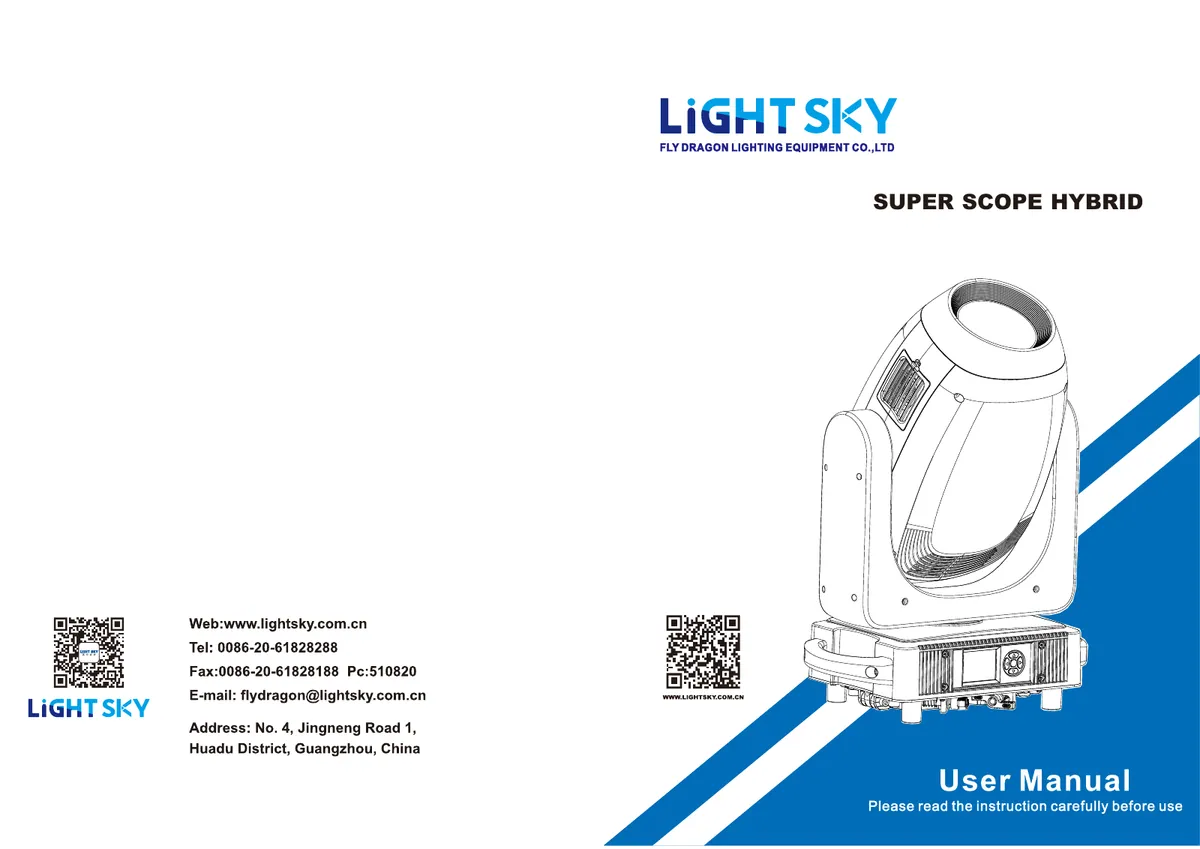

PDFUser manualEN · 30 pages · 5.4 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01OPTICAL8

Light Source: 450W White LED Module
Zoom Range: 4°- 53°
Optical Lens: High transmission coating, diameter 133mm
Color Temperature: 6500K
Color Rendering Index (CRI): RA≥70 / RA up to 90 (with high CRI filter)

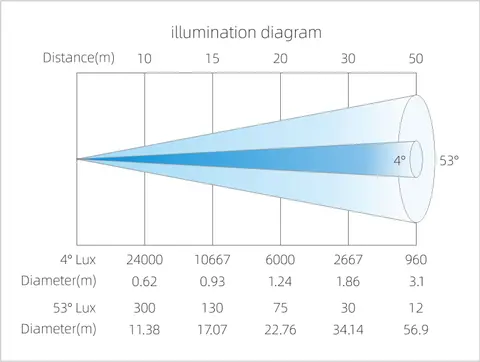

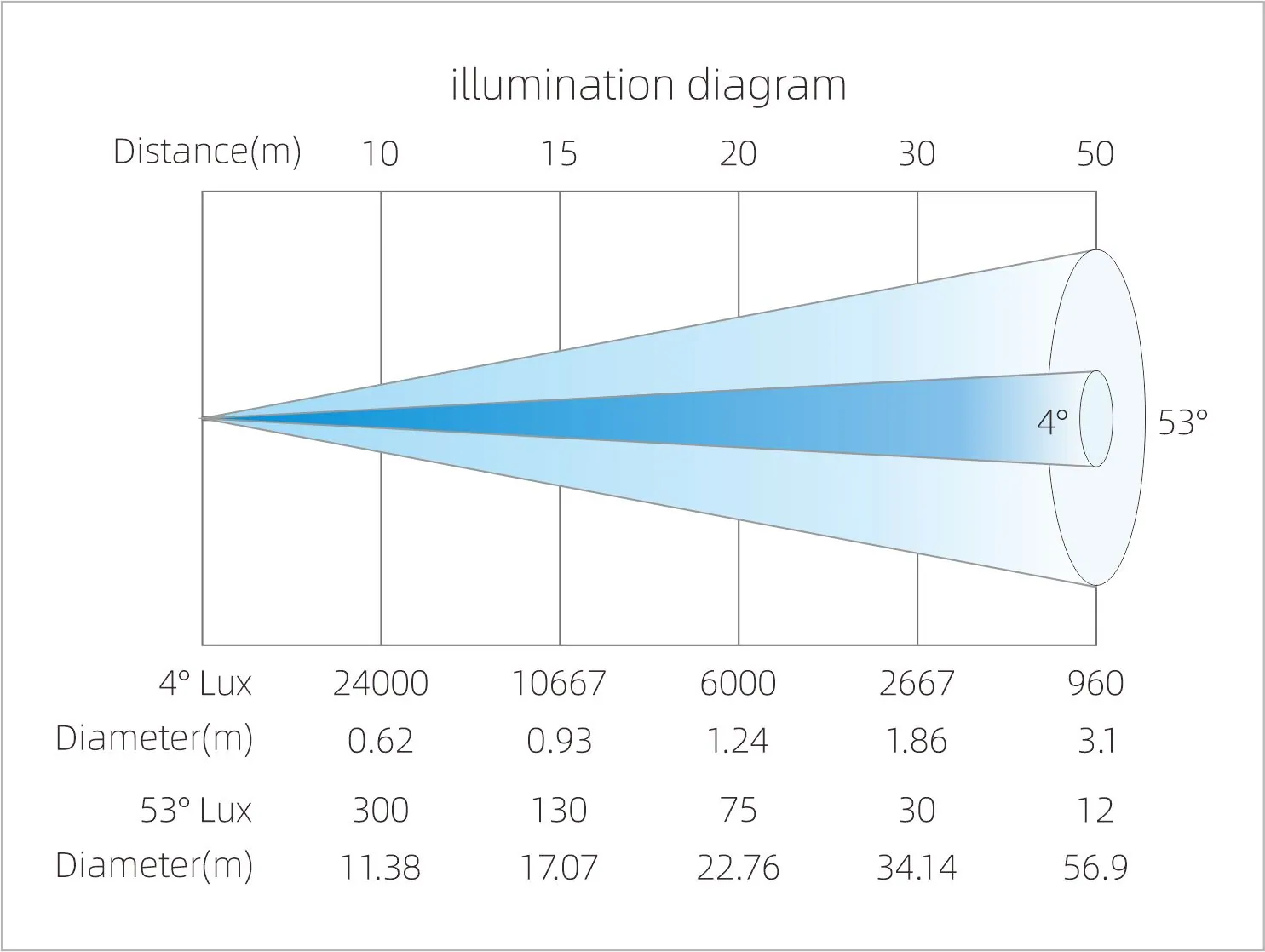

Illuminance: 24000 Lux @ 10 meters
Total Lumen Output: 20000 Lm
LED source life expectancy: 50,000 hours*

02COLOR3

CMY: CMY infinite color mixing.
CTO: The LED spot moving head can achieve CTO linear adjustment from 3000 K to 6500 K.

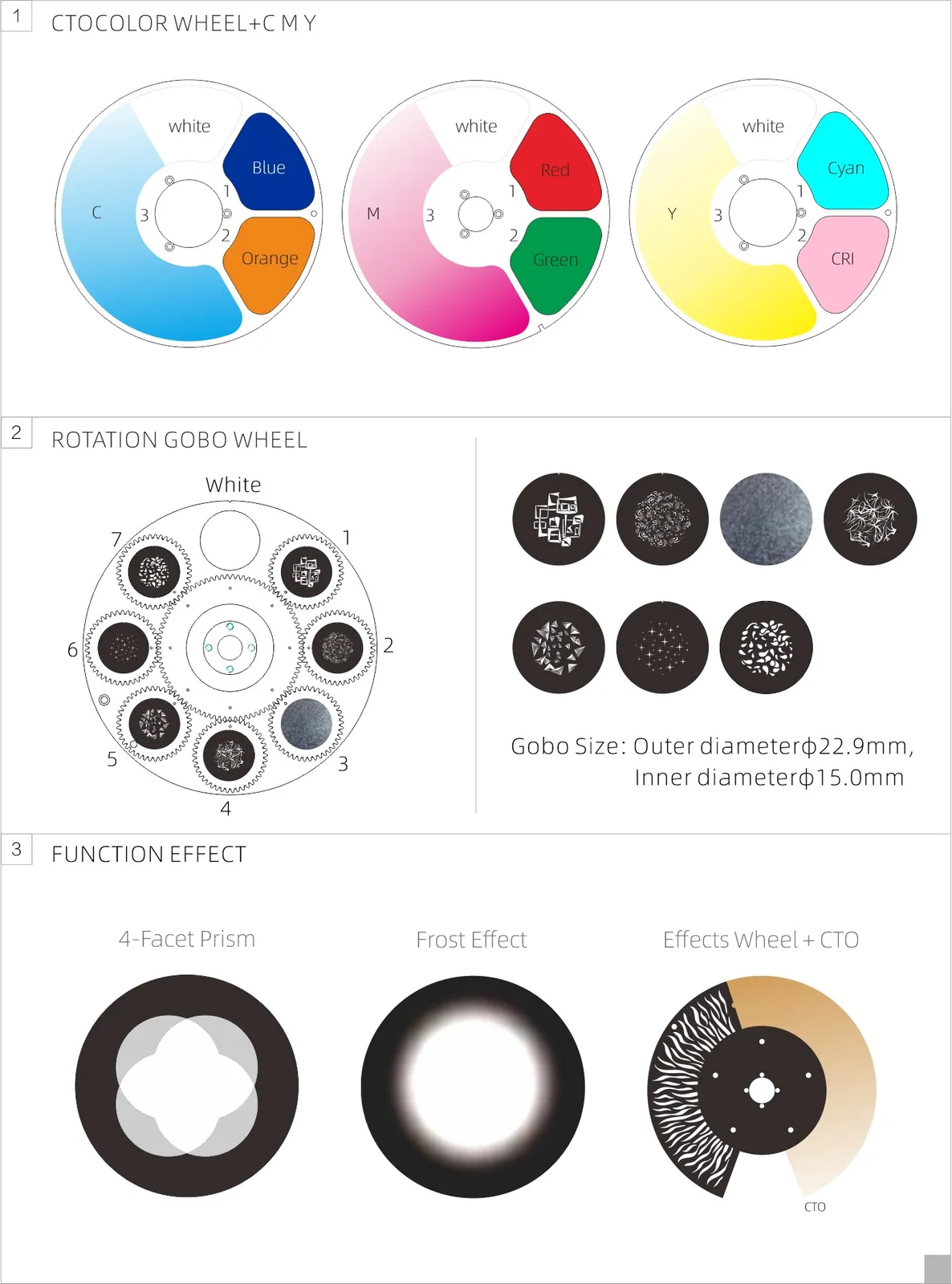

Color: Equipped with a versatile color wheel containing 5 color filters, a high CRI filter (90+), and white position, the LED moving head wash light delivers dynamic effects including smooth bi-directional rainbow sweeps, precise bi-color gradients, variable-speed wheel rotation in both directions, and programmable random color changes.

03GOBO2

Rotating Gobo Wheel: The LED spot moving head light includes a motorized rotating Gobo wheel with 7 replaceable glass Gobos plus an open white position, capable of smooth rotation, flowing effects, and shaking patterns. The Gobos feature a standard outer diameter of 22.9mm with a 15mm inner aperture.
Effect Wheel: The integrated effect wheel of the optical spot light combines with CTO color temperature linear adjustment (3000K-6500K), offering both flowing gradient transitions and dynamic shaking effects for enhanced visual impact.

04EFFECTS5

Prisms: 4-facet prism, bi-directional rotation
Soft Light Effect: Adjustable independent soft light effect
Electronic Dimming: 0-100% linear dimming, uniform spot
Electronic Strobe: 1-25 times/second
LED Refresh Rate: 1000Hz to 25KHz

05CONTROL4

Control Channels: 22CH, 25CH
Protocol: DMX512 , RDM , ArtNet
Data Connection: 3-pin or 5-pin signal IN/OUT
Display: LCD screen

06SOFTWARE3

Software upgrade via USB or DMX interface; Intelligent temperature control for LED lifespan
Silent fan with three modes: High-brightness/Standard/Silent

Show the full specificationHide the rest of the specification4 more groups · 17 values

07PAN/TILT MOVMENT4

Pan axis: 540° 8-bit/16-bit precision scan
Tilt axis: 270° 8-bit/16-bit precision scan; Reset function with automatic error correction
Fixed lock: Tilt axis lock

08POWER3

Input Voltage: AC 100-240V 50/60Hz
Maximum Power: 602W
Power Factor: 0.99

09SIZE & WEIGHT6

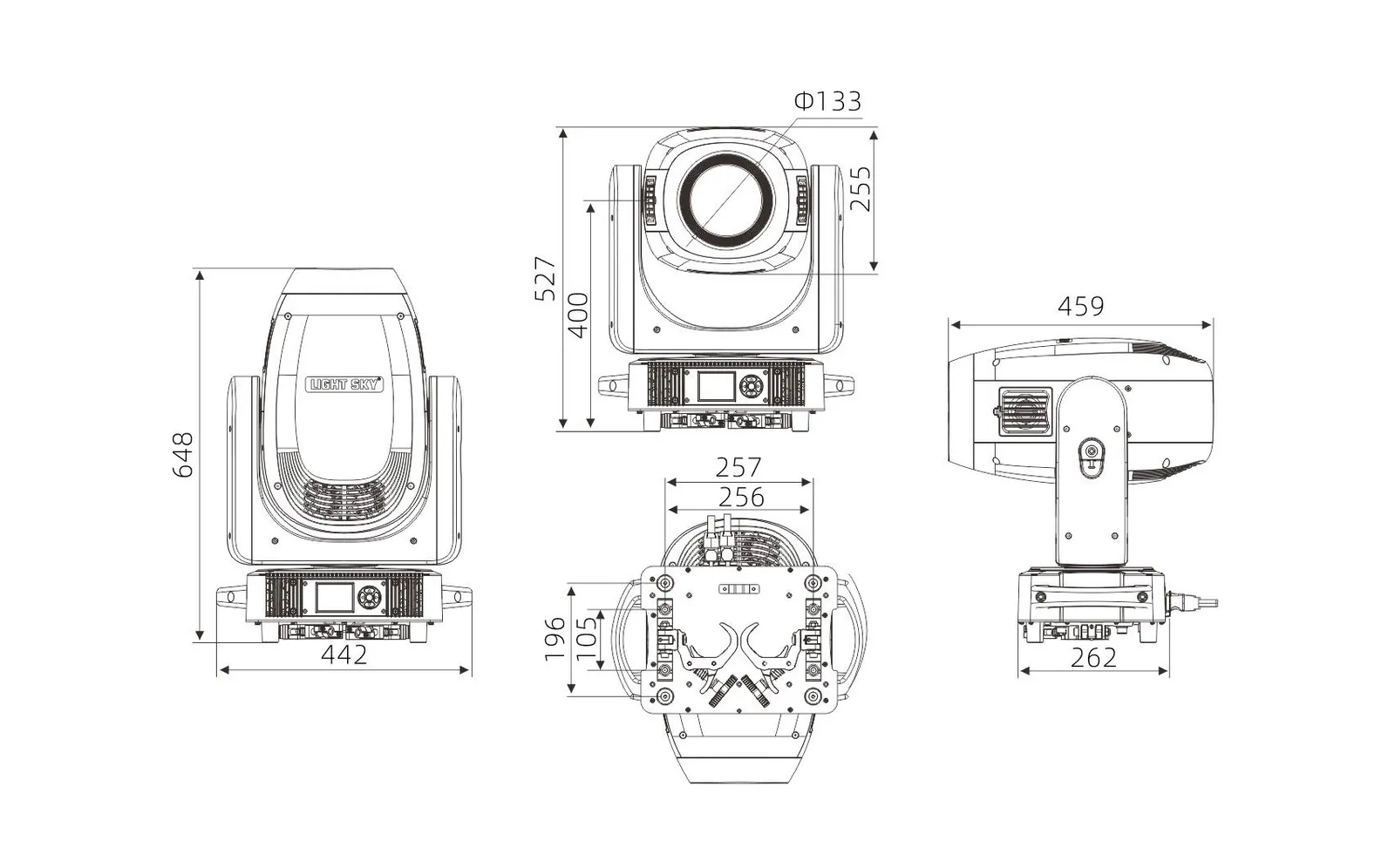

Product Dimensions: 442× 262×648(mm)
Net Weight: 23.8kg
Carton Packaging (Default): 490×365×755(mm)
Gross Weight: 29.6 kg (including folding lamp hook)
Flycase dimension: 730 x 575 x 850mm
G.W with fly case: 90.3kg (2 in 1)

10OTHERS4

IP Rate: IP20
Operating Environment: -10°C ~ 45°C
Maximum Surface Temperature of Fixture: 80°C
Maximum Current of Fixture: 6.02A/100V; 2.6A/220V

02DescriptionManufacturer's description

What it is.

The high-precision optics of our beam lights for stage ensure a sharp, bright output with smooth color rendering. The optical spot light provides quick, precise performance, making LiGHT SKY LED spot moving head light perfect for large-scale events, studios, and professional stages.

FEATURES

LiGHT SKY LED Beam Wash Lights for Stage

3-in-1 Versatility: Combines beam, wash, and pattern effects in a single moving head for dynamic lighting control.

High-Precision Optics: Advanced optical system with a large-diameter lens (133mm diameter output lens) for sharp beams, long throw, and crisp patterns.

Superior Color & Gobo Performance: The SUPER SCOPE HYBRID features a rotating Gobo wheel with high-definition patterns and consistent edge-to-center color.

Intelligent Temperature adjustment: The LED spot moving head can achieve CTO linear adjustment (3000K–6500K).

Color rendering index (CRI ): RA≥70 / RA up to 90 (with high CRI filter)

CMY Infinite Color Mixing: The beam lights for stage feature CMY infinite color mixing for seamless color transitions across the entire spectrum.

Powerful LED Light Source: 450W white LED module with 40,000 lumens output

Impressive Illuminance: 24,000 Lux @ 10 meters illuminance

Zoom Angle: With a 4° to 53° motorized zoom range, LiGHT SKY LED spot moving head light can instantly transform from a tight pencil beam to a broad wash effect.

Long Lifespan Duration: 50,000 hours lifespan

Compact & Responsive Design: LiGHT SKY optical spot light has a compact size and lightweight design with fast, accurate horizontal and vertical movement for smooth operation.

Professional-Grade Applications: As a professionaltheatre lighting manufacturer, LiGHT SKY SUPER SCOPE HYBRID is ideal for theaters, TV studios, concerts, and stadiums requiring high-end lighting effects.

03Documents7 files · 13 MB
