SUPER SCOPE HYBRID PRO

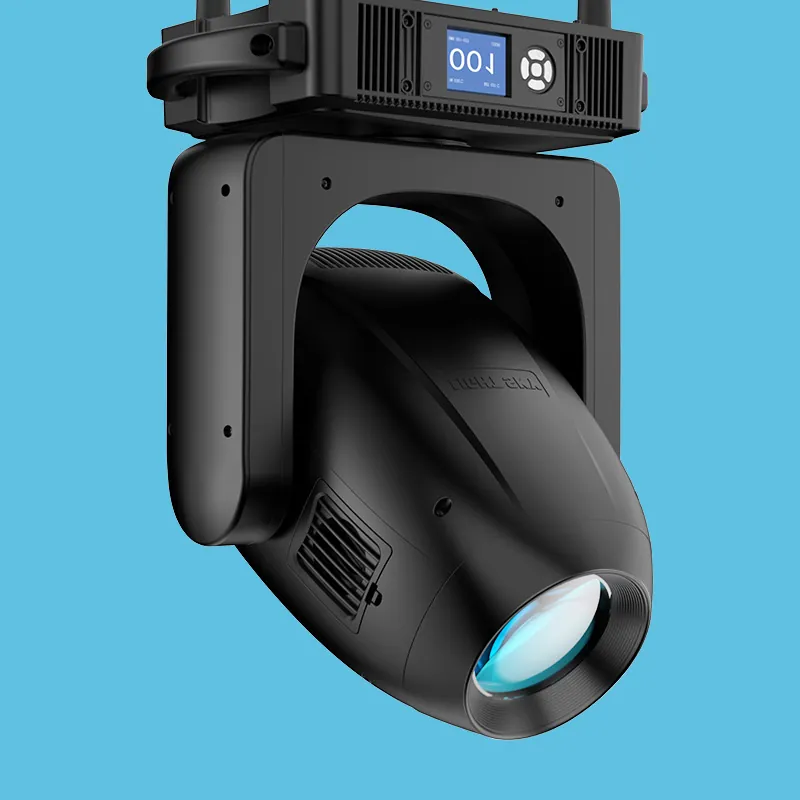

SUPER SCOPE HYBRID PRO is an LED moving head light that integrates beam, wash, and pattern effects.The optical system uses high-precision optical components with a 140mm diameter output lens, providing long-distance projection, high illuminance, solid beam, and clear patterns.The pattern module includes 2 rotating gobo wheels with diverse pattern options, offering high clarity and color consistency from the center to the edge. Delivers an impressive illuminance of 24500 Lux @ 10 meters. Compact size and lightweight design, accurate horizontal and vertical positioning, and fast response time. Ideal for high-end performance venues such as theaters, TV studios, large concerts, and stadiums.
- Light source
- 520W White LED Module
- Power supply
- AC 100-240V 50/60Hz
- Beam angle / zoom
- 3.8°- 50°
- DMX channels
- 30CH, 34CH
- Colour temperature
- 7000K
- Net weight
- 27.1kg
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01OPTICAL8
- Light Source
- 520W White LED Module
- Zoom Range
- 3.8°- 50°
- Optical Lens
- High transmission coating, diameter 140mm
- Color Temperature
- 7000K
- Color Rendering Index (CRI)
- RA≥72 (High CRI filter up to 88)

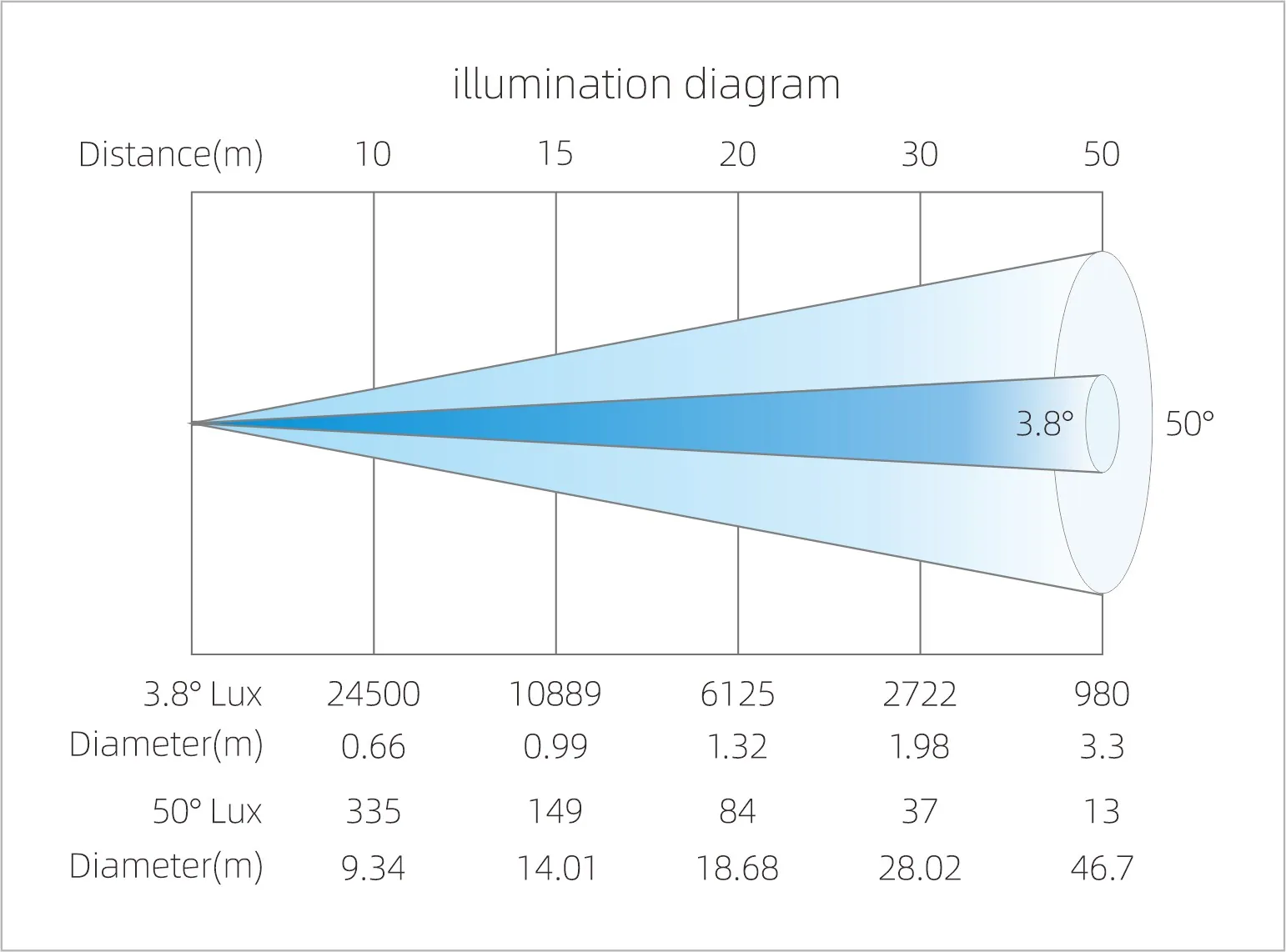

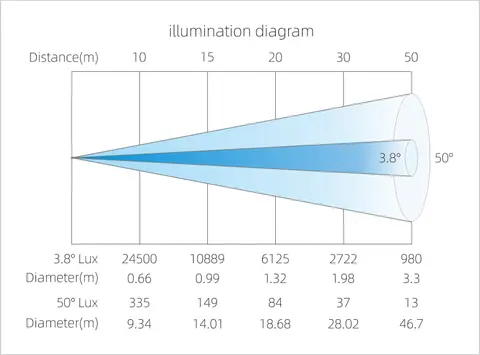

- Illuminance
- 24500 Lux @ 10 meters
- Total Lumen Output
- 20000 Lm
- LED source life expectancy
- 50,000 hours*

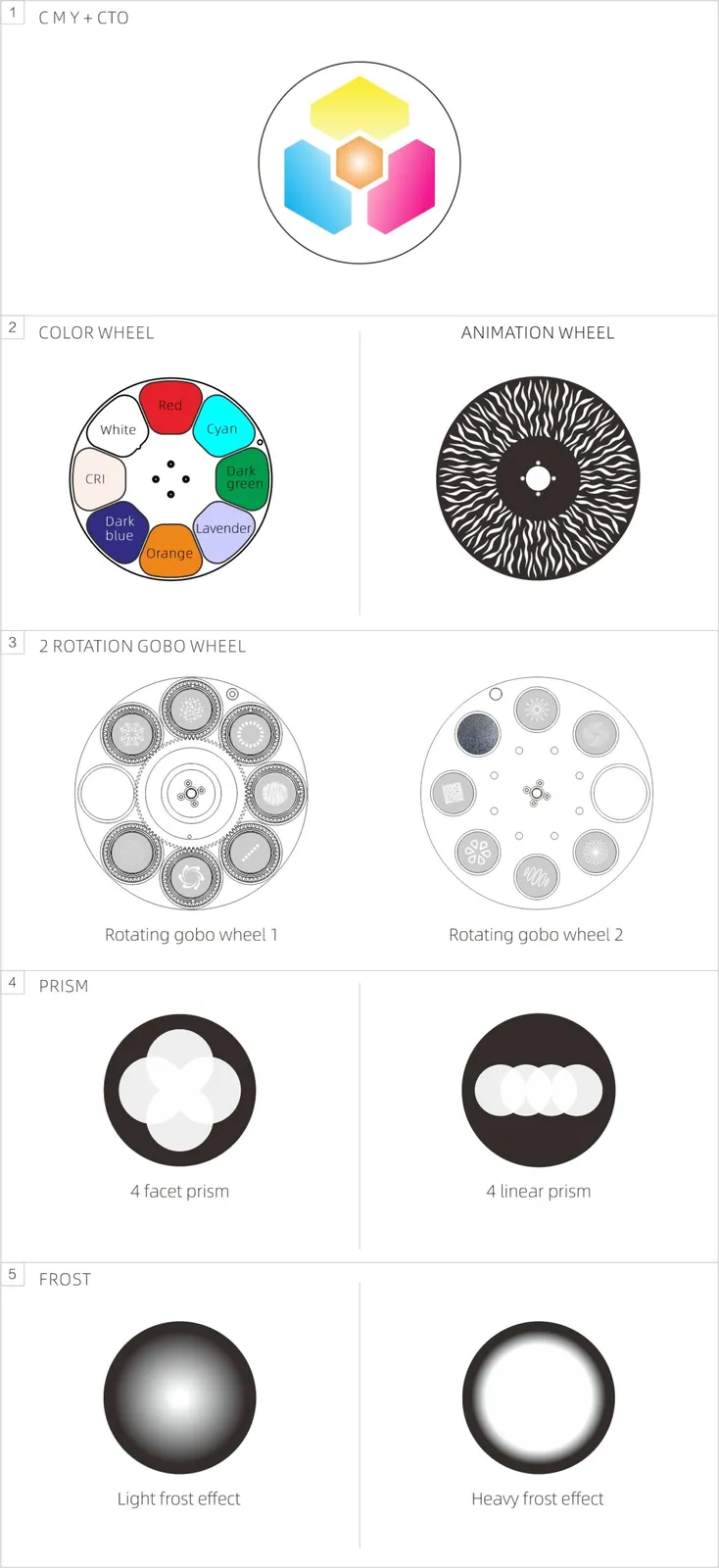

02COLOR5
- CMY
- CMY infinite color mixing
- CTO
- CTO color temperature linear adjustment (3000K-7000K)
- Color
- 6 color filters + white + 1 CRI filter, capable of bi-directional rainbow effect,
- bi-color step gradient (linear movement), color wheel bi-directional rotation,
- and random color mode.
03GOBO2
- Dual rotating gobo wheels
- 7+7 glass gobos + white, replaceable, capable of rotation, flowing, and shaking effects, gobo outer diameter 22.9mm, gobo inner diameter 15mm
- Effects wheel
- Capable of bi-directional flowing and linear speed adjustment effects
04EFFECTS5
- Prisms
- 4-facet prism + 4-facet prism, bi-directional rotation
- Soft Light Effect
- Light frost + heavy frost, adjustable independent soft light effect
- Electronic Dimmer
- 0-100% linear dimming, uniform spot
- Electronic Strobe
- 1-25 times/second
- LED Refresh Rate
- 1000Hz to 25KHz
05CONTROL4
- Control Channels
- 30CH, 34CH
- Protocol
- DMX512 , RDM , ArtNet
- Data Connection
- 3-pin or 5-pin signal IN/OUT
- Display
- LCD screen
06SOFTWARE3
- Software Upgrade
- Via USB or DMX interface
- Intelligent Temperature Control
- Ensures LED lifespan
- Noise level control
- High brightness mode, Standard mode, Silent mode
Show the full specificationHide the rest of the specification4 more groups · 17 values
07PAN/TILT MOVMENT4
- Pan axis
- 540° 8-bit/16-bit precision scan
- Tilt axis
- 270° 8-bit/16-bit precision scan
- Reset function with automatic error correction
- Fixed lock
- Pan/Tilt lock
08POWER3
- Input Voltage
- AC 100-240V 50/60Hz
- Maximum Power
- 840W
- Power Factor
- 0.99
09SIZE & WEIGHT6
- Product Dimensions
- 442×267× 656(mm)
- Net Weight
- 27.1kg
- Carton Packaging (Default)
- 495×355×775(mm)
- Gross Weight
- 32.2kg (including folding lamp hook)
- Flycase dimension
- 730 x 575 x 850mm
- G.W with fly case
- 95.5kg (2 in 1)
10OTHERS4
- IP Rate
- IP20
- Operating Environment
- -10°C ~ 45°C
- Maximum Surface Temperature of Fixture
- 80°C
- Maximum Current of Fixture
- 8.4A/100V; 3.8A/220V
What it is.
FEATURES
Light source: 520W White LED Module
Energy-saving and environmentally friendly: SUPER SCOPE HYBRID PRO Adopts an energy-saving and environmentally friendly long-lifetime LED
- Multi-Function: SUPER SCOPE HYBRID PRO is a moving head light with beam spot wash 3 in 1 function.
- Zoom Angle: 3.8°- 50°
- Color rendering index(CRI ): RA≥72 (High CRI filter up to 88)
- Illuminance: 24500 Lux @ 10 meters
- Total Lumen Output: 20000 Lm
- LED source life expectancy: 50,000 hours*
- CMY infinite color mixing
- CTO: CTO color temperature linear adjustment (3000K-7000K)
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.

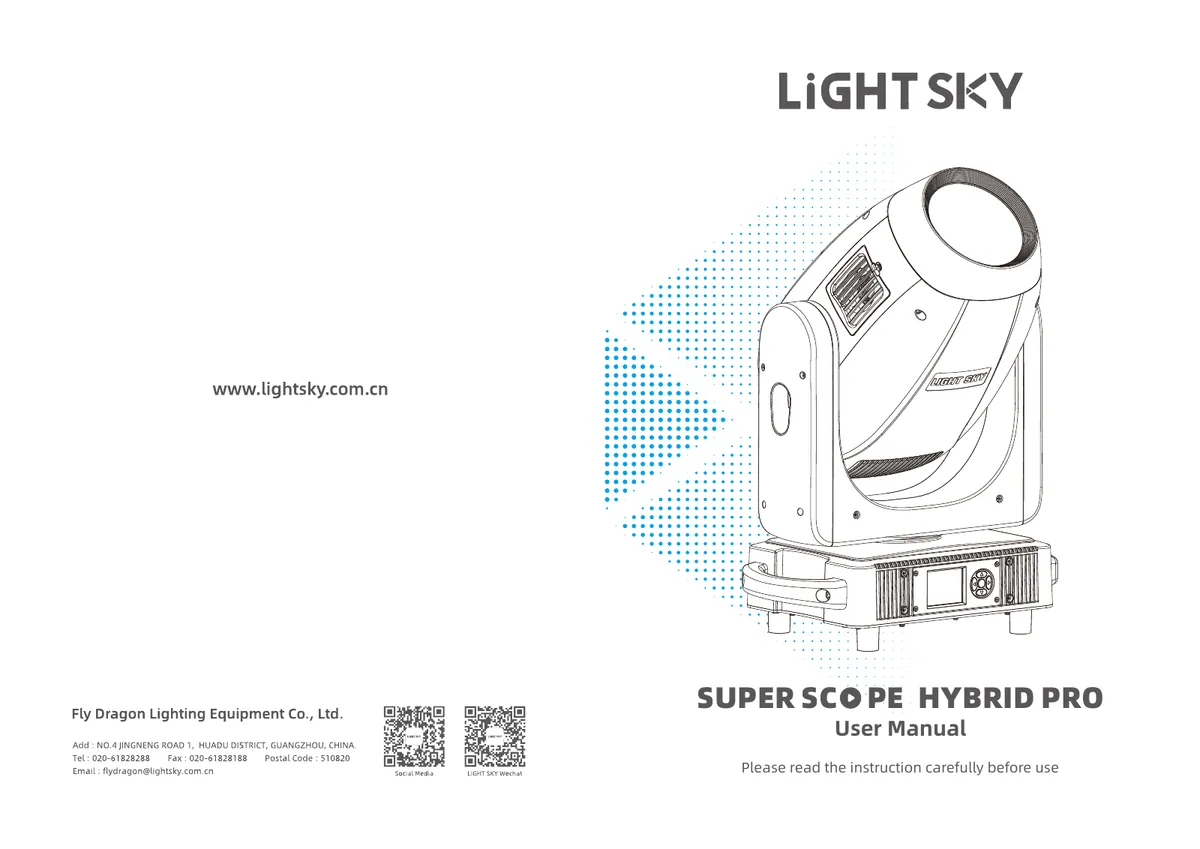

Datasheets and manuals01
