10-Inch Bluetooth Wall Amplifier
ModelB10-825AD2/B10-825ADT2
The LUCKY TONE 10-Inch Bluetooth Wall Amplifier 8*25W is a premium control hub designed for professional home and business audio systems.
- Weight
- 0.94kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
10-Inch Bluetooth Wall AmplifierPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 12 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications12
- Model
- B10-825AD2/B10-825ADT2
- CPU
- Quad-core Cortex 1.5GHz
- RAM
- 2GB
- ROM
- 8GB
- Power Input
- AC100~240V 50/60Hz
- Speaker Output
- 8X25W
- Amplifier Frequency Response
- 20Hz-20kHz
- Signal-to-Noise Ratio
- ≥ 98dB
- Operating Temperature
- 0°C~40°C
- Humidity
- 5%~90% RH non-condensing
- Product Dimensions
- 178x105x70mm
- Weight
- 0.94kg
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.

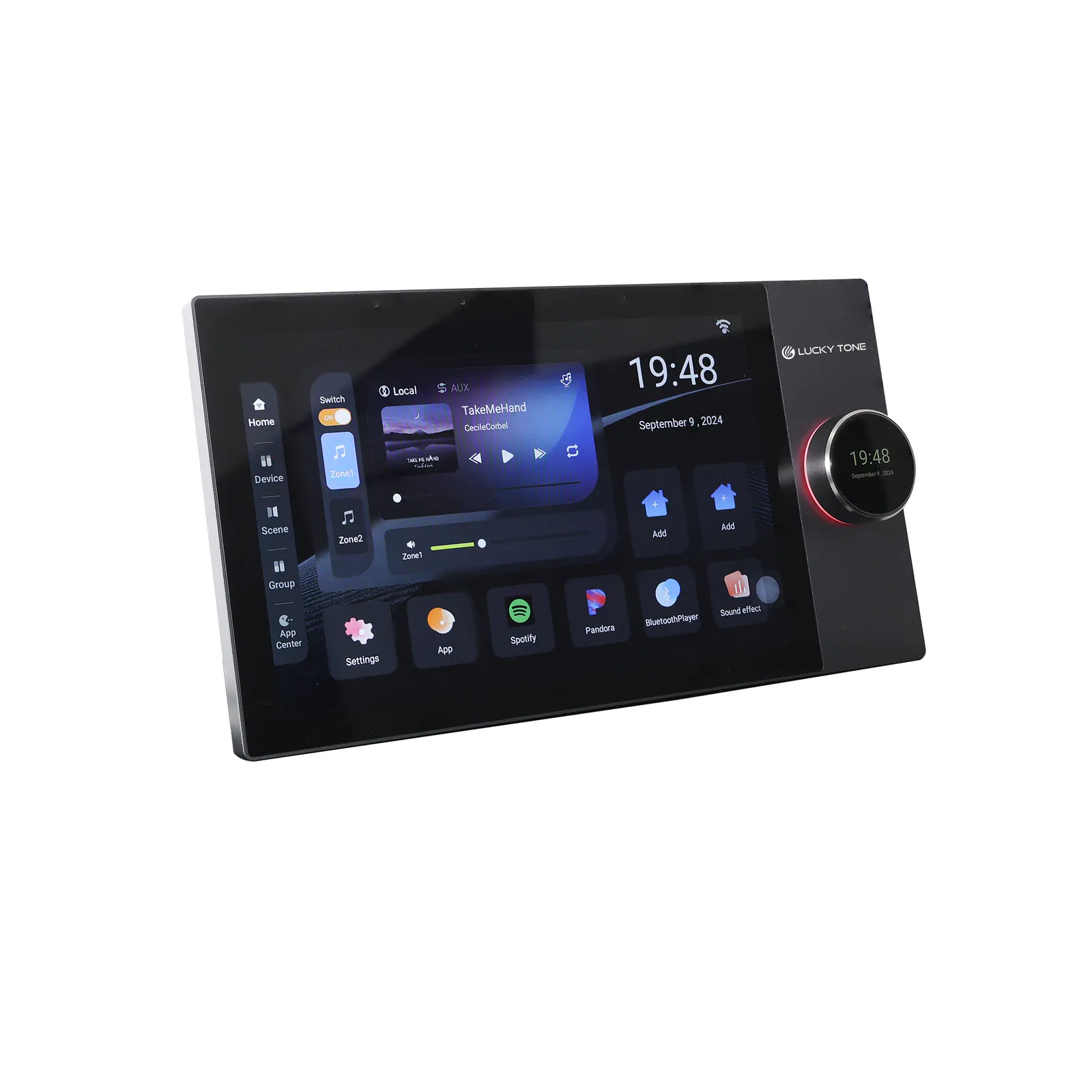

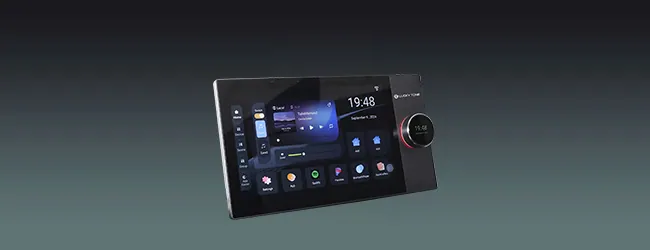

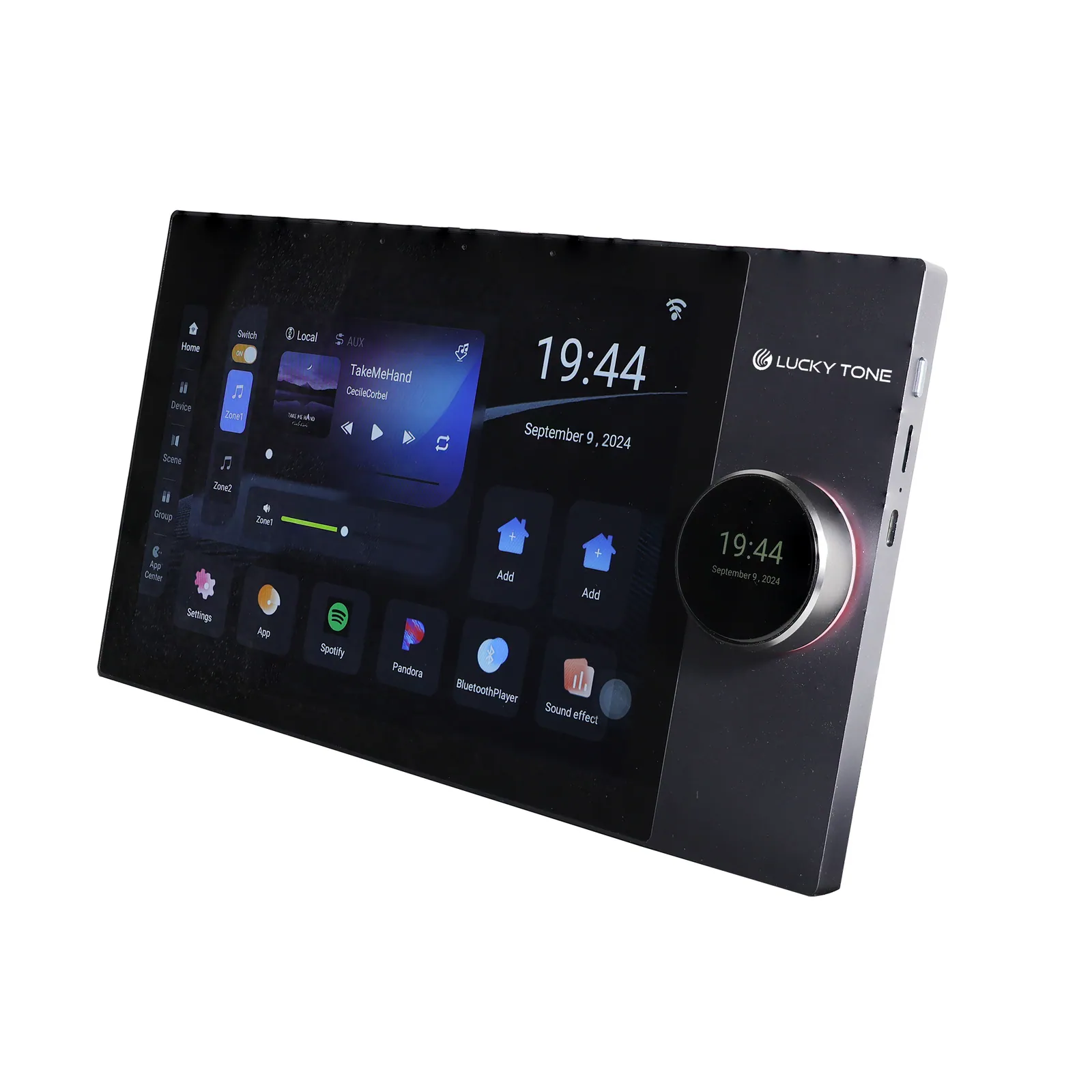

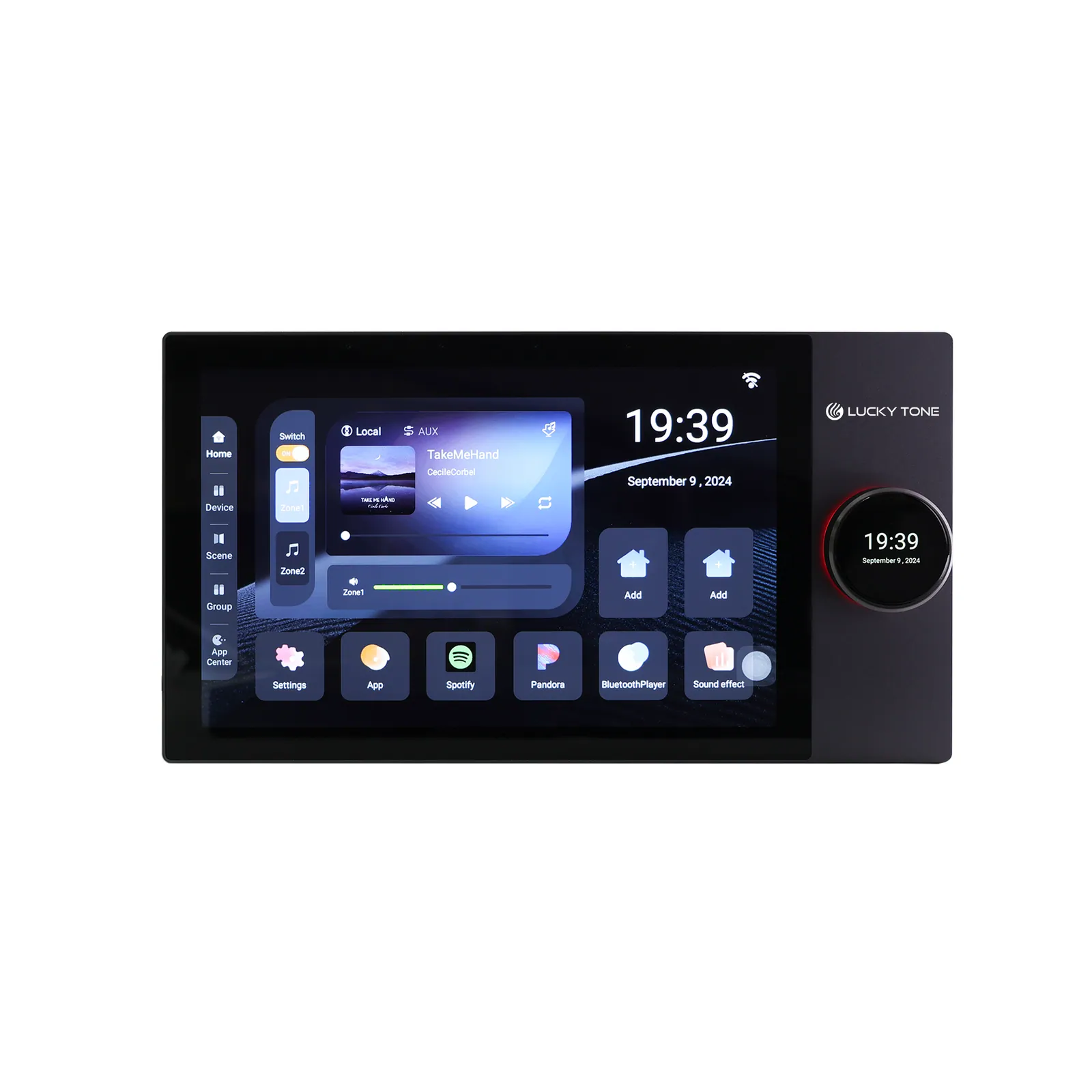

The LUCKY TONE 10-Inch Bluetooth Wall Amplifier 8*25W is a premium control hub designed for professional home and business audio systems. Featuring a sleek 10-inch multi-touch display and powerful audio output, it allows seamless music playback, Bluetooth connectivity, and smart device integration, making it ideal for multi-room setups.
- 10-inch high-definition multi-touch screen (1280×800)
- Quad-core 1.5GHz processor for smooth performance
- Bluetooth, Wi-Fi, and HDMI connectivity for flexible setups
- Supports dual-zone audio control with adjustable volume
- Music playback from Bluetooth, TF card, USB, and AUX
- External RS485 control interface for home automation
- Compact design for easy in-wall installation
- 2-Zone control of music
