Sheet 05.492
Lucky Tone · Bluetooth, Wi-Fi and smart home

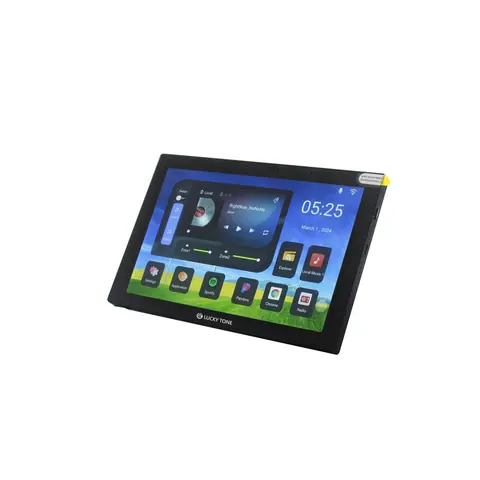

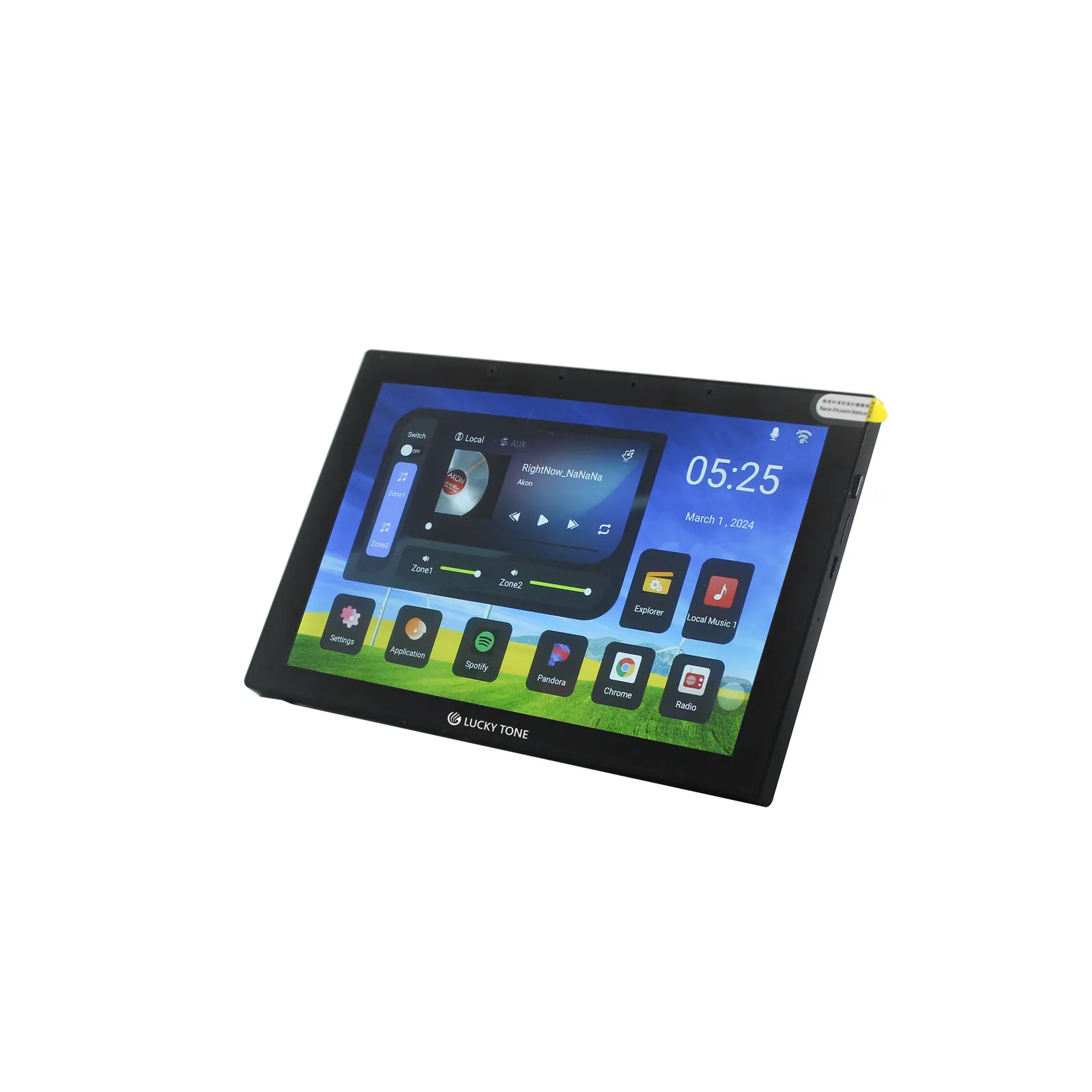

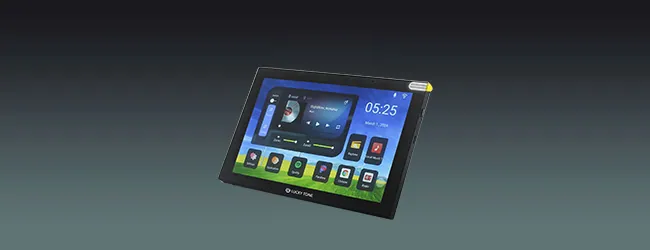

10-Inch Wall Amplifier with Android
ModelBA-1025AD2
This 8-channel small Bluetooth multi-home audio system equipped with micro-USB/TF can power 8 to 16 pieces of speakers in your home or small commercial area.
- Output power
- 8*25W
- Frequency response
- 20 Hz-20 kHz (+/-2dB)
- Weight
- 935g
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
10-Inch Wall Amplifier with AndroidPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 23 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications23
- Model
- BA-1025AD2
- Output power
- 8*25W
- Max. power
- 8*50W
- Speaker Impedance
- 4-8ohm
- System
- Android 11
- RAM
- 2GB
- ROM
- 8GB
- Network
- WIFI 2.4G
- CPU
- Quad-core Cortex 1.5GHz
- Display
- 10inch HD touch screen
- Resolution
- 1280*800 IPS
- Bluetooth wireless range
- 10M
- USB
- Micro USB port
- THD
- 0.03% (1W.1KHZ)
- Frequency response
- 20 Hz-20 kHz (+/-2dB)
- SNR
- 98db
- Music format
- Mp3, WMA, WAV, AAC, WAW, APE, OGG, etc.
- Video format
- MPEG-1/2/3/4, RM/RMVB, WMV, MOV, MK, VOB, AVI, 3GP, H, 264, etc.
- Power Requirements
- 110-250VAC
- Wiring box size
- 175*110*59mm
- Product size
- 246*162*57mm
- Net Weight
- 935g
- Color
- Black
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
This 8-channel small Bluetooth multi-home audio system equipped with micro-USB/TF can power 8 to 16 pieces of speakers in your home or small commercial area. It uses a high-efficiency class-D amplifier for a maximum output of 8*25 watts, low-impedance speakers. The cool display shows relevant track music info. Plus, you can control everything –seek, change tracks, and adjust the volume – using the included wireless infrared remote controller.
- 2 Zone control of music
- With Aux in volume control

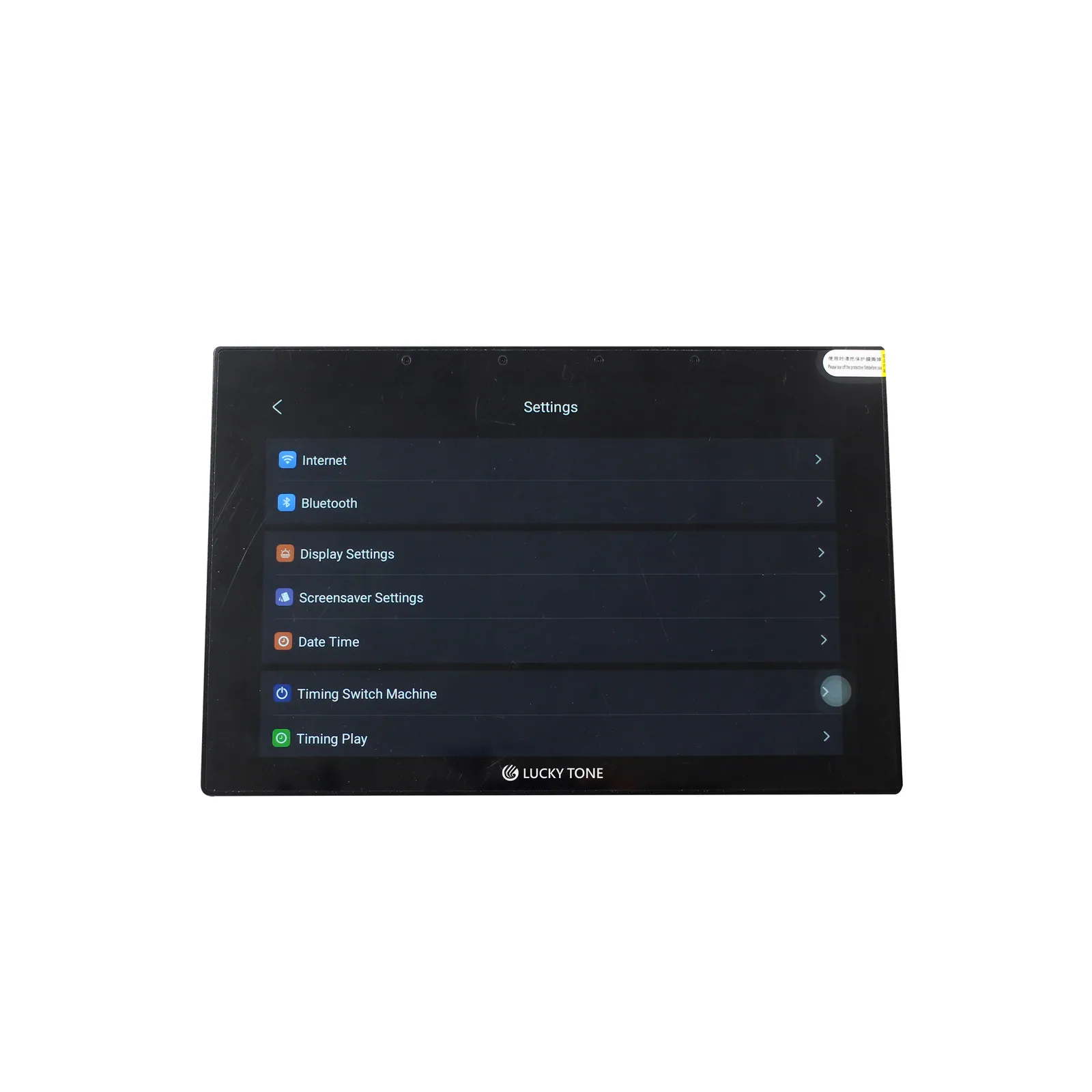

- 10-inch touch screen for easy access and control of the system
- Multi-protocol smart home docking including, WIFI, etc.

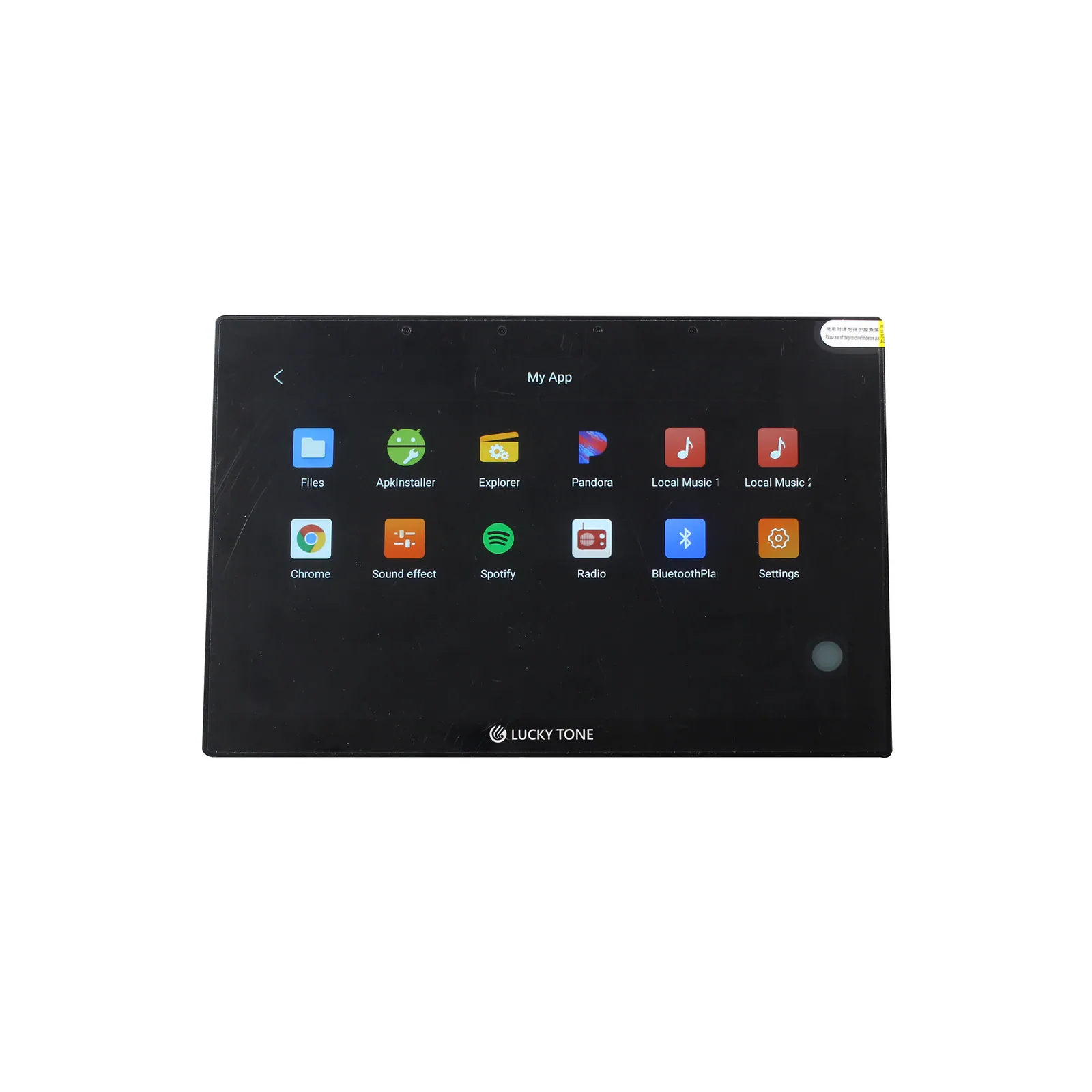

- Can install Spotify, Pandora music APPs to play real time music via WiFi
Support for external Bluetooth devices such as mobile phones to achieve audio playback, two-way control of playing external Bluetooth device music.

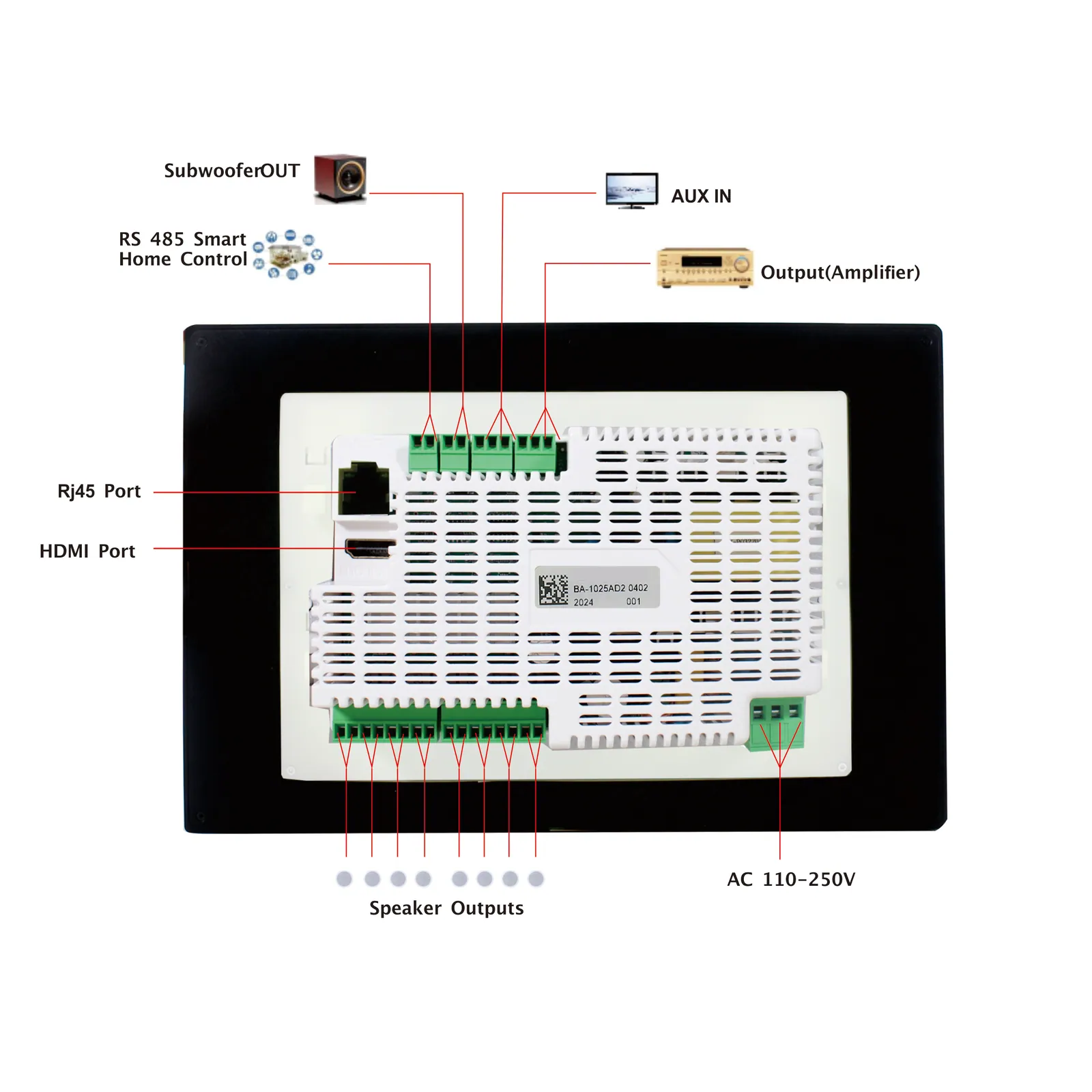

- Support audio input and output function; support subwoofer access;
- Support TF card and USB interface, USB can be connected to the hard disk;
- Suitable for homes, commercial areas, kid’s room, etc.
