Sheet 05.490
Lucky Tone · Bluetooth, Wi-Fi and smart home

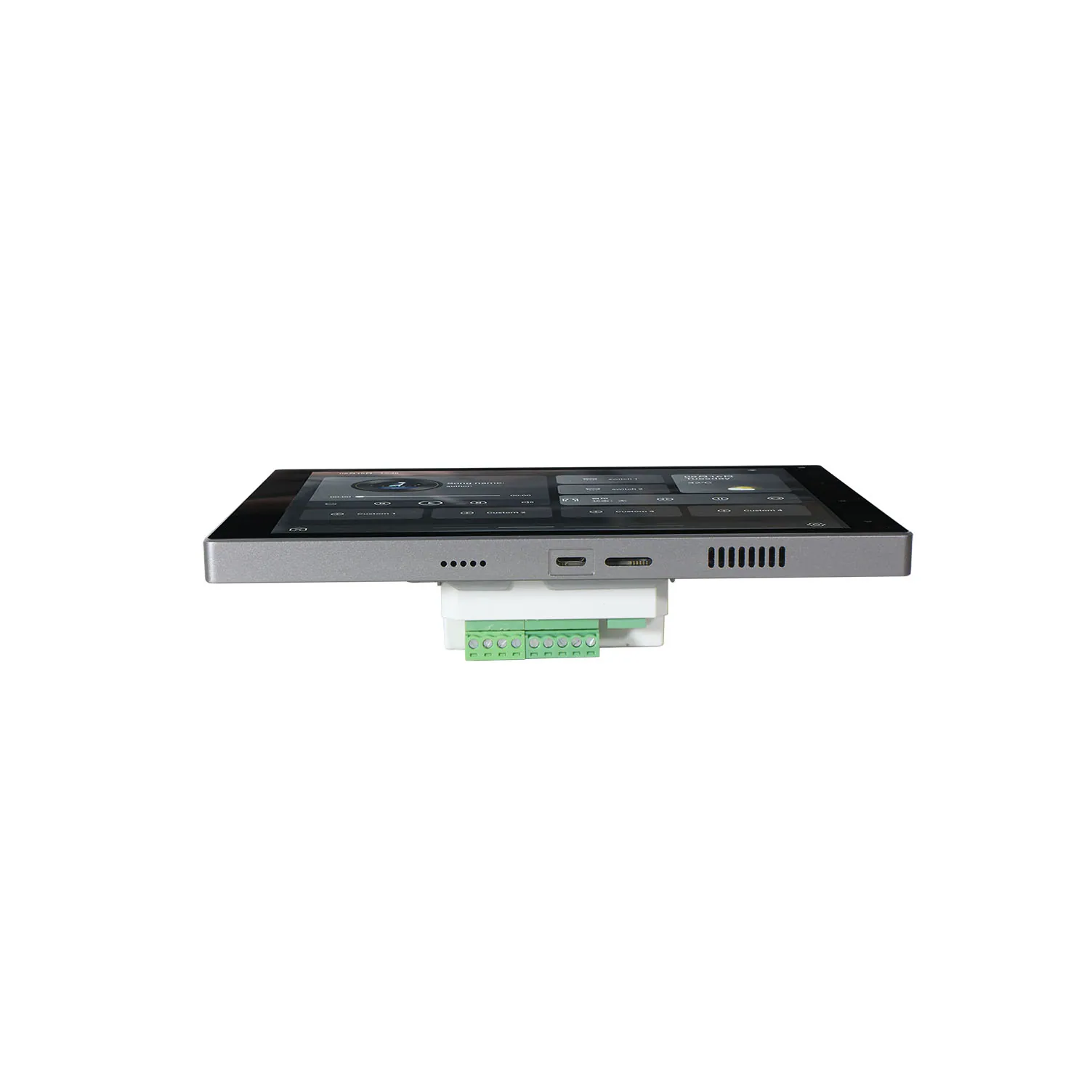

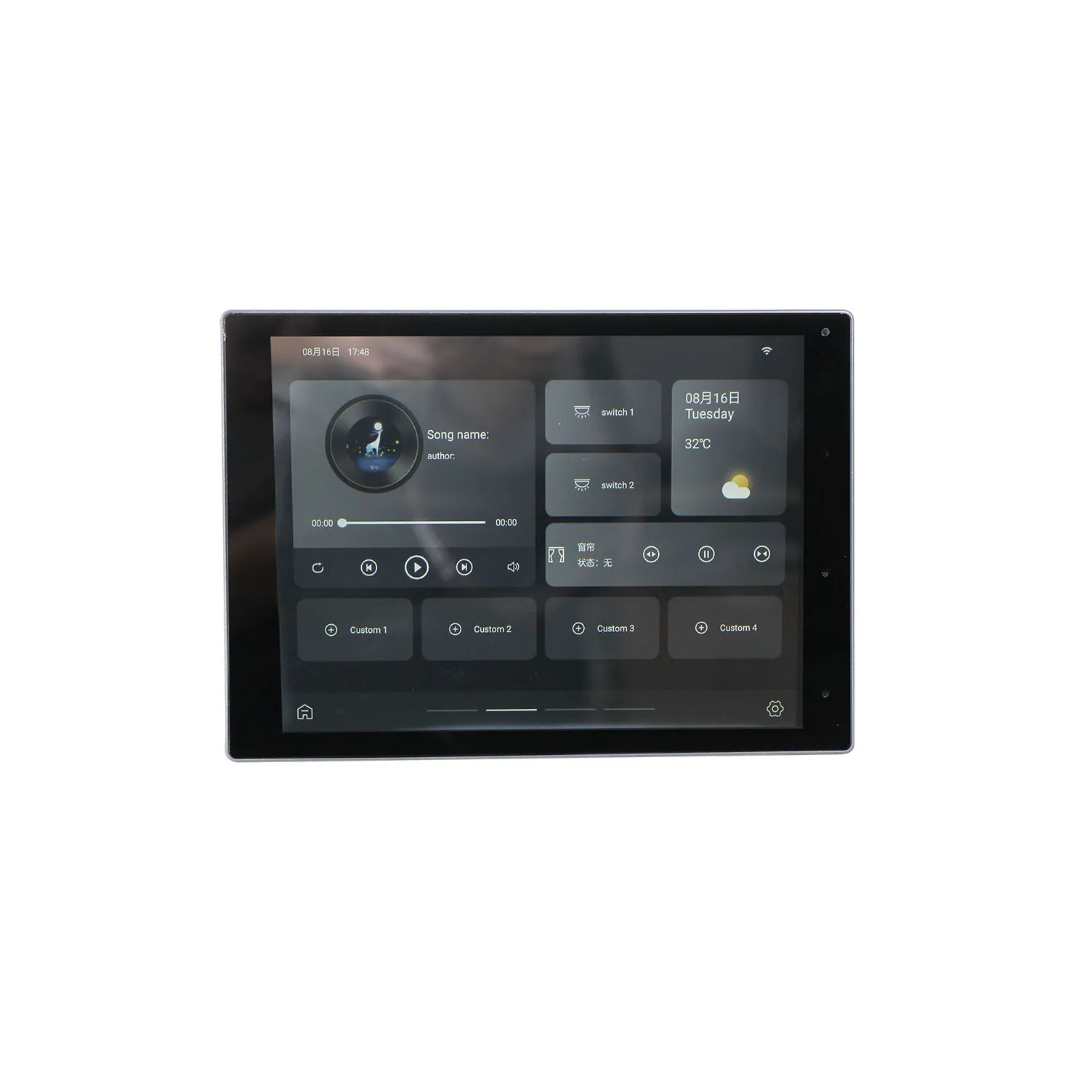

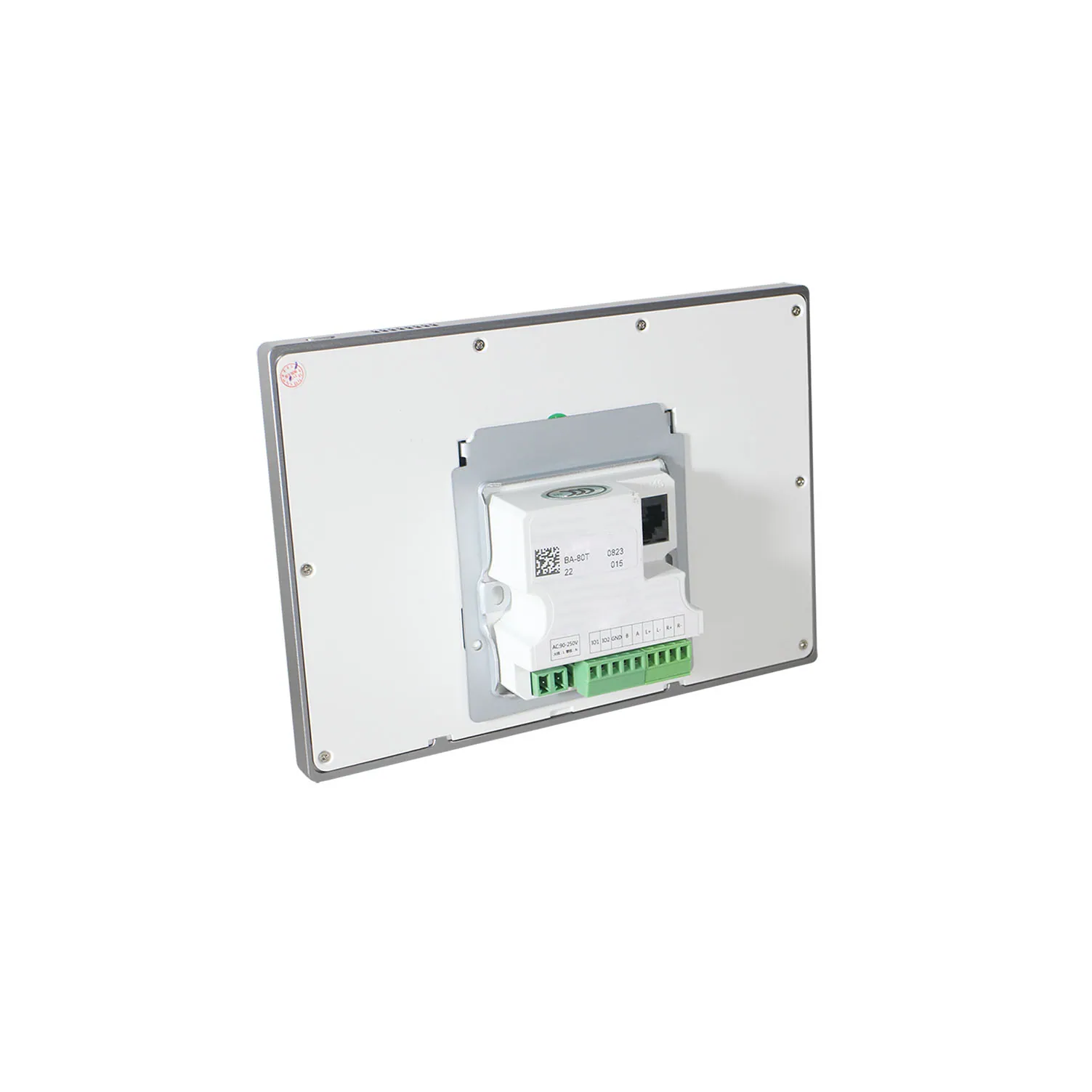

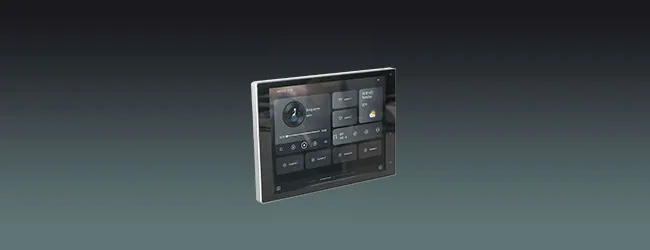

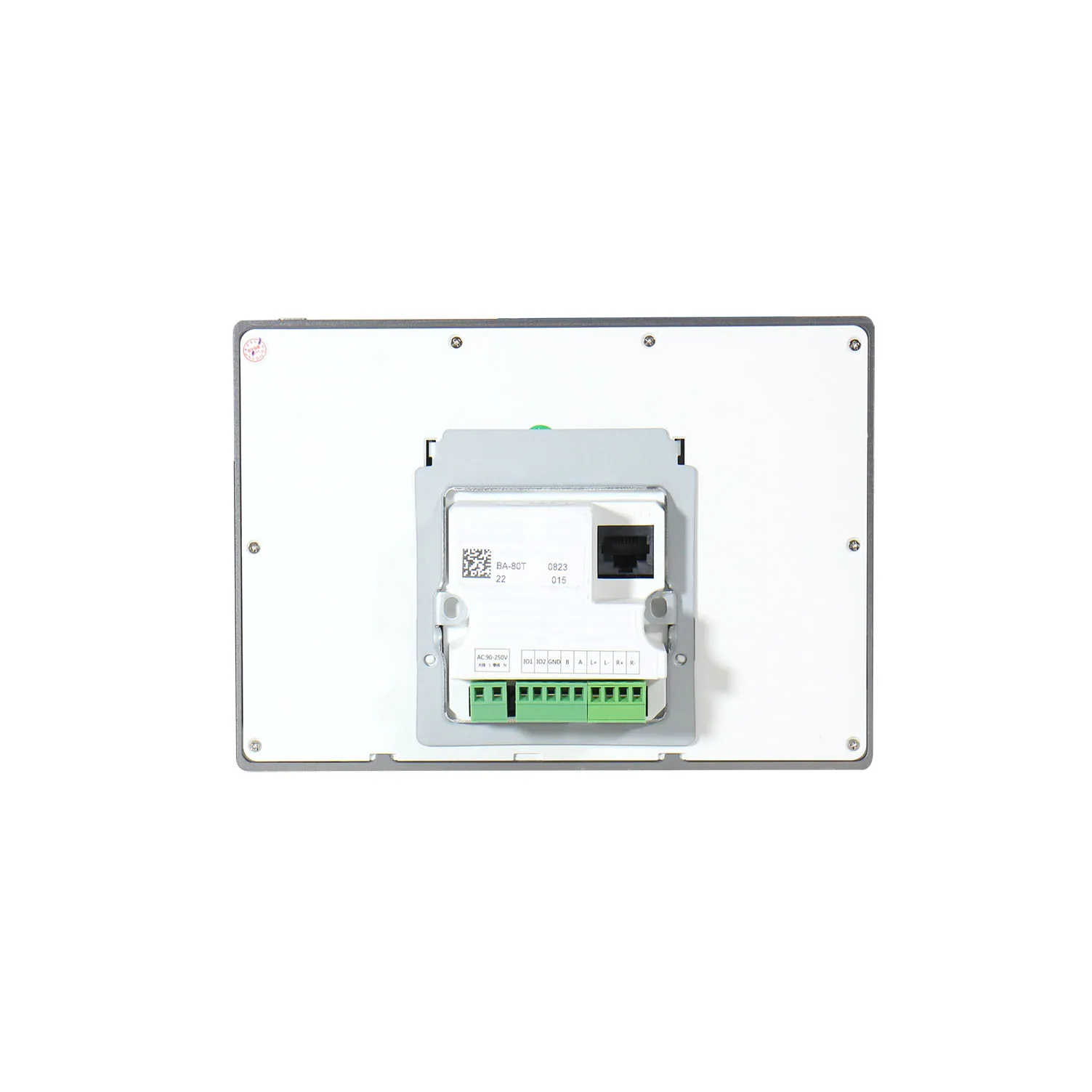

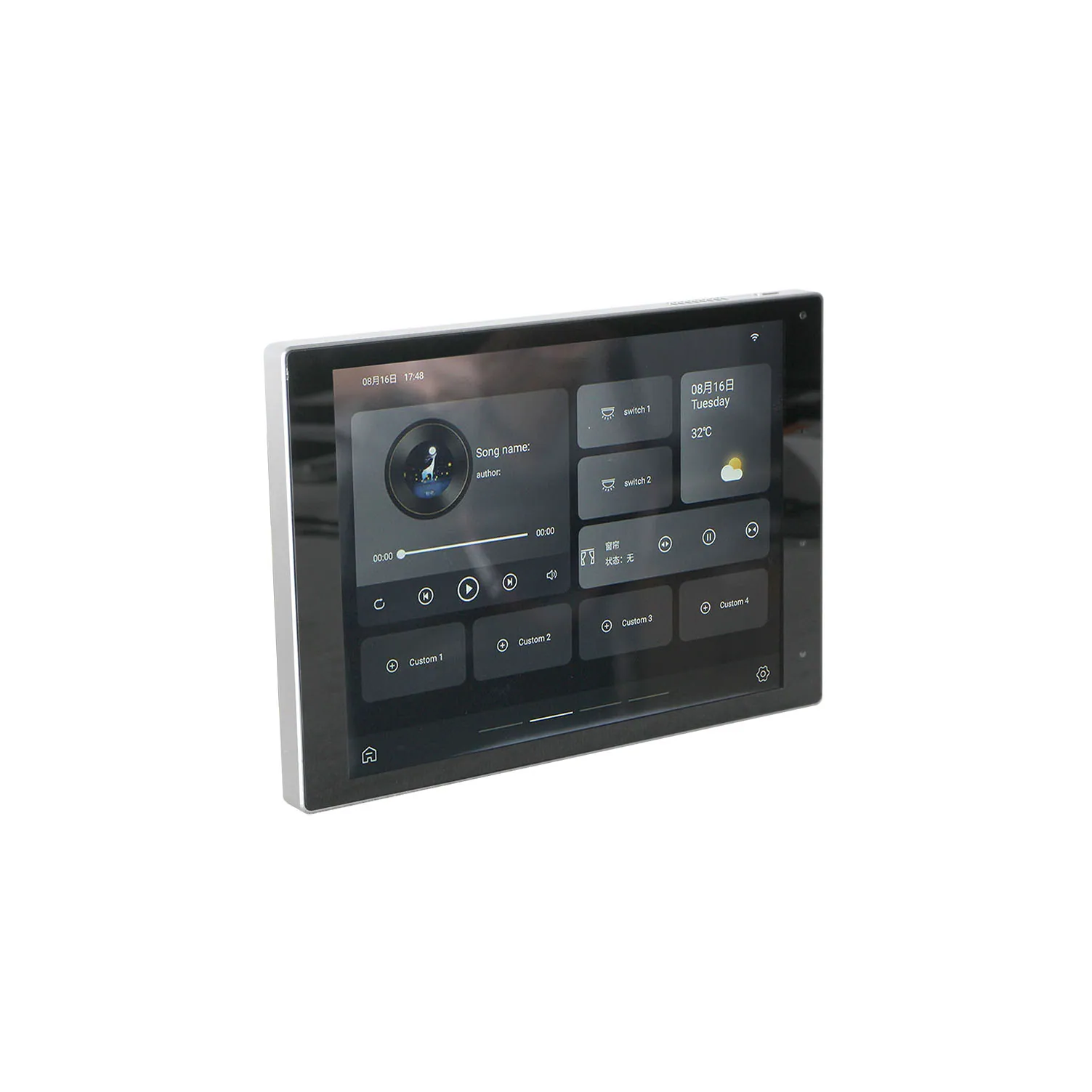

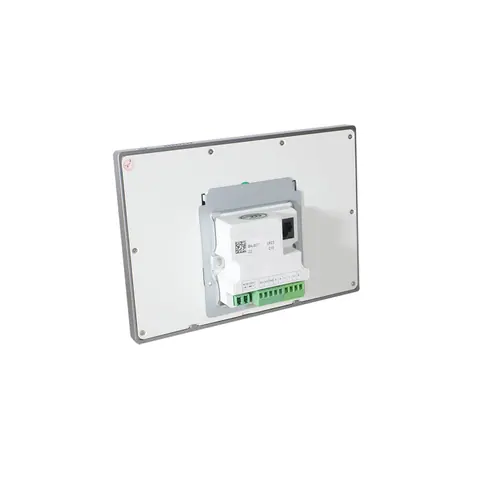

8-Inch Horizontal Touch Music Host
ModelBA-80T
With high-transparency crystal panel and high sensitivity 8-inch touch screen Adopt Bluetooth wireless connection technology
- Output power
- 2*20W
- Frequency response
- 20Hz-20KHz
- Weight
- 394g
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
8-Inch Horizontal Touch Music HostPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 20 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications20
- Model
- BA-80T
- Output Power
- 2*20W
- Speaker Impedance
- 8ohm
- System
- Android 8.1
- RAM
- 2G
- ROM
- 8G
- Network
- WIFI, Ethernet
- Display
- 8inch HD touch screen
- Resolution
- 1440*1080 IPS
- Bluetooth Wireless Range
- 10M
- USB
- Micro USB port
- SNR
- ≥98dB
- Frequency Response
- 20Hz-20KHz
- Music format
- Mp3, WMA, WAV, AAC, WAW, APE, OGG, etc
- Video format
- MPEG-1/2/3/4, RM/RMVB, WMV, MOV, MK, VOB, AVI, 3GP, H.264
- Power Requirements
- AC 90-250V
- Color
- Black
- Product Dimension
- 182x130x38mm
- Back Box Dimension
- 86x86x56mm
- Net Weight
- 394g
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
- Standard 86 Mounted on the wall for easy control
- With RJ45 network interface
- RS485 integration with third party system
- Support audio input function with secure and fast connect phoenix connectors
- Support Tuya APP for smart home control.
- Suitable for hotels, villa, homes, commercial areas, kid’s room, etc.
