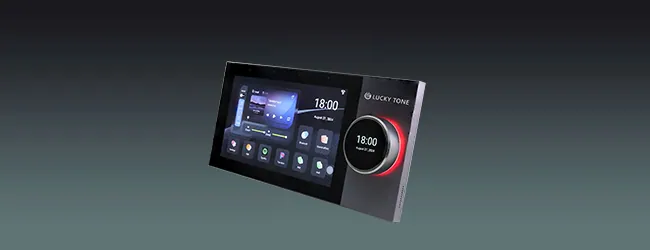

7-Inch Bluetooth Wall Amplifier 8*25W with Tuya/Zigbee
ModelB7-825AD/B7-825ADT
Supports dual-zone music control with a 7-inch touchscreen, 1024×600 resolution, for easy operation and control.
- Output power
- 8*25W
- Frequency response
- 20Hz-20Khz
- Weight
- 0.72kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
7-Inch Bluetooth Wall Amplifier 8*25W with Tuya/ZigbeePrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 18 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications18
- Model
- B7-825AD/B7-825ADT
- Output Power
- 8*25W
- Speaker Impedance
- 4-8ohm
- System
- Android11
- RAM
- 2G
- ROM
- 16G
- Network
- WiFi ,Bluetooth ,Zigbee
- Display
- 7-inch capacitive touch screen
- Resolution
- 1024*600 IPS
- Bluetooth Wireless Range
- 10M
- SNR
- 98dB
- Frequency Response
- 20Hz-20Khz
- Music Format
- MP3,WAV,WMA,FLAC,APE,,ACC,AC3,OGG
- Video Format
- MPEG-1/2/3/4,RM/RMVB,WMV,MOV,MK,VOB,AVI,3GP,H,264
- Power Requirements
- AC 110-250V
- Color
- Black
- Product Dimension
- 30.5*20*11.5mm
- Net Weight
- 0.72kg
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
- Music playback: Supports audio formats such as MP3, WAV, WMA, FLAC, DTS, APE, AC3, OGG, and more.
- Bluetooth: Allows connection to mobile phones for music playback via Bluetooth.
- External audio input: Supports external audio sources, which can be amplified and output through the system.
- Supports wireless microphones and home karaoke (optional feature).
- Time and calendar: Supports clock and calendar display functions.
- Storage card functionality: External TF card slot, supporting up to 32GB TF cards.
- USB functionality: External USB slot, supporting up to 32GB USB drives.
- Supports both wired network and Wi-Fi connections.
- Comes with an RS485 interface.
- Suitable for homes, commercial areas, children’s rooms, etc.
03Documents1 file · 3.5 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
Datasheets and manuals01
