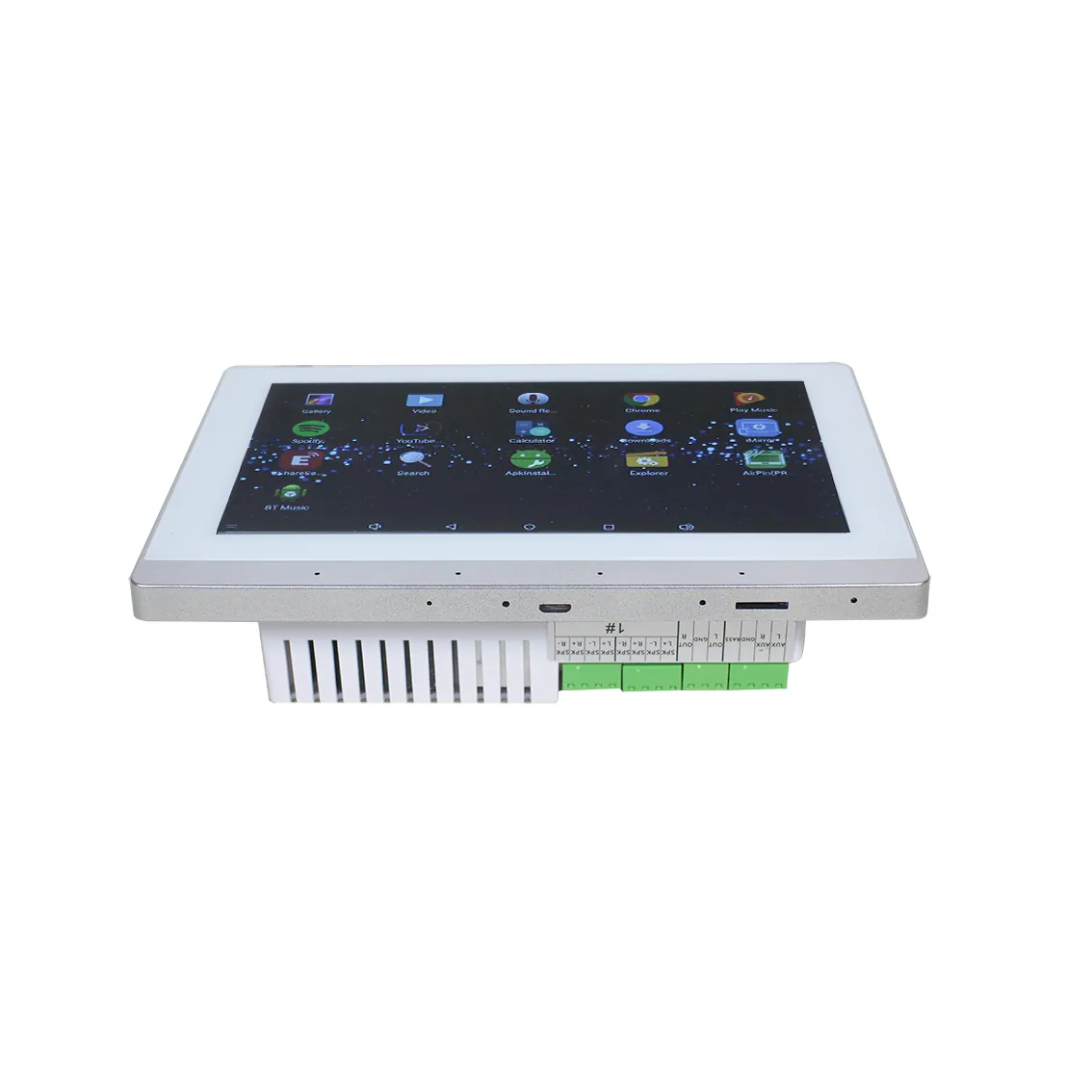

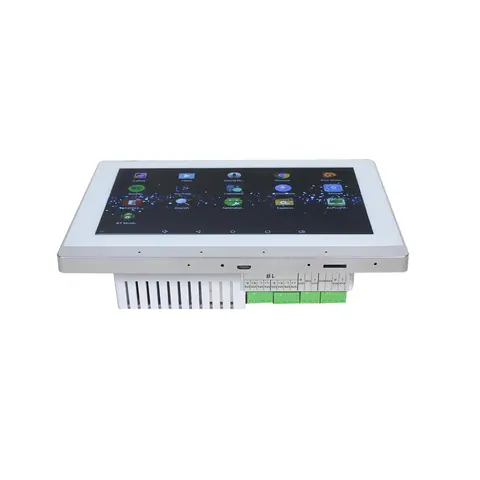

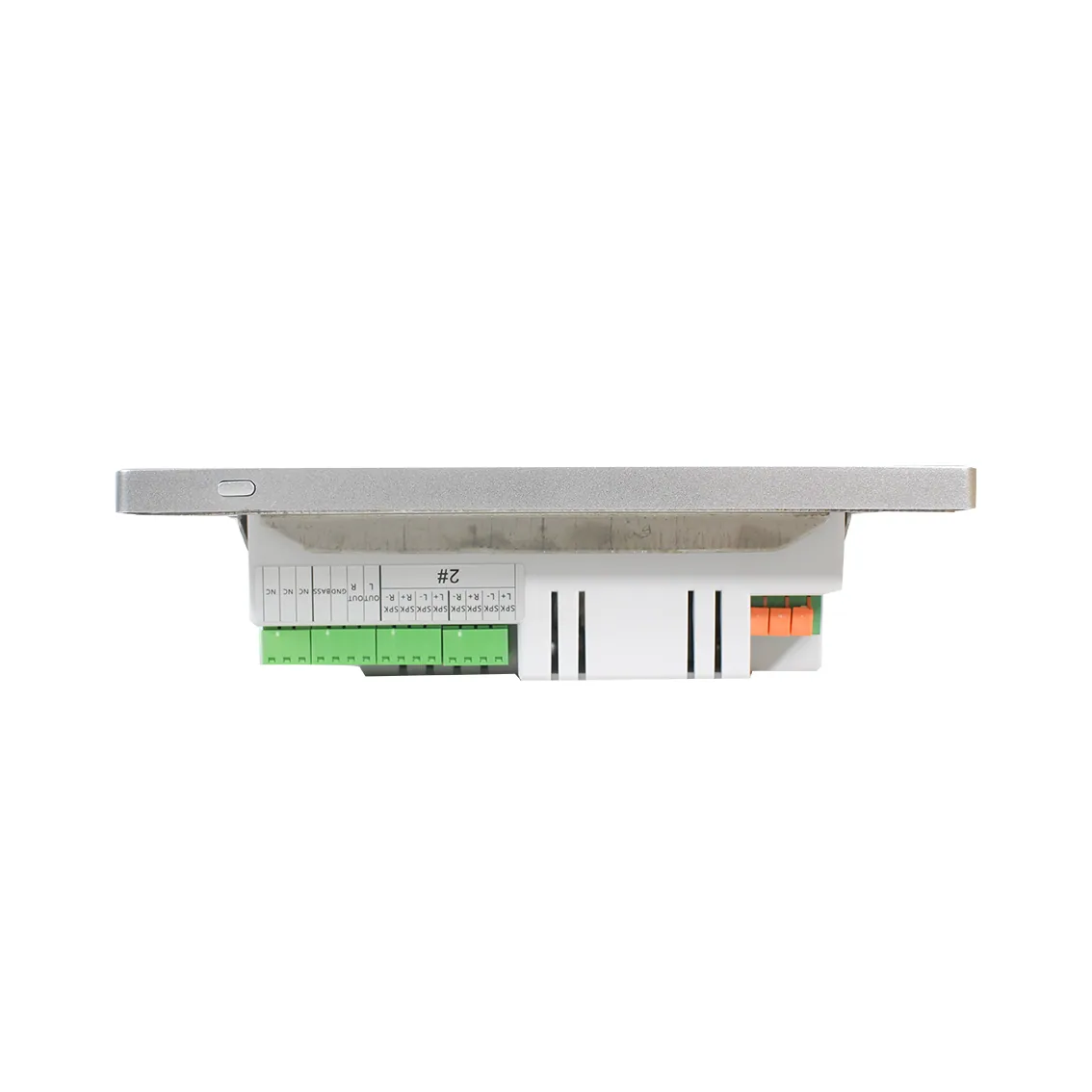

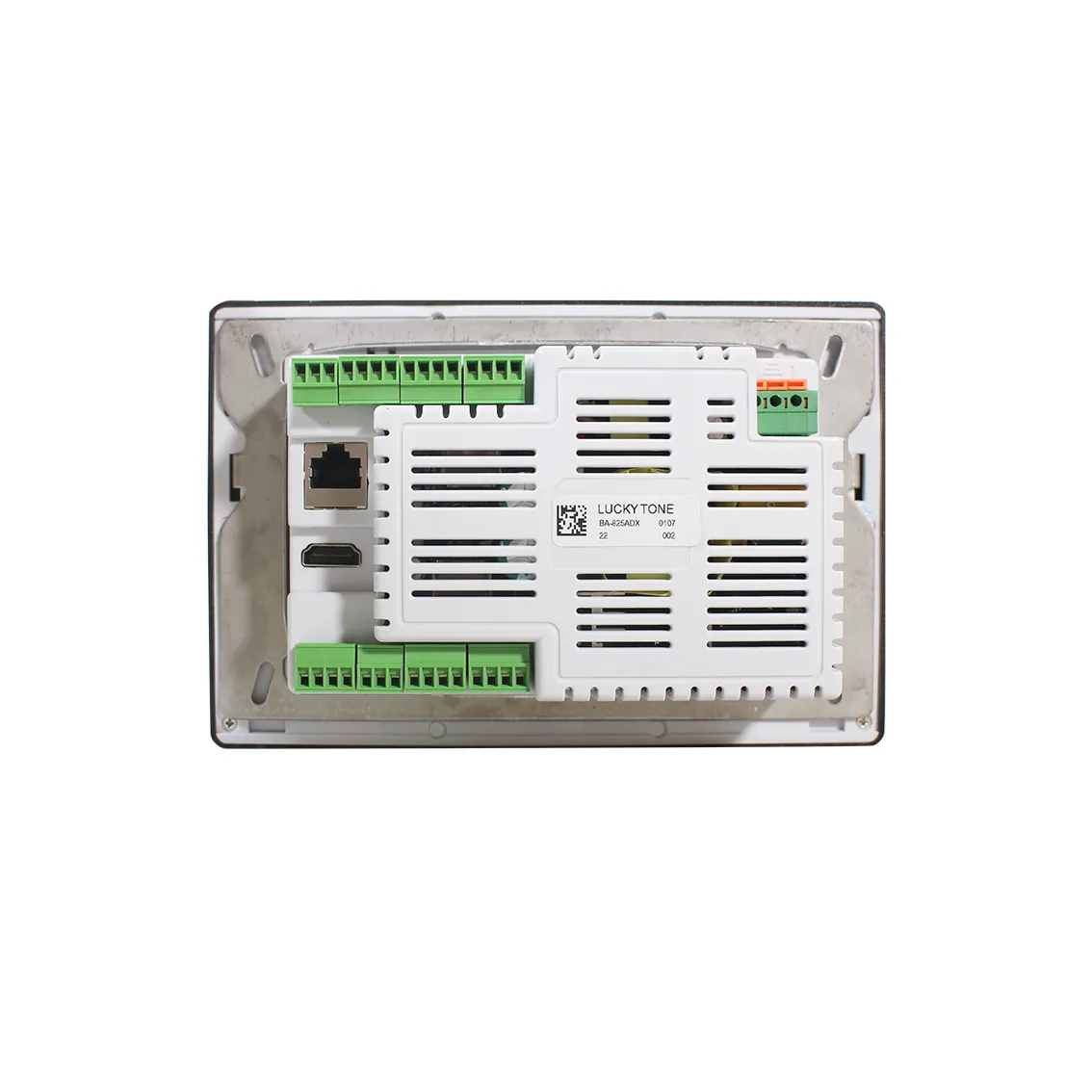

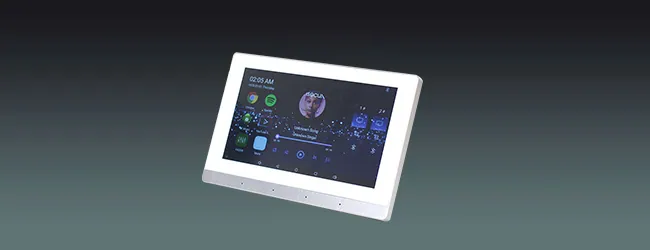

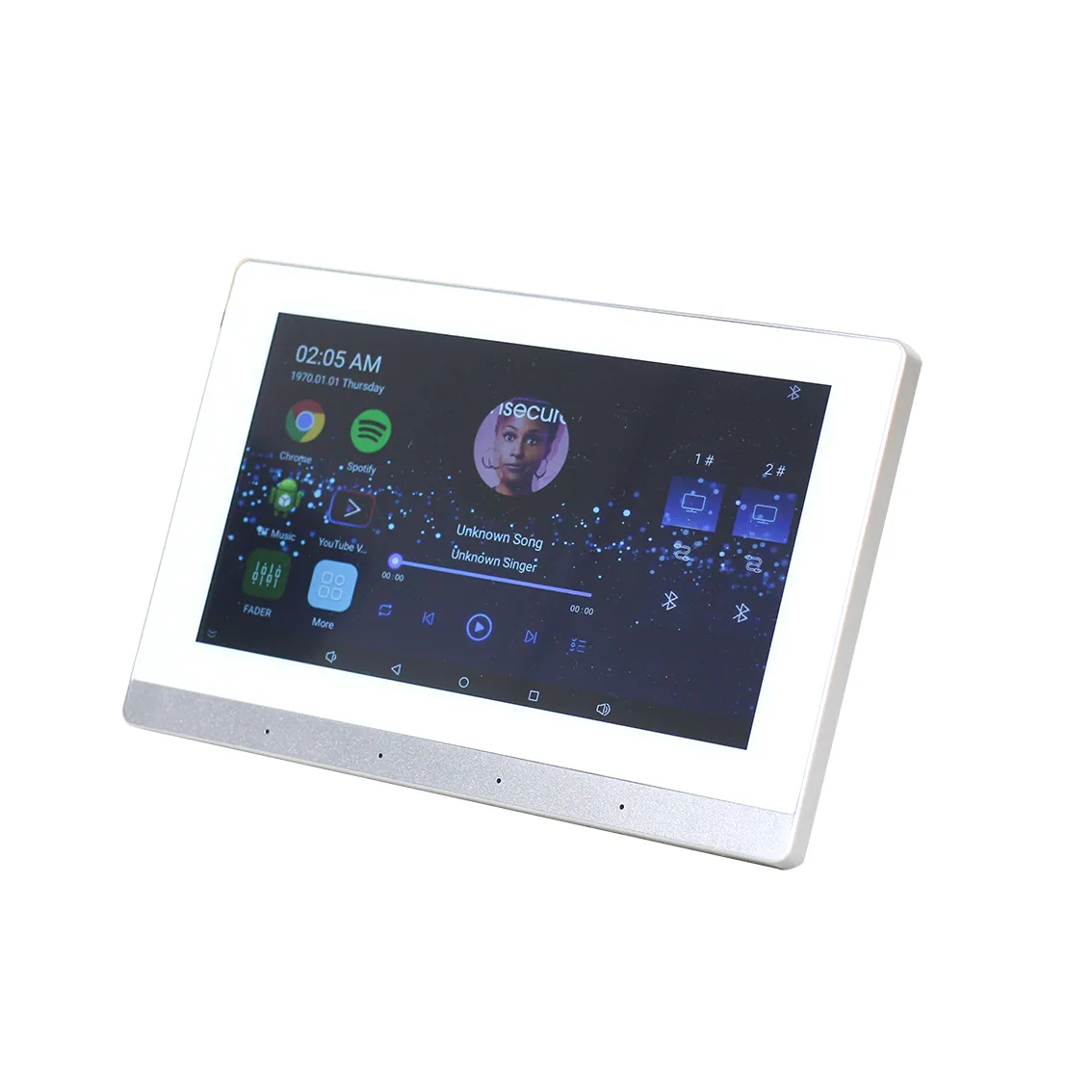

8-CH Bluetooth Wall Amplifier with Android

ModelBA-825ADX

2 Zone control of music, 7 inch touch screen for easy access and control of the system

Output power: 8*25W
Frequency response: 20 Hz-20 kHz (+/-2dB)
Weight: 0.6kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 22 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications22

Model: BA-825ADX
Output power: 8*25W
Max. power: 8*50W
Speaker Impedance: 4-8ohm
System: Android 5.0
RAM: 1GB
ROM: 8GB
Network: WIFI
CPU: ARM Quad-Core Cortex-A35 1.5GHz

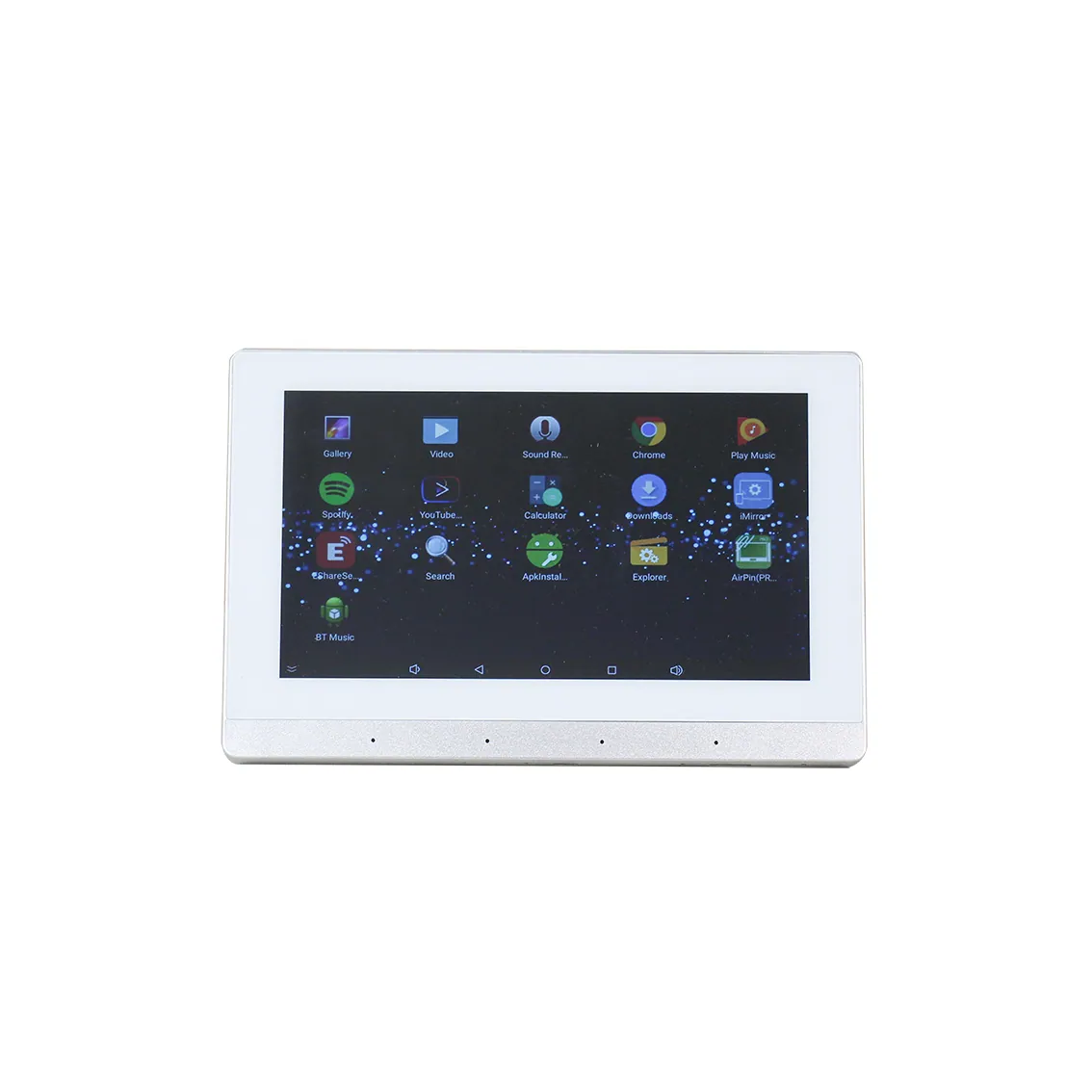

Display: 7inch HD touch screen
Resolution: 1024*600 IPS
Bluetooth wireless range: 10M
USB: OTG USB
THD: 0.03% (1W.1KHZ)
Frequency response: 20 Hz-20 kHz (+/-2dB)
SNR: 98db
Music format: Mp3, WMA, WAV, AAC, WAW, APE, OGG, etc.
Video format: MPEG-1/2/3/4, RM/RMVB, WMV, MOV, MK, VOB, AVI, 3GP, H, 264, etc.
Power Requirements: 110-250VAC
Wiring box size: 180*106*69mm
Product size: 185*121*49mm
Weight: 0.6kg

02DescriptionManufacturer's description

What it is.

Multi-protocol smart home docking including, WIFI, etc.

Can install Spotify, Pandora music APPs to play real time music via WiFi

Support for external Bluetooth devices such as mobile phones to achieve audio playback, two-way control of playing external Bluetooth

device music.
Support wireless microphone and family karaoke (optional function);
Support audio input and output function; support subwoofer access;
Support TF card and OTG 2.0USB interface, USB can be connected to the hard disk;
Suitable for homes, commercial areas, kid’s room, etc
