Sheet 05.473
Lucky Tone · Bluetooth, Wi-Fi and smart home
2.1 Bluetooth Amplifier with Subwoofer output
ModelBT-530AMP
With 2x50W stereo output and a dedicated 100W passive subwoofer output, BT-530AMP Class-D 2.1 Bluetooth amplifier provides ultra-efficient, clean power all in a sleek, lightweight design. With
- Frequency response
- 20-20KHz
- Power supply
- DC18-24V
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
2.1 Bluetooth Amplifier with Subwoofer outputPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 12 values
What this product is, in numbers.

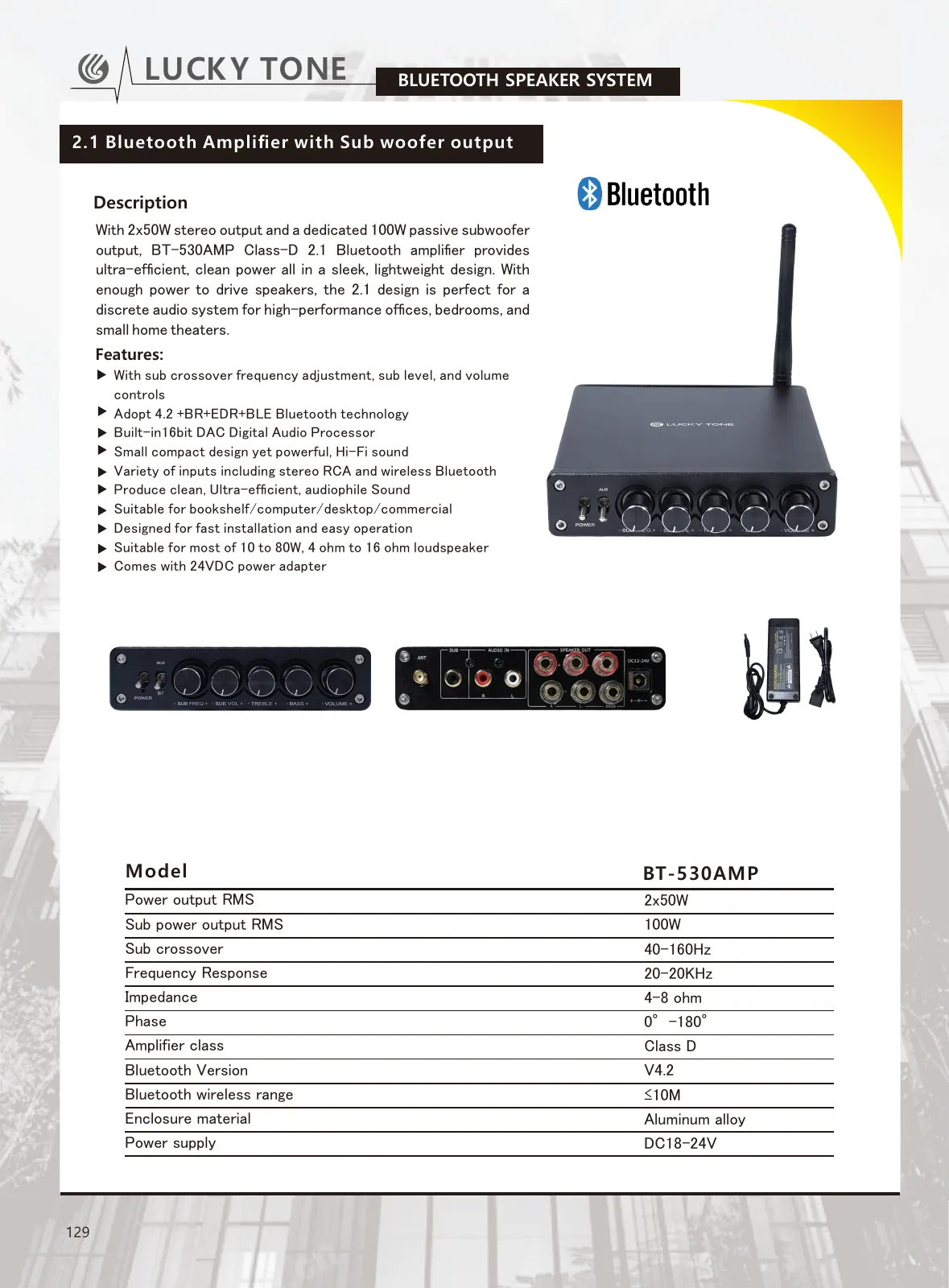

PDFSpecifications4.4 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications12
- MODEL
- BT-530AMP
- Power output RMS
- 2x50W
- Sub power output RMS
- 100W
- Sub crossover
- 40-160Hz
- Frequency Response
- 20-20KHz
- Impedance
- 4-8 ohm
- Phase
- 0°-180°
- Amplifier class
- Class D
- Bluetooth Version
- V4.2
- Bluetooth wireless range
- ≤10M
- Enclosure material
- Aluminum alloy
- Power supply
- DC18-24V
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
enough power to drive speakers, the 2.1 design is perfect for a discrete audio system for high-performance offices, bedrooms, and small home theaters.
Features
- With sub crossover frequency adjustment, sub level, and volume controls
- Adopt 4.2 +BR+EDR+BLE Bluetooth technology
- Built-in16bit DAC Digital Audio Processor
- Small compact design yet powerful, Hi-Fi sound

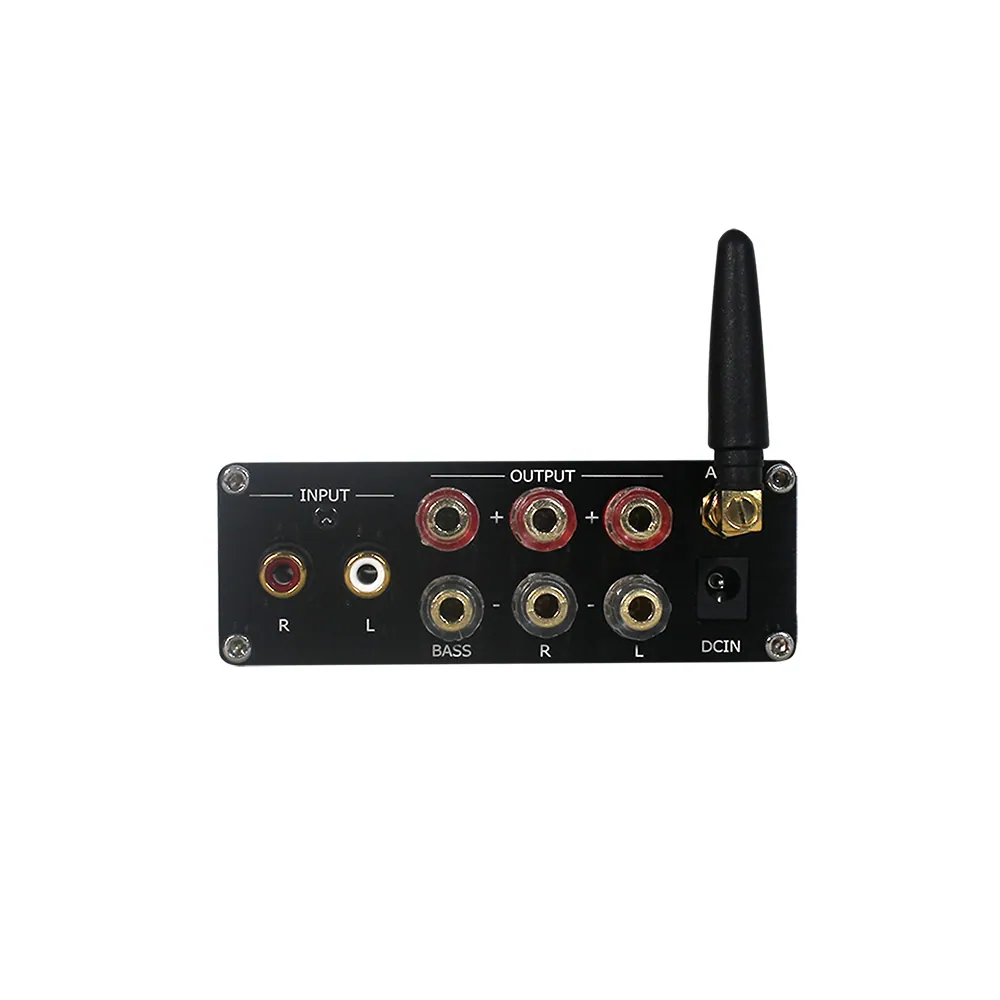

- Variety of inputs including stereo RCA and wireless Bluetooth
- Produce clean, Ultra-efficient, audiophile Sound
- Suitable for bookshelf/computer/desktop/commercial
- Designed for fast installation and easy operation
- Suitable for most of 10 to 80W, 4 ohm to 16 ohm loudspeaker

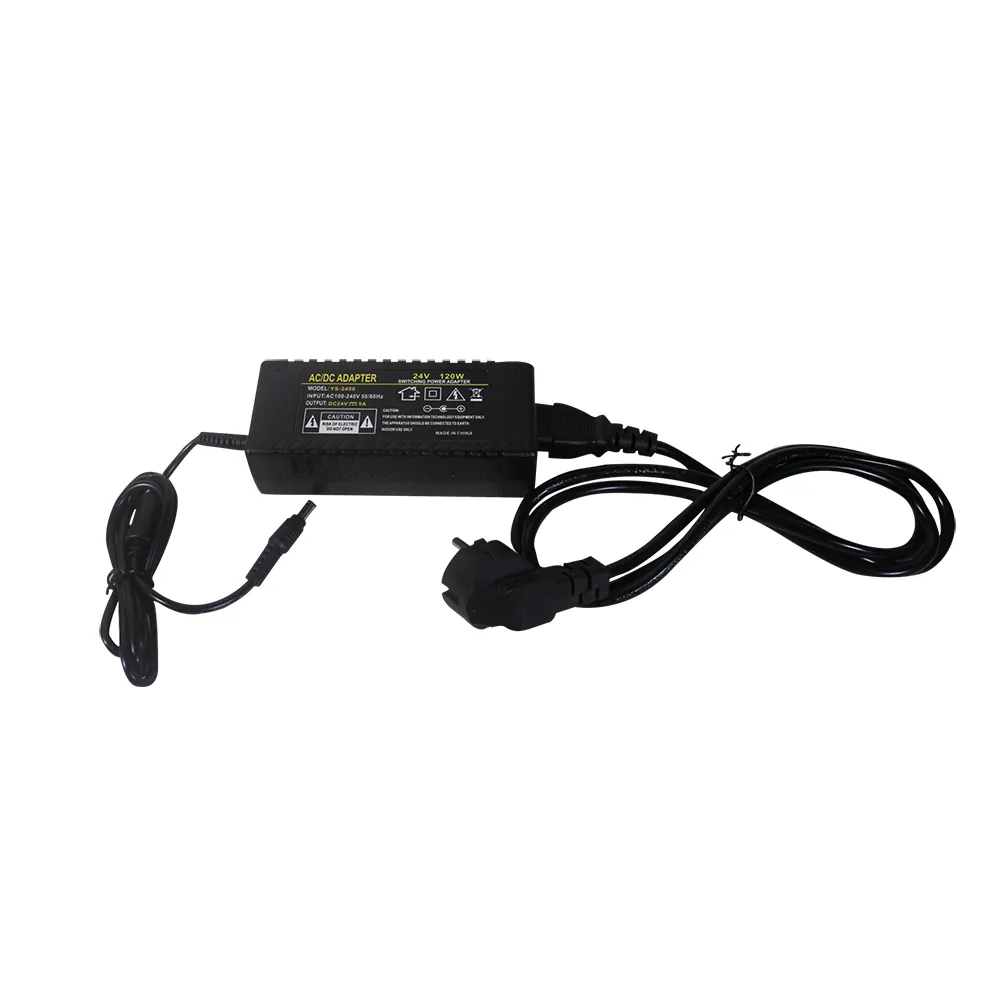

- Comes with 24VDC power adapter
