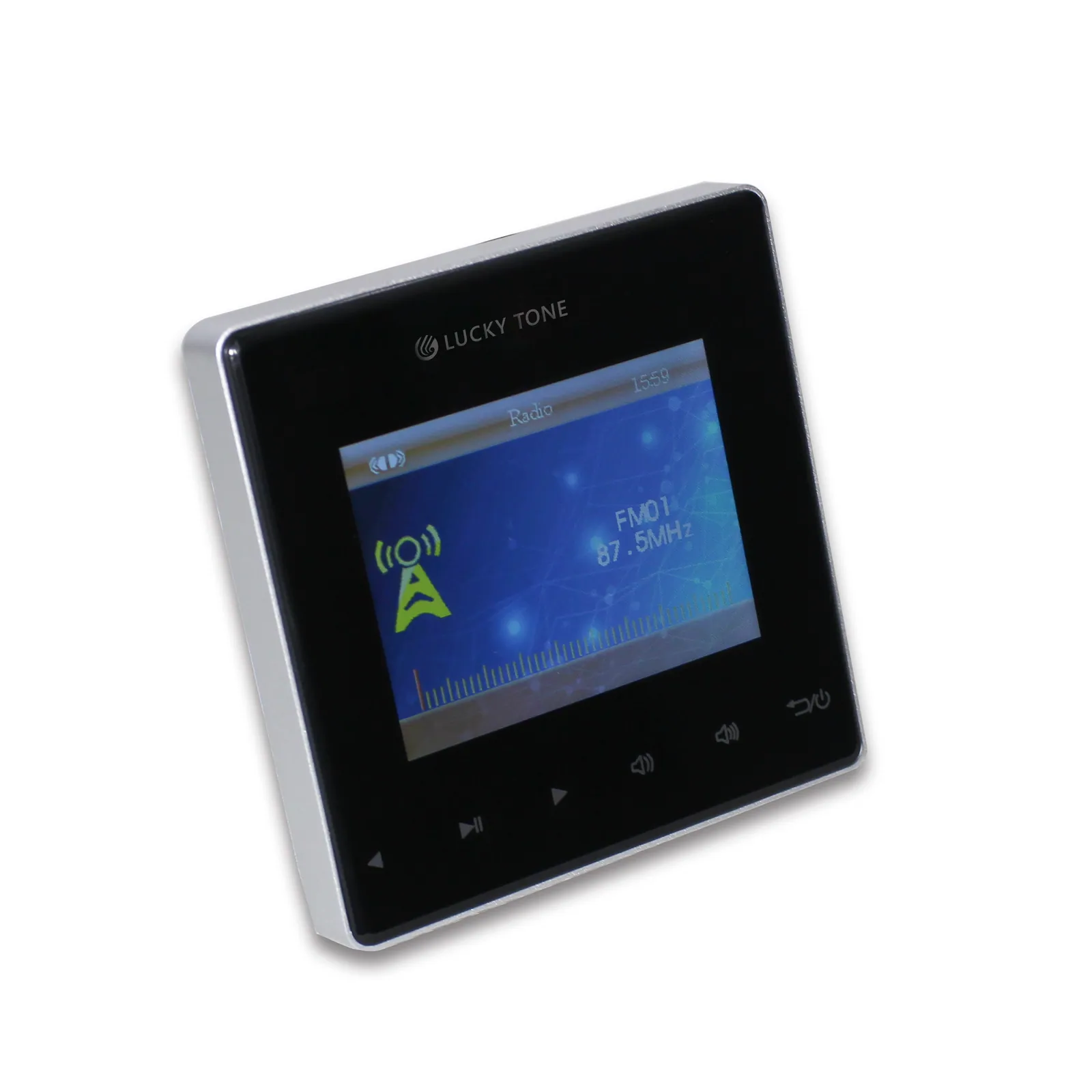

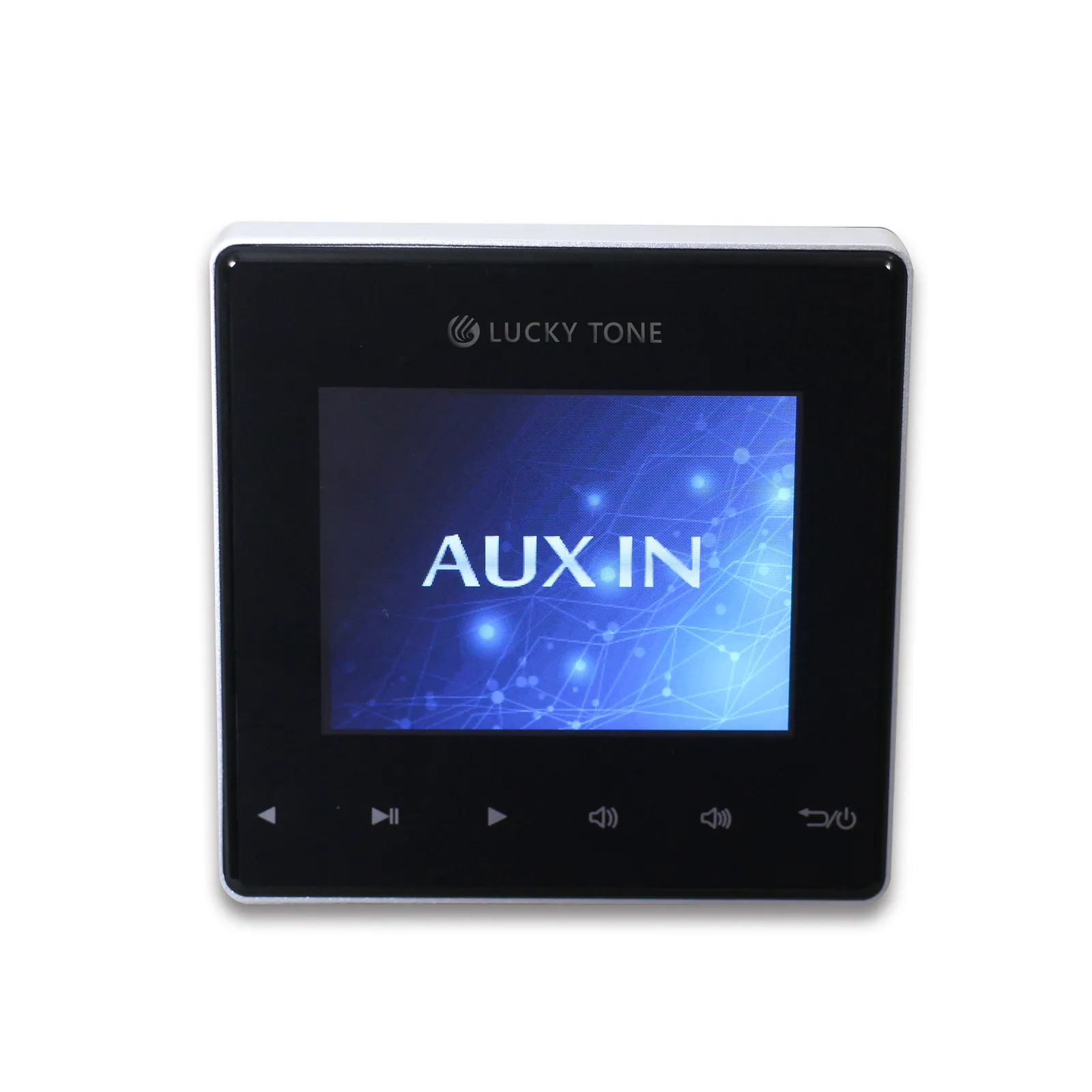

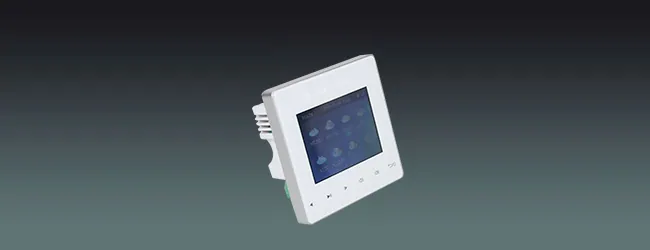

2/4-CH Bluetooth Wall Amplifier with Color Screen
ModelBA-225/BA-425
Adopt Bluetooth wireless connection technology
- Output power
- 2*25W or 4*25W
- Frequency response
- 20 Hz-20 kHz (+/-2dB)
- Dimensions
- 86*86*11mm
- Weight
- 0.42kg
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications17
- Model
- BA-225/BA-425
- Output power
- 2*25W or 4*25W
- Speaker Impedance
- 4-8ohm
- Expand TF card memory
- 32GB
- Display
- 2.8inch LCD
- Resolution
- 480*480 IPS
- Bluetooth wireless range
- ≤10M
- USB
- OTG USB, 32G can be read
- THD
- 0.03% (1W.1KHZ)
- Frequency response
- 20 Hz-20 kHz (+/-2dB)
- SNR
- 98db
- Music format
- Mp3, WMA, WAV, AAC, FL AC, WAW, APE, etc.
- Video format
- MPEG-1/2/3/4, RM/RMVB, WMV, MOV, MK, VOB,AVI, 3GP, H, 264, etc.
- Photo format
- JPGE, BMP, GIF, PNG, etc.
- Power Requirements
- 110-250VAC
- Dimension
- 86*86*11mm
- Weight
- 0.42kg
Show the full specificationHide the rest of the specification0 more groups · 0 values
What it is.
- Built-in all-digital auto-tuning radio, 30 radio stations.
- Support play songs automatically when power on.
- Standard 86 Mounted on the wall for easy control.
- With wireless remote control.
- Support linkage trigger doorbell.
- Support USB and SD card storage.

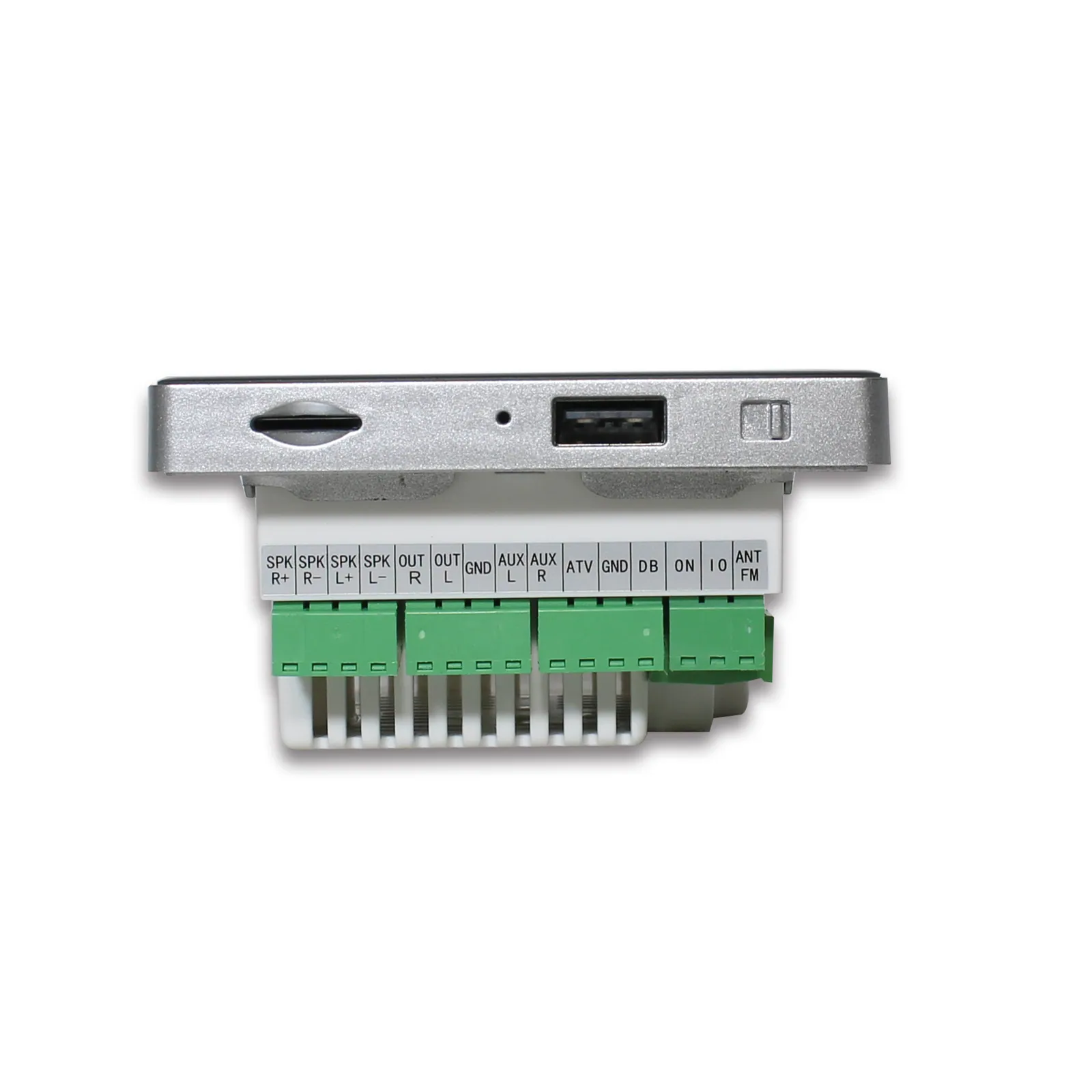

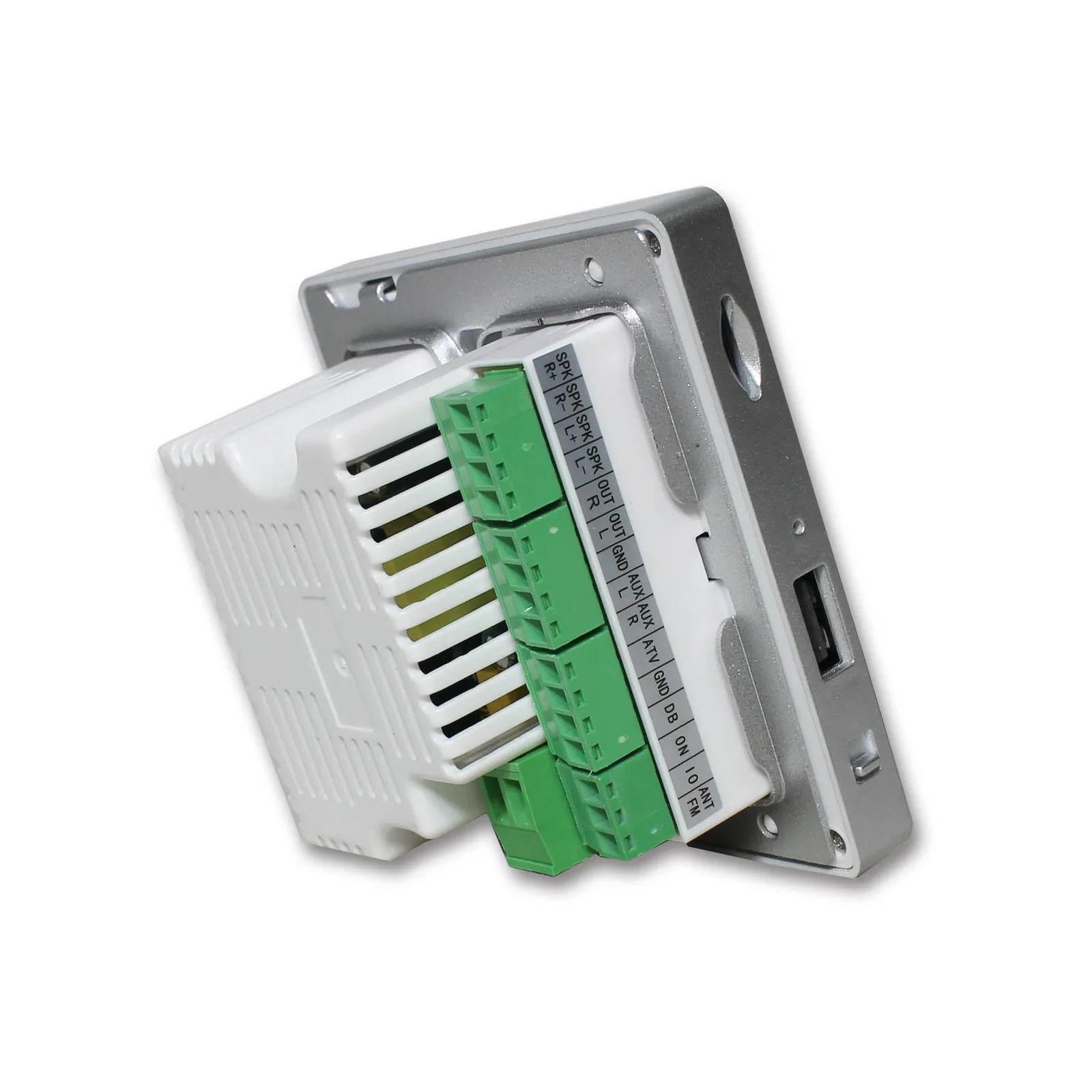

- Support audio input and output function with secure and fast connect phoenix connectors.

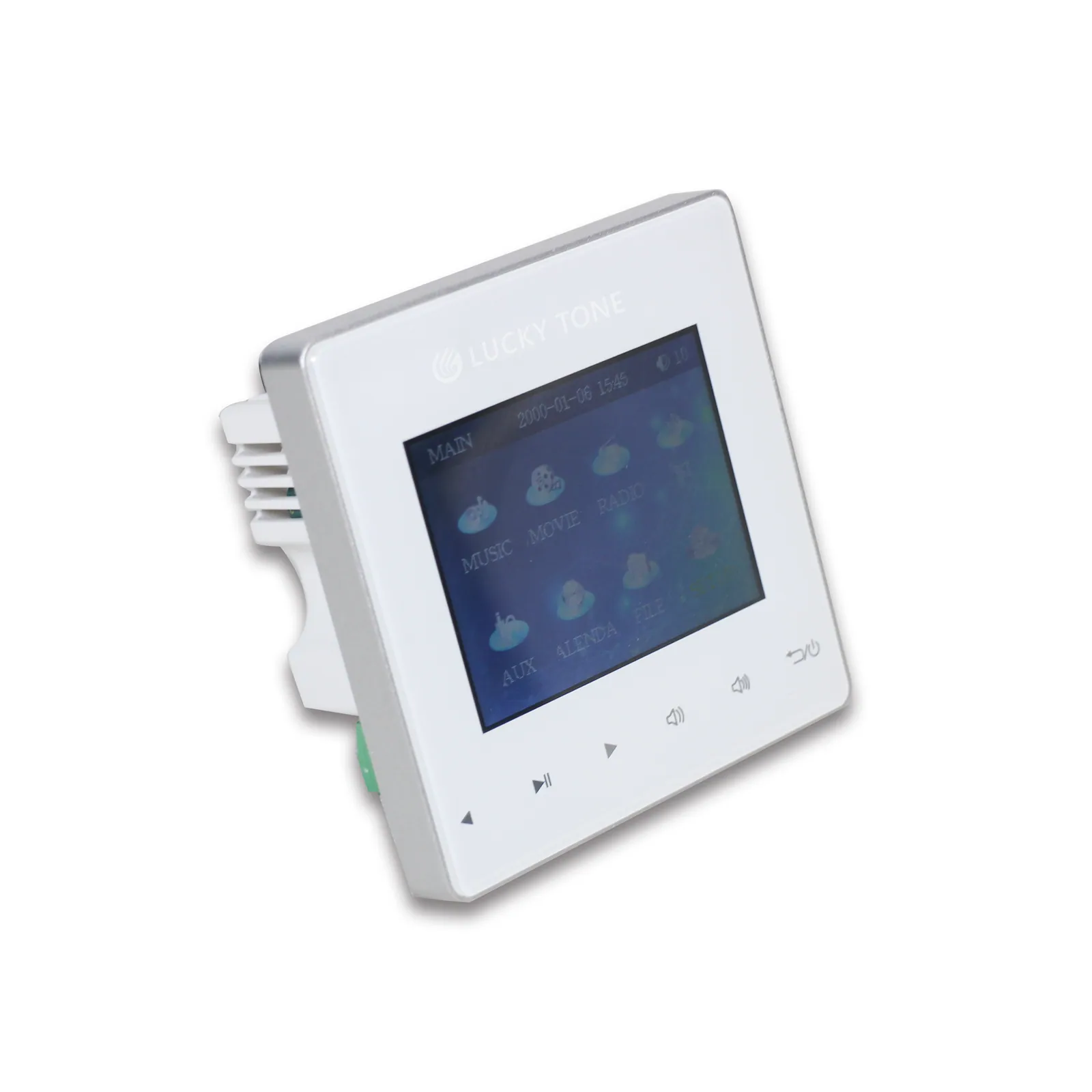

- Color LCD display, and light touch button rim for easy control of the music system.
- Suitable for homes, commercial areas, kid’s room, etc.
- RS 485 for third party system integration(2-CH).
