2/4-CH Bluetooth Wall Amplifier with Android

ModelBA-225ADi/BA-425ADi

With RJ45 interface for both hard cat 5 cable or WIFI connection

Output power: 2*25W / 4*25W
Frequency response: 20 Hz-20 kHz (+/-2dB)
Dimensions: 86*86*38mm
Weight: 0.7kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 21 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications21

Model: BA-225ADi/BA-425ADi
Output power: 2*25W / 4*25W
Speaker Impedance: 4-8ohm
System: Android 11
Body memory: 1GB
Expand TF card memory: 8GB, Scalable to 32G
Network: WIFI
CPU: Cortex 1.2G (Quad core)
Display: 4inch capacitive touch screen
Resolution: 480*480 IPS
Bluetooth wireless range: ≤10M
USB: OTG USB
THD: 0.03% (1W.1KHZ)
Frequency response: 20 Hz-20 kHz (+/-2dB)
SNR: 98db
Music format: Mp3, WMA, WAV, AAC, WAW, APE, OGG, etc.
Video format: MPEG-1/2/3/4, RM/RMVB, WMV, MOV, MK, VOB, AVI, 3GP, H, 264, etc.
Power Requirements: 110-250VAC
Audio: Aux audio input and outputs
Dimension: 86*86*38mm
Weight: 0.7kg

02DescriptionManufacturer's description

What it is.

Adopt Bluetooth and WIFI wireless connection technology
Standard 86 Mounted on the wall for easy control
Rs485 protocol for integration (2-CH)
Download APP like Spotify, Pandora etc. to it to play music from internet
Support triggering doorbell function

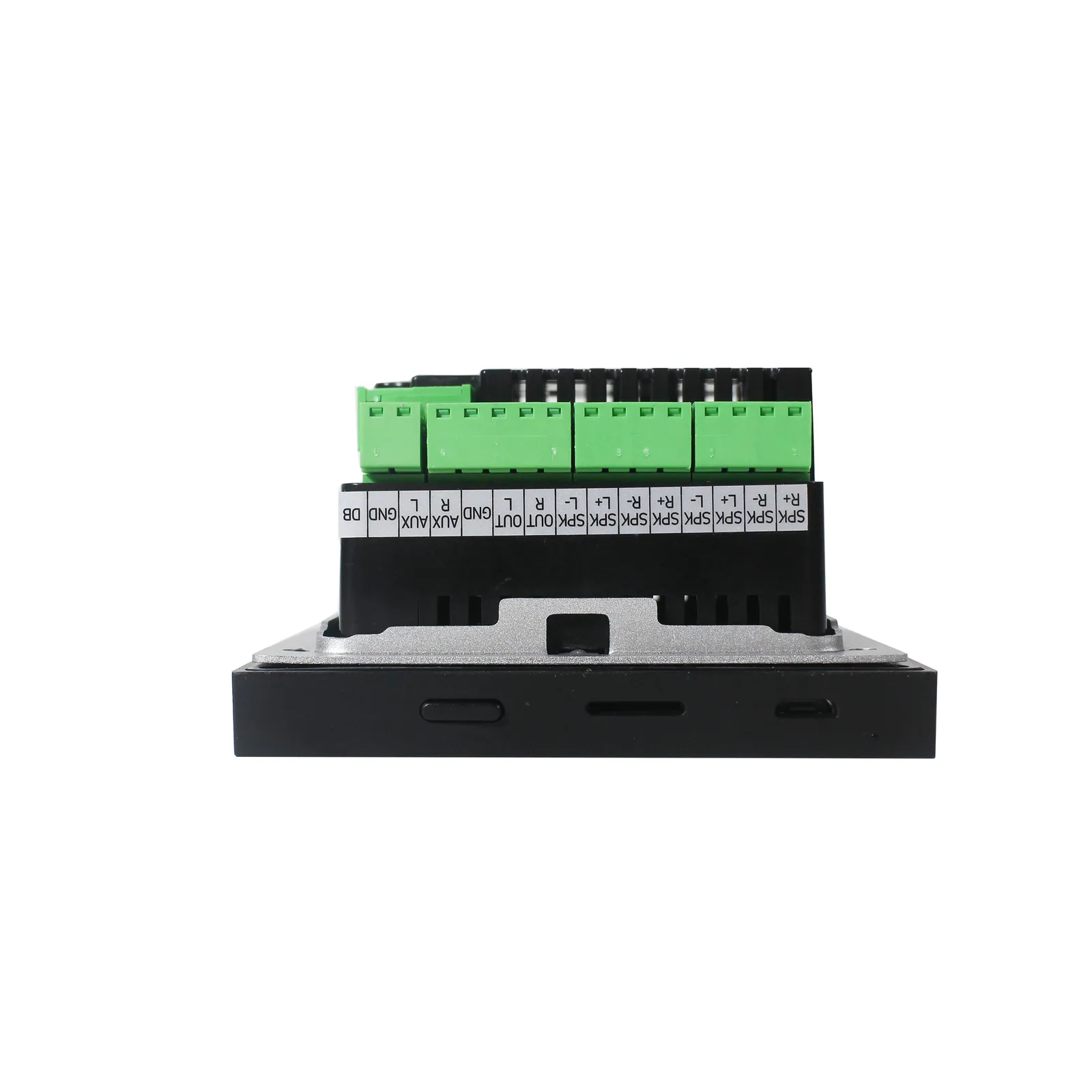

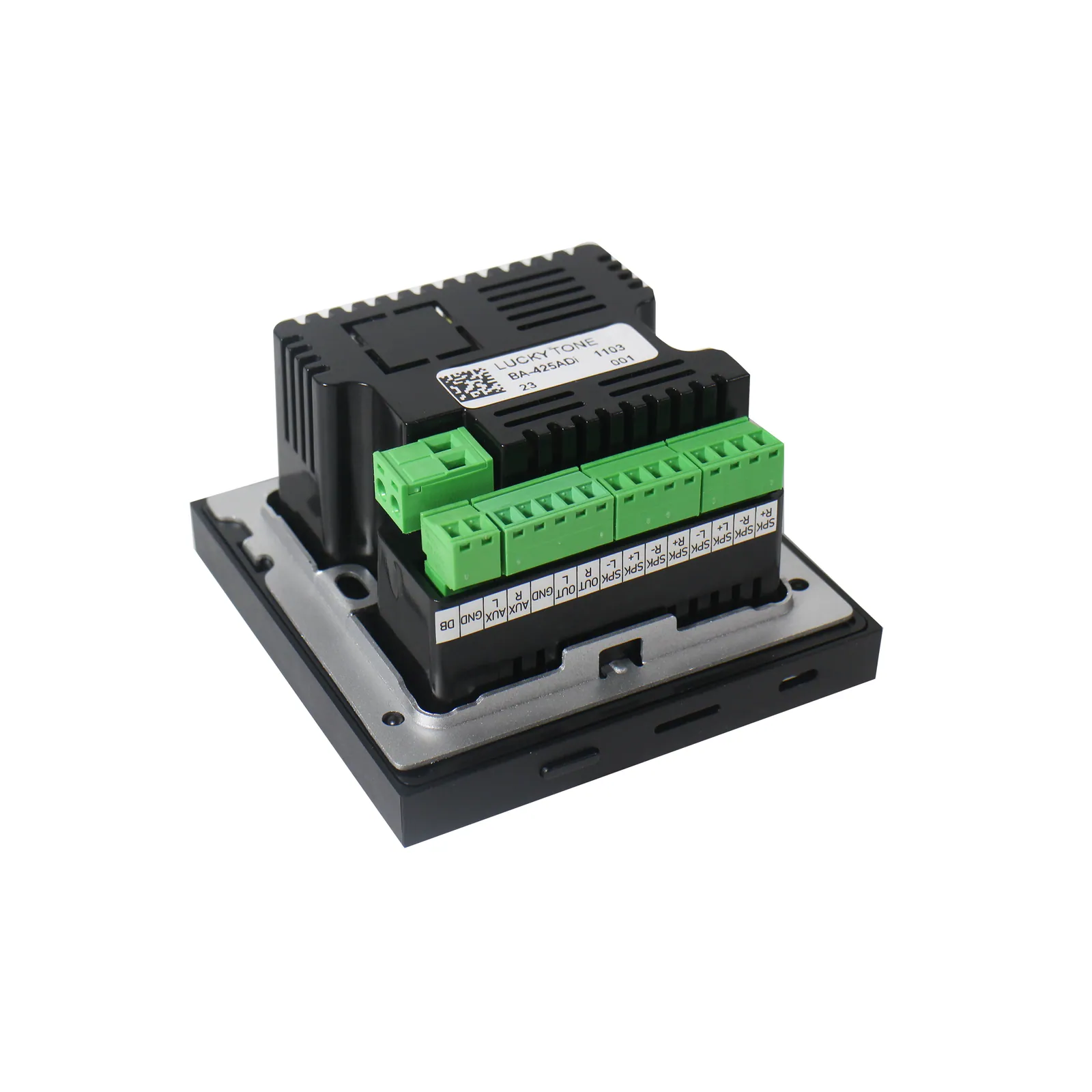

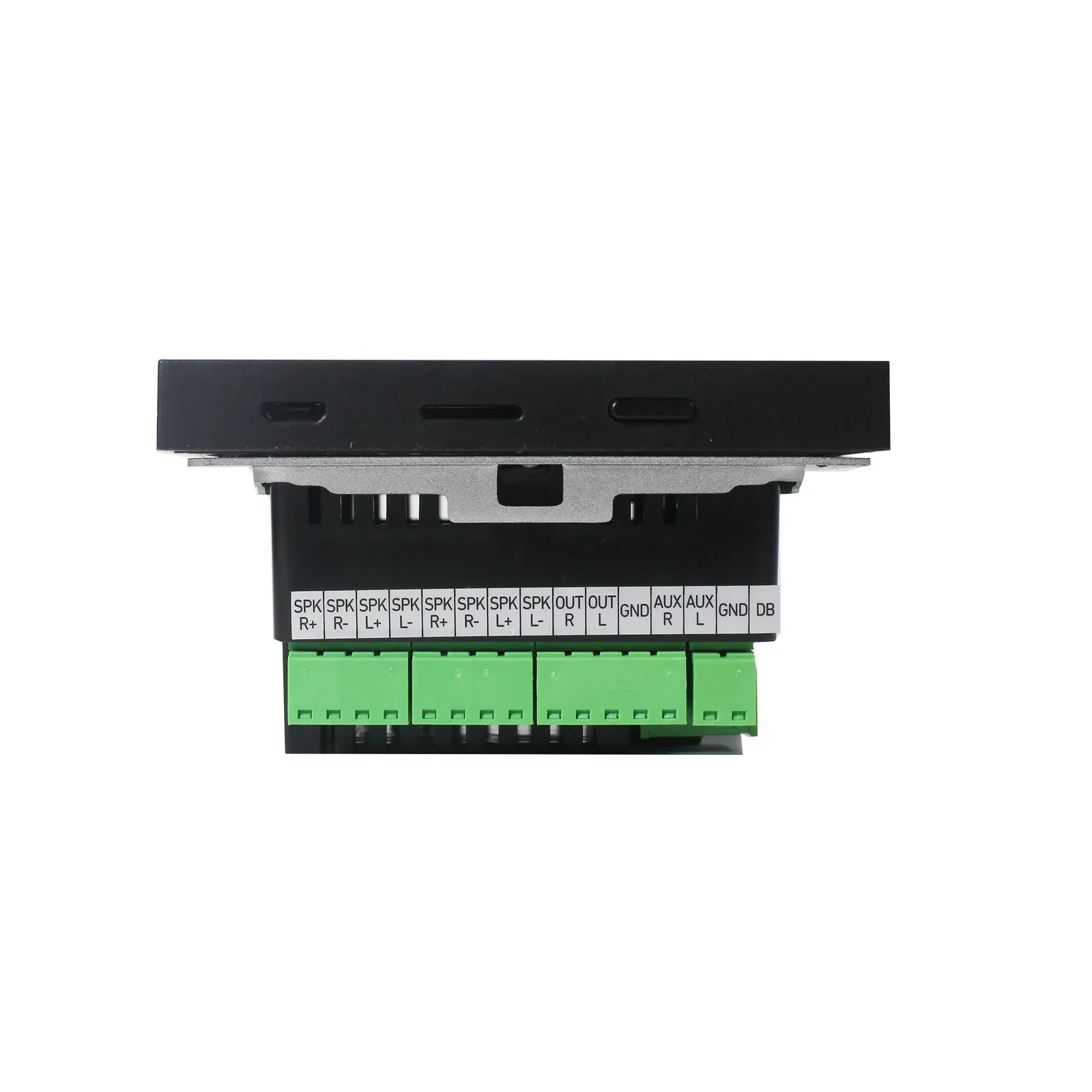

Support audio input and output function with secure and fast connect phoenix connectors
Support TF card and OTG 2.0USB interface, USB can be connected to the hard disk;
Suitable for homes, commercial areas, kid’s room, etc.
