Sheet 05.475
Lucky Tone · Bluetooth, Wi-Fi and smart home

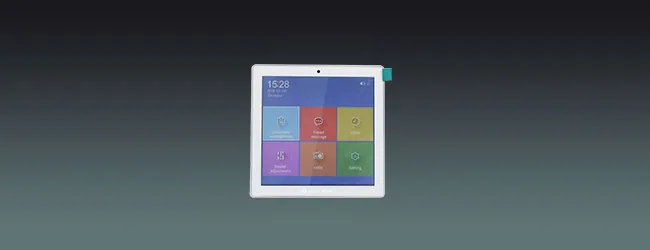

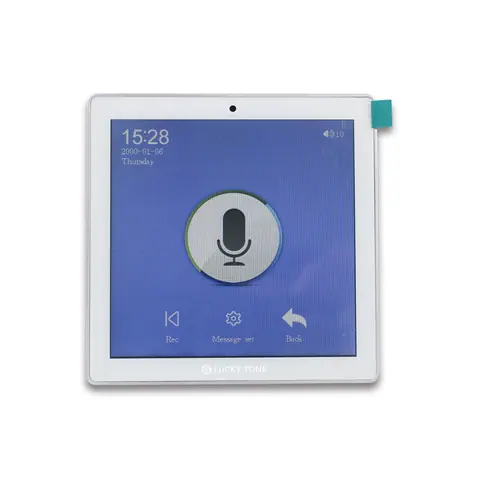

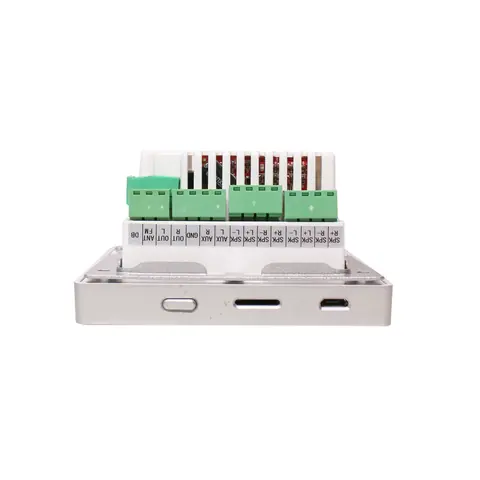

2/4 -CH Bluetooth Wall Amplifier with Touchscreen
ModelBA-225TC/BA-425TC
Adopt Bluetooth wireless connection technology.
- Output power
- 2*25W or 4*25W
- Frequency response
- 20 Hz-20 kHz (+/-2dB)
- Dimensions
- 86*86*11mm
- Weight
- 0.42kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
2/4 -CH Bluetooth Wall Amplifier with TouchscreenPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 18 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications18
- Model
- BA-225TC/BA-425TC
- Output power
- 2*25W or 4*25W
- Speaker Impedance
- 4-8ohm
- Expand TF card memory
- 32GB
- Display
- 4inch capacitive touch screen
- Resolution
- 480*480 IPS
- Bluetooth wireless range
- ≤10M
- USB
- OTG USB, 32G can be read
- THD
- 0.03% (1W.1KHZ)
- Frequency response
- 20 Hz-20 kHz (+/-2dB)
- SNR
- 98db
- Sound effect
- Ordinary, rock, classical, jazz, pop, etc.
- Music format
- Mp3, WMA, WAV, AAC, FL AC, WAW, APE, etc.
- Video format
- MPEG-1/2/3/4, RM/RMVB, WMV, MOV, MK, VOB,AVI, 3GP, H, 264, etc.
- Photo format
- JPGE, BMP, GIF, PNG, etc.
- Power Requirements
- 110-250VAC
- Dimension
- 86*86*11mm
- Weight
- 0.42kg
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.

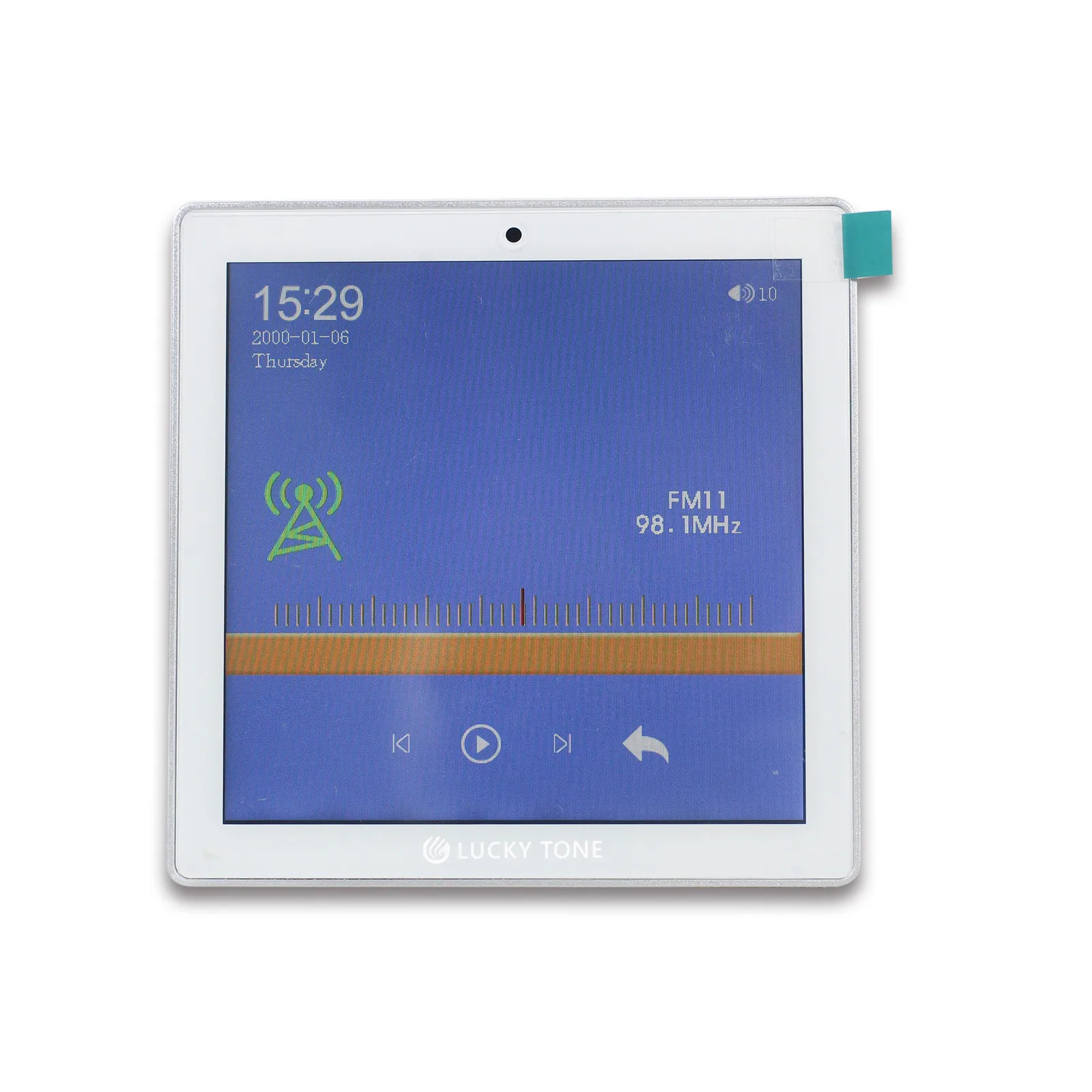

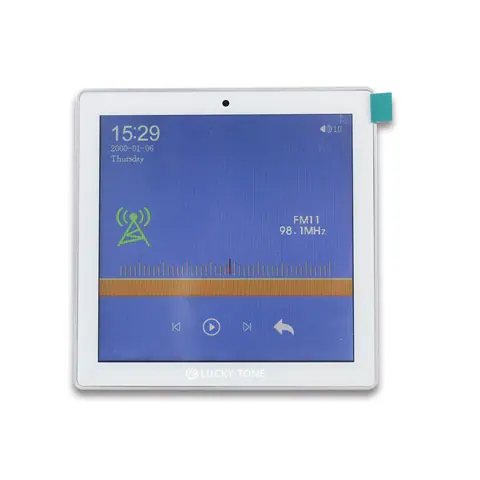

- Built-in all-digital auto-tuning radio, 30 radio stations.
- Standard 86 Mounted on the wall for easy control.

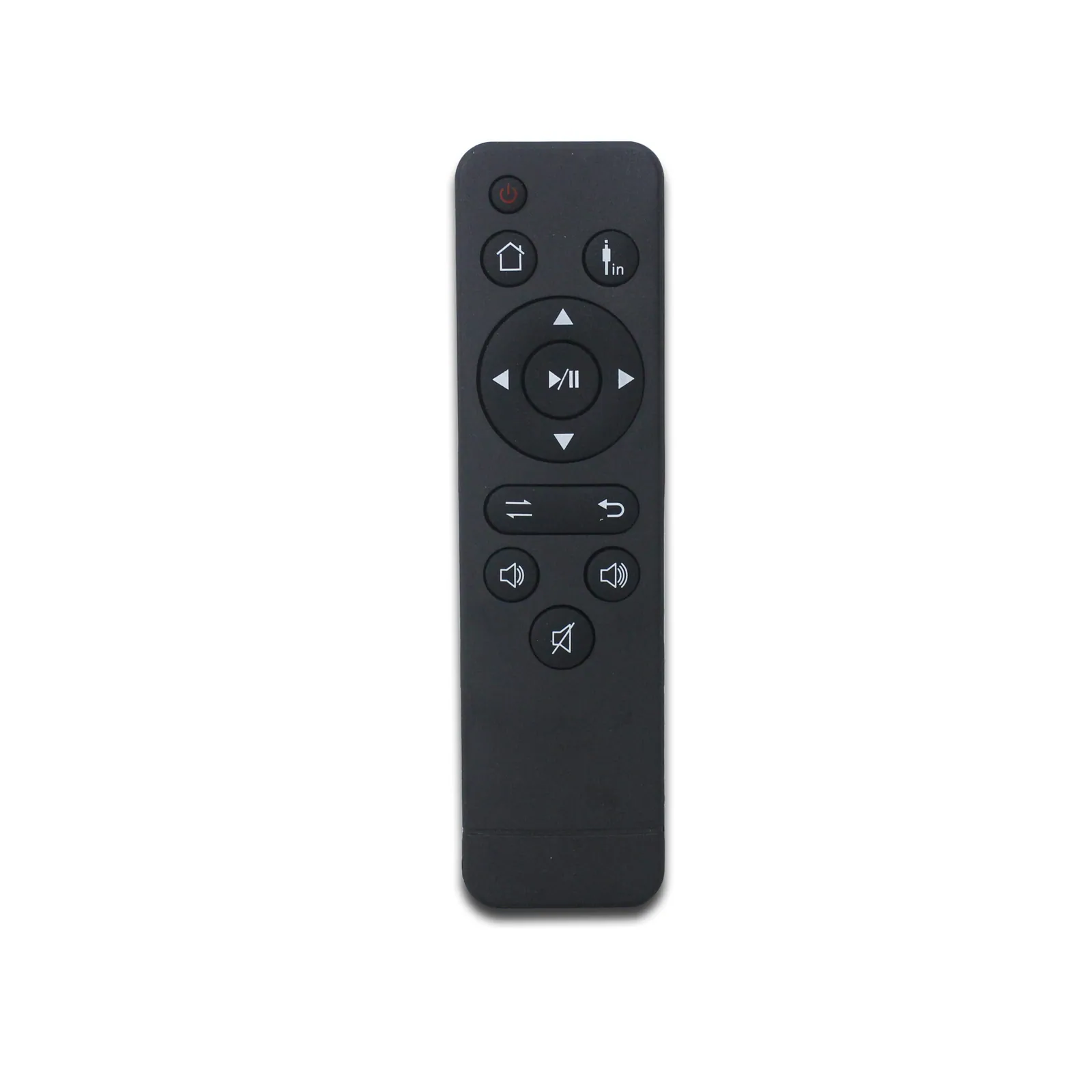

- With wireless remote control.
- Support linkage trigger doorbell input.
- Rs485 integration with third party system(2-CH).

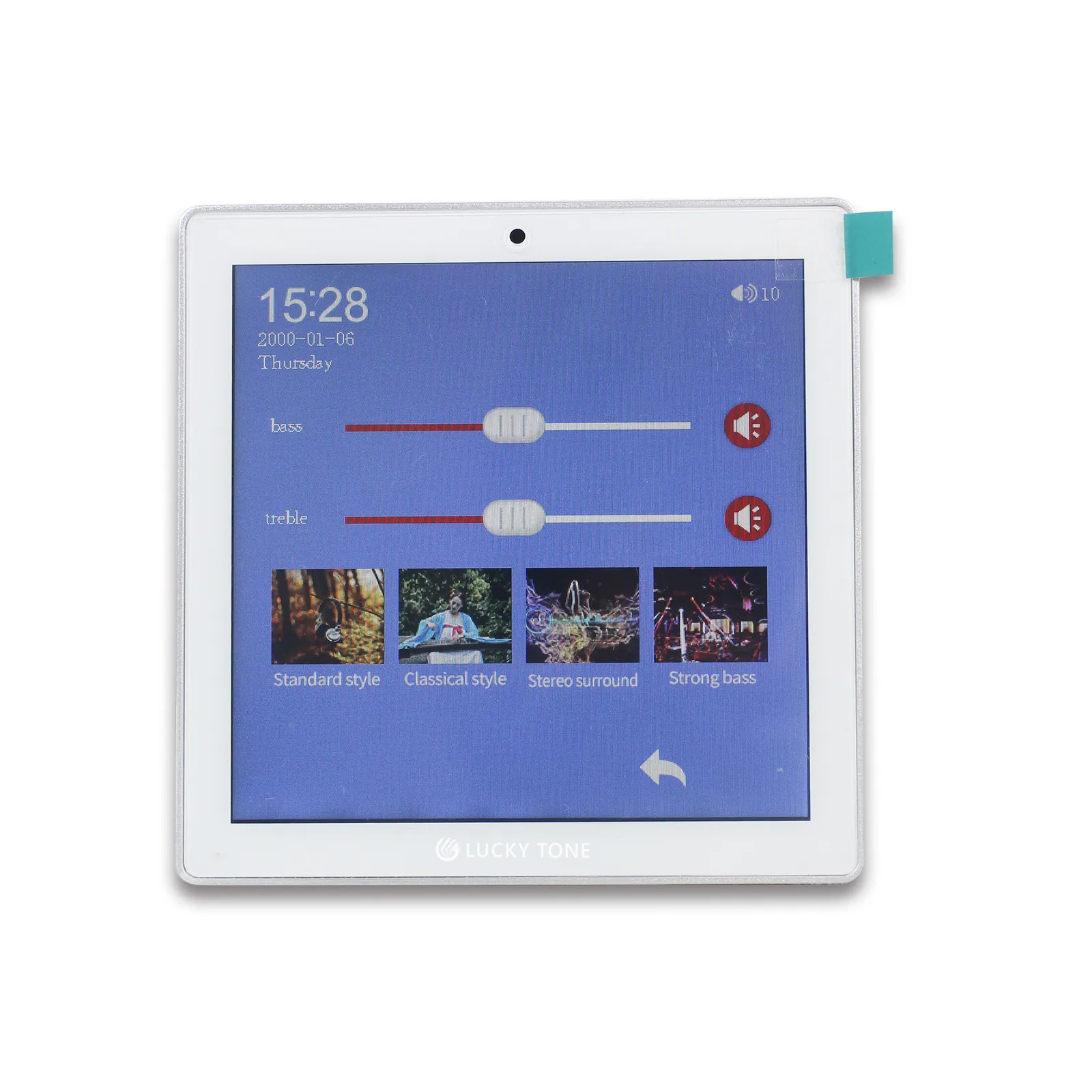

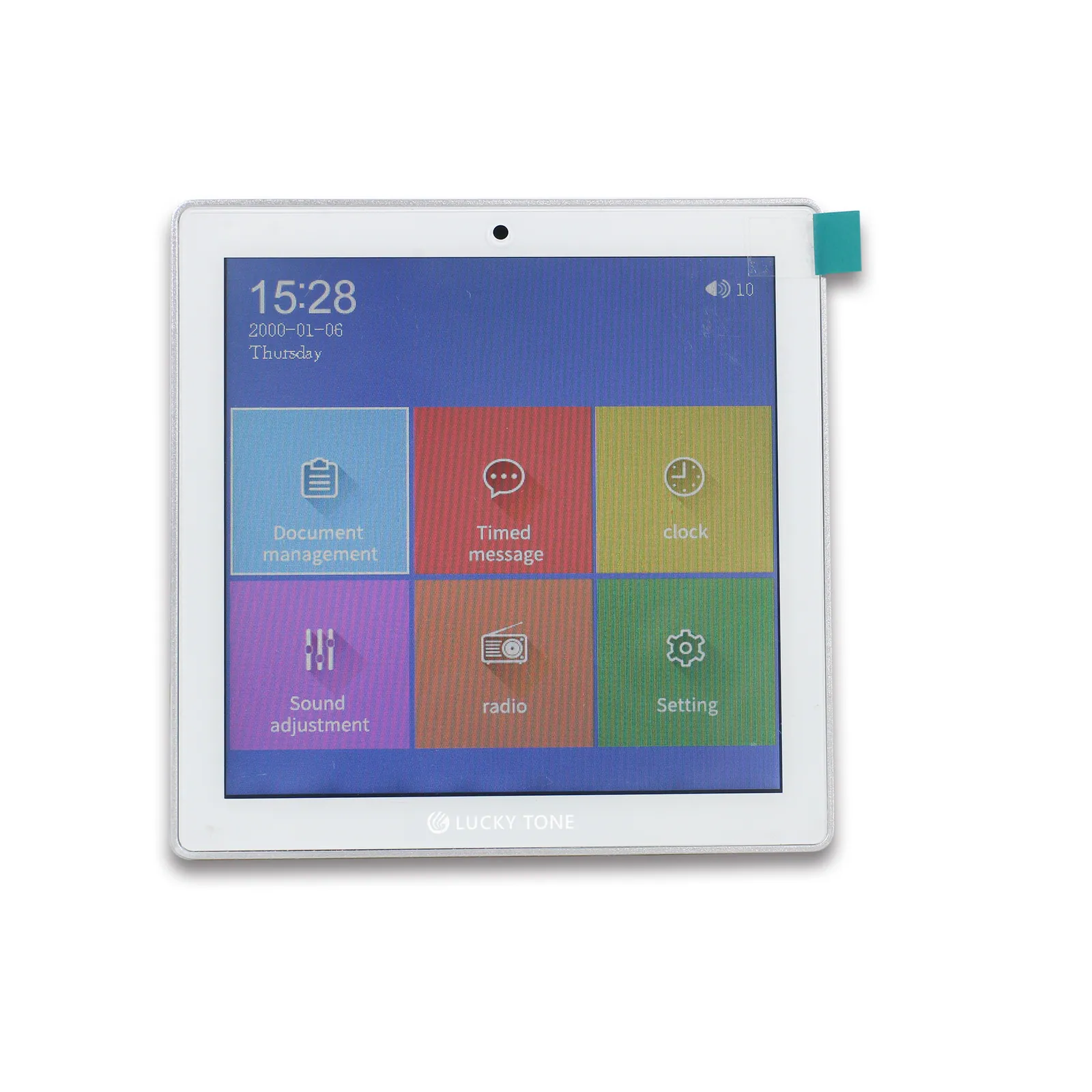

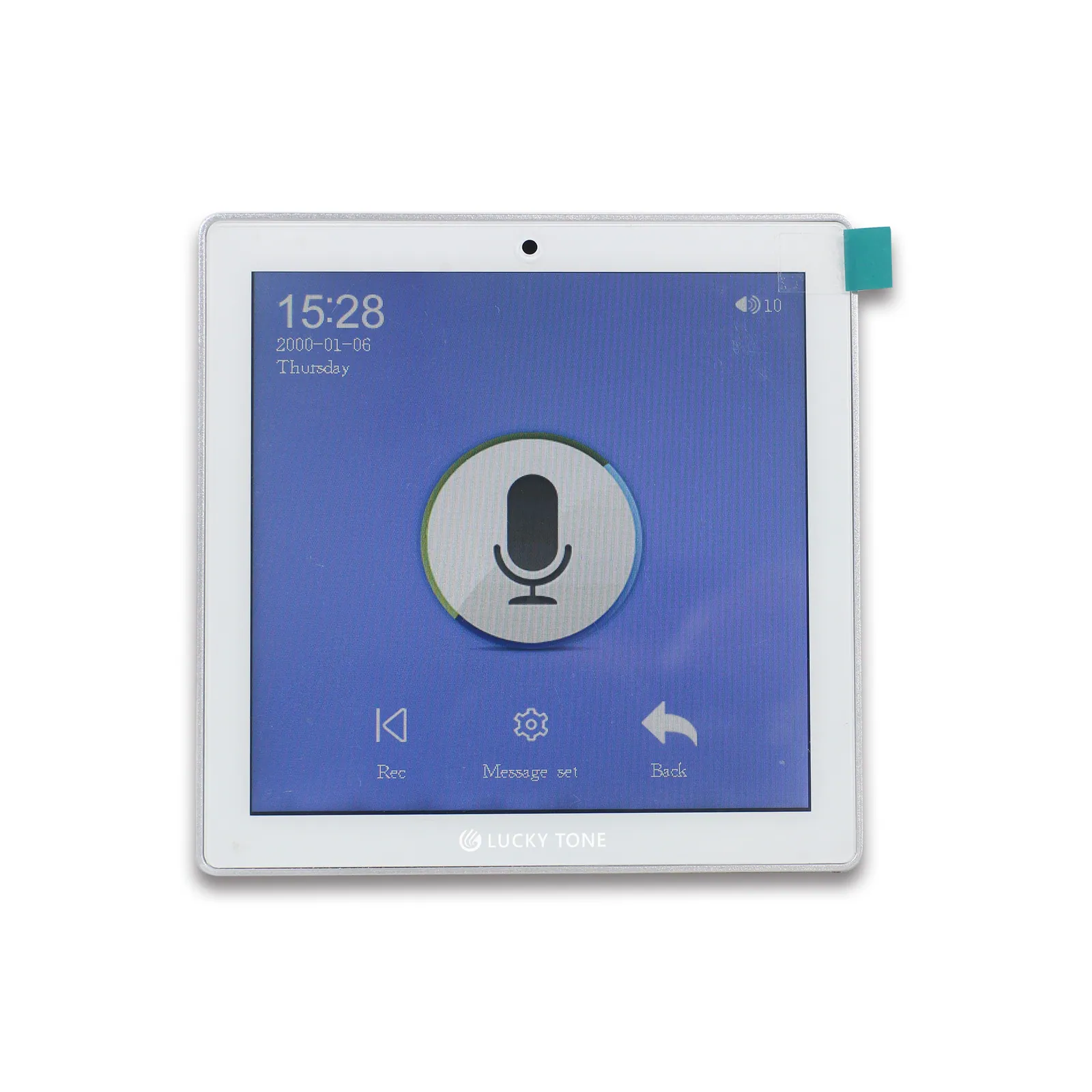

- High sensitivity 4 inch touch screen.

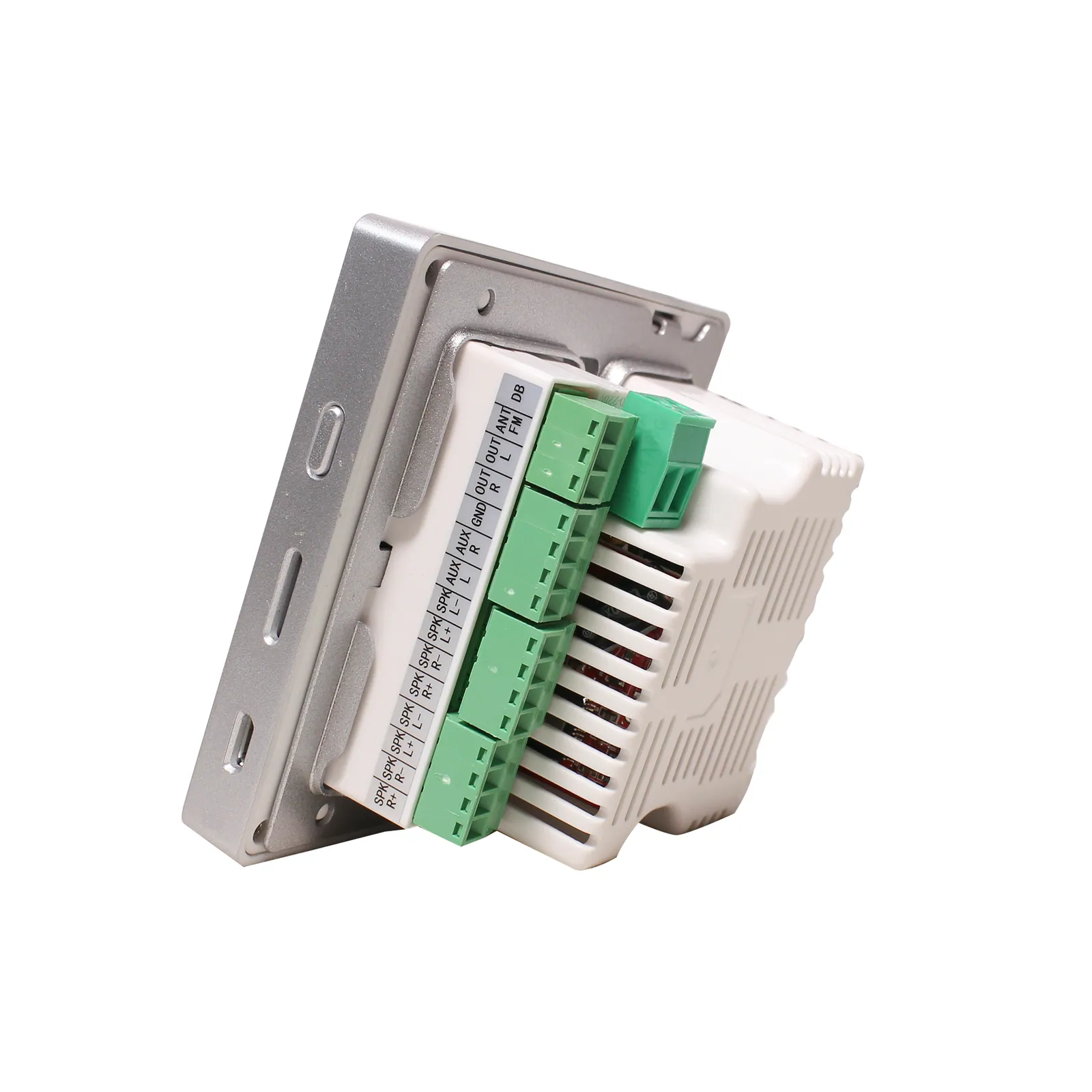

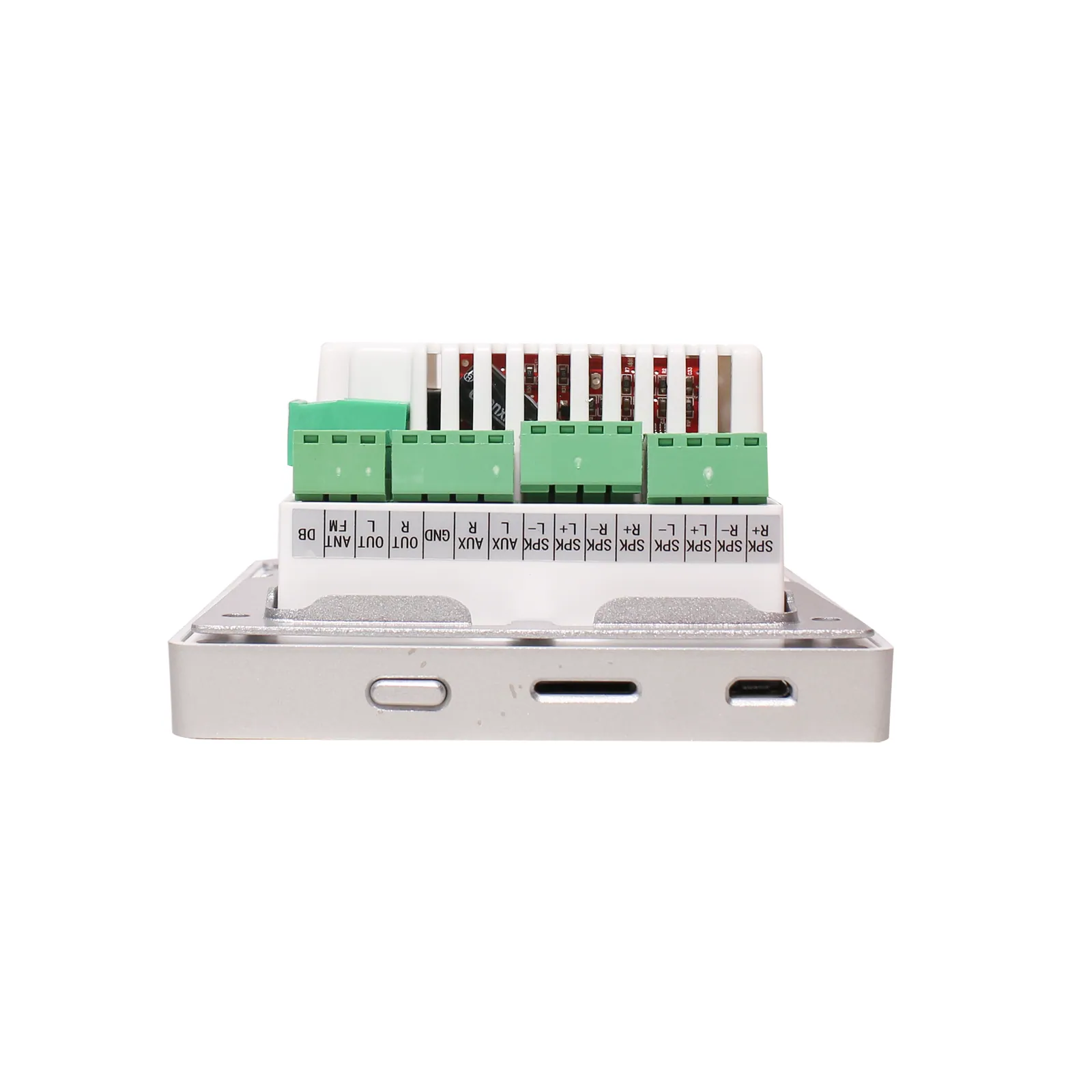

- Support audio input and output function with secure and fast connect phoenix connectors.
- Suitable for homes, commercial areas, kid’s room, etc.
