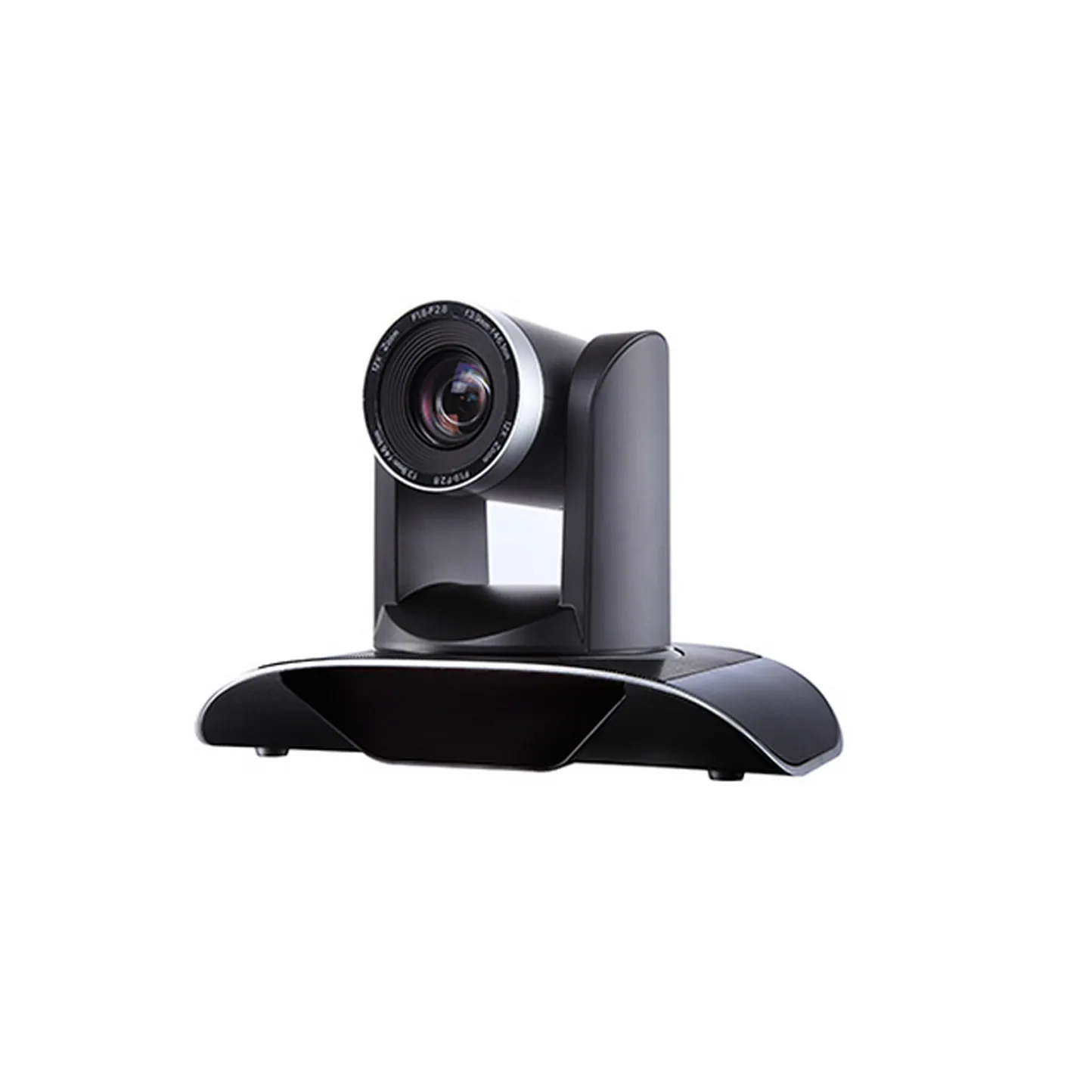

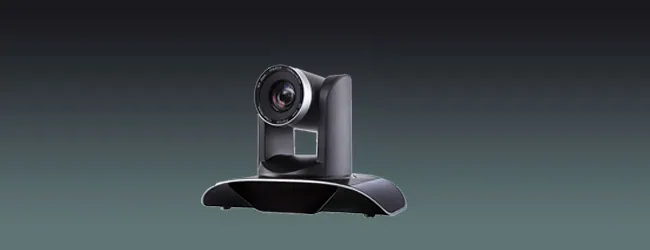

High-Definition PTZ Camera
ModelCAM-200
Outstanding performance and various interfaces
- Dimensions
- 258mm*172mm*169mm
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications46
- Model
- CAM-200
- Camera, Lens
- Camera, Lens
- Image Sensor
- 1/2.8 inch high-quality 5-megapixel CMOS sensor
- Output Effective Pixels
- 2.07 million, 16:9
- Video Signal
- 1080P60/50/30/25; 1080I60/50; 720P60/50/30/25
- Lens Optical Zoom
- 20x optical zoom f=4.7~94mm
- Viewing Angle
- 2.9° (narrow angle) to 55.4° (wide angle)
- Aperture Coefficient
- F1.6 ~ F3.5
- Digital Zoom
- X10
- Minimum Illumination
- 0.5Lux(F1.8, AGC ON)
- Digital Noise Reduction
- 2D&3D digital noise reduction
- White Balance
- Manual/Auto/One-touch White Balance/3000K/4000K/5000K/6500K
- Focus
- Auto/Manual
- Aperture
- Auto/Manual
- Electronic Shutter
- Auto/Manual
- Backlight Compensation
- On/Off
- Wide Dynamic Range
- Off/Dynamic Level Adjustment
- Video Adjustment
- Brightness, Color, Saturation, Contrast, Sharpness, Black and White Mode
- SNR
- >55dB
- Input/Output Interfaces and Supported Protocols
- Input/Output Interfaces and Supported Protocols
- Video Interface
- DVI (convertible to HDMI), 3G-SDI
- Image Stream
- Dual-stream output
- Video Compression Formats
- H.265, H.264
- Control Signal Interface
- RS-232, with loop-through RS232 output
- Control Protocols
- VISCA/Pelco-D/Pelco-P; Baud Rate: 115200/9600/4800/2400bps
- Audio Input Interface
- Dual-channel 3.5mm line input
- Audio Compression Formats
- AAC, MP3, PCM
- Network Interface
- 100M Ethernet port (10/100BASE-TX), 5G WiFi (optional), supports network VISCA control protocol
- Network Protocols
- RTSP, RTMP, ONVIF, GB/T28181
- Power Interface
- HEC3800 power socket (DC12V)
- PTZ
- PTZ
- Horizontal Rotation
- -170°~+170°
- Vertical Rotation
- -30°~+90°
- Horizontal Control Speed
- 0.1~100°/sec
- Vertical Control Speed
- 0.1~45°/sec
- Preset Speed
- Horizontal: 100°/sec, Vertical: 45°/sec
- Number of Presets
- Up to 255 presets can be set by the user (10 presets via remote control)
- Others
- Others
- Power Adapter
- Input AC110V-AC220V, Output DC12V/1.5A
- Input Voltage
- DC12V±10%
- Input Current
- 1A (max)
- Power Consumption
- 12W (max)
- Dimensions (W x H x D)
- 258mm*172mm*169mm
- Weight (approx.)
- 1.54kg
- Operating Environment
- Indoor
- Remote Maintenance (Network Interface)
- Remote upgrade, remote reboot, remote reset
Show the full specificationHide the rest of the specification0 more groups · 0 values
What it is.
- Adopt advanced ISP processing technology and algorithms ensuring vivid and lifelike image effects
- Uniform brightness, strong color hierarchy, high clarity, and good color reproduction
- Supports H.265/H.264 encoding, making the picture smoother and clearer even under low bandwidth conditions
