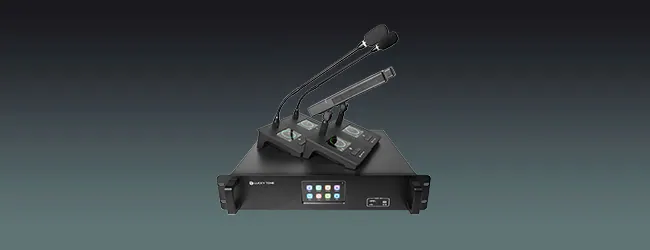

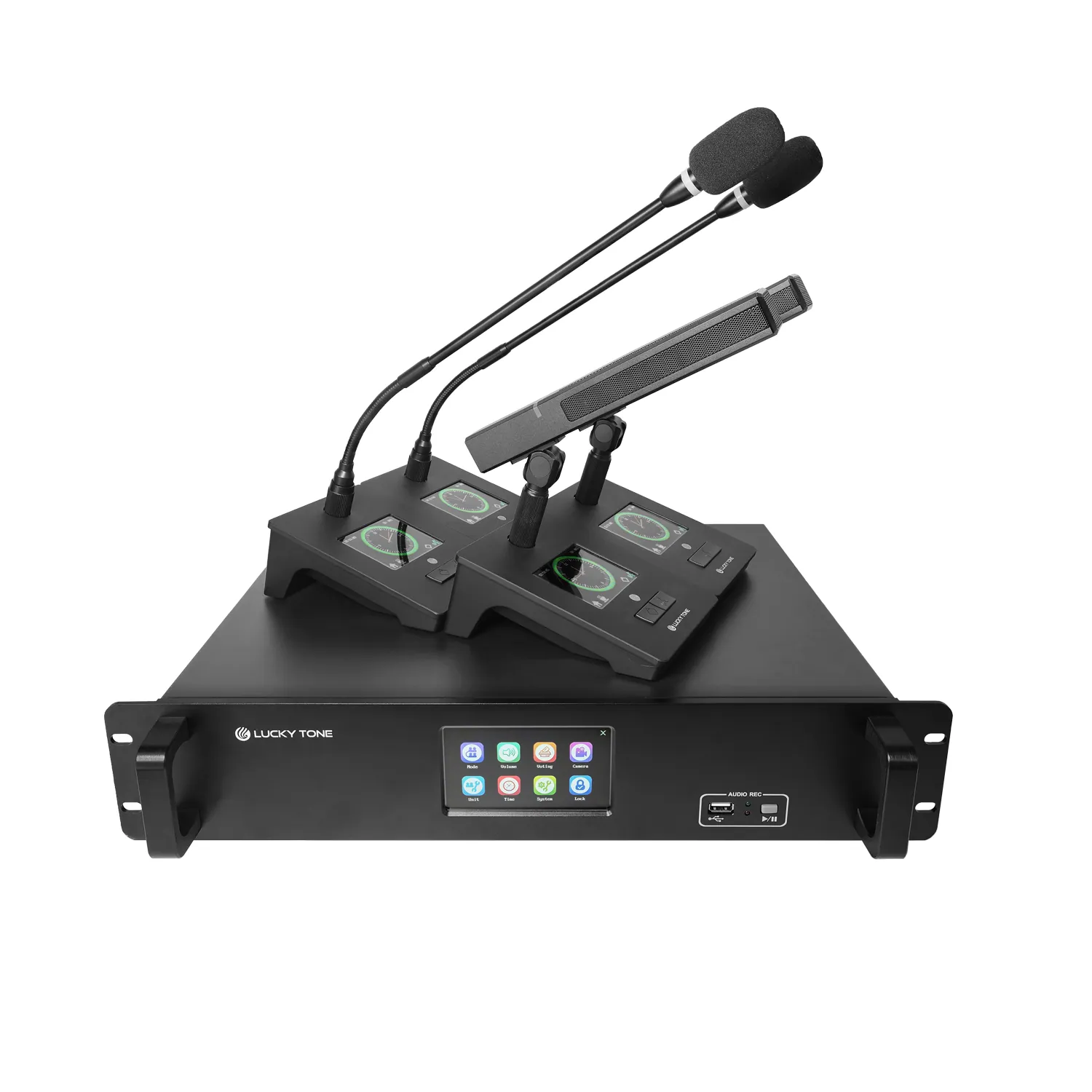

DC-900 Digital Conference System

The DC-900 Digital Conference System integrates multiple advanced features including

Frequency response: 20Hz-20kHz
Power supply: AC220V/50Hz

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 23 values

What this product is, in numbers.

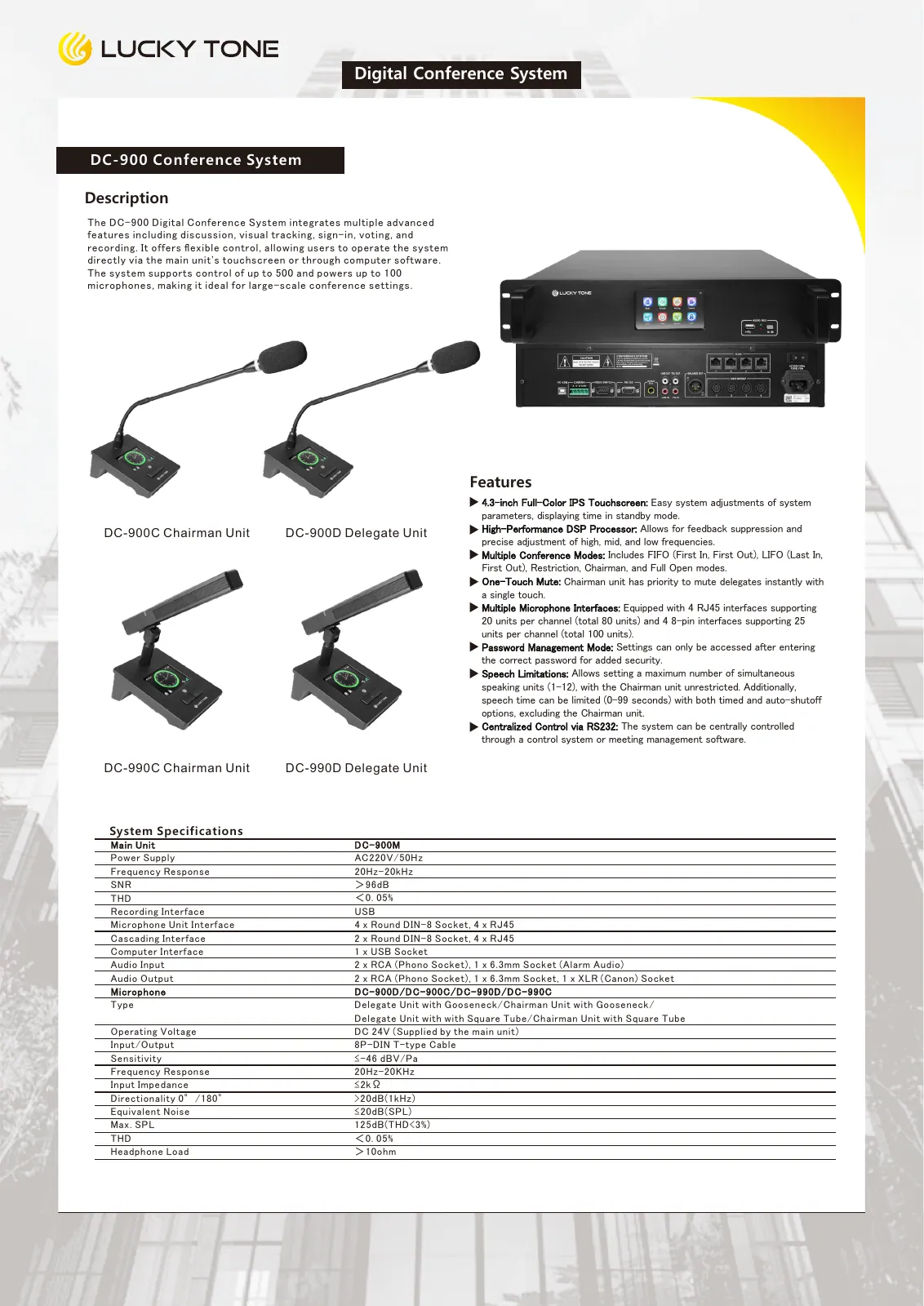

PDFSpecifications1.8 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications23

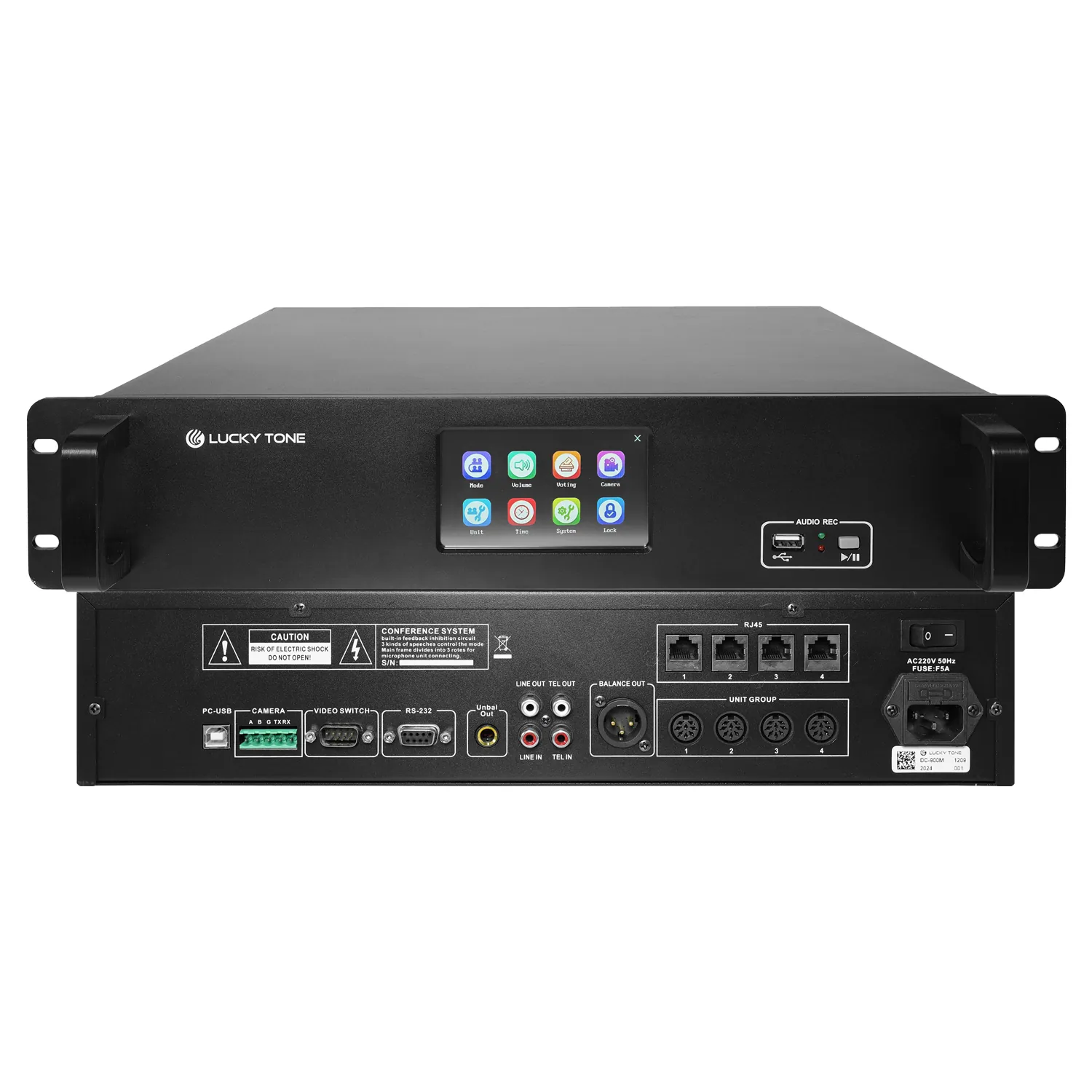

Main Unit: DC-900M
Power Supply: AC220V/50Hz
Frequency Response: 20Hz-20kHz
SNR: >96dB
THD: <0. 05%
Recording Interface: USB
Microphone Unit Interface: 4 x Round DIN-8 Socket, 4 x RJ45
Cascading Interface: 2 x Round DIN-8 Socket, 4 x RJ45
Computer Interface: 1 x USB Socket
Audio Input: 2 x RCA (Phono Socket), 1 x 6.3mm Socket (Alarm Audio)
Audio Output: 2 x RCA (Phono Socket), 1 x 6.3mm Socket, 1 x XLR (Canon) Socket

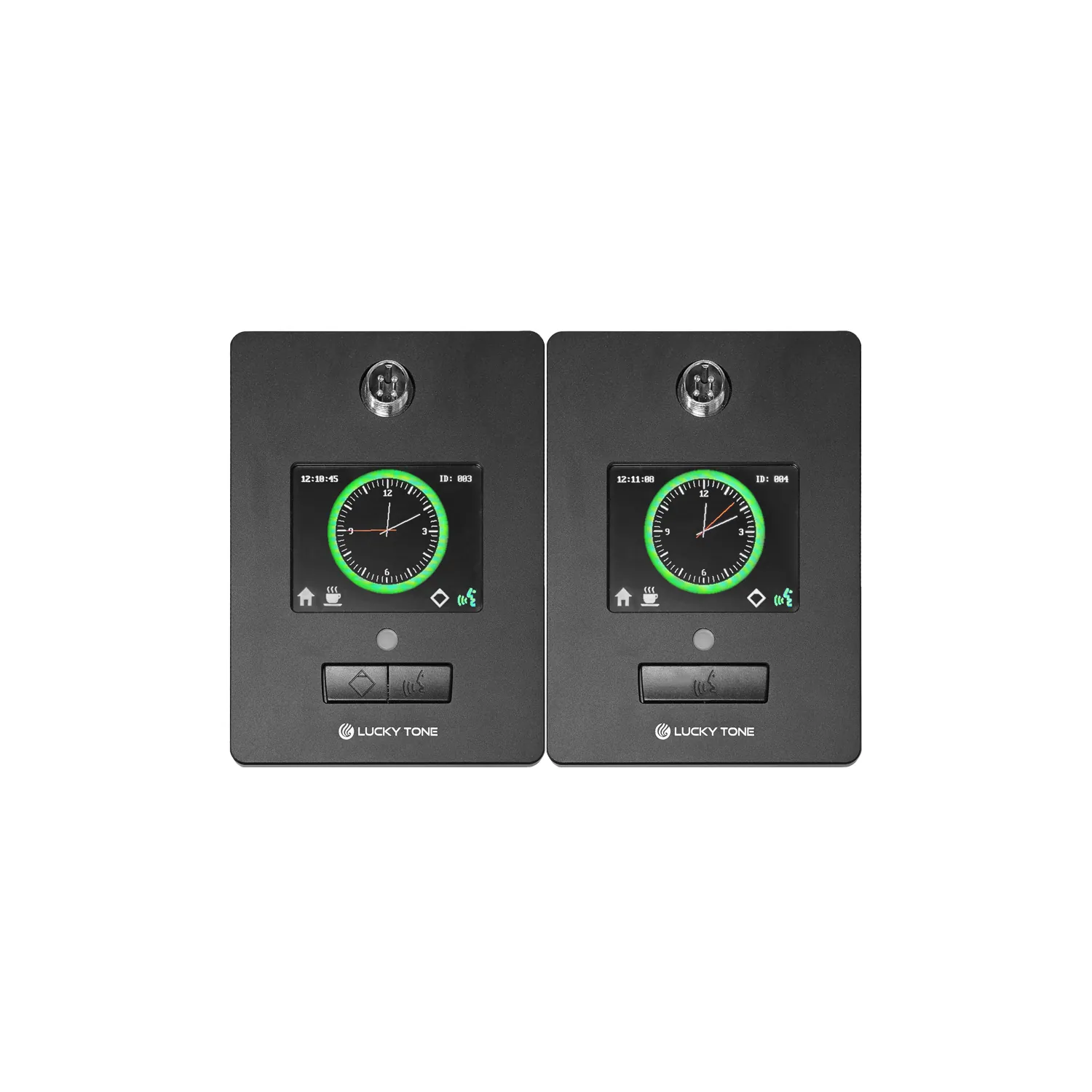

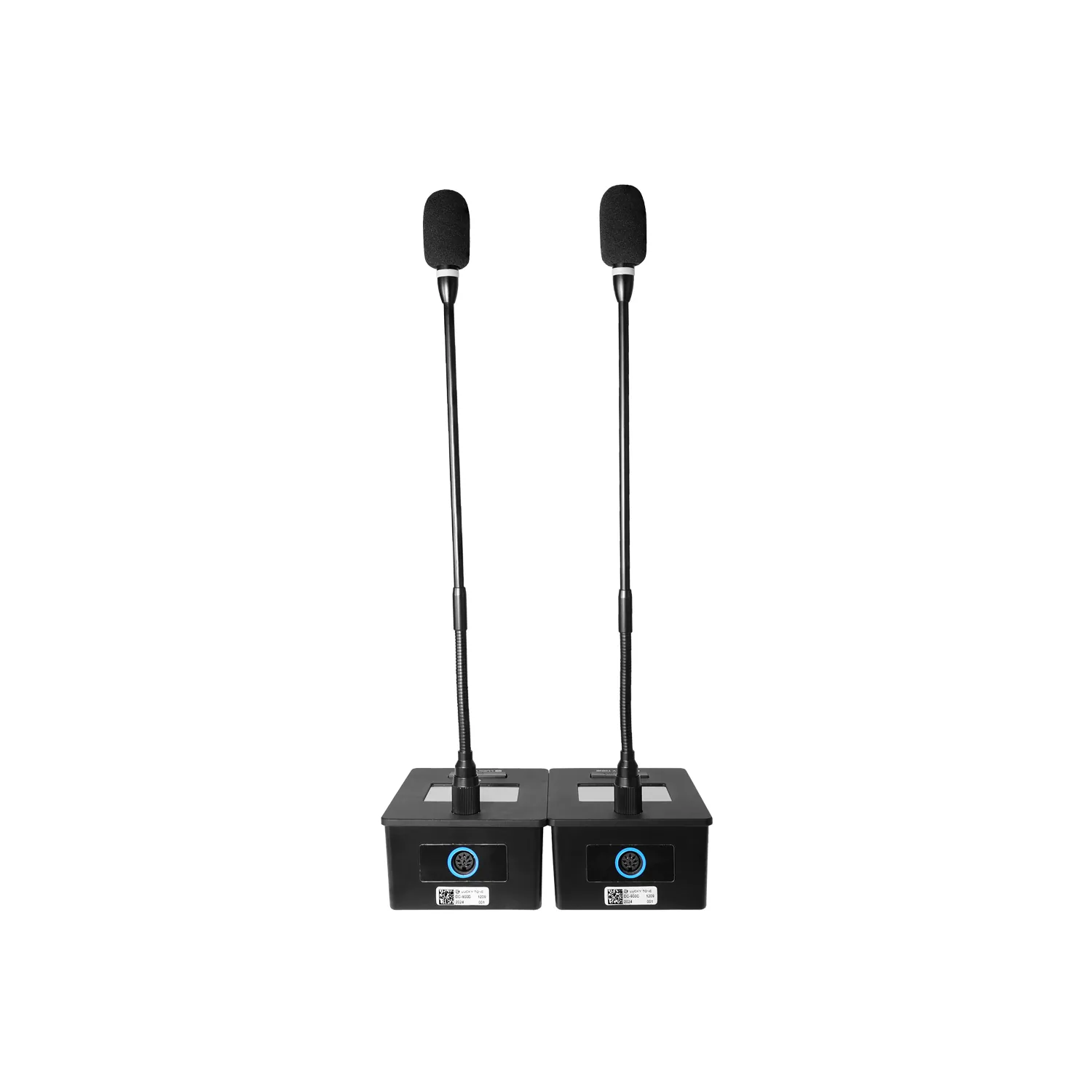

Microphone: DC-900D/DC-900C/DC-990D/DC-990C

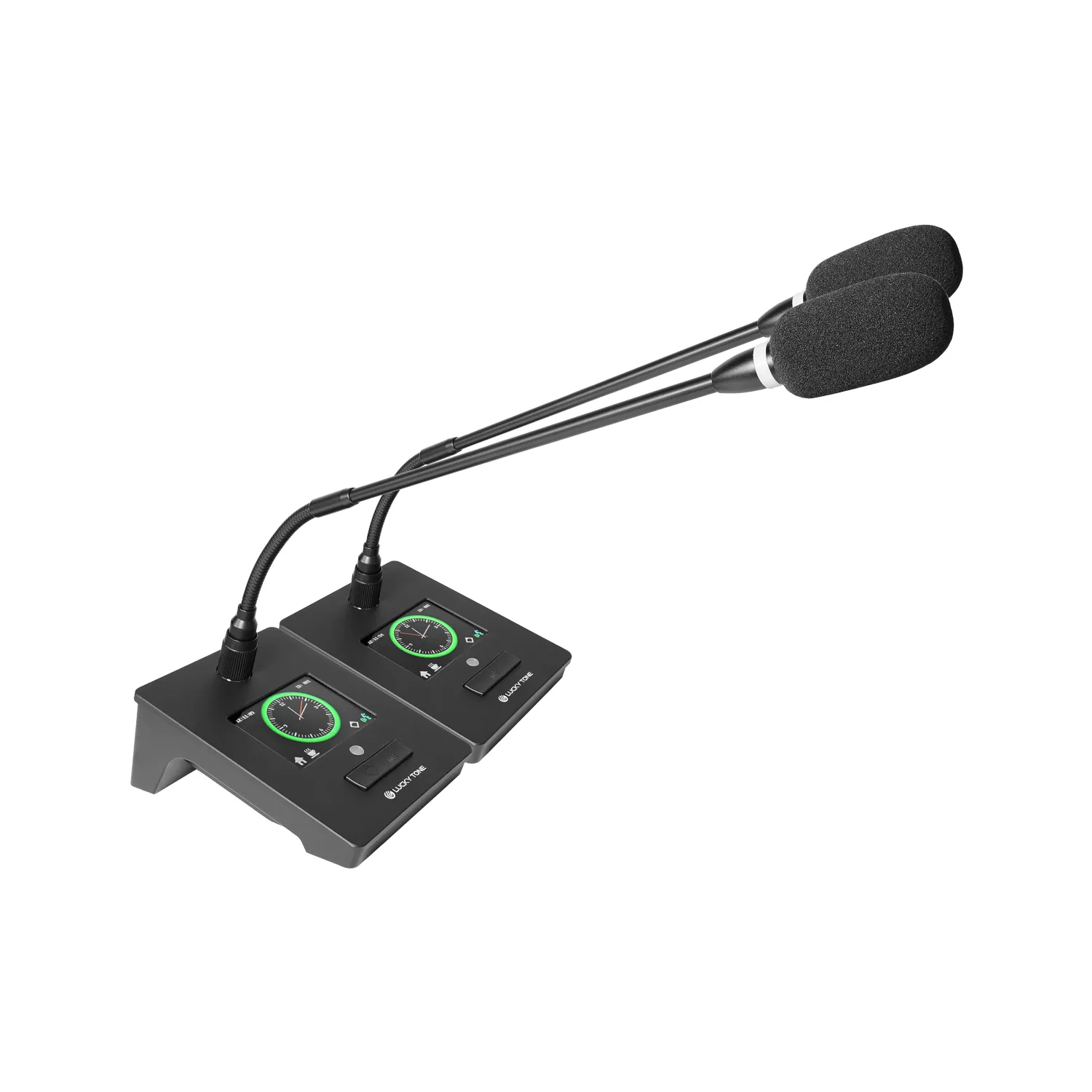

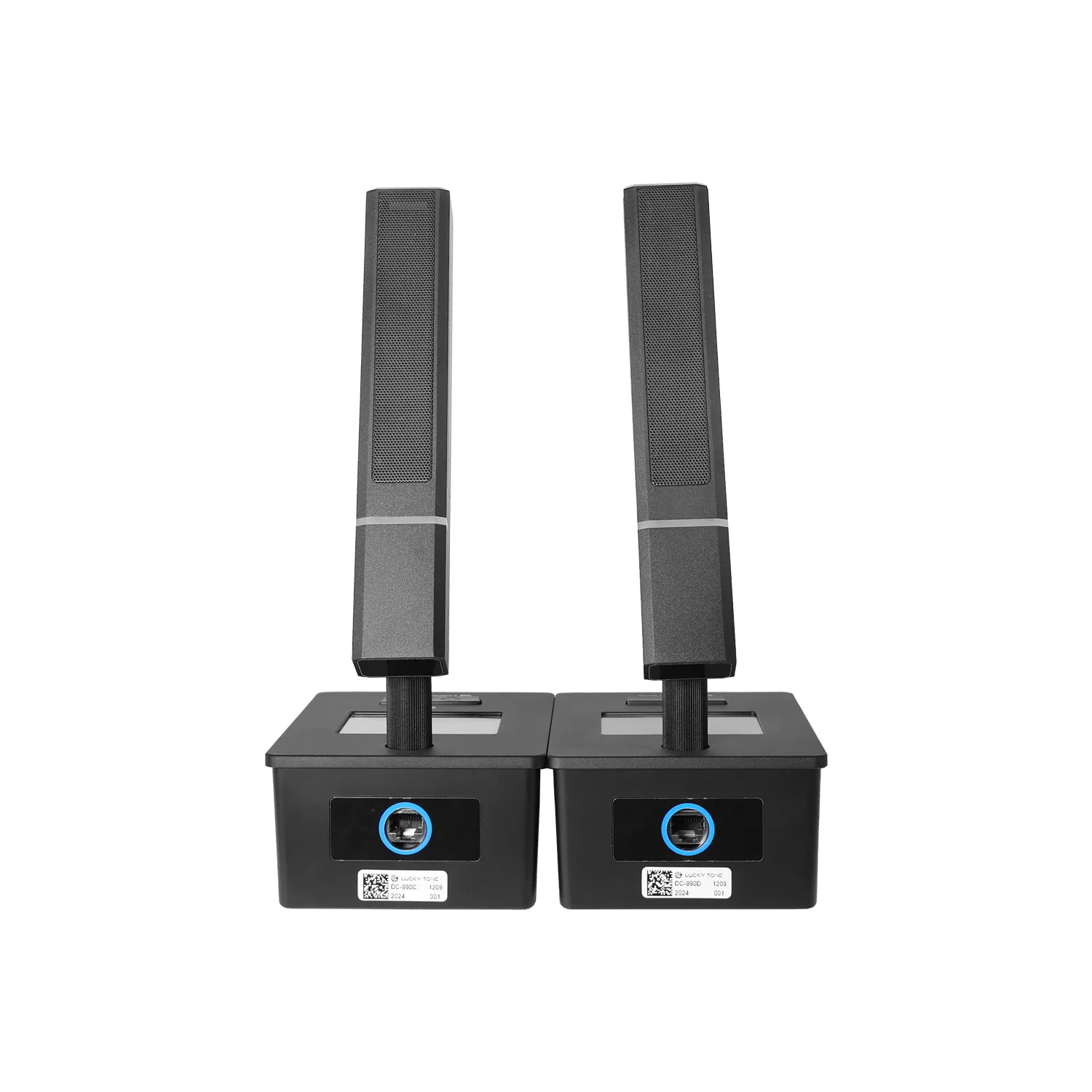

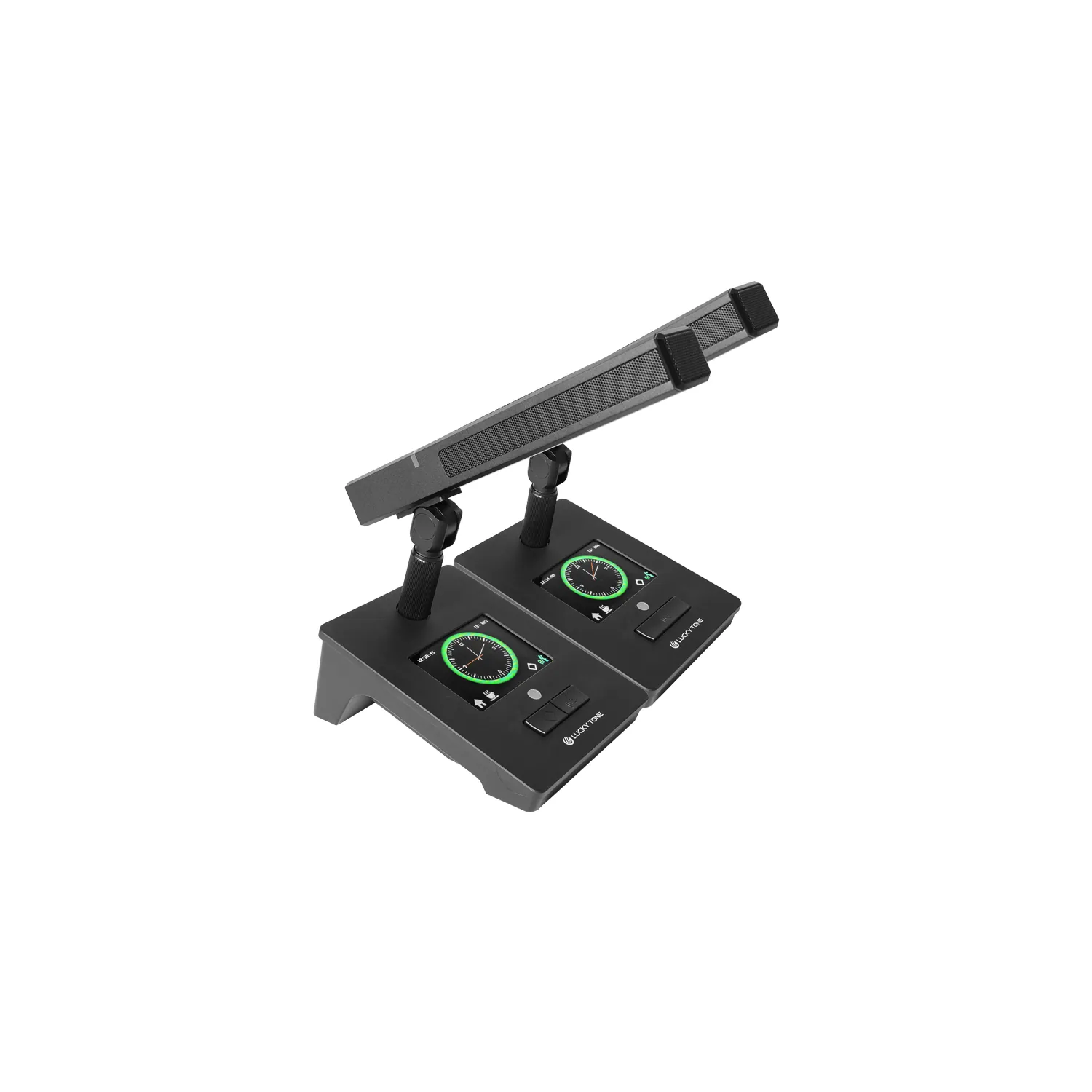

Type: Delegate Unit with Gooseneck/Chairman Unit with Gooseneck/ Delegate Unit with with Square Tube/Chairman Unit with Square Tube
Operating Voltage: DC 24V (Supplied by the main unit)
Input/Output: 8P-DIN T-type Cable
Sensitivity: ≤-46 dBV/Pa
Frequency Response: 20Hz-20KHz
Input Impedance: ≤2kΩ
Directionality 0°/180°: >20dB(1kHz)
Equivalent Noise: ≤20dB(SPL)
Max. SPL: 125dB(THD<3%)
THD: <0. 05%
Headphone Load: >10ohm

02DescriptionManufacturer's description

What it is.

Description

discussion, visual tracking, sign-in, voting, and recording

. It offers flexible control, allowing users to operate the system directly via the main unit’s touchscreen or through computer software. The system supports control of up to 500 and powers up to 100 microphones, making it ideal for large-scale conference settings.

Features

3-inch Full-Color IPS Touchscreen

Easy system adjustments of system parameters, displaying time in standby mode.
High-Performance DSP Processor
: Allows for feedback suppression and precise adjustment of high, mid, and low frequencies.
Multiple Conference Modes
: Includes FIFO (First In, First Out), LIFO (Last In, First Out), Restriction, Chairman, and Full Open modes.

One-Touch Mute

Chairman unit has priority to mute delegates instantly with a single touch.

Multiple Microphone Interfaces

Equipped with 4 RJ45 interfaces supporting 20 units per channel (total 80 units) and 4 8-pin interfaces supporting 25 units per channel (total 100 units).

Password Management Mode

: Settings can only be accessed after entering the correct password for added security.

Speech Limitations

Allows setting a maximum number of simultaneous speaking units (1-12), with the Chairman unit unrestricted. Additionally, speech time can be limited (0-99 seconds) with both timed and auto-shutoff options, excluding the Chairman unit.

Centralized Control via RS232

: The system can be centrally controlled through a control system or meeting management software.
