Sheet 05.414
Lucky Tone · Conference systems

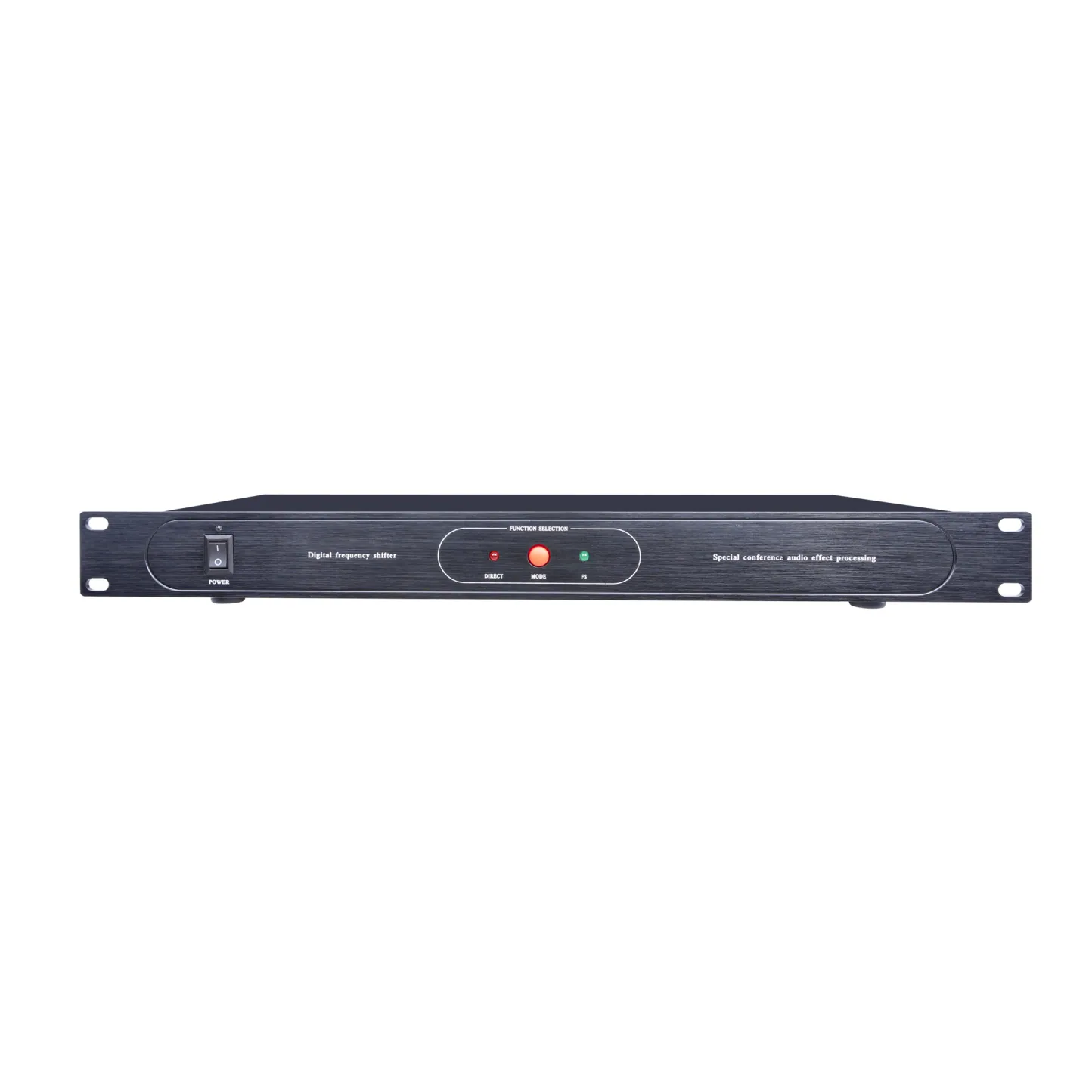

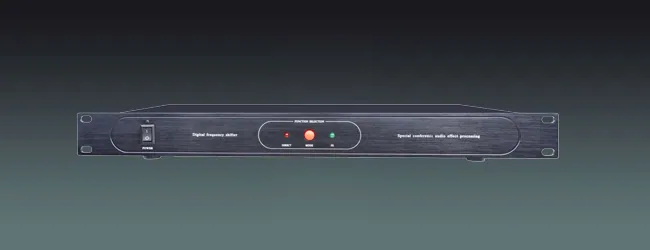

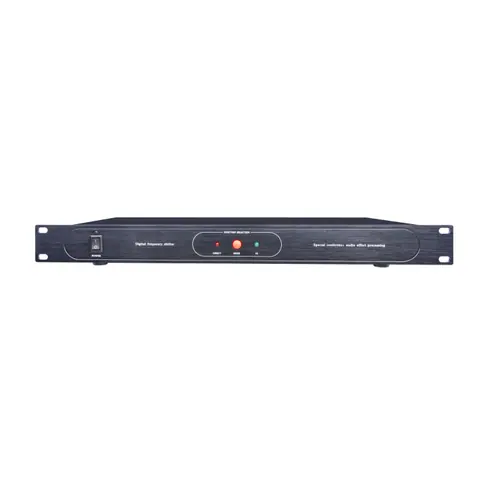

Frequency Shifter
ModelS3.0
S3.0 frequency shifter is a digital feedback suppression system device specifically designed for conferences, lectures, teaching, and stage use.
- Frequency response
- Non-shifted state: 20Hz-20KHz Shifted state: 150Hz-15KHz
- Power supply
- AC~220V-230V,50/60Hz
- Dimensions
- 1U Chassis 420*205*44mm
- Weight
- 2.41KG
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Frequency ShifterPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 16 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications16
- Model
- S3.0
- Power Supply
- AC~220V-230V,50/60Hz
- Frequency Shift Range
- 5Hz±1Hz
- Voice Gain Boost
- 5-14dB
- Line Input Impedance
- ≥5KΩ
- Line Output Impedance
- ≤600Ω
- Frequency Response
- Non-shifted state: 20Hz-20KHz Shifted state: 150Hz-15KHz
- Microphone Connection Compatibility
- Non-phantom powered microphone
- Microphone Connection Method
- 1*XLR female socket
- Weight
- 2.41KG
- Dimensions(W x H x D)
- 1U Chassis 420*205*44mm
- External Input Connections
- 1*XLR male microphone, RCA mono line input, effects mono
- Output Connections
- XLR balanced, RCA mono line output, effects mono
- Functions
- Automatic frequency shifting on startup, electronic switch toggling
- Power
- 12W
- Switch/Indicator
- Toggle switch, panel power indicator light, frequency shift indicator
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
S3.0 frequency shifter is a digital feedback suppression system device specifically designed for conferences, lectures, teaching, and stage use. This device is equipped with microphone balanced inputs, as well as system connection ports and dual-channel input and output interfaces.
Effectively suppresses feedback
Boosts volume
Ensures high-quality transmission of speech, with high fidelity and clear sound. It can greatly reduce feedback even in poor environmental conditions
- Effectively prevents audio equipment and speakers from burning out
- Switch for microphone and line input frequency shift effect selection
- Local speaker connection port (EFX) for independent effects on the conference system
