Sheet 05.244
Lucky Tone · Power amplifiers

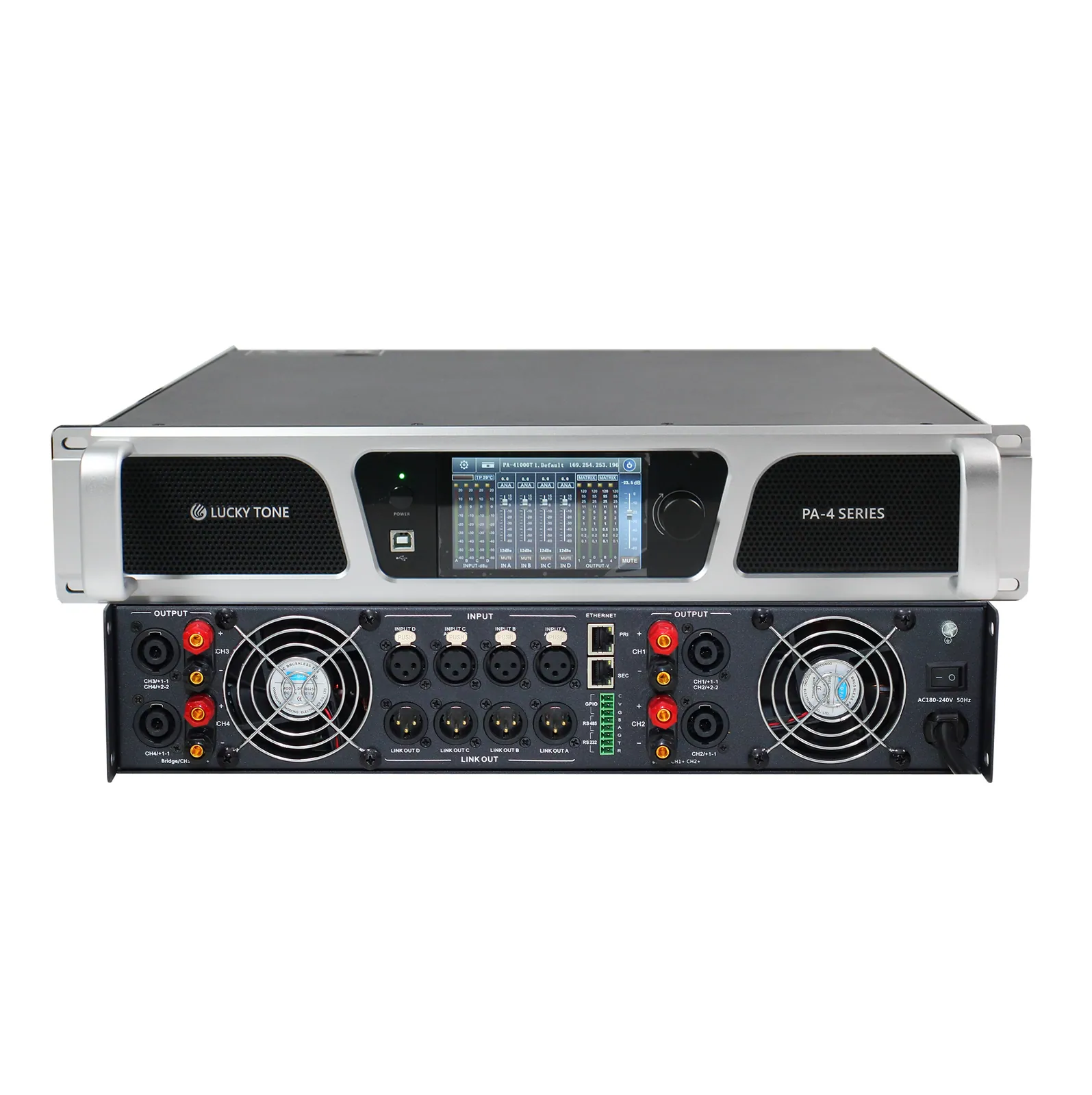

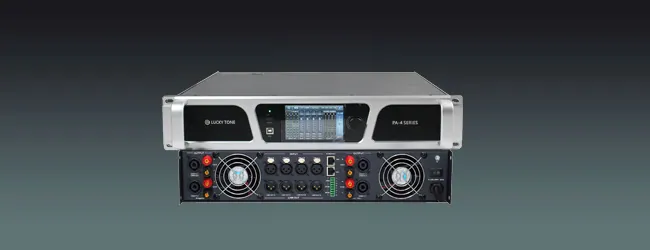

4- Channel Amplifier with DSP
ModelPA-41500T / PA-41000T / PD-4800T
PA Series is a multifunctional network DSP digital power amplifier, which can remotely monitor the status of the power amplifier in real time, and it can set the compressor, limiter, noise gate, parametric equalization, matrix routing, delay as well as other DSP functions in real time. A simple software interface provides customers with simple and convenient settings and operating experience. Besides, the multiple connection methods can achieve good configurability and scalability, which is suitable for various environments.
- Output power
- PA-41500T: 4*1500W@8Ω,4*2000W@4Ω, 100V (4*1250W); 70V(4*600W);; PA-41000T: 4*1000W@8Ω,4*1800W@4Ω,4*600W@70V; PD-4800T: 4*800W@8Ω,4*1600W@4Ω, 70V(4*600W)
- Power supply
- PA-41500T: 180-264VAC; PA-41000T: 180-264VAC; PD-4800T: 180-265VAC
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
4- Channel Amplifier with DSPPrice on requestRequest a quotation
01Models3 models in the family
Models compared.
| MODEL | PA-41500T | PA-41000T | PD-4800T |
|---|---|---|---|
| Channels | 4 | 4 | 4 |
| Rated power | 4*1500W@8Ω,4*2000W@4Ω, 100V (4*1250W); 70V(4*600W); | 4*1000W@8Ω,4*1800W@4Ω,4*600W@70V | 4*800W@8Ω,4*1600W@4Ω, 70V(4*600W) |
| Bridge power | 2*3200W@8Ω | 2*2560W@8Ω, 2*1250W@100V | 2*3200W@8Ω;100V(2*1250W) |
| Minimum output impedance | 4Ω for each channel | 4Ω for each channel | 4Ω for each channel |
| Input | Balanced input, 4*XLR | Balanced input, 4*XLR | Balanced input, 4*XLR |
| Output | 4*Spoken; 4*Terminal | 4*Spoken; 4*Terminal | 4*Spoken; 4*Terminal |
| Maximum input level | 20dBu/7.75V | 20dBu/7.75V | 20dBu/7.75V |
| Sensitive | 12dBu:31dB/6dBu:37dB/0dBu:43dB | 12dBu:29.3dB/6dBu:35.3dB/0dBu:41.3dB | 12dBu:28.3dB/6dBu:34.3dB/0dBu:40.3dB |
| Signal to noise ratio | 103dB@12dBu/ 1kHz | 103dB@12dBu/ 1kHz | 103dB@12dBu/ 1kHz |
| Frequency | 20Hz ~20kHz (±0.5dB) @1W,8Ω | 20Hz ~20kHz (±0.5dB) @1W,8Ω | 20Hz ~20kHz (±0.5dB) @1W,8Ω |
| THD+N | <0.08%@1W | <0.08%@1W | <0.08%@1W |
| Sampling rate | 48k/24bit | 48k/24bit | 48k/24bit |
| Dante(Optional) | 4 Dante channels | 4 Dante channels | 4 Dante channels |
| Display | 4.3 inch IPS capacitive touch screen | 4.3 inch IPS capacitive touch screen | 4.3 inch IPS capacitive touch screen |
| Protection | Audio limiter, high temperature, DC, high frequency,short circuit, back-EMF, peak current limiter, inrush current limiter, start-up delay, power circuit breaker protection, power supply overvoltage/undervoltage protection | Audio limiter, high temperature, DC, high frequency,short circuit, back-EMF, peak current limiter, inrush current limiter, start-up delay, power circuit breaker protection, power supply overvoltage/undervoltage protection | Audio limiter, high temperature, DC, high frequency,short circuit, back-EMF, peak current limiter, inrush current limiter, start-up delay, power circuit breaker protection, power supply overvoltage/undervoltage protection |
| PC software | Software can control media matrix, audio processor, DSP power amplifier, active DSP module | Software can control media matrix, audio processor, DSP power amplifier, active DSP module | Software can control media matrix, audio processor, DSP power amplifier, active DSP module |
| Power supply | 180-264VAC | 180-264VAC | 180-265VAC |
02DescriptionManufacturer's description
What it is.
Features
- 1. Optional for Dante network audio
- 2. With network TCP/IP control, and it can realize the management of multiple devices
- 3. Power on or off remotely
- 4. Use 4.3 inch IPS capacitive touch screen
- 5. With built-in DSP digital processor
- 6. Support multiple connection method: USB, TCP/IP, RS232, RS485
- 7. Monitor the working status of the power amplifier remotely in real time
- 8. The power amplifier can be identified by software on site
- 9. Switch to bridging or matrix mode freely
- 10. Three levels of input sensitivity can be adjusted 0dBu/6dBu/12dBu, software or color LCD screen setting
- 11. With standard Fir function, support 4×2048 Taps
- 12. Support constant voltage and constant resistance: 100V, 70V, 8 ohms, 4 ohms
- 13. Software control, it can control media matrix and professional processor at the same time
- 14. Wide voltage operation 180-264VAC
Ordering code
PA-41500TD
4*1500W@8Ω,4*2000W@4Ω,100V (4*1250W); 70V(4*600W); Amplifier with DANTE AND DSP
PA-41500T
4*1500W@8Ω,4*2000W@4Ω,100V (4*1250W); 70V(4*600W); Amplifier with DSP
PA-41000TD
4*1000W@8Ω,4*1600W@4Ω,100V (2*1250W); 70V(4*600W); Amplifier with DANTE AND DSP
PA-41000T
4*1000W@8Ω,4*1600W@4Ω, 100V (2*1250W); 70V(4*600W); Amplifier with DSP
PA-4800TD
4*800W@8Ω,4*1600W@4Ω,100V (2*1250W); 70V(4*600W); Amplifier with DANTE AND DSP
PA-4800T
4*800W@8Ω,4*1600W@4Ω,100V (2*1250W); 70V(4*600W); Amplifier with DSP
