Sheet 05.218
Lucky Tone · Loudspeakers

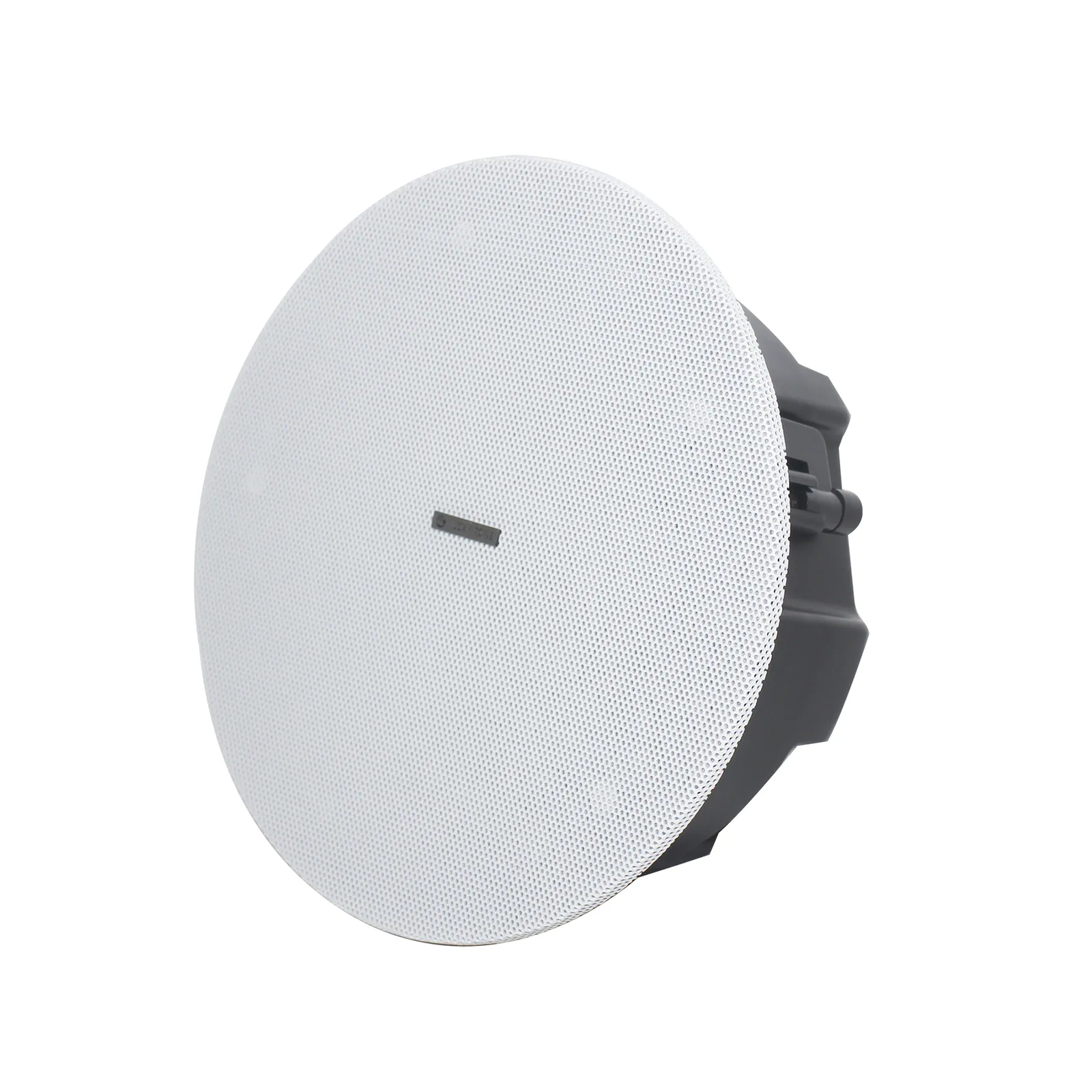

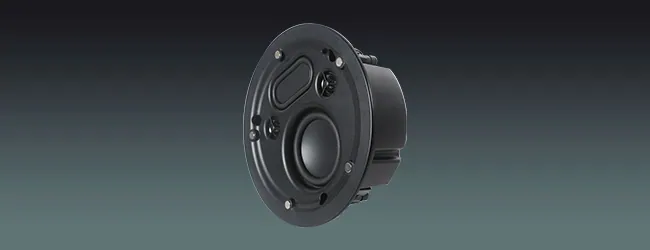

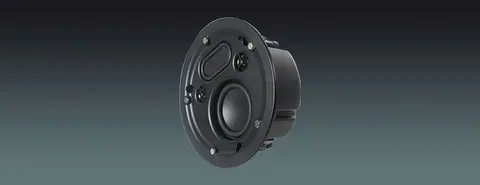

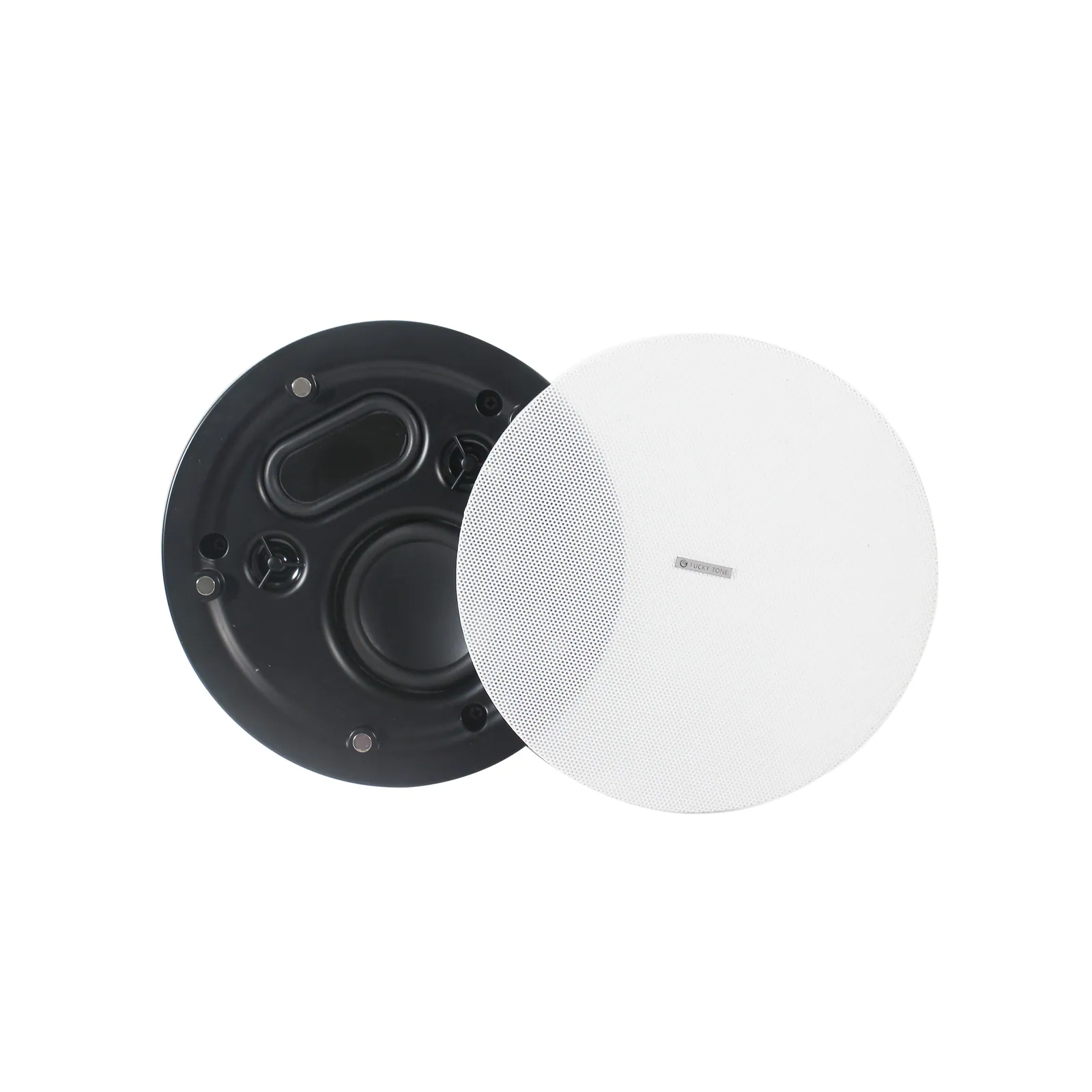

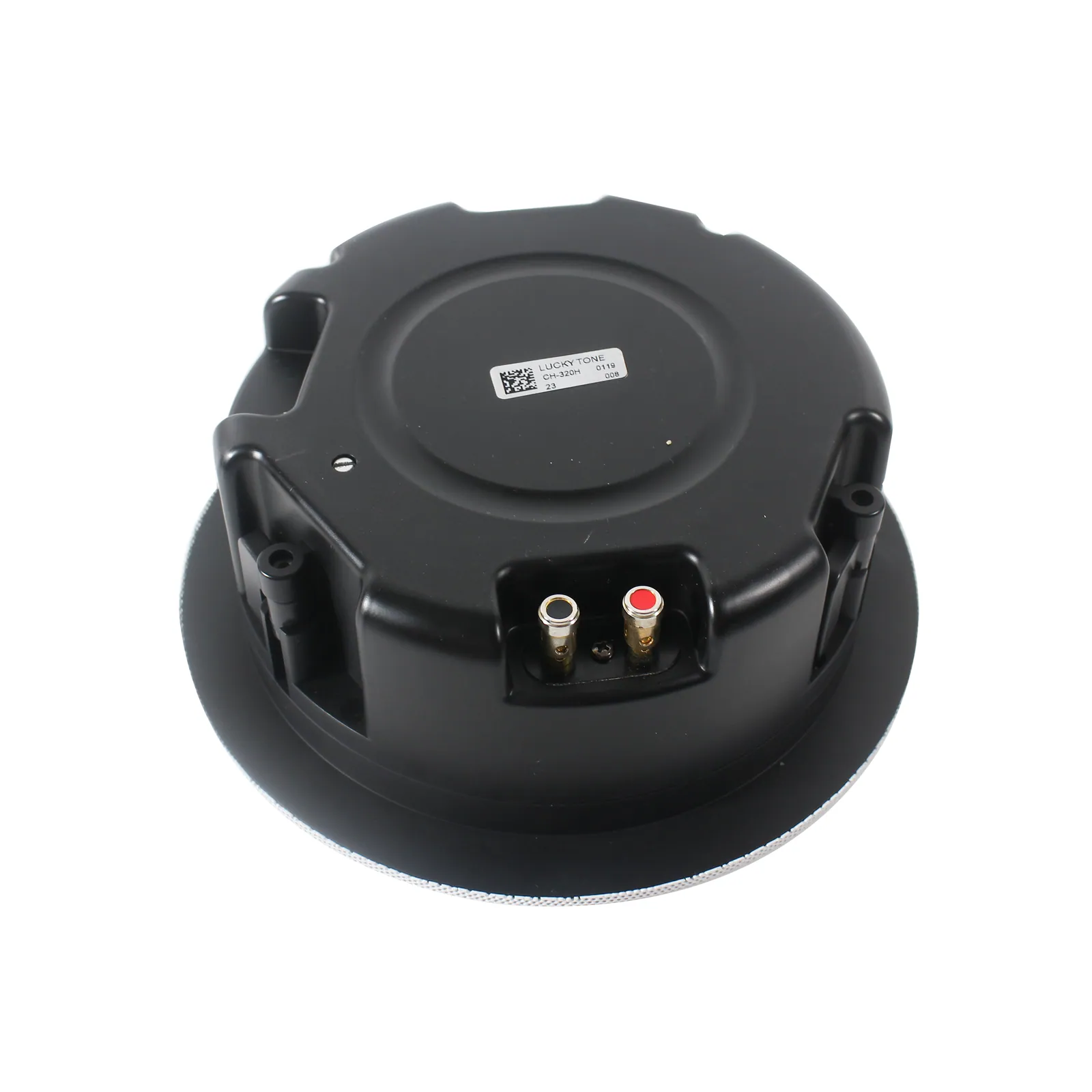

Ultra Thin Ceiling Speaker with Dual Tweeter & Passive Radiator
ModelCH-320H / CH-320Li

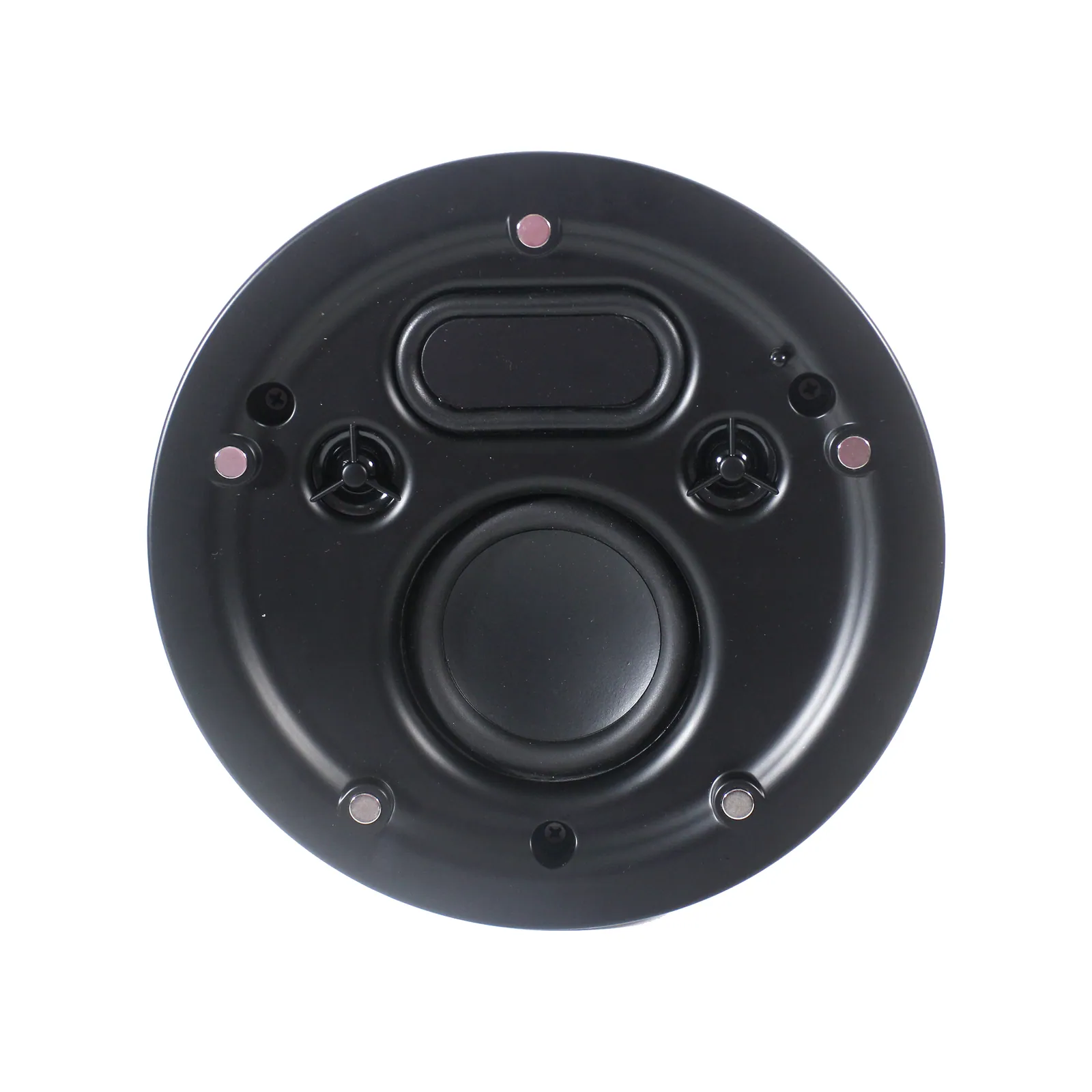

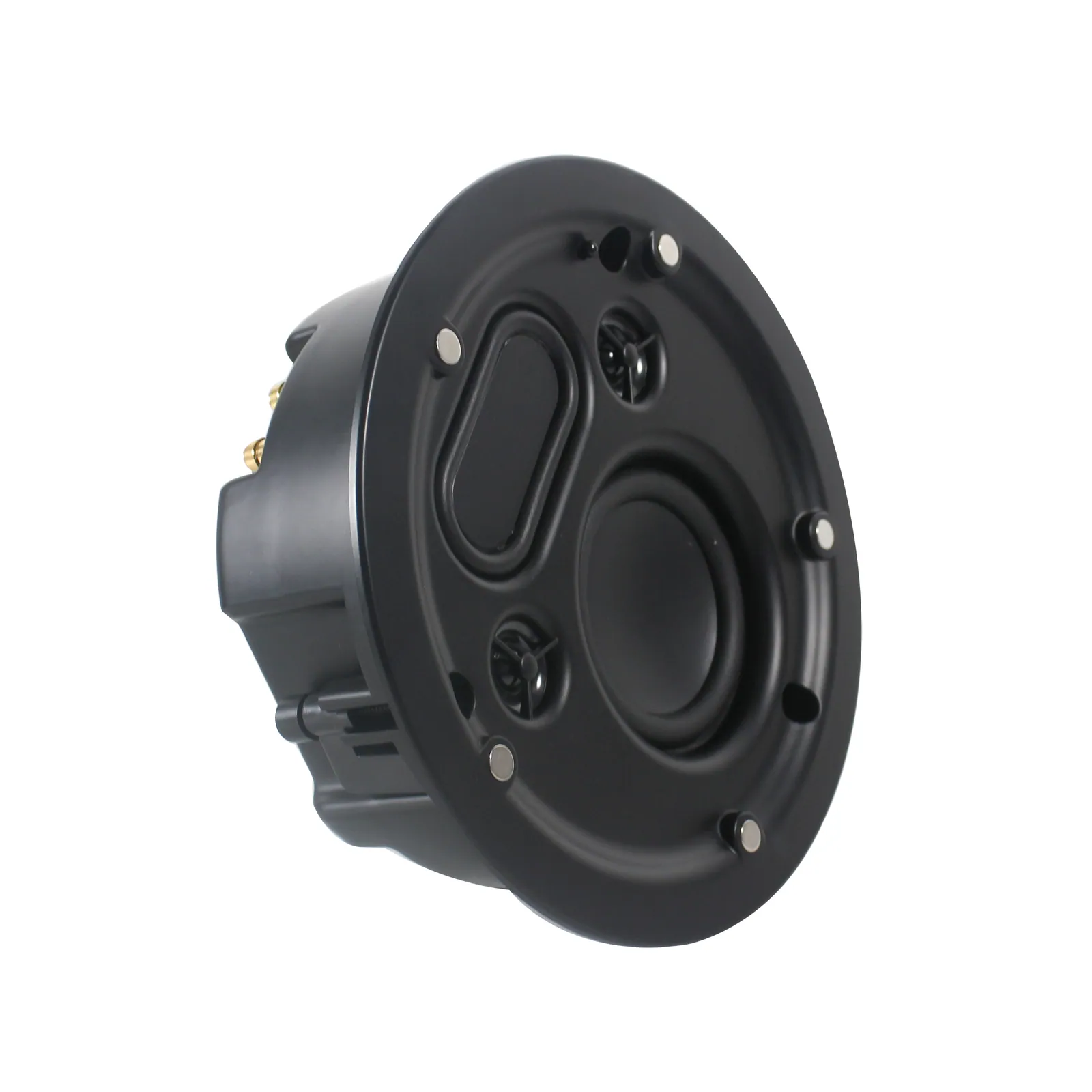

Unique Acoustic Design: Dual tweeter, one 3.5″ woofer and one passive radiator
- Weight
- CH-320H: 1.4KG; CH-320Li: 1.1KG
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Ultra Thin Ceiling Speaker with Dual Tweeter & Passive RadiatorPrice on requestRequest a quotation
01Models2 models in the family
Models compared.
| MODEL | CH-320H | CH-320Li |
|---|---|---|
| Power RMS | 20W /10W/5W/100V; 20W@4ohm | 20W@4ohm |
| Power Peak | 40W | 40W |
| SPL (1W/1M) | 88dB | 88dB |
| Max SPL@ 1M | 101dB | 101dB |
| Freq. Response | 100Hz-20KHz | 100Hz-20KHz |
| Installation | Inceiling | Inceiling |
| Enclosure Material | ABS | ABS |
| Weight | 1.4KG | 1.1KG |
| Finish | White | White |
| Cutout Size | Dia 190mm | Dia 190mm |
| Product Size | Dia223x85mm(H) | Dia223x85mm(H) |
| Speakers | 1″x2 (TREBLE) 3.5″*1(BASS) Passive Radiator*1 | 1″x2 (TREBLE) 3.5″*1(BASS) Passive Radiator*1 |
02DescriptionManufacturer's description
What it is.
Ultra-thin design with only 85mm depth, friendly for most installation
With 20W transformer (CH-320H)
03Documents1 file · 574 KB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
Datasheets and manuals01
