Sheet 05.217
Lucky Tone · Loudspeakers

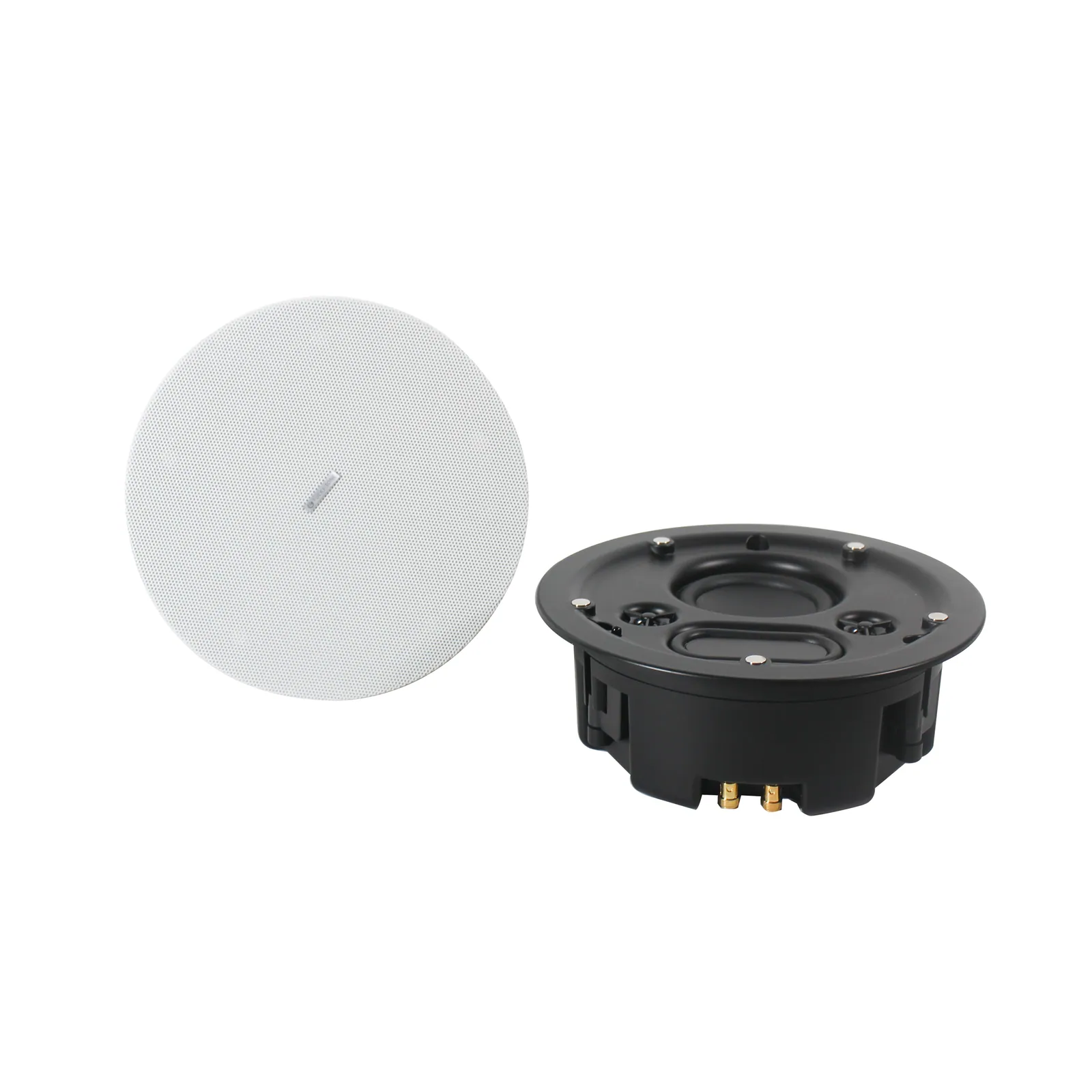

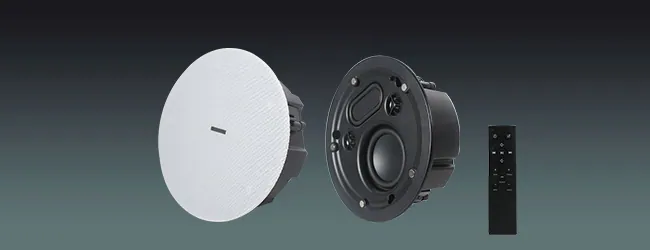

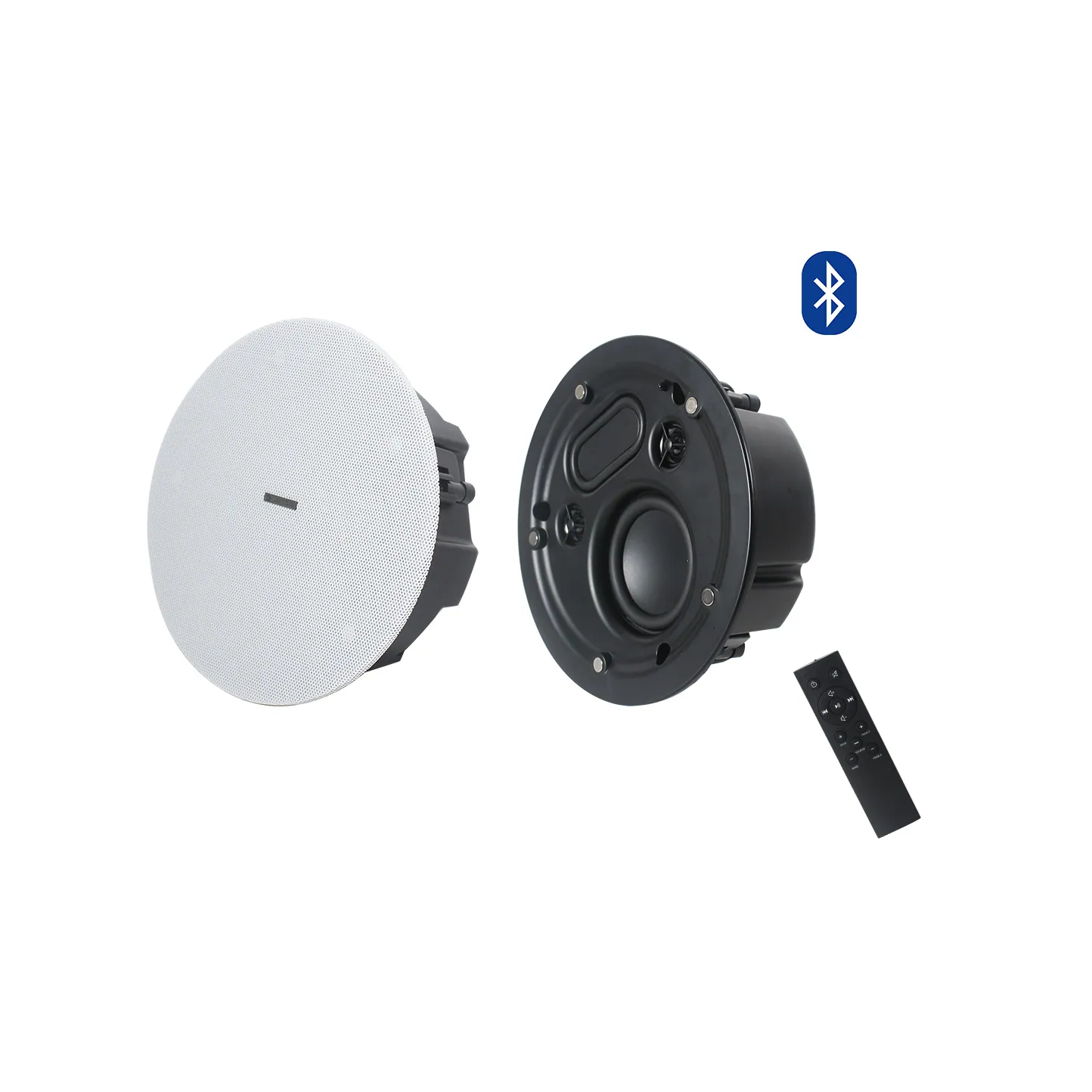

Ultra Thin Bluetooth Ceiling Speaker with Dual Tweeter & Passive Radiator
ModelCH-320B
Ultra-thin design with only 85mm depth, friendly for most installation
- Weight
- 1.4KG
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Ultra Thin Bluetooth Ceiling Speaker with Dual Tweeter & Passive RadiatorPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 13 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications13
- MODEL
- CH-320B
- Power RMS
- 20W
- Power Peak
- 40W
- SPL (1W/1M)
- 88dB
- Max SPL@ 1M
- 101dB
- Freq. Response
- 100Hz-20KHz
- Installation
- Inceiling
- Enclosure Material
- ABS
- Weight
- 1.4KG
- Finish
- White
- Cutout Size
- Dia 190mm
- Product Size
- Dia223x85mm(H)
- Speakers
- 1″x2 (TREBLE) 3.5″*1(BASS) Passive Radiator*1
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
Unique Acoustic Design
Dual tweeter, one 3.5″ woofer and one passive radiator
Bluetooth Connectivity
Seamlessly connect your devices wirelessly to the ceiling speaker via Bluetooth, allowing you to stream audio effortlessly from your smartphone, tablet, or other compatible devices.
Flush Mount Design
The speaker’s flush mount design ensures a sleek and unobtrusive appearance in your living space, seamlessly blending into the ceiling while providing high-quality audio without taking up valuable floor or wall space.
