Sheet 05.215
Lucky Tone · Loudspeakers

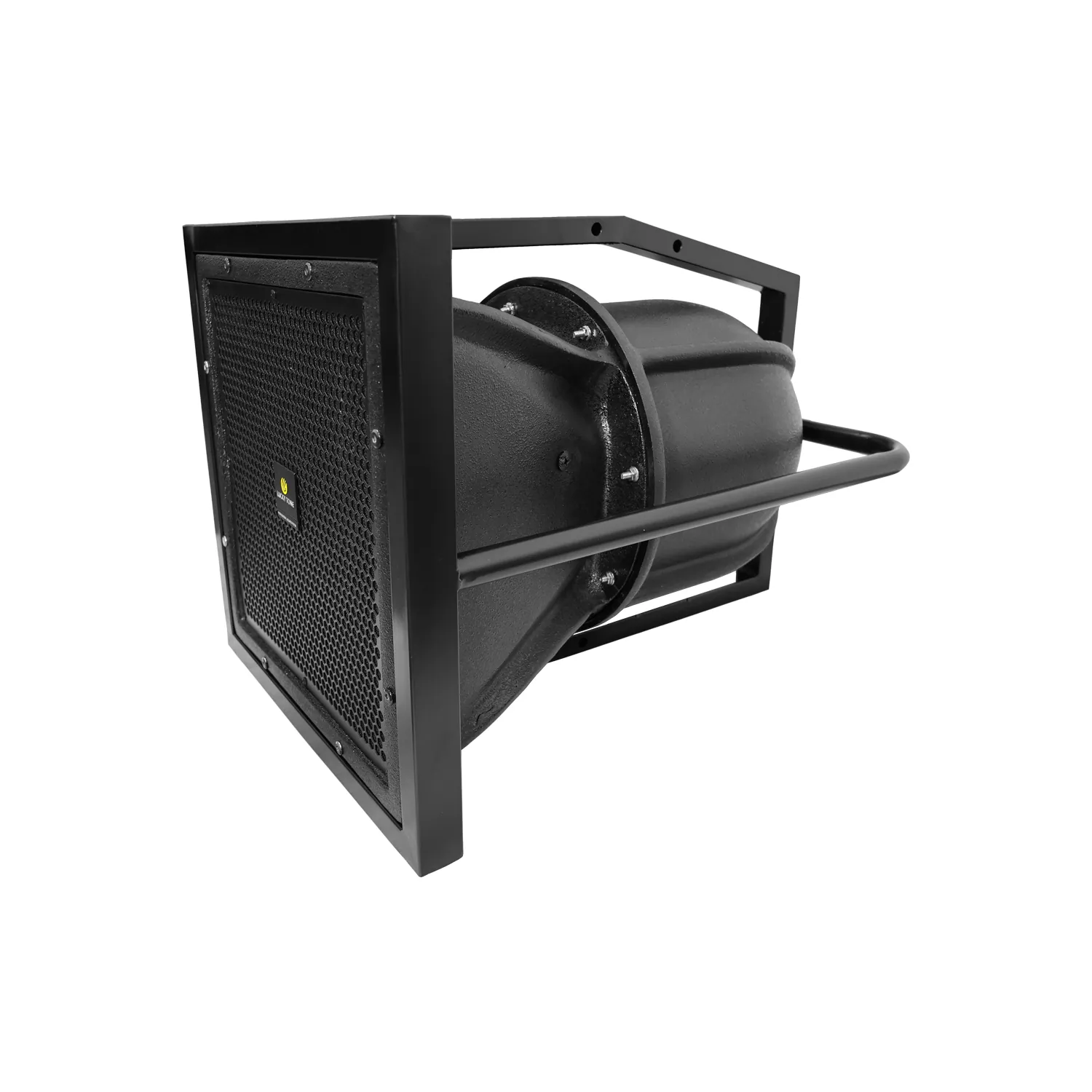

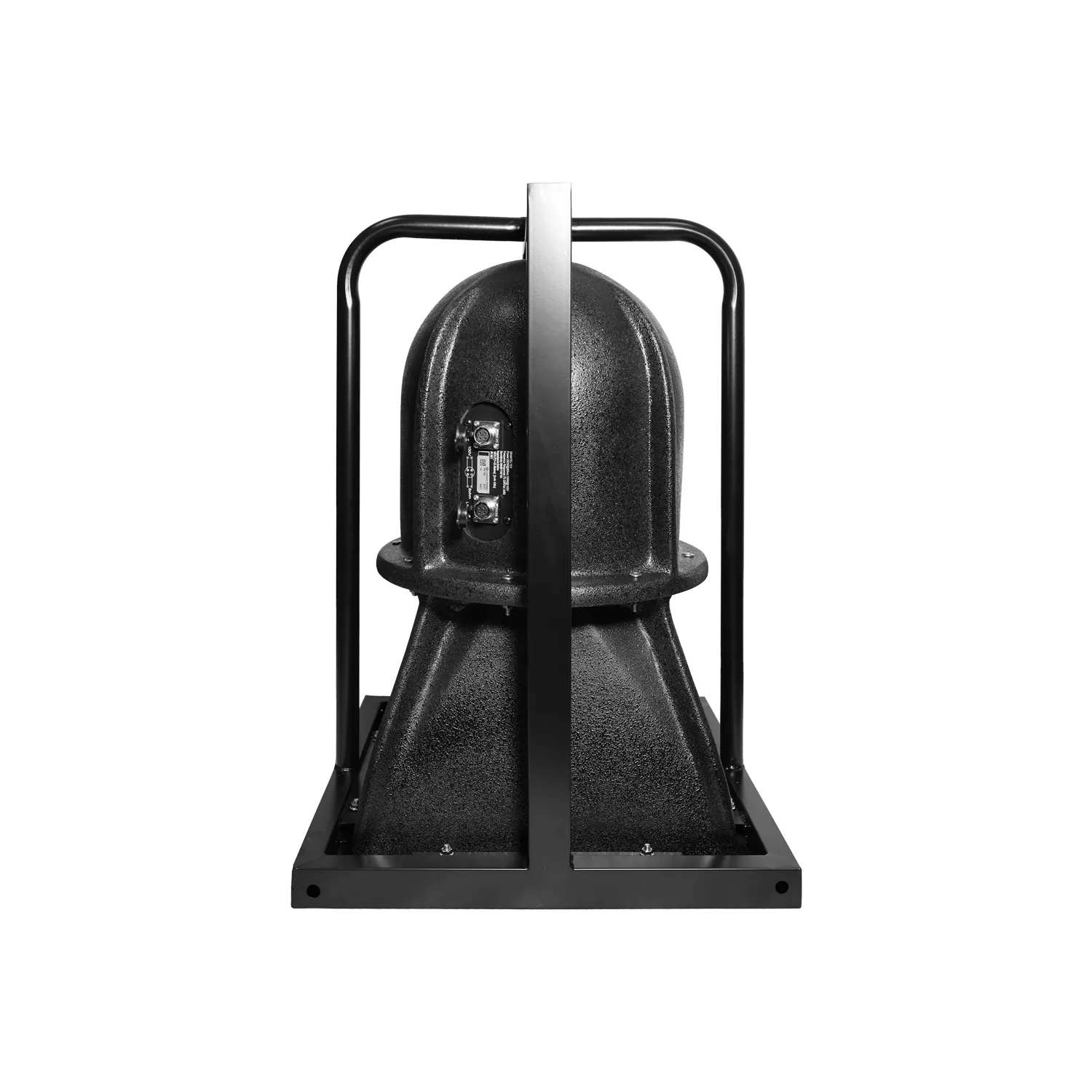

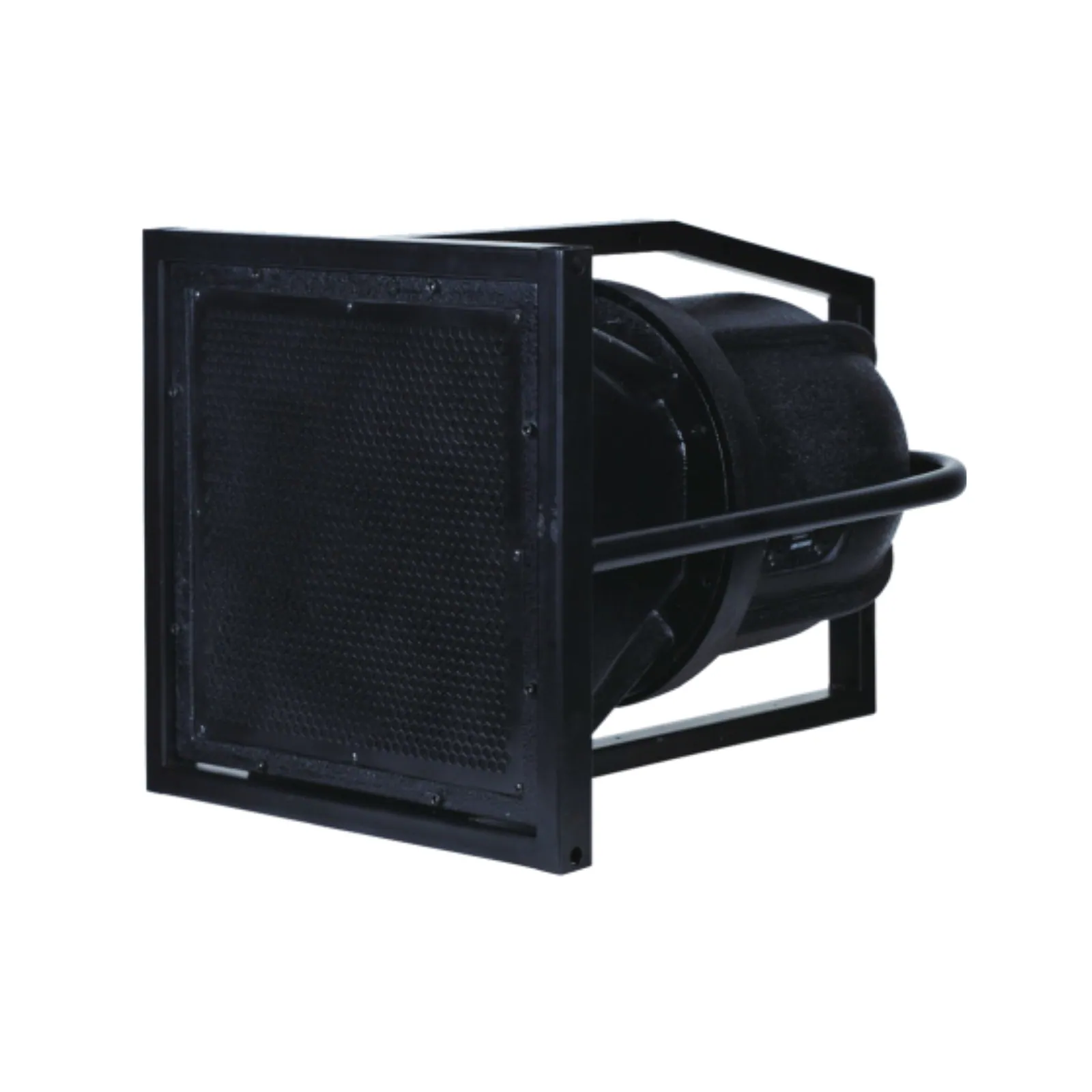

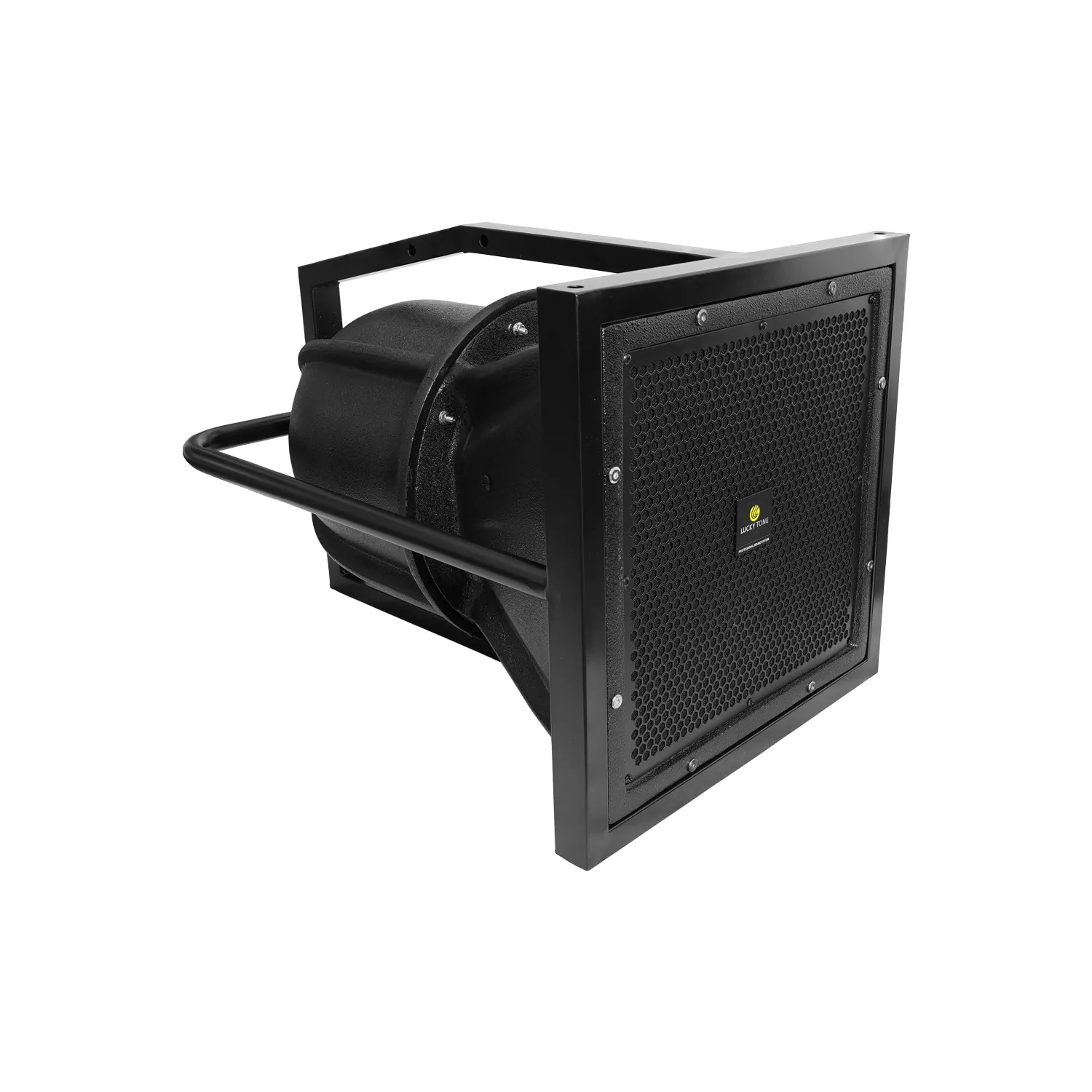

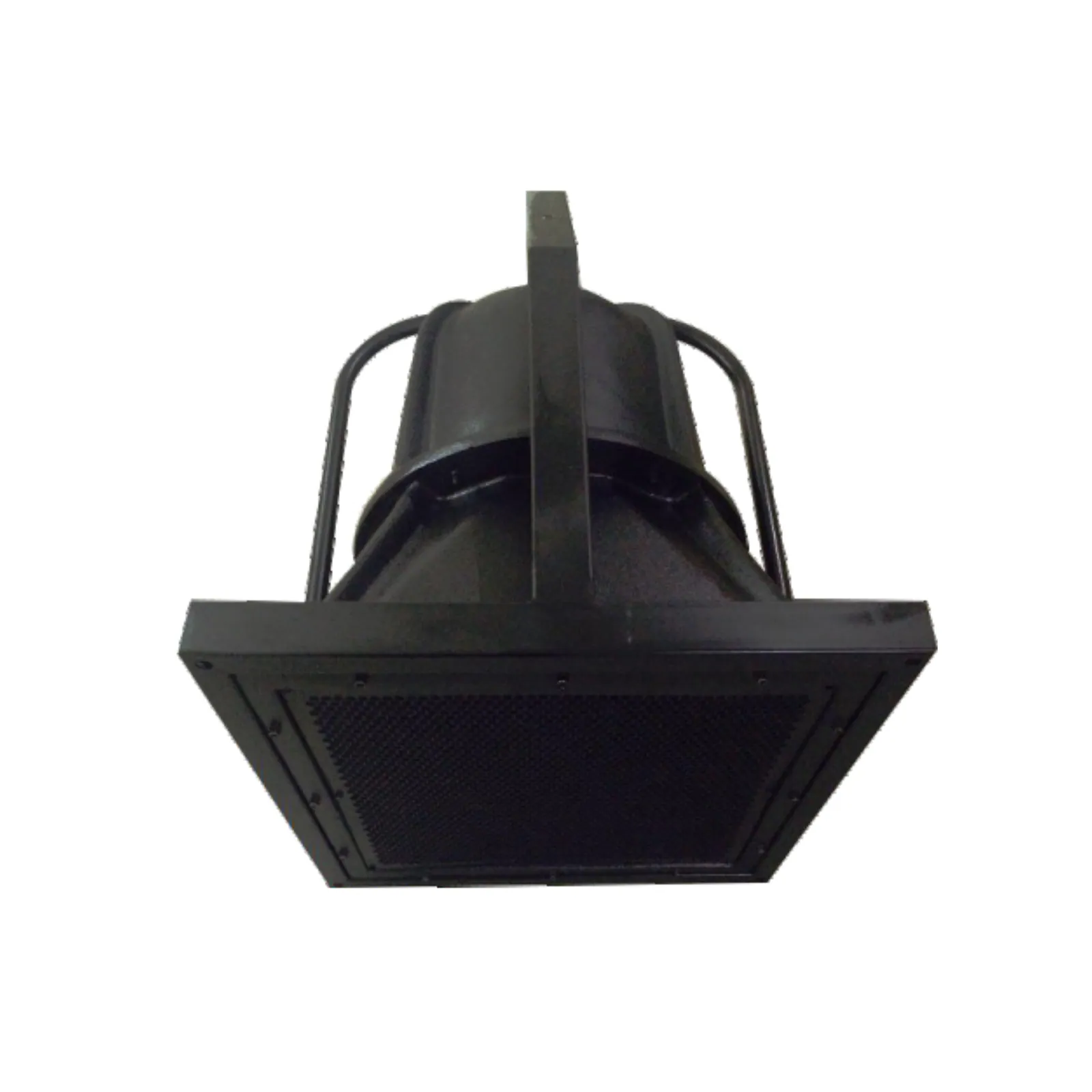

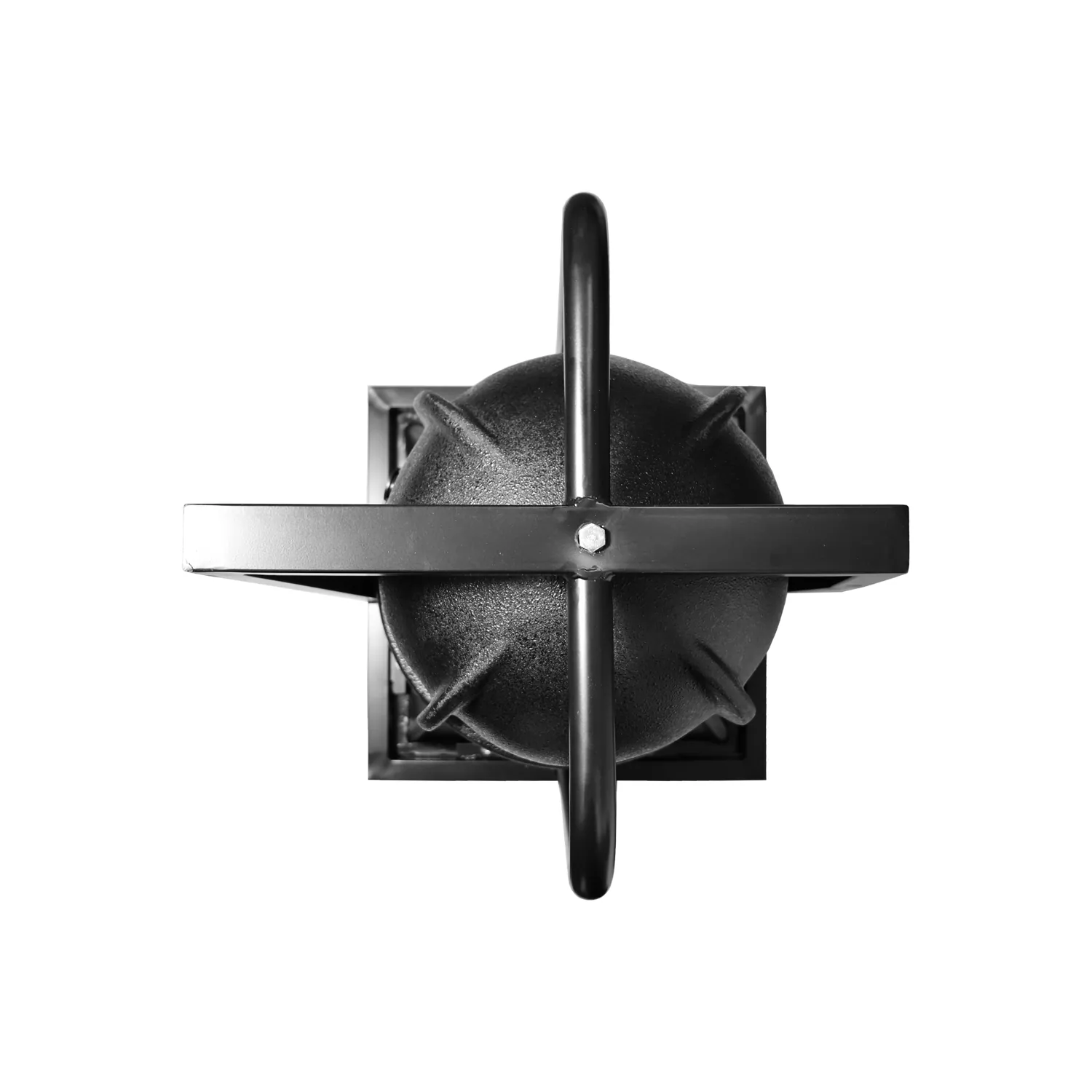

Two-Way All-weather Horn Speaker
ModelRC-10V / RC-12V / RC-15V
The compact models give systems designers increased flexibility by offering vastly improved music playback, additional coverage patterns and higher output in attractive paintable enclosures.
- Output power
- RC-10V: 250W@8ohm ; 150W@100V; RC-12V: 400W@8ohm; 250W@100V; RC-15V: 600W @8ohm; 400W @100V
- Frequency response
- 70Hz-20KHz
- Weight
- RC-10V: 26KG; RC-12V: 33KG; RC-15V: 35KG
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Two-Way All-weather Horn SpeakerPrice on requestRequest a quotation

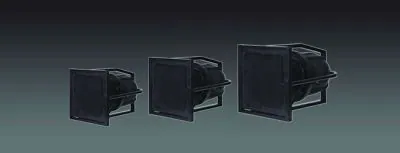

01Models3 models in the family
Models compared.
| Model | RC-10V | RC-12V | RC-15V |
|---|---|---|---|
| Rated power | 250W@8ohm ; 150W@100V | 400W@8ohm; 250W@100V | 600W @8ohm; 400W @100V |
| Maximum power | 500W | 800W | 1200W |
| Input | 8ohm/100V | 8ohm/100V | 8ohm/100V |
| Sensitivity (1W/1M) | 99dB / 96dB ± 3dB | 99dB / 96dB ± 3dB | 100dB / 99dB ± 3dB |
| Sensitivity Max | 119dB / 116dB ± 3dB | 124dB / 121dB ± 3dB | 127dB / 124dB ± 3dB |
| Frequency response | 70Hz-20KHz | 70Hz-20KHz | 70Hz-20KHz |
| Material | Fiber glass body, Metal frame | Fiber glass body, Metal frame | Fiber glass body, Metal frame |
| Speaker unit | 10” 75VC bass + 44 VC treble | 12” 75VC bass + 44 VC treble | 15” 75VC bass + 75 VC treble |
| Product size | 630*450*450mm | 760*580*580mm | 760*580*580mm |
| Weight | 26KG | 33KG | 35KG |
02DescriptionManufacturer's description
What it is.
The compact models give systems designers increased flexibility by offering vastly improved music playback, additional coverage patterns and higher output in attractive paintable enclosures. Both models include front-loaded LF drivers in highly reinforced enclosures for natural, nonreasoning low frequency reproduction, whileidentical voicing ensures a uniform listening experience.
Features
- Ultra-compact size, high output
- Premium music applications full frequency horn, professional, all weather
- With switch selection 70V, 100V, and 8 ohms
- With IP, SIP Net audio with our Eco IP system
- IP 55 for outdoor application
Ordering Code
- RC-10V: 250W@8ohm ; 150W@100V
- RC-10V IP : 250W IP Net audio, Powered
- RC-10V SIP : 250W SIP Net audio, Powered
- RC-12V: 400W@8ohm; 250W@100V
- RC-12V IP : 400W IP Net audio, Powered
- RC-12V SIP : 400W SIP Net audio, Powered
- RC-15V: 600W @8ohm; 400W @100V
- RC-15V IP : 600W IP Net audio, Powered
- RC-15V SIP : 600W SIP Net audio, Powered

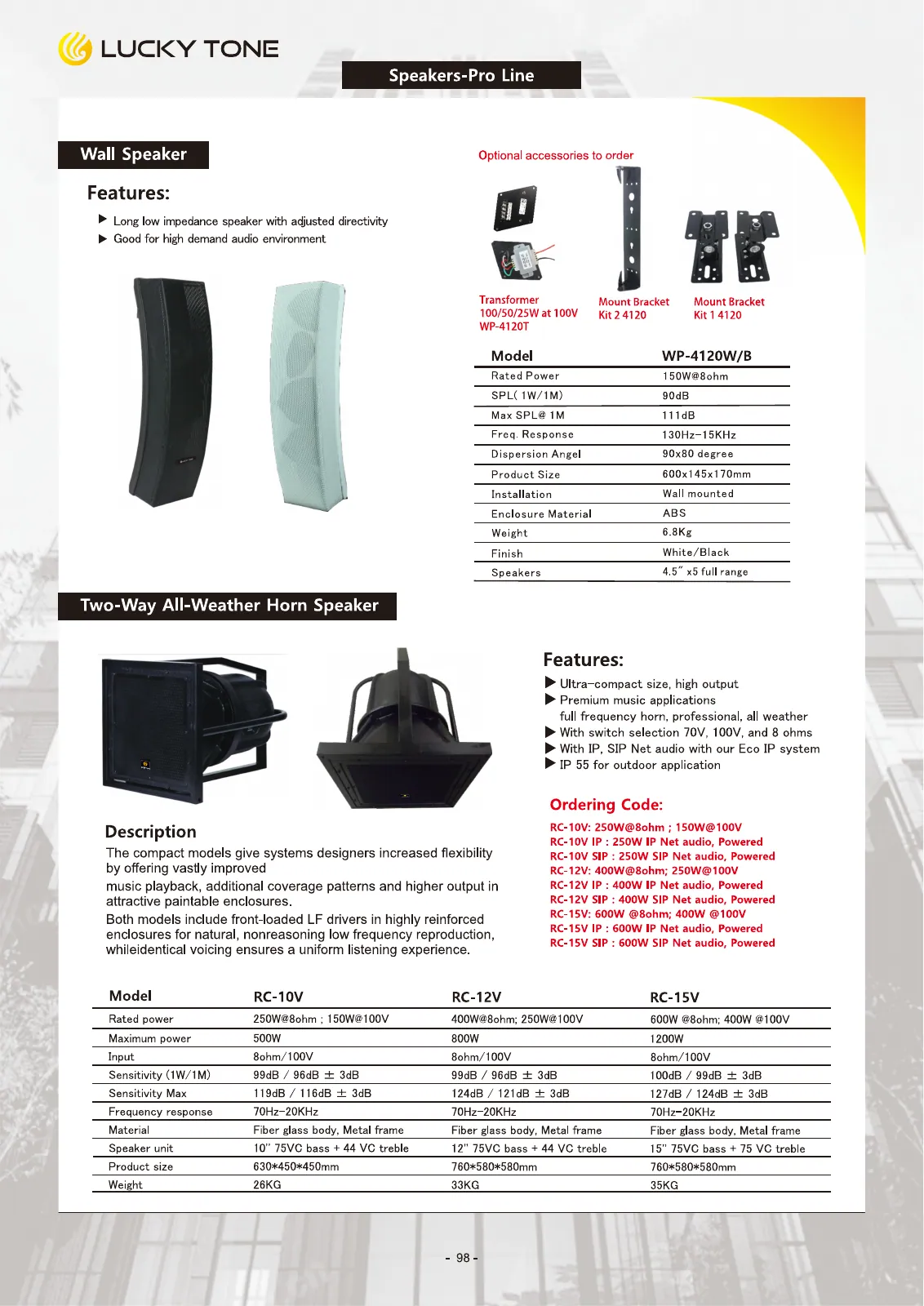

03Documents1 file · 900 KB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
04Related products
In the same range.
EQ-214Lucky ToneTilted Rimless Ceiling SpeakerSM-6100T / SM-6100TS / SM-8120T / SM-8120TS · LoudspeakersOutput powerSM-6100T: 100W; SM-6100TS: 100W; SM-8120T: 120W; SM-8120TS: 120WWeightSM-6100T: 1.66kg; SM-6100TS: 1.7kg; SM-8120T: 2.66kg; SM-8120TS: 2.7kg

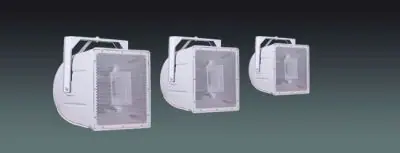

EQ-216Lucky ToneTwo-Way All-Weather Horn SpeakerRM-150V / RM-200V / RM-300V / RM-400V · LoudspeakersOutput powerRM-150V: 100W@100V, 150W@8ohm; RM-200V: 150W@100V, 200W@8ohm; RM-300V: 250W@100V,300W@8ohm; RM-400V: 400W@100V,400W@8ohmDimensionsRM-150V: NA; RM-200V: NA; RM-300V: 460X420X420mm; RM-400V: 490x490x480mmWeightRM-150V: 16kgs; RM-200V: 18kgs; RM-300V: 28kgs; RM-400V: 33kgs
EQ-213Lucky ToneSwimming Pool SpeakerSPL-01 · Loudspeakers

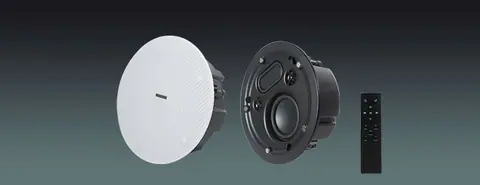

EQ-217Lucky ToneUltra Thin Bluetooth Ceiling Speaker with Dual Tweeter & Passive RadiatorCH-320B · LoudspeakersWeight1.4KG05Talk to us
