Sheet 05.183
Lucky Tone · Loudspeakers

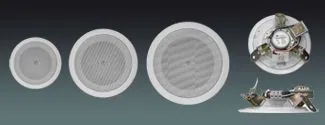

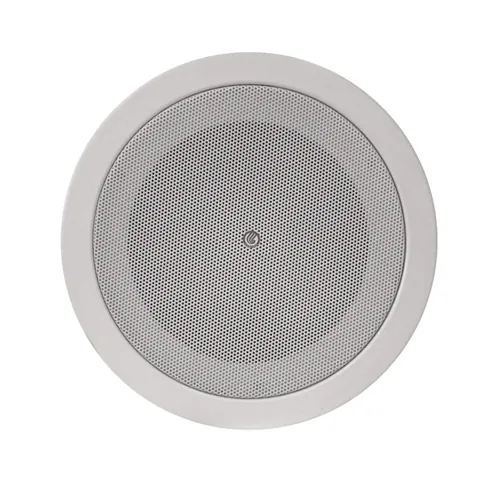

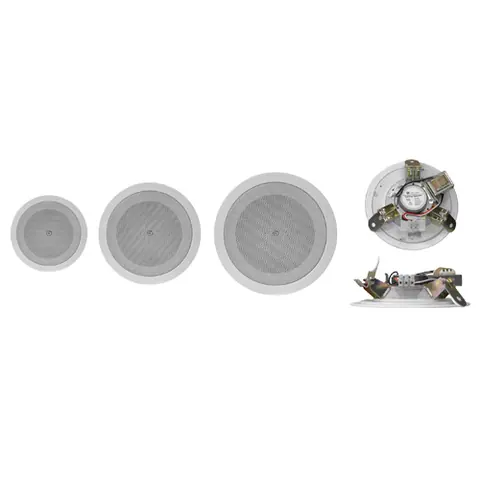

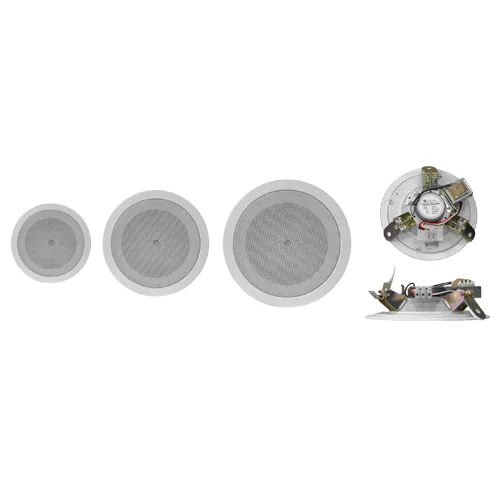

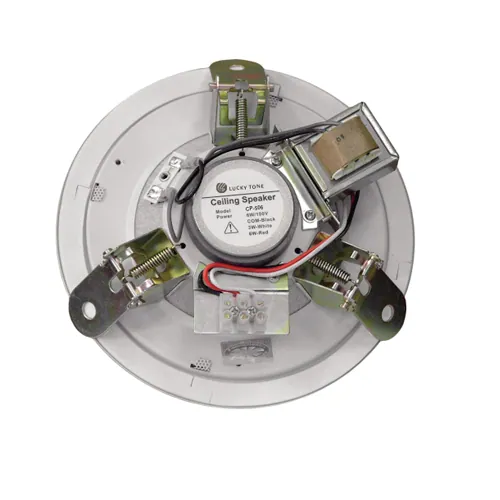

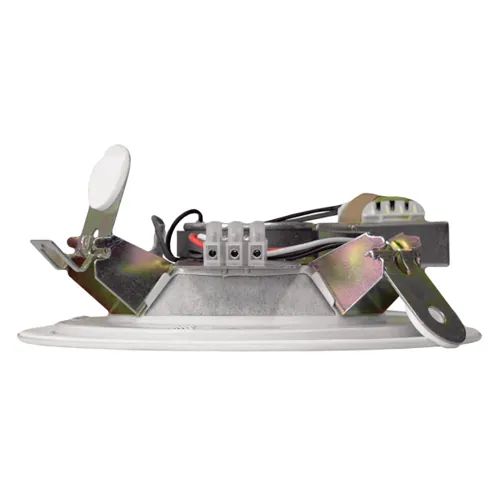

Metal Coaxial Ceiling Speaker
ModelCM-506T / CM-610T
● Ceiling speaker with tweeter
- Weight
- CM-506T: 0.75Kg; CM-610T: 1Kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Metal Coaxial Ceiling SpeakerPrice on requestRequest a quotation
01Models2 models in the family
Models compared.
| MODEL | CM-506T | CM-610T |
|---|---|---|
| Power at 100V | 3W | 6W |
| Power at 70V | 1.5W | 3W |
| SPL (1W/1M) | 92dB | 92dB |
| Max SPL@1M | 99dB | 101dB |
| Freq.Response | 100Hz-18KHz | 100Hz-18KHz |
| Cutout Size | Dia 170mm | Dia 200mm |
| Product Size | Dia 200x67mm(H) | Dia 245x75mm(H) |
| Installation | Inceiling | Inceiling |
| Enclosure Material | Metal | Metal |
| Weight | 0.75Kg | 1Kg |
| Finish | White | White |
| Speakers | 1″ x 1 (TREBLE); 5″ x 1 (BASS) | 1″ x 1 (TREBLE); 6″ x 1 (BASS) |
02DescriptionManufacturer's description
What it is.
● Cost-effective and good performance
03Documents1 file · 3.3 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
