Sheet 05.184
Lucky Tone · Loudspeakers

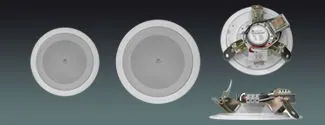

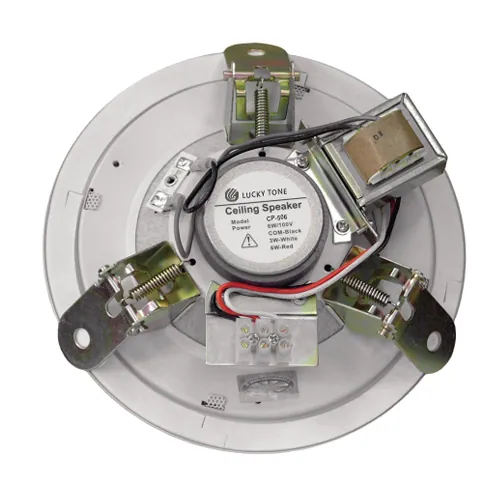

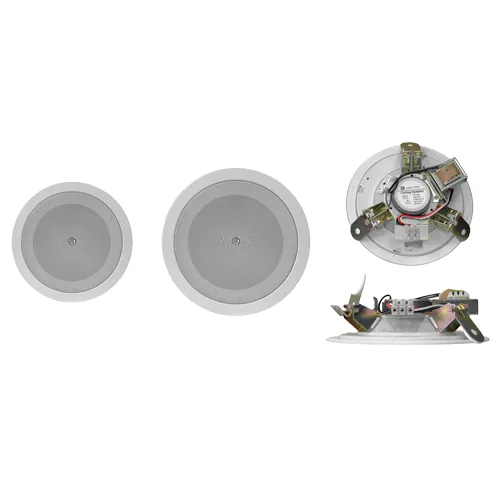

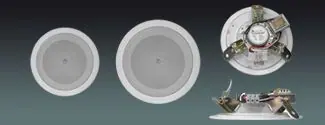

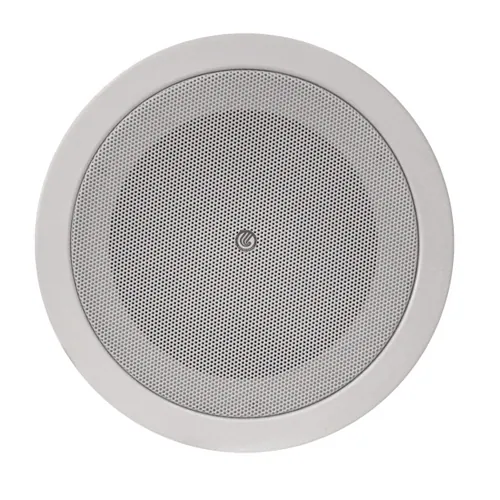

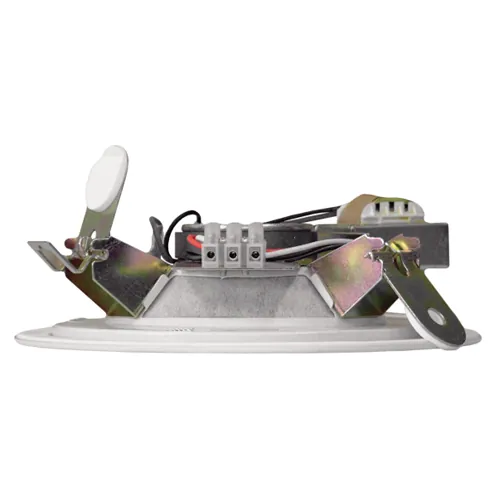

Metal Full Range Ceiling Speaker
ModelCM-406 / CM-506
Cost-effective ceiling speaker of good performance
- Weight
- CM-406: 0.7Kg; CM-506: 0.75Kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Metal Full Range Ceiling SpeakerPrice on requestRequest a quotation
01Models2 models in the family
Models compared.
| MODEL | CM-406 | CM-506 |
|---|---|---|
| Power at 100V | 3W | 3W |
| Power at 70V | 1.5W | 1.5W |
| SPL (1W/1M) | 91dB | 91dB |
| Max SPL@1M | 98dB | 98dB |
| Freq.Response | 130Hz-16KHz | 100Hz-18KHz |
| Cutout Size | Dia 155mm | Dia 170mm |
| Product Size | Dia 180x50mm(H) | Dia 200x67mm(H) |
| Installation | Inceiling | Inceiling |
| Enclosure Material | Metal | Metal |
| Weight | 0.7Kg | 0.75Kg |
| Finish | White | White |
| Speakers | 4″ x 1 full range | 5″ x 1 full range |
02Documents1 file · 3.3 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
03Related products
In the same range.

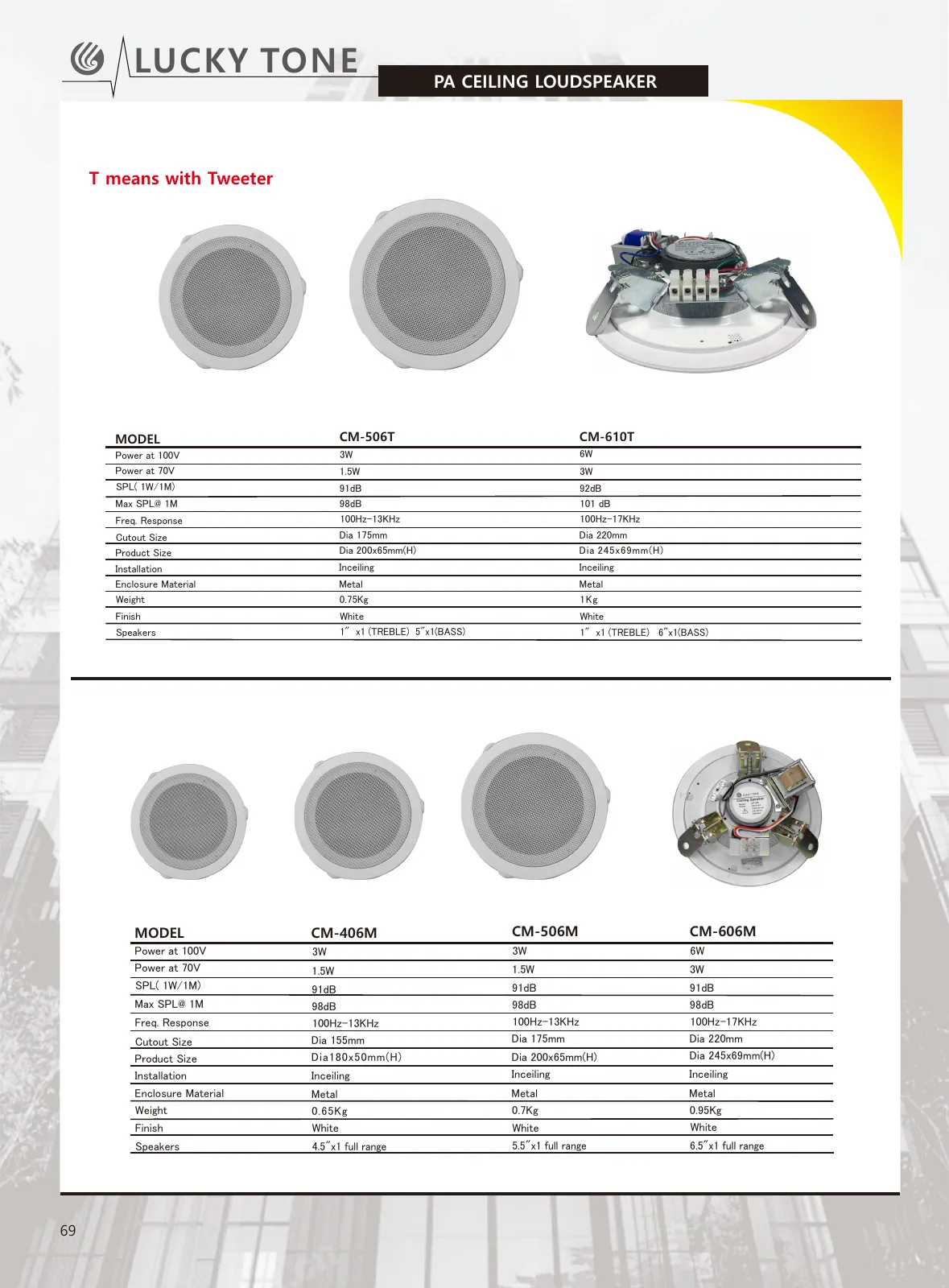

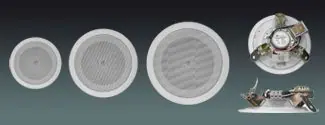

EQ-183Lucky ToneMetal Coaxial Ceiling SpeakerCM-506T / CM-610T · LoudspeakersWeightCM-506T: 0.75Kg; CM-610T: 1Kg

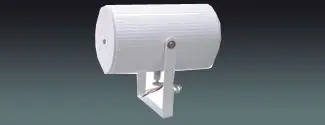

EQ-185Lucky ToneOutdoor Bi-directional SpeakerPJ-620B · LoudspeakersWeight3.40kg

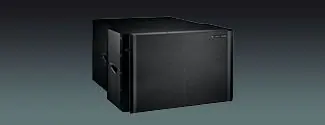

EQ-182Lucky ToneLine Array SubwooferLA-200SUB · Loudspeakers

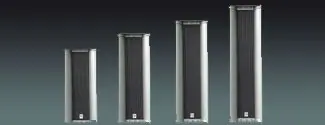

EQ-186Lucky ToneOutdoor Column SpeakerLM-510T / LM-520T / LM-530T / LM-540T · LoudspeakersWeightLM-510T: 2.60kg; LM-520T: 4.10kg; LM-530T: 4.40kg; LM-540T: 5.00kg04Talk to us
