Sheet 05.185

Lucky Tone · Loudspeakers

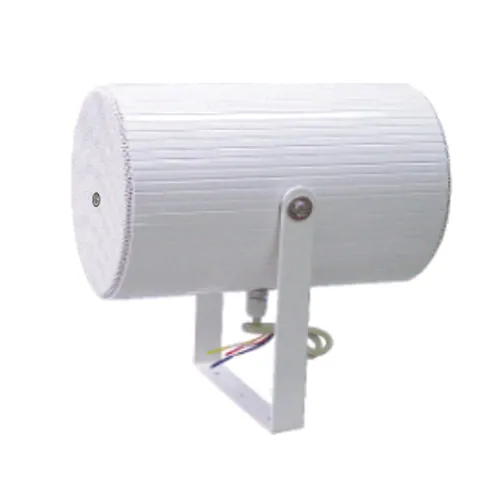

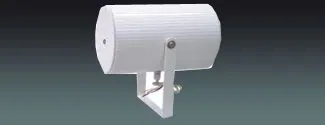

Outdoor Bi-directional Speaker

ModelPJ-620B

Features:

Weight: 3.40kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 13 values

What this product is, in numbers.

PDFSpecifications2.2 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications13

MODEL: PJ-620B
Power at 100V: 10/20W
Power at 70V: 5/10W
SPL (1W/1M): 92dB
Max SPL@1M: 103dB
Freq.Response: 110Hz-15KHz
Dispersion Angel: 320 degree
Product Size: Dia 170x252mm
Installation: Wall or Corridor
Enclosure Material: Aluminum
Weight: 3.40kg
Finish: White
Speakers: 6.5″x 2 full range

02DescriptionManufacturer's description

What it is.

● Weather proof projector
● Steady aluminum enclosure
● With 20W transformer
● Bi Directional

03Documents1 file · 2.2 MB

Documents and files.

Main document

Specifications

PDF · 2.2 MB

Download specifications
