Sheet 05.383
Lucky Tone · Public address

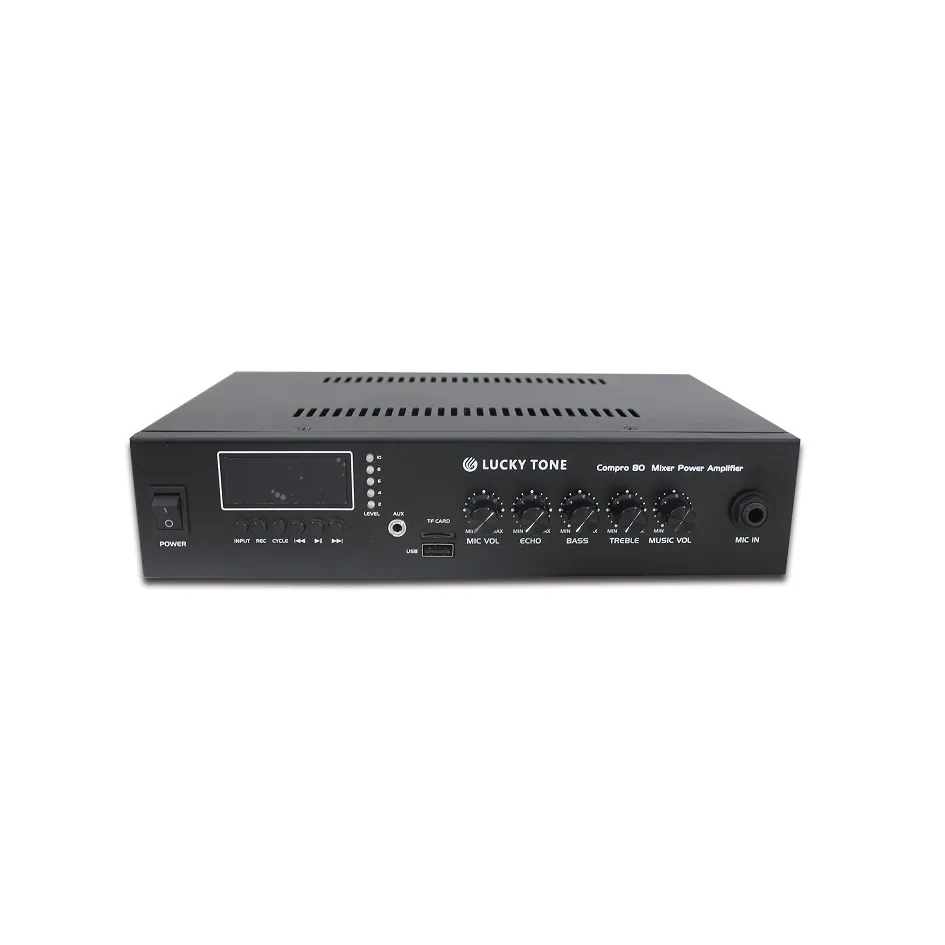

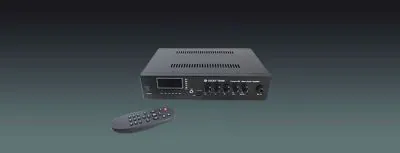

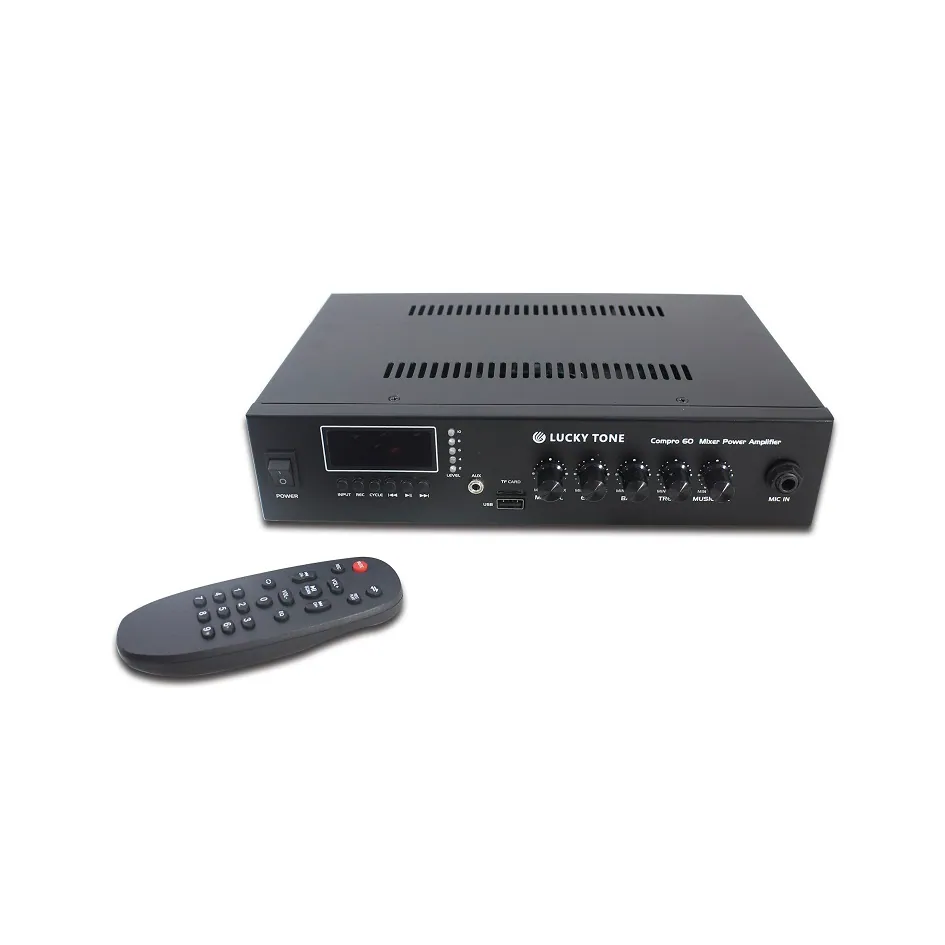

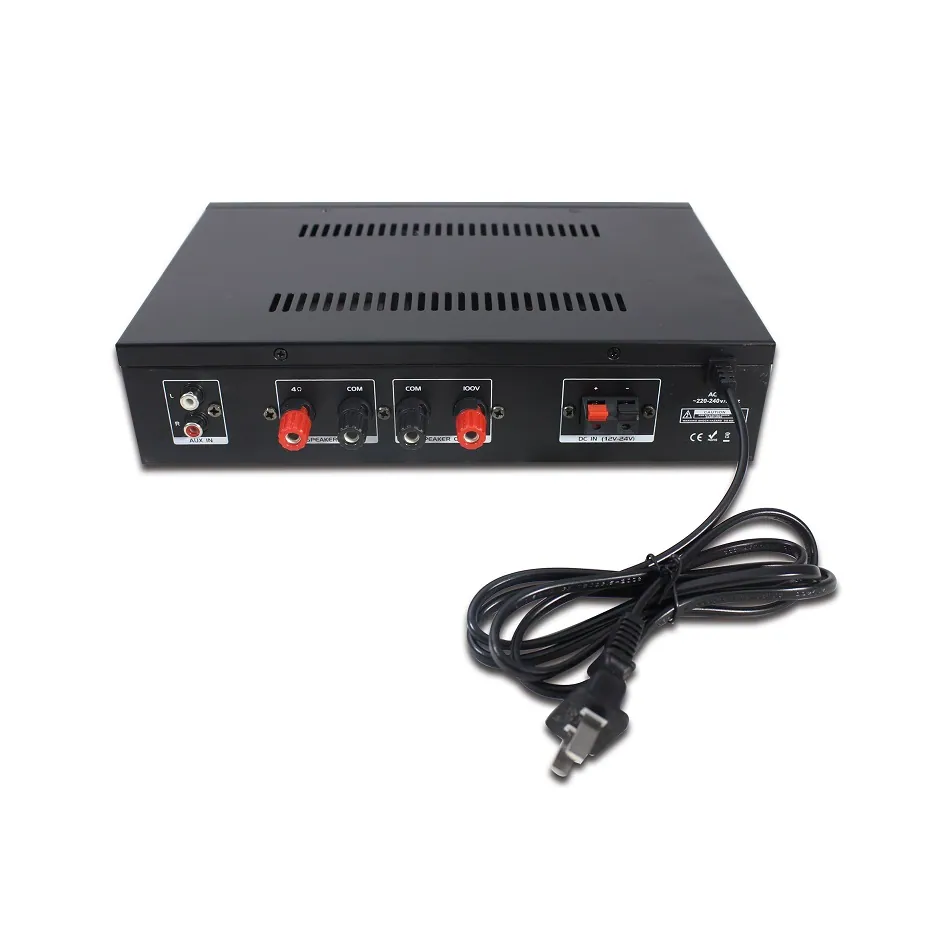

Compact PA Amplifier
ModelCompro 60USA / Compro 80USA
Compro-60USA; 60W 100-240VAC Power supply
- Output power
- Max 60W, RMS 30W / Max 80W, RMS 40W
- Frequency response
- 20~20KHz (+1dB ~ -3dB) at 4ohms
- Weight
- 1.8kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Compact PA AmplifierPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 19 values
What this product is, in numbers.
PDFSpecifications3.1 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications19
- Model
- Compro 60USA / Compro 80USA
- Rated Output Power
- Max 60W, RMS 30W / Max 80W, RMS 40W
- Power Supply Voltage
- ~100-240V, 50/60Hz
- Power Consumption
- <40W/50W
- Speaker Output
- 100V
- Frequency Response
- 20~20KHz (+1dB ~ -3dB) at 4ohms
- SNR
- >89dB (with A-Weight)
- Nonlinear Distortion
- <1% (at 1/3 rated power, 1kHz)
- Microphone input
- 30mV, 600Ω, balanced input
- Auxiliary input
- +6dBu, 10KΩ, unbalanced input
- VOL Range
- Bass:100Hz(±10dB), Treble:12KHz(±10dB)
- Mute Function
- MIC over other inputs
- Function Controls
- 1×power switch, 1× input source selection switch 1× music volume knob, 1× bass knob, 1× treble knob, 1×MIC volume knob 1× echo knob, 1×record key, 1×cycle key, 1×prev key, 1×next key, 1×pause key
- Working Tempreture
- -10°C ~+80°C
- Cooling
- Heat sink Style
- Product Dimension (WxHxD)
- 280×62×185 mm
- Package Dimension (WxHxD)
- 345×110×250 mm
- Net Weight
- 1.8kg
- Gross Weight
- 2.2kg
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
- Compro-80USA; 80W 100-240VAC Power supply
- Amplification for premium sound from a reliable, high quality Class-D
- amplifier provides optimized performance and premium sound quality
- With Record function, can record in the USB drive and play
- Microphone priority function to mute the BGM in paging status
- Individual music and microphone paging volume controls.
- Bass, treble, and echo controls
- With built-in Mp3 supports many audio format like Mp3,WMA, WAV, APE, FLAC etc.
- 4 Ohm and 100V line outputs optional
- Emergency 12-24VDC battery back up function, or use in car for vehicle amplifier
03Documents1 file · 3.1 MB
Documents and files.

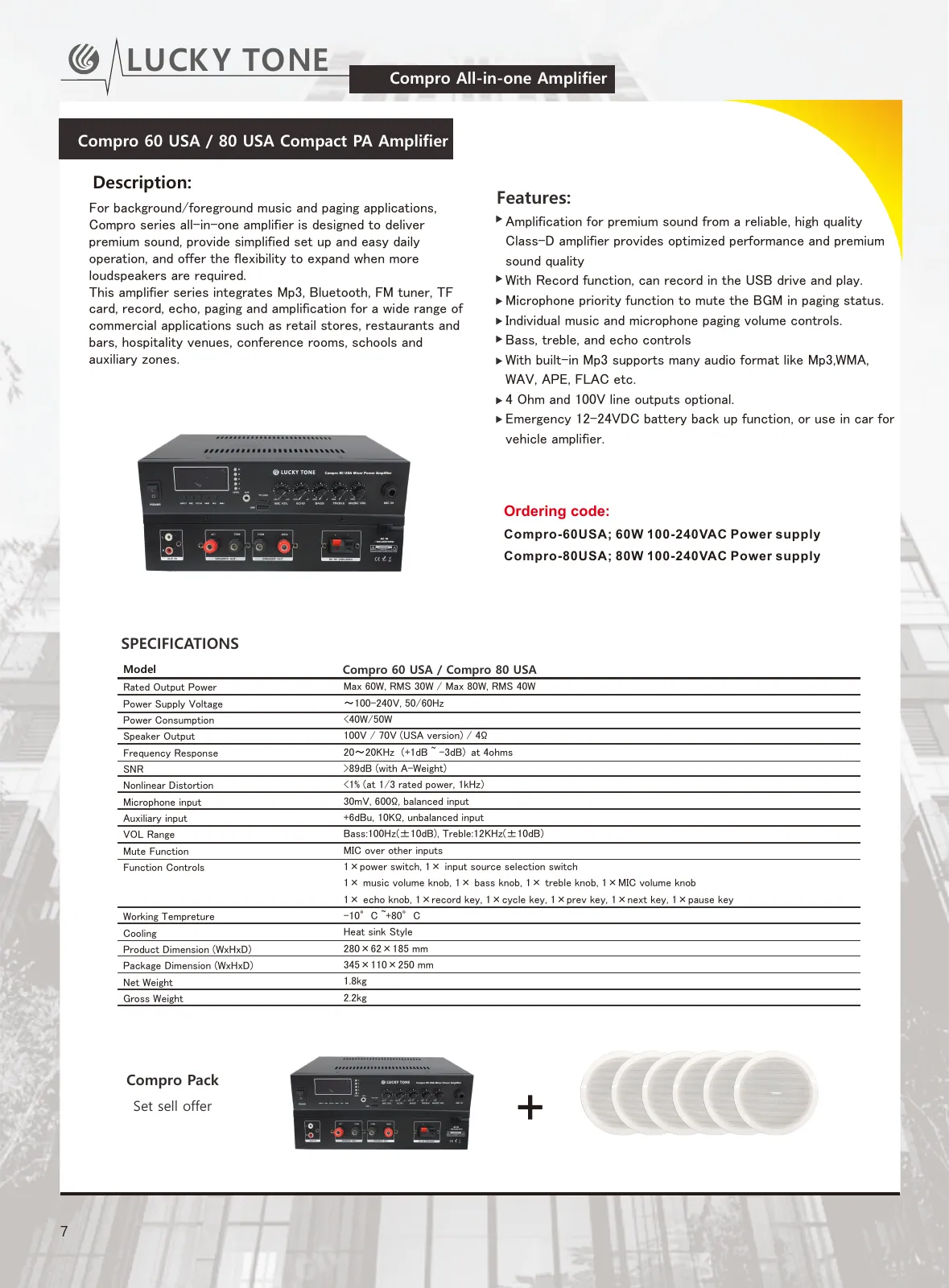

Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
