Sheet 05.384
Lucky Tone · Public address
Digital Audio Broadcasting Amplifier
ModelDAB-30/DAB-60
Lucky Tone DAB amplififier series is a compact digital mixer amplififier with a 30W/60W (rms) output ideal for comfortable background music in both commercial and domestic environments.
- Output power
- 30W / 60W RMS
- Power supply
- 220-240Vac, 50Hz/60Hz (IEC) or 12VDC back up power
- Dimensions
- 280 x 205 x 67mm
- Weight
- 2.16/ 2.36kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Digital Audio Broadcasting AmplifierPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 13 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications13
- Model
- DAB-30/DAB-60
- Power supply
- 220-240Vac, 50Hz/60Hz (IEC) or 12VDC back up power
- Audio source
- USB player, DAB tuner and Bluetooth receiver
- Bluetooth version
- 5.0; compatible 4.2 and V2.1EDR
- Controls
- Treble, Master, MP3, Aux, Mic
- Microphone inputs
- 6.3mm jack (unbalanced) and XLR (balanced)
- Line input
- 2 x RCA (summed to mono)
- Line output
- 1 x RCA
- Speaker outputs
- COM, 100V/70V and 4-16 Ohms (Phoenix terminals)
- Antenna connection
- screw terminal
- Dimensions
- 280 x 205 x 67mm
- Power output
- 30W / 60W RMS
- Weight
- 2.16/ 2.36kg
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
DAB-30/DAB-60
Description
Lucky Tone DAB amplififier series is a compact digital mixer amplififier with a 30W/60W (rms) output ideal for comfortable background music in both commercial and domestic environments. The DAB-30 and 60 weighs just 2.16kg so it can sit on or below a desk, in a drawer or a cabinet.
This versatile mixer amp features Bluetooth connectivity, an DAB (Digital Audio Broadcasting) tuner, and USB input perfect for connecting almost any device. It also has a 6.35mm and XLR microphone input great for making announcements, last calls, or even pub quizzes.

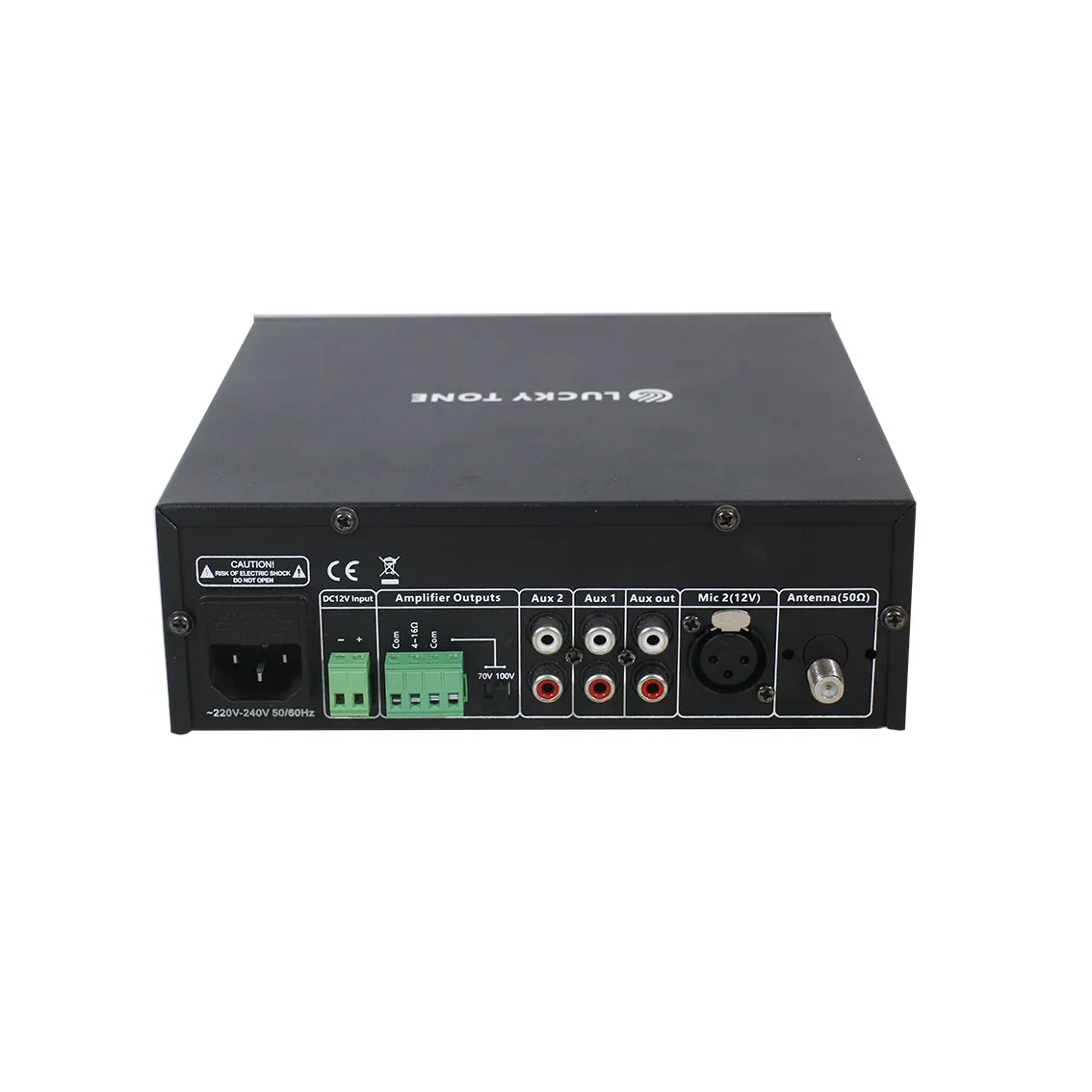

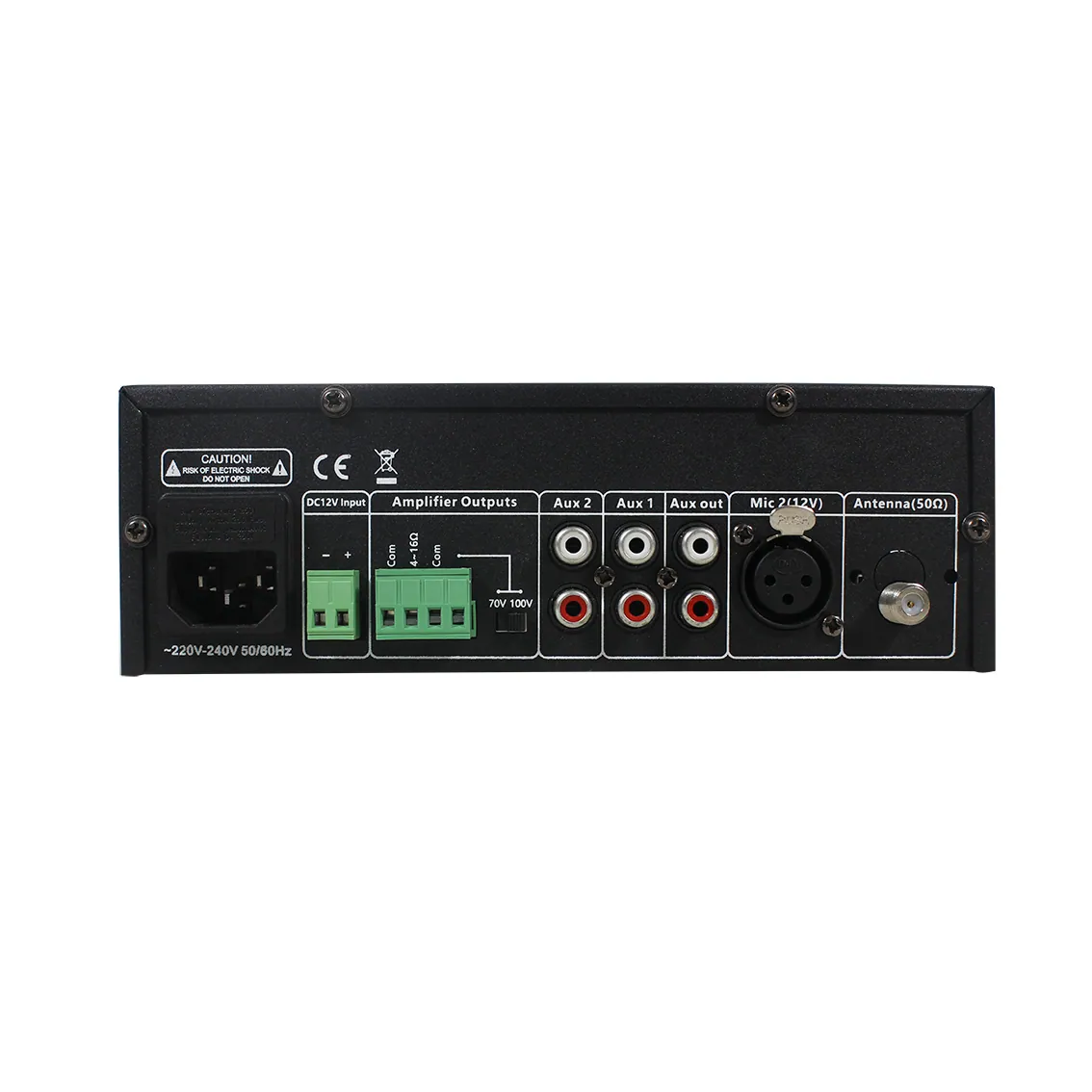

Mono output to either 100V line, 70V line or 4-16 ohms speaker load is connected via phoenix terminals on the rear panel.

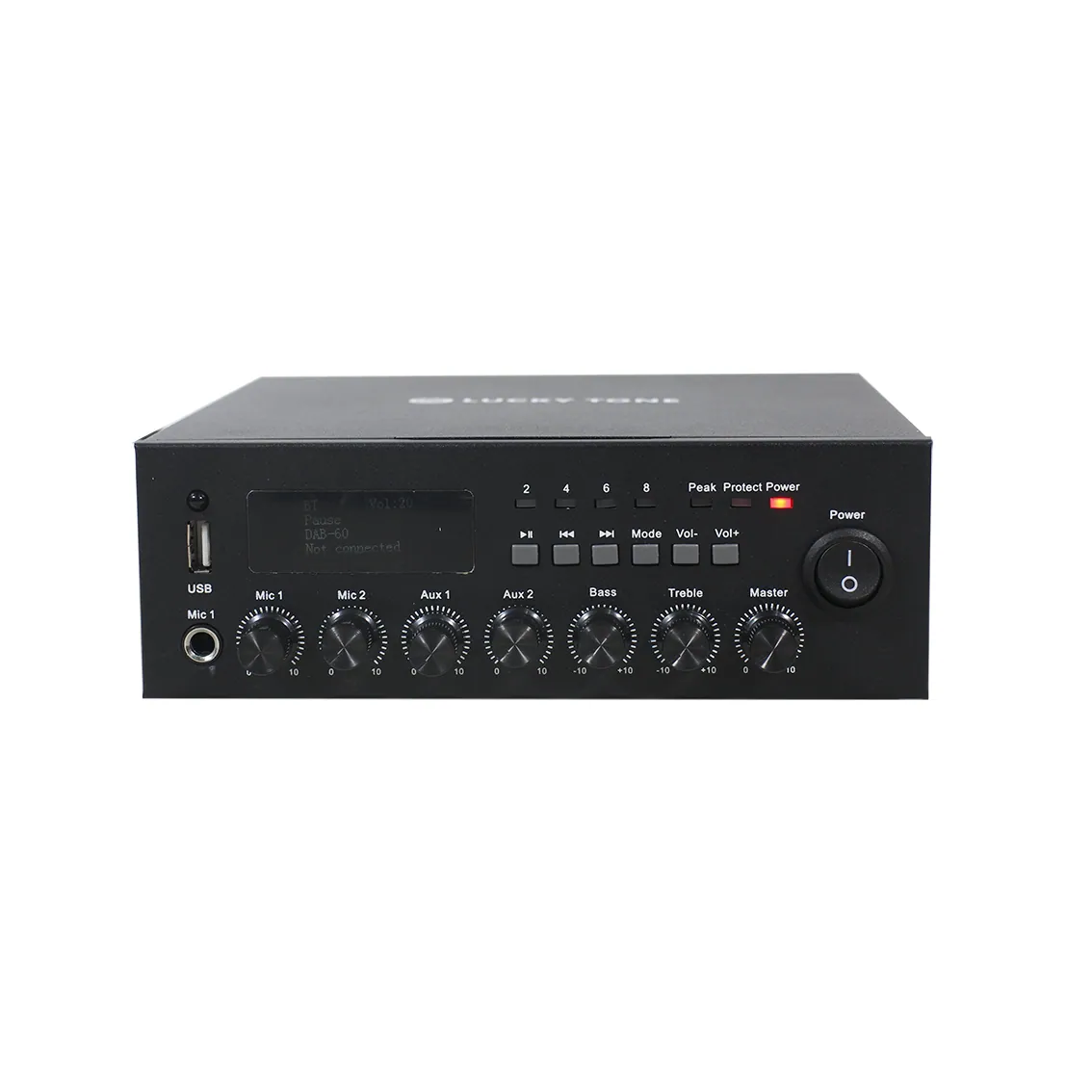

Boasts a simple-to-use digital interface with onboard controls such as mode, play/pause, next/previous, and repeat.
Software adjustment: digital Effect, EQ, Priority and super bass.
Suggested areas of use
Domestic Environments | Lounges | Dining Areas | School Classrooms
Commercial Environments | Retail stores | Cafes | Coffee Shops | Offifices
03Documents1 file · 10 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
Datasheets and manuals01
