Sheet 05.381
Lucky Tone · Public address

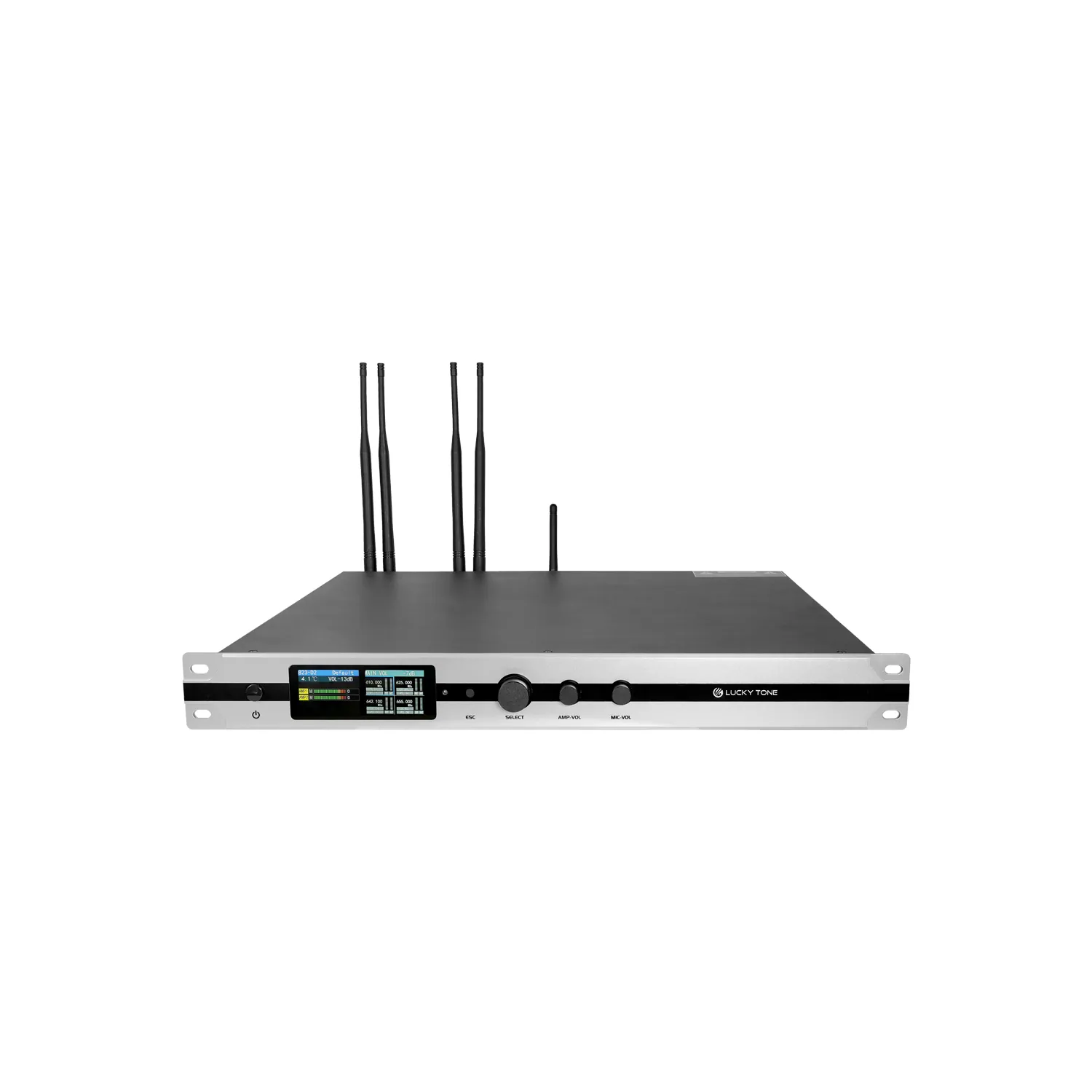

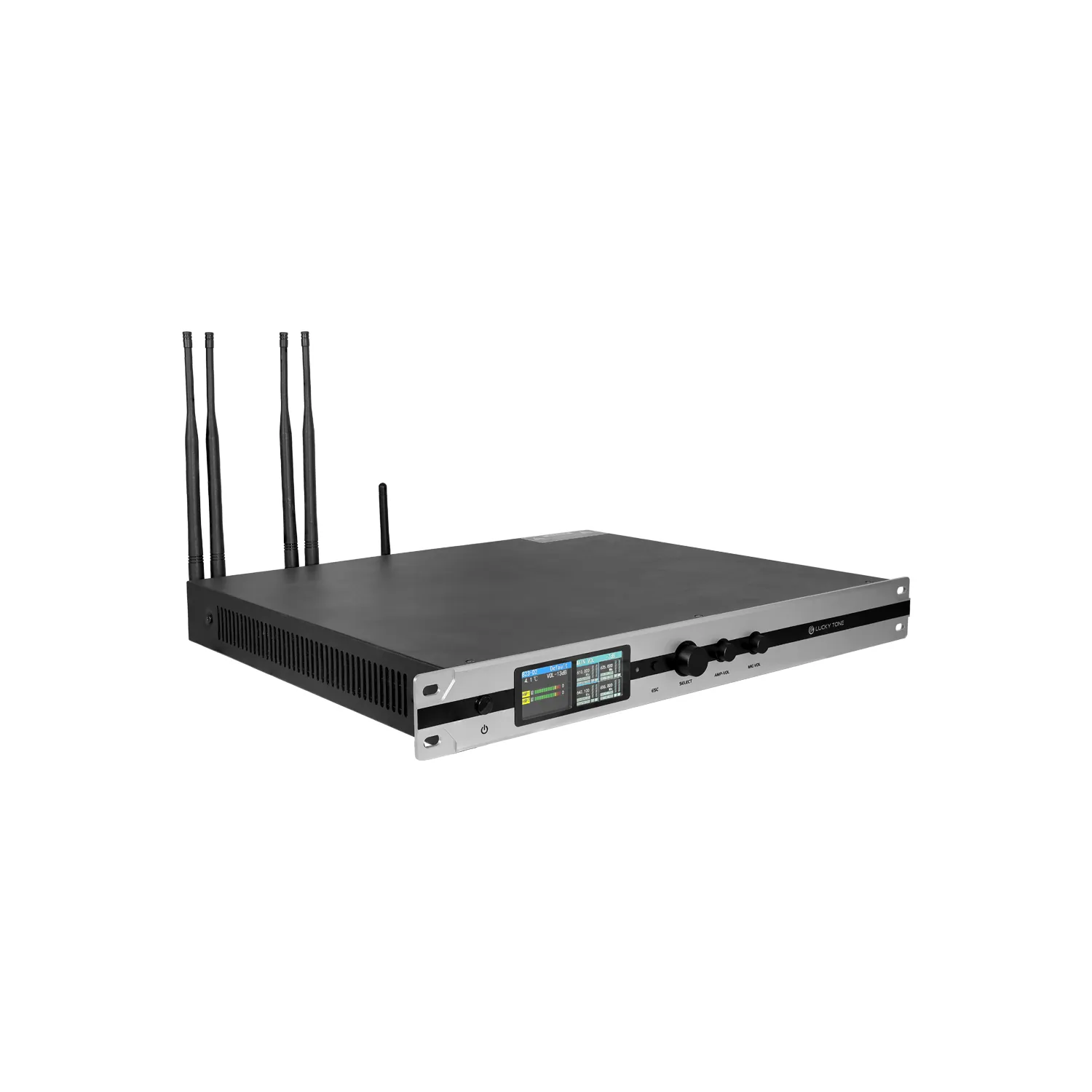

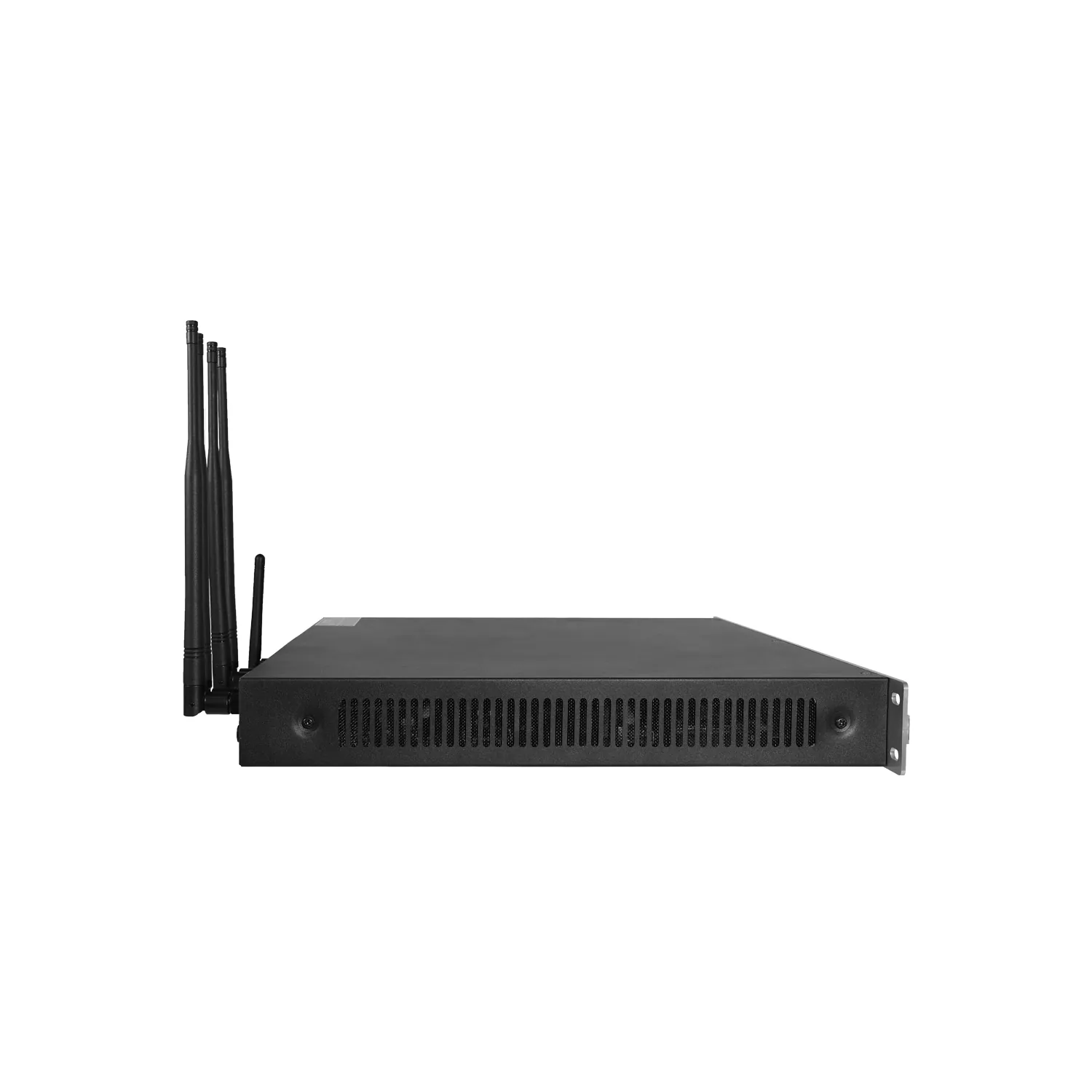

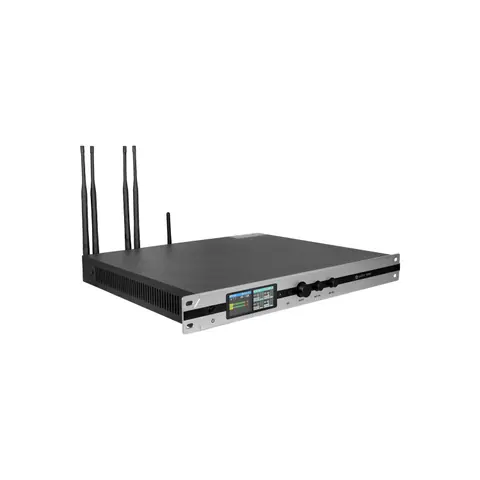

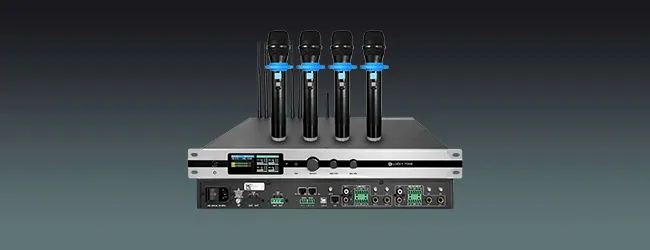

All-in-one Mixer Power Amplifier with Dante and DSP
ModelMA-2300V2+ / MA-2300DV2+
The MA-2300V2+/MA-2300DV2+ is a all-in-one DSP amplifier featuring 16 inputs and 10 outputs, designed for high-quality sound reinforcement in a variety of settings, such as medium to large conference rooms, courts, auditoriums, and multi-functional halls.
- Output power
- 2*450W@4Ω or 2*300W@8Ω, bridged 1*900W@8Ω, Switchable to bridged 1*900W@100V, 1*612W@70V
- Frequency response
- Channel A: 610–624.7 MHz (50 channels) Channel B: 625–639.7 MHz (50 channels) Channel C: 640–654.7 MHz (50 channels) Channel D: 655–669.7 MHz (50 channels)
- Power supply
- AC100~240 50/60Hz, 7.5A
- Weight
- 5.8kg/6kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
All-in-one Mixer Power Amplifier with Dante and DSPPrice on requestRequest a quotation
01Models3 models in the family
Models compared.
| Model | MA-2300V2+ | MA-2300DV2+ | MA-2300DV2+ |
|---|---|---|---|
| Type | 2-CH Amplifier with DSP | 2-CH Amplifier with DSP and Dante | 2-CH Amplifier with DSP and Dante |
| Dante Audio Channel | / | 2 | 2 |
| Output Power | 2*450W@4Ω or 2*300W@8Ω, bridged 1*900W@8Ω, Switchable to bridged 1*900W@100V, 1*612W@70V | 2*450W@4Ω or 2*300W@8Ω, bridged 1*900W@8Ω, Switchable to bridged 1*900W@100V, 1*612W@70V | 2*450W@4Ω or 2*300W@8Ω, bridged 1*900W@8Ω, Switchable to bridged 1*900W@100V, 1*612W@70V |
| Input Interfaces | 2 x 6.35mm (TRS) Inputs; 4 x 3.81mm Phoenix Inputs; 2 x RCA Inputs | 2 x 6.35mm (TRS) Inputs; 4 x 3.81mm Phoenix Inputs; 2 x RCA Inputs | 2 x 6.35mm (TRS) Inputs; 4 x 3.81mm Phoenix Inputs; 2 x RCA Inputs |
| Output Interfaces | 2 x 6.35mm (TRS) Outputs; 4 x 3.81mm Phoenix outputs; 2 x RCA Outputs | 2 x 6.35mm (TRS) Outputs; 4 x 3.81mm Phoenix outputs; 2 x RCA Outputs | 2 x 6.35mm (TRS) Outputs; 4 x 3.81mm Phoenix outputs; 2 x RCA Outputs |
| Auto Mixing/Matrix Mixing | 14 in 8 out | 14 in 8 out | 16 in 10 out |
| Max. Input/Output Level (Balanced) | 17dBu/5.484V | 17dBu/5.484V | 17dBu/5.484V |
| Sampling | 48k / 24bit | 48k / 24bit | 48k / 24bit |
| PEQ | 8 bands per input and output | 8 bands per input and output | 8 bands per input and output |
| Gain | -60 to +15dB adjustable per channel | -60 to +15dB adjustable per channel | -60 to +15dB adjustable per channel |
| Delay | 0~2000ms adjustable per input and output channel | 0~2000ms adjustable per input and output channel | 0~2000ms adjustable per input and output channel |
| Power Supply | AC100~240 50/60Hz, 7.5A | AC100~240 50/60Hz, 7.5A | AC100~240 50/60Hz, 7.5A |
| Net Weight | 5.8kg/6kg | 5.8kg/6kg | 5.8kg/6kg |
| Product Size | 490*380*52mm | 490*380*52mm | 490*380*52mm |
| Wireless UHF Handheld Microphone | WM-2300U | WM-2300U | WM-2300U |
| Microphone Channel | 4 | 4 | 4 |
| Frequency Range | Channel A: 610–624.7 MHz (50 channels) Channel B: 625–639.7 MHz (50 channels) Channel C: 640–654.7 MHz (50 channels) Channel D: 655–669.7 MHz (50 channels) | Channel A: 610–624.7 MHz (50 channels) Channel B: 625–639.7 MHz (50 channels) Channel C: 640–654.7 MHz (50 channels) Channel D: 655–669.7 MHz (50 channels) | Channel A: 610–624.7 MHz (50 channels) Channel B: 625–639.7 MHz (50 channels) Channel C: 640–654.7 MHz (50 channels) Channel D: 655–669.7 MHz (50 channels) |
02DescriptionManufacturer's description
What it is.
Description
The MA-2300V2+/MA-2300DV2+ is a all-in-one DSP amplifier featuring 16 inputs and 10 outputs, designed for high-quality sound reinforcement in a variety of settings, such as medium to large conference rooms, courts, auditoriums, and multi-functional halls. This unit integrates advanced DSP technologies, including feedback suppression, AI noise cancellation (ANC), echo cancellation (AEC), automatic gain control (AGC), auto mixing, matrix mixing, equalization, crossover, delay, compressor, and limiter.
Features
- TCP/IP network control for managing multiple devices
- Supports multiple control methods: TCP/IP, RS232, RS485, USB
- Support computer software control
- Supports both playback and recording through stereo USB soundcard transmission
- Built-in Bluetooth technology for wireless streaming
- 48V phantom power on Input Channels

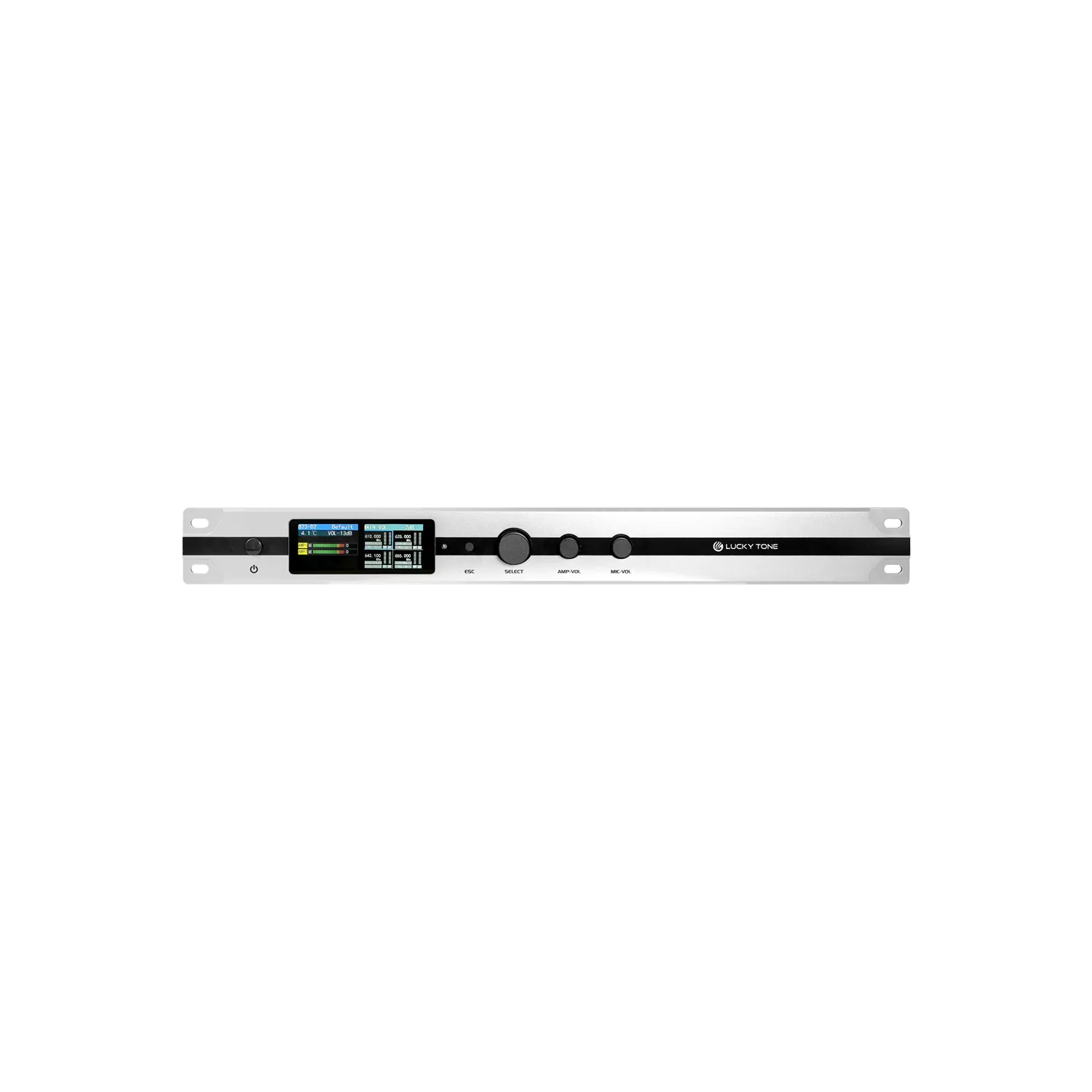

With color LCD display, allowing easy configuration of device name, presets, IP settings and input/output volume
Easily switch between Free Matrix and Bridge Mode for flexible audio routing and management.
Supports camera tracking with PELCO-D, PELCO-P, and VISCA protocols, enabling automatic camera control based on voice activation.
Save and recall up to 60 preset configurations for quick setup and adjustments.

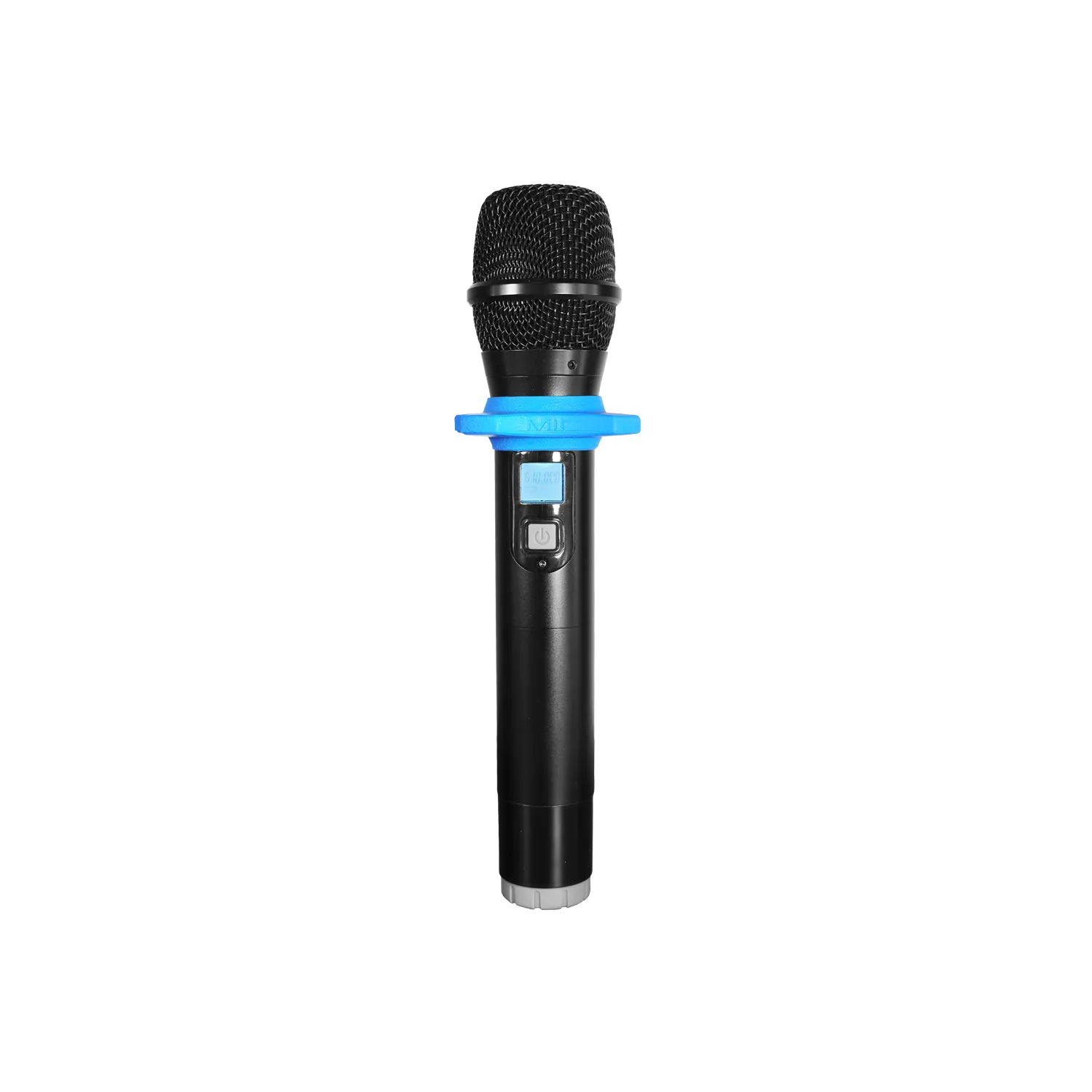

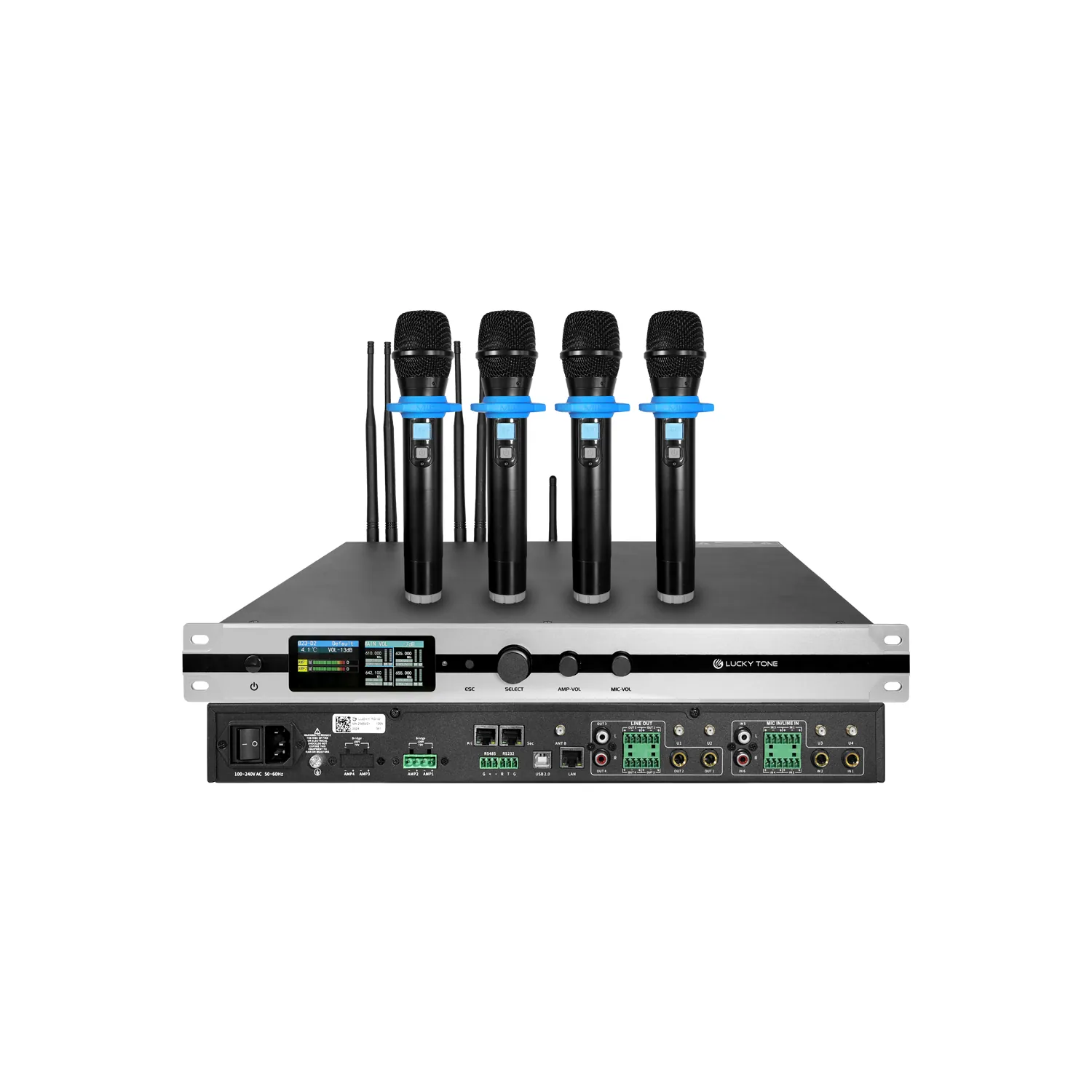

Seamlessly integrates with up to four WM-2300U true diversity wireless handheld microphones for versatile sound reinforcement(optional)

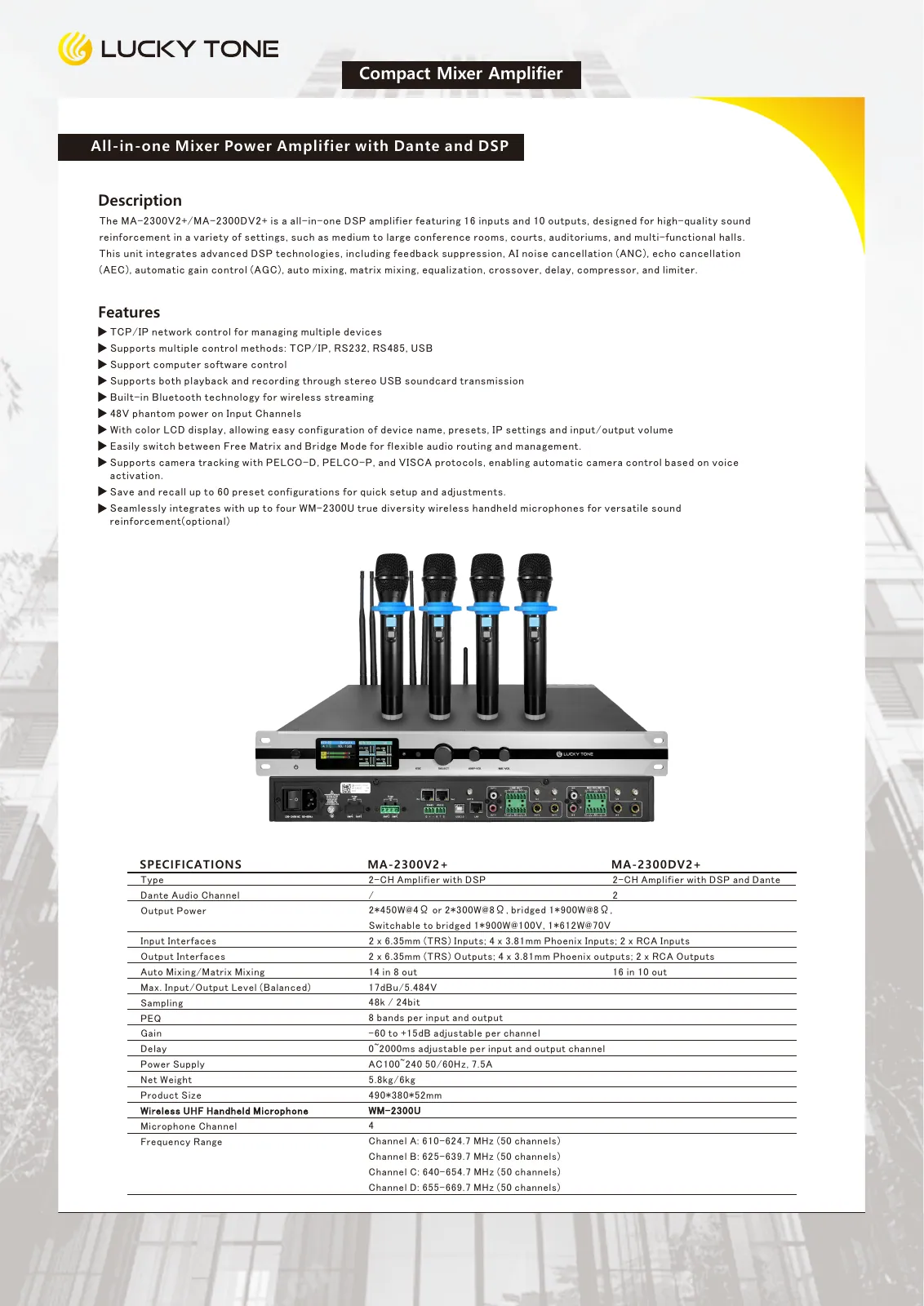

Lucky Tone MA-2300V2+ MA-2300DV2+ WM-2300U datasheet 20241230
03Documents2 files · 6.4 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
Datasheets and manuals01
