Sheet 05.91

Lucky Tone · Loudspeakers

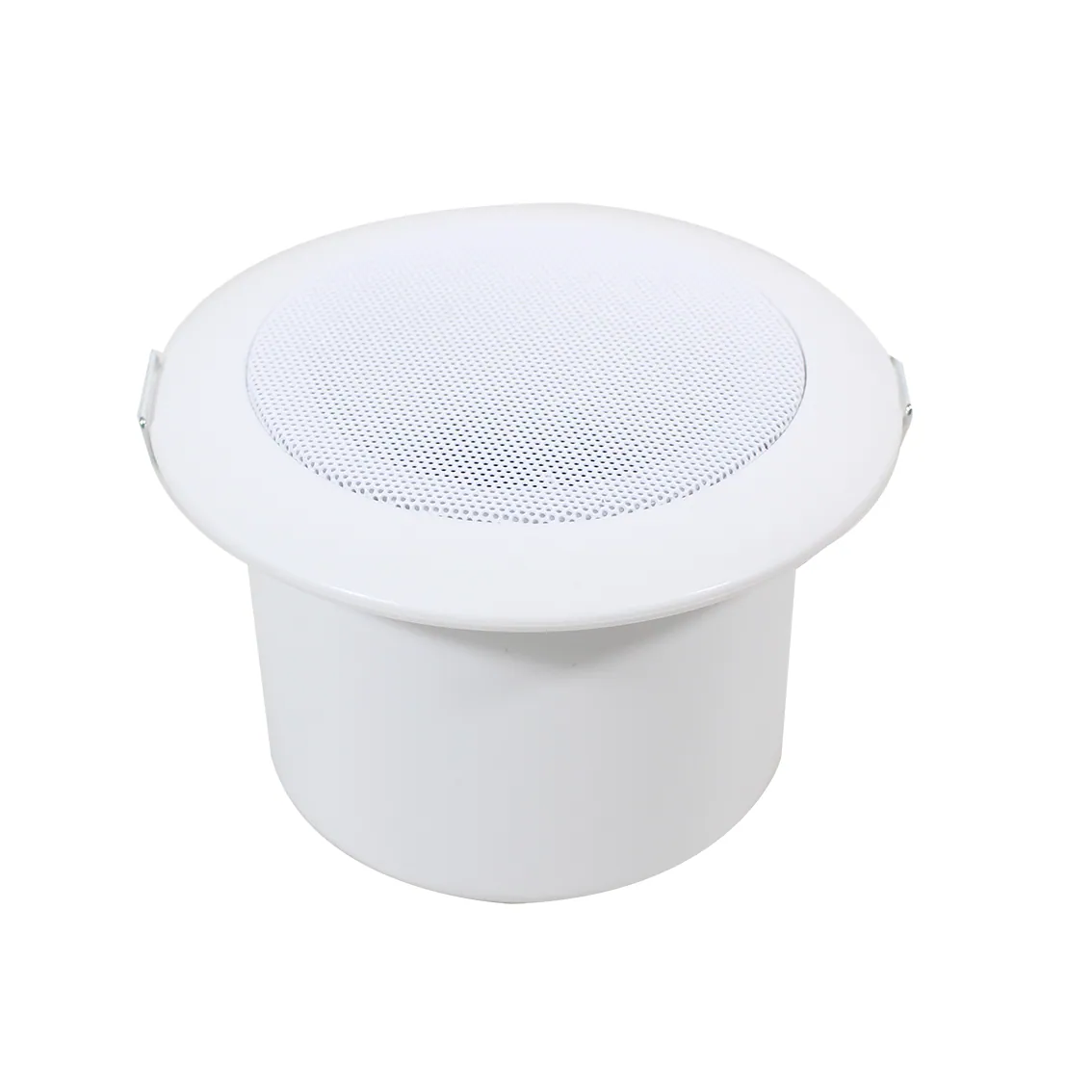

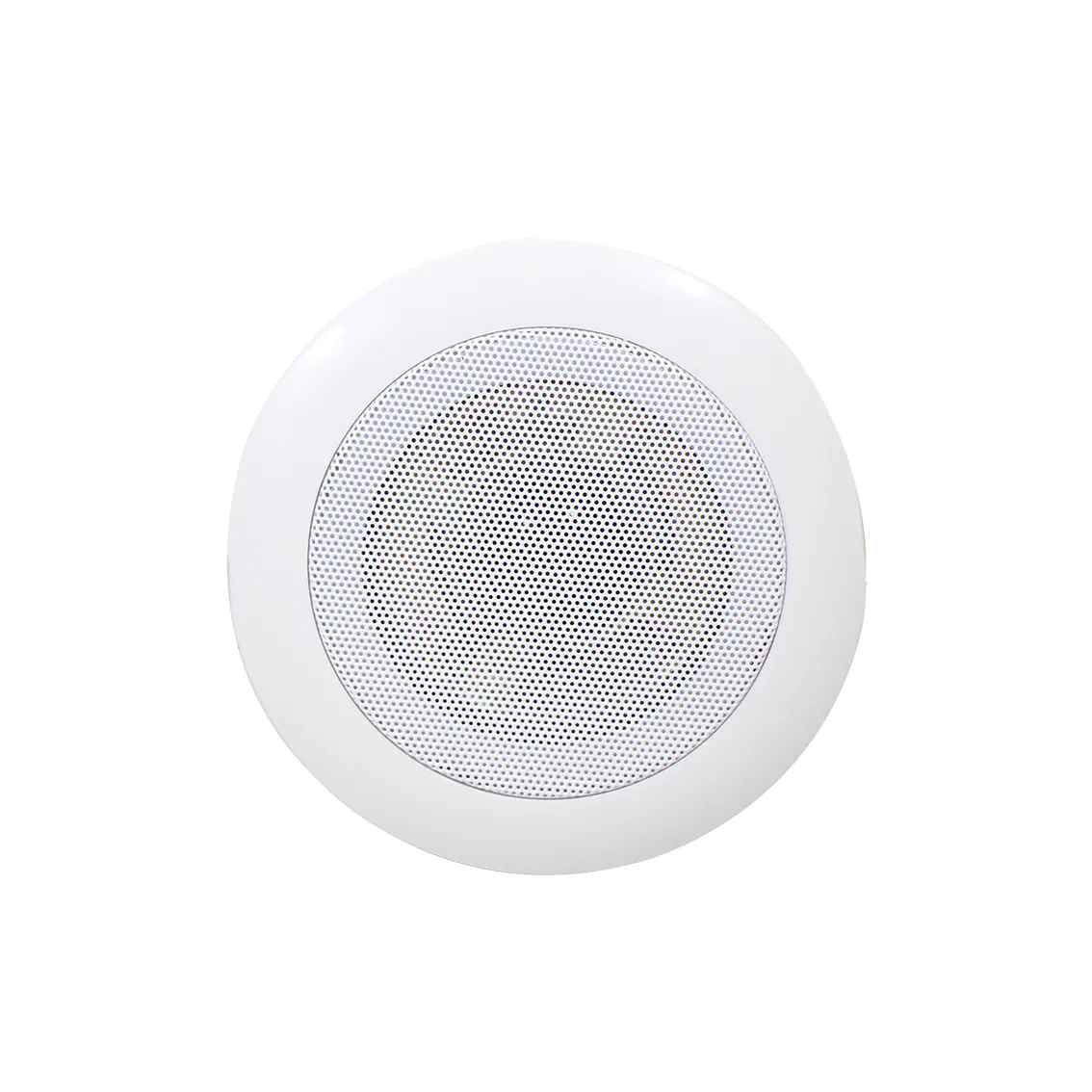

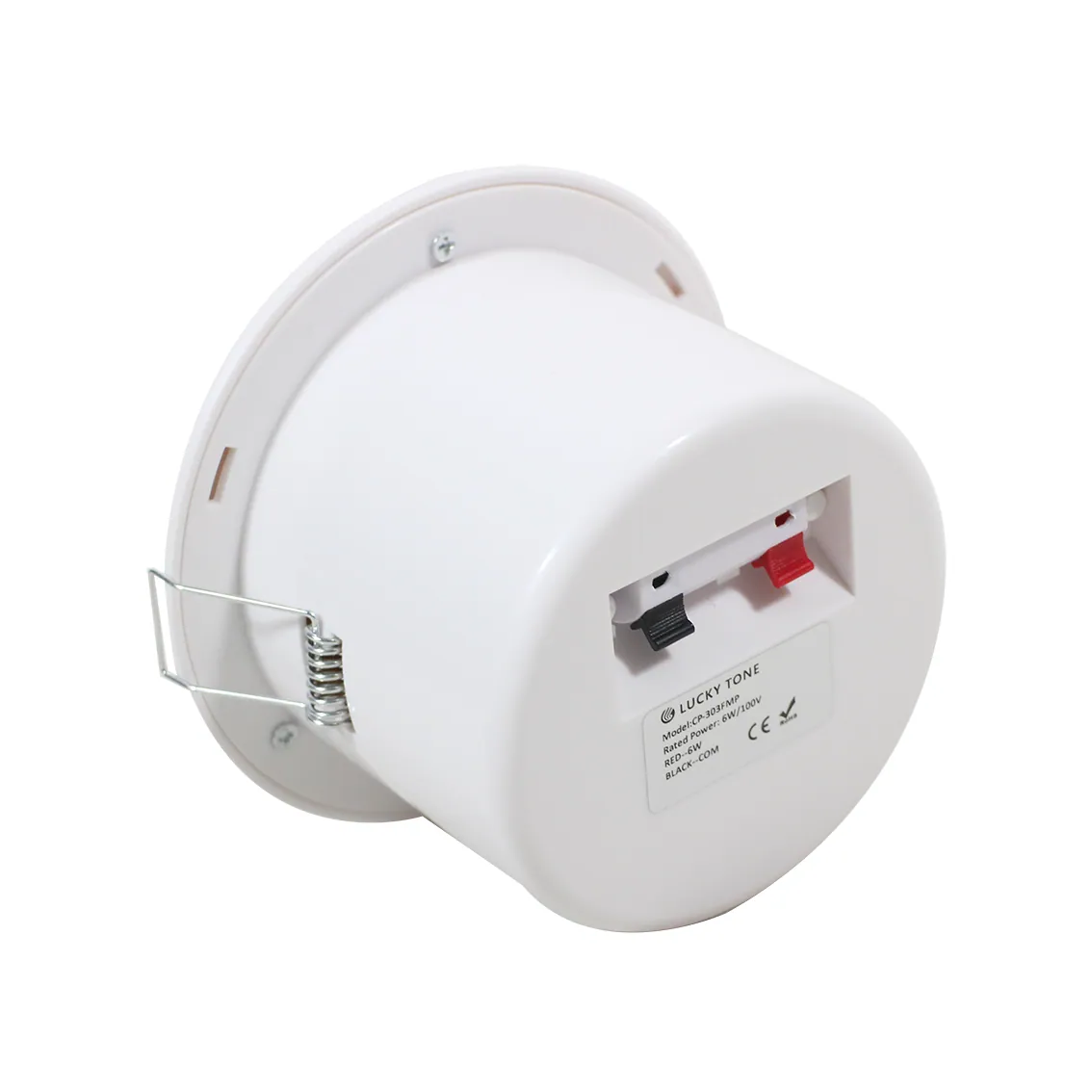

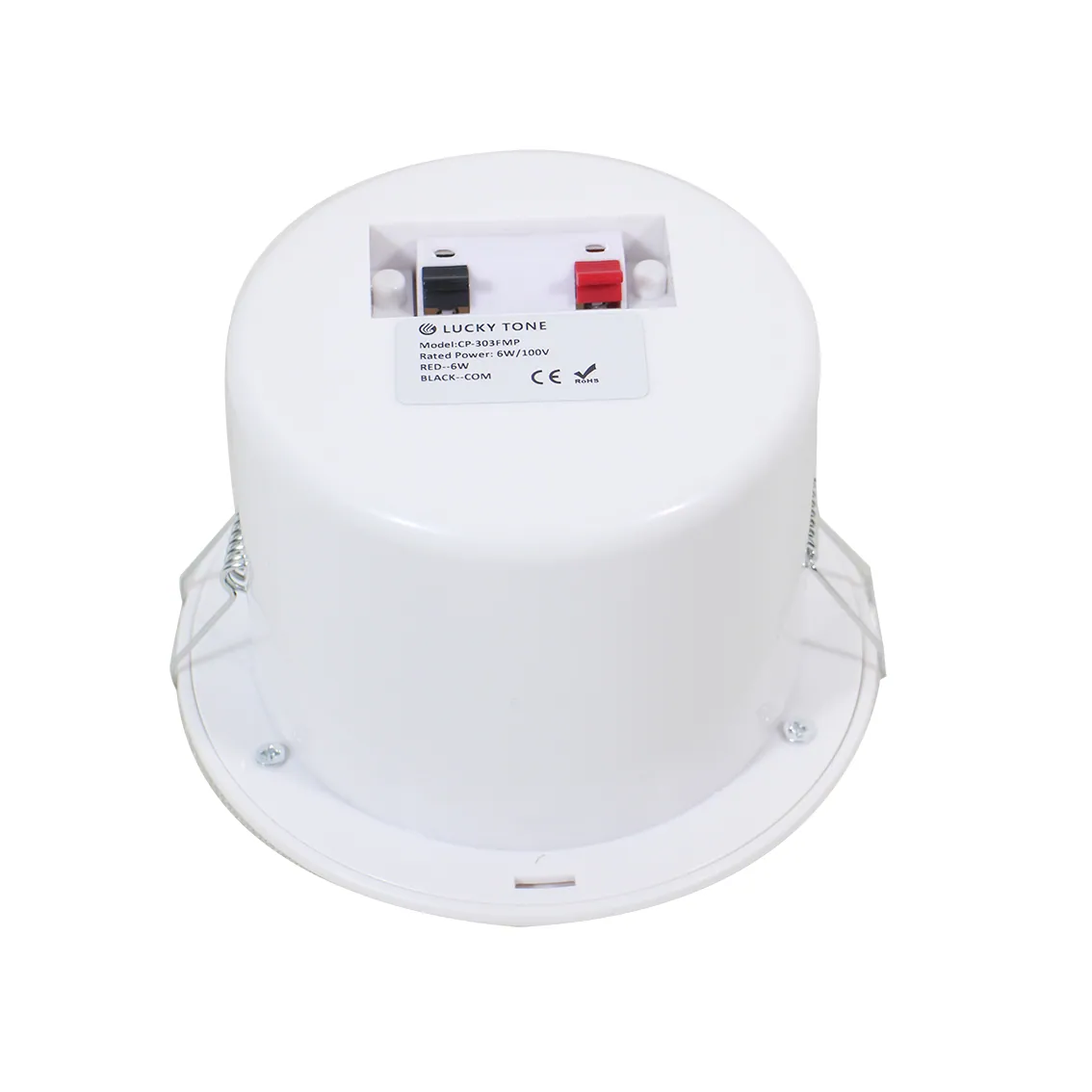

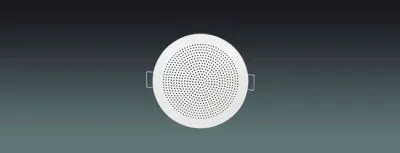

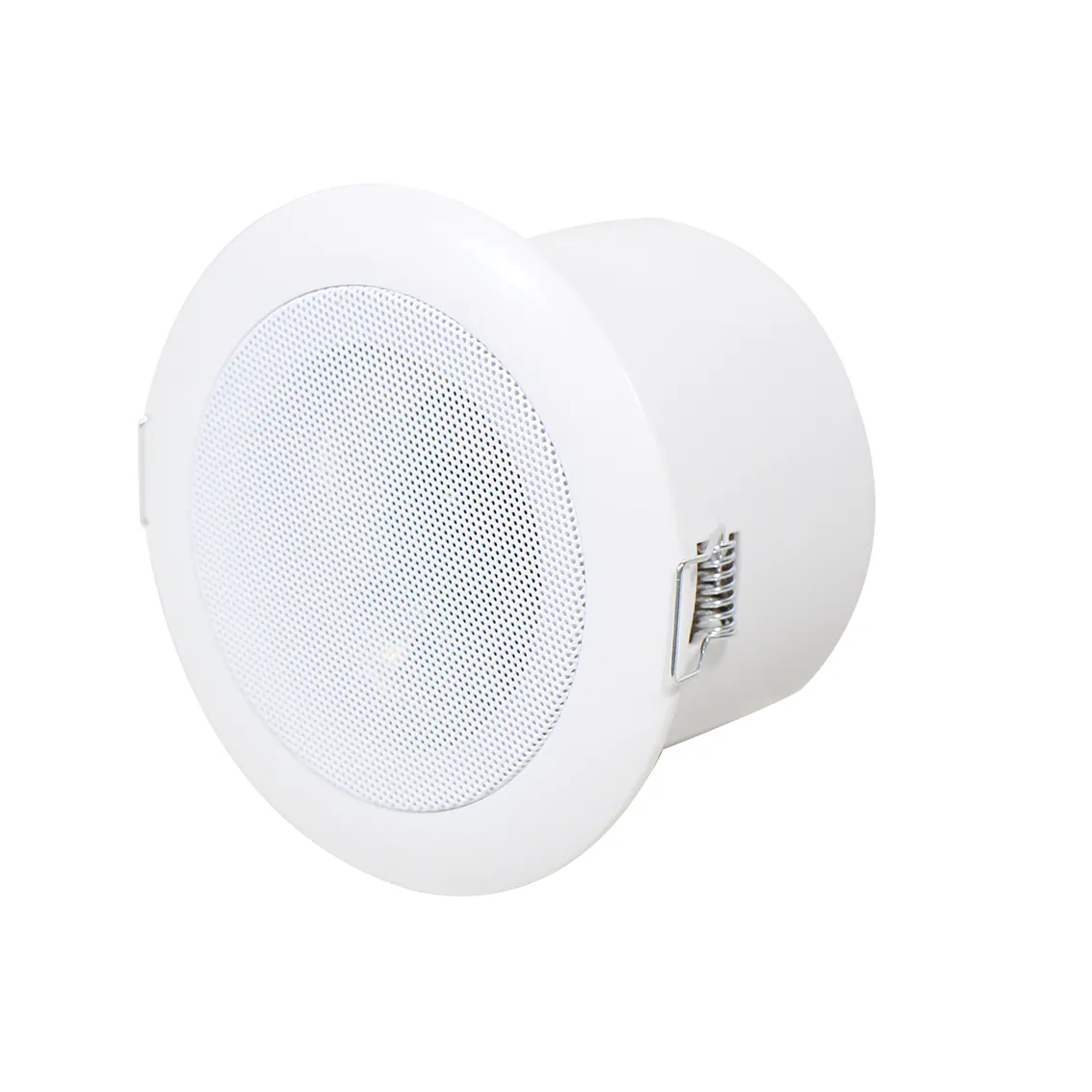

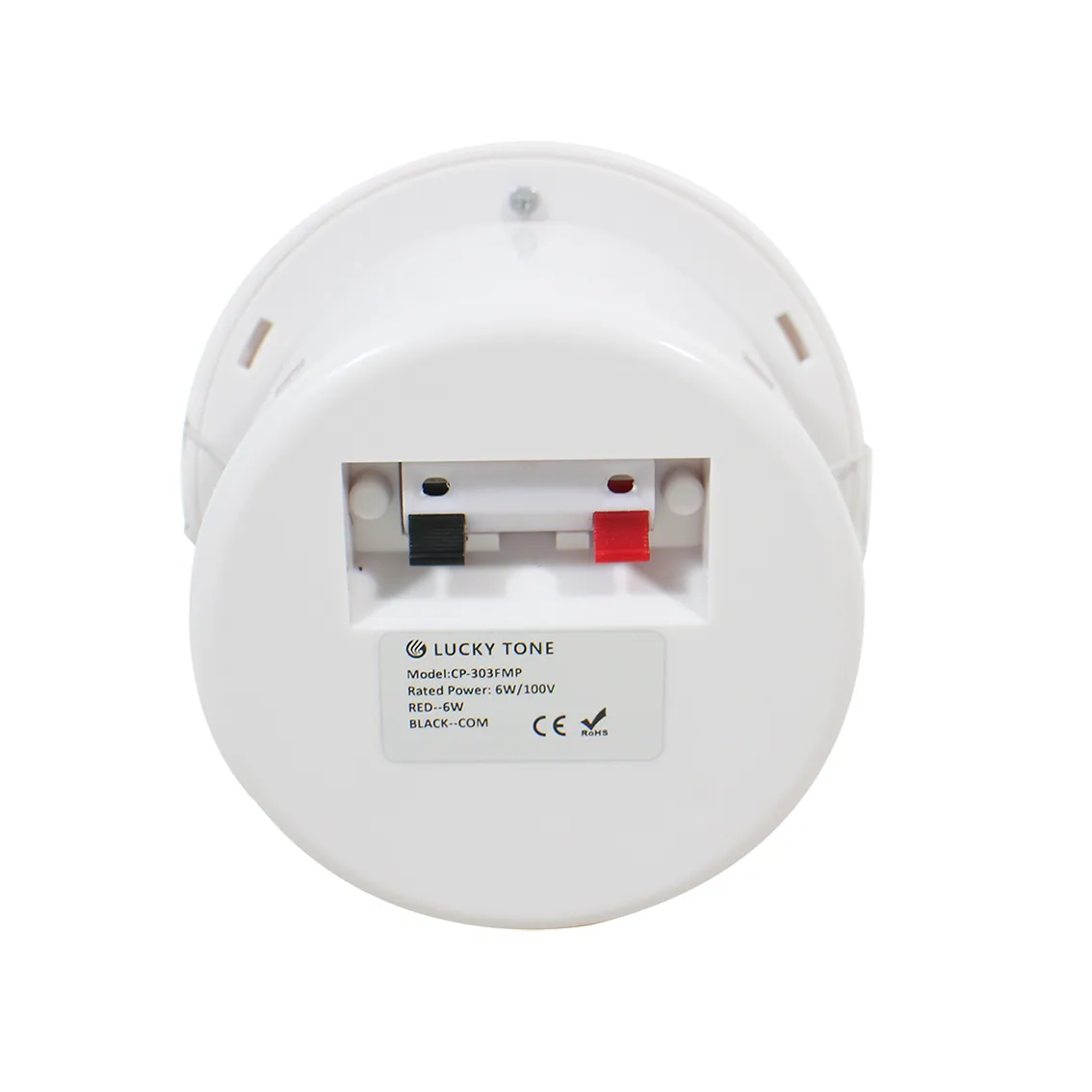

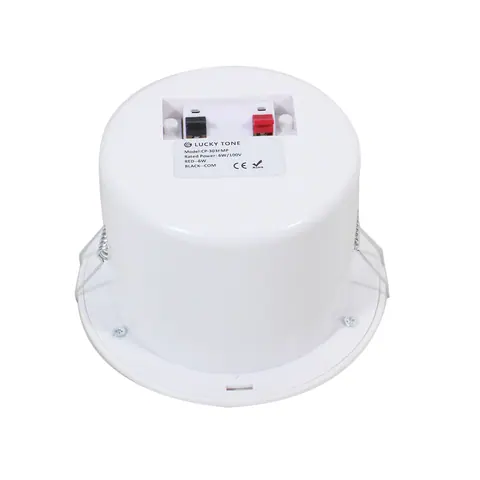

3″ ABS Ceiling Speaker

ModelCP-303FM

With clear acoustic performance for music and voice

Frequency response: 100Hz-16KHz

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 14 values

What this product is, in numbers.

PDFSpecifications1.1 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

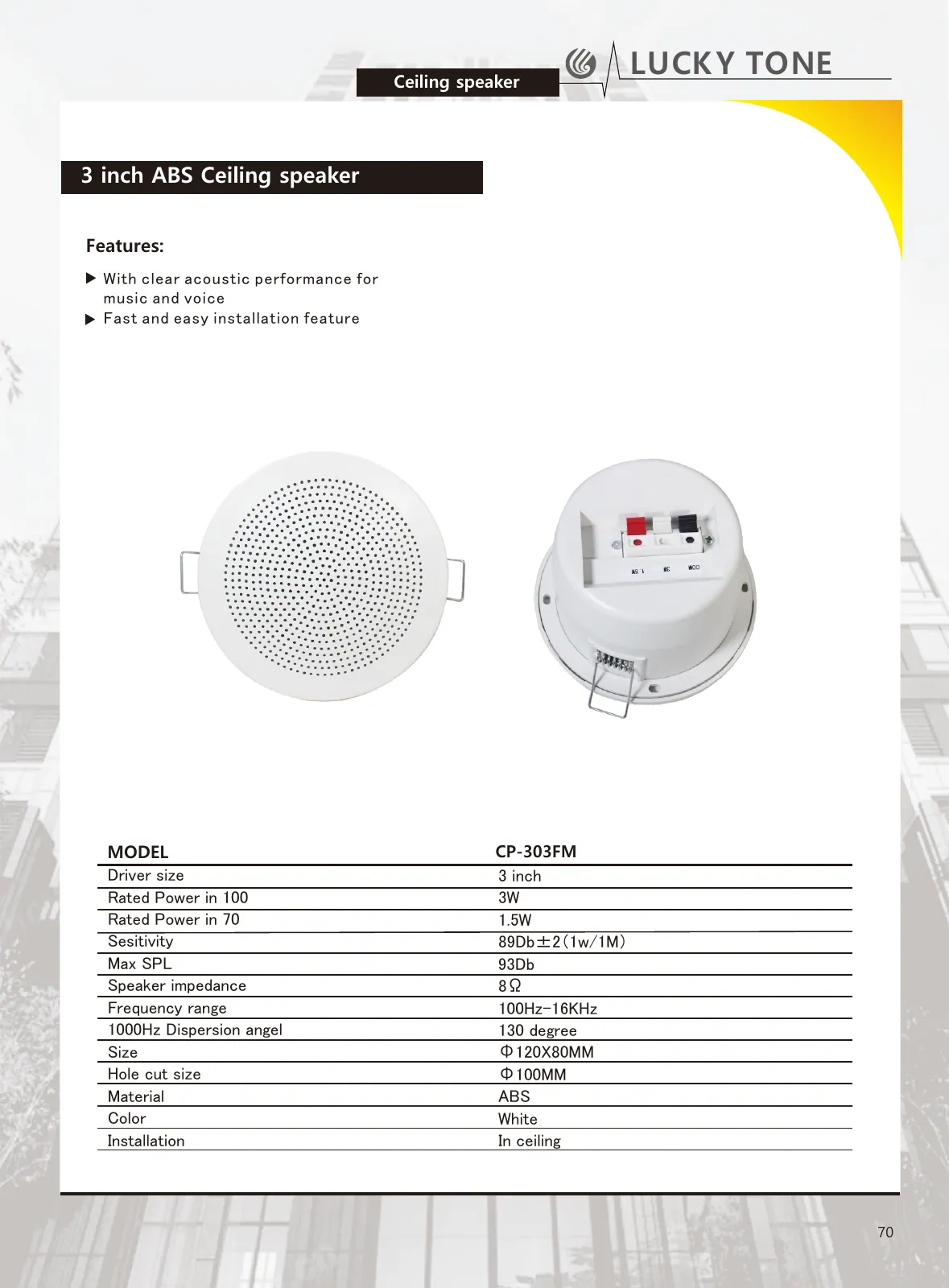

01Specifications14

MODEL: CP-303FM
Driver size: 3 inch
Rated Power in 100: 3W
Rated Power in 70: 1.5W
Sesitivity: 89Db±2(1w/1M
Max SPL: 93dB
Speaker impedance: 8Ω
Frequency range: 100Hz-16KHz
1000Hz Dispersion angel: 130 degree
Size: Φ120X80MM
Hole cut size: Φ100MM
Material: ABS
Color: White
Installation: In ceiling

02DescriptionManufacturer's description

What it is.

Ceiling speaker for wet area application
Fast and easy installation feature
With standard and wet proof versions

03Documents1 file · 1.1 MB

Documents and files.

Main document

Specifications

PDF · 1.1 MB

Download specifications
