Sheet 05.93
Lucky Tone · Loudspeakers

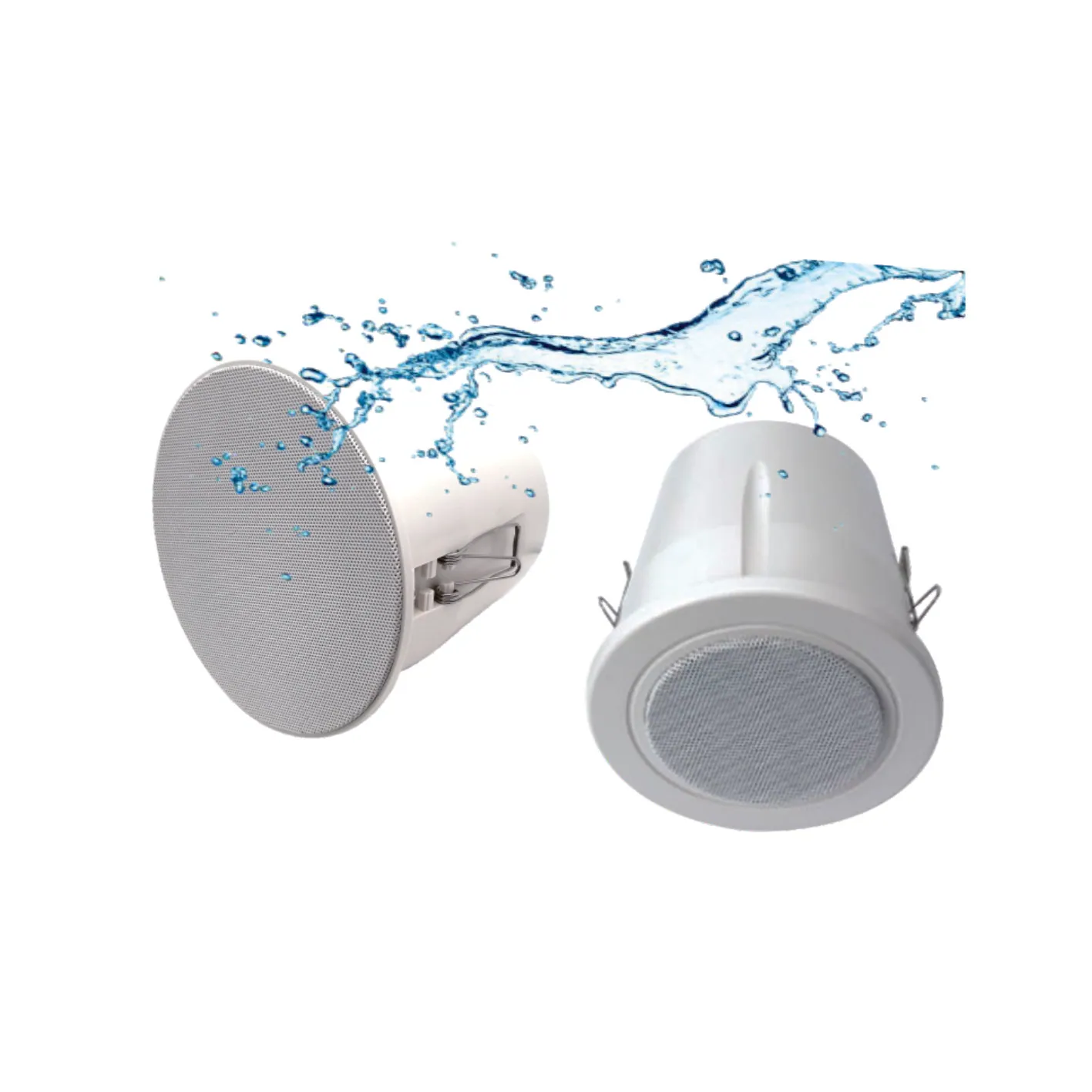

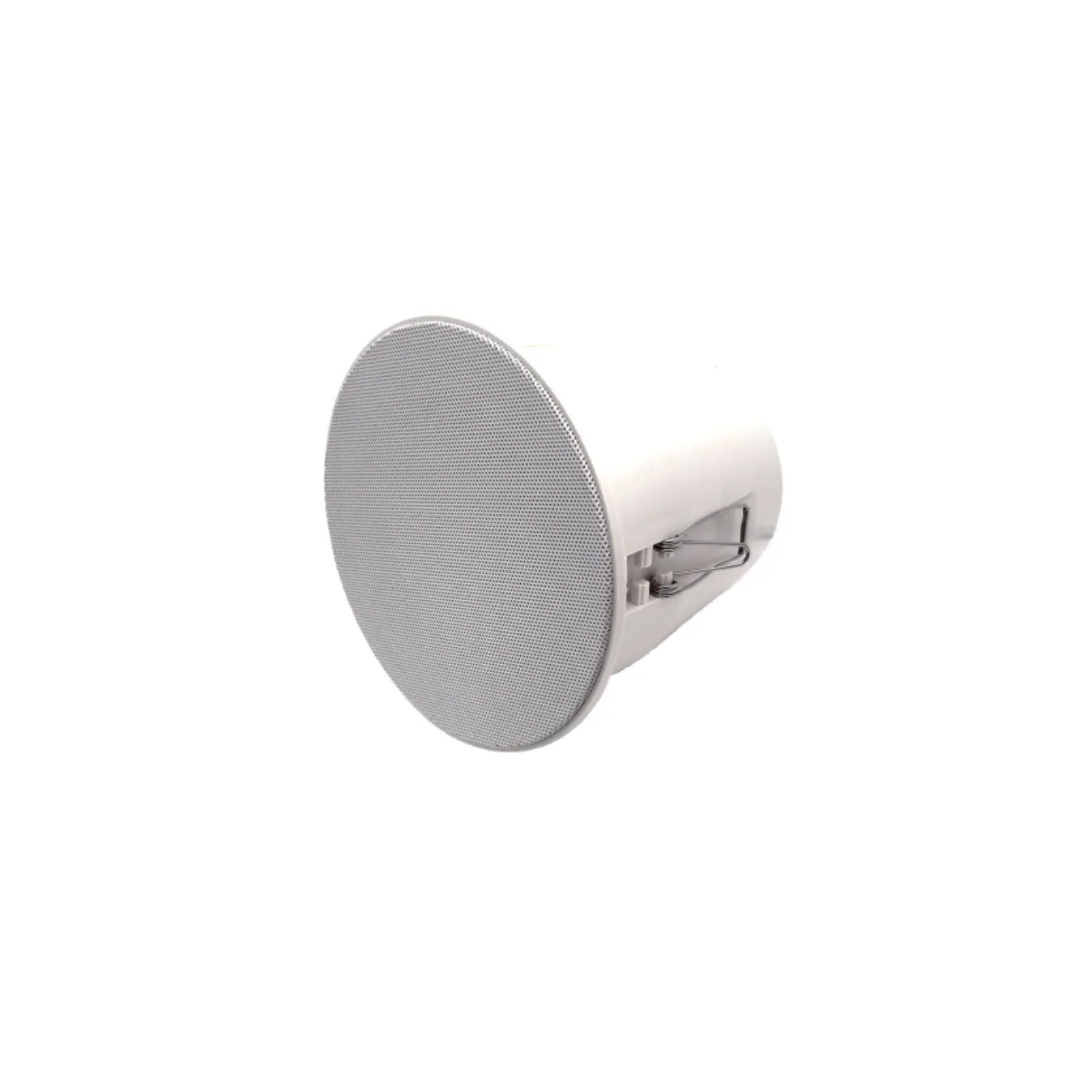

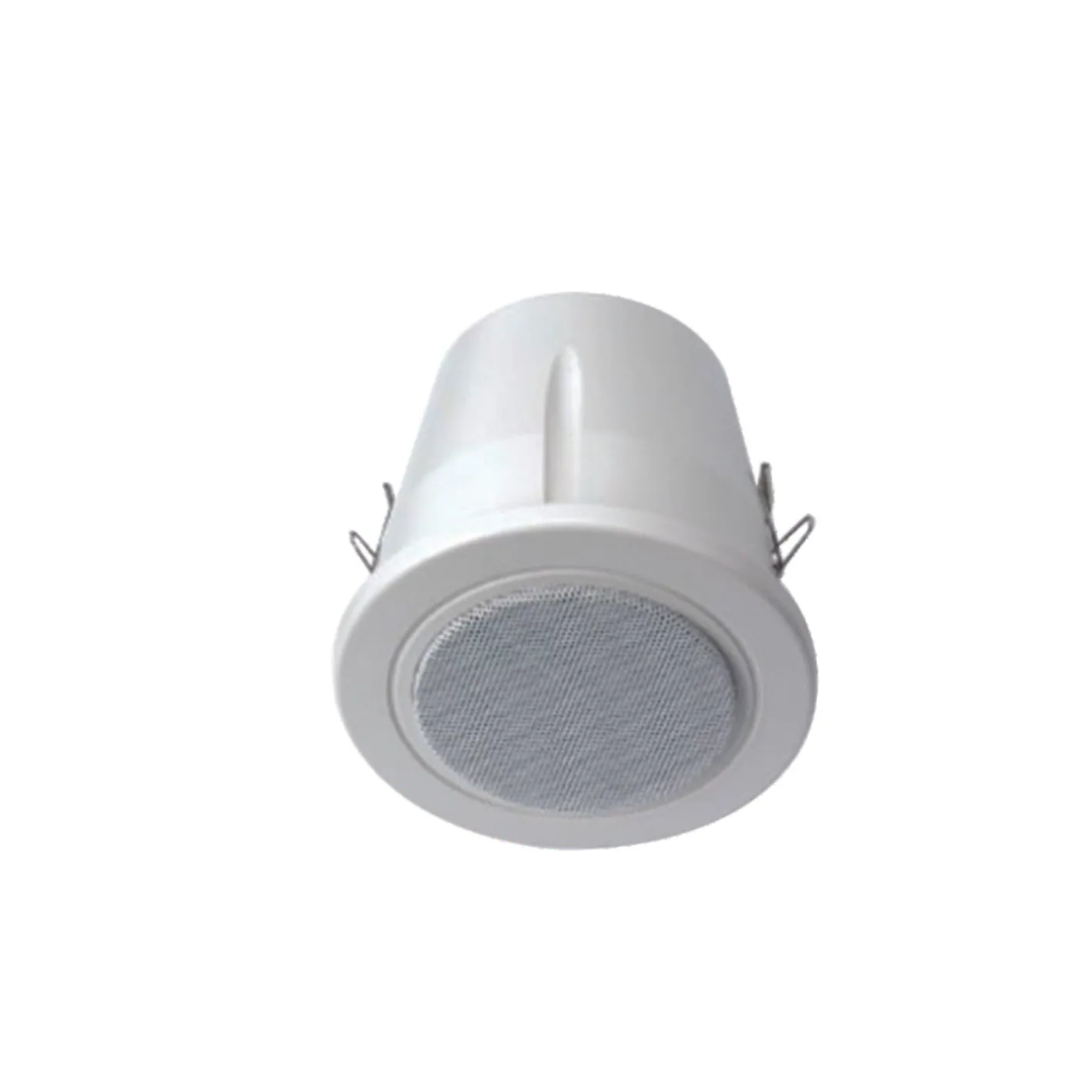

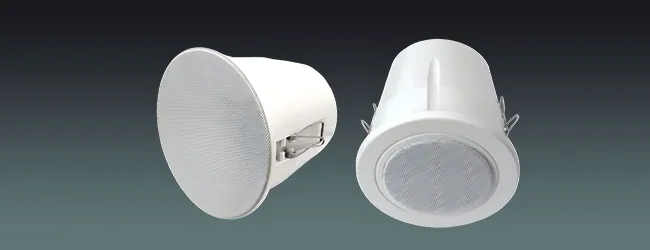

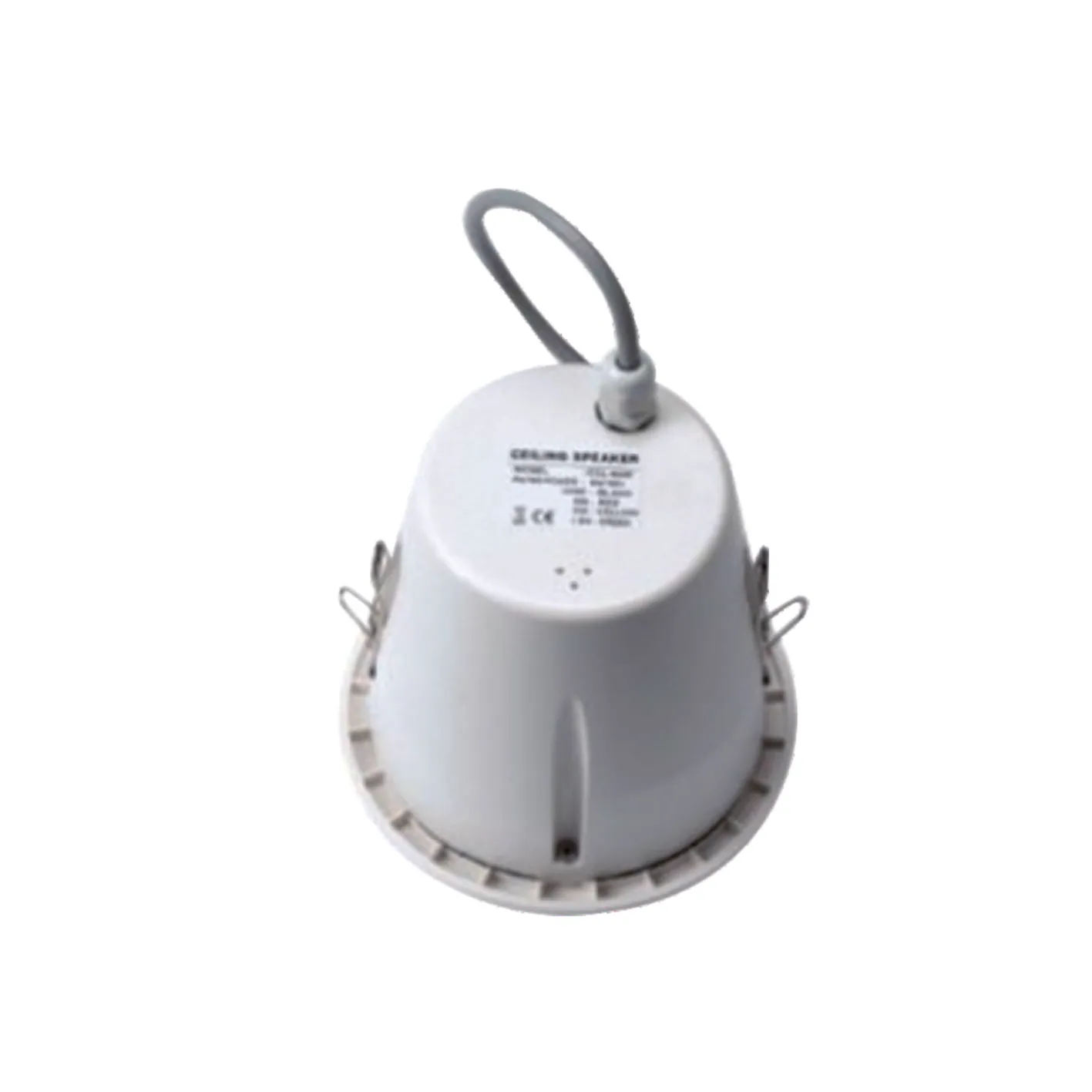

4-Inch Ceiling Speaker
ModelCP-406WP/CP-406WPL
Features
- Output power
- 6W
- Frequency response
- 150-18KHz
- Dimensions
- Dia140x130mm
- Weight
- 0.86kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
4-Inch Ceiling SpeakerPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 10 values
What this product is, in numbers.

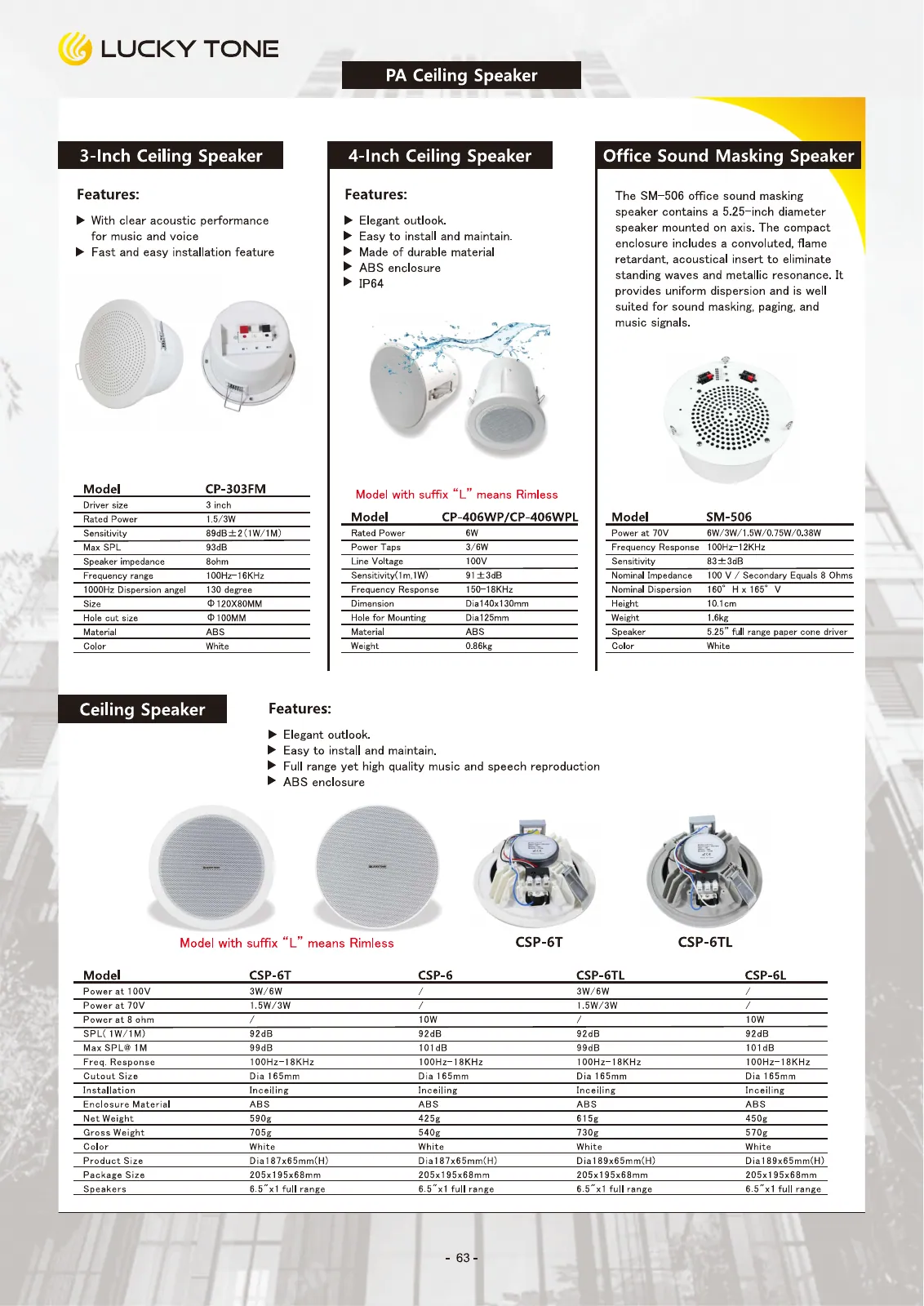

PDFSpecifications1.1 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications10
- Model
- CP-406WP/CP-406WPL
- Rated Power
- 6W
- Power Taps
- 3/6W
- Line Voltage
- 100V
- Sensitivity(1m,1W)
- 91±3dB
- Frequency Response
- 150-18KHz
- Dimension
- Dia140x130mm
- Hole for Mounting
- Dia125mm
- Material
- ABS
- Weight
- 0.86kg
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
- Elegant outlook.
- Easy to install and maintain.
- Made of durable material
ABS enclosure
IP64
