Sheet 05.95
Lucky Tone · Loudspeakers

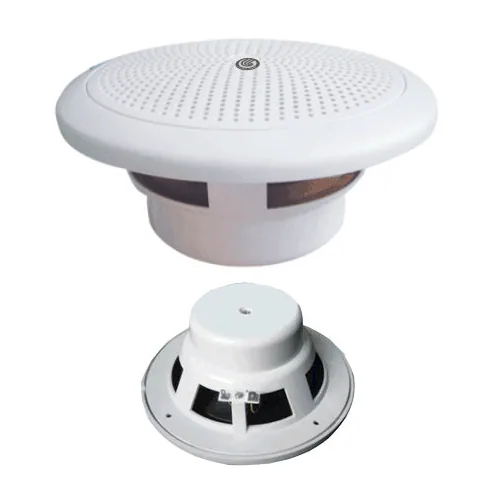

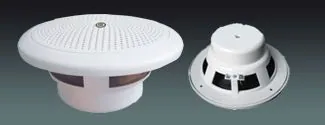

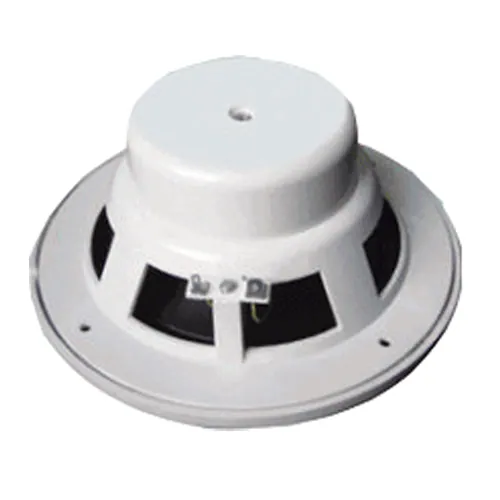

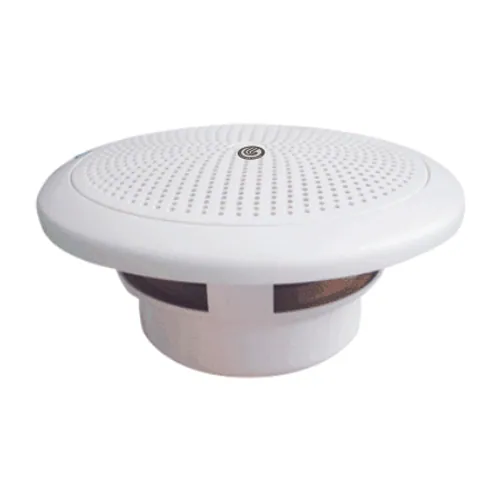

4″ Marine Ceiling Speaker
ModelCP-420
● Water and corrosion proof for outdoor and marine
- Weight
- 0.5Kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
4″ Marine Ceiling SpeakerPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 13 values
What this product is, in numbers.

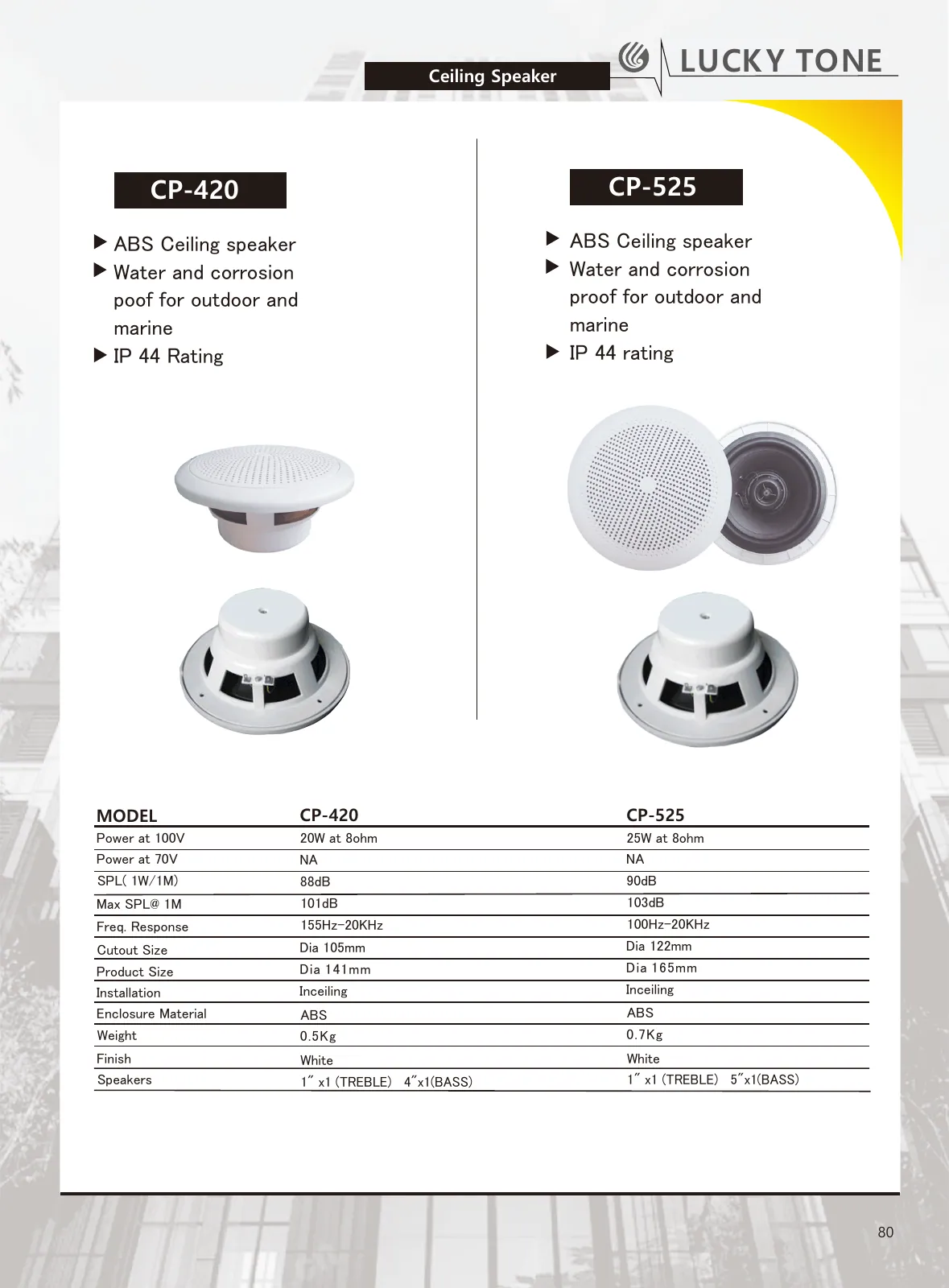

PDFSpecifications1.0 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications13
- MODEL
- CP-420
- Power at 100V
- 20W at 8Ohm
- Power at 70V
- N/A
- SPL (1W/1M)
- 88dB
- Max SPL@1M
- 101dB
- Freq.Response
- 155Hz-20KHz
- Cutout Size
- Dia 105mm
- Product Size
- Dia 141mm
- Installation
- Inceiling
- Enclosure Material
- ABS
- Weight
- 0.5Kg
- Finish
- White
- Speakers
- 1″ x 1 (TREBLE) 4″ x 1 (BASS)
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
● ABS ceiling speaker
● IP44 rating
03Documents1 file · 1.0 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
