Sheet 05.94
Lucky Tone · Loudspeakers

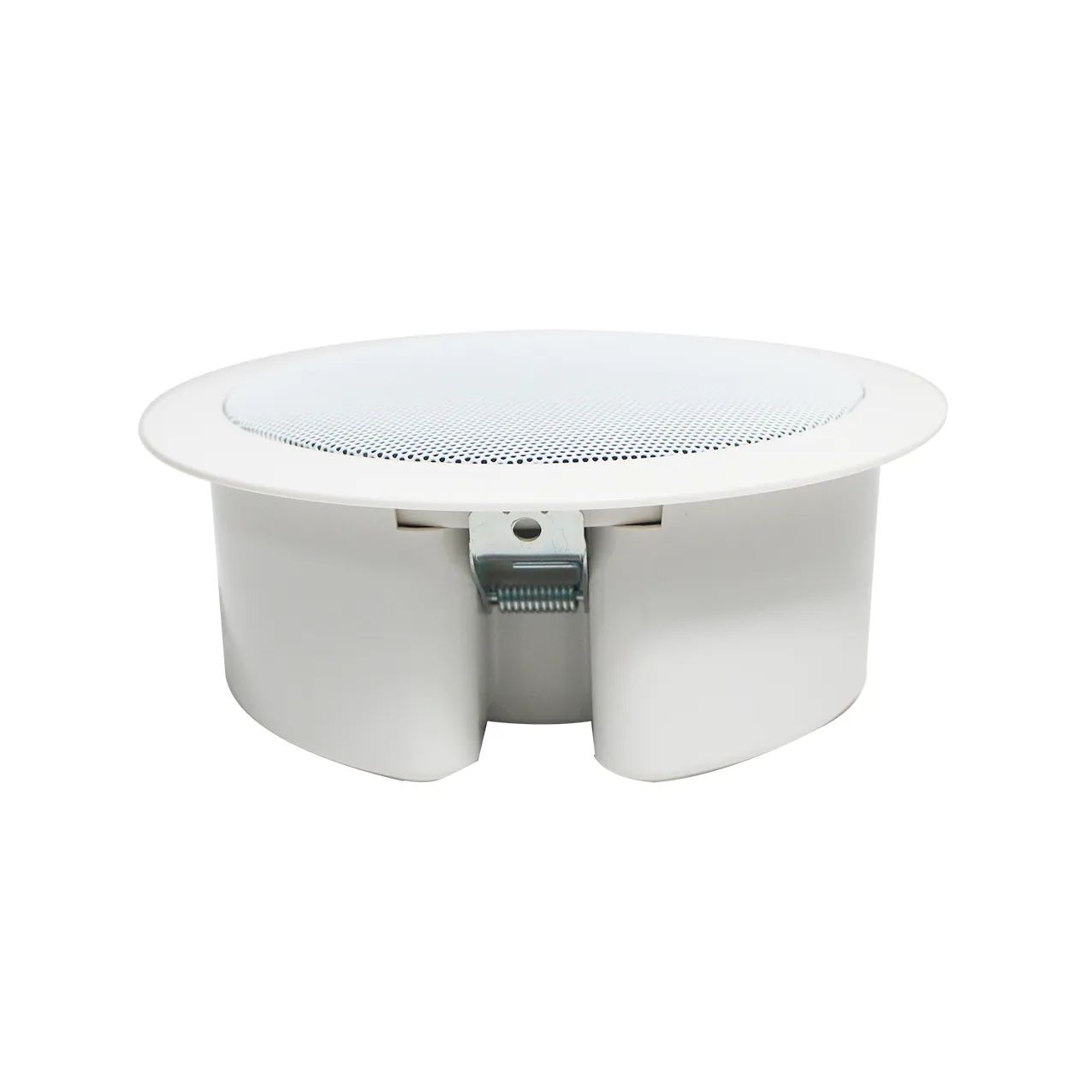

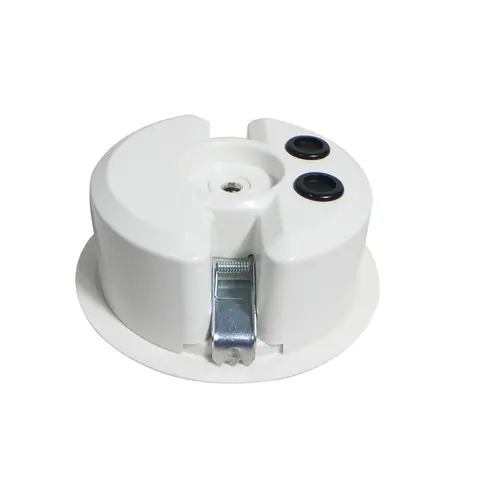

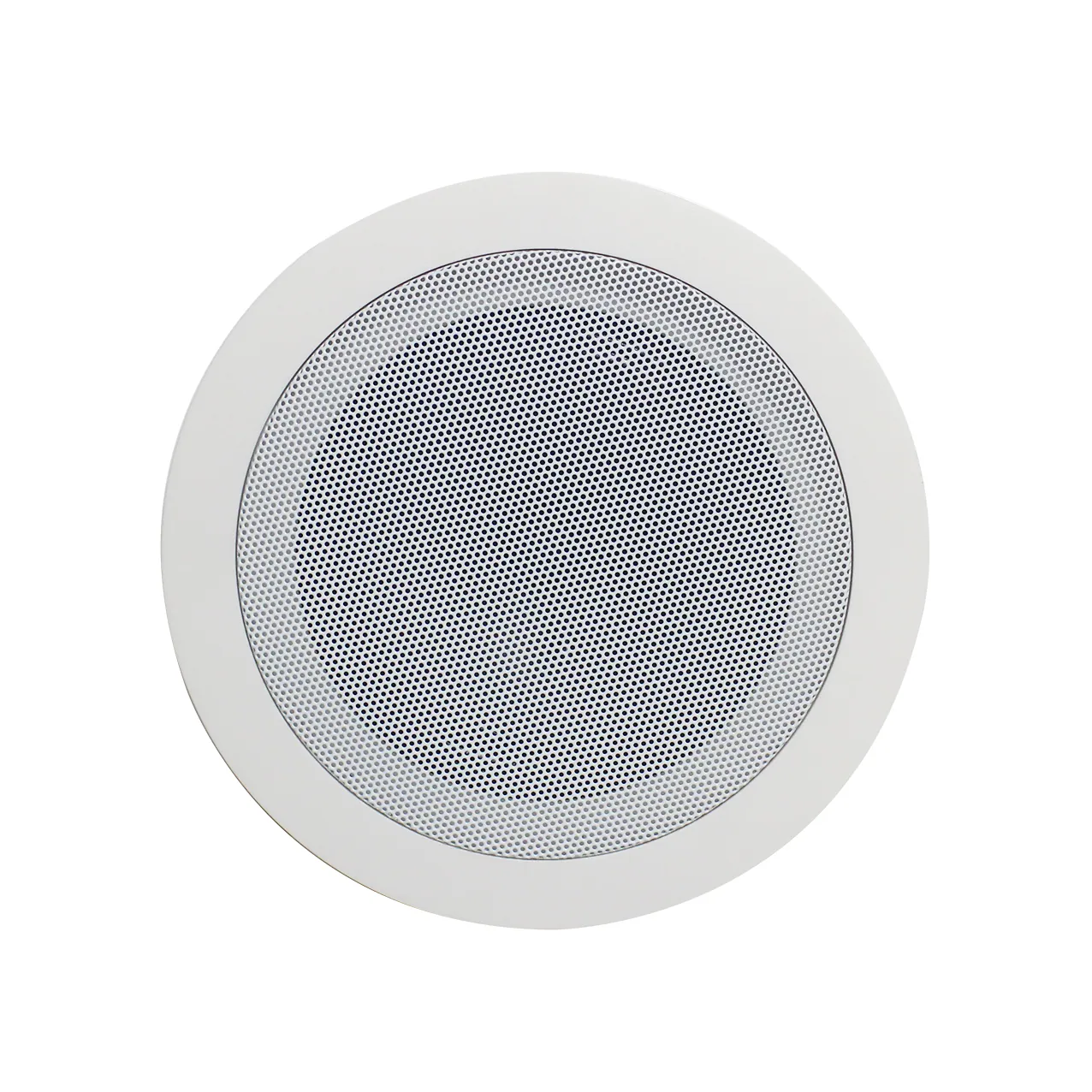

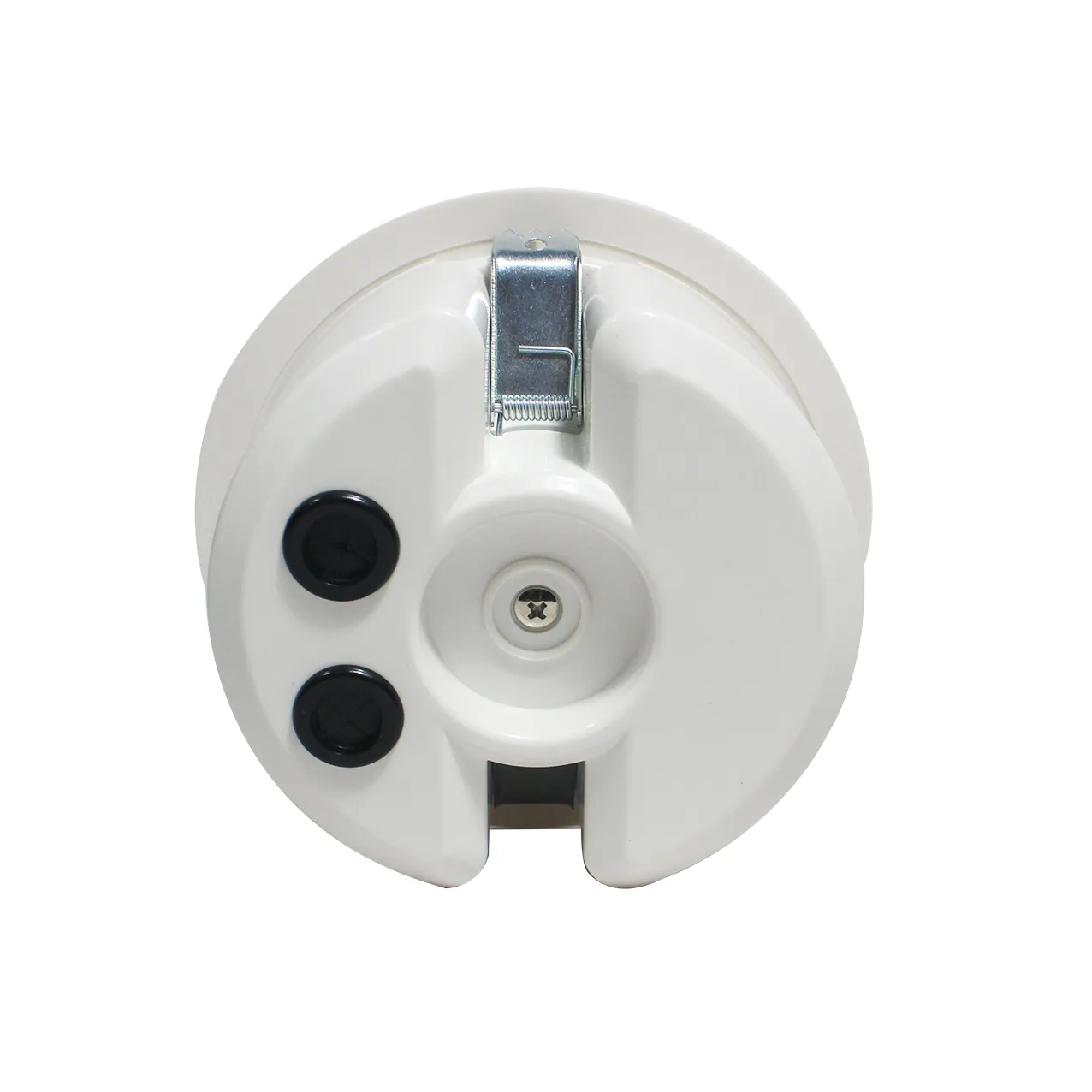

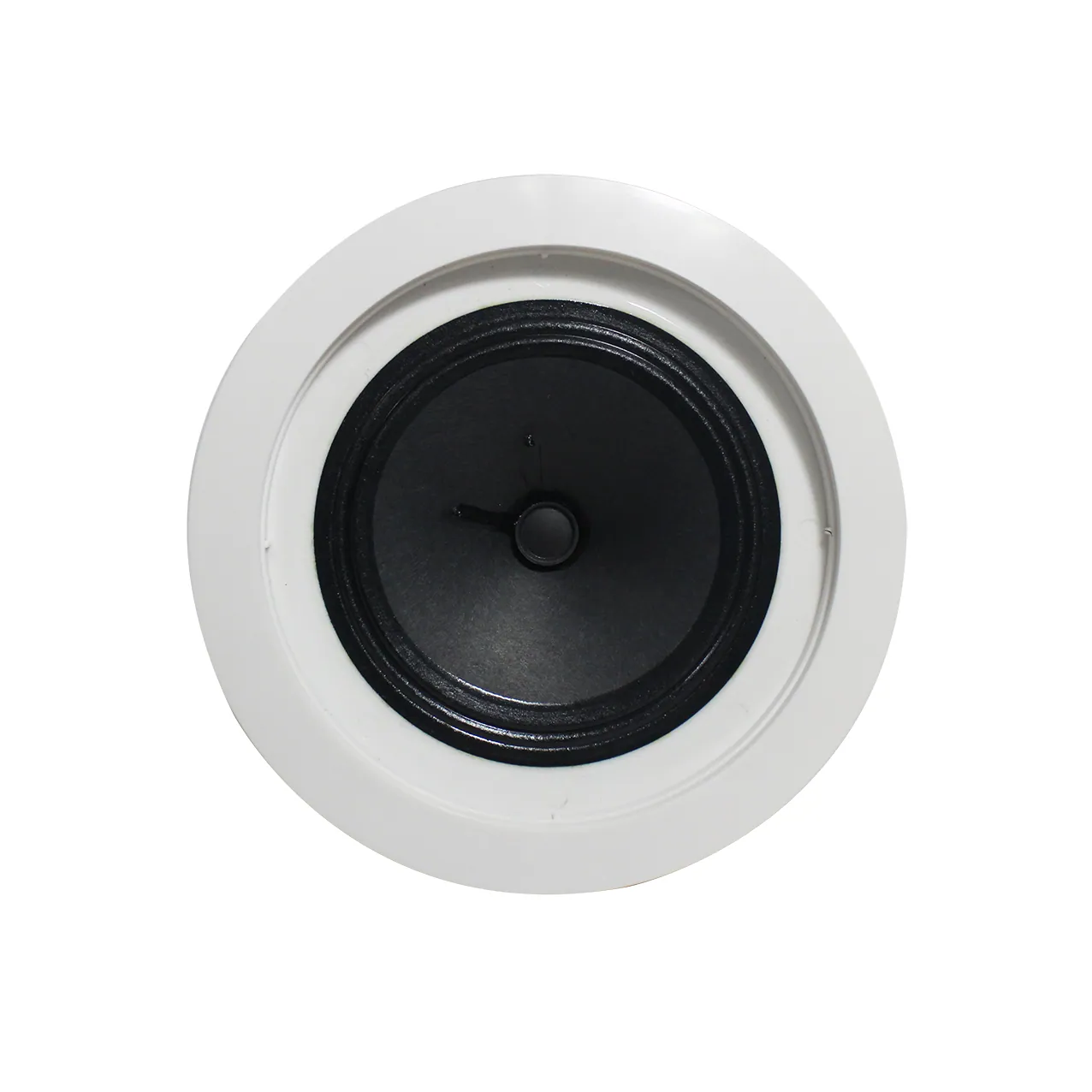

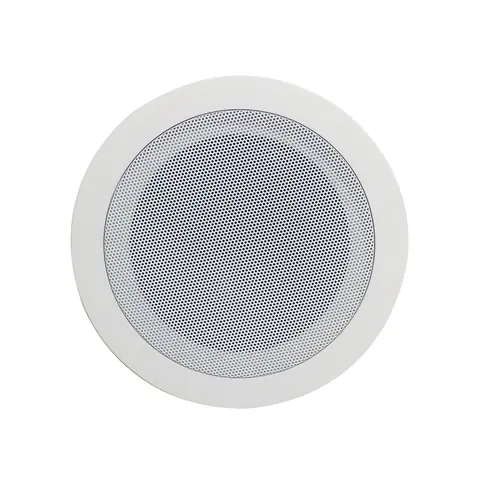

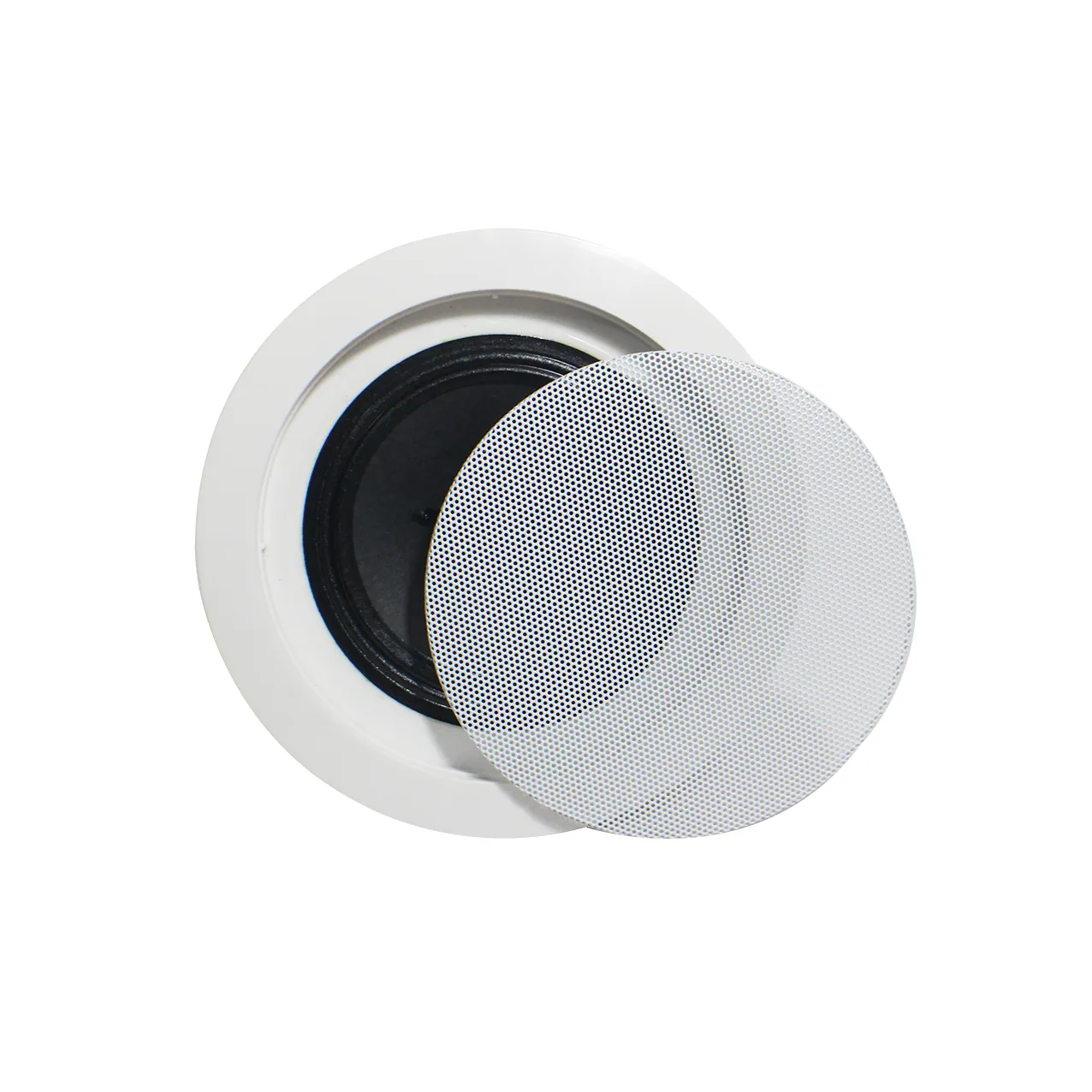

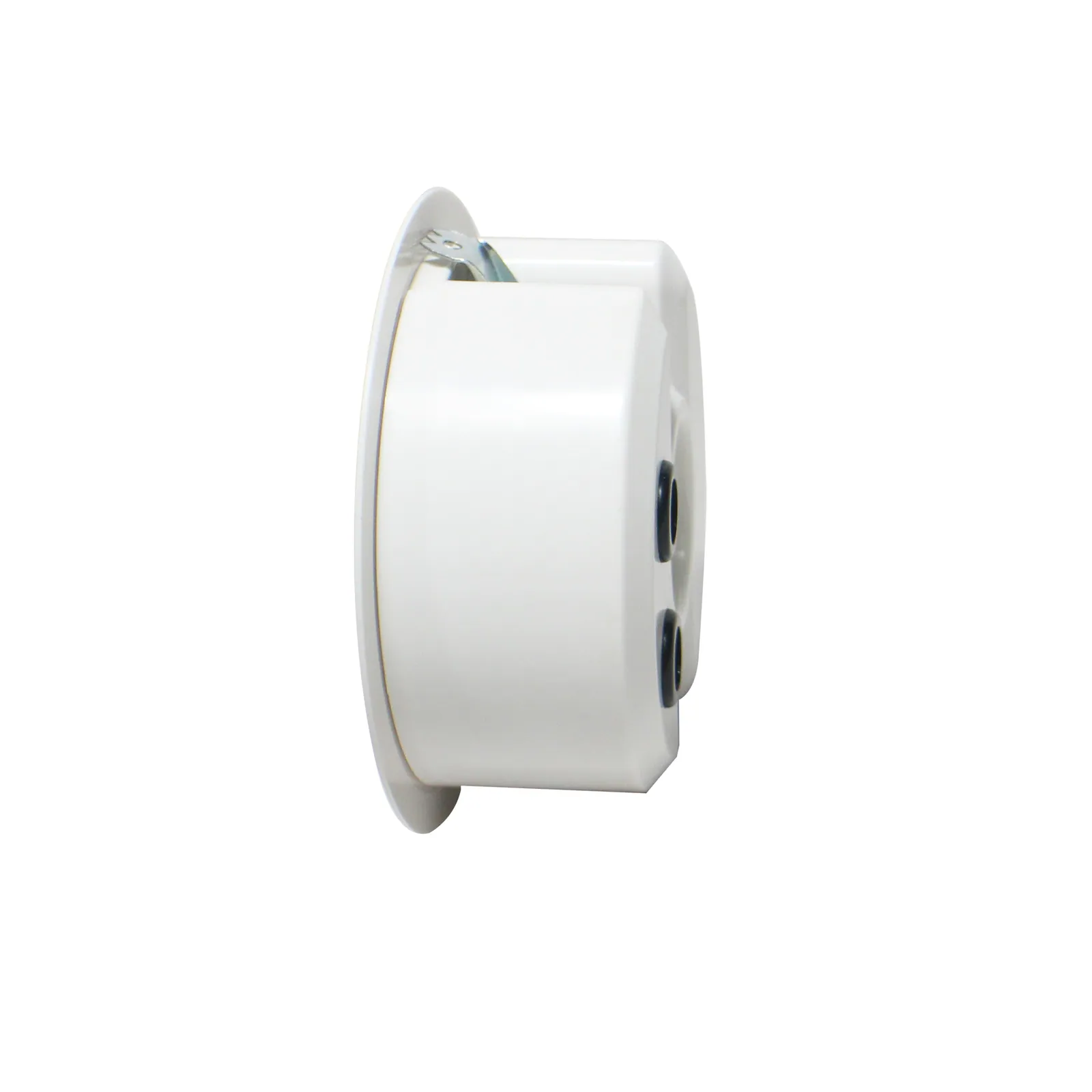

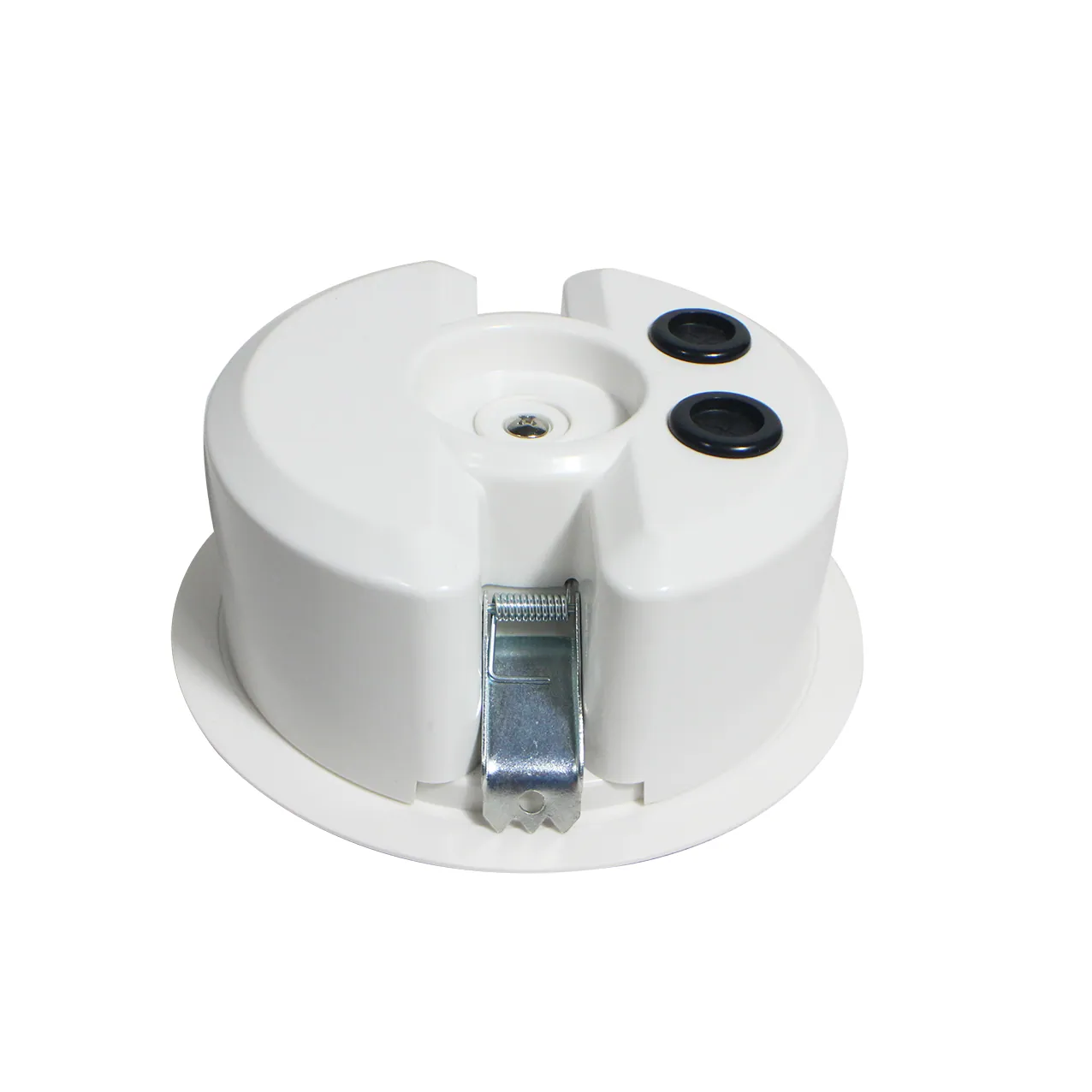

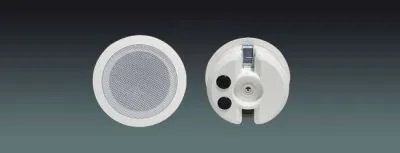

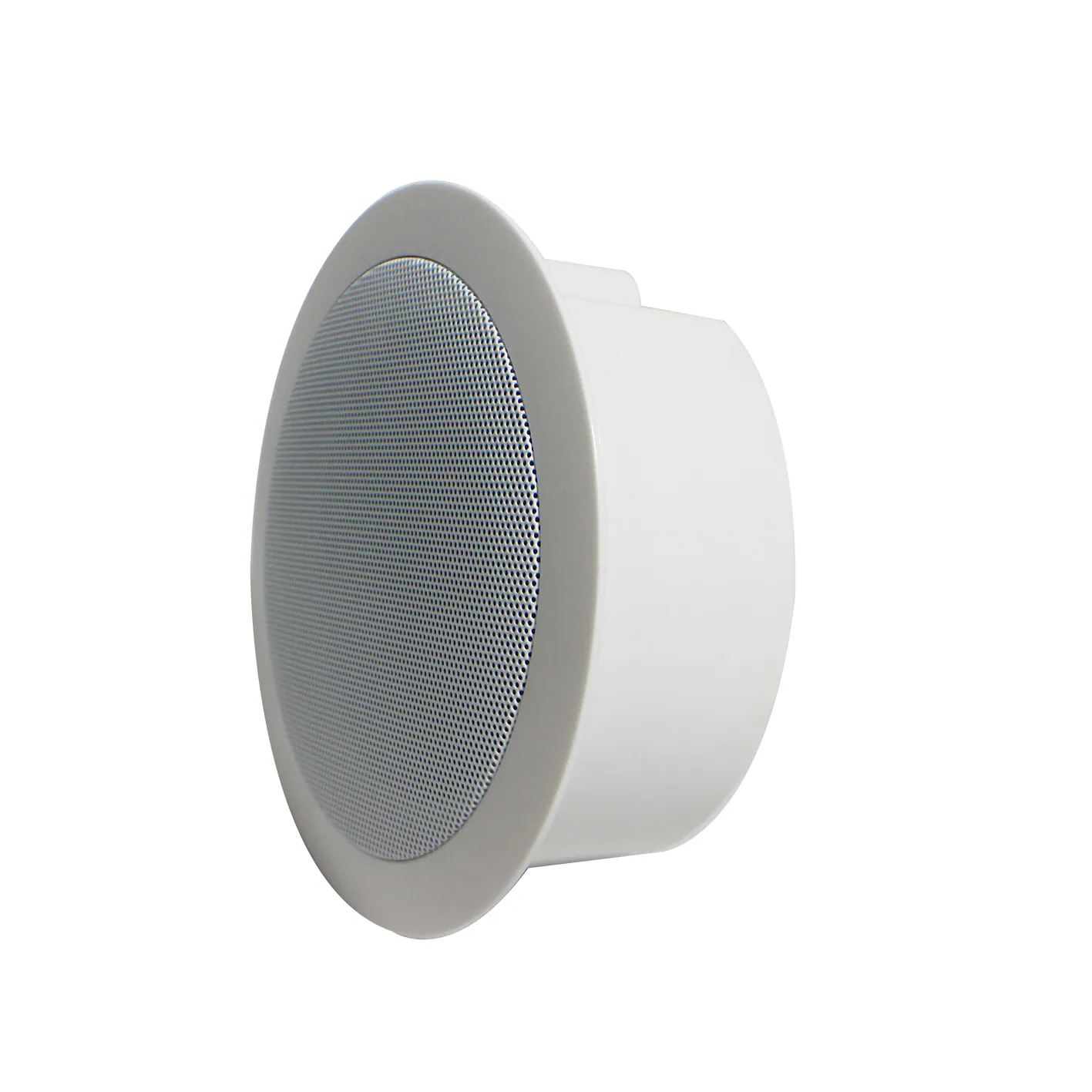

4.5″ Ceiling speaker
ModelCP-506IH
- Frequency response
- 105Hz-18KHz
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
4.5″ Ceiling speakerPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 14 values
What this product is, in numbers.
PDFSpecifications3.8 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications14
- MODEL
- CP-506IH
- Driver size
- 4.5 inch
- Rated Power in 100
- 6W/3W
- Rated Power in 70
- 3W/1.5W
- Sesitivity
- 90Db±2(1w/1M)
- Max SPL
- 96dB
- Speaker impedance
- 8Ω
- Frequency range
- 105Hz-18KHz
- 1000Hz Dispersion angel
- 145 degree
- Size
- Φ174X87MM
- Hole cut size
- Φ148MM
- Material
- ABS
- Color
- White
- Installation
- In ceiling
Show the full specificationHide the rest of the specification0 more groups · 0 values
02Documents1 file · 3.8 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
