Sheet 05.201
Lucky Tone · Loudspeakers

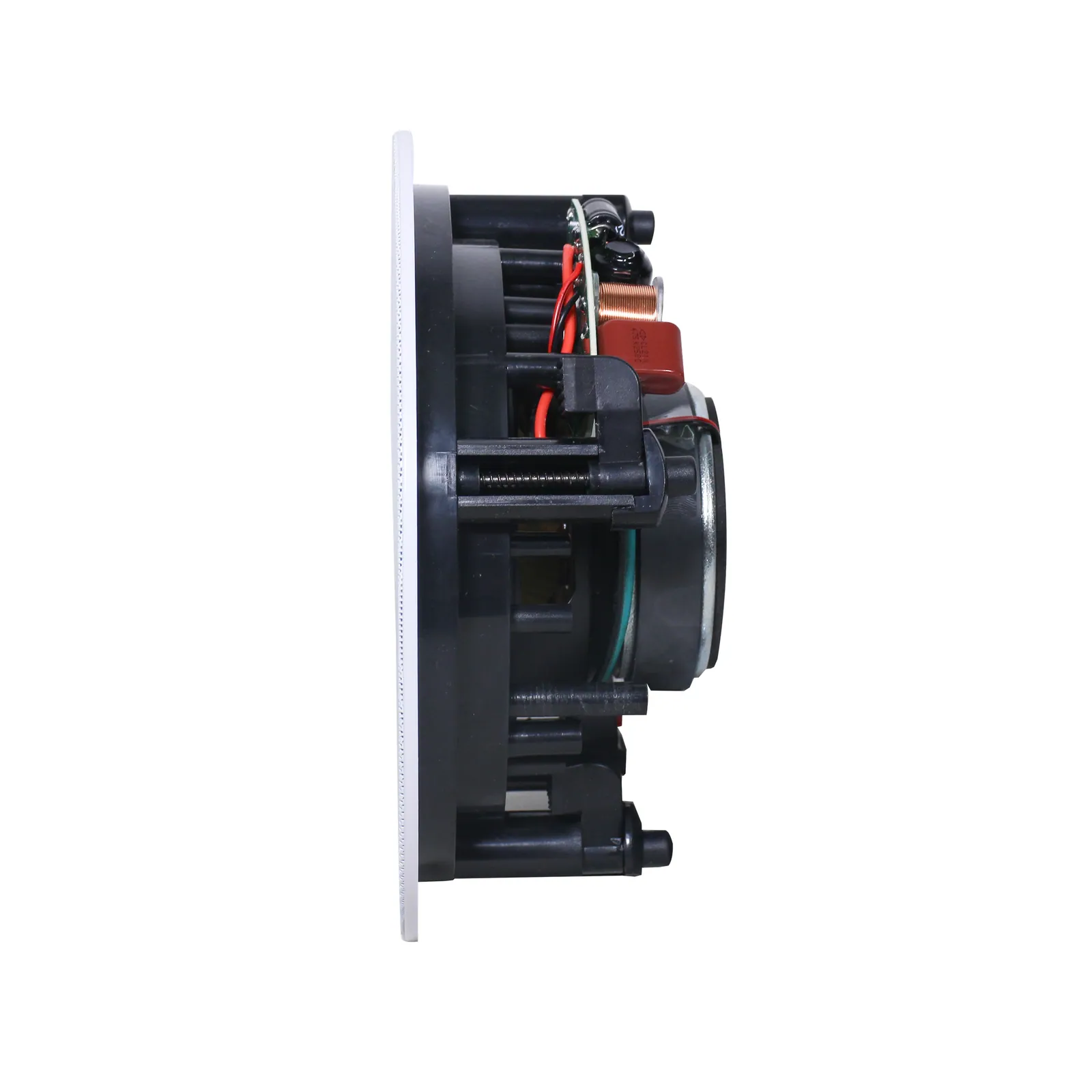

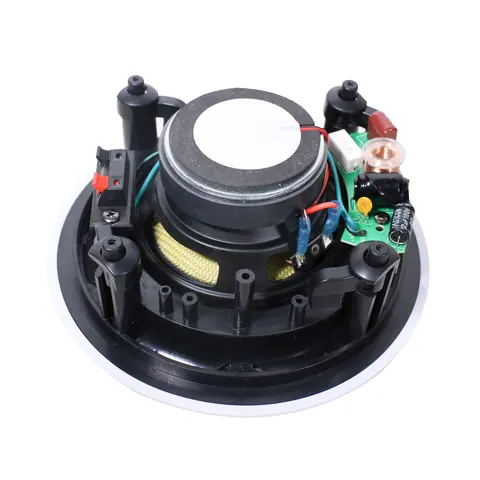

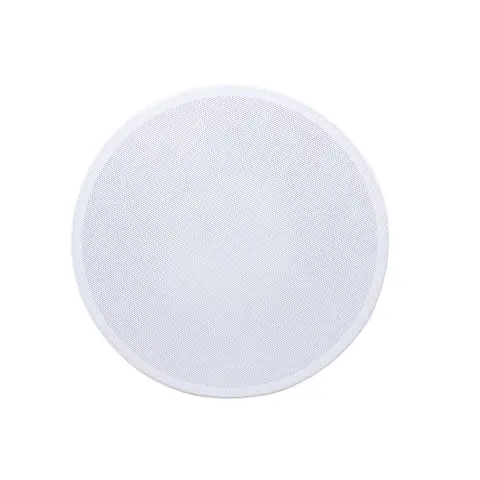

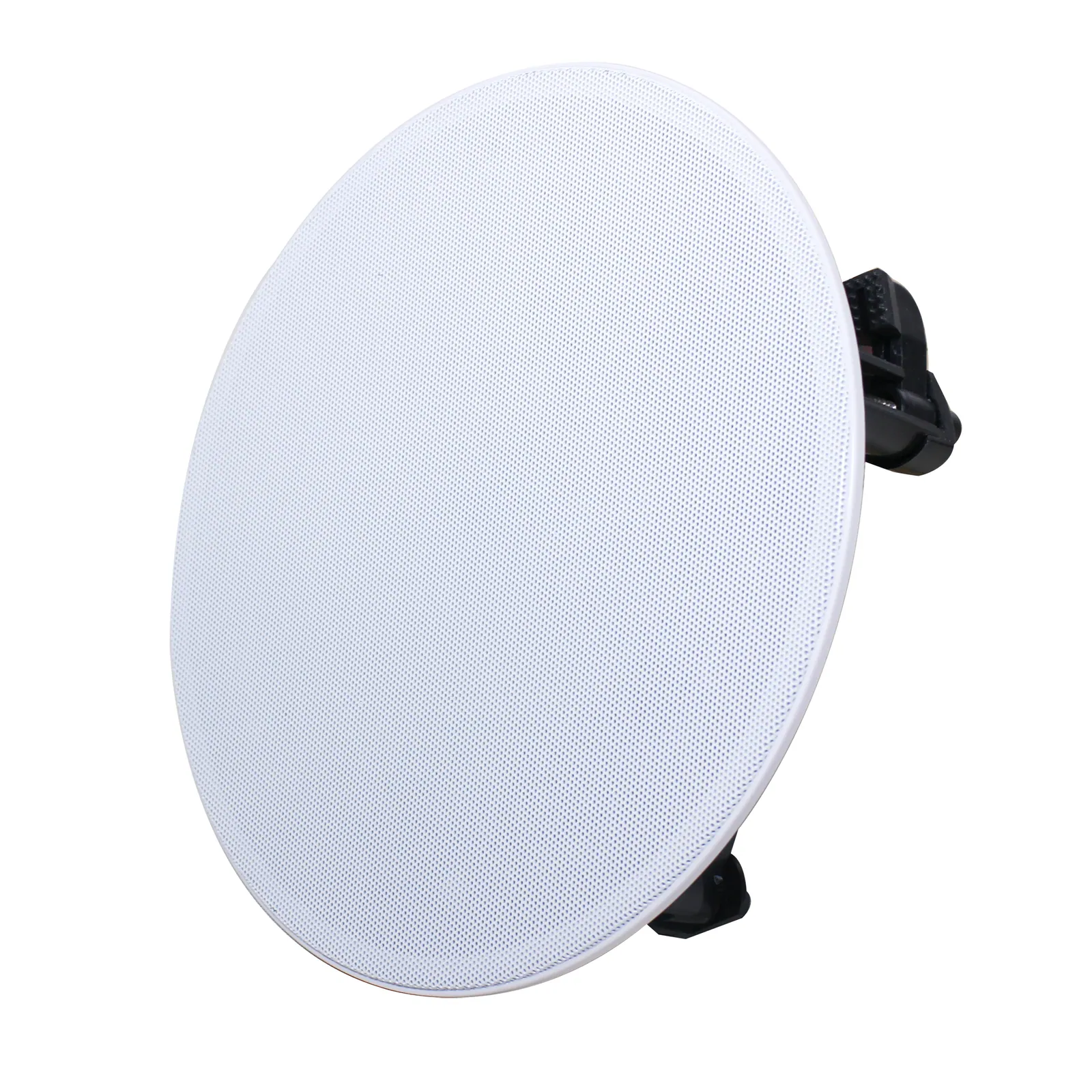

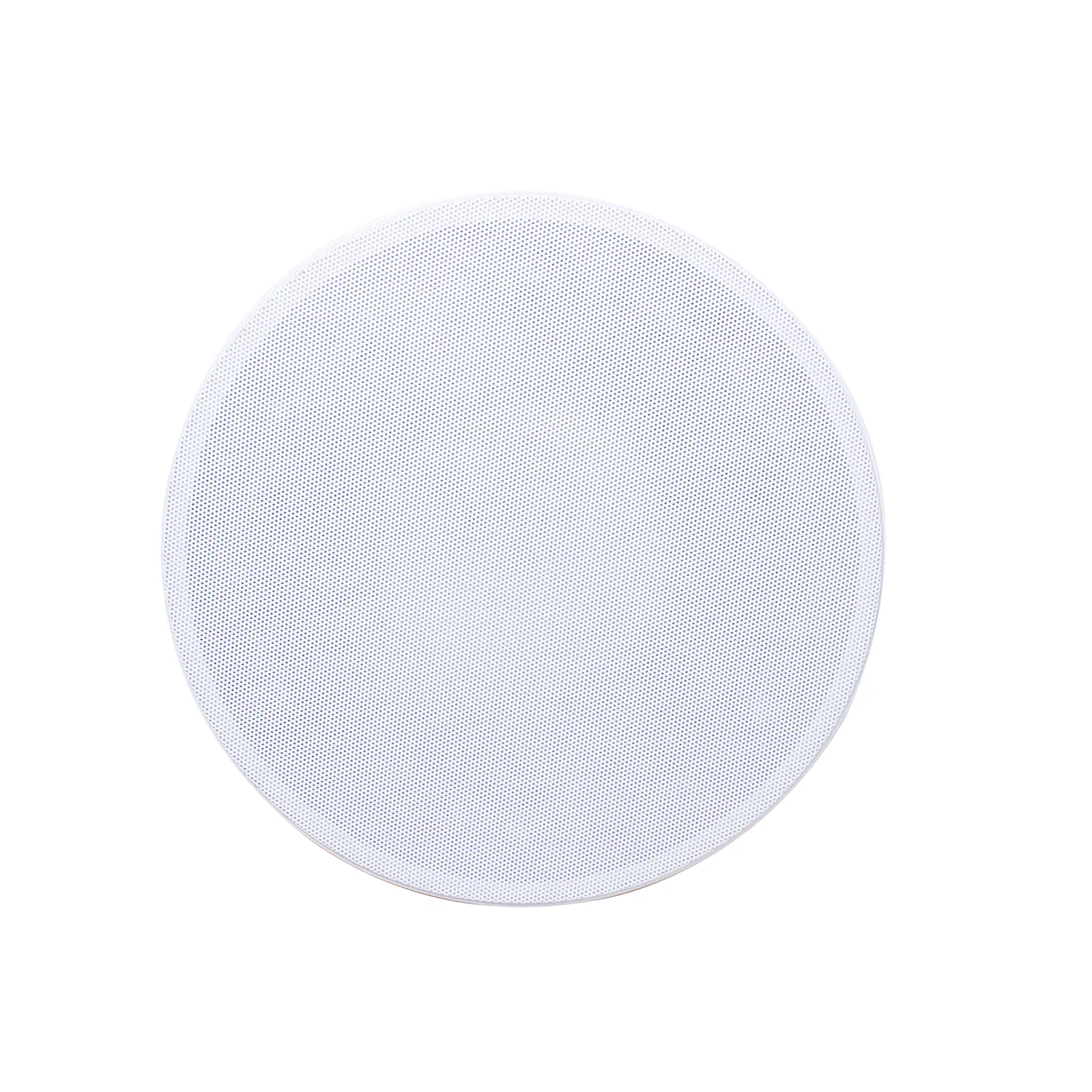

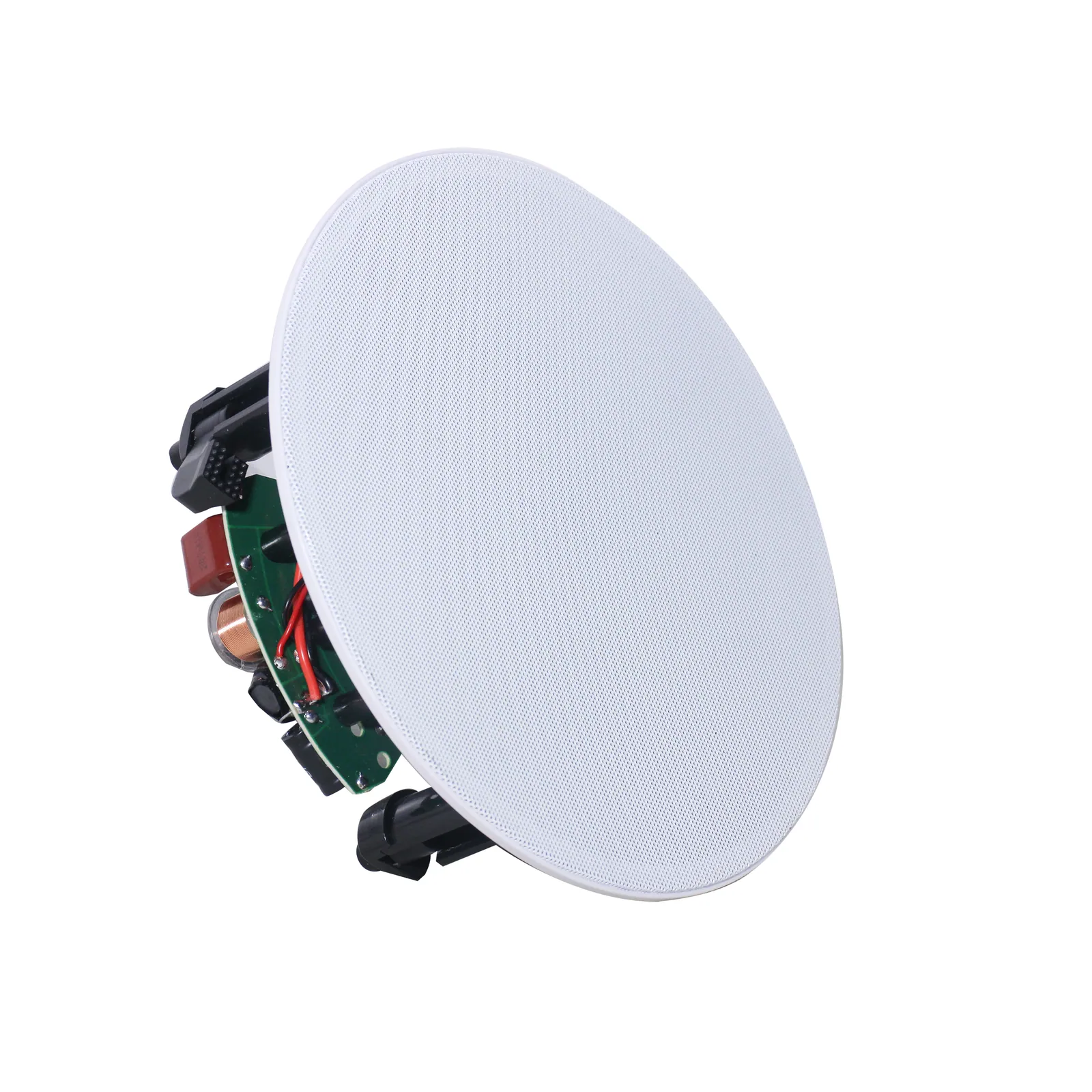

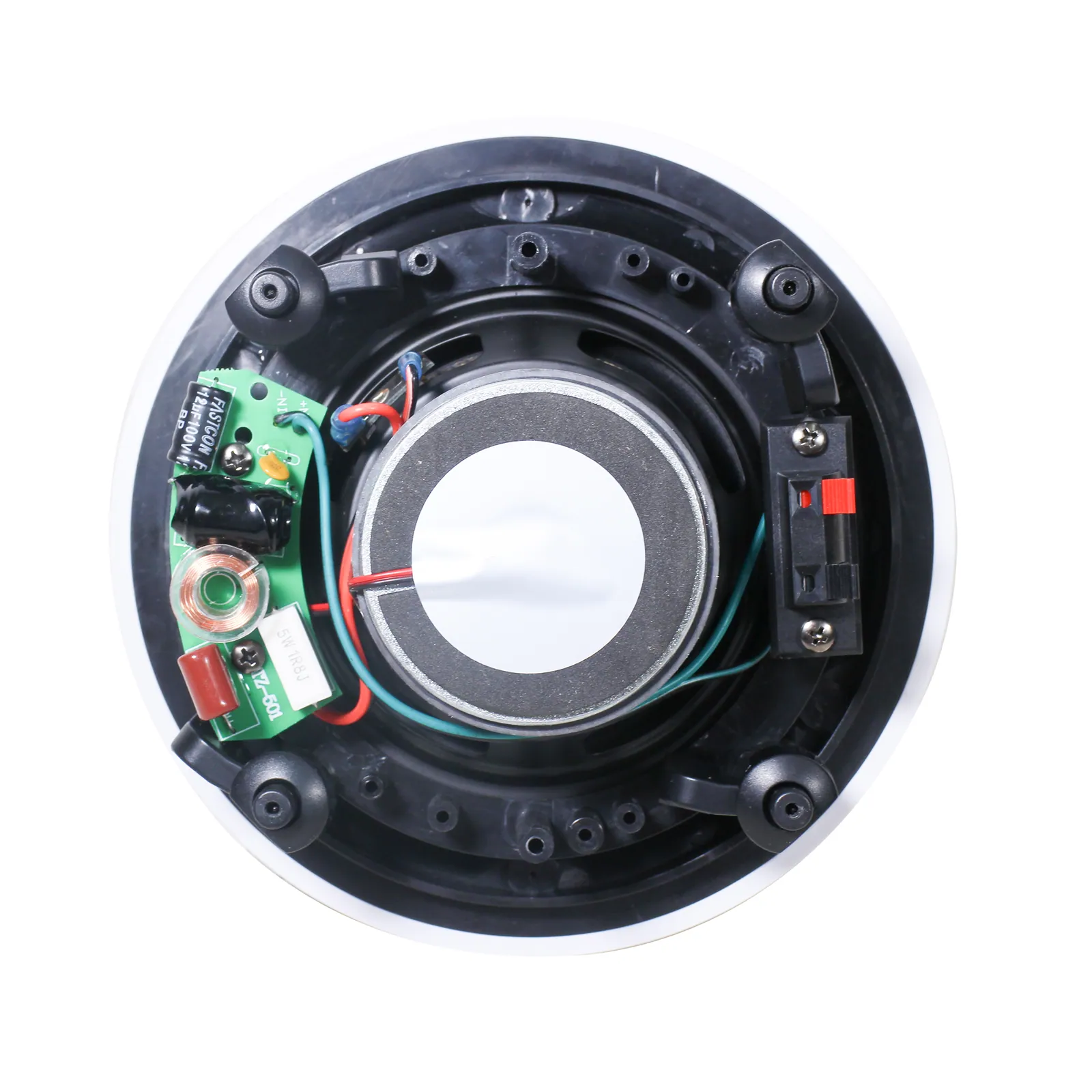

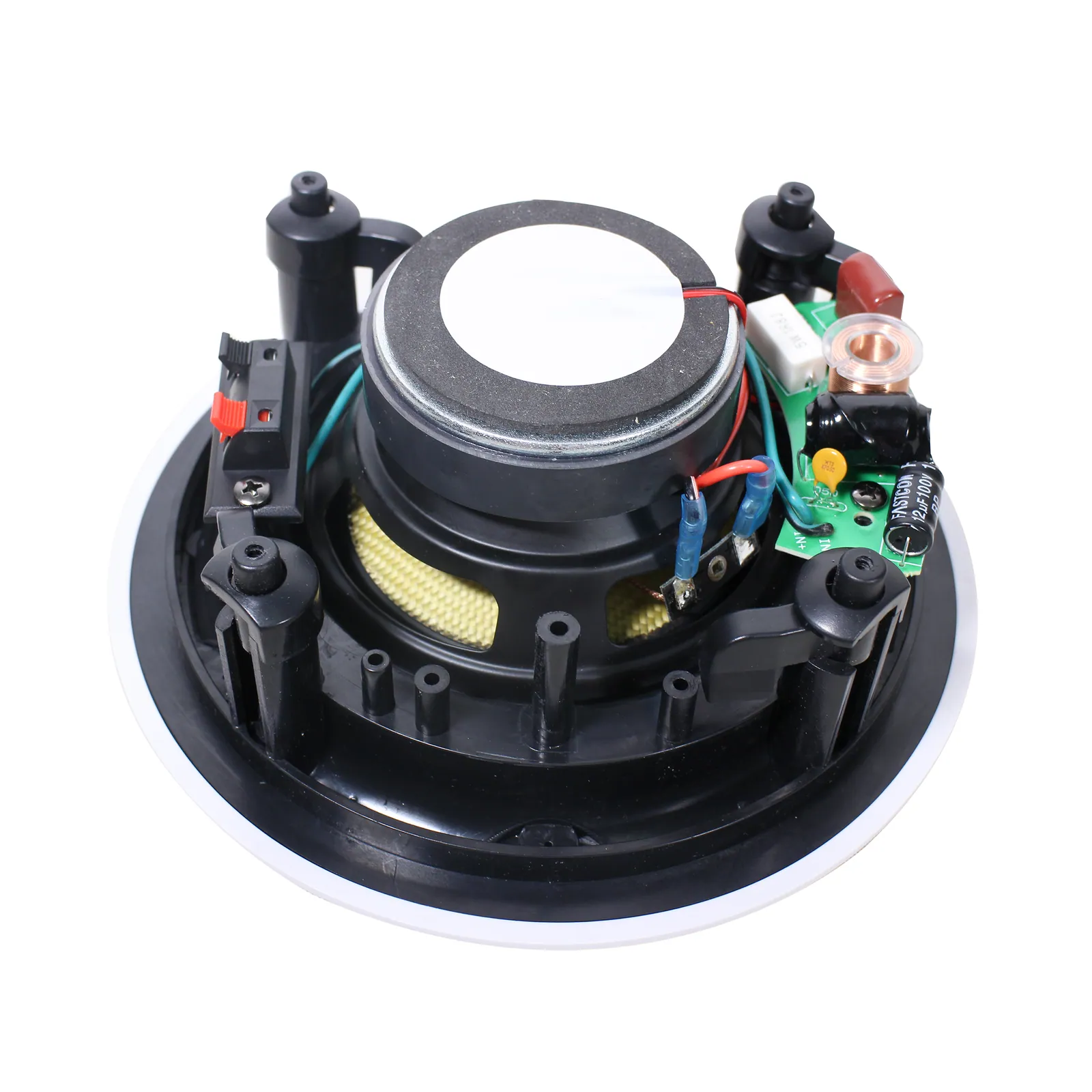

Lucky Tone Rimless Ceiling Speaker CP-420BL / CP-520BL / CP-630BL / CP-840BL
ModelCP-420BL / CP-520BL / CP-630BL / CP-840BL
ABS in ceiling speaker at high performance
- Output power
- CP-420BL: 15W; CP-520BL: 40W; CP-630BL: 60W; CP-840BL: 80W
- Frequency response
- CP-420BL: 80Hz-20KHz; CP-520BL: 80Hz-20KHz; CP-630BL: 50Hz-20KHz; CP-840BL: 50Hz-20KHz
- Weight
- CP-420BL: 1kg; CP-520BL: 1.3kg; CP-630BL: 1.8kg; CP-840BL: 2.6kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Rimless Ceiling SpeakerPrice on requestRequest a quotation
01Models4 models in the family
Models compared.
| MODEL | CP-420BL | CP-520BL | CP-630BL | CP-840BL |
|---|---|---|---|---|
| Rated Power | 15W | 40W | 60W | 80W |
| Impedance | 8ohm | 8ohm | 8ohm | 8ohm |
| SPL( 1W/1M) | 88dB | 89dB | 90dB | 90dB |
| Max SPL@ 1M | 96dB | 100dB | 103dB | 105dB |
| Product Size | Dia 170x70mm | Dia 205x85mm | Dia 235x90mm | Dia 281x110mm |
| Frequency range | 80Hz-20KHz | 80Hz-20KHz | 50Hz-20KHz | 50Hz-20KHz |
| Installation | In ceiling | In ceiling | In ceiling | In ceiling |
| Enclosure Material | ABS | ABS | ABS | ABS |
| Finish | White | White | White | White |
| Weight | 1kg | 1.3kg | 1.8kg | 2.6kg |
| Speaker | 0.75″ x1(TREBLE) 4″ X1(BASS) | 1″ x1 (TREBLE) 5″x1(BASS) | 1″ x1 (TREBLE) 6″x1(BASS) | 1″ x1 (TREBLE) 8″x1(BASS) |
02DescriptionManufacturer's description
What it is.

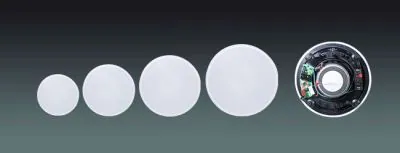

Available in 4, 5, 6, and 8 inch
Kevlar driver produces smooth and natural HiFi sound
Elegant Rimless design
Good for PA and BGM
