Sheet 05.199

Lucky Tone · Loudspeakers

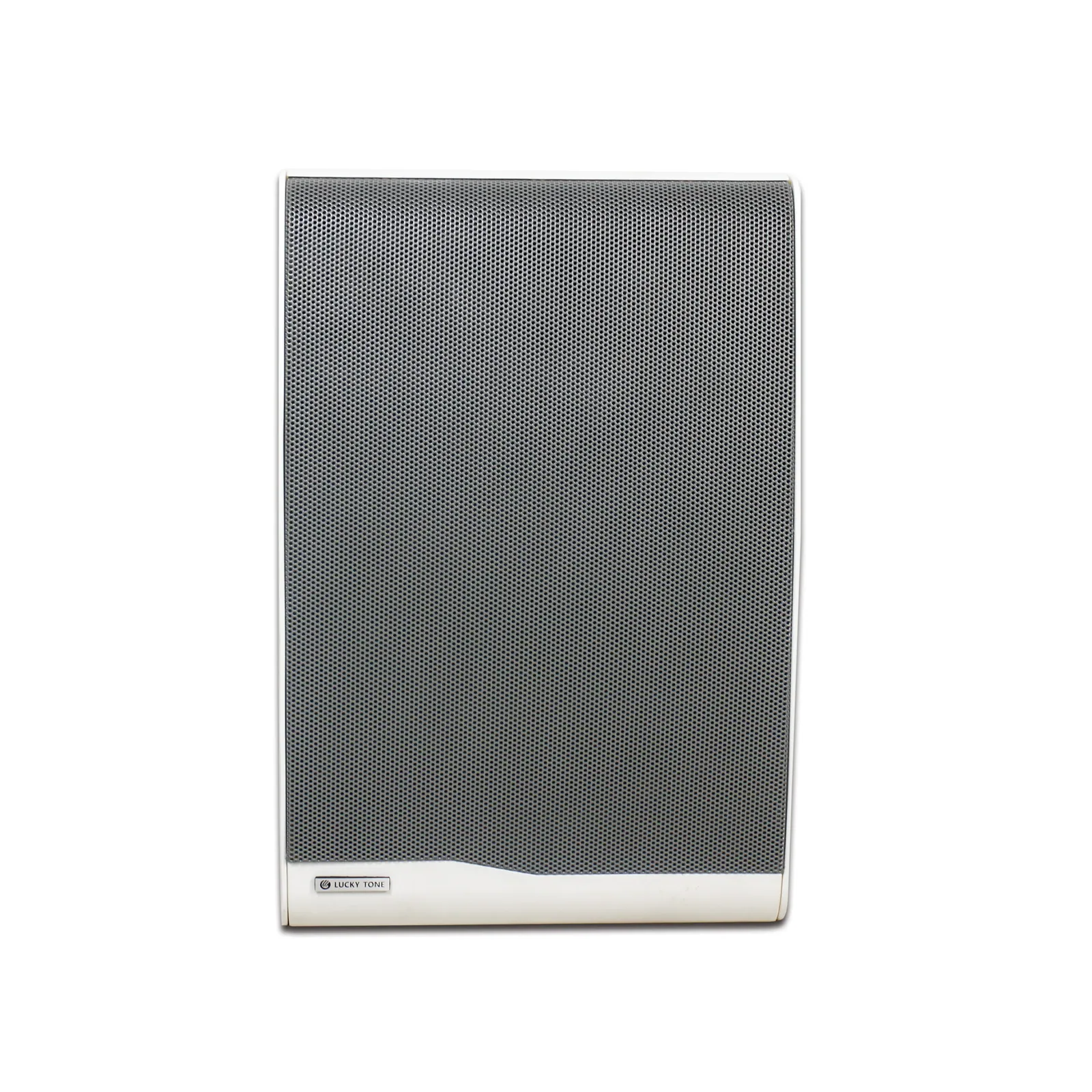

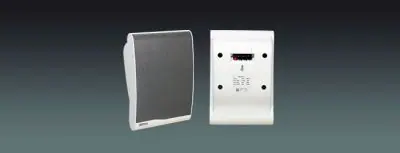

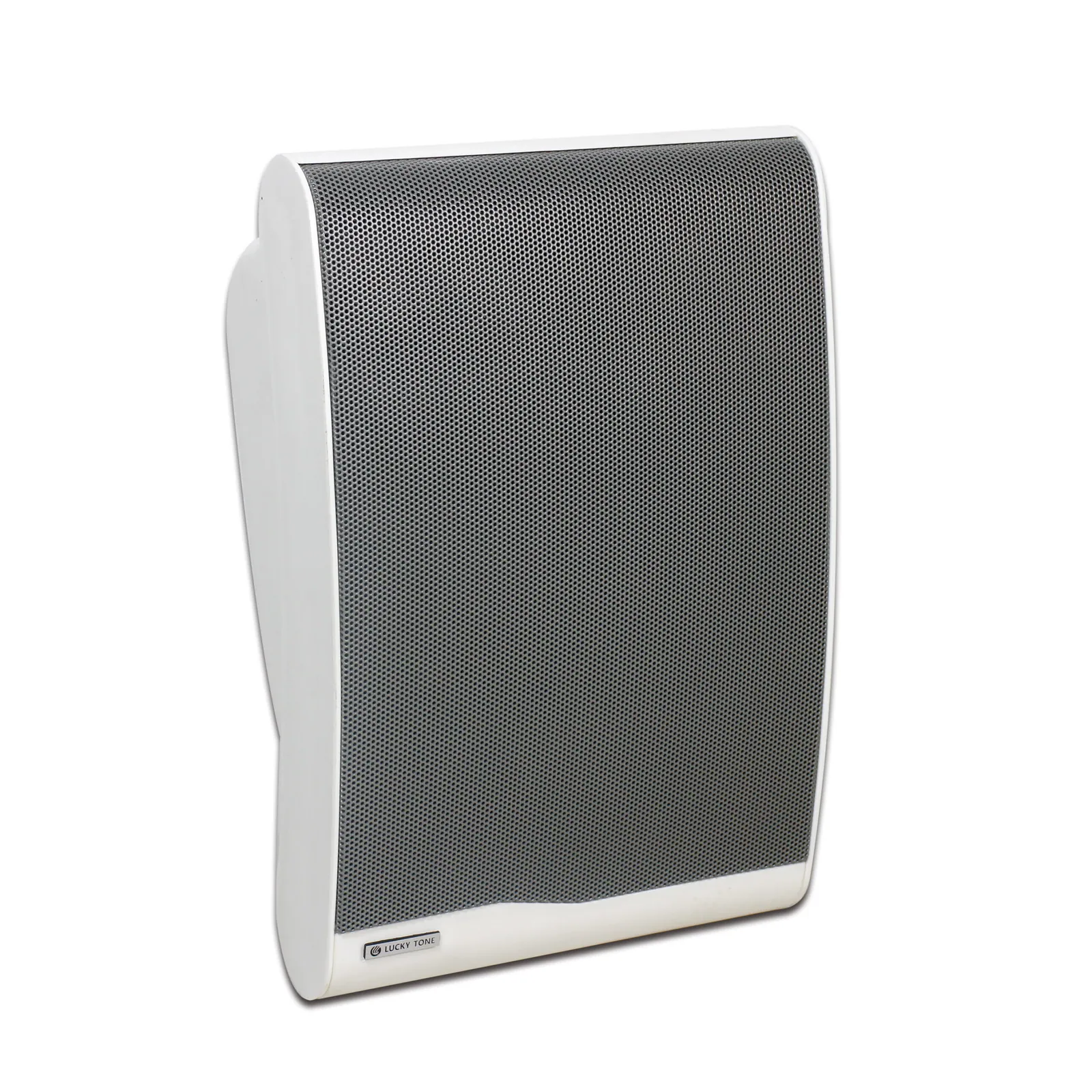

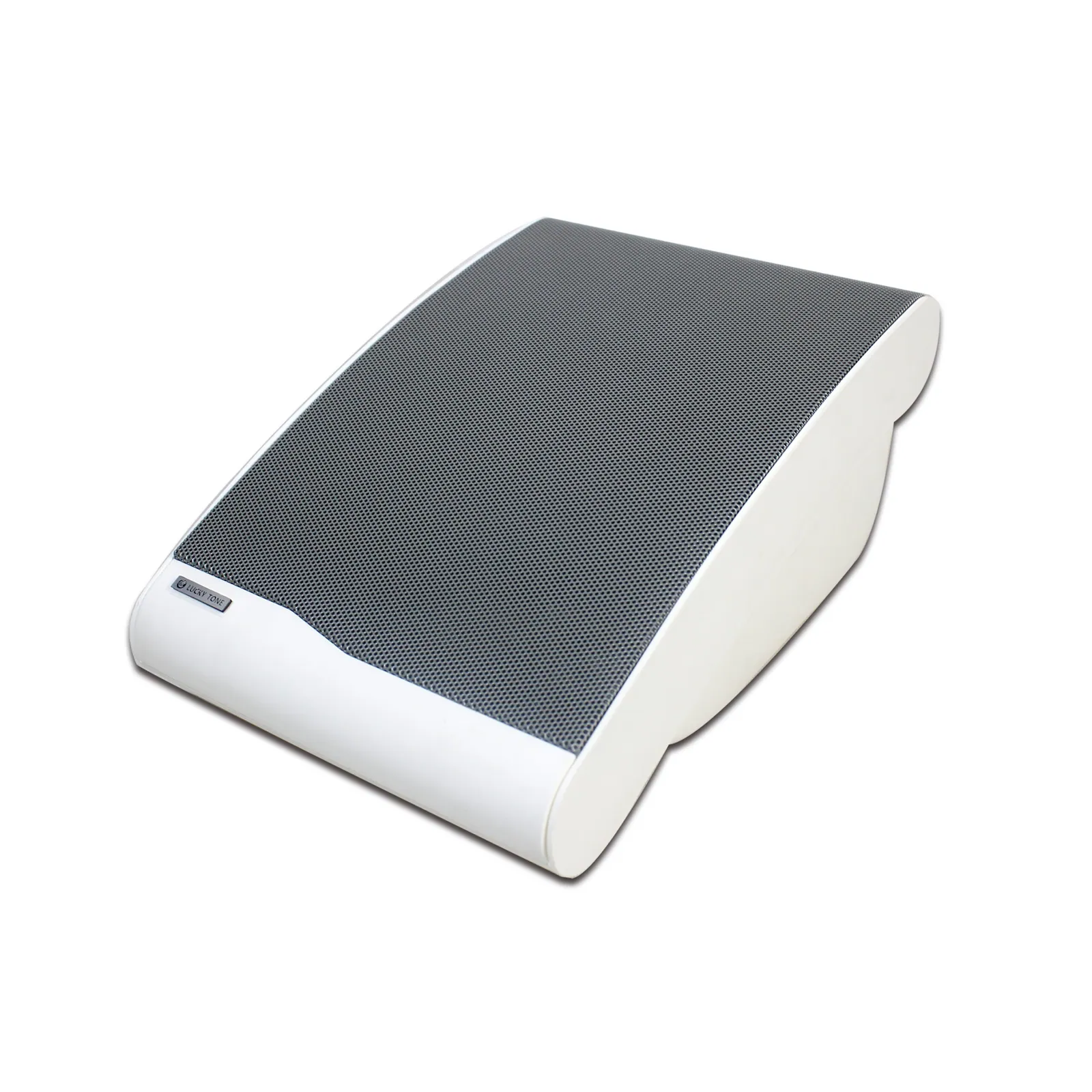

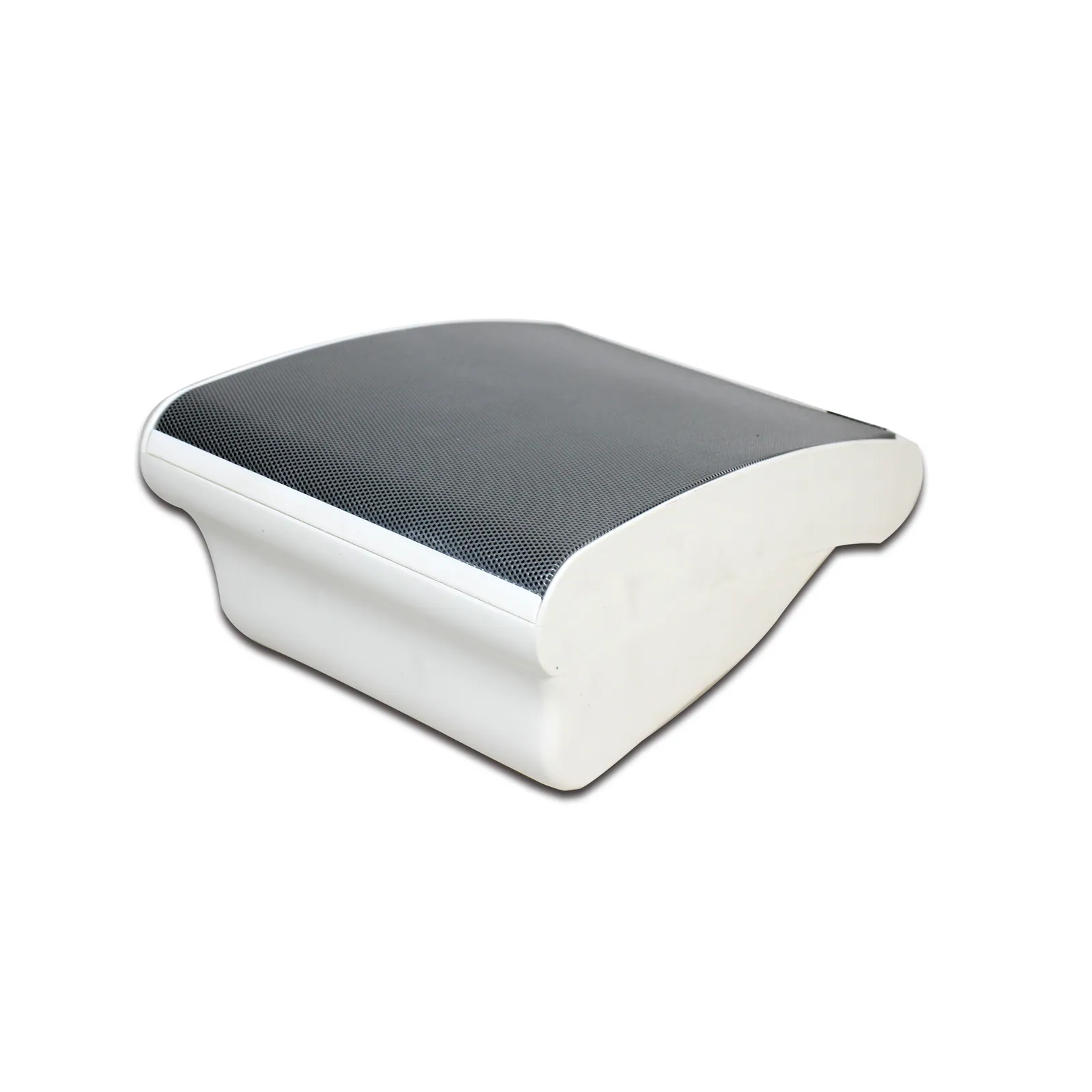

Plastic Wall Mount Speaker

ModelWP-106T

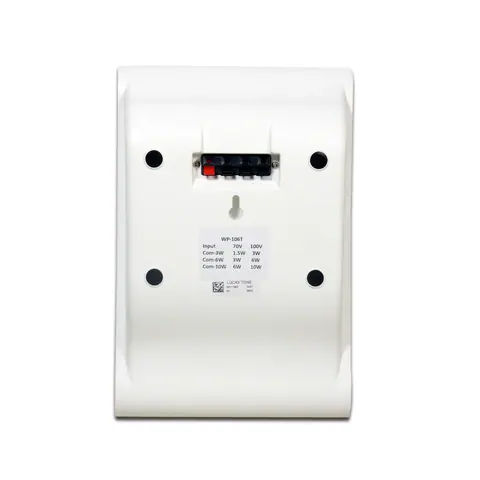

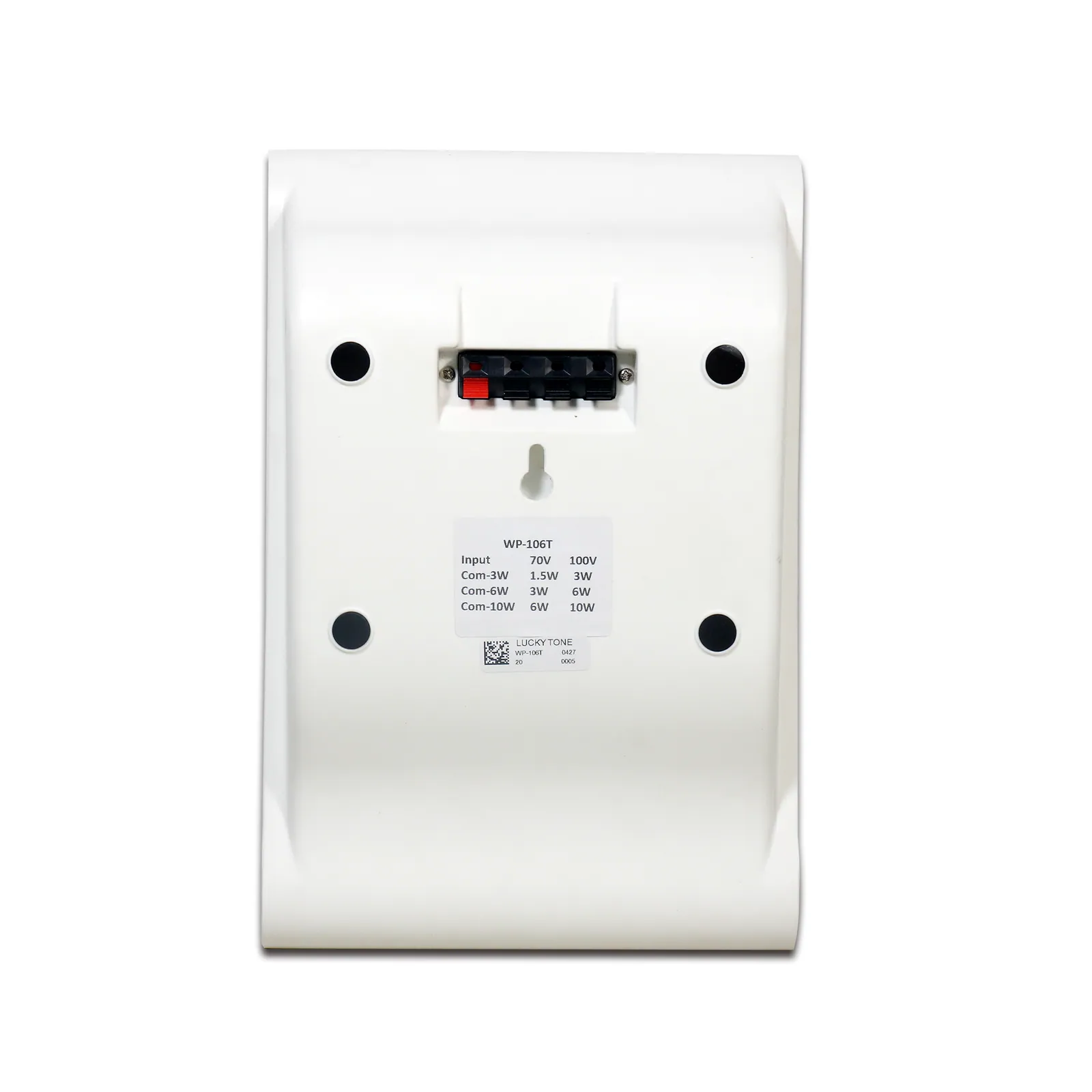

Multiple wiring terminals to adapt to different occasions

Weight: 1.75kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 12 values

What this product is, in numbers.

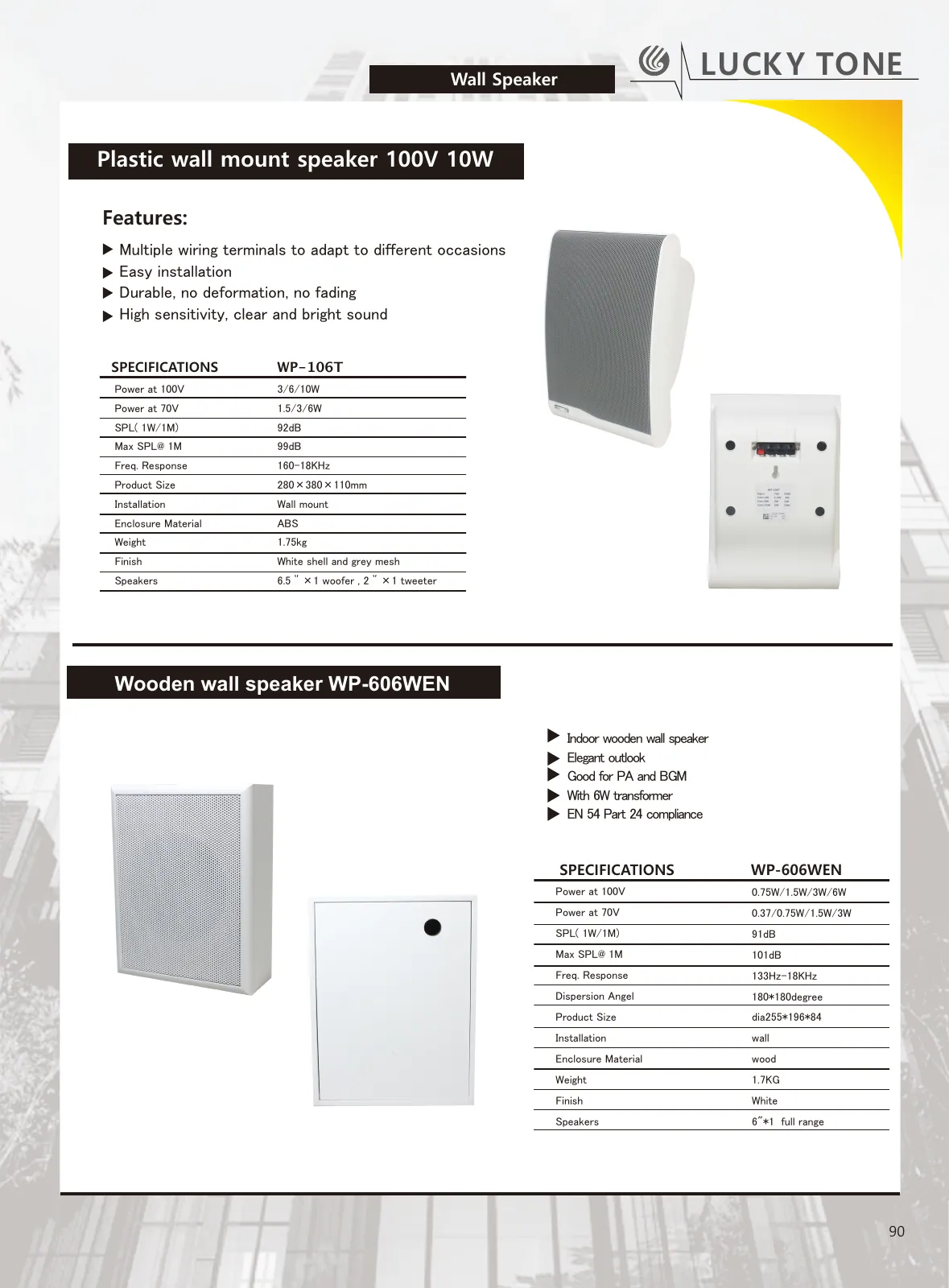

PDFSpecifications3.2 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications12

MODEL: WP-106T
Power at 100V: 3/6/10W
Power at 70V: 1.5/3/6W
SPL( 1W/1M): 92dB
Max SPL@ 1M: 99dB
Freq. Response: 160-18KHz
Product Size: 183×274×110mm
Installation: Wall mount
Enclosure Material: ABS
Weight: 1.75kg
Finish: White shell and grey mesh
Speakers: 6.5"×1 woofer , 2"×1 tweeter

02DescriptionManufacturer's description

What it is.

Easy installation

Durable, no deformation, no fading

High sensitivity, clear and bright sound

03Documents1 file · 3.2 MB

Documents and files.

Main document

Specifications

PDF · 3.2 MB

Download specifications

04Related products

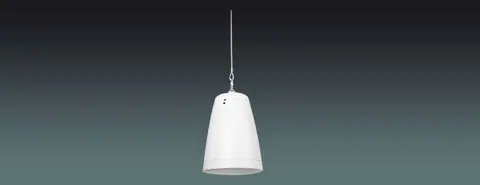

EQ-198Lucky TonePendant SubwooferHWS-660BS/HWS-660WS / HWS-880BS/HWS-880WS · Loudspeakers

EQ-200Lucky ToneProfessional SpeakerEX12A+/EX12+ Passive · LoudspeakersFrequency response45~18kHz

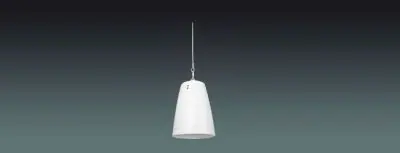

EQ-197Lucky TonePendant Speaker with OBEHWB-440W/B / HWB-550W/B / HWB-660W/B / HWB-880W/B · Loudspeakers

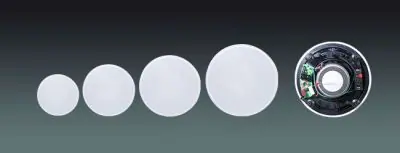

EQ-201Lucky ToneRimless Ceiling SpeakerCP-420BL / CP-520BL / CP-630BL / CP-840BL · LoudspeakersOutput powerCP-420BL: 15W; CP-520BL: 40W; CP-630BL: 60W; CP-840BL: 80WFrequency responseCP-420BL: 80Hz-20KHz; CP-520BL: 80Hz-20KHz; CP-630BL: 50Hz-20KHz; CP-840BL: 50Hz-20KHzWeightCP-420BL: 1kg; CP-520BL: 1.3kg; CP-630BL: 1.8kg; CP-840BL: 2.6kg
