Sheet 05.136
Lucky Tone · Loudspeakers

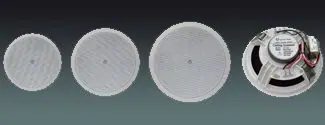

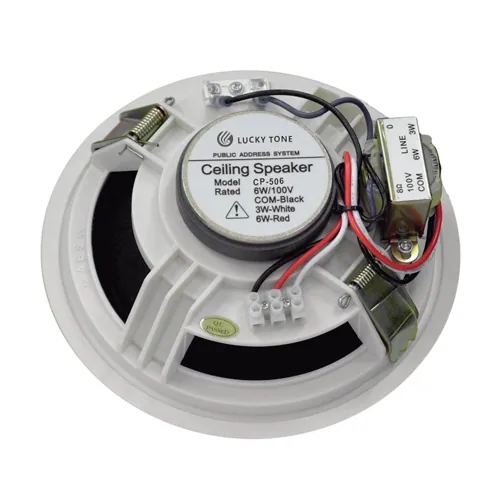

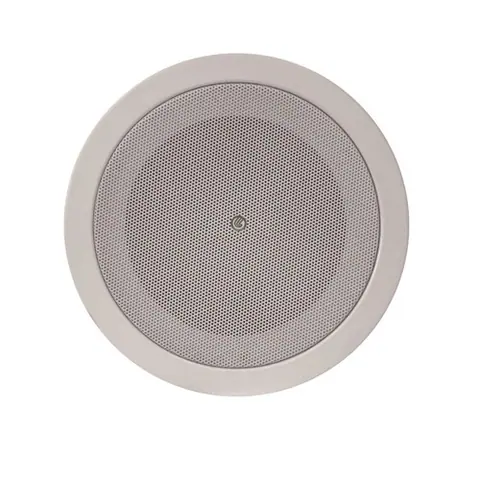

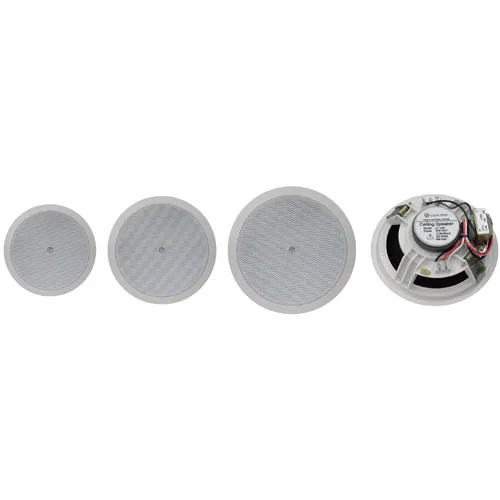

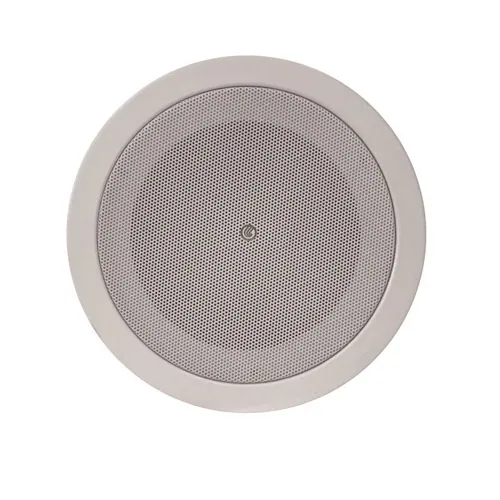

Cost-effective ABS ceiling speaker
ModelCP-506 / CP-606 / CP-810
- Weight
- CP-506: 0.5Kg; CP-606: 0.7Kg; CP-810: 1Kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Cost-effective ABS ceiling speakerPrice on requestRequest a quotation
01Models3 models in the family
Models compared.

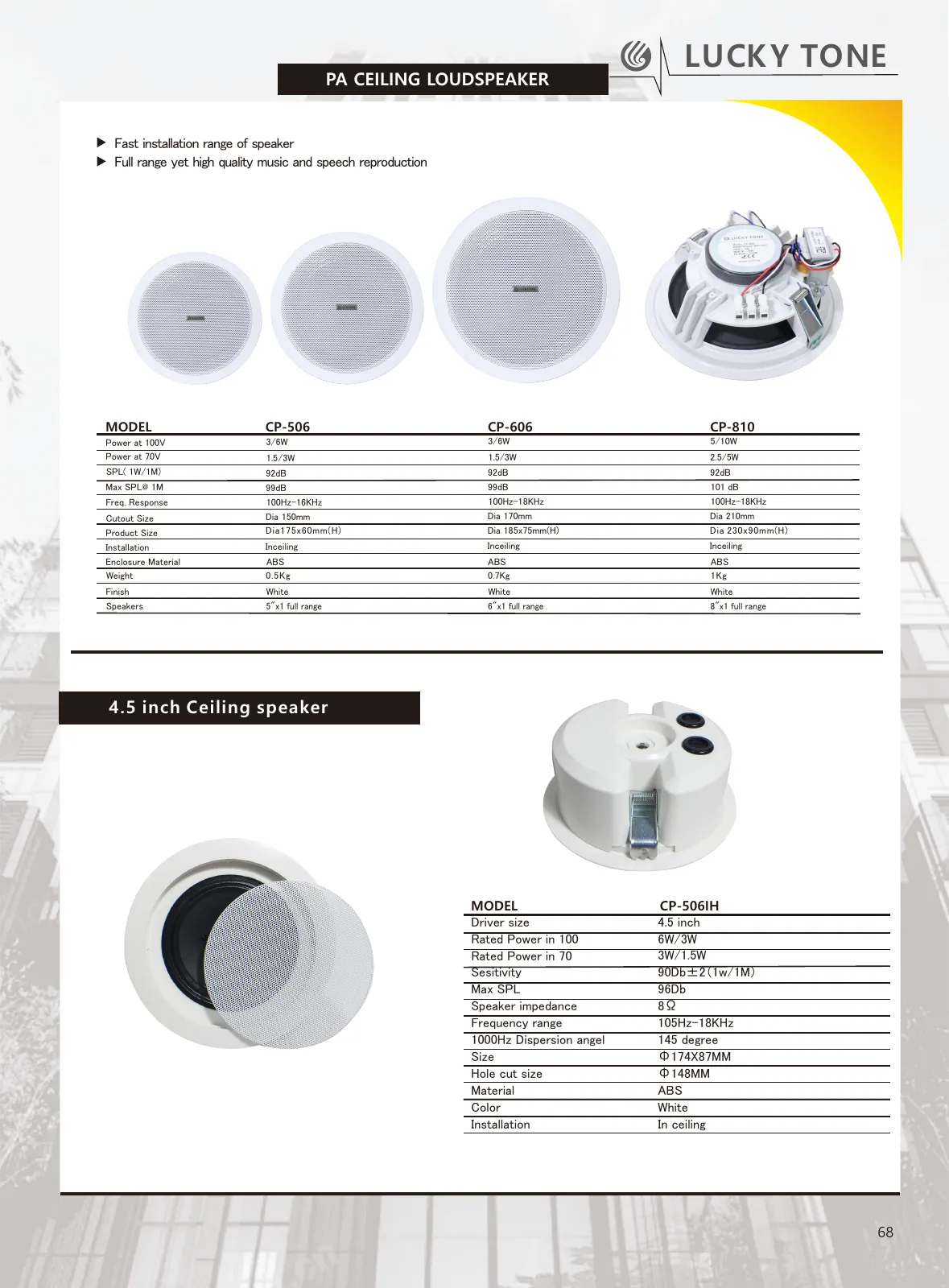

| MODEL | CP-506 | CP-606 | CP-810 |
|---|---|---|---|
| Power at 100V | 3/6W | 3/6W | 5/10W |
| Power at 70V | 1.5/3W | 1.5/3W | 2.5/5W |
| SPL (1W/1M) | 92dB | 92dB | 92dB |
| Max SPL@1M | 99dB | 99dB | 101dB |
| Freq.Response | 100Hz-16KHz | 100Hz-18KHz | 100Hz-18KHz |
| Cutout Size | Dia 150mm | Dia 170mm | Dia 210mm |
| Product Size | Dia 175x60mm(H) | Dia 185x75mm(H) | Dia 230x90mm(H) |
| Installation | Inceiling | Inceiling | Inceiling |
| Enclosure Material | ABS | ABS | ABS |
| Weight | 0.5Kg | 0.7Kg | 1Kg |
| Finish | White | White | White |
| Speakers | 5″x1 full range | 6″x1 full range | 8″x1 full range |
02Documents1 file · 3.8 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
03Related products
In the same range.
EQ-135Lucky ToneCompact Satellite Speaker SystemWi-30 · LoudspeakersOutput power30WFrequency response20-20KHzWeight0.6kg

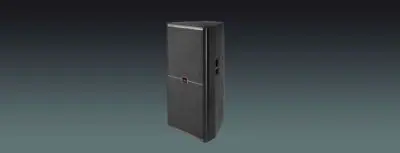

EQ-137Lucky ToneDual 15″ High-Power Two-Way LoudspeakerPSRX725 · LoudspeakersFrequency response37 Hz – 20kHz (-10 dB)Dimensions1219 mm x 541 mm x 508 mm (48 in x 21.3 in x 20 in)Weight45 kg (100 lb.)

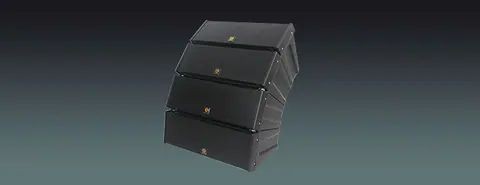

EQ-134Lucky ToneCompact Outdoor Line Array SpeakerLA-200T / LA-200 · LoudspeakersDimensions408(w) x 546(h) x 342(d) mmWeightLA-200T: 18kg; LA-200: 16kg

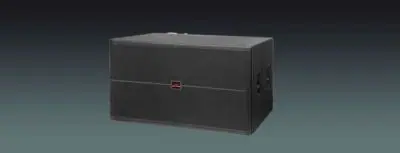

EQ-138Lucky ToneDual 18-Inch High-Power SubwooferPSRX728S · LoudspeakersFrequency response27 Hz – 220 Hz (-10 dB)Dimensions610 mm x 1067 mm x 838 mmWeight76 kg (166.5 lb.)04Talk to us
