Sheet 05.134
Lucky Tone · Loudspeakers

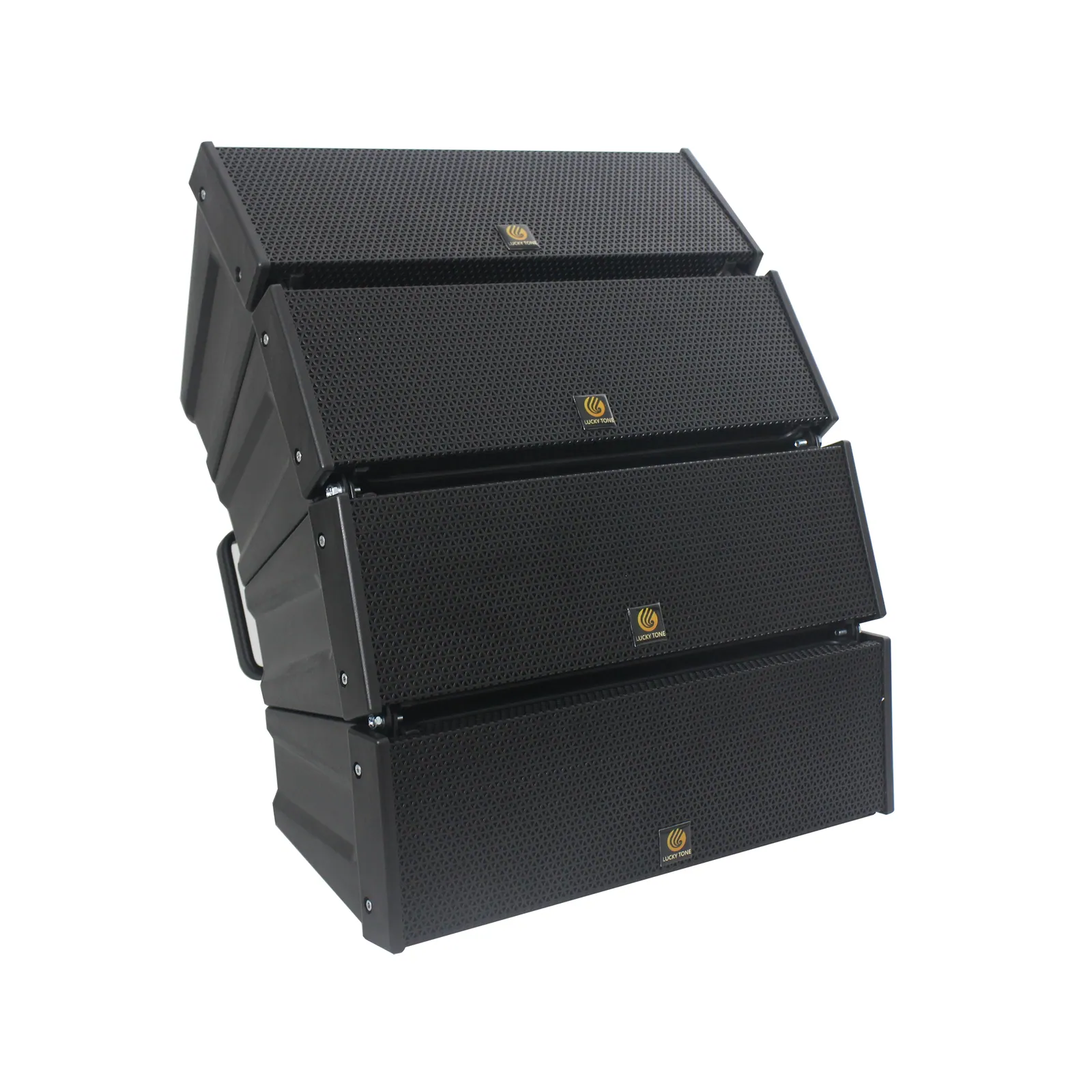

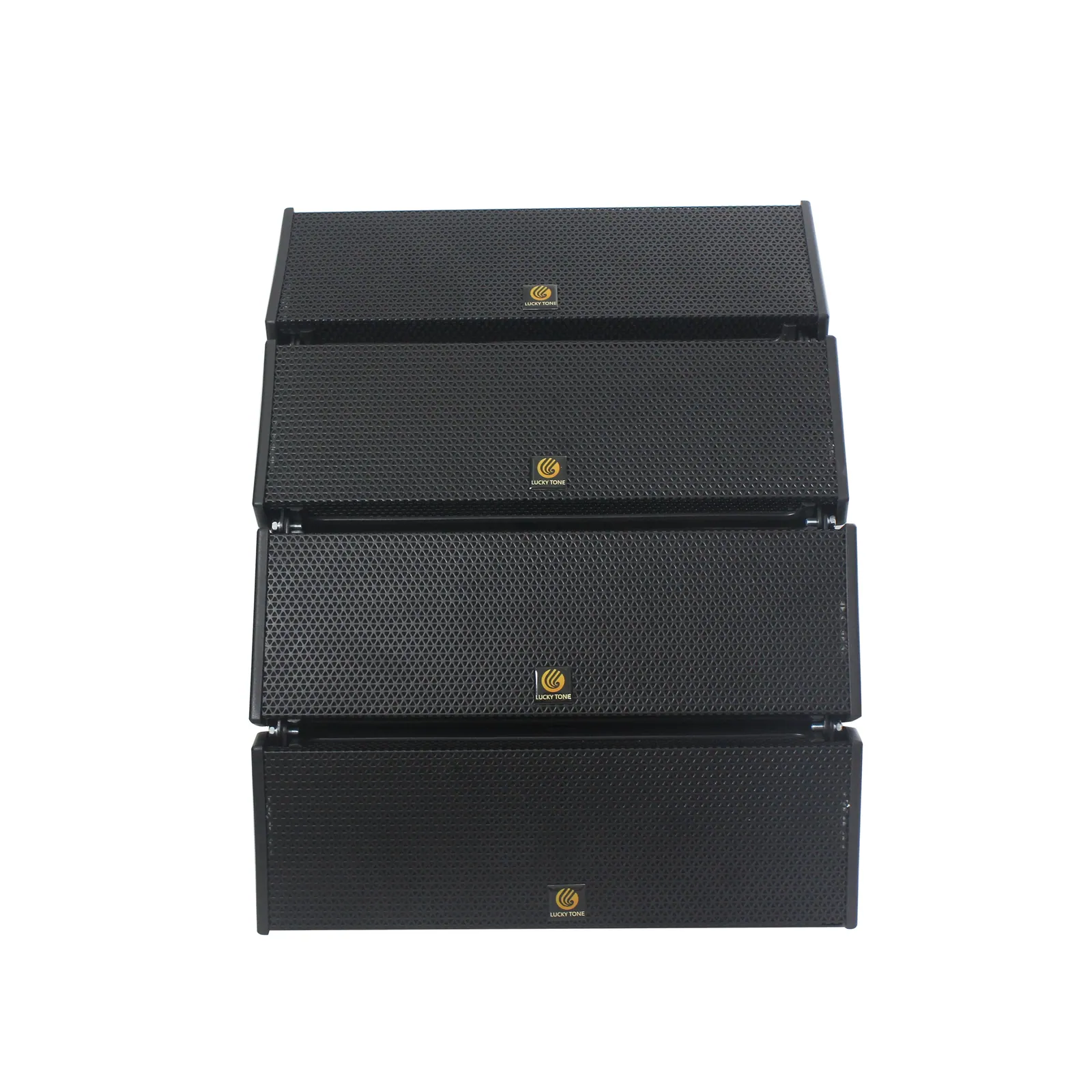

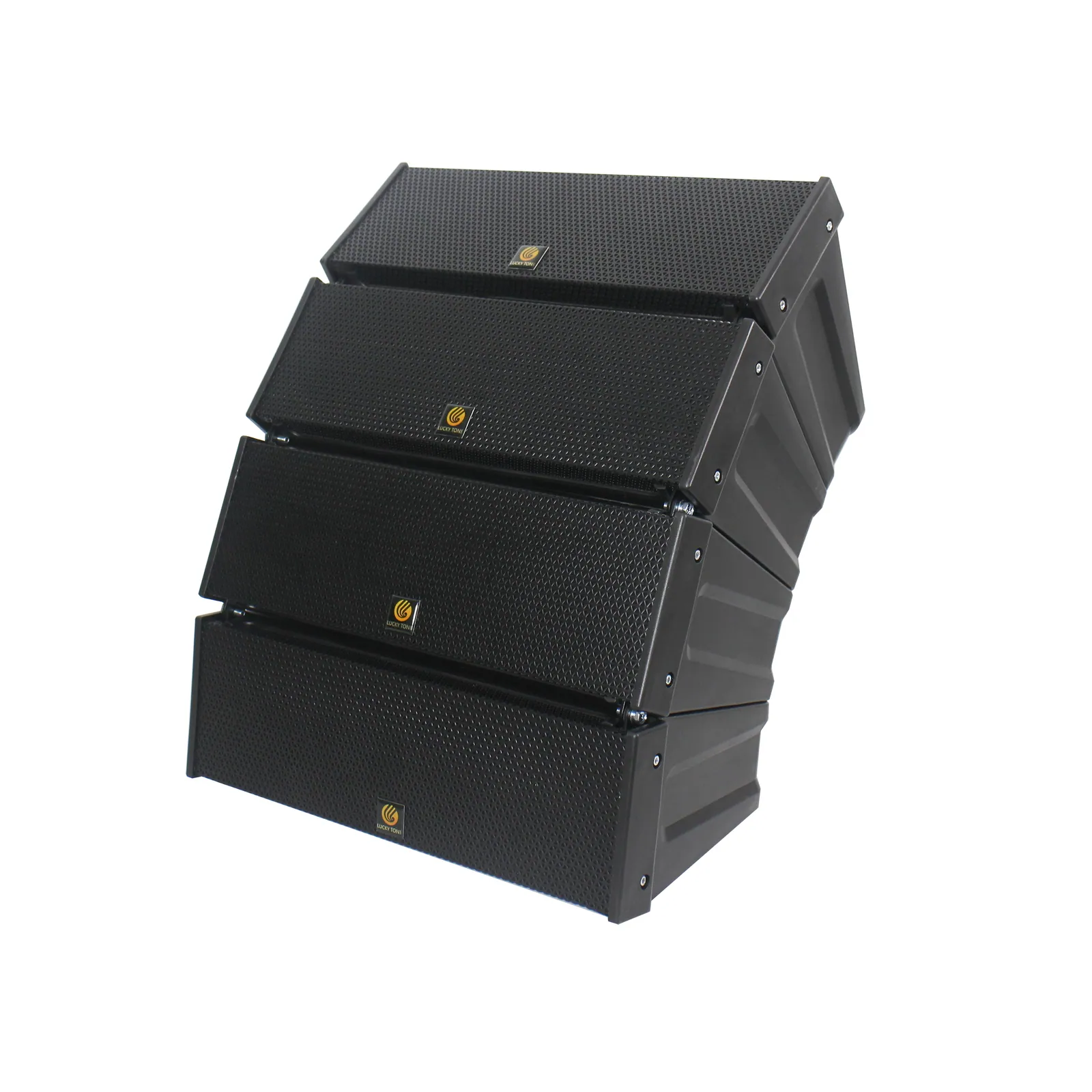

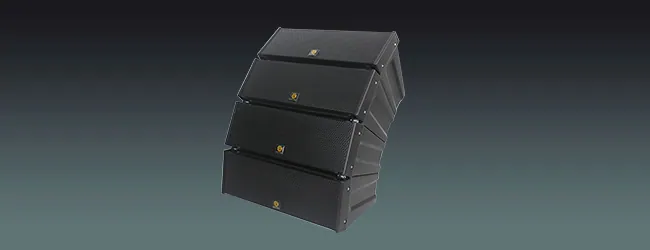

Compact Outdoor Line Array Speaker
ModelLA-200T / LA-200

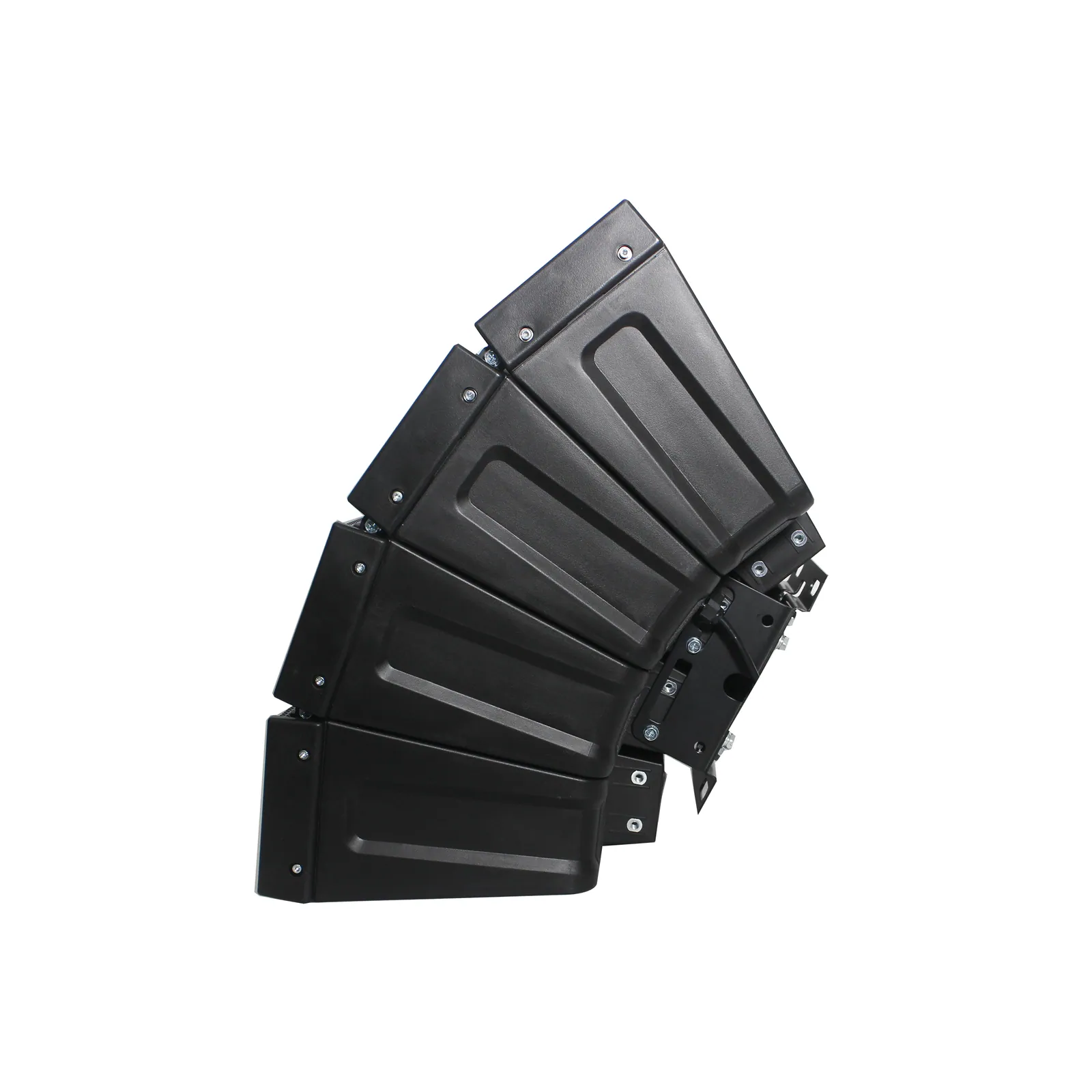

Controllable coverage features for 60, 45, 30, and 15 degree
- Dimensions
- 408(w) x 546(h) x 342(d) mm
- Weight
- LA-200T: 18kg; LA-200: 16kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Compact Outdoor Line Array SpeakerPrice on requestRequest a quotation
01Models2 models in the family
Models compared.
| Model | LA-200T | LA-200 |
|---|---|---|
| Enclosure | Bass-reflex type | Bass-reflex type |
| Power at 100V | 30/60/120/200W | / |
| Power at 8ohm | / | 200W |
| Sensitivity (1 W, 1m) | 96 dB (60° mode), 97 dB (45° mode), 98 dB (30° mode), 99 dB (15° mode). | 96 dB (60° mode), 97 dB (45° mode), 98 dB (30° mode), 99 dB (15° mode). |
| Frequency Response (Deviation-10 dB) | 70 to 20,000 Hz(60° mode), 75 to 20,000 Hz(45° mode) 80 to 20,000 Hz(30° mode), 85 to 20,000 Hz(15° mode) | 70 to 20,000 Hz(60° mode), 75 to 20,000 Hz(45° mode) 80 to 20,000 Hz(30° mode), 85 to 20,000 Hz(15° mode) |
| Crossover Frequency | 4 kHz | 4 kHz |
| Directivity Angle | Horizontal: 100 (over 2,000 Hz) Vertical: 60° (over 800 Hz), 45° (over 1.2 kHz), 30° (over 1.6 kHz), 15° (over 3.2 kHz) variable | Horizontal: 100 (over 2,000 Hz) Vertical: 60° (over 800 Hz), 45° (over 1.2 kHz), 30° (over 1.6 kHz), 15° (over 3.2 kHz) variable |
| Speaker | Low frequency: 12 cm (5″) cone-type x 4 High frequency: Balanced dome-type x 12 | Low frequency: 12 cm (5″) cone-type x 4 High frequency: Balanced dome-type x 12 |
| Input Terminal | Two core wire | Two core wire |
| Finish (Enclosure) | Polypropylene, white | Polypropylene, white |
| Dimensions | 408(w) x 546(h) x 342(d) mm | 408(w) x 546(h) x 342(d) mm |
| Color | White/Black | White/Black |
| Weight | 18kg | 16kg |
02DescriptionManufacturer's description
What it is.
Features
Ideal for both permanent and temporary installations, including both vertical and horizontal positioning.
Equipped with a convenient carrying handle.

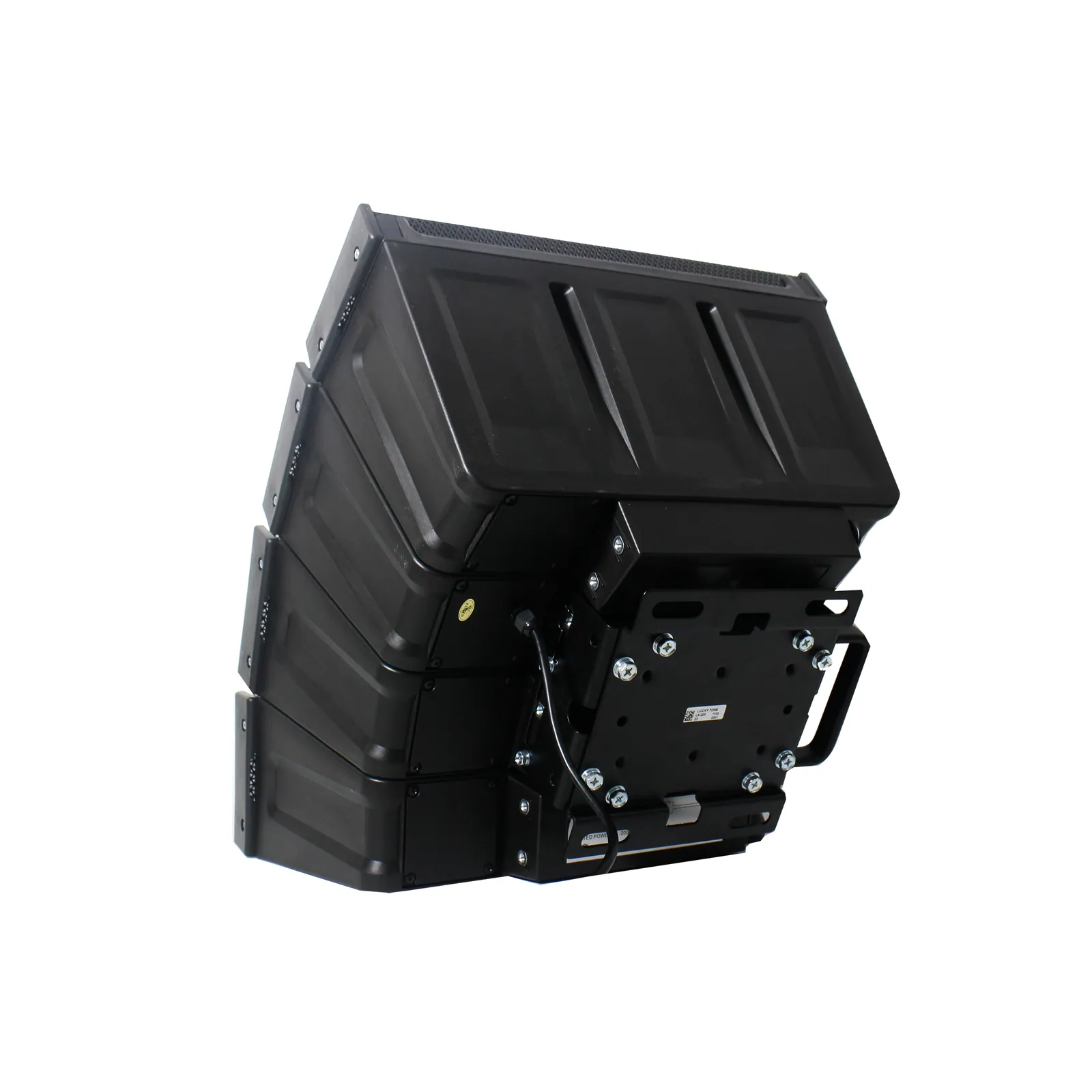

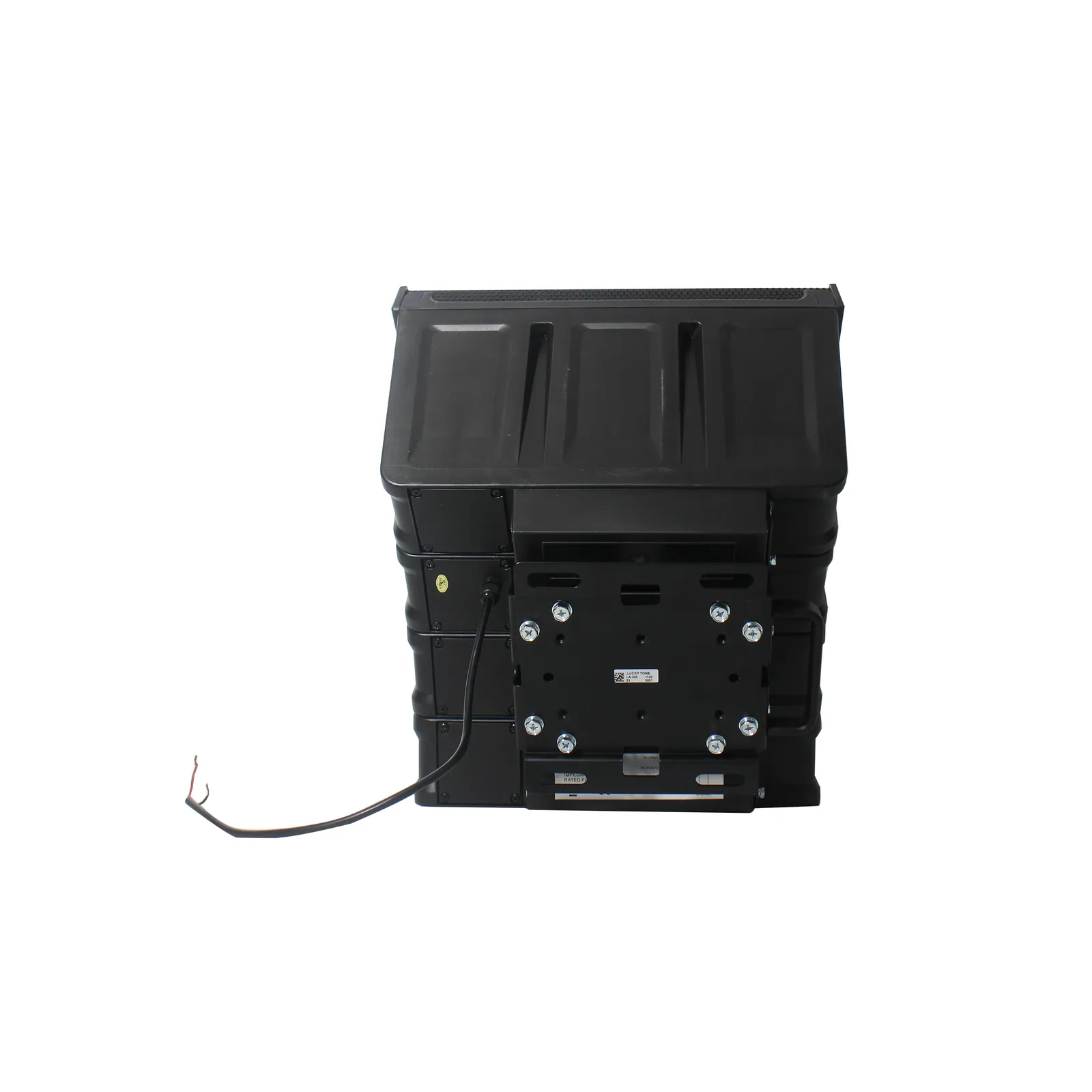

Can be mounted directly on a wall or suspended by wire, chain or shackle with no need to use optional brackets.
Optional mounting brackets allow use in a wide variety of applications. including suspension, ceiling mount, wall mounting, and speaker stand
mounting
Ordering Code
LA-200
200W outdoor Line array speaker 8 OHM
LA-200T

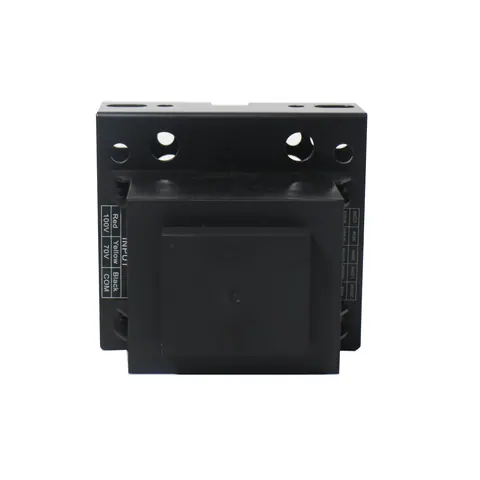

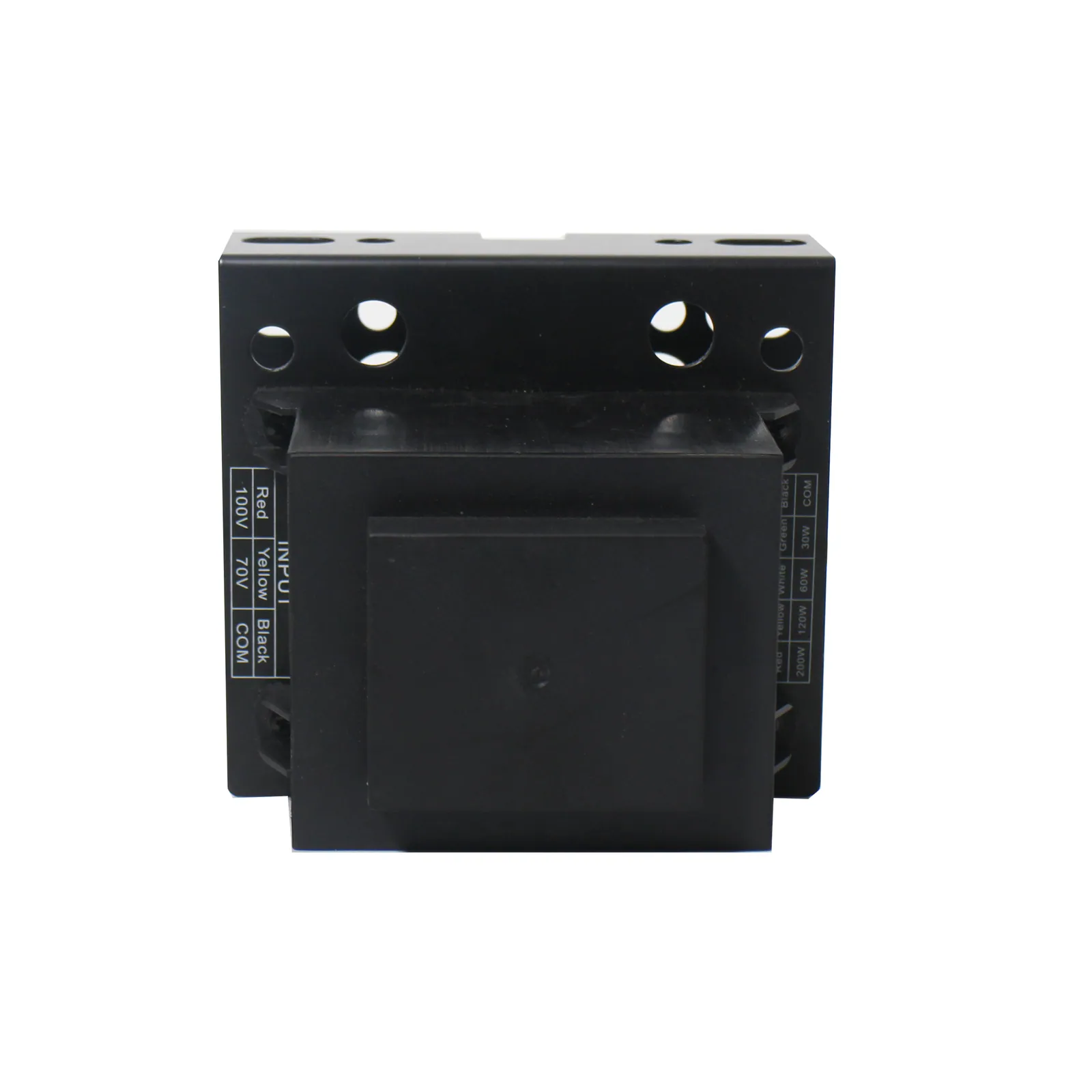

200W outdoor Line array speaker with Transformer
LA-200BRC
LA-200 Ceiling mounting bracket, optional to order
LA-200BRR
LA-200 Rigging frame, optional to order
LA-200BRCB3
LA-200 Hanging cable 3 Meter*3, optional to order
LA-200BRCB5
LA-200 Hanging cable 5 Meter*3, optional to order
LA-200BRCB10
LA-200 Hanging cable 10 Meter*3, optional to order
03Documents1 file · 962 KB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
