Sheet 05.135
Lucky Tone · Loudspeakers

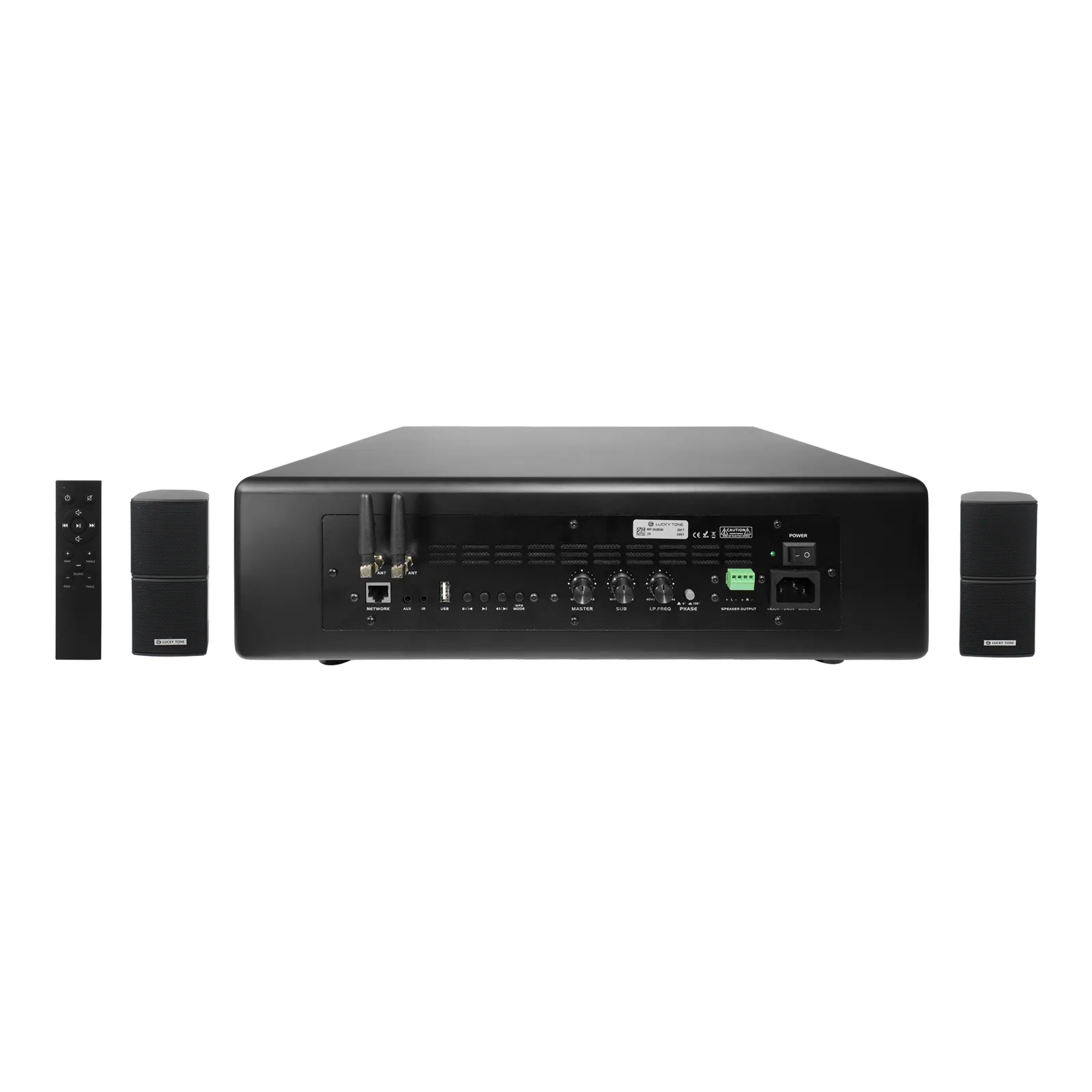

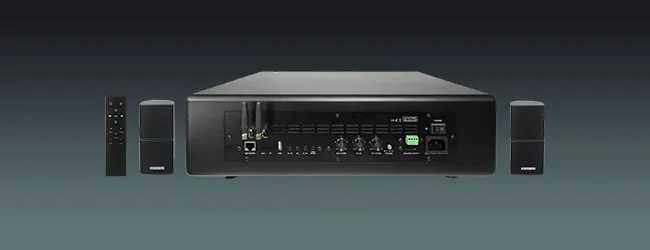

Compact Satellite Speaker System
ModelWi-30
Combo5-1 compact satellite speaker system can produce effective acoustic sounds in commercial spaces like restaurants, cafés and retail stores.
- Output power
- 30W
- Frequency response
- 20-20KHz
- Weight
- 0.6kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Compact Satellite Speaker SystemPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 22 values
What this product is, in numbers.
PDFSpecifications16 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications22
- Model
- Wi-30
- Rated Power
- 30W
- Impedance
- 8ohm
- Speakers
- 2*2inch
- Color
- Black
- Product Dimension(HxWxD)
- 127x61x82mm
- Net Weight
- 0.6kg
- Model
- WF-SUB5W/WF-SUB5B
- Product Type
- 5” WiFi Subwoofer with WiFi & Bluetooth
- Rated Output Power
- For the subwoofer: 150W@4 ohm For the stereo speaker outputs: 2x40W@4 ohm
- Impedance
- 4-8ohm
- Sensitivity
- 840MV
- Speaker Size
- 5.25″ DVC Subwoofer with 35mm Voice Coil
- Input Voltage
- AC100V-240V, 50/60HZ
- Frequency Response
- 20-20KHz
- Subwoofer Frequency Response
- 40Hz-160Hz
- Audio Inputs
- WiFi, Bluetooth, USB, AUX in
- Materials
- MDF
- Installation
- On Wall/On Floor/On Ceiling
- Color
- White/Black
- Product Size (L x W x H)
- 450×350×150mm
- Net Weight
- 7.7KG
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
Description
Ordering code

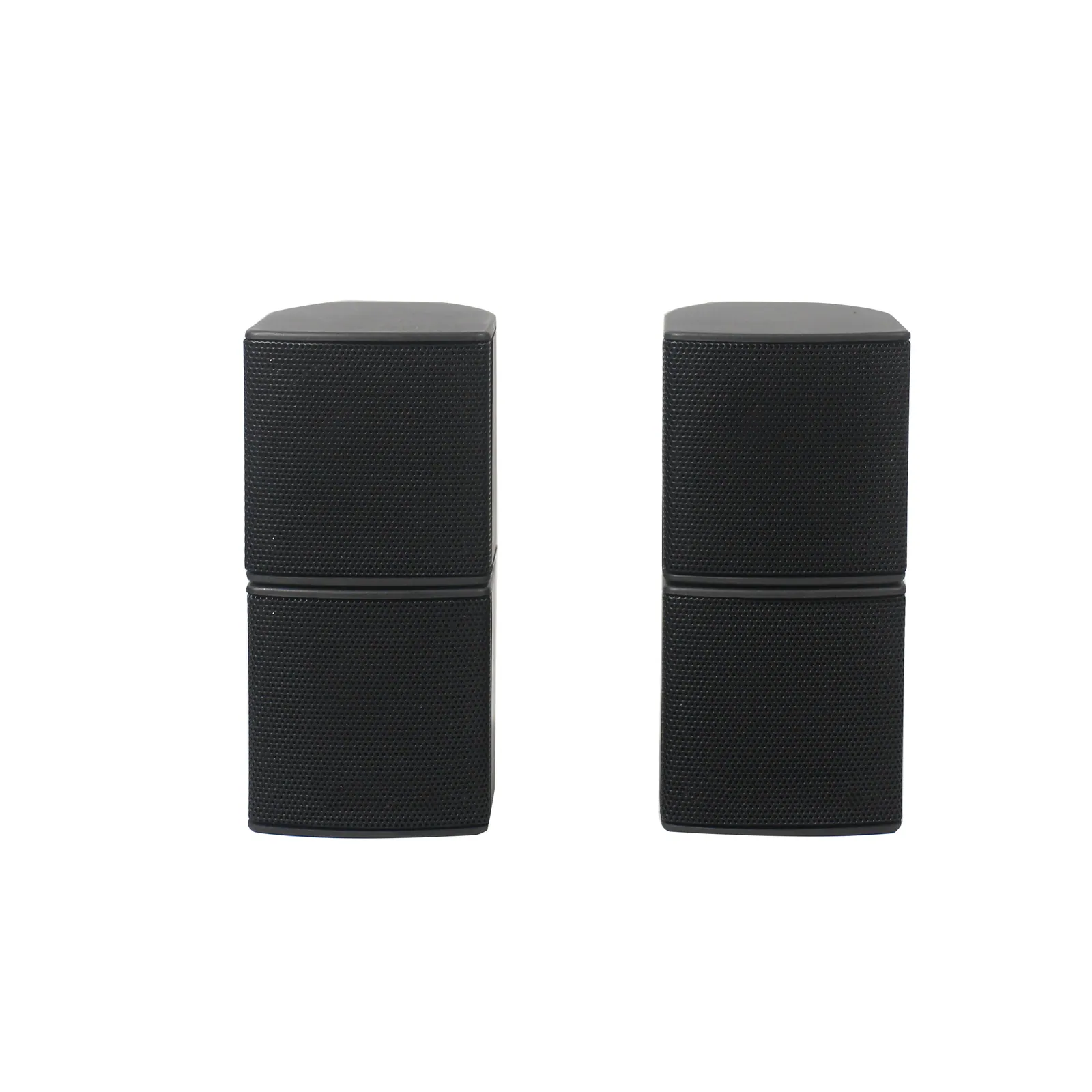

Combo5-1: WF-SUB5B/WF-SUB5W 5.25″ WiFi Subwoofer with 2 pcs of Wi-30 Mini Wall Speakers
