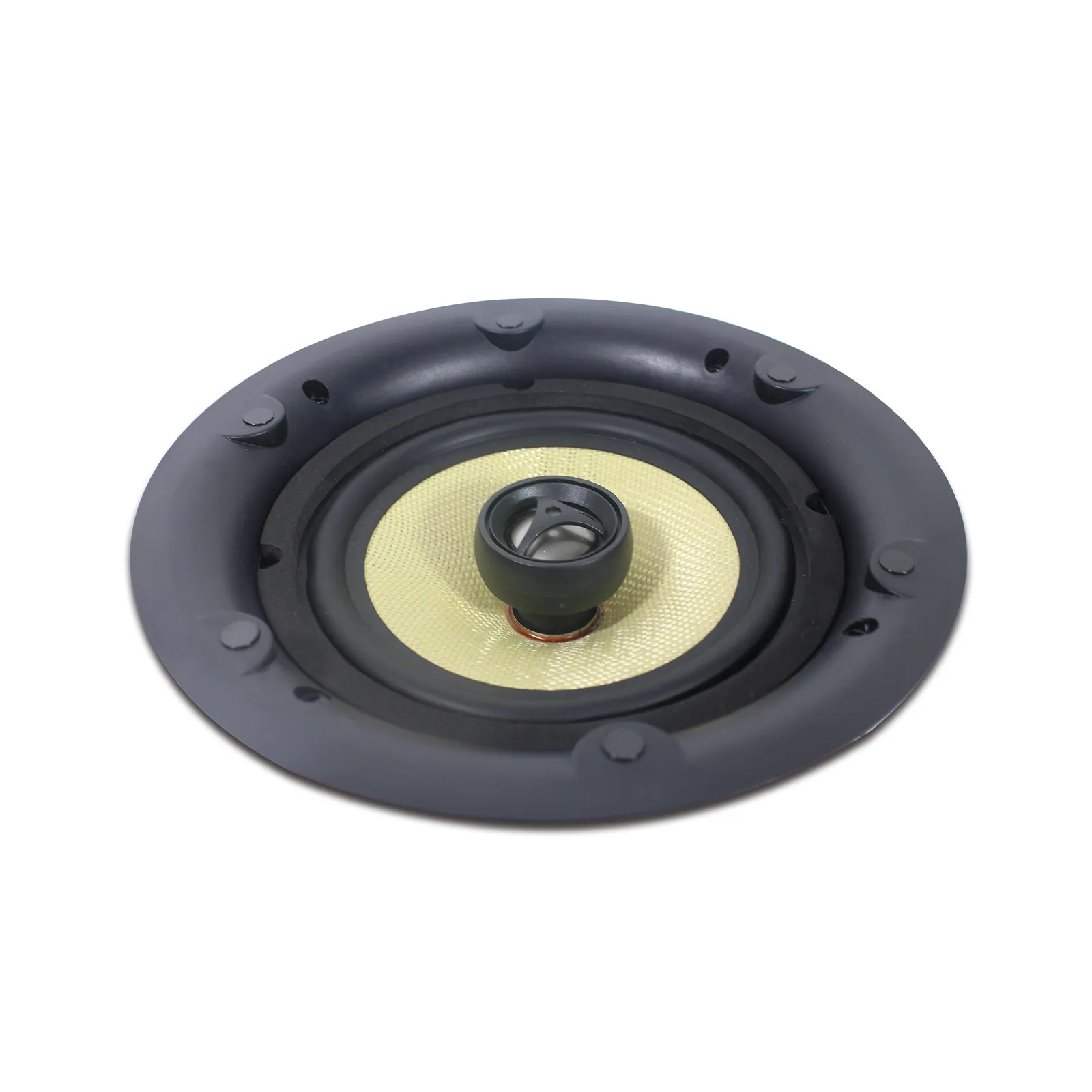

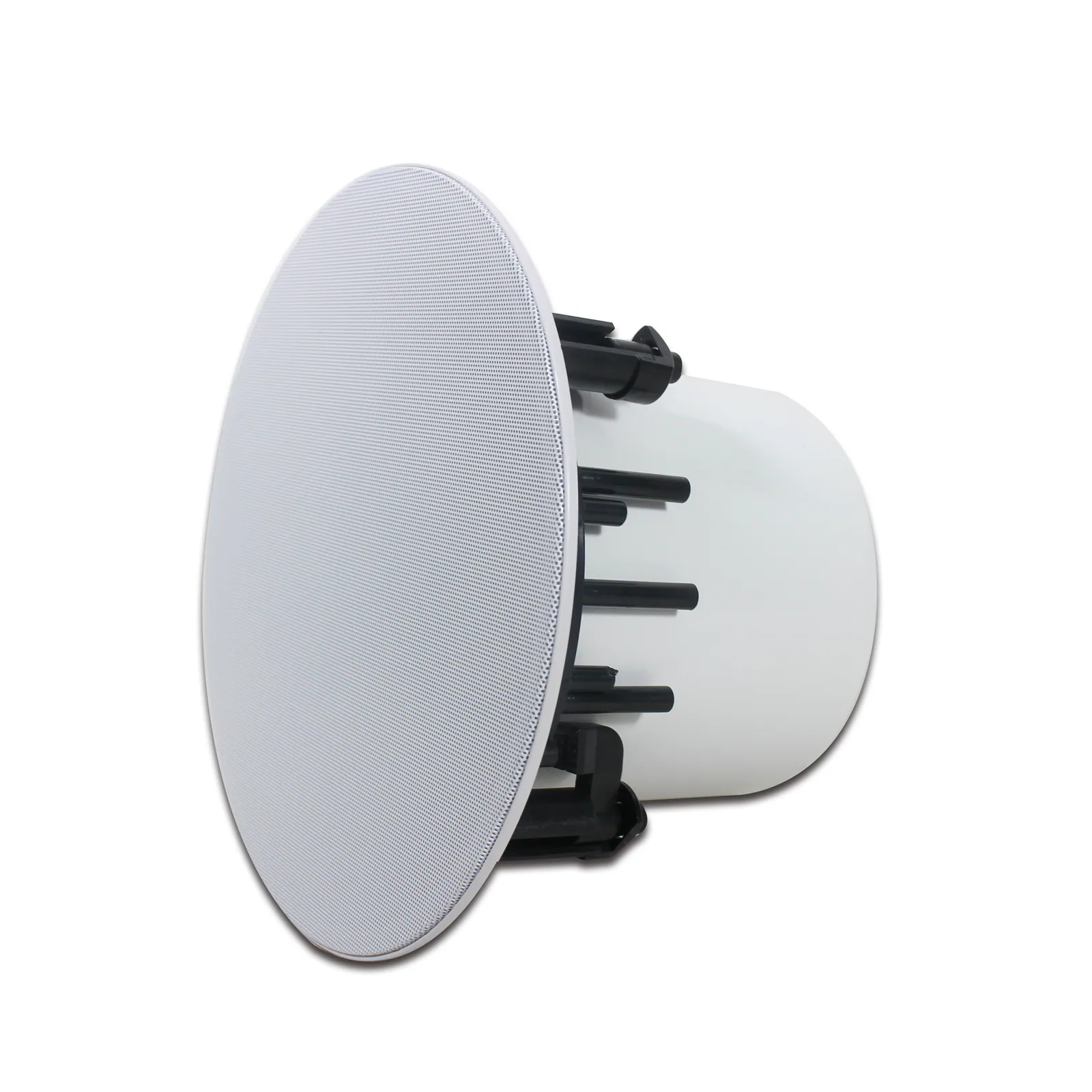

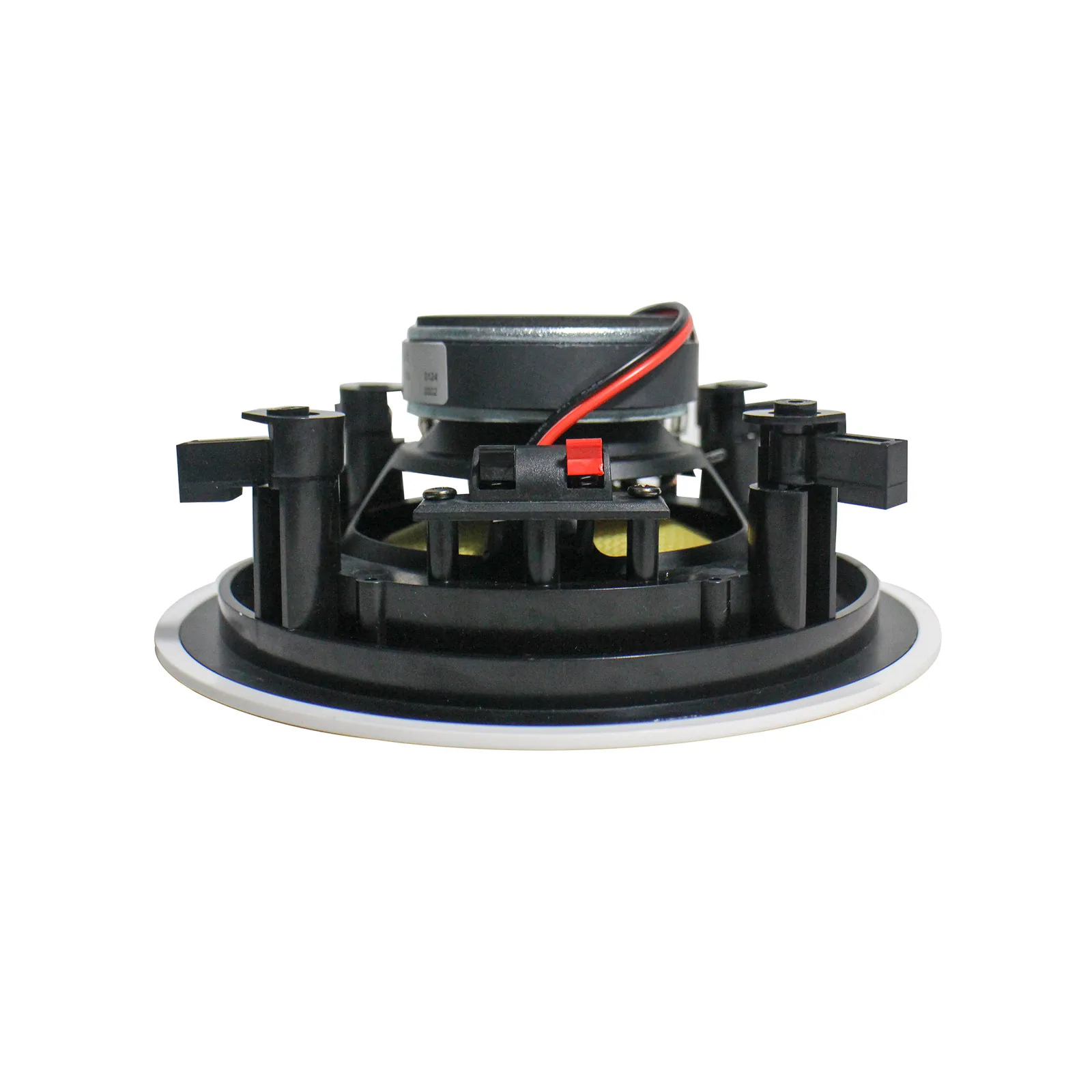

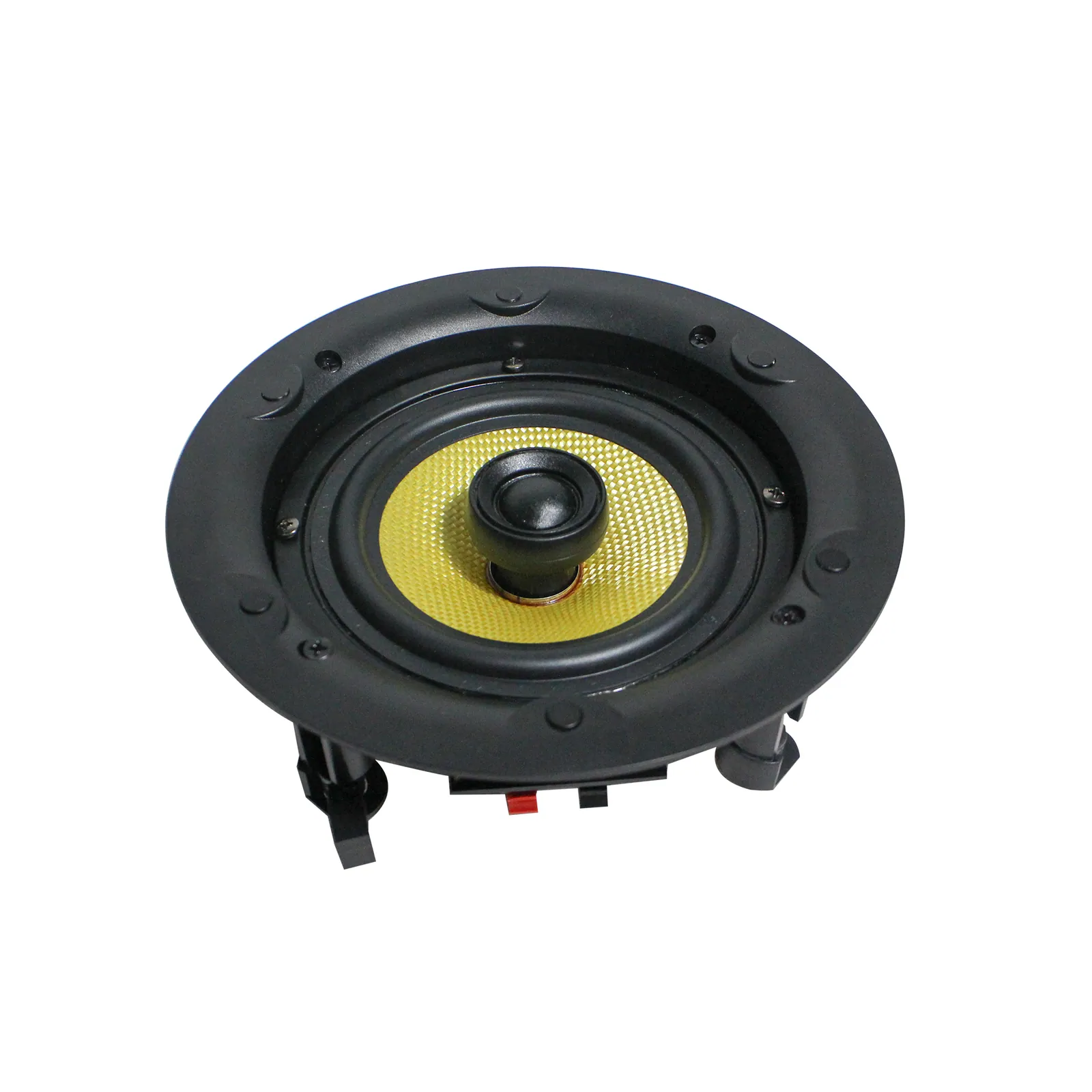

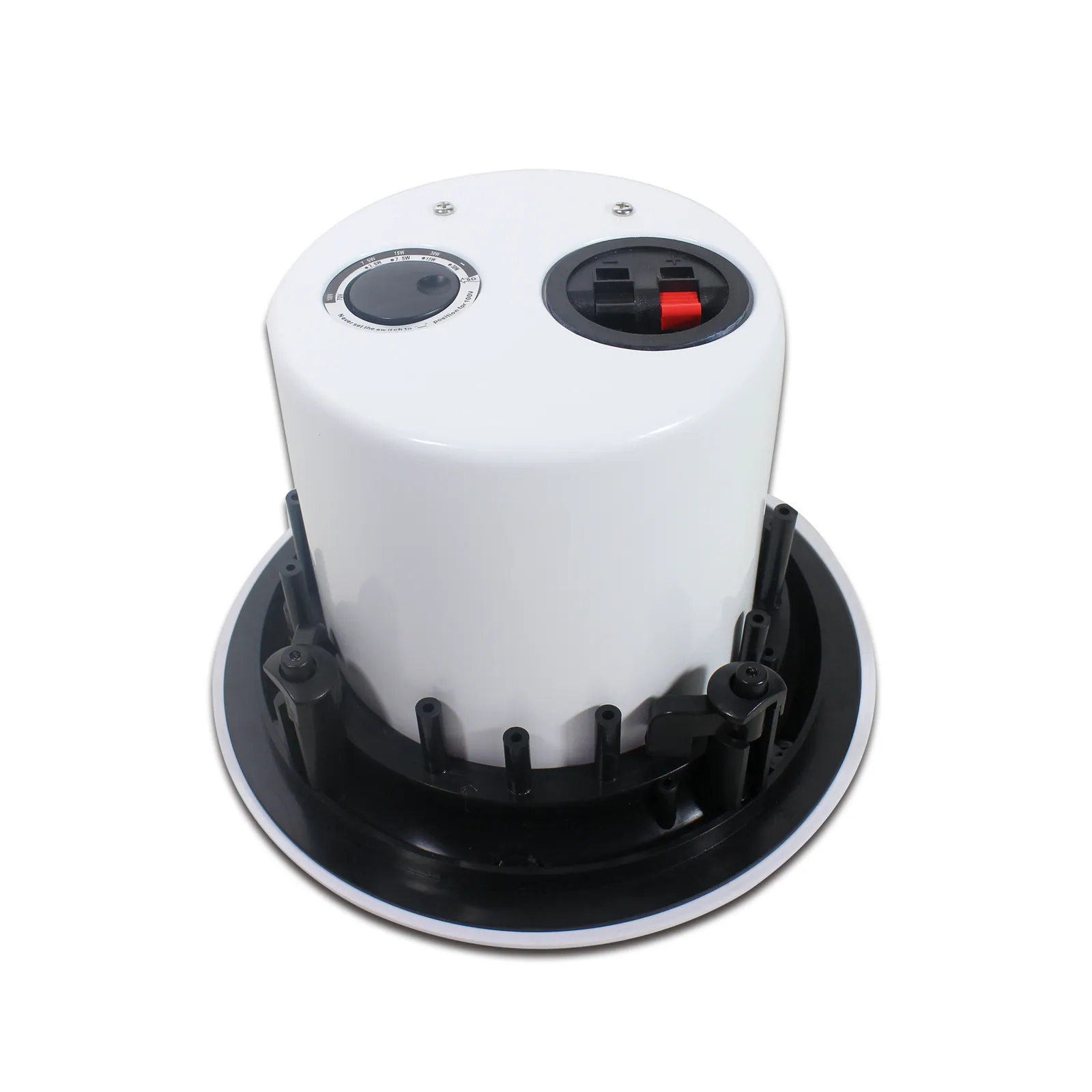

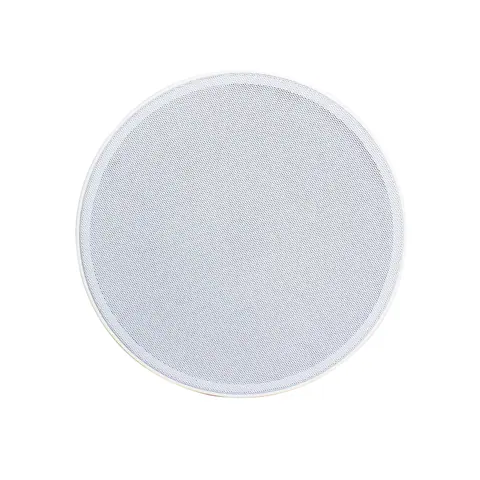

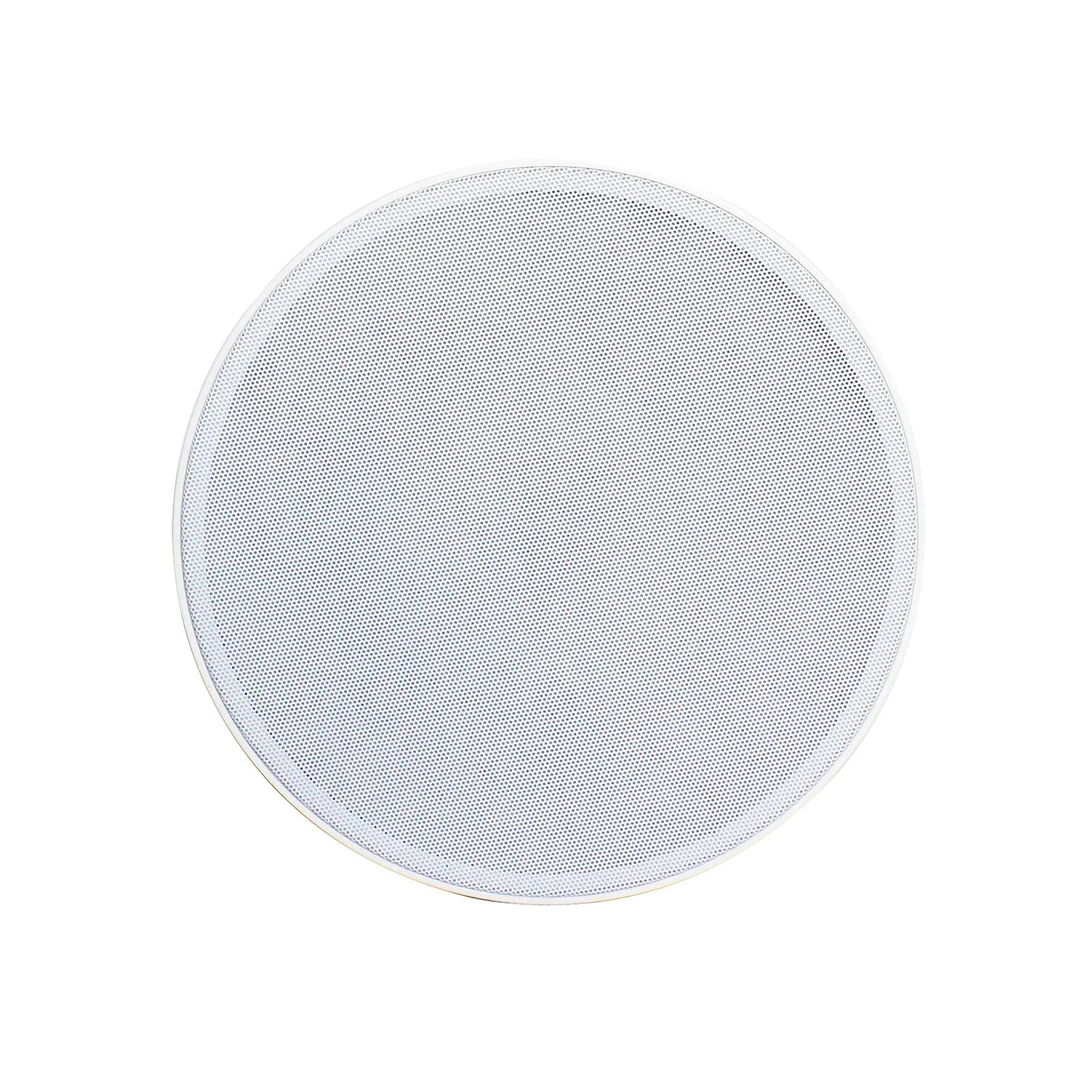

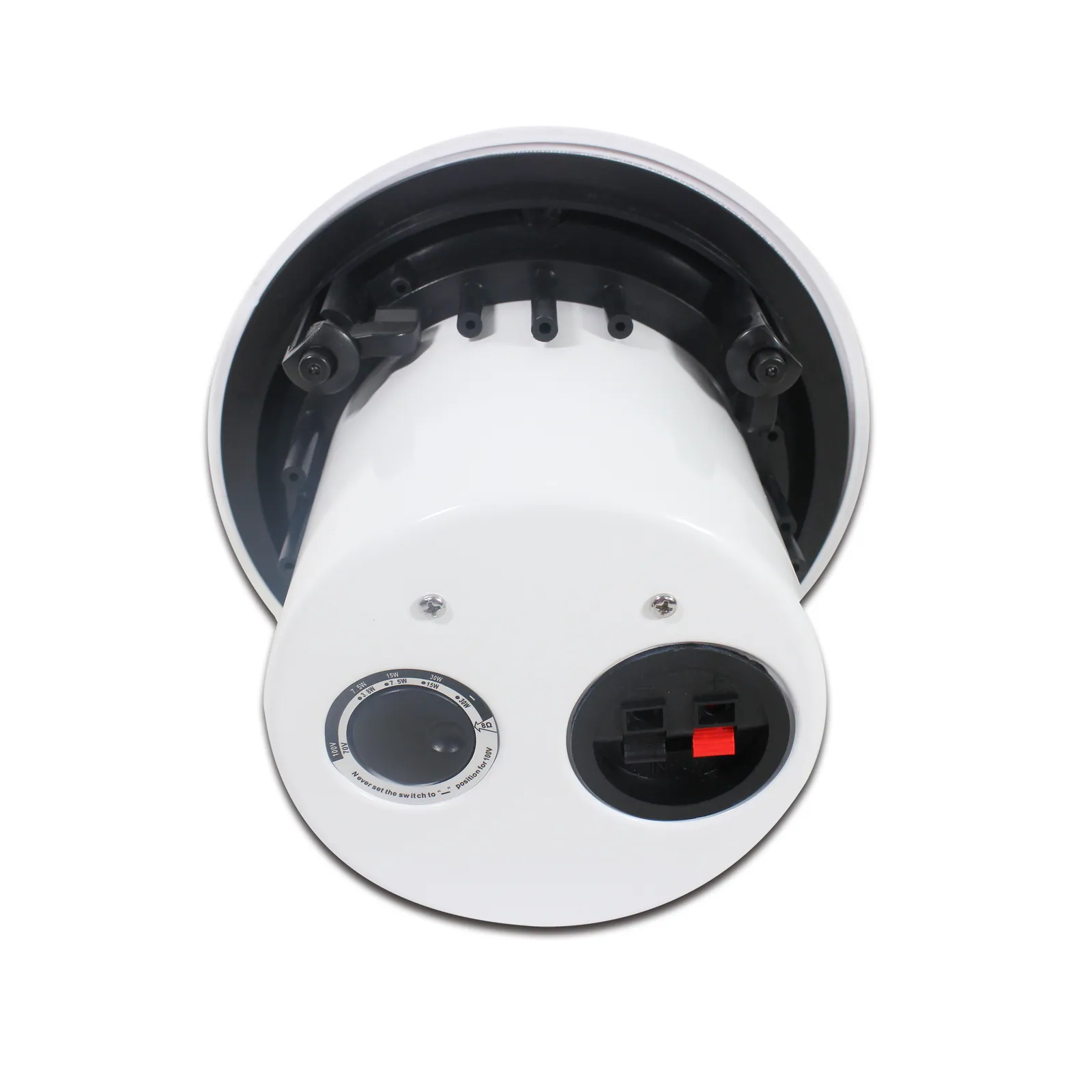

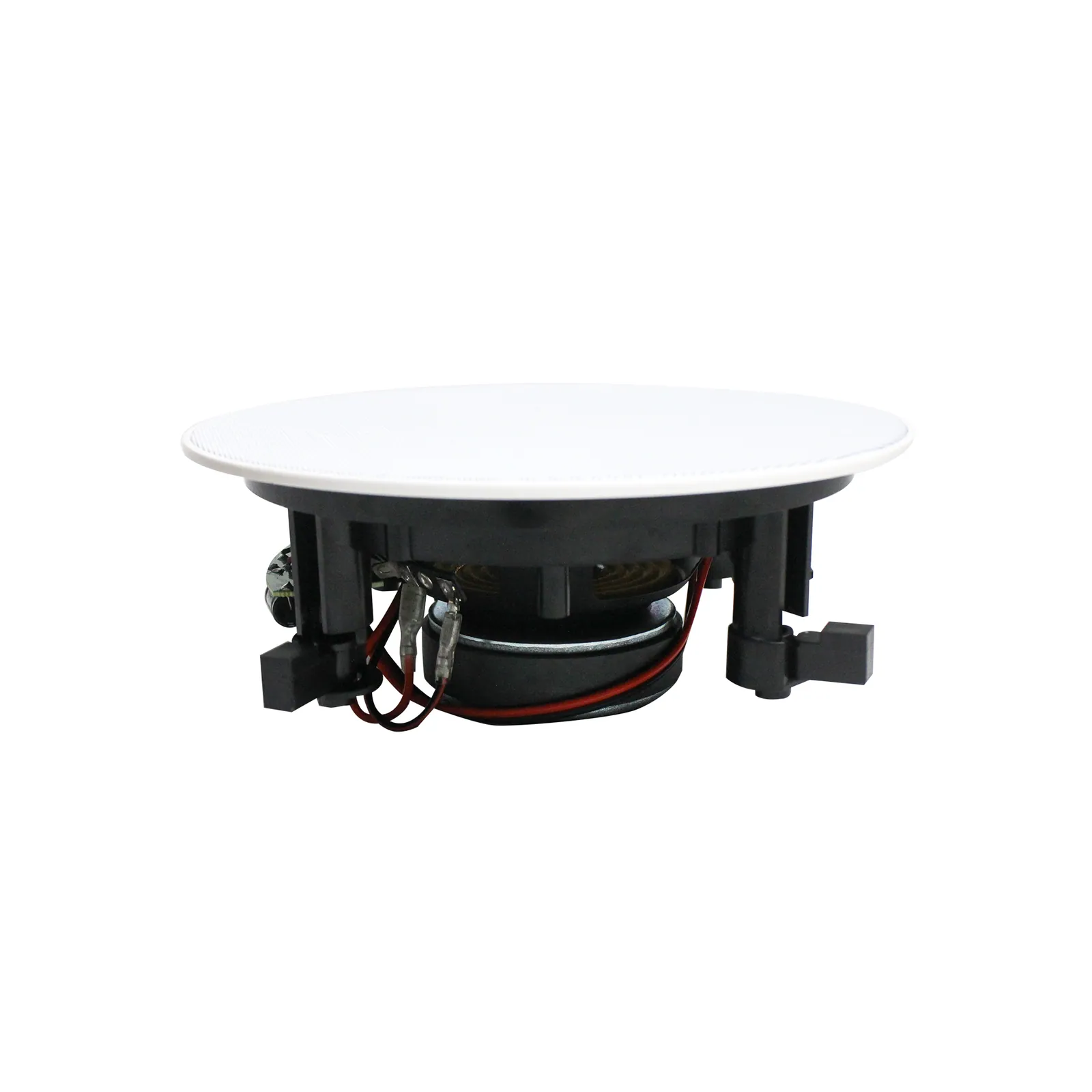

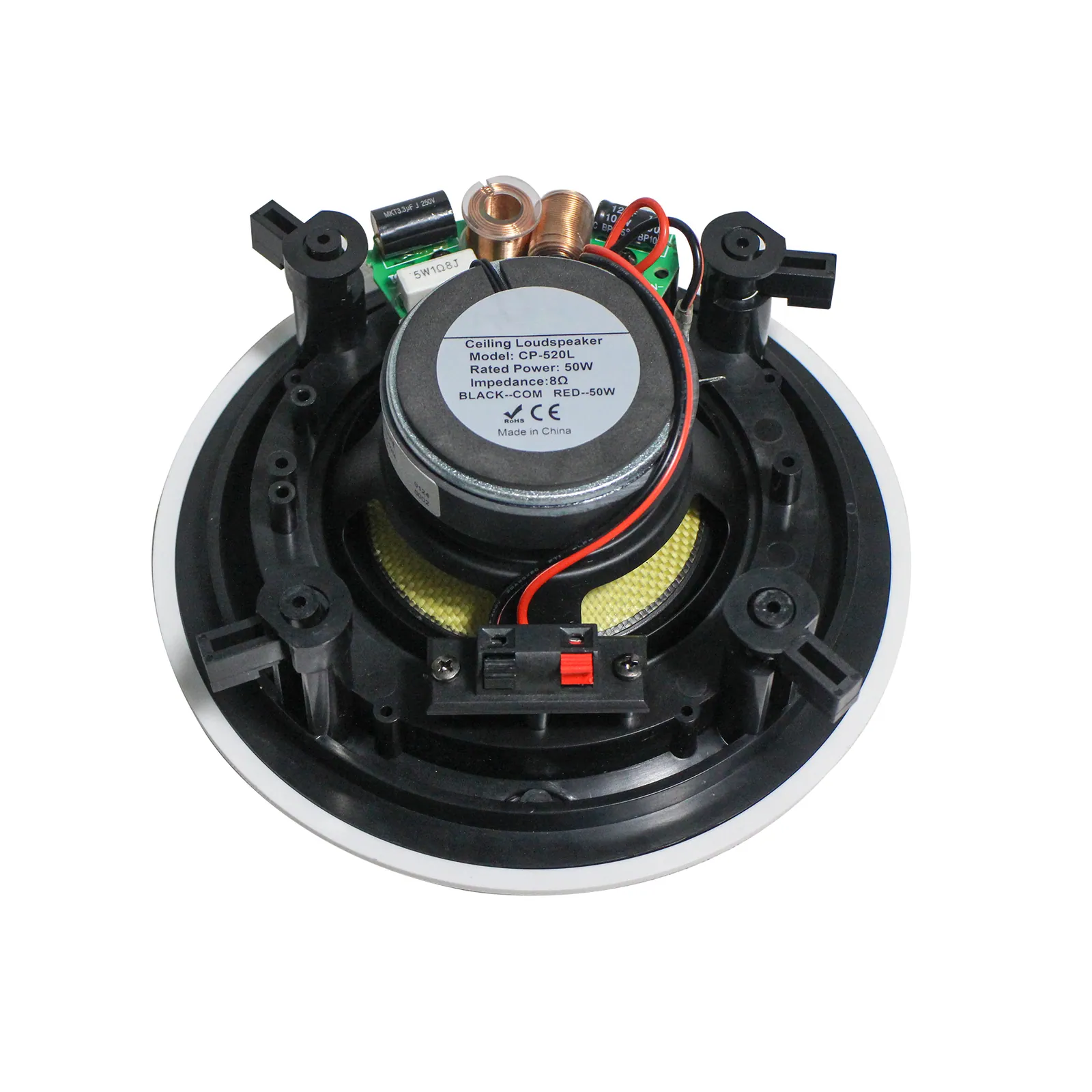

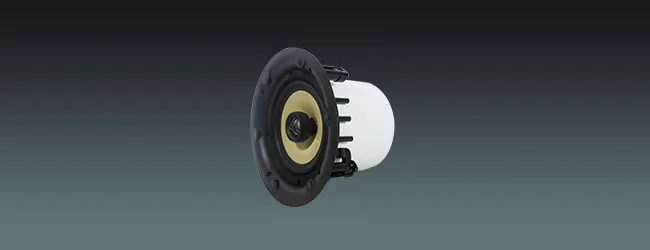

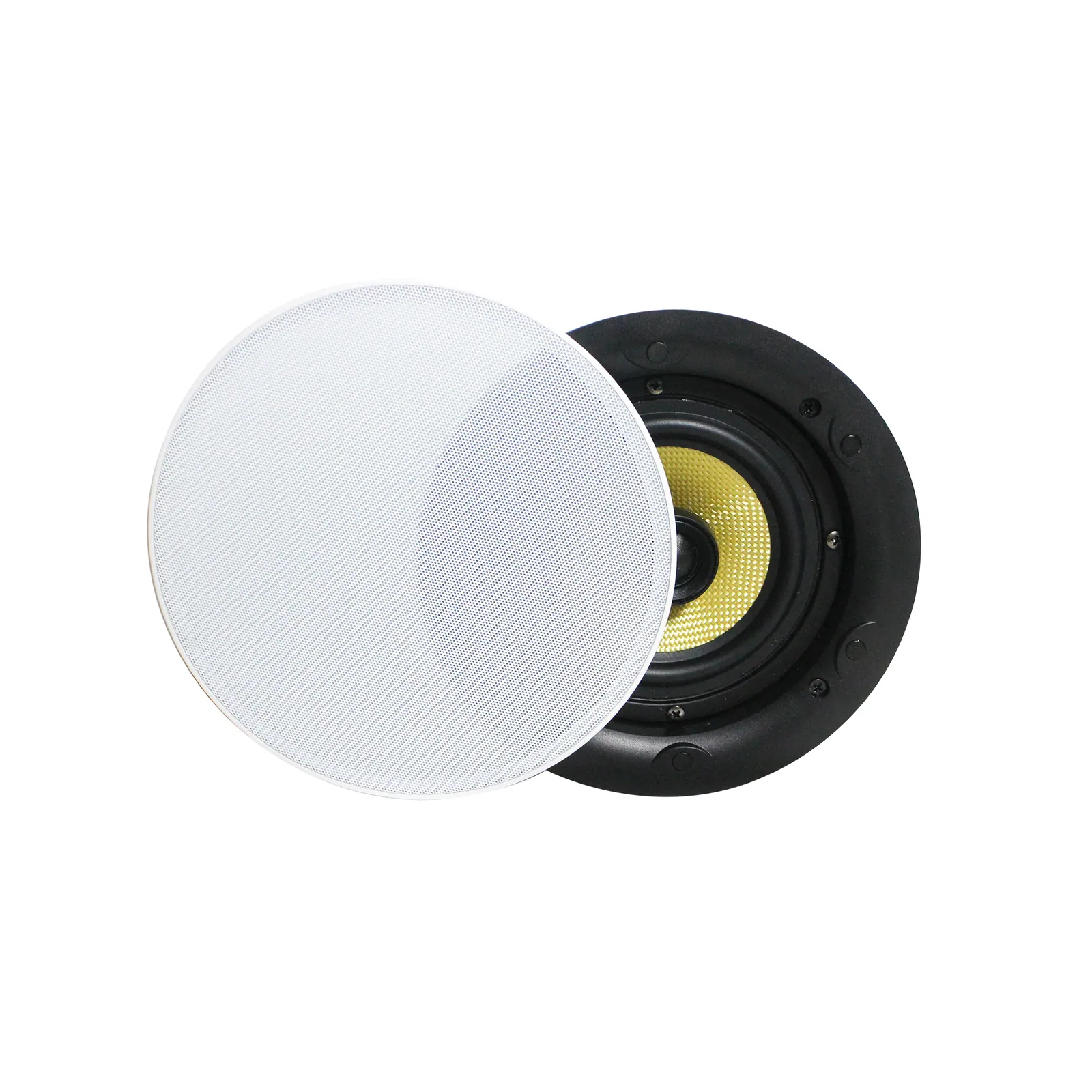

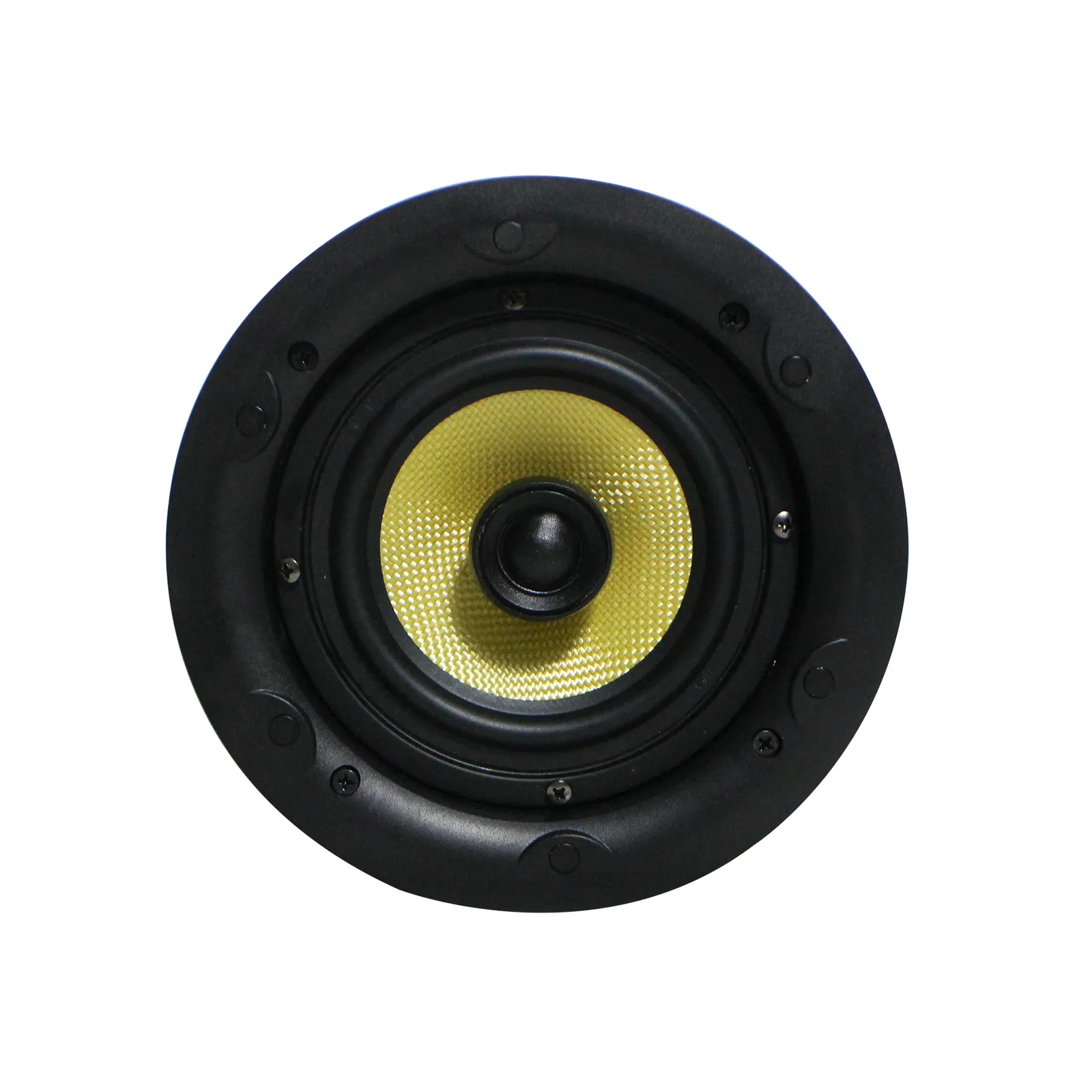

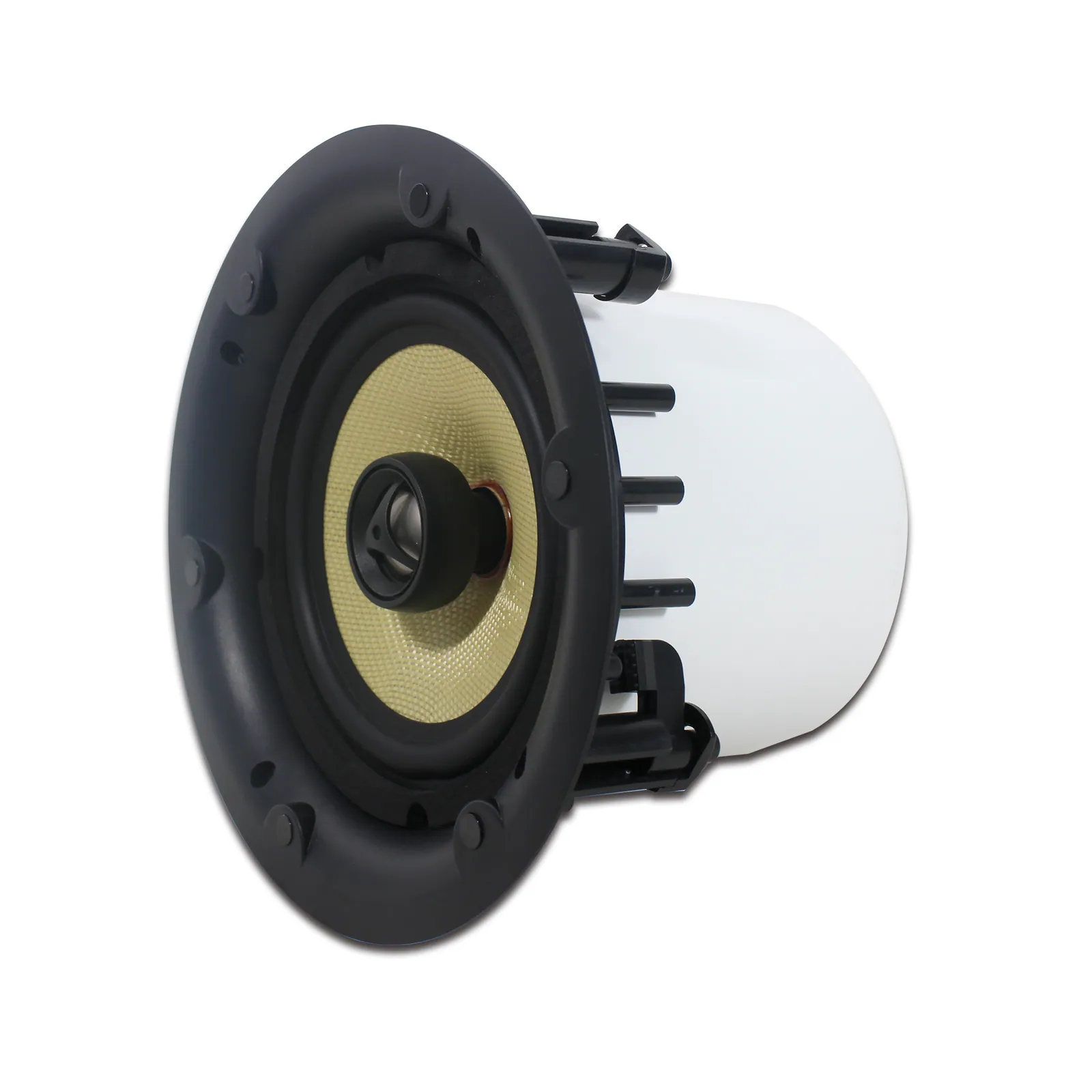

Rimless Ceiling Speaker with or without Dome
ModelCP-520LT/CP-520LTH / CP-630LT/CP-630LTH / CP-840LT/CP-840LTH
ABS in ceiling speaker at high performance
- Weight
- CP-520LT/CP-520LTH: 1 3Kg; CP-630LT/CP-630LTH: 1.8Kg; CP-840LT/CP-840LTH: 26Kg
Models compared.
| MODEL | CP-520LT/CP-520LTH | CP-630LT/CP-630LTH | CP-840LT/CP-840LTH |
|---|---|---|---|
| Power at 100V | 5/10/20Wt; 40W at 8ohm | 7.5/15/30W: 60W at 8ohm | 10/20/40W: 80W at 8ohm |
| Power at 70v | 2.5/5/10W;40W at 8ohm | 3.8/7.5/15W:60W at 8ohm | 5/10/20W: 80N at 8ohm |
| SPU 1W/1M) | 89dB | 90dB | 90dB |
| Max SPL@ IM | 100dB | 103dB | 105dB |
| Fre9. Response | 80Hz-20KHz | 50Hz-20KHz | 50Hz-20KHz |
| Cutout Size | Dia 180mm | Dia 205mm | Dia 255mm |
| Installation | In ceiling mounted | In ceiling mounted | In ceiling mounted |
| Enclosure Material | ABS | ABS | ABS |
| Weight | 1 3Kg | 1.8Kg | 26Kg |
| Finish | White | White | White |
| Speakers | 5”coaxial | 6″ coaxial | 8”coaxial |
What it is.
Features

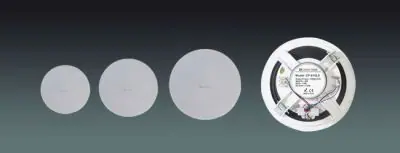

- Available in 5. 6. and 8 inch
- With 100V line transformer
- Good for PA and BGM

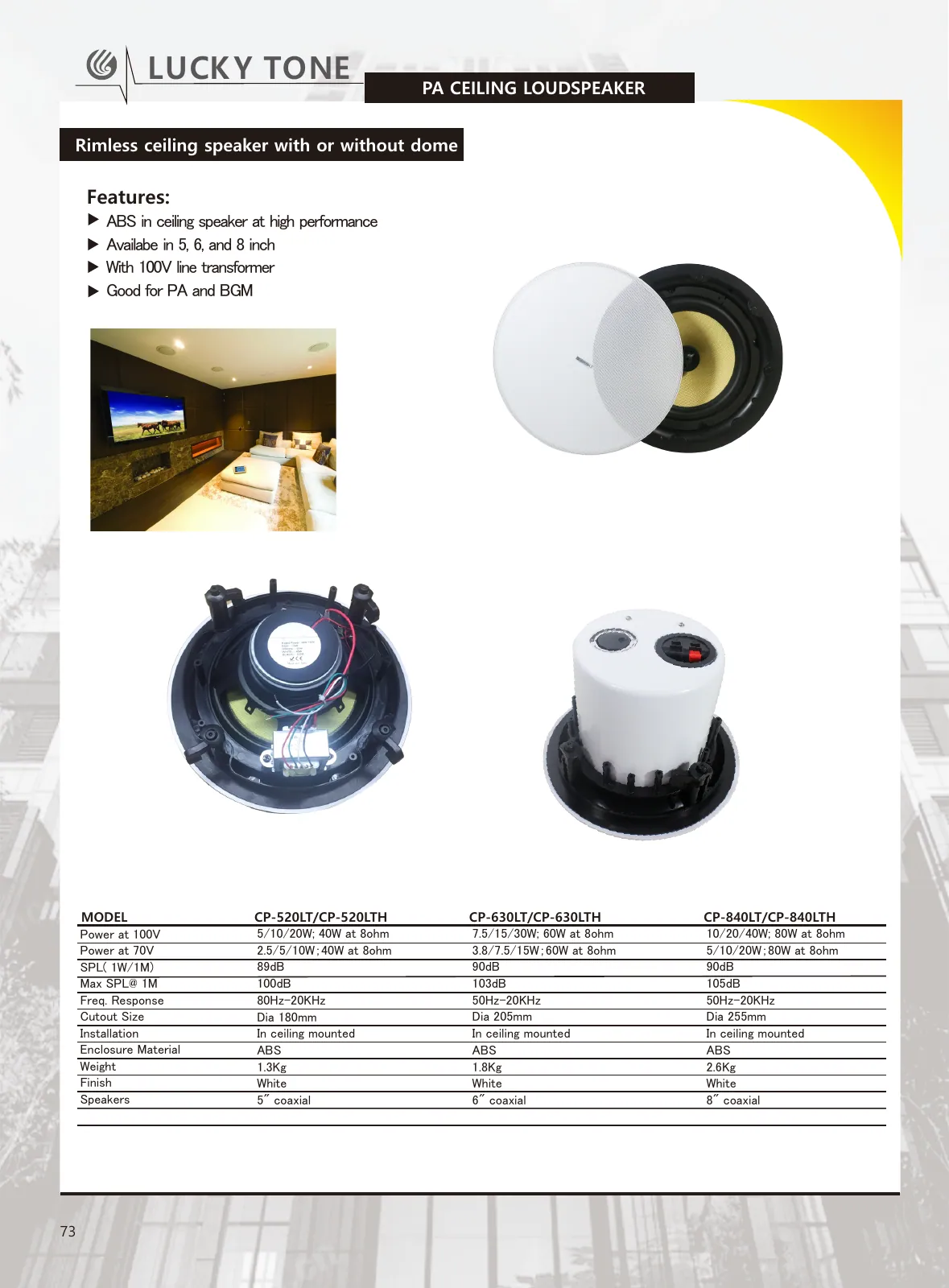

Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.

In the same range.
EQ-1699Lucky ToneRimless Ceiling SpeakerHSP-610 / HSP-610T / HSP-610TH · LoudspeakersWeightHSP-610: 0.5Kg; HSP-610T: 0.7Kg; HSP-610TH: 0.85Kg
EQ-1698Lucky ToneRimless Ceiling SpeakerCP-506LMT / CP-606LMT / CP-810LMT · LoudspeakersWeightCP-506LMT: 0.5Kg; CP-606LMT: 0.7Kg; CP-810LMT: 1Kg

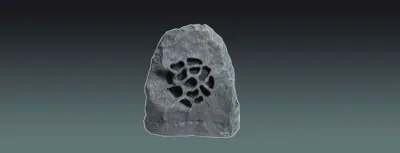

EQ-1702Lucky ToneRock SpeakerRK-620 · LoudspeakersWeight3.5 Kg
