Sheet 05.148

Lucky Tone · Loudspeakers

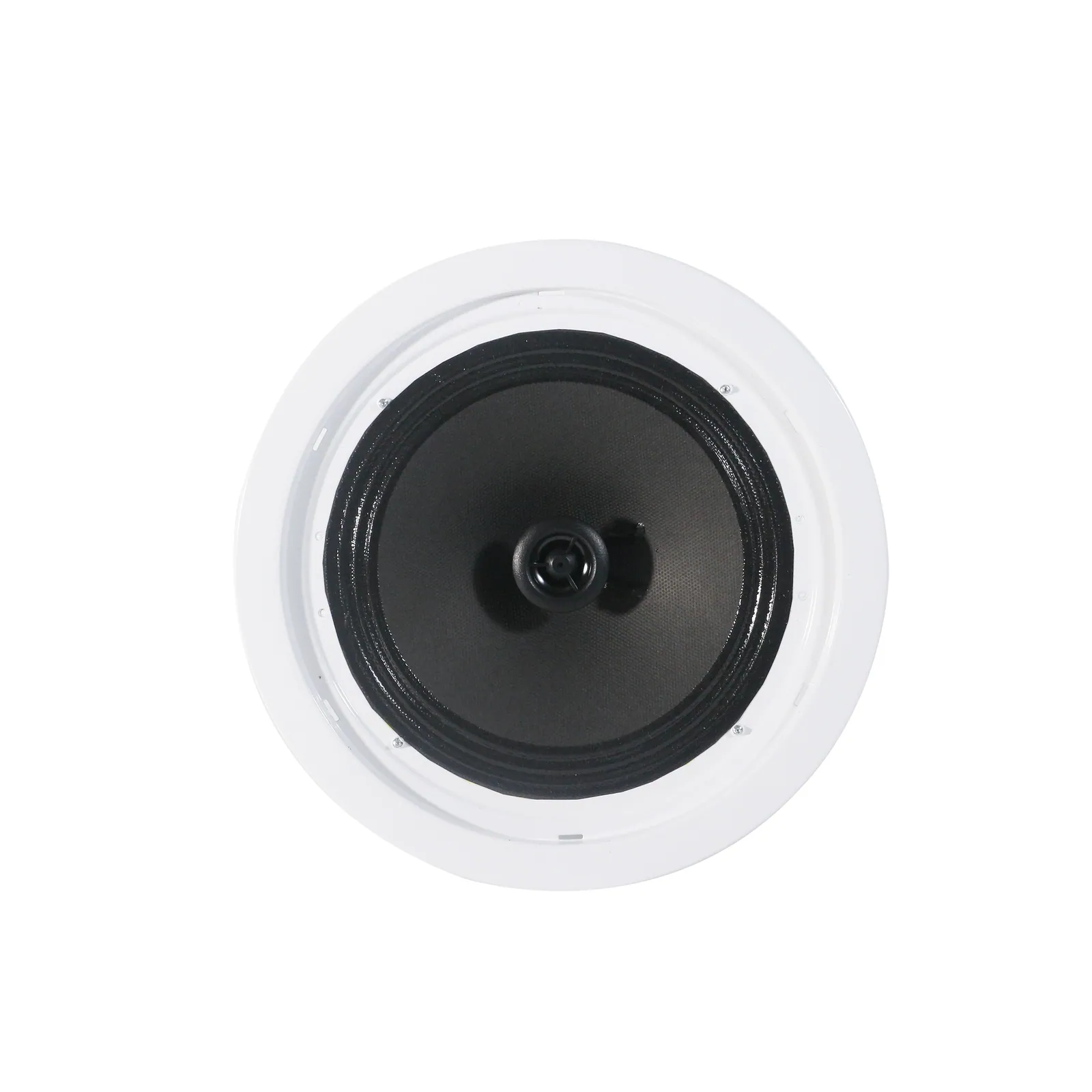

High SPL 8-Inch Ceiling Speaker

ModelCP-830T

Double magnet ultra-high sensitivity 8-inch coaxial ceiling speaker

Weight: 2.0KG

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 13 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications13

MODEL: CP-830T
Power RMS: 30W /15W/100V
Power Peak: 60W
SPL( 1W/1M): 96dB
Max SPL@ 1M: 110dB
Freq. Response: 93Hz-20KHz
Installation: In ceiling
Enclosure Material: metal
Net Weight: 2.0KG
Finish: White
Cutout Size: Dia 230mm
Product Size: Dia265x93mm(H)
Speakers: 1″ x1 (TREBLE) 8″x1(BASS)

02DescriptionManufacturer's description

What it is.

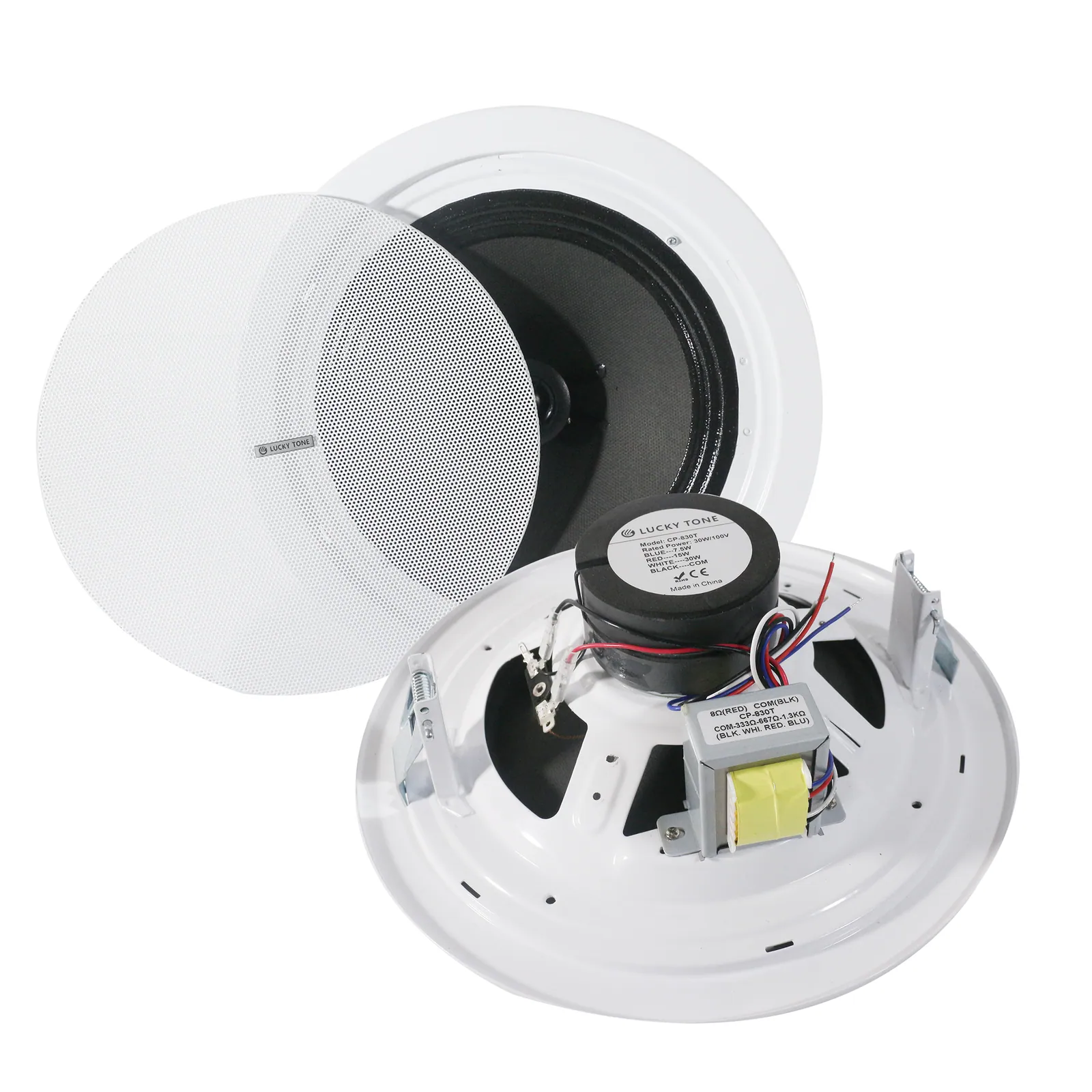

Metal Ceiling speaker

Versatile for various applications

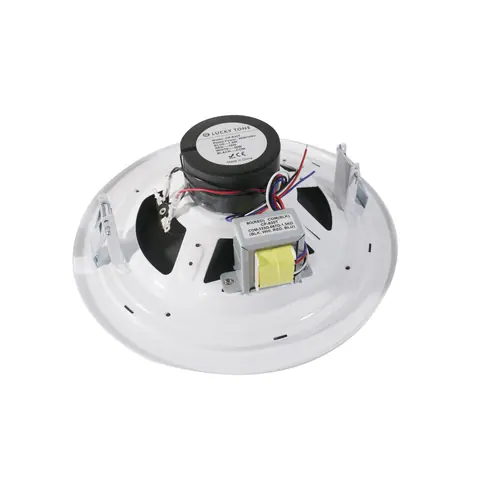

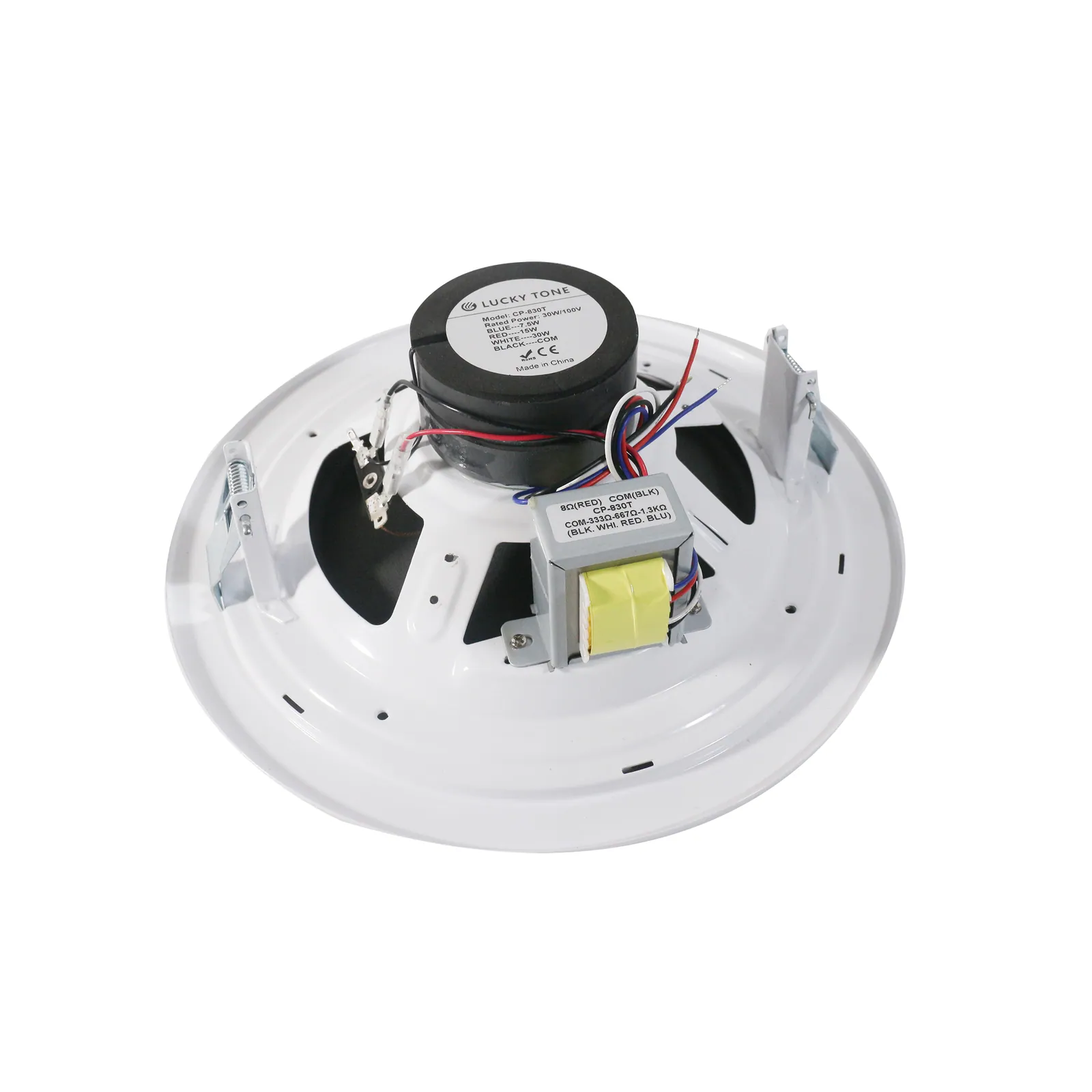

With 30W transformer

03Documents1 file · 1.9 MB

Documents and files.

Datasheets and manuals01

PDFLucky-Tone-CP-830T-CP-830TH-Catalog-20230927.pdf1.9 MB
