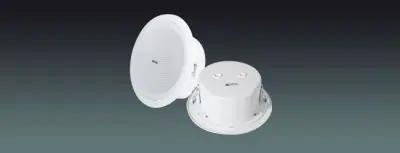

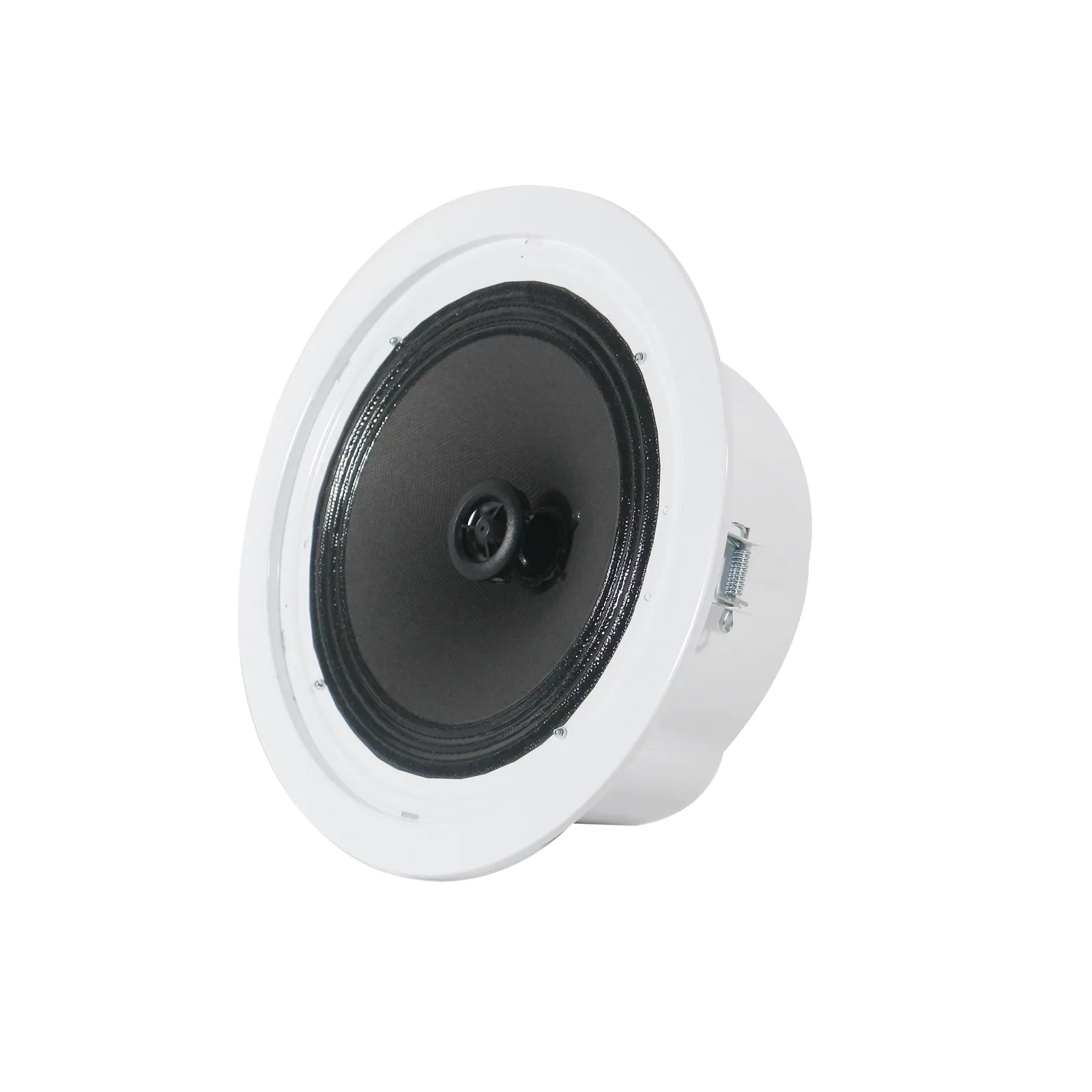

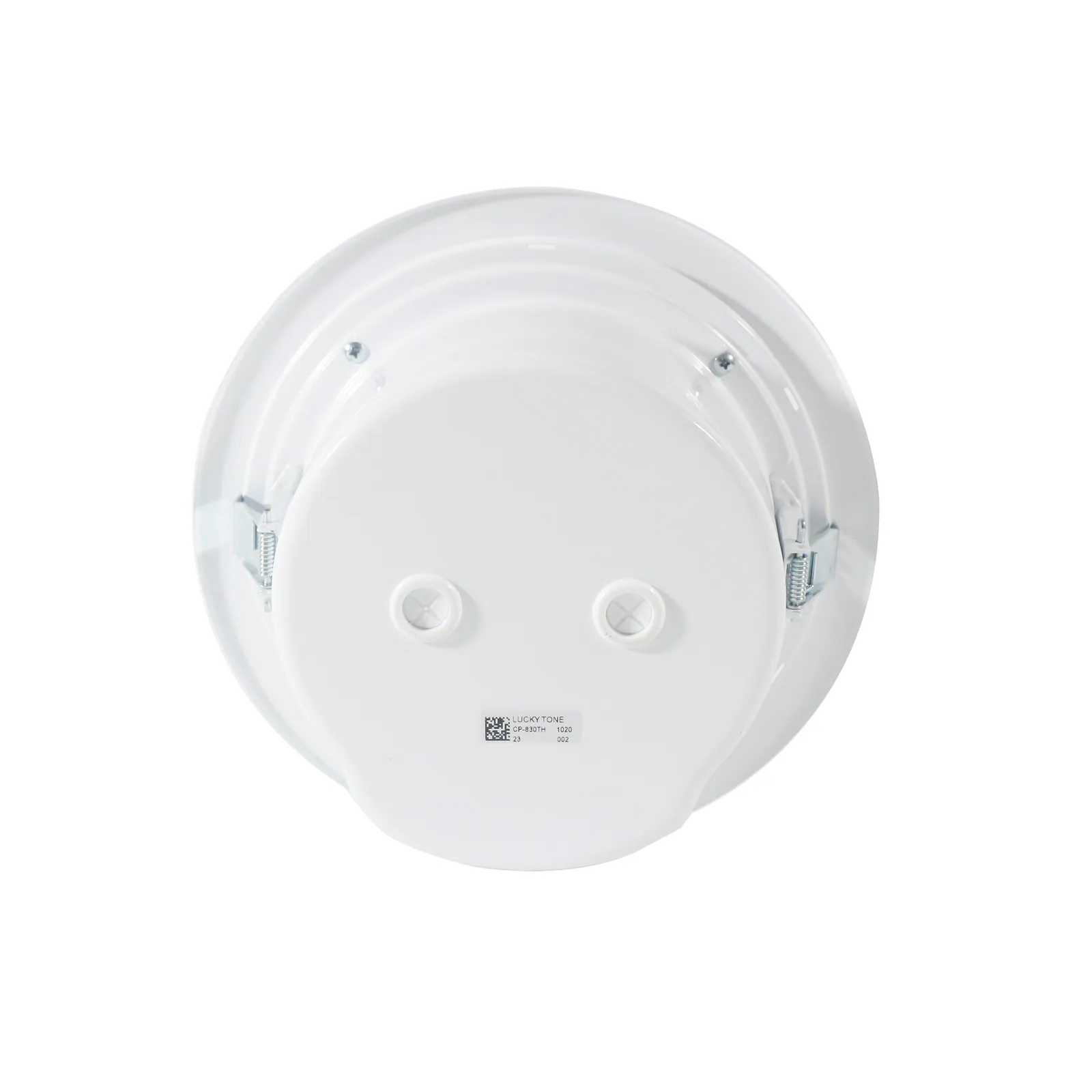

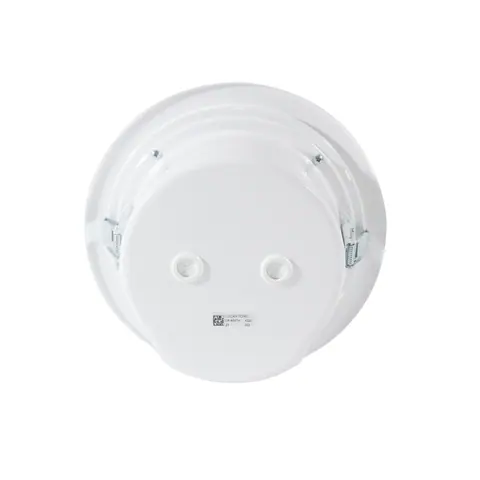

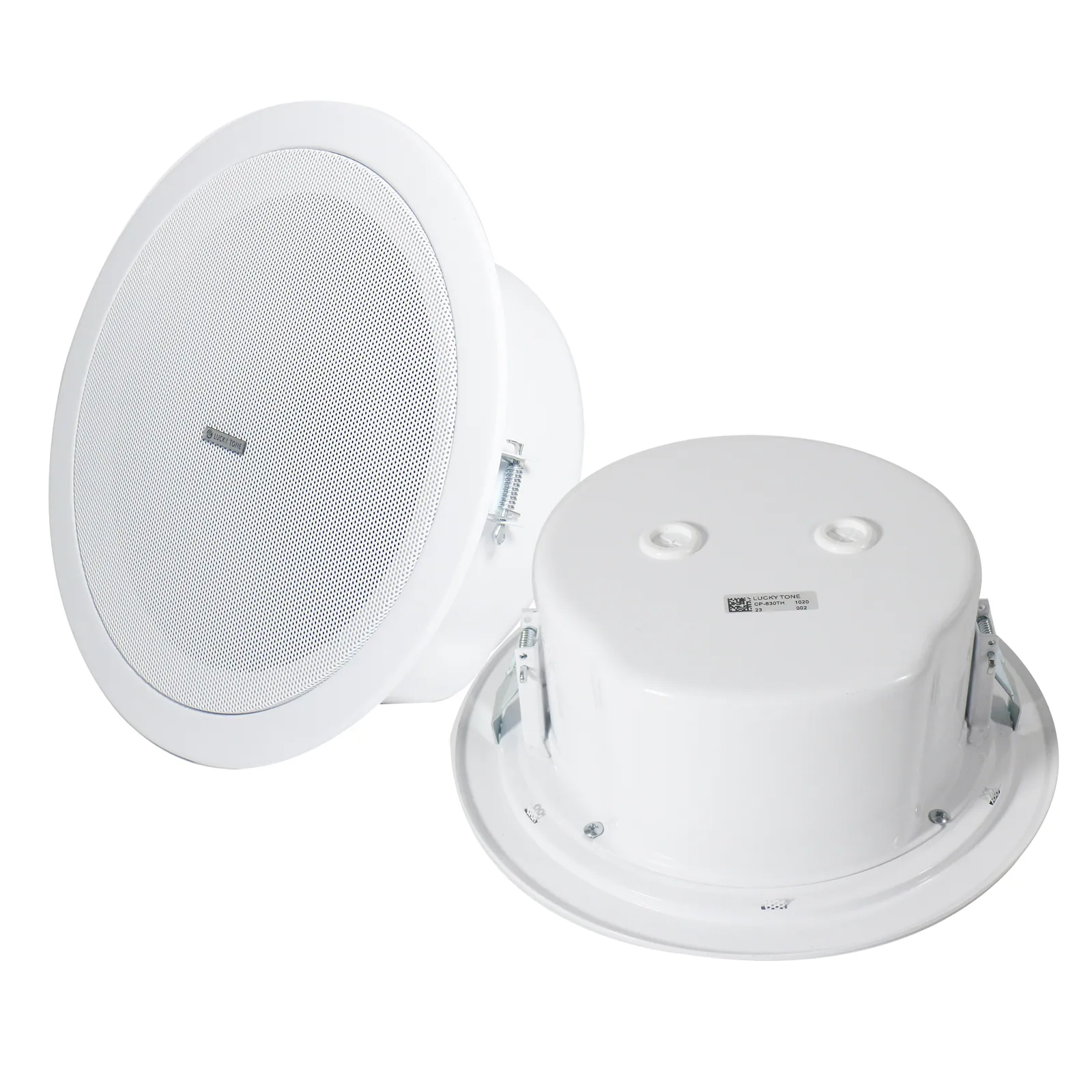

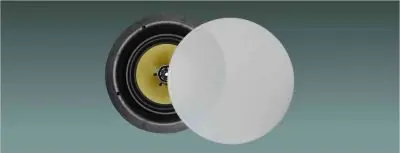

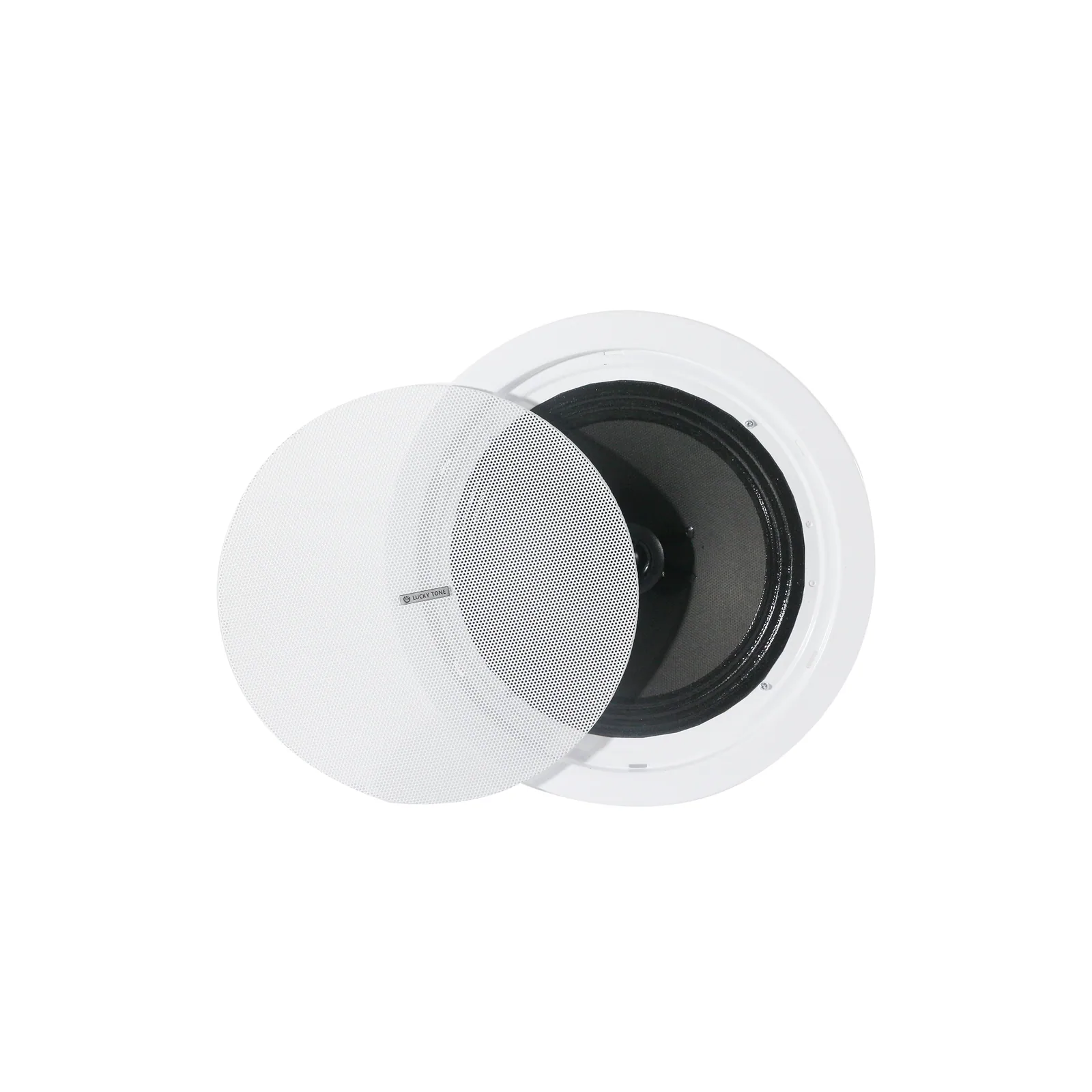

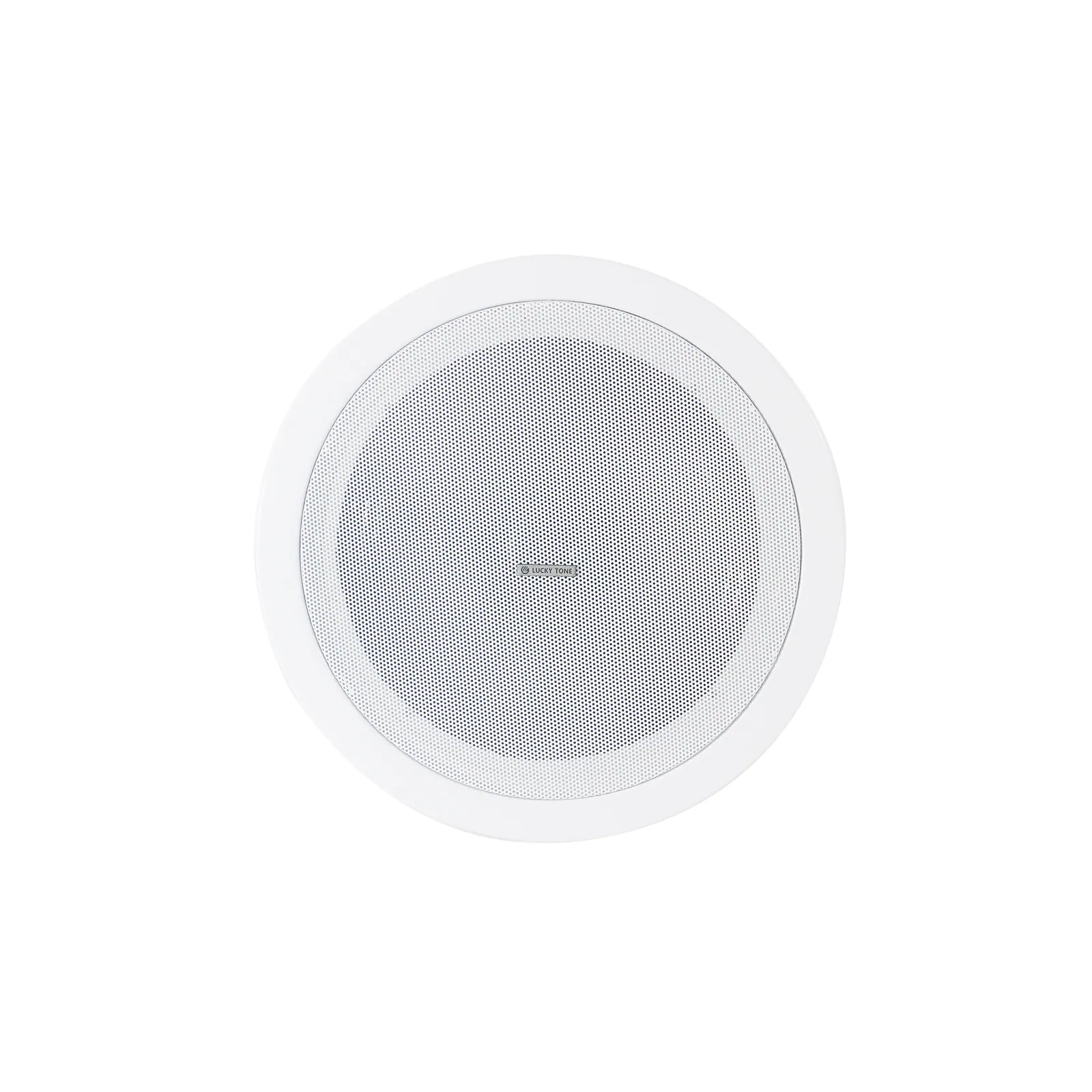

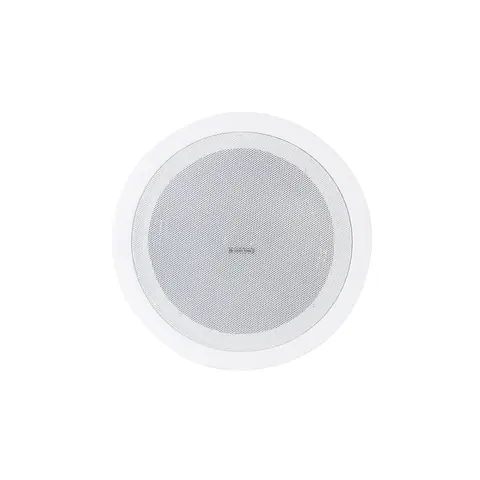

High SPL 8-Inch Ceiling Speaker With Fire Dome
ModelCP-830TH
Double magnet ultra-high sensitivity 8-inch coaxial ceiling speaker
- Weight
- 2.5KG
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
High SPL 8-Inch Ceiling Speaker With Fire DomePrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 13 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications13
- MODEL
- CP-830TH
- Power RMS
- 30W /15W/100V
- Power Peak
- 60W
- SPL( 1W/1M)
- 96dB
- Max SPL@ 1M
- 110dB
- Freq. Response
- 63Hz-20KHz
- Installation
- In ceiling
- Enclosure Material
- metal
- Net Weight
- 2.5KG
- Finish
- White
- Cutout Size
- Dia 230mm
- Product Size
- Dia265x100mm(H)
- Speakers
- 1″ x1 (TREBLE) 8″x1(BASS)
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
Metal Ceiling speaker
Versatile for various applications
With 30W transformer
03Documents1 file · 1.9 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
Datasheets and manuals01
04Related products
In the same range.
EQ-148Lucky ToneHigh SPL 8-Inch Ceiling SpeakerCP-830T · LoudspeakersWeight2.0KG

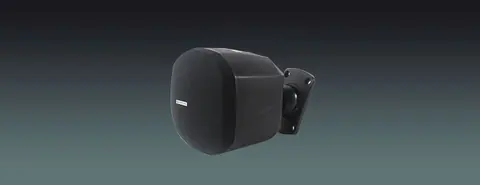

EQ-150Lucky ToneHigh-performance 3.5inch Wall speakerHW-420B · LoudspeakersFrequency response120Hz-20kHzWeight1.23kg

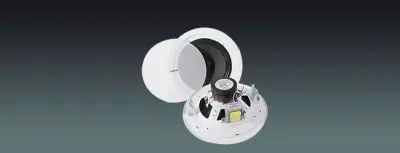

EQ-147Lucky ToneHigh Performance Rimless Ceiling SpeakerCP-520L/T CP-630L/T CP-840L/T · Loudspeakers

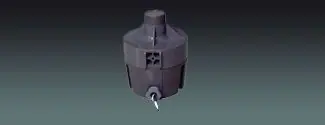

EQ-151Lucky ToneHorn DriverH-30DT · LoudspeakersWeight2.10kg05Talk to us
