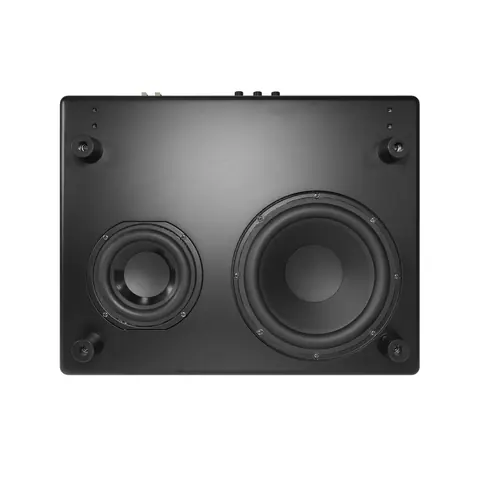

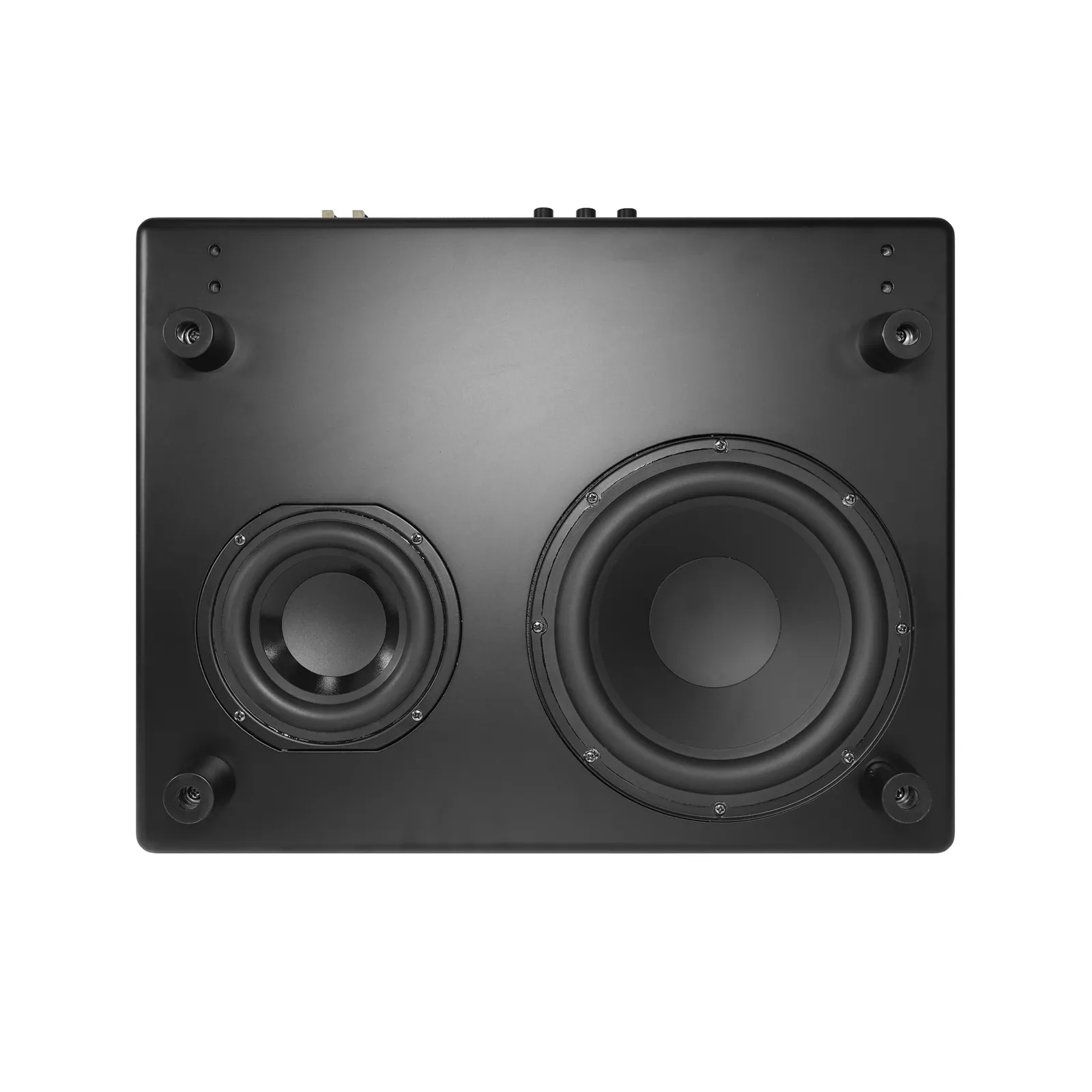

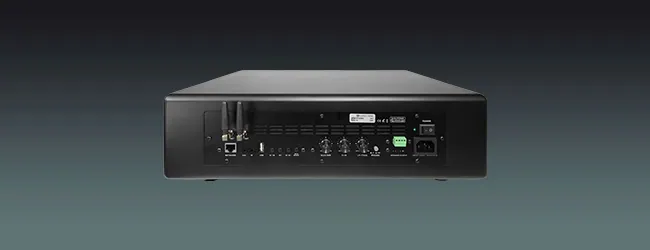

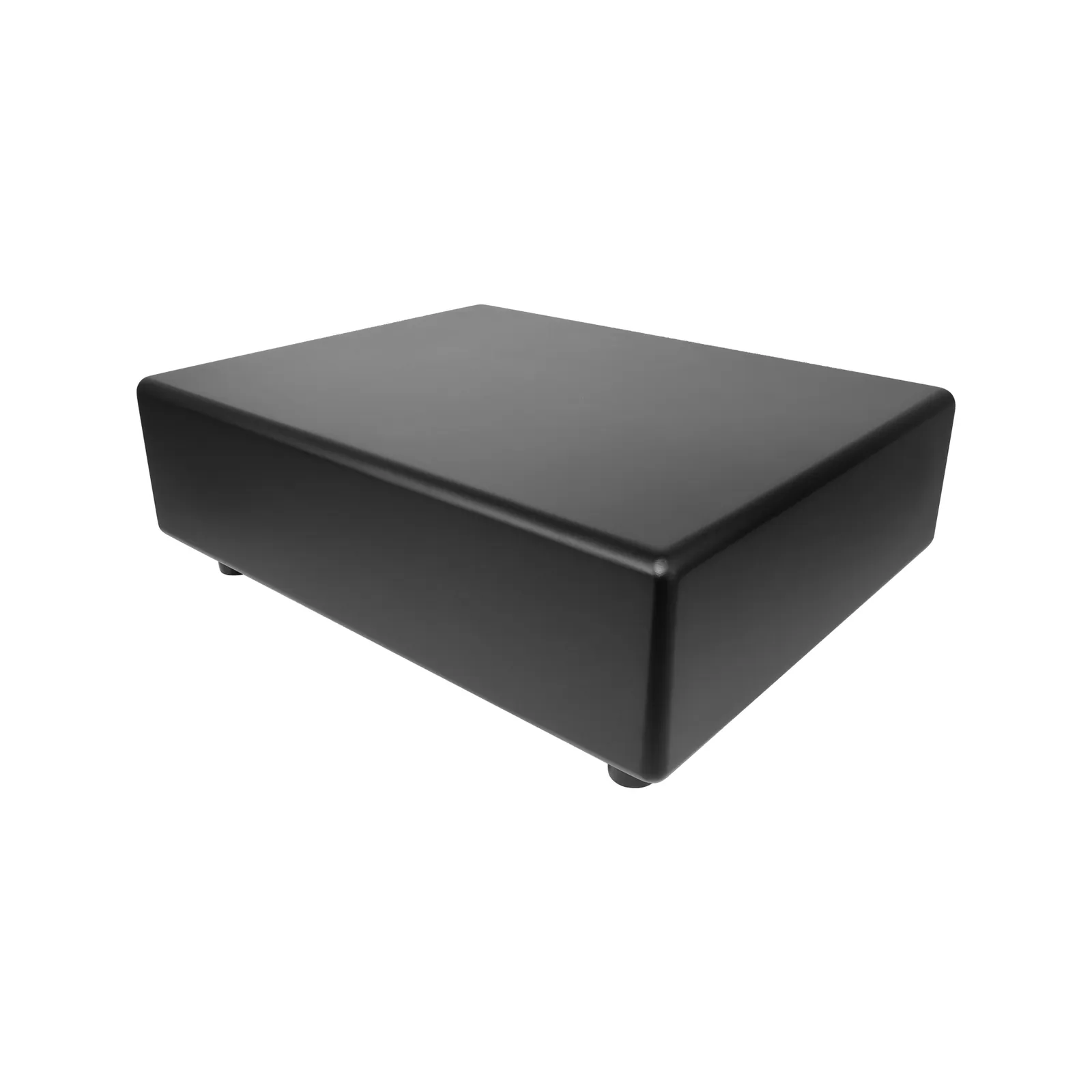

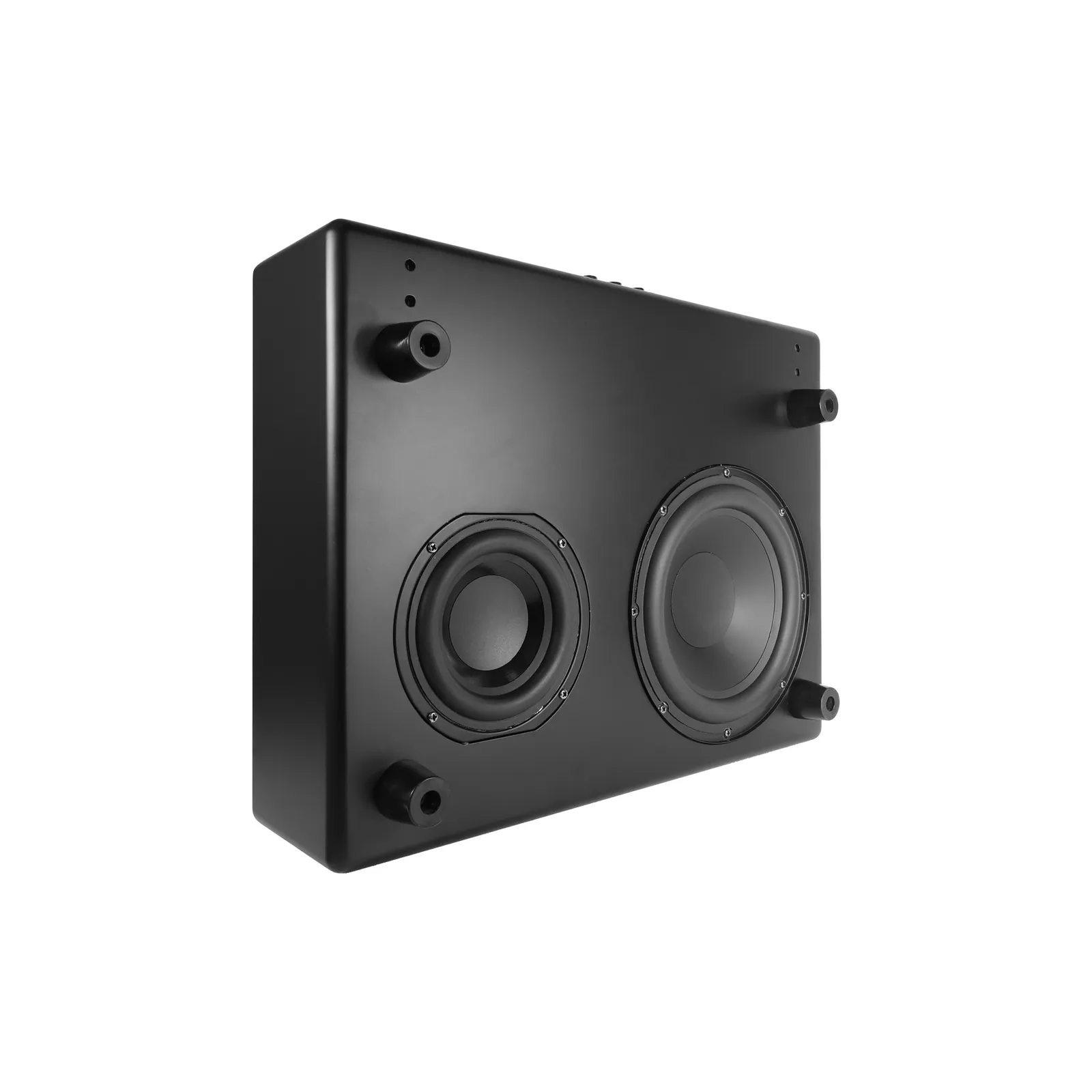

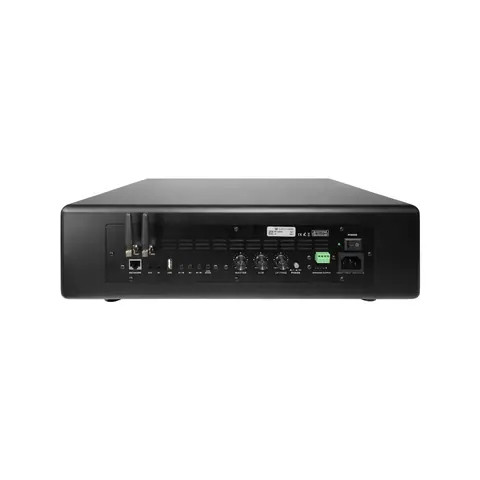

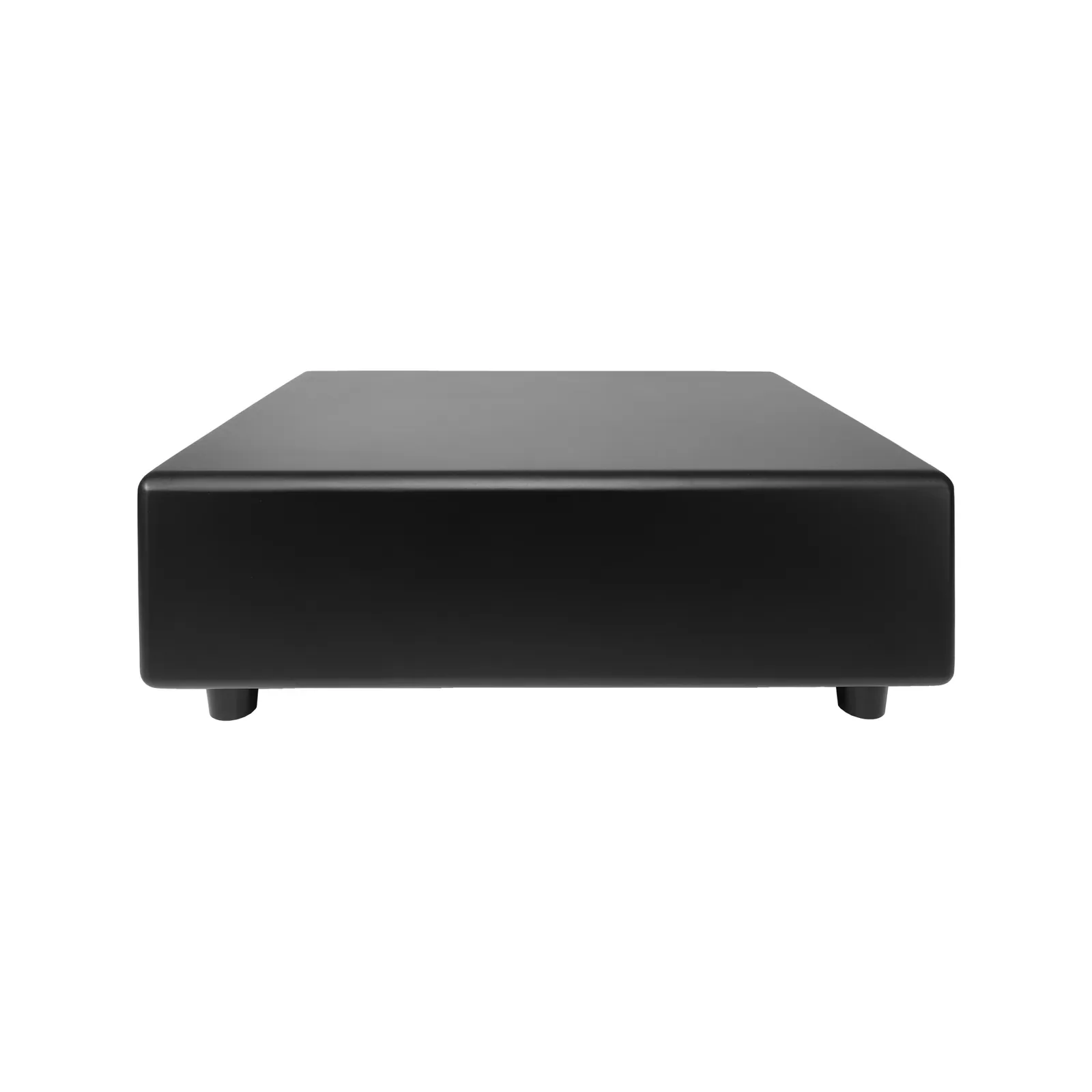

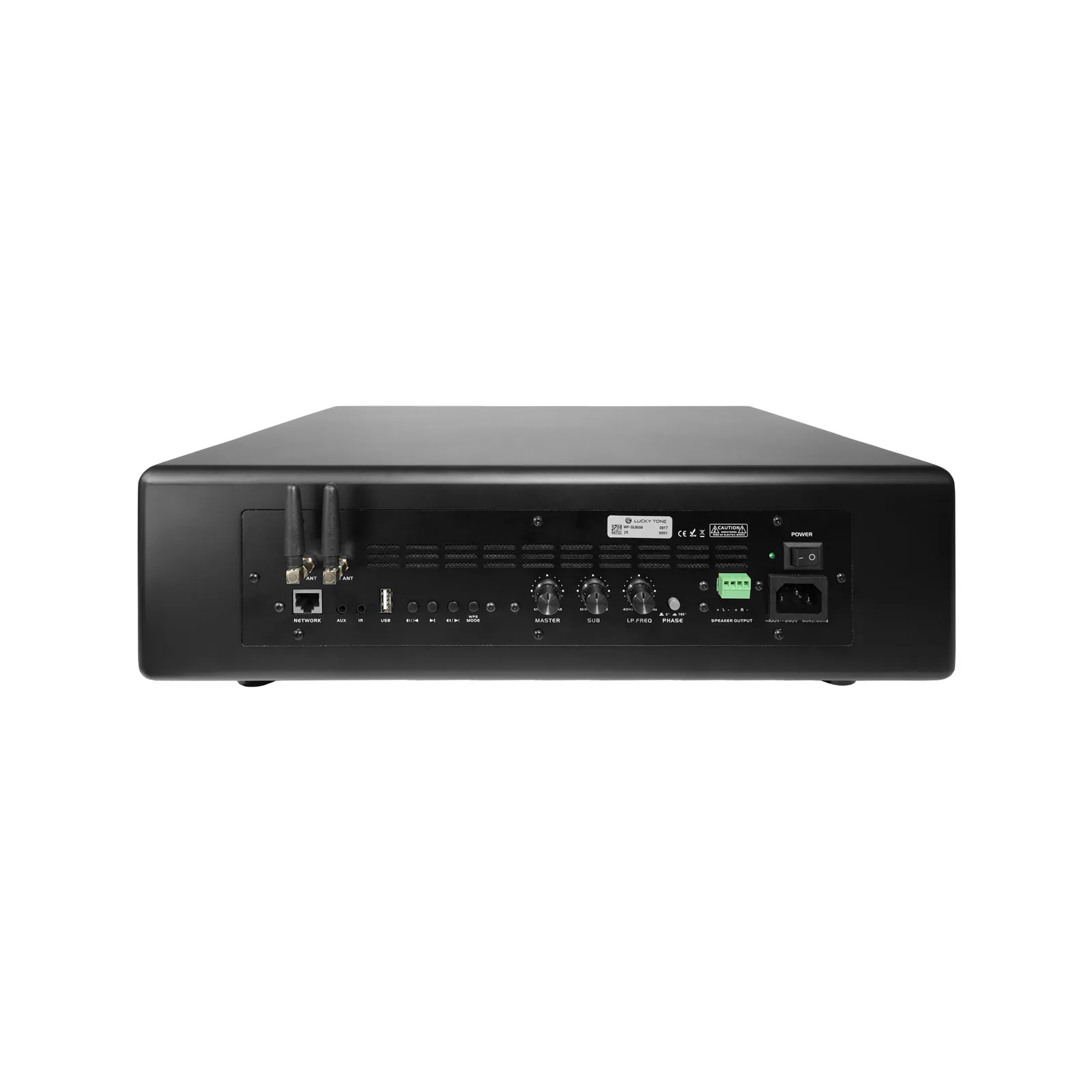

5.25″ Subwoofer with WiFi & Bluetooth
ModelWF-SUB5W/WF-SUB5B
Allow wireless music streaming via WiFi or Bluetooth
- Output power
- For the subwoofer: 150W@4 ohm For the stereo speaker outputs: 2x40W@4 ohm
- Frequency response
- 20-20KHz
- Weight
- 7.7KG
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

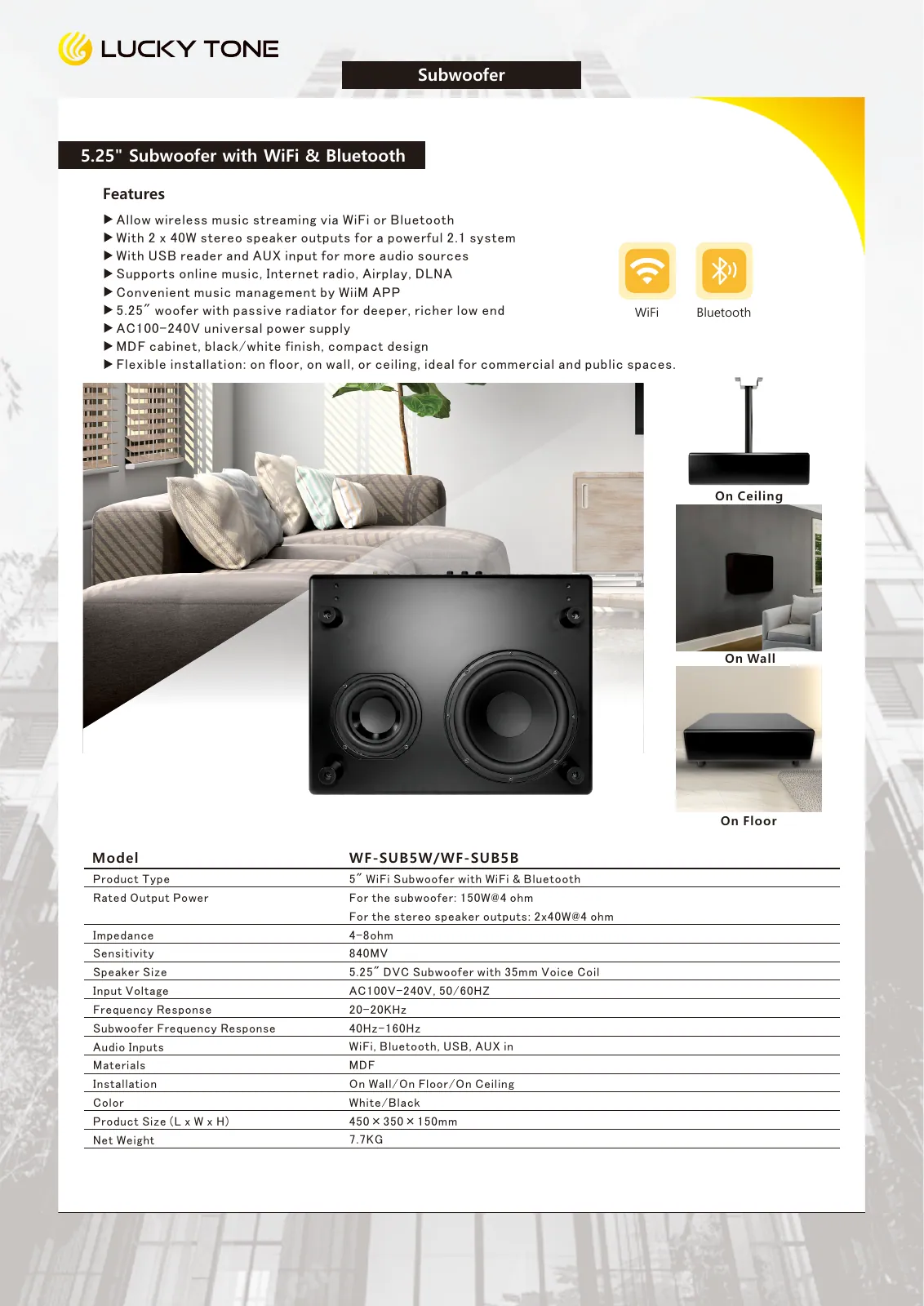

01Specifications15
- Model
- WF-SUB5W/WF-SUB5B
- Product Type
- 5” WiFi Subwoofer with WiFi & Bluetooth
- Rated Output Power
- For the subwoofer: 150W@4 ohm For the stereo speaker outputs: 2x40W@4 ohm
- Impedance
- 4-8ohm
- Sensitivity
- 840MV
- Speaker Size
- 5.25″ DVC Subwoofer with 35mm Voice Coil
- Input Voltage
- AC100V-240V, 50/60HZ
- Frequency Response
- 20-20KHz
- Subwoofer Frequency Response
- 40Hz-160Hz
- Audio Inputs
- WiFi, Bluetooth, USB, AUX in
- Materials
- MDF
- Installation
- On Wall/On Floor/On Ceiling
- Color
- White/Black
- Product Size (L x W x H)
- 450×350×150mm
- Net Weight
- 7.7KG
Show the full specificationHide the rest of the specification0 more groups · 0 values
What it is.
Features
- With 2 x 40W stereo speaker outputs for a powerful 2.1 system
- With USB reader and AUX input for more audio sources
- Supports online music, Internet radio, Airplay, DLNA
- Convenient music management by WiiM APP
- 5.25″ woofer with passive radiator for deeper, richer low end
- AC100–240V universal power supply
- MDF cabinet, black/white finish, compact design
- Flexible installation: on floor, on wall, or ceiling, ideal for commercial and public spaces.
