Sheet 05.113

Lucky Tone · Loudspeakers

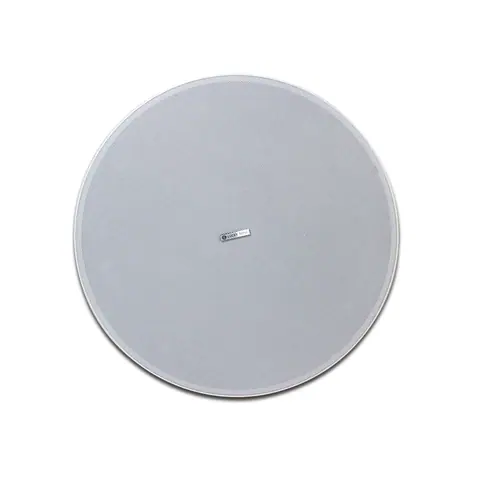

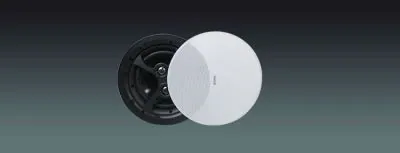

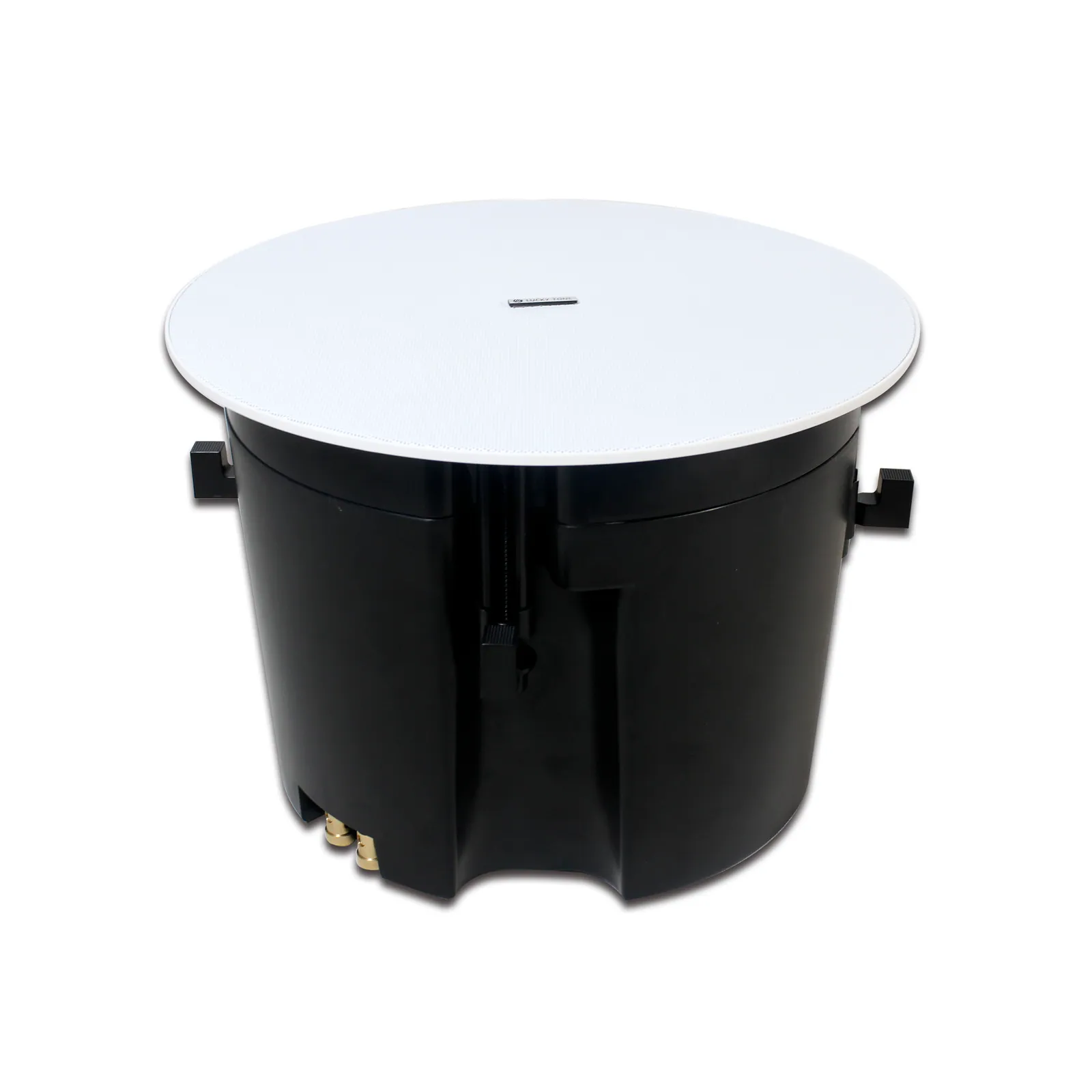

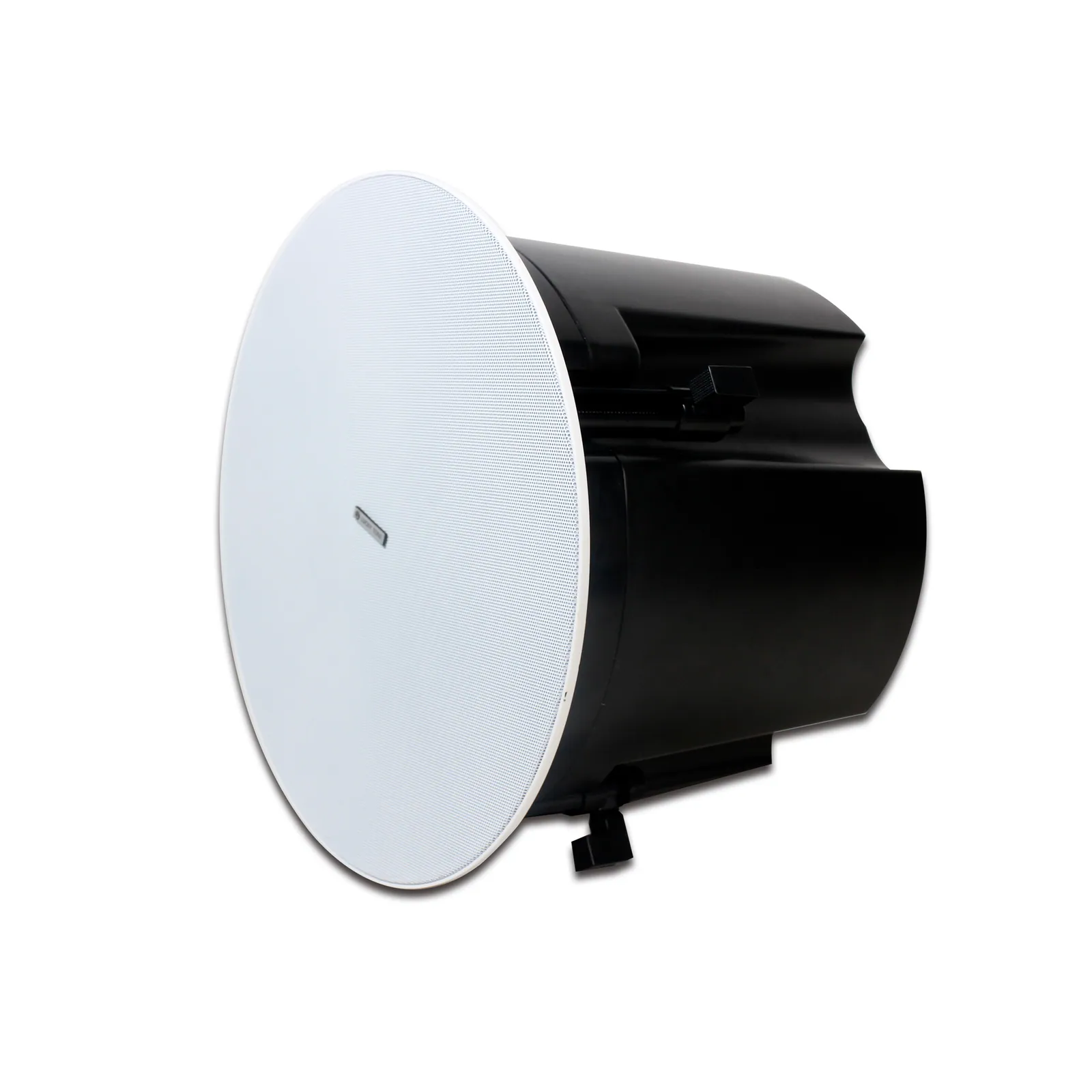

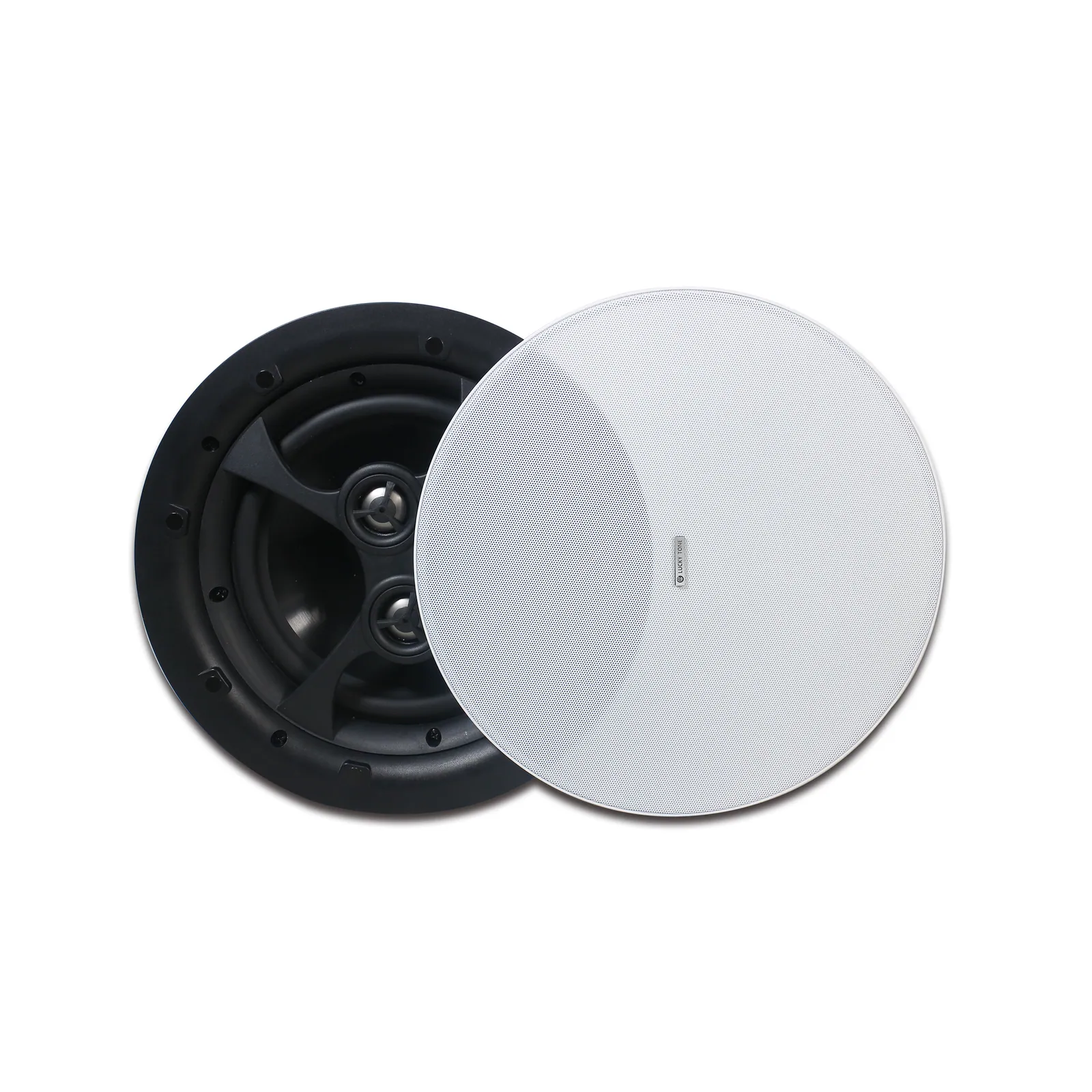

8″ 2 Way Ceiling Speaker With Crossover

ModelCP-880L

2-way ABS in ceiling speaker at high performance

Frequency response: 60hz to 20khz
Weight: 2.6kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 13 values

What this product is, in numbers.

PDFSpecifications1.9 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications13

MODEL: CP-880L
Program Power: 80W
SPL (1W/1M): 87dB
Frequency Range: 60hz to 20khz
LF: 8 inch poly Cone, rubber surround
HF: 25inch silk soft dome*2

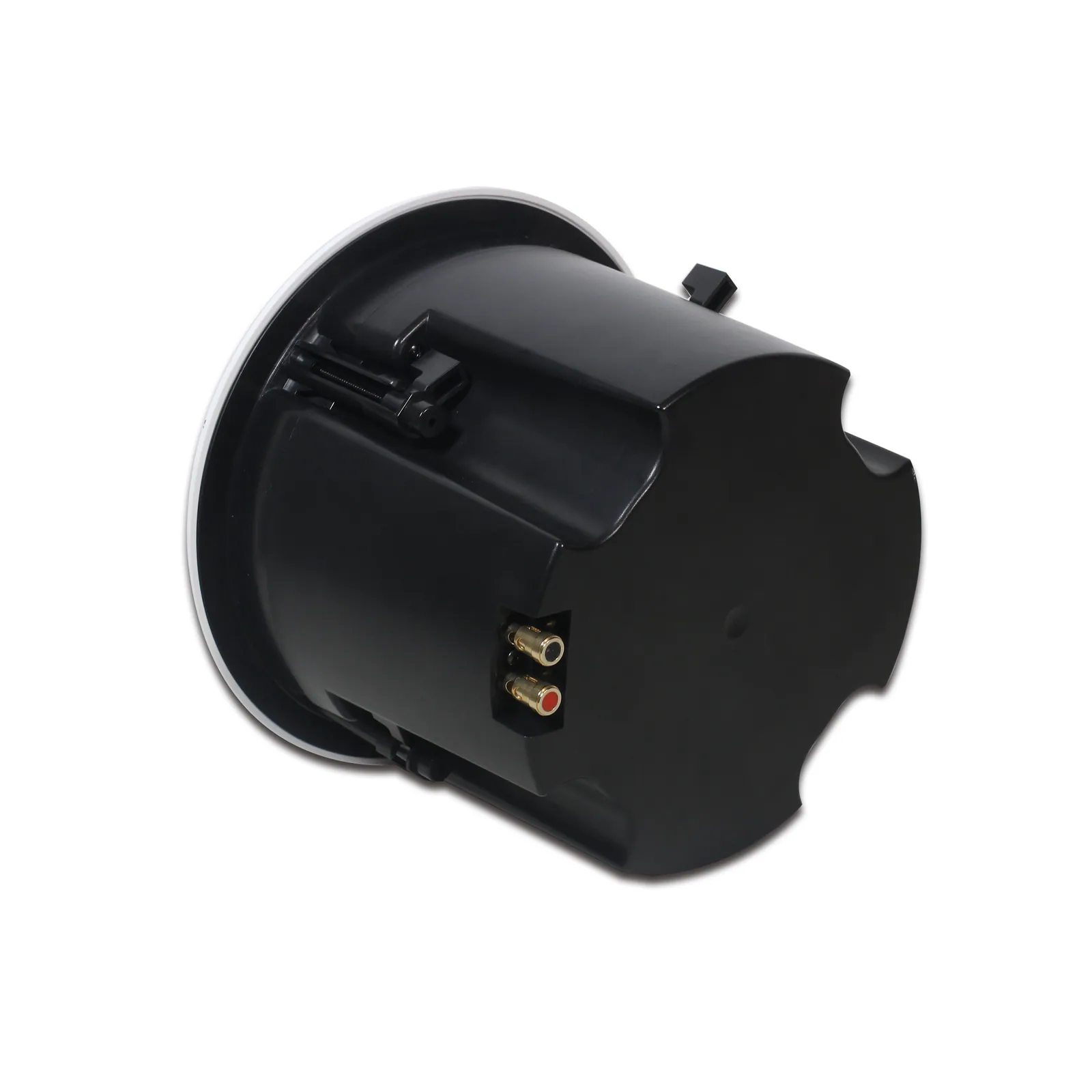

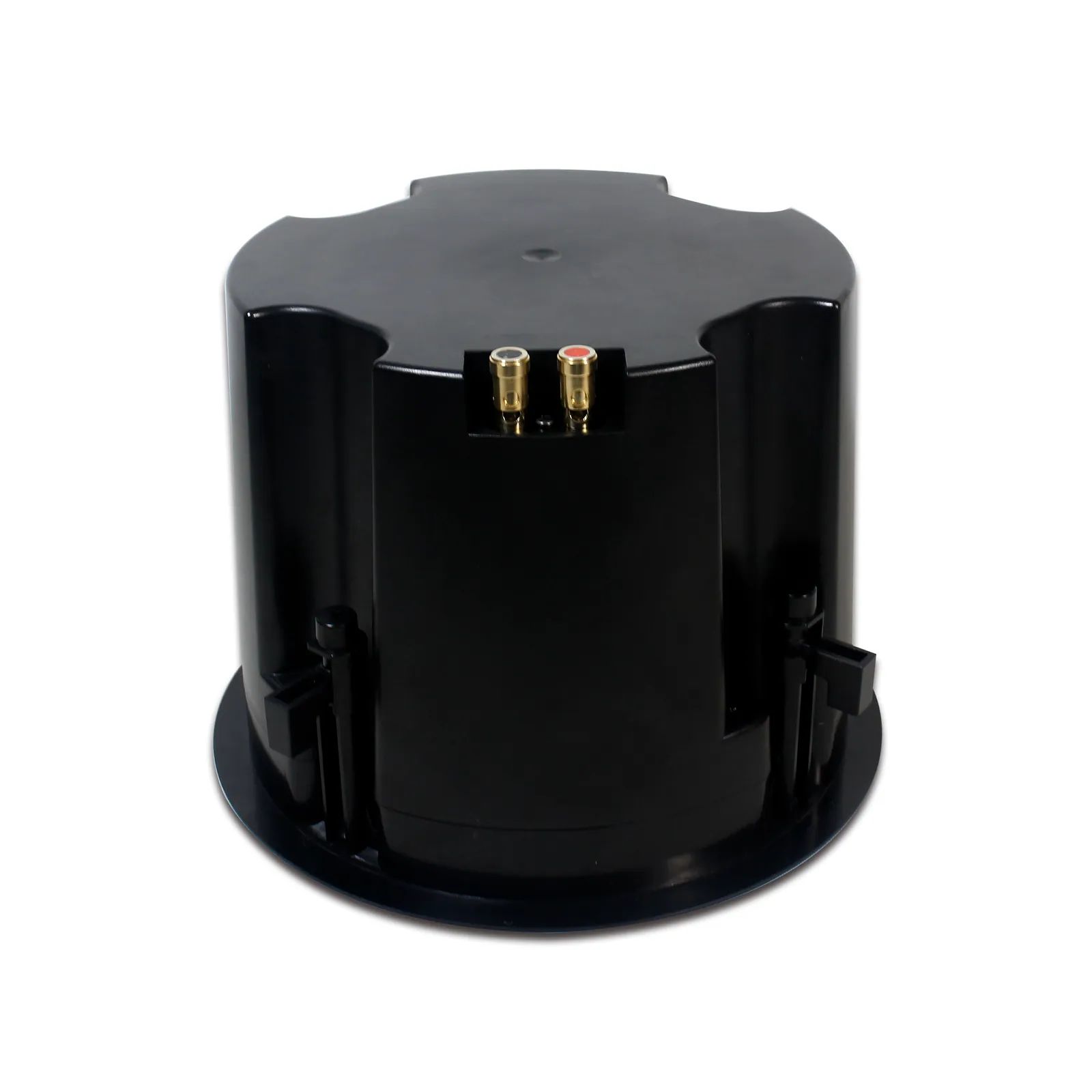

Connector: Standard pressed
Enclosure Material: ABS
Impedance: 8 ohm
Size: dia 280mm*200mm
hole cut size: 248mm
Weight: 2.6kg

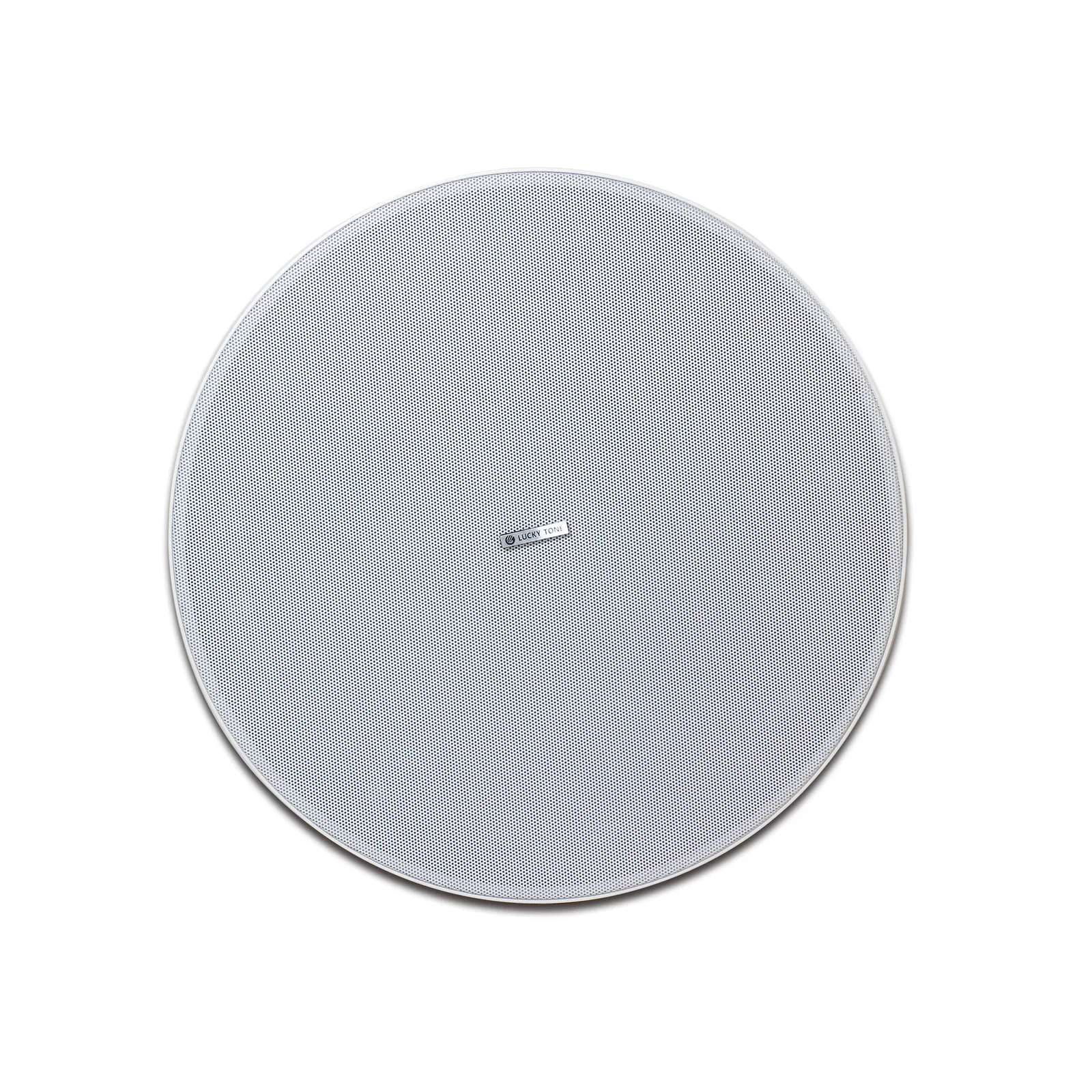

Finish: White

02DescriptionManufacturer's description

What it is.

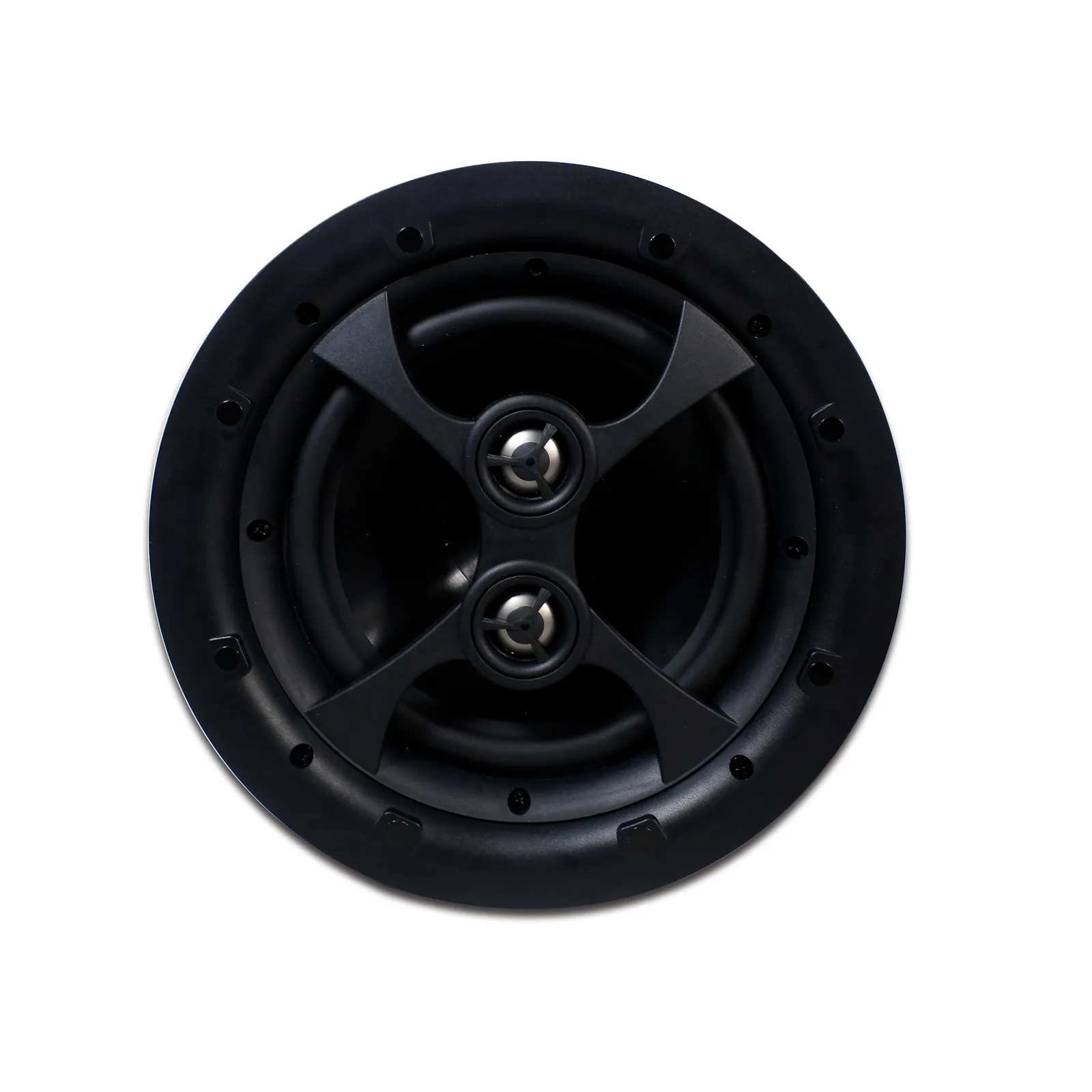

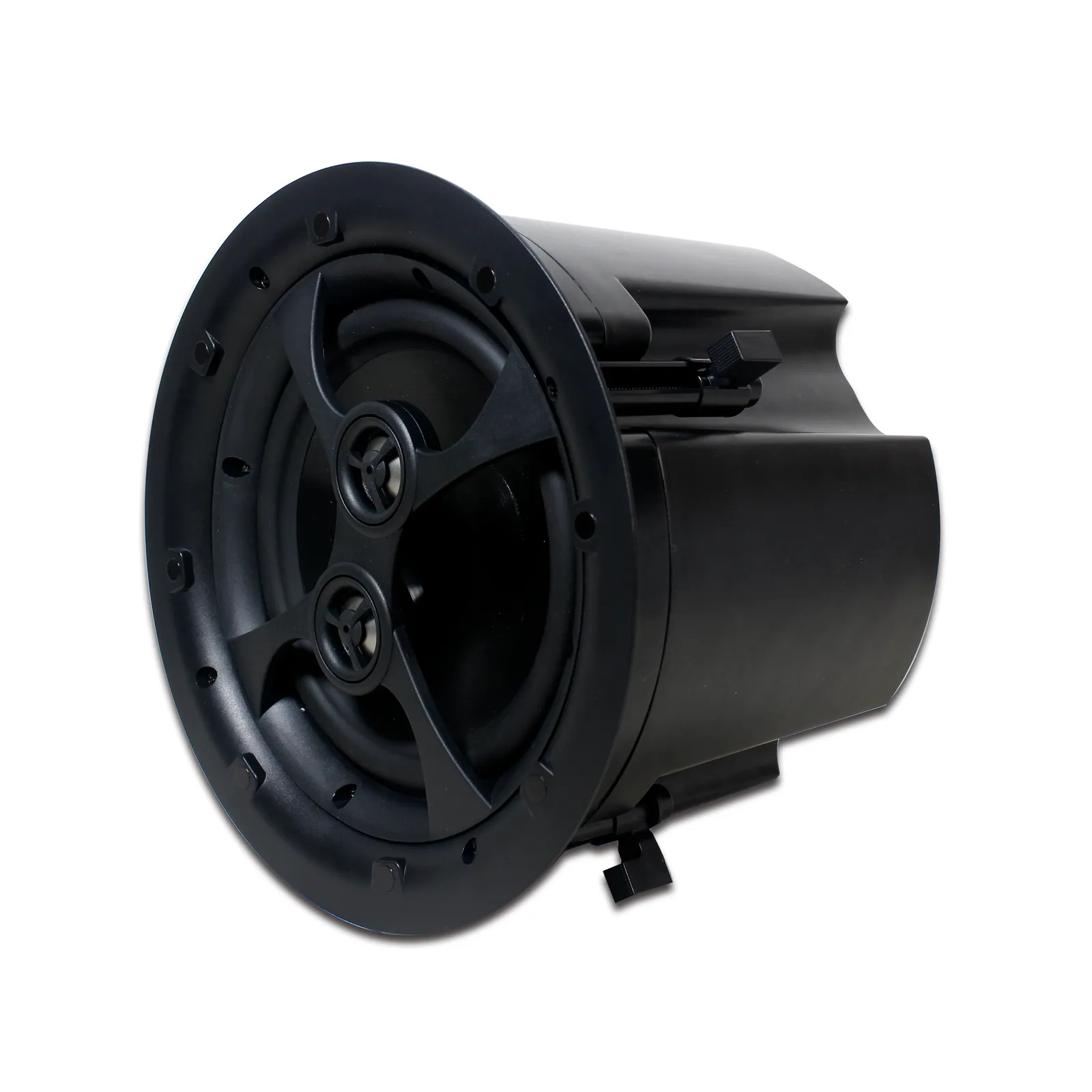

With 2 tweeters

With crossover to produce clear yet powerful sound

Good for high demand audio environment

03Documents1 file · 1.9 MB

Documents and files.

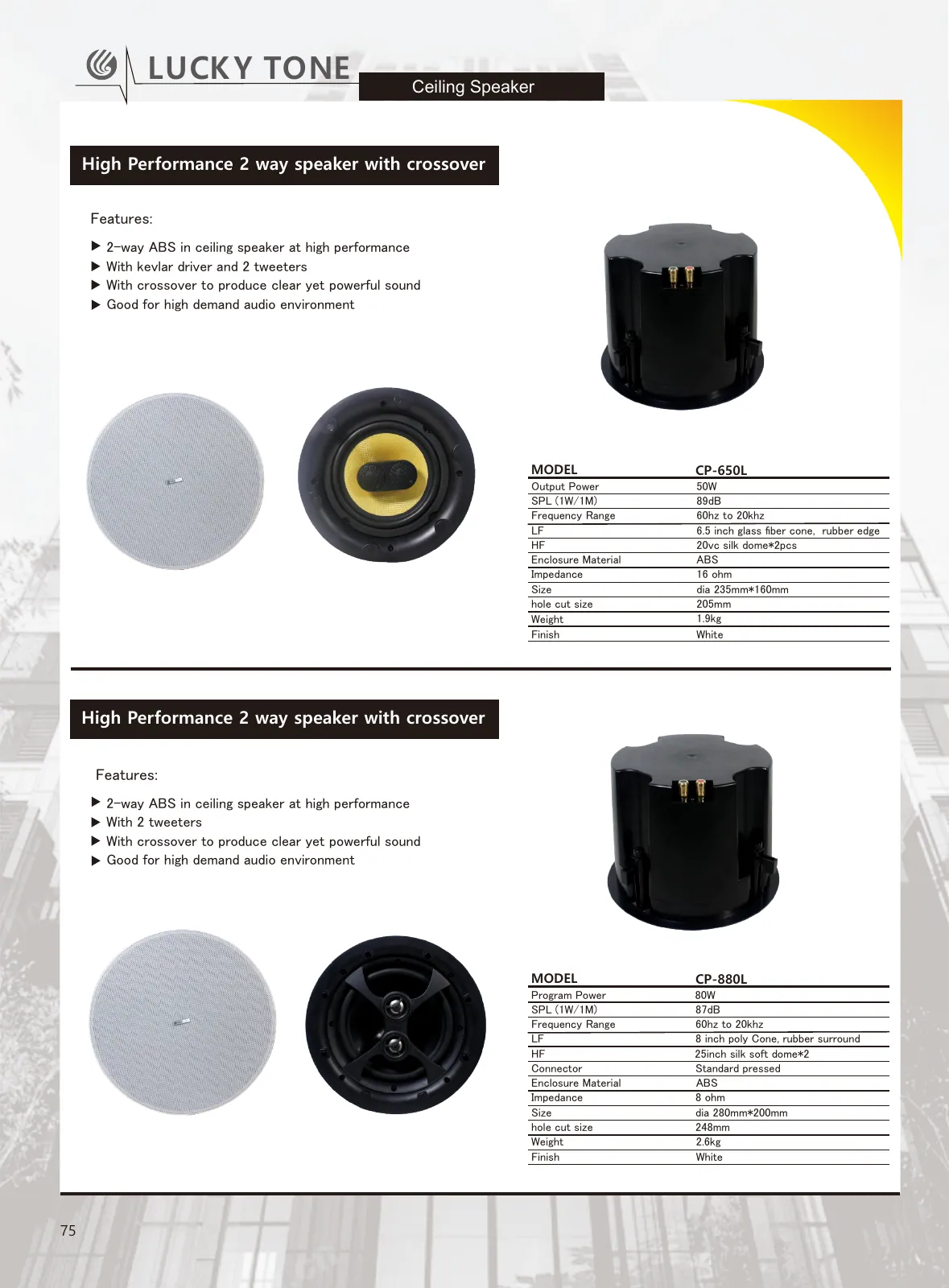

Main document

Specifications

PDF · 1.9 MB

Download specifications
